Safety & Troubleshooting
Safety and Troubleshooting Information
Safety Precautions and Maintenance • FAQs • Troubleshooting • Regulatory Information•
Other Related Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
Operation:
●Keep the monitor out of direct sunlight and away from stoves or any other heat source.
●Remove any object that could fall into ventilation holes or prevent proper cooling of the
monitor’s electronics.
●Do not block the ventilation holes on the cabinet.
●When positioning the monitor, make sure the power plug and outlet are easily accessible.
●If turning off the monitor by detaching the power cable or DC power cord, wait for 6 seconds
before attaching the power cable or DC power cord for normal operation.
●Please use approved power cord provided by Philips all the time. If your power cord is
missing, please contact with your local service center. (Please refer to Customer Care
Consumer Information Center)
●Do not subject the LCD monitor to severe vibration or high impact conditions during
operation.
●Do not knock or drop the monitor during operation or transportation.
Maintenance:
●To protect your display from possible damage, do not put excessive pressure on the LCD
panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing
your hand or fingers on the LCD panel.
●Unplug the monitor if you are not going to use it for an extensive period of time.
●Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be
wiped with a dry cloth when the power is off. However, never use organic solvent, such as,
alcohol, or ammonia-based liquids to clean your monitor.
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/SAFETY/SAFETY.HTM (1 of 2)2005-07-08 5:42:10 PM

Safety & Troubleshooting
●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to
dust, rain, water, or excessive moisture environment.
●If your monitor gets wet, wipe it with dry cloth as soon as possible.
●If foreign substance or water gets in your monitor, please turn the power off immediately and
disconnect the power cord. Then, remove the foreign substance or water, and send it to the
maintenance center.
●Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme
cold.
●In order to maintain the best performance of your monitor and use it for a longer ligetime,
please use the monitor in a location that falls within the following temperature and humidity
ranges.
❍Temperature: 5-40°C 41-104°F
❍Humidity: 20-80% RH
Service:
●The casing cover should be opened only by qualified service personnel.
●If there is any need for any document for repair or integration, please contact with your local
service center. (please refer to the chapter of "Consumer Information Center")
●For transportation information, please refer to "Physical Specifications".
●Do not leave your monitor in a car/trunk under direct sun light.
Consult a service technician if the monitor does not operate normally, or you are not
sure what procedure to take when the operating instructions given in this manual have
been followed.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/SAFETY/SAFETY.HTM (2 of 2)2005-07-08 5:42:10 PM

About This Manual
About This Manual
About This Guide • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor TV. It
describes the features, setup, operation and other important information.
It includes the following sections:
●Safety and Troubleshooting Information provides tips and solutions for common problems as
well as other related information you may need.
●About This Electronic User's Manual gives an overview of information included, along with
notation icon descriptions and other documentation for your reference.
●Product Information gives an overview of the monitor's features as well as the technical
specifications for this monitor.
●Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
●On-Screen Display provides information on adjusting the settings on your monitor.
●Remote Control provides information on adjusting the settings for your TV function.
●Customer Care and Warranty contains a list of worldwide Philips Consumer Information
Centres along with help desk phone numbers and information on the warranty applicable to
your product.
●Download and Print Option transfers this entire manual to your hard drive for easy reference.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/ABOUT/ABOUT.HTM (1 of 2)2005-07-08 5:42:12 PM

About This Manual
Notes, Cautions and Warnings
Throughout this guide blocks of text may be accompanied by an icon and printed in bold or italic
type. These blocks contain notes, cautions or warnings. They are used as follows:
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In such
cases, the specific presentation of the warning is mandated by the relevant regulatory authority.
RETURN TO TOP OF THE PAGE
©2005 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/ABOUT/ABOUT.HTM (2 of 2)2005-07-08 5:42:12 PM

Product Information
Product Information
Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel
Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment •

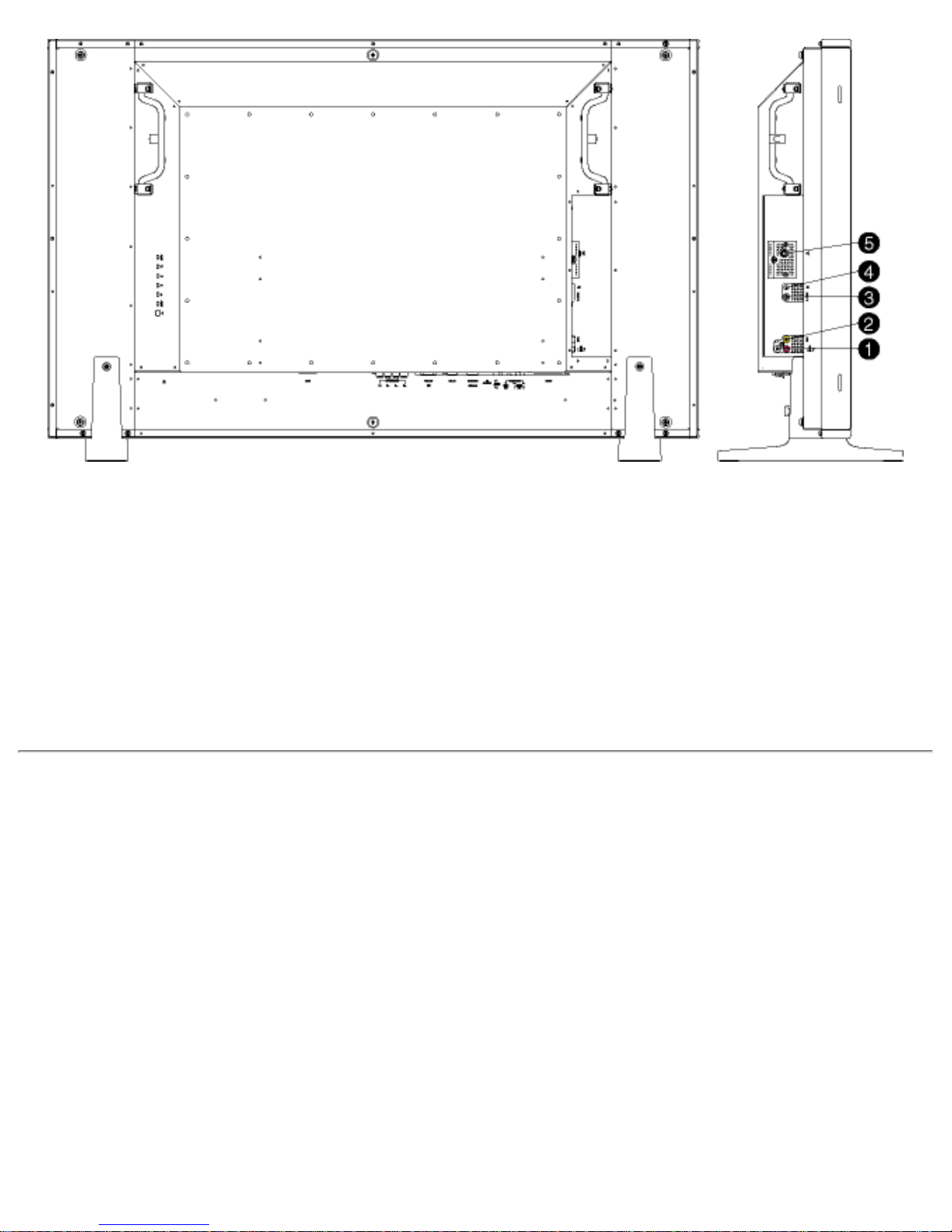

Product Views
Product Features
BDL3221V
●Less management effort for maximum productivity
❍Multiple displays form a daisy chain to show uniform
❍Monitor is network controllable for remote management
❍Input connectors: CVBS, S-video, SCART, YPbPr, and RF (TV input)
●Better front of screen experience
❍Montion adaptive deinterlacing for razor sharp images
❍3D comb filter separates color for a razor-sharp image
❍WXGA, wide format 1366 x 768 resolution for sharper display
❍Adaptive brightness intensifier technology
❍Ready to display SDTV, EDTV, and HDTV formats
●Great convenience
❍Zoom function to enable tiled matrix application
❍Support hight-bandwidth digital content protection decryption
❍Split screen for dual video/PC display
❍Picture in picture for public display
* RF(TV input) is only available for 320WN6QS
RETURN TO TOP OF THE PAGE
Technical Specifications*
LCD PANEL
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (1 of 9)2005-07-08 5:42:15 PM

Product Information
• Type TFT LCD
• Screen size 31.51inch
• Pixel Pitch 0.17 x 0.511 mm
• LCD Panel type 1366 x 768 pixels R.G.B. vertical stripe
Hard coating surface, anti-glare polarizer
• Effective viewing area 697.7 x 392.2 mm
• Display Colors 8 bits interface (16.7M colors)
PC SCANNING
• Vertical refresh rate 56Hz-75Hz
• Horizontal frequency 30kHz-63kHz
PC VIDEO
• Video dot rate < 85 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2K ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
• Input Frequency WXGA Hsync 48 kHz, Vsync 60 Hz (N.I.) SVGA Hsync 38 kHz, Vsync 60 Hz (N.I.)
VGA/DVI-D Hsync 31 kHz, Vsync 60 Hz (N.I.)
• Video interface D-sub, S-Video, TV-RF, SCART composite, components
video, and DVI
AUDIO
• Input level for PC/SVHS/SCART 500 mV nominal
• Loudspeaker 10W Stereo Audio (10W/channel RMS x2, 200Hz~10kHz, 8
ohm, 10% THD)
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (2 of 9)2005-07-08 5:42:15 PM

Product Information
OPTICAL CHARACTERISTICS
• Contrast ratio 1200:1(with DCR on)
• Brightness 500 cd/m2(typ.)
• Peak contrast angle 6 o'clock
• White Chromaticity x: 0.283 y: 0.297 (at 9300°K) x: 0.313 y: 0.329 (at 6500°K)
x: 0.328 y: 0.344 (at 5700°K)
• Viewing Angle (C/R >5)
Upper >89° (typ.)
Lower >89° (typ.)
Left >89° (typ.)
Right >89° (typ.)
• Response time (G to G) 8ms(typ.) 12ms(max.)
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are
calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a
predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, at PC mode, open the OSD by pressing the MENU button of your monitor. Use the
down button to go to COLOR SETTINGS and press MENU again. Then move the down button
to go to NORMAL COLOR and press MENU again.
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (3 of 9)2005-07-08 5:42:15 PM

Product Information
Resolution & Preset Modes
• Recommended 1366 x 768 at 60Hz
10 factory preset modes:
Resolution Mode H. freq (kHz) V. freq (Hz)
PC
640x350 VGA-1 31.469 70.086
640x480 VGA VESA 60 31.469 59.940
640x480 VGA VESA 75 37.500 75.000
720x400 IBM VGA 3H 31.468 70.087
800x600 SVGA VESA 56 35.156 56.250
800x600 SVGA VESA 60 37.879 60.317
800x600 SVGA VESA 75 46.875 75.000
1280x1024 XGA VESA 60 48.363 60.004
1280x1024 XGA VESA 75 60.023 75.029
1280x768 GTF 60 47.700 60.000
1280x768 Wincomm 45.113 56.260
1360x768 VESA 47.700 60.000
Video
720x480 480i 15.734 59.940
720x576 576i 15.625 50.000
720x480 480p 31.470 60.000
720x576 576p 31.250 50.000
1280x720 720p 28.200 50.000
1280x720 720p 33.750 60.000
1920x1080 1080i 37.500 50.000
1920x1080 1080i 45.000 60.000
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (4 of 9)2005-07-08 5:42:15 PM

Product Information
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor
can automatically reduce its power consumption when not in use. If an input from a keyboard,
mouse or other input device is detected, the monitor will then 'wake up' automatically. The
following table shows the power consumption and signaling of this automatic power saving
feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used LED color
Active On Yes Yes 100 W (typ.) Blue
Sleep Off No No < 5 W Amber
Switch Off Off - - < 3 W Off
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD) * 1014mm x 517mm x 244mm (incl. Pedestal, Speakers)
794mm x 490mm x 130mm (w/o Pedestal, Speakers)
• Weight 19.2 kg (incl. Pedestal, Speakers)
• Power supply 100 — 240 VAC, 60 — 50 Hz
• Power consumption PC Mode: 100 W (typ.)
TV Mode: 130 W (typ.)
• Temperature (operating) 5° C to 35° C
• Relative humidity 20% to 80%
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (5 of 9)2005-07-08 5:42:15 PM

Product Information
• System MTBF 50K hrs (excluding CCFL 40Khrs)
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment

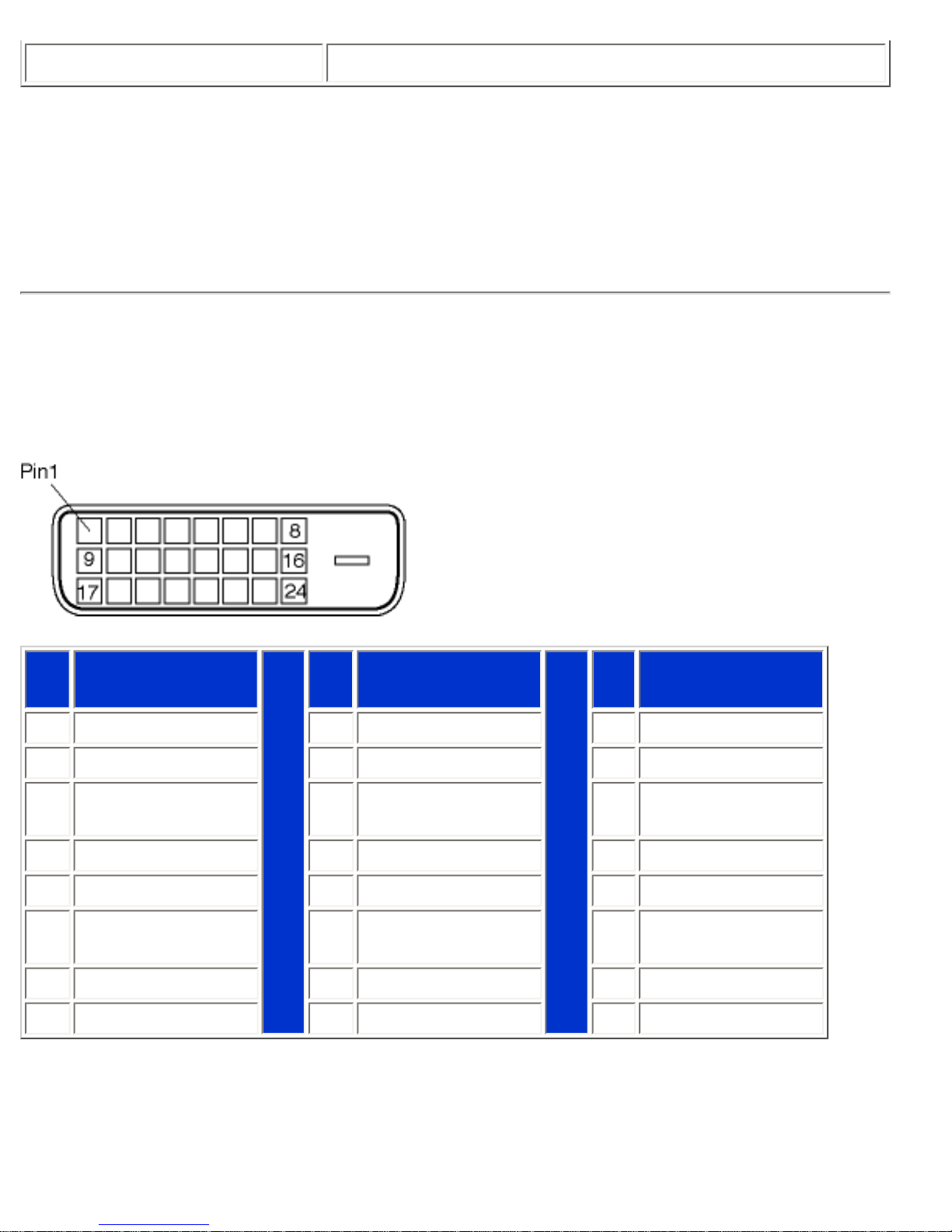

1. The digital only connector (DVI-D) contains 24 signal contacts organized in three rows of eight
contacts. Signal pin assignments are listed in the following table:
Pin
No. Signal
Assignment
Pin
No. Signal
Assignment
Pin
No. Signal Assignment
1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0-
2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3T.M.D.S. Data2/4
Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5
Shield
4No connect 12 No connect 20 No connect
5No connect 13 No connect 21 No connect
6DDC Clock 14 +5V Power 22 T.M.D.S. Clock
Shield
7DDC Data 15 Hot Plug Detect 23 T.M.D.S. Clock+
8No connect 16 Ground (for +5V) 24 T.M.D.S. Clock-

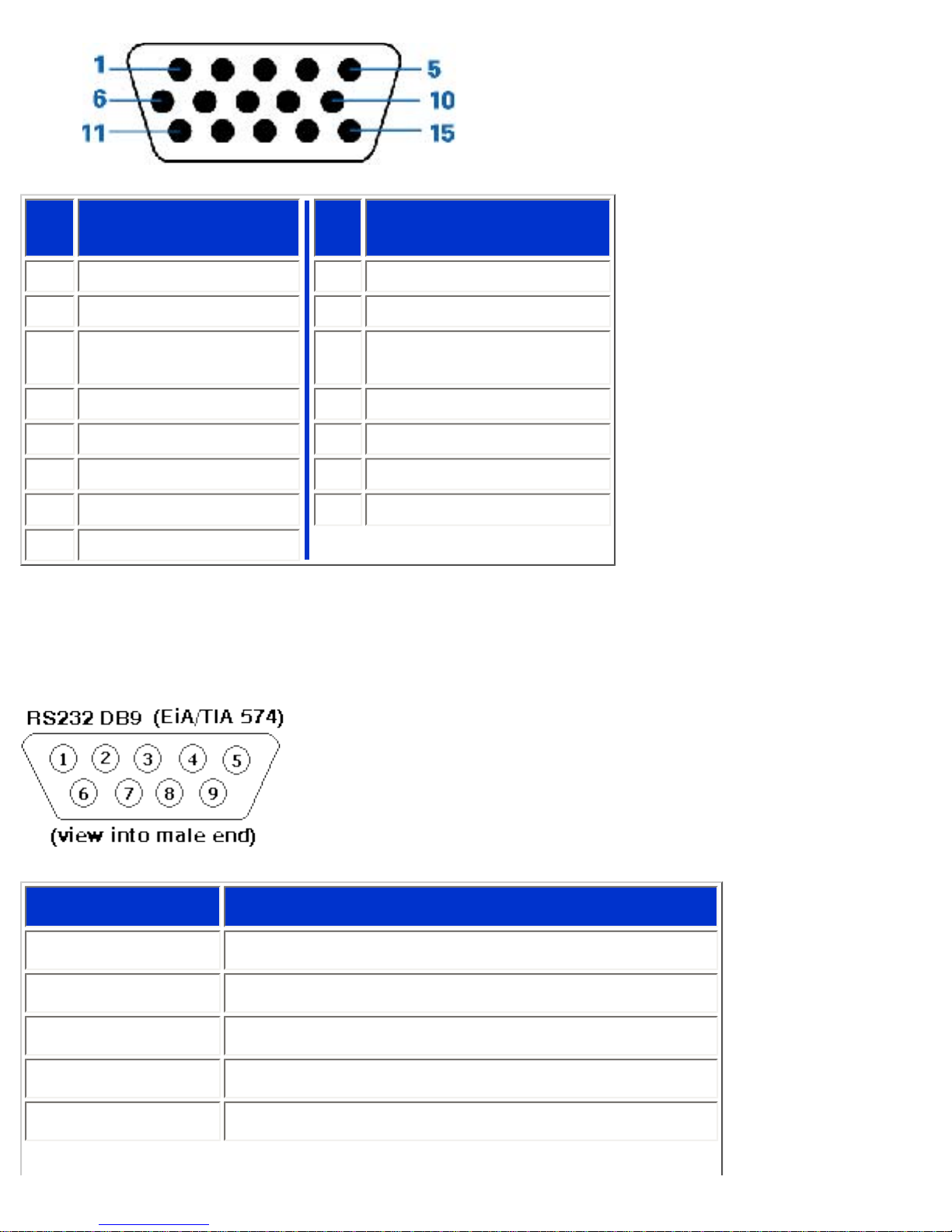

2. The 15-pin D-sub connector (male) of the signal cable:
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (6 of 9)2005-07-08 5:42:15 PM

Product Information
Pin
No. Assignment Pin
No. Assignment
1Red video input 9DDC +5V
2Green video input 10 Cable detect
3Blue video input 11 Identical output,
connected to pin 10
4Ground 12 Serial data line (SDA)
5NC 13 H. Sync / H+V
6Red video ground 14 V. Sync
7Green video ground 15 Data clock line (SCL)
8Blue video ground
3. RS232 Connector
D-sub 9-pin male connector for communication with plasma engine or PC.
Pin No. RS-232 (EIA-232-A) Function
3 Transmit Data (TD) from DTE to DCE
2 Receive Data (RD) from DCE to DTE
7 Request to Send (RTS)
8 Clear to Send (CTS)
6 DCE Ready (DSR)
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (7 of 9)2005-07-08 5:42:15 PM

Product Information
5 Signal Ground (SG)
1 Received Line Signal Detector (DCD)
4 DTE Ready (DTR)
9 Ring Indicator
4. SCART Connector
Pin
No. Signal Pin No.
1Audio right channel output (0.5 Vrms, < 1K
ohms) 2
2Audio right channel input (0.5 Vrms, > 10K
ohms) 1
3Audio left channel output (0.5 Vrms, < 1K
ohms) 6
4 Audio ground 4
5 Blue signal ground 5
6Audio left channel input (0.5 Vrms, > 10K
ohms) 3
7 Blue signal I/O (0.7 Vp-p, 75 ohms) 7
8Function switching I/O (L: < 2V, H: > 10V, 10K
ohms) 8
9 Green signal ground 9
10 Intercommunication data line No. 1 10
11 Green signal I/O (0.7 Vp-p, 75 ohms) 11
12 Intercommunication data line No. 2 12
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (8 of 9)2005-07-08 5:42:15 PM

Product Information
13 Red signal ground 13
14 Blanking signal ground 14
15 Red signal I/O (0.7 Vp-p, 75 ohms) 15
16 Blanking signal I/O (L: < 0.4V, H: >1.0V, 75
ohms) 16
17 Composite video signal ground 18
18 Blanking signal ground 17
19 Composite video signal output (1 Vp-p, 75
ohms, sync: negative) 20
20 Composite video signal input (1 Vp-p, 75
ohms, sync: negative) 19
21 Plug shield (common ground) 21
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Product Description
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/PRODUCT/PRODUCT.HTM (9 of 9)2005-07-08 5:42:15 PM

Installing your LCD Monitor/TV
Installing your LCD Monitor/TV
Product Description • Connecting to Your PC, TV antenna, DVD/VCR etc. • Getting Started • Optimizing
Performance

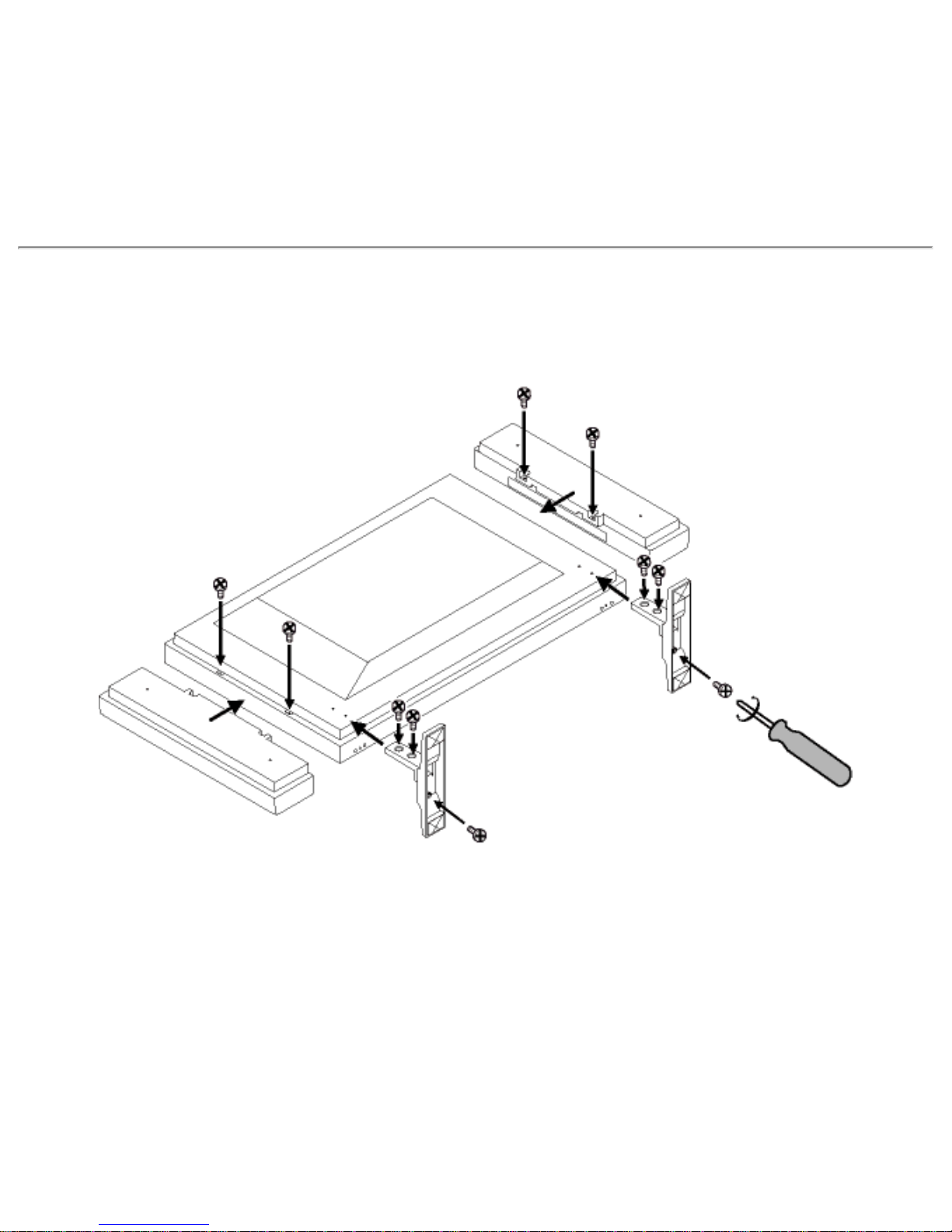

Product Description
Installing your LCD Monitor/TV
Side View (Left)
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/INSTALL/INSTALL.HTM (1 of 5)2005-07-08 5:42:19 PM

Installing your LCD Monitor/TV
1INPUT Selecting input source
2Increase or decrease the channel number
or
moving up or down to highlight the function in OSD
3Increase or decrease the level of audio volume
or
moving left or right to highlight the sub-menu in the selected function
of OSD
4MENU Open the OSD or confirm the selected function
5DC power switch On/Off
RETURN TO TOP OF THE PAGE
Side View (Right)
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/INSTALL/INSTALL.HTM (2 of 5)2005-07-08 5:42:19 PM

Installing your LCD Monitor/TV
1 Audio input for composite input Audio (left and right) in put for compo site
signal in put.
2 Composite input Composite (CVBS) signal input
3 S-Video input S-Video signal input
4 Earphone output Earphone output
5 TV tuner TV tuner input (available in TV version only)
RETURN TO TOP OF THE PAGE
Rear View
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/INSTALL/INSTALL.HTM (3 of 5)2005-07-08 5:42:19 PM

Installing your LCD Monitor/TV
1AC in AC power in
2 Speakers output External speakers output
3 D-Sub output PC analog D-Sub input
4 DVI-D input PC digital input
5 D-Sub input PC analog D-Sub input
6 RS232 input RS232 network connection Input
7 RS232 output RS232 network connection output for the use of
loop through function
8 PC audio PC stereo audio input
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/INSTALL/INSTALL.HTM (4 of 5)2005-07-08 5:42:19 PM

Installing your LCD Monitor/TV
9 Audio input for component signal Audio (left and right) input for component signal
input
10 Component input Component (YPbPr) signal input
11 Composite output Composite (CVBS) output for the use of loop
through function
12 Audio output for composite output Audio (left and right) out put for compo site signal
out put.
13 External / EURO-AV SCART connection (for the use of European
model only)
14 Kensington lock Kensington lock
Optimising Performance
●For best performance, ensure that your display settings are set at 1360x768, 60Hz.
Note: You can check the current display settings by pressing the 'MENU' button
once.
●You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the best performance
out of your monitor. This is included on this CD. Step-by-step instructions are provided to guide you
through the installation process. Click on the link to find out more about this program.
More about FP_setup04.exe
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/INSTALL/INSTALL.HTM (5 of 5)2005-07-08 5:42:19 PM

On Screen Display
On Screen Display
On Screen Display Control • Using Your Remote Control

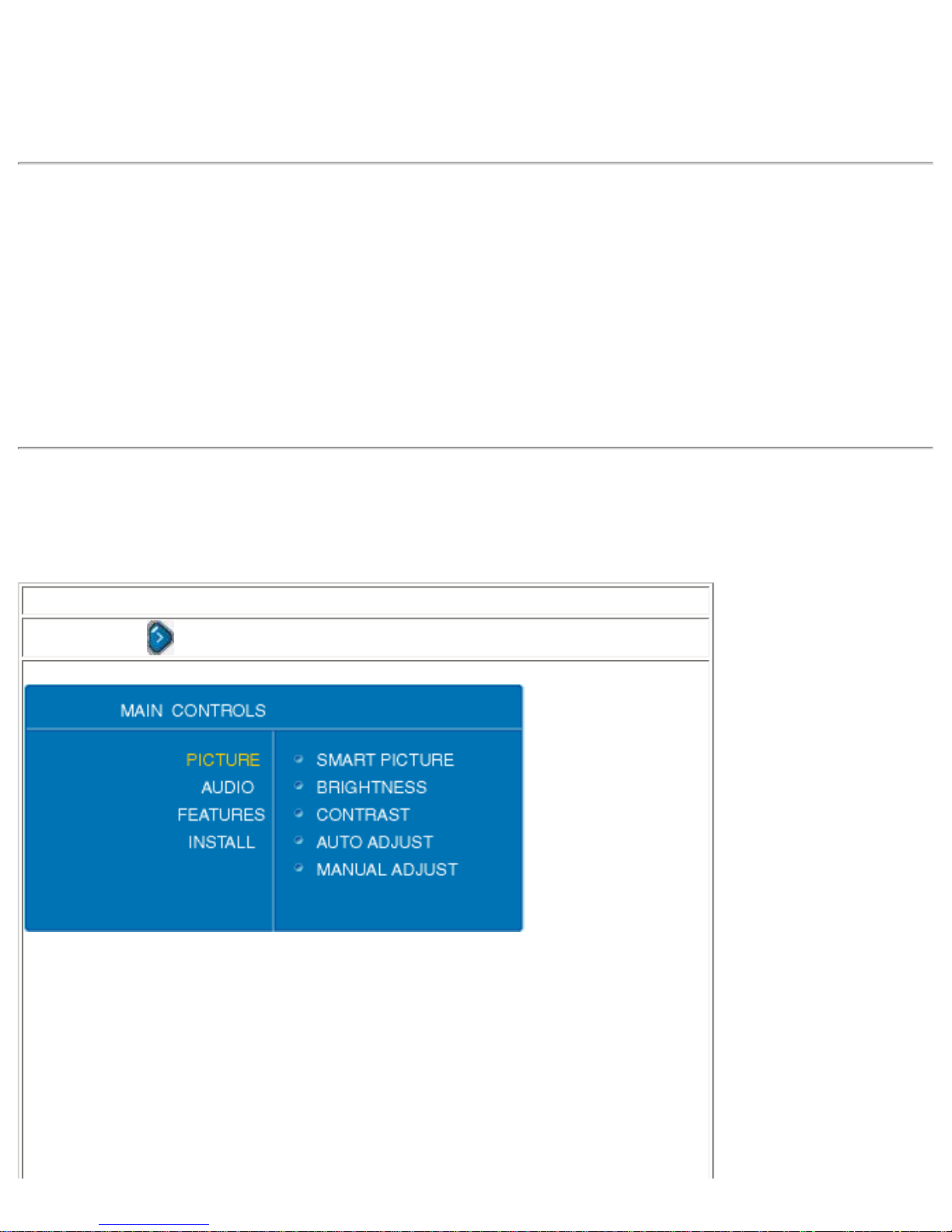

On Screen Display Controls
An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for further
adjusting your Monitor/TV.
There are two different modes of OSD available for different models:
●PC Mode
●TV Mode
Main menu
There is a slight difference between PC mode and TV mode: Setup selection is available in TV mode only.
Sub-menus
Picture: press to enter sub-menu selections.
PC Mode
TV Mode
file:///D|/My%20Documents/dfu/320WN6/english/320wn6/OSD/osddesc.htm (1 of 22)2005-07-08 5:42:23 PM
