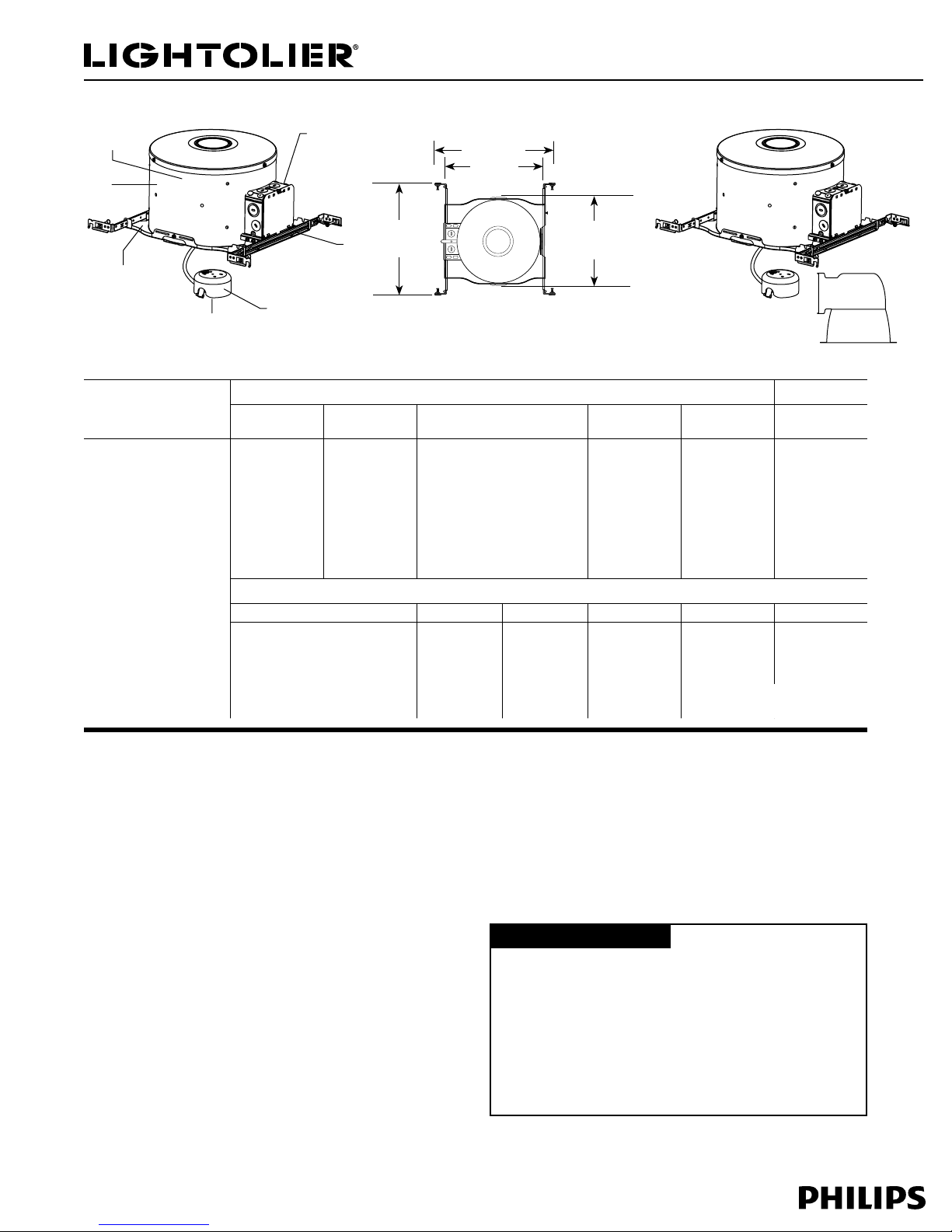

Performance Recessed CFL Downlighting 1001FDIC
Page 1 of 1 5" Aperture, 1 Light, Compact Fluorescent, IC AirSeal® , Dimming, Frame-In Kit
1
2
3
4
5
6
7
Reflector Trim
Frame-in Kit
Features
1. Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal
insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57
PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and
Washington State Energy Code (Section 502.4) and reduces heat loss and
condensation in ceiling. Access door for inspection of junction box.
2. Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings
up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length
of mounting bars with locking screw and bendable slot. Four slots are
positioned 90° apart to simplify alignment. Push-in/twist-out roto-clips hold
reflector flush to ceiling.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL
listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing after
a slight field modification (see Instruction Sheet). Features integral self
tapping phillips screws for secure attachment to wood or metal construction.
Attaches to T-bar ceilings without the need of accessories.
5. Ballast: Mounted inside housing. 120V or 277V UL Listed Electronic Dimming
Ballast, end of lamp life protection, class “P” thermally protected, class “A”
sound rating.
6. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
7. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
Options & Accessories
Extra-Thick Ceiling
Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings
Labels
cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.
Complies with Air Leakage Requirements stated in the Model Energy Code and
the Washington State Energy Code.
AirSeal® is a registered trademark of Lightolier
Top View
Overall Length
Ceiling Opening: 5 1/4"
Overall Width
10 3/8"
13" Min.
24" Max.
15 5/16"
12 1/4"
Height: 7 1/4"
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe™
Frame-In Kit
Uniframe™Compact Fluorescent Performance Series Reflector Trims
Horizontal Open Horizontal Wall
Wash - Single
Horizontal Wet Location
Lensed / Diffused
Horizontal
Cross Blade
1001FDICMX1**
(Advance Mark10 – 120v)
26w Triple
GX24q-3 Base
120v – 0.26amp max
1001FDICMX2**
(Advance Mark10 – 277v)
26w Triple
GX24q-3 Base
277v – 0.11amp max
1001HCL
1001HCD
1001HWH
1001HCLSW
1001HCDSW
1001HWHSW
Clear Lens Fresnel
1001HCLC 1001HCLF
1001HCDC 1001HCDF
1001HWHC 1001HWHF
Opal Lens
1001HCLO
1001HCDO
1001HWHO
1001HACB
1001HWHCB
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Cone Satin Cone Bafe Wall Wash Wet Location
1012* 1071
1013* 1045
1013BK* 1046
1013WH 1046CD
1013CD*
1008*
1010*
1005*
1005BNM
1005WH
1076
1076WH
1035
1035WH
1085
1095
1096
1096CD
1024
1078
*Add NM sufx to catalog number
for Natural Metal ange and nish.
**Add N to catalog number
for preset nails.
