Philips 105E User manual

Philips 105E Electronic User's Manual
file:///C|/rita wu/gs3noVE/english/105E/Index.htm [11/3/2000 11:55:19 AM]

Safety and Troubleshooting Information
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other
Related Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
Disconnect the monitor from the power supply if the monitor is not to be used for an extended period
of time.
●
Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover
should only be removed by qualified service personnel.
●
Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and
prevent proper cooling of the monitor's electronic devices.
●
To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or
excessive moisture.
●
Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a slightly
damp cloth. Disconnect the monitor from the power supply before cleaning.
●
When positioning the monitor, make sure the power plug and outlet are easily accessible.●
Consult a service technician if the monitor does not operate normally when operating instructions of this
manual are followed.
RETURN TO TOP OF THE PAGE
Safety & Troubleshooting
file:///C|/rita wu/gs3noVE/english/105E/safety/safety.htm [11/3/2000 11:56:46 AM]

About This Electronic User's Manual
About This Guide • Other Documents You May Need • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips 105E Color Monitor. It describes the
monitor's features, setup, operation and all other information, which is the same exact information described
in our printed version.
The sections are as follows:
Safety and Troubleshooting Information provides tips and solutions for common problems, and other
related information you may need.
●
About This Electronic User's Manual gives overview of what information are included as well as
notation icon descriptions and other documentation you can refer to.
●
Product Information gives an overview of the monitor's features and as well as the technical
specifications for this monitor.
●
Installing Your Monitor describes the initial setup process and gives an overview of how to use the
monitor.
●
Front Controls provides information on adjusting the settings on your monitor.●
Customer Care and Warranty is a list of worldwide Philips consumer information centers along with
the help desk phone numbers and information on the applicable warranty of your product..
●
Glossary provides more information for technical terms.●
Download Option allows you to consumer keep a copy of the entire manual in your hard drive.●
RETURN TO TOP OF THE PAGE
Other Documents You May Need
In addition to this Electronic User's Guide, you may need to refer to the following documentation:
Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This is
included with this product.
●
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
About This Electronic User's Manual
file:///C|/rita wu/gs3noVE/english/105E/about/about.htm (1 of 2) [11/3/2000 11:56:46 AM]

Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: This icon indicates important information and tips that help you make better
use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either potential
damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how to
avoid the problem.
SMART HELP: This icon indicates helpful information when adjusting the On Screen
Display of your monitor.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the
specific presentation of the warning is mandated by regulatory authority.
RETURN TO TOP OF THE PAGE
©1999 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or broadcasting in whole or in
part is prohibited without written consent of Philips Electronics N.V.
About This Electronic User's Manual
file:///C|/rita wu/gs3noVE/english/105E/about/about.htm (2 of 2) [11/3/2000 11:56:46 AM]

Product Information
Product Features • Technical Specifications • Automatic Power Saving • Physical
Specification • Pin Assignment • Product Views
Product Features
105E11
15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with MACs and
PCs
●
Autoscan covers horizontal frequencies up to 54 kHz offering a maximum resolution of 1024 x 768
with flicker free display of 800 x 600 at up to 87Hz
●
Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).● Smallest footprint in its class requires minimum desk space: maximum depth is only 379 mm/14.9"● FCC, CE (in selected countries only) and ISO9241, ISO14001 certified●
105E12
15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with MACs and
PCs
●
Autoscan covers horizontal frequencies up to 54 kHz offering a maximum resolution of 1024 x 768
with flicker free display of 800 x 600 at up to 87Hz
●
Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).● Smallest footprint in its class requires minimum desk space: maximum depth is only 379 mm/14.9"● FCC, CE (in selected countries only) and ISO9241, ISO14001 certified●
RETURN TO TOP OF THE PAGE
Technical Specifications*
CRT
• Size and deflection 15 inch / 38 cm ; 90° deflection angle
• Dot pitch / Grille pitch 0.28 mm
• Horizontal pitch 0.24 mm
• Tube type Shadow mask, flat square, anti-glare, anti-static (105E11), light
transmission 57%
• Phosphor P22
105E Product Information
file:///C|/rita wu/gs3noVE/english/105E/product/product.htm (1 of 4) [11/3/2000 11:56:47 AM]

• Recommended display area 10.6" x 7.95" / 270 x 202 mm
• Maximum display area 11.2" x 8.4" / 284 x 213 mm
SCANNING
• Horizontal scanning 30 - 54KHz
• Vertical scanning 50 - 120 Hz
VIDEO
• Video dot rate 65 MHz
• Input impedance
- Video 75 ohm
- Sync 2.2 kOhm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
WHITE COLOR TEMPERATURE
Chromaticity CIE coordinates:
• at 9300 K degrees x = 0.281 / y = 0.311
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or
other input device is detected, the monitor will automatically "wake up". The following table shows the power
consumption and signaling of this automatic power saving features:
Power Management Definition
VESA's Mode Video H-sync V-sync Power Used Power
Saving
(%) LED color
ON Active Yes Yes <75W 0 % Green
105E Product Information
file:///C|/rita wu/gs3noVE/english/105E/product/product.htm (2 of 4) [11/3/2000 11:56:47 AM]

Stand-by Blanked No Yes < 15W 80% Yellow
Suspend Blanked Yes No < 15W 80% Yellow
OFF Blanked No No < 8W 94% Amber
This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has
determined that this product meets the ENERGY STAR®guidelines for energy efficiency.
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimensions 14.1" x 14.9" x 14.9" / 358 x 380 x 379 mm (including base)
14.1" x 13.2" x 14.9" / 358 x 335 x 379 mm (excluding base)
• Weight 11.5 kg
• Power supply 90 - 264 VAC, 50/60Hz
• Temperature (operating) 0° to 40°C / 32° to 104°F
• Temperature (storage) -25° to +65°C / -13° to +149°F
• Relative humidity 5% to 95%
* Resolution 800x 600, standard size, contrast max., brightness 50%, 9300°, full white pattern.
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE

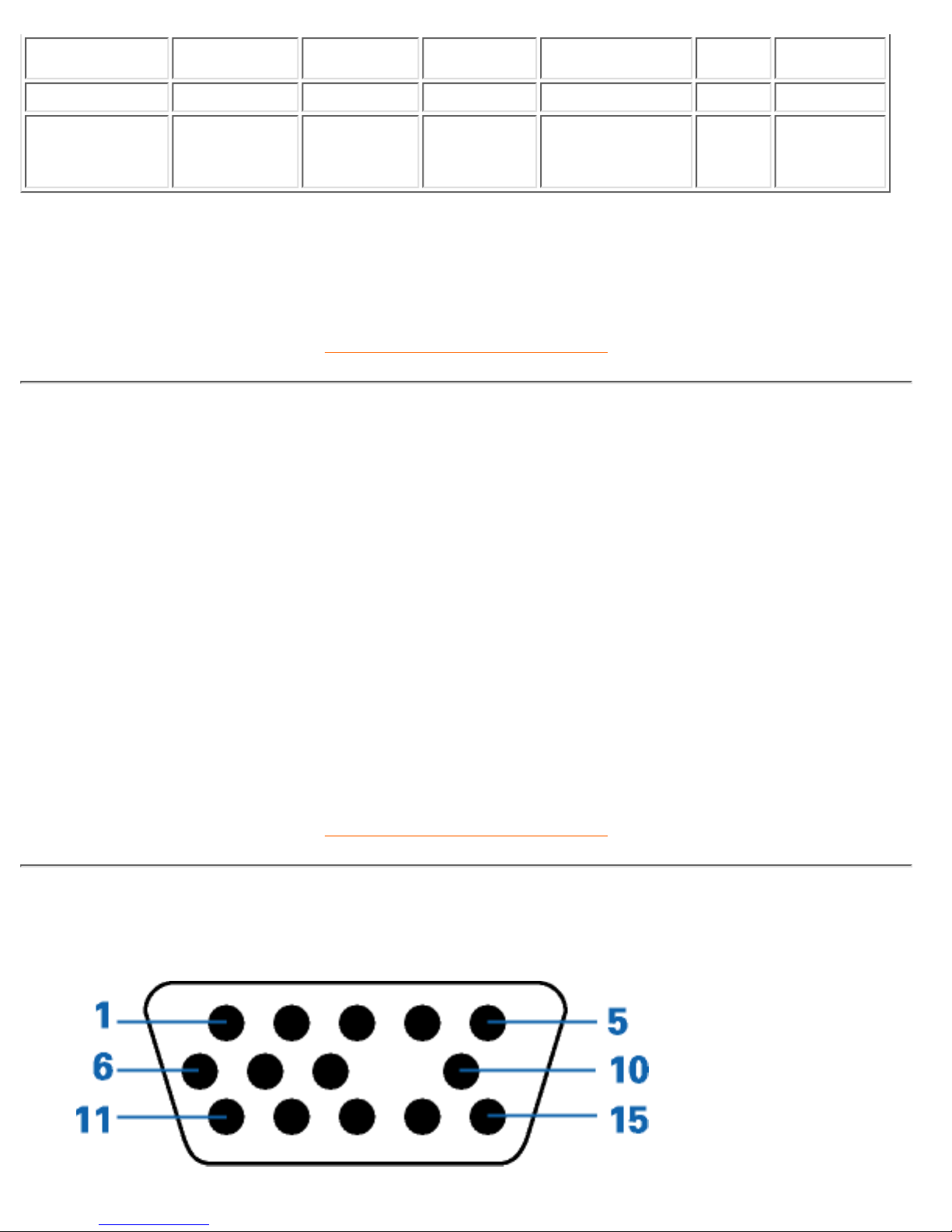

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable (IBM systems):
105E Product Information
file:///C|/rita wu/gs3noVE/english/105E/product/product.htm (3 of 4) [11/3/2000 11:56:47 AM]

Pin
No. Assignment
Pin
No. Assignment
1 Red video input 9 No pin
2 Green video input 10 Logic ground
3 Blue video input 11 Identical output - connected
to pin 10
4Identical output - connected
to pin 10 12 Serial data line (SDA)
5 Ground 13 H. Sync / H+V
6 Red video ground 14 V. Sync (VCLK for DDC)
7 Green video ground 15 Data clock line (SCL)
8 Blue video ground
RETURN TO TOP OF THE PAGE
Views
Follow the links to see various views of the monitor and its components.
Front View
Rear View
RETURN TO TOP OF THE PAGE
105E Product Information
file:///C|/rita wu/gs3noVE/english/105E/product/product.htm (4 of 4) [11/3/2000 11:56:47 AM]

Installing your Monitor
Front View • Rear View • Pedestal • PCUH411 USB Hub (option)
Front View
For detailed information about the knobs and keys, please refer to Front Controls.
RETURN TO TOP OF THE PAGE
Rear View
Installing your Monitor
file:///C|/rita wu/gs3noVE/english/105E/install/install.htm (1 of 2) [11/3/2000 11:56:48 AM]

1. Power in - attach power cable here.
2. Video In - this is a cable which is already attached to your monitor. Connect the
other end of the cable to your PC.
RETURN TO TOP OF THE PAGE
Installing your Monitor
file:///C|/rita wu/gs3noVE/english/105E/install/install.htm (2 of 2) [11/3/2000 11:56:48 AM]

Front Controls
Power • Hotkeys • Digital Controls • Adjustment
Front Controls
For an optimized adjustment of the picture following controls are available at the front.
Power
Power
Press this knob, the green LED lights and the power is ON.1. Press this knob again, the green LED disappears and the power is OFF.2.
RETURN TO TOP OF THE PAGE
Hotkeys
Contrast
Rotate to adjust the picture contrast level.
Brightness
Rotate to adjust the overall screen brightness as a compensation for ambient light.
RETURN TO TOP OF THE PAGE
Front Controls
file:///C|/rita wu/gs3noVE/english/105E/install/front/front.htm (1 of 3) [11/3/2000 11:56:49 AM]

Digital Controls
Press to adjust (increase) the function selected.
Press to adjust (decrease) the function selected.
To select the level of function.
"SHIFT" LED off - control is on first level.
"SHIFT" LED on - control is on second level.
The function pads:
H-Shift: to adjust the horizontal position of the image.
H-Size: to adjust the horizontal amplitude of the image.
V-Shift: to adjust the vertical position of the image.
V-Size to adjust the vertical amplitude of the image.
Select level of the function pads:
Trapezoid: to correct the trapezoid distortion of the image.
Pincushion: to correct the barrel distortion of the image.
Recall: to recall original factory preset mode.
Remarks:
Front Controls
file:///C|/rita wu/gs3noVE/english/105E/install/front/front.htm (2 of 3) [11/3/2000 11:56:49 AM]

When pressing any function pad, the "Shift" LED will flash once
to indicate the function has been selected.
1.
Once the limit of the adjustable range has been reached, the shift LED will flash
continuously.
2.
RETURN TO TOP OF THE PAGE
Adjustment
For Tne monitor is pre-set with 6 modes for optimal display size and centering as indicated in the following table:
Mode Resolution
(dots x lines) Horizontal
Freq. (KHz) Vertical Freq. (KHz) Remark
VGA 600 X 400 31.5 70 Non-interlaced
VGA 600 X 480 31.5 60 Non-interlaced
VESA / 75 600 X 480 37.5 75 Non-interlaced
VESA / 75 600 X 480 46.9 75 Non-interlaced
VESA / 85 800 X 600 53.7 85 Non-interlaced
VESA 1024 X 768 48.3 60 Non-interlaced
(A) User mode: (10 modes)
The set will save the user's setting parameters automatically.
After 10 seconds of key-pad inactivity, the LED will flash twice to
indicaate the parameters being saved.
●
Press to recall factory preset mode. (at second level)●
RETURN TO TOP OF THE PAGE
Front Controls
file:///C|/rita wu/gs3noVE/english/105E/install/front/front.htm (3 of 3) [11/3/2000 11:56:49 AM]

Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:
WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey • Bulgaria
LATIN AMERICA: Antilles • Argentina • Brazil • Chile • Colombia • Mexico • Paraguay • Peru
• Uruguay • Venezuela
NORTH AMERICA: Canada • USA
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
Customer Care and Warranty
file:///C|/rita wu/gs3noVE/english/warranty/warranty.htm [11/3/2000 11:56:49 AM]

Glossary
ABCDEFG HIJ K LMNOPQ RSTUVW X Y Z
A
Autoscan
A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically horizontal and
vertical frequencies of input signals with those of the installed video card. An autoscan monitor can thus
operate with a wide range of video cards. MultiSync, a registered trademark of NEC, provides a similar
function.
RETURN TO TOP OF THE PAGE
B
Balanced pincushion
See Geometric distortion
BNC connection
A special construction of connector used in some monitors with higher horizontal scanning frequency. The
BNC connection can provide the optimum shielding and matching characteristic impedance of video signal
path to ensure the best video performance.
RETURN TO TOP OF THE PAGE
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (1 of 18) [11/3/2000 11:56:51 AM]

C
CE Mark
CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance with
European Community safety, EMI and EMS requirements and is compulsory on products for sale in the
European Community.
Color temperature
A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of a black
body radiating with the same dominant frequency as the source.
Most Philips monitors offer the possibility of setting the color temperature to any desired value.
Contrast
The ratio between the brightness of the brightest and darkest parts of a picture. The darkest part of a picture
is set by the brightness of the unexcited phosphor, which is governed by the degree with which ambient light
is reflected. Contrast is therefore reduced in conditions of high ambient light levels. Black Matrix tubes reflect
less ambient light so exhibit higher contrast than other tubes.
Convergence error
Bean misalignment causing one or more of the three beams passing through the wrong aperture in the
shadow mask and striking a phosphor dot in the wrong triad.

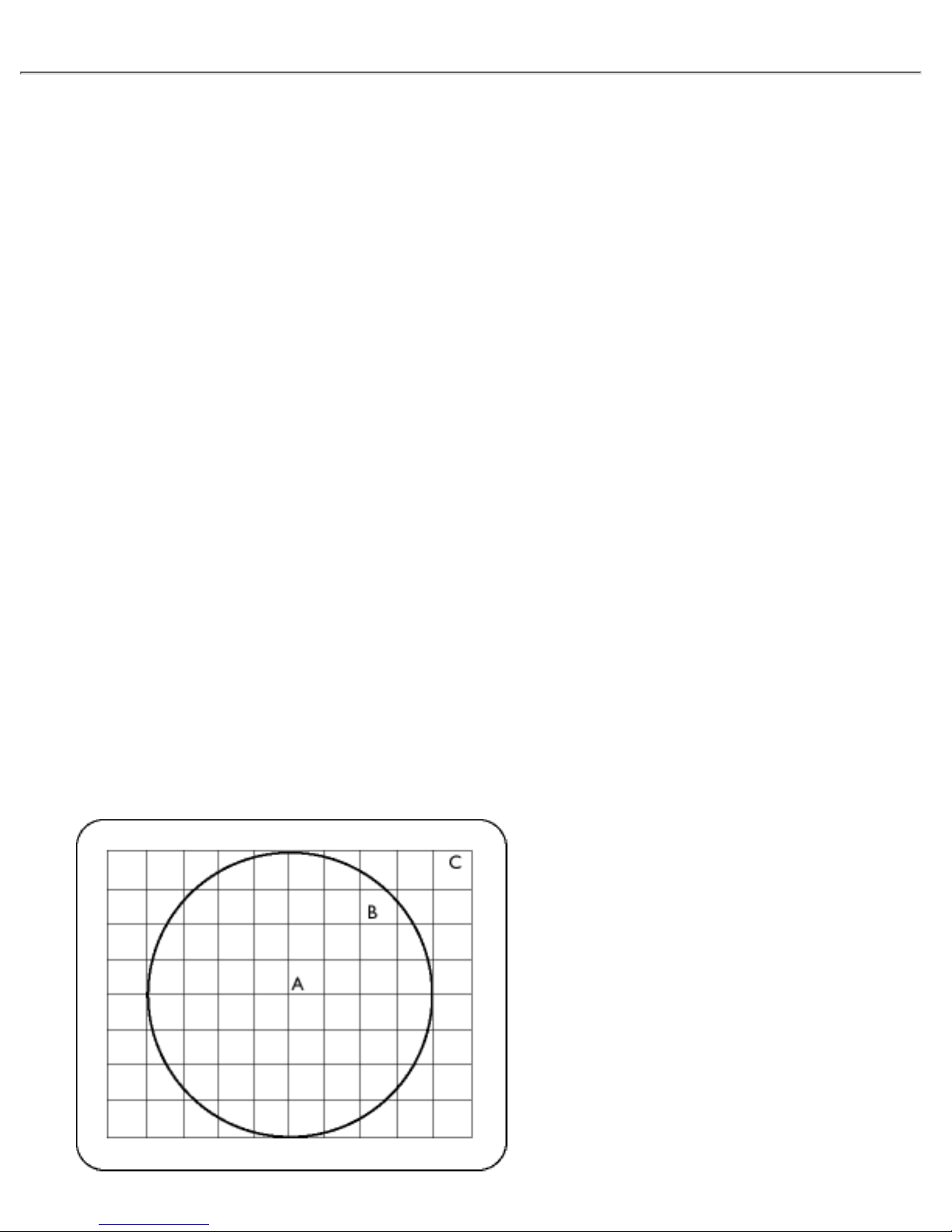

Convergence error is expressed in mm often at three well-defined points on the screen, designated A, B and
C (see figure ). Also known as misconvergence.
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (2 of 18) [11/3/2000 11:56:51 AM]

Points where convergence error is specified.
Convergence-error correction
A method of correcting for convergence error to insure that all three beams land simultaneously in the same
triad. This is usually accomplished by means of special convergence-error correction coils in the deflection
yoke.
CRT
Cathode-ray tube - the general term for all tubes in which one or more electron beams emitted by a cathode
are periodically scanned across a phosphor screen by means of deflection circuitry. A special form of the
cathode-ray tube is the TV and monitor picture tube.
CustoMax
Philips proprietary monitor control software that allows users to control parameters (e.g., Size, Color,
Geometry) using software running in Windows. CustoMax is compatible with existing VGA cards. See
CrystalClear FAQ and USB Bay FAQ.
RETURN TO TOP OF THE PAGE
D
DDC (Display Data Channel)
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (3 of 18) [11/3/2000 11:56:51 AM]

DDC is a communication channel for displays and computers. The DDC feature allows the monitor controller
to be automatically configured to make optimal use of the display without manual user interaction. DDC is
implemented as part of the new Plug & Play approach introduced into the PC market to increase user
friendliness.
The three levels developed for Plug & play are: (1) DDC1, monitor send data to the PC; (2) DDC2B, PC can
request information from monitor; and (3) DDC2Bi which is a two-way communication - monitor can be
addressed and PC or graphics board can give commands to monitor.
DDC 1/2B
See DDC.
DDC 2Bi
See DDC.
Degaussing
The procedure of demagnetizing the shadow mask and associated metal parts of a picture tube at switch-on
to minimize picture distortion. This is usually accomplished by means of a special degaussing coil through
which a decaying alternating current is passed to generate an alternating magnetic field that gradually
decays to demagnetize the tube. Some monitors offer a manual degaussing facility that can be activated at
any time.
Digital control
Microprocessor-based digital control of picture parameters and video modes for complete control of picture
settings and modes and instant recall of all settings at the push of a button. This is a very advanced feature
that allows the user to switch to any required mode at any instant without having to spend time readjusting
the picture. It is currently available in most Philips monitors.

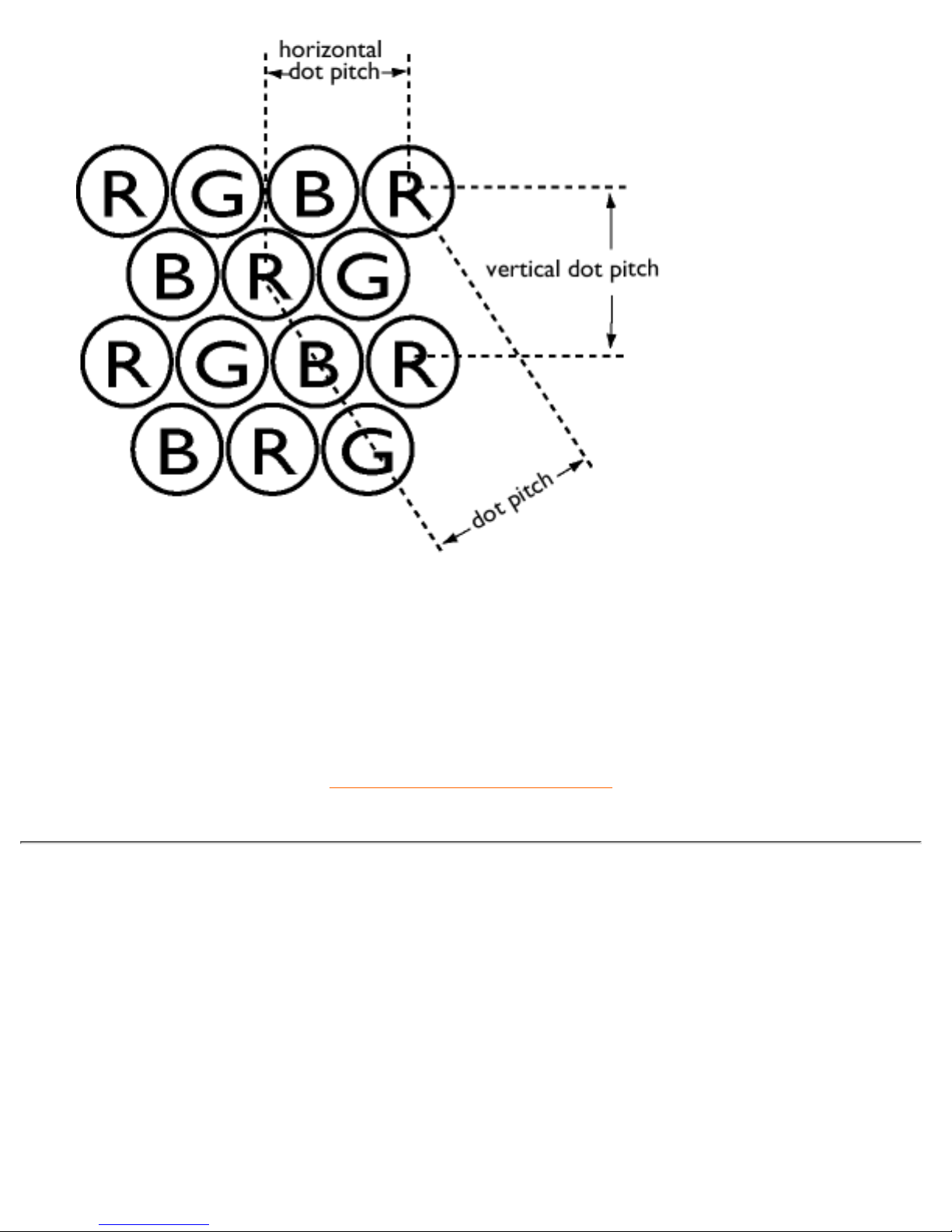

Dot pitch
The shortest distance between two phosphor dots of the same color on the screen. The smaller the dot pitch,
the better the resolution of the monitor.
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (4 of 18) [11/3/2000 11:56:51 AM]

Dot rate
Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between the
video card and subsequent processing circuitry.
Also known as video dot rate.
RETURN TO TOP OF THE PAGE
E
Electromagnetic radiation standards
International standards set to limit electromagnetic emissions from monitors. There are currently two
important standards both derived from regulations originally laid down by Swedish authorities.
MPR-II
The standard originally proposed by the Swedish National Board of Measurement and Testing. It set
maximum levels of electromagnetic radiation emitted by monitors, and has now been adopted as a world
standard. MPR-II defines maximum permitted electrostatic, magnetic and electric field levels measured at a
distance of 50 cm from the center of the monitor (see table).
TCO
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (5 of 18) [11/3/2000 11:56:51 AM]

In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of Professional
Employees ) set a standard even more severe than MPR-II, especially for alternating electric fields (AEF).
The TCO standard is more severe since not only are the permitted field levels reduced compared with
MPR-II, but the measuring distance is also reduced (see table).
Electromagnetic radiation standards
EMI (Electrical Magnetic Interference)
The electrical and/or magnetic radiation coming from the working electrical or electronic equipment.
EMS (Electrical Magnetic Sustainment)
The ability of electrical or electronic equipment to function properly in the environment with electrical and/or
magnetic interference.
RETURN TO TOP OF THE PAGE
F
Flicker
Very rapid variations in picture intensity caused by the finite time required for the electron beam to scan a
picture onto the screen. Two kinds of flicker occur: line flicker caused by the electron beam scanning-in each
line of the picture; and frame flicker (or field flicker if the picture is interlaced) caused by the frame repetition
rate of 50 frames/second. Frame flicker is noticeable with GUI and DTP software (which have a light
background), and can be very disturbing, especially for those who work regularly with displays - contributing
to eye strain, headaches, visual blurring, stress, etc. The problem can, however, be eliminated by increasing
the refresh rate (number of frames/second) of the monitor to a value above around 70 Hz. Sensitivity to
flicker appears to diminish with increasing age.
RETURN TO TOP OF THE PAGE
H
Hertz
The unit of frequency named after the physicist Heinrich Hertz (1857-1894). 1 hertz (Hz) is equal to 1
cycle/second.
Horizontal dot pitch
See Dot pitch.
Horizontal scanning frequency
Glossary
file:///C|/rita wu/gs3noVE/english/105E/glossary/glossary.htm (6 of 18) [11/3/2000 11:56:51 AM]
