Robust Display for Demanding
Applications
Control your costs with this rugged network-controllable 42" LCD monitor. Whether
used in a network, a tiled matrix or as a single public display, this model offers a variety
of features to meet the most demanding applications
Optimized for public viewing
• Wide format WXGA 1366 x 768 resolution for sharper display
• Brightness automatically adjusts with ambient conditions
Designed for public areas
• Robust metal bezel and metal backcover
• Security feature prevents unauthorized control
Operational flexibility for different applications
• Monitor is network controllable for remote management
• Enhanced zoom feature supports tiled matrix applications
• VGA loop through enables daisychaining to multiple monitors
• Able to operate in portrait mode
• Quiet and reliable fanless operation
Lower total cost of ownership
• Intelligent power management for lower consumption
• No permanent burn-in when static information is displayed
Philips
LCD monitor
42"
multimedia WXGA
BDL4221V
P
O
R
T
R
A
I
T

For preview purpose only
BDL4221V/27
Technical specifications
LCD monitor
42" multimedia WXGA
Date of issue 2006-10-21
Version: 9.0
12 NC: 8639 000 16495
UPC: 0 37849 96647 1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Picture/Display
•LCD panel type: 1366 x 768 pixels, Anti-
glare polarizer
•Panel Size: 42" / 106.7cm
•Aspect ratio: 16:9
•Pixel pitch: 0.227 x 0.681 mm
•Brightness: 600 cd/m²
•Contrast ratio (typical): 1200:1
•Display colors: 16.7 Million colors
•Viewing angle (h / v): 178 / 178 degree
•Response time (typical): 10 ms
•Recommended Resolution: 1360 x
768 @ 60Hz
•Horizontal Scanning Frequency: 30 - 63 kHz
•Vertical Scanning Frequency: 56 - 75 Hz
•Picture enhancement: 3D Combfilter, De-
interlacer, Picture in Picture, Progressive
Scan
Supported Display Resolution

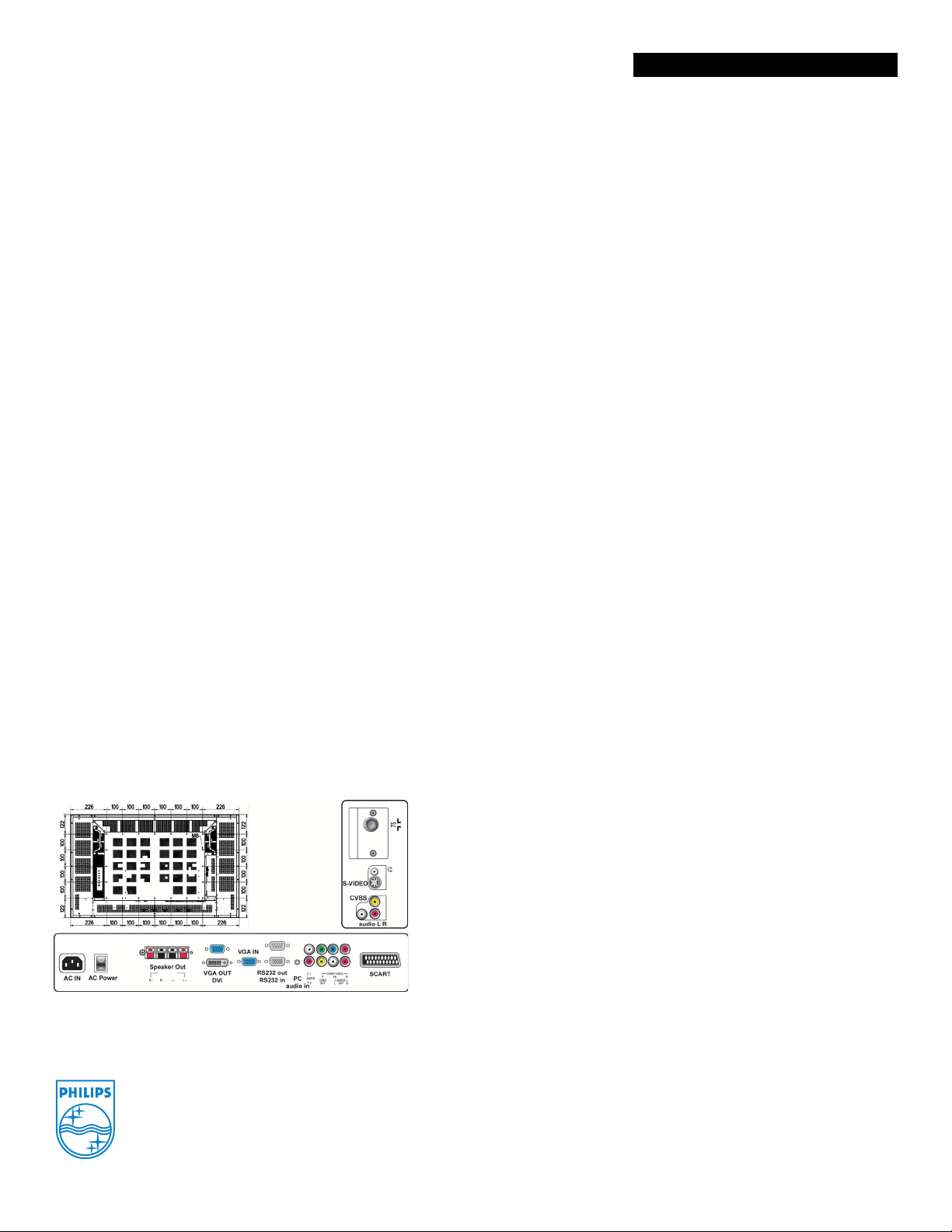

Connectivity
•PC: 3.5 mm PC audio input x1, DVI-D with
HDCP, RS232 D-Sub9, RS232 D-sub9
output, VGA-in D-Sub 15HD, VGA-out D-
Sub 15HD
•AV input: Component (YPbPr) x1, Audio (L/
R) for YPbPr x1, Composite (CVBS) x1,
Audio (L/R) x1, S-video x1, SCART x1
•AV output: Composite (CVBS) x1, Audio (L/
R) x1
•Audio output: Stereo Audio (3.5 mm jack)
1x, External loudspeaker connector
Convenience
•Picture in Picture: 1 tuner PIP, Double
window
•Convenience Enhancements: Automatic
Brightness Control, Automatic Overheat
Warning, On-screen Display
•OSD Languages: English, French, German,
Italian, Spanish, Simplified Chinese
•Detachable Audio: 2x10 W RMS Speakers
•Onboard Operating Controls: Hidden
controls
•Other convenience: Cable management,
Carrying handles, Kensington lock
•Plug & Play Compatibility: sRGB, Windows
98/ME/2000/XP
• RS232 controllable
•VESA Mount: 600 x 400 mm
•Regulatory Approvals: C-Tick, CE Mark,
FCC-B, UL, CSA, MPRII, TÜV/GS
Power
•Consumption: typ. 140 W (PC)
•Power supply: Built-in, 90-264 VAC, 50/60
Hz
•Sleep Mode: <3W
Dimensions
•Dimensions (w/o base & speakers)
(W x H x D): 1052 x 644 x 150 mm
•Width (with speakers): 1272 mm
•Set dimensions in inch (W x H x D):
42.42x25.76x5.91inch
•Width (with speakers) (inch): 50.079 inch
•Weight: 31 kg
•Product weight (lb): 68.34
•MTBF: 50,000 hrs
•Temperature (operation): 0ºC to +35ºC
•Temperature range (operation): 32°F to
95°F
•Relative Humidity: 5% - 90%
•Computer formats
Resolution Refresh rate
640 x 480 60, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz
1024 x 768 60, 75Hz
1280 x 768 60Hz
1360 x 768 60Hz
•Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576p 50Hz
576i 50Hz
720p 50, 60Hz
1080i 50, 60Hz
Accessories
•Included Accessories: Speakers (L/R), Table top
stand (2 feet), DVI-D cable, VGA cable, Remote
Control, Battery, AC Power Cord
•User Guide on CD-ROM
Miscellaneous
•Warranty: 3 year
•Bezel: metallic anthracite
•

For preview purpose only
BDL4221V/27
Product highlights
LCD monitor
42" multimedia WXGA
WXGA 1366 x 768 resolution
The wide format of XGA resolution LCD panel is capable
of displaying 1366 x 768 pixels; WXGA allows monitors
to be non-interlaced to ensure a better display
performance and accurate color display effect.
Automatic brightness control
The adjustment of display settings to correspond with
ambient light without user intervention.
Robust metal bezel
Specially designed for demanding public applications, the
metal bezel offers higher durability and protection against
vandalism. Annodized paint is used to offer extra
protection of the bezel against scratches.
No unauthorized control
The local controls of the display are placed in such a way
that they are less visible for immediate access. The
remote control sensor can be disabled in order to prevent
unauthorized control of the display when placed in a
public space.
Network controllability: RS232
Network controllability allows user to control and adjust
monitors remotely through RS232 protocol.
Zoom function for tiled matrix
The internal zoom function enables easy implementation
of a video wall matrix, without the need for expensive
external equipment. Capable of 2x2, 3x3, 4x4 and 5x1
configurations.
Signal loop through
Multiple screen daisy chain effectively distributes control
and visual content from a single source to an array of
monitors in various locations within a site.
Portrait mounting possible
This display is also able to be safely and reliably mounted
in portrait position.
Fanless operation
A system without fans is quiet and doesn't collect dust
inside the monitor. No moving parts inside the monitor
will thus improve the reliability of the product.
Intelligent power management
Intelligent power management employs energy-efficient
technologies in product design to reduce power
consumption and significantly lower the total cost of
ownership.
