Philips BDL5545E User manual

SERVICE MANUAL
BDL5545E

Philips BDL5545E 1
TABLE OF CONTENTS
CHAPTER A REVISION LIST……………………………………………………………………….2
CHAPTER B WARNNING…………………………………………………………………………...3
CHAPTER C SEFETY RRECAUTIONS………….……………………......................................4
CHAPTER 1 GENERAL SPECIFICATION………………….....................................................5
CHAPTER 2 OPEARTING INSTRUCTION……………………………....................................14
CHAPTER 3 THEORY OF OPERATION…………………………….......................................35
CHAPTER 4 BLOCK DIAGRAM…………………………………….…....................................38
CHAPTER 5 SCHEMATIC DIAGRAM…………………..........................................................39
CHAPTER 6 LAYOUT SIDE VIEW……………………...........................................................40
CHAPTER 7 EXPLODED VIEW…………………………………………...................................41
CHAPTER 8 TROUBLE SHOOTING…………………….………….........................................42

Philips BDL5545E 2
CHAPTER A
REVISION LIST
Model Name Version Issues Date Remark
BDL5545E 3A 2011-11-08 First Release

Philips BDL5545E 3
CHAPTER B
WARNNING
This service information is designed for experienced repair technicians only and is not
designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of
potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced
professional technicians.
Any attempt to service or repair the product or products dealt within this service
information by anyone else could result in serious injury or death.

CHAPTER C
SAFETY PRECAUTIONS
1. Caution
No modification of any circuit should be attempted. Service work should only be performed after you
are through familiar with all of the following safety checks and servicing guide lines.
2. Safety check
Care should be taken while servicing this LCD display. Because of the high voltage used in the
inverter circuit. These voltage are exposed in such areas as the associated transformer circuits.
3. Power supply requirements
The internal power converter with the attached AC power cord is necessary for the LCD monitor. Any
attempt to replace another power converter could result in serious of problems on the display.
4. Leakage current hot check
4-1 Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during this check.
4-2 Connect a 1500 ohm, 10 watt resistor, paralleled by a 0.15uF capacitor between each metallic
part and a good earth ground.
4-3 Use an AC voltmeter with 1000 ohm / volt or more sensitivity and measure the AC voltage across
the combination 1500 ohm resistor and 0.15uF capacitor.
4-4 Move the resistor connection to each exposed metallic part and measure the voltage.
4-5 Reverse the polarity of the AC plug in the AC outlet and repeat the above measurement.
4-6 Voltage measured must not exceed 1.5 volt RMS, from any exposed metallic part to the ground.
A leakage current tester may be used in the above hot check, in which case any circuit measured
must not exceed 1 milliamp. In the case of a measurement exceeding the 1 milliamp value, a rework is
required to eliminate the chance of a shock hazard.
To Metal Parts
V
AC VOLTMETER
1500 10W
0.15u
.
Earth Ground
Philips BDL5545E 4

Philips BDL5545E 5
CHAPTER 1
GENERAL SPECIFICATION
Index of this chapter:
1. Specification
2. Outline
3. I/O connectors
4. Factory preset timing
1. Specification
Item Specification
LCD Module
Size: 54.64” diagonal
Pixel Pitch: 0.630(H) mm x 0.630(V) mm
Resolution: 1920(H) x 1080(V)
Color: 10 bit colors
Brightness: 500 cd/m2 (typical)
Contrast Ratio: 5000:1 (typical), 15000:1 (smart contrast)
Viewing Angle (CR>10): Horizontal 178° / Vertical 178°
Response Time: 8 ms (GTG)
Frequency Horizontal :15 ~ 91 KHz
Vertical :50 ~ 85 Hz
Pixel Clock 13.5 ~ 165.0 MHz
Speaker External speaker jack: 7W+7W
Internal speaker: 10W+10W
Power Supply 100 / 240 VAC, 50 / 60 Hz
Power Consumption Display mode: <350 W (typical), <400 W (max)
Sleeping mode: Less than 1 W
Operational Environment Temperature: 0 ~ 40 °C, Humidity: 20 ~ 80%
Storage Environment Temperature: -20 ~ 60 °C, Humidity: 10 ~ 90%
Tilt / Swivel / Rotation No
Wall Mount Method VESA in back-cover
Dimension (w/o stand) Net: 1299(W) x 770(H) x 130(D) mm
Cross: 1474(W) x 938(H) x 346(D) mm
Weight (w/o stand) Net: 42.7 kg
Gross: 51.7 kg

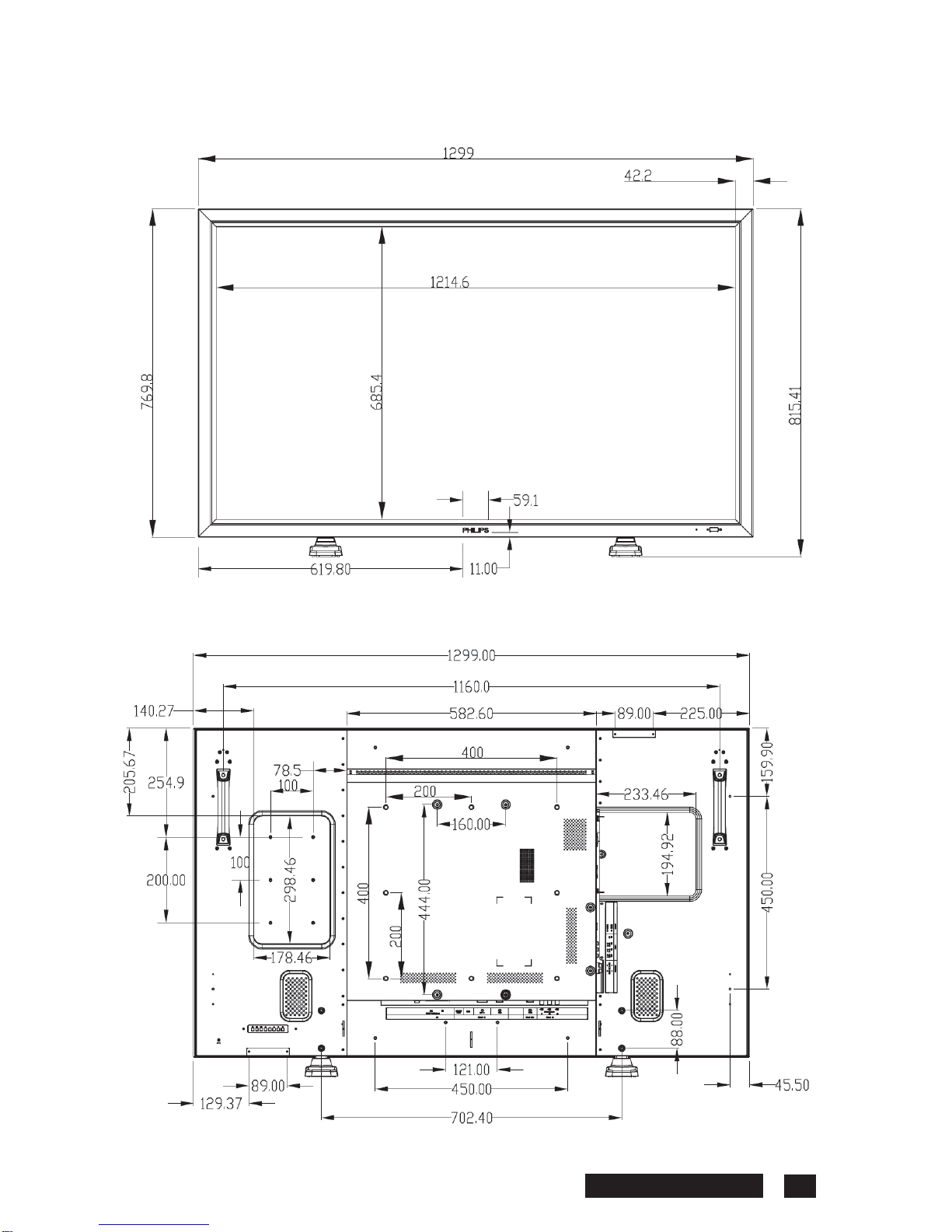

2. Outline
¾Front view
¾Rear view
Philips BDL5545E 6

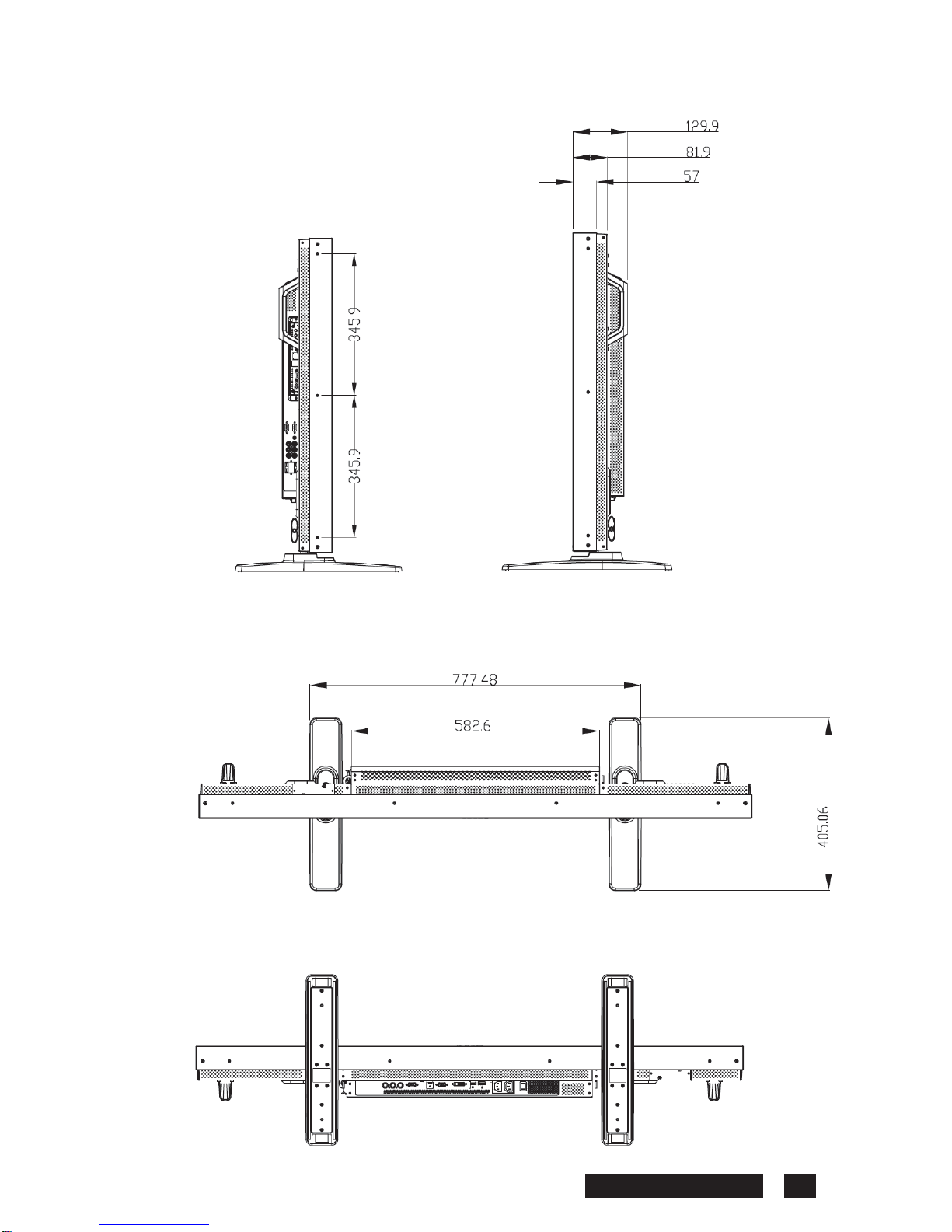

¾Side view
(Left) (Right)
¾Top view
¾Button view
Philips BDL5545E 7

3. I/O connectors
3.1 Overview
OPS SLOT
Slot for installing the optional OPS module.
RS232C (OUT/IN)
RS232C network connection input/output for the use of loop through function.
AUDIO IN (AUDIO1/AUDIO2/ AUDIO3)
Connects to the audio output of a computer or an AV device.
AUDIO OUT R/L
Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack.
SPEAKERS R/L
Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external
speakers.
Main power switch
Press to switch the mains power on/off.
AC OUT
Connect to the AC IN socket of an external media device.(Rating : 100~240Vac, 50-60Hz, 3A Max.)
AC IN
Connect the supplied power cord to the wall outlet.
DISPLAY PORT
Connects to the DisplayPort output of a PC or an AV device.
VIDEO IN (HDMI)
Connects to the HDMI output of an AV device or connect to the DVI-D output of a PC. (Using a
DVI-HDMI cable)
Philips BDL5545E 8

VIDEO IN (DVI-D)
Connects to the DVI-D output of a PC or connect to the HDMI output of an AV device (Using a
DVI-HDMI cable).
VGA IN
Connects to the VGA output of a computer.
VGA OUT
Outputs the VGA signal from the VGA IN jack.
VIDEO IN (COMPONENT)
Component video input (Component) for connecting to the component output of an AV device.
Philips BDL5545E 9

Philips BDL5545E 10
3.2 Pin assignment
¾Mini D-sub 15-pin
Pin No. Signal name
1 Red
2 Green
3 Blue
4 Ground
5 DDC-Ground
6 Ground Red
7 Ground Green
8 Ground Blue
9 +5 VDC (from PC)
10 Ground Sync.
11 Ground
12 DDC Data (SDA)
13 H-Sync.
14 V-Sync.
15 DDC Clock (SCL)
¾DVI-D
Pin No. Signal name
1 TMDS data2-
2 TMDS data2+
3 TMDS data2 shield
4 NC
5 NC
6 DDC clock
7 DDC data
8 Analog vertical sync.
9 TMDS data1-
10 TMDS data1+
11 TMDS data1 shield
12 NC
13 NC
14 +5V power
15 Ground (return for +5 V and H/V sync.)
16 Hot plug detect
17 TMDS data0-
18 TMDS data0+
19 TMDS data0 shield
20 NC
21 NC
22 TMDS data clock shield
23 TMDS data clock+
24 TMDS data clock-

Philips BDL5545E 11
¾HDMI
Pin No. Signal name
1 TMDS Data2+
2 TMDS Data2 Shield
3 TMDS Data2-
4 TMDS Data1+
5 TMDS Data1 Shield
6 TMDS Data1-
7 TMDS Data0+
8 TMDS Data0 Shield
9 TMDS Data0-
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock-
13 CEC
14 Reserved (N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5V Power
19 Hot Plug Detect
¾Display Port
Pin No. Type Signal name
1 In ML_Lane 3 (n)
2 GND Ground
3 In ML_Lane 3 (p)
4 In ML_Lane 2 (n)
5 GND Ground
6 In ML_Lane 2 (p)
7 In ML_Lane 1 (n)
8 GND Ground
9 In ML_Lane 1 (p)
10 In ML_Lane 0 (n)
11 GND Ground
12 In ML_Lane 0 (p)
13 GND Ground
14 GND Ground
15 I/O AUX CH (p)
16 GND Ground
17 I/O AUX CH (n)
18 Out Hot Plug Detect
19 RTN Return
20 Power Out DP_PWR
¾S-VIDEO
Pin No. Signal name
1
GND
2
GND
3
Luminance signal
4 Color signal

Philips BDL5545E 12
¾RS-232C
Pin No. Signal name
1 NC
2
RXD
3
TXD
4 NC
5
GND
6 NC
7 NC
8 NC
9 NC

Philips BDL5545E 13
4. Factory preset timing
Item Mode Resolution H Freq.
(KHz) V Freq. (Hz) BW (MHz) H Polarity V Polarity
1 IBM VGA 12H 640x480 31.469 59.94 25.175 NEG NEG
2 VESA 640x480 37.861 72.809 31.500 
3 VESA 640x480 37.5 75 31.500 
4 IBM VGA 3H 720x400 31.469 70.087 28.322 
5 VESA 800x600 35.156 56.25 36.000 
6 VESA 800x600 37.879 60.317 40.000 
7 VESA 800x600 48.077 72.188 50.000 
8 VESA 800x600 46.875 75.000 49.500 
9 VESA 1024x768 48.363 60.004 65.000 
10 VESA 1024x768 56.476 70.069 75.000 
11 VESA 1024x768 60.023 75.029 78.750 POS POS
12 VESA 1152x864 67.5 75.000 108.000 
13 CVT 2.3MA 1280 x768 47.776 59.870 79.500 NEG POS
14 VESA 1280x960 60 60.000 108.000 
15 VESA 1280x1024 63.981 60.020 108.000 
16 VESA 1280x1024 79.976 75.025 135.000 
17 VESA Standard AddDMT 1360x768 47.712 60.015 85.500 
18 VESA Standard AddDMT 1366x768 47.712 59.790 85.500 NEG POS
19 VESA 1440x900 55.935 59.887 106.500 NEG POS
20 CVT AddDMT 1440x1050 65.3 60.000 121.750 
21 CVT Red. Blanking 1600x900 55.54 60.000 97.750 
22 VESA 1600x1200 74.537 59.869 161.000 
23 CVT1.76MW 1680x1050 65.29 59.954 146.250 NEG POS
24 CVT1.76MW-R 1680x1050 64.674 59.883 119.000 POS NEG
25 CVT 2.3MA-R 1920x1080 66.587 59.934 138.500 POS NEG
26 VESA Standard VDMTREV 1920x1080 67.5 60.000 148.500 POS POS
27 CVT 2.3MA-R 1920x1200 74.038 59.950 154.000 

CHAPTER 2
OPEARTING INSTRUCTIONS
Index of this chapter:
1. Button and Indicator
2. Remote control
3. OSD menu
1. Button and Indicator
1.1 Front view
Ambient light sensor
Detects the ambient lighting condition around the display and the image brightness will automatically
adjust when “LIGHT SENSOR” is set to “ON” in the OSD menu.
Remote control sensor
Receives command signals from the remote control unit.
LCD power status indicator
Indicates the operating status of the display.
- Lights green when the display is turned on
- Lights red when the display is in standby mode
- Lights amber when the display enters DPMS mode
- When SCHEDULE is enabled, the light blinks green and red
- If the indicator blinks red, that a failure has been detected
- Off when the main power of the display is turned off
OPS power status indicator
Indicates the operating status of the OPS (Open Pluggable Specification) module.
- Lights green when the OPS is turned on
- Off when the main power of the OPS is turned off
Philips BDL5545E 14

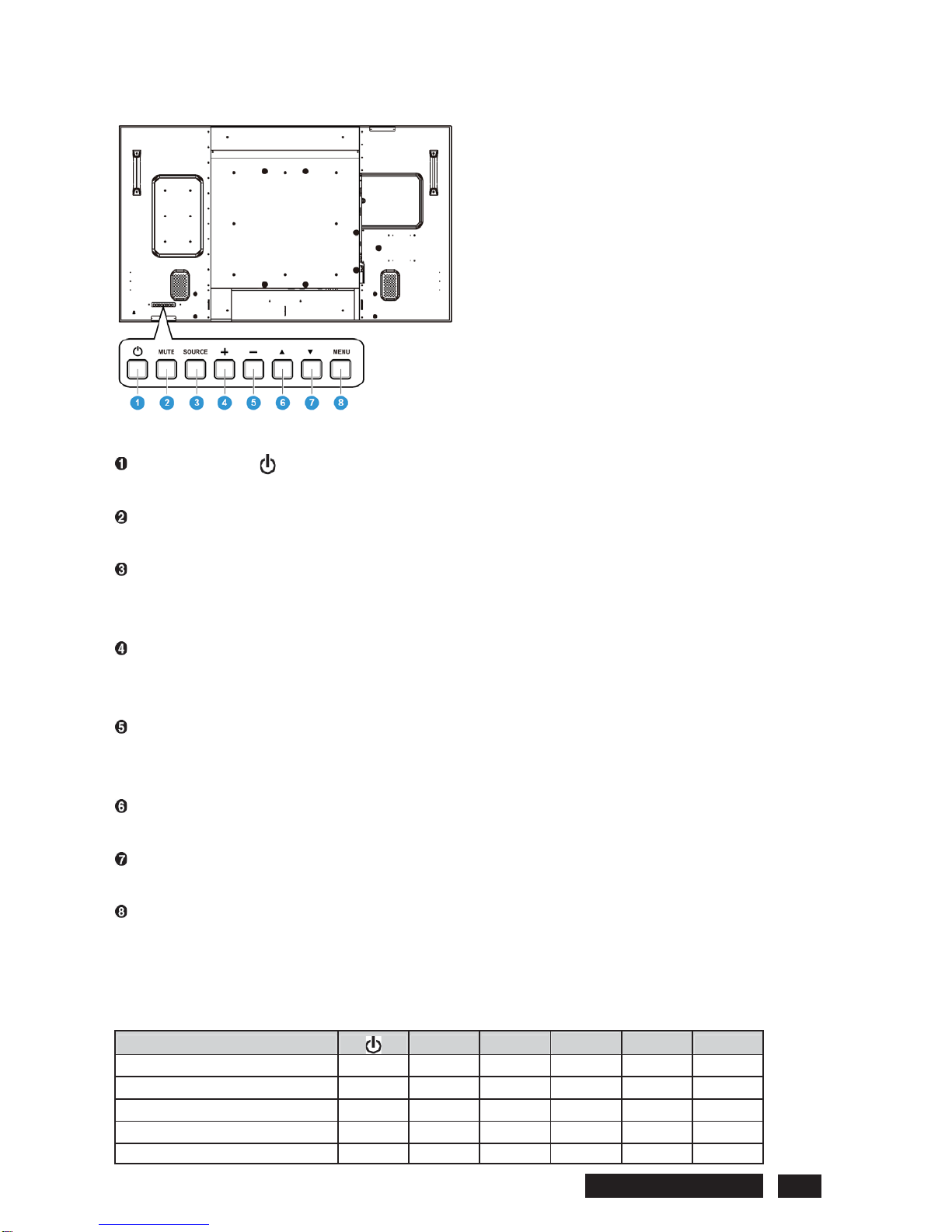

1.2 Rear view
POWER button ( )
To switch the power on or put the display to standby.
MUTE button
To switch the audio mute ON/OFF.
SOURCE button
Use this button to select the input
sour ce .
When the On Screen
Display menu is active, this isalso used as the SET button.
PLUS button (
ˇ
)
To increase the adjustment while OSD menu is on, or to increase the audio output level while the OSD
menu is off.
MINUS button (
ˉ
)
To decrease the adjustment while OSD menu is on, or to decrease the audio output level while the
OSD menu is off.
UP button (
S
)
To move the highlight bar up to adjust the selected item while OSD menu is on.
DOWN button (
T
)
To move the highlight bar down to adjust the selected item while OSD menu is on.
MENU button
Activates the OSD Menu. Once OSD is activated, pressing this button will return to the previous
menu.
Combination Key
Function Ÿź
ˉ
ˇ
MENU
Enter Factory Mode ƔƔ
Enter Debug Mode ƔƔ
Enter Factory Reset ƔƔ
Lock Front button ƔƔ
Reload Color Temperature ƔƔƔ
Philips BDL5545E 15

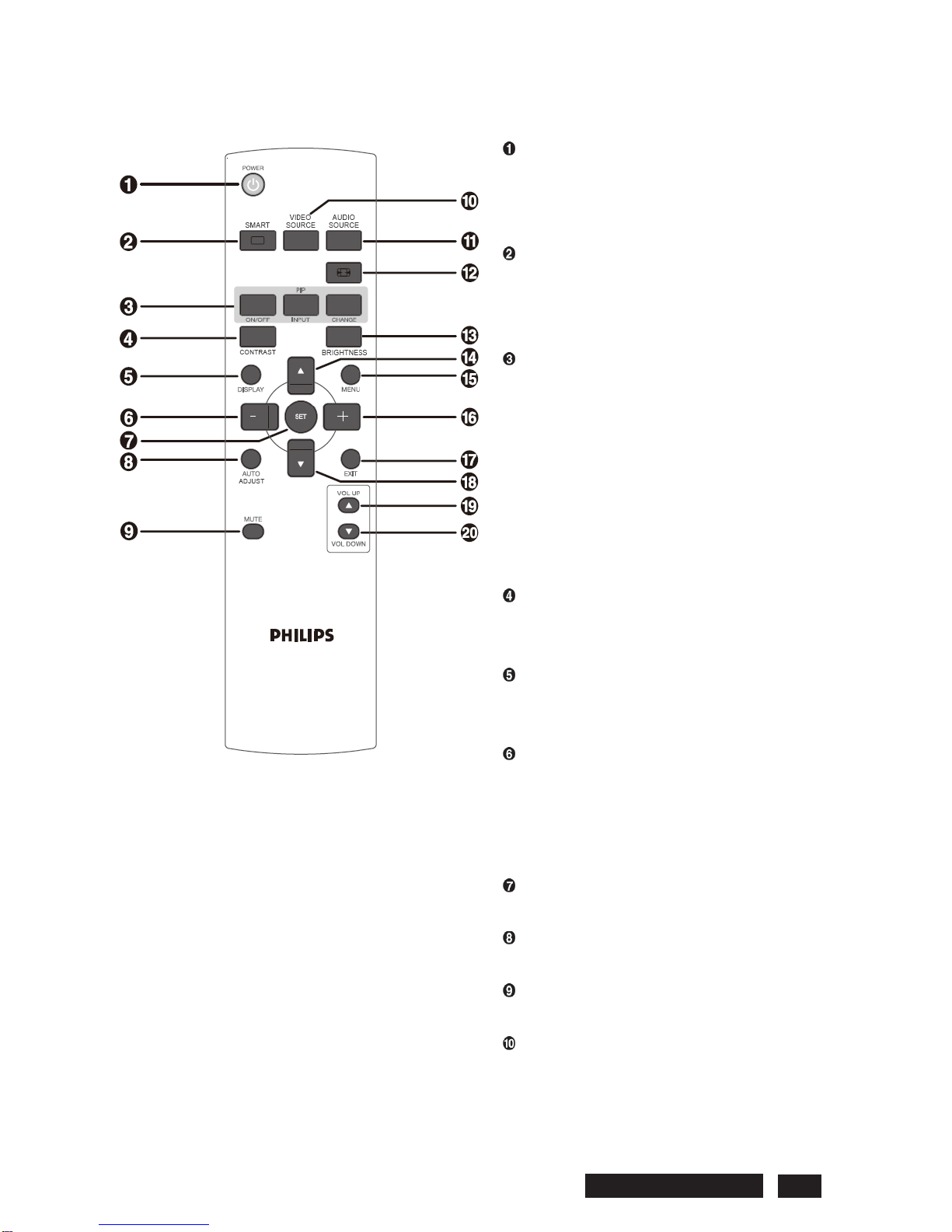

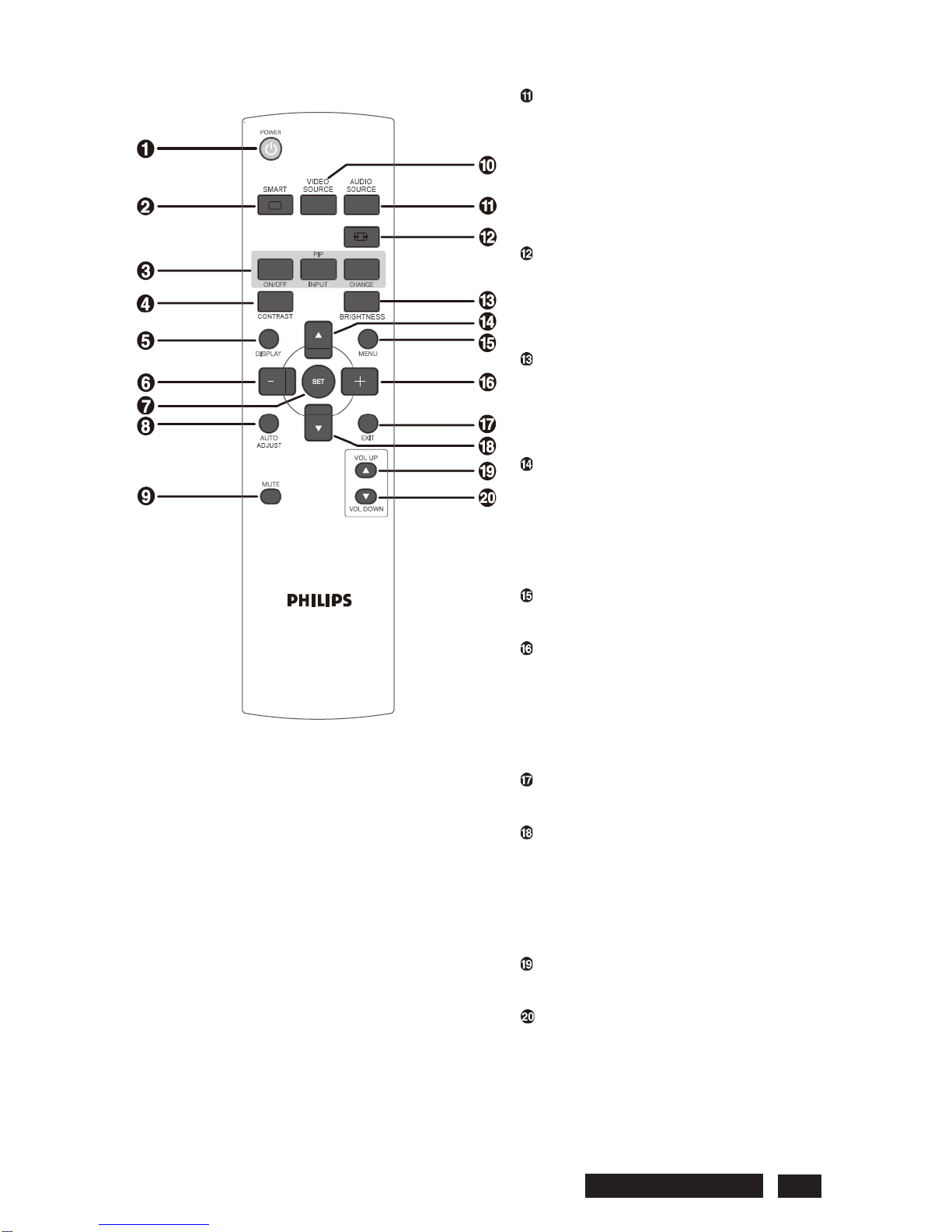

2. Remote control
POWER button
To turn the power on/off.
If the LED power indicator is not blinking, then
the remote control will not work.
SMART PICTURE button
To select smart picture mode from
[HIGHBRIGHT], [STANDARD], [sRGB],
[CINEMA]
.
PIP (Picture In Picture) button
ON/OFF button: To turn PIP mode ON/OFF.
INPUT button: To select the input signal for
the sub-picture.
CHANGE button: To exchange between the
main picture and sub-picture.
Note: The “PIP” and “POP” modes do not work
if the screen size is “CUSTOM”, “DYNAMIC” or
“REAL”.
CONTRAST button
To start CONTRAST OSD selection, and then
push "+" or "-" button to adjust the value.
DISPLAY button
To turn on/off the setting information displayed
on the right-up corner of the screen.
MINUS button
To increase (or decrease) a selected value
with the OSD menu.
To move the sub-picture left when in “PIP”
mode.
SET button
To activate the setting with the OSD menu.
AUTO ADJUST button
T o execute the AUTO ADJUST function .
MUTE button
T o turn the mute function on/of f.
VIDEO SOURCE button
To activate input selection menu, and push
“S” or “T” to select input source from
[DP],
[DVI-D], [VGA], [HDMI], [Component ], and then
push “SET” to switch to selected input source.
Philips BDL5545E 16

AUDIO SOURCE button
To activate audio selection menu, and push
“S” or “T” to select audio source from
[AUDIO1] , [AUDIO2], [AUDIO3] and [HDMI] ,
and then push “SET” to switch to selected
audio source.
SIZE button
To select the pictur e size from [FULL],
[NORMAL], [CUSTOM] , [DYNAM IC] and
[REAL].
BRIGHTNESS button
To start the BRIGHTNESS OSD selection,
and then push "+" or "-" button to adjust the
value.
UP button
To move the highlight bar up to adjust the
selected item when OSD menu is on.
To move the sub-picture up when in “PIP”
mode.
MENU button
T o turn the OSD menu on/of f.
PLUS button
To increase (or decrease) a selected value
with the OSD menu.
To move the sub-picture right when in “PIP”
mode.
EXIT button
T o turn to the pr evious OSD menu .
DOWN button
To move the highlight bar down to adjust the
selected item when OSD menu is on.
To move the sub-picture down when in “PIP”
mode.
VOLUME UP button
To incr ease the audio output level.
VOLUME DOWN button
To decr
ease t he audio output level.
Philips BDL5545E 17

3. OSD menu
3.1 PICTURE
¾Brightness
Adjust the overall image brightness by changing the intensity of the LCD panel’s backlight.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
¾Contrast
Adjust to sharpen the picture quality. The black portions of the picture become richer and the whites
become brighter.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
¾Sharpness
Adjust to improve detail.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
¾Black level
Adjust to change the image brightness.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
¾Noise reduction
Adjust to remove the noise in the image - thereby enhancingthe detail of your images. Select a
suitable noise reduction level.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
x
Off
x
Low
x
Middle
x
High
¾Tint
Note: For HDMI-Video timing, DVI-D(HD timing), DP(HD timing) and Component inputs only.
Adjust to change the color tint of the image.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
Press the PLUS button and the tone color turns slightly green. Press the MINUS button and the tone
color turns slightly purple.
Philips BDL5545E 18

Philips BDL5545E 19
¾Color
Note: For HDMI-Video timing, DVI-D(HD timing), DP(HD timing) and Component inputs only.
Adjust to increase or decrease the intensity of colors in the image.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
Press the PLUS button to increase color intensity, or press the MINUS button to decrease color
intensity.
¾Color temperature
Select a color temperature for the image. A lower color temperature
will have a reddish tint, whilst a
higher color temperature
gives off a more bluish tint.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
x
5000K
x
6500K
x
7500K
x
9300K
x
10000K
x
Native
x
User
¾Color control
Note: This function is only available when Color temperature is set to User.
With this function you can adjust the color tones of the image precisely by changing the R (Red), G
(Green) and B (Blue) settings independently.
Press the SET/PLUS button to open the submenu. Press the UP/DOWN button to select User-R,
User-G or User-B, and press the PLUS/MINUS button to adjust.
¾Light sensor
Choose to enable or disable the ambient light sensor. Once enabled, the image brightness will be
adjusted automatically when ambient lighting condition changes.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make
selection.
¾Smart contrast
Note: Light sensor and Smart contrast cannot be on at the same time.
When turned on, this function helps enhance image contrast when displaying dark scenes.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make
selection.
¾Smart picture
The following smart picture modes are available for
PC mode: Standard, Highbright and sRGB.
Video mode: Standard, Highbright and Cinema.
¾Video source
Select a video input source.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
x
DisplayPort
x
DVI-D
x
Card OPS
x
VGA
x
HDMI
x
Component
