Philips Brilliance 230WP7NS User manual

e-Manual
Philips LCD Monitor Electronic User’s Manual
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/index.htm2006-01-10 3:34:25 PM

Safety and Troubleshooting Information
• Safety
Precautions
and
Maintenance
• FAQs
• Troubleshooting
• Regulatory
Information
• Other Related
Information
Safety and Troubleshooting Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments or procedures other than
those specified in this documentation may result in exposure to shock,
electrical hazards and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
Operation:
●Keep the monitor out of direct sunlight and away from stoves or any other heat source.
●Remove any object that could fall into ventilation holes or prevent proper cooling of the
monitor’s electronics.
●Do not block the ventilation holes on the cabinet.
●When positioning the monitor, make sure the power plug and outlet are easily accessible.
●If turning off the monitor by detaching the power cable or DC power cord, wait for 6
seconds before attaching the power cable or DC power cord for normal operation.
●Please use approved power cord provided by Philips all the time. If your power cord is
missing, please contact with your local service center. (Please refer to Customer Care
Consumer Information Center)
●Do not subject the LCD monitor to severe vibration or high impact conditions during
operation.
●Do not knock or drop the monitor during operation or transportation.

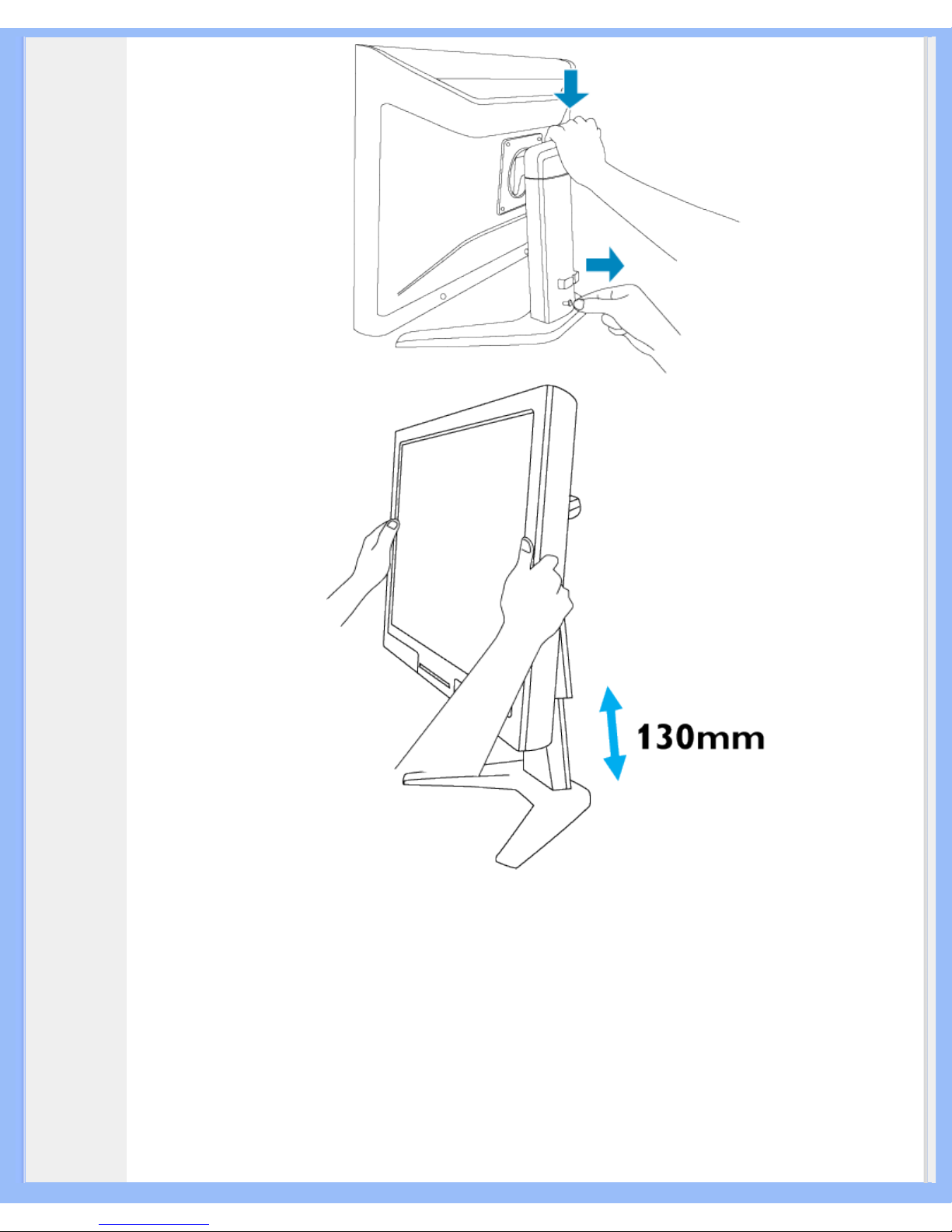

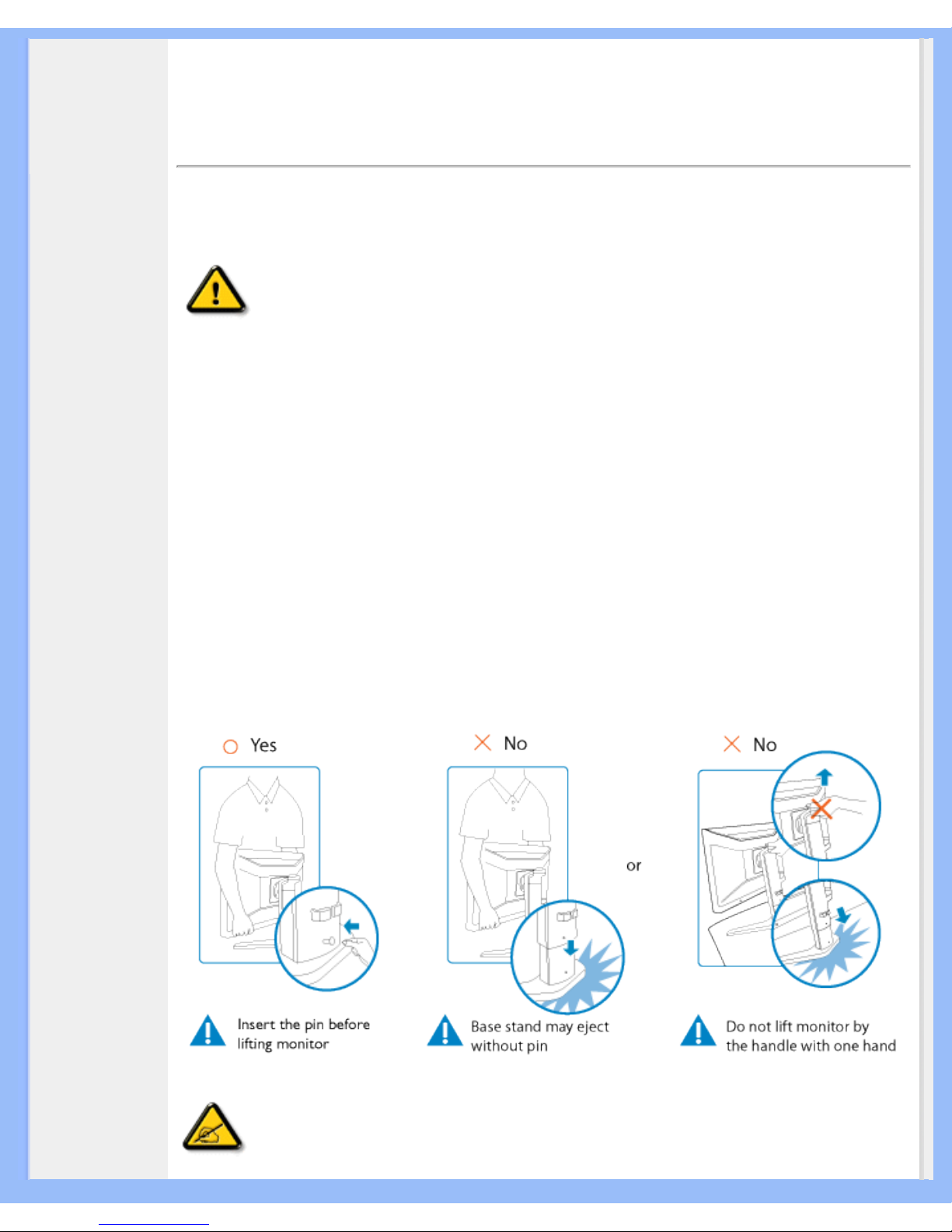

●Please note the above pictures if you lift your monitor, not following the
recommended way may cause injury.
●Using two hands to lift your monitor is strongly recommended.
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/safety/safety.htm (1 of 2)2006-01-10 3:34:35 PM

Safety and Troubleshooting Information
Maintenance:
●To protect your display from possible damage, do not put excessive pressure on the LCD
panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by
placing your hand or fingers on the LCD panel.
●Unplug the monitor if you are not going to use it for an extensive period of time.
●Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be
wiped with a dry cloth when the power is off. However, never use organic solvent, such
as, alcohol, or ammonia-based liquids to clean your monitor.
●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to
dust, rain, water, or excessive moisture environment.
●If your monitor gets wet, wipe it with dry cloth as soon as possible.
●If foreign substance or water gets in your monitor, please turn the power off immediately
and disconnect the power cord. Then, remove the foreign substance or water, and send
it to the maintenance center.
●Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or
extreme cold.
●In order to maintain the best performance of your monitor and use it for a longer lifetime,
please use the monitor in a location that falls within the following temperature and
humidity ranges.
❍Temperature: 5-35°C 41-95°F
❍Humidity: 20-80% RH
Service:
●The casing cover should be opened only by qualified service personnel.
●If there is any need for any document for repair or integration, please contact with your
local service center. (please refer to the chapter of "Consumer Information Center")
●For transportation information, please refer to "Physical Specifications".
●Do not leave your monitor in a car/trunk under direct sun light.
Consult a service technician if the monitor does not operate normally, or you are
not sure what procedure to take when the operating instructions given in this
manual have been followed.
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/safety/safety.htm (2 of 2)2006-01-10 3:34:35 PM

About This Manual
• About This
Guide
• Notational
Descriptions
About This Manual
About This Guide
This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It
describes the LCD monitor's features, setup, operation and other important information. Its
contents are identical to the information in our printed version.
It includes the following sections:
●Safety and Troubleshooting Information provides tips and solutions for common problems
as well as other related information you may need.
●About This Electronic User's Manual gives an overview of information included, along with
notation icon descriptions and other documentation for your reference.
●Product Information gives an overview of the monitor's features as well as the technical
specifications for this monitor.
●Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
●On-Screen Display provides information on adjusting the settings on your monitor.
●Customer Care and Warranty contains a list of worldwide Philips Consumer Information
Centers along with help desk phone numbers and information on the warranty applicable
to your product.
●Glossary defines technical terms.
●Download and Print Option transfers this entire manual to your hard drive for easy
reference.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic
type. These blocks contain notes, cautions or warnings. They are used as follows:
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/about/about.htm (1 of 2)2006-01-10 3:34:35 PM

About This Manual
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
Some warnings may appear in alternate formats and may not be accompanied by an icon. In
such cases, the specific presentation of the warning is mandated by the relevant regulatory
authority.
RETURN TO TOP OF THE PAGE
©2006 Koninklijke Philips Electronics NV
All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/about/about.htm (2 of 2)2006-01-10 3:34:35 PM

Product Information
• Product
Features
• Technical
Specifications
• Resolution &
Preset Modes
• Philips Pixel
Defect Policy
• Automatic
Power Saving
• Physical
Specification
• Pin
Assignment
• Product
Views
• Physical
Function

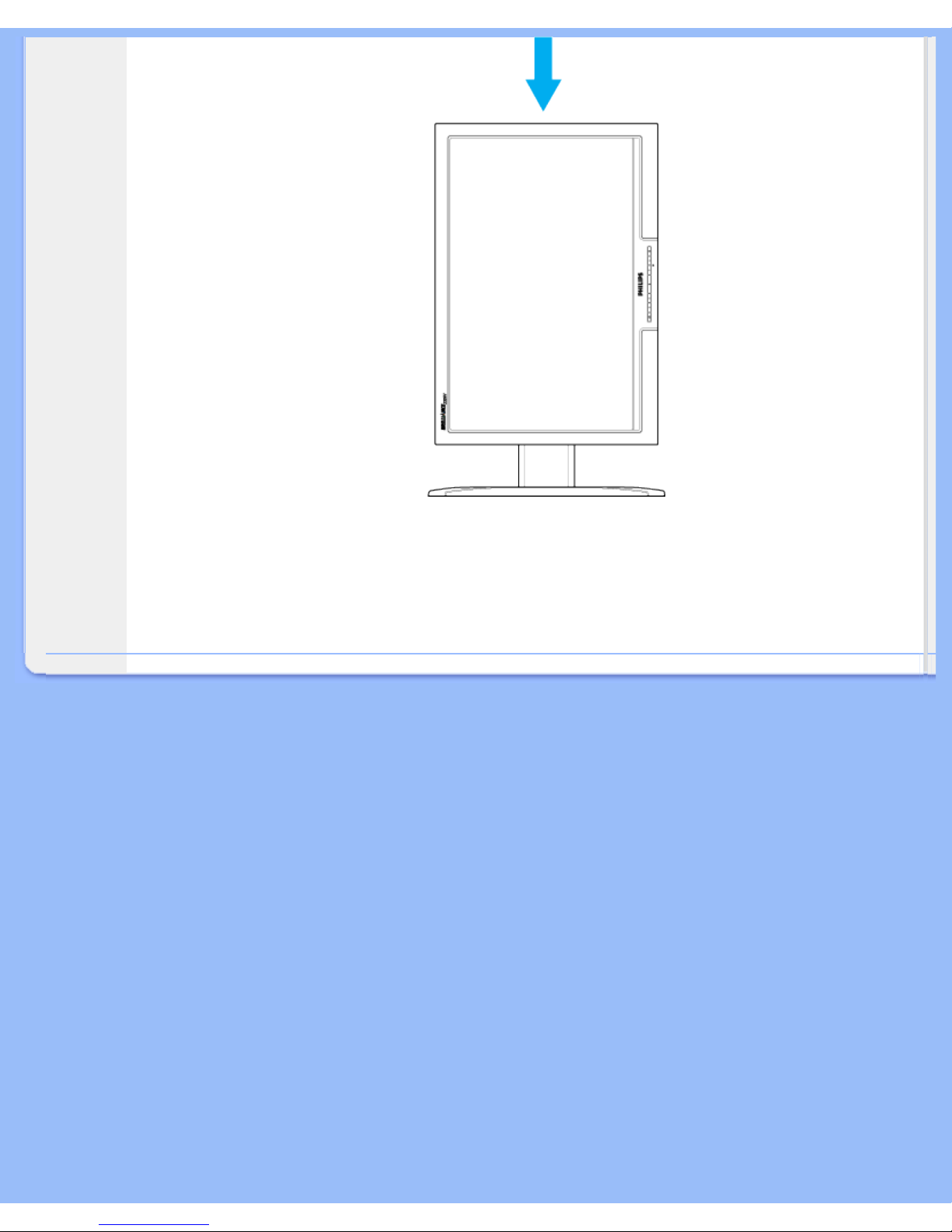

• Rotating the
Monitor
Product Information
Product Features
230WP7NS
●Designed for maximum productivity
❍Big, widescreen ideal for viewing two A4 pages side-by-side

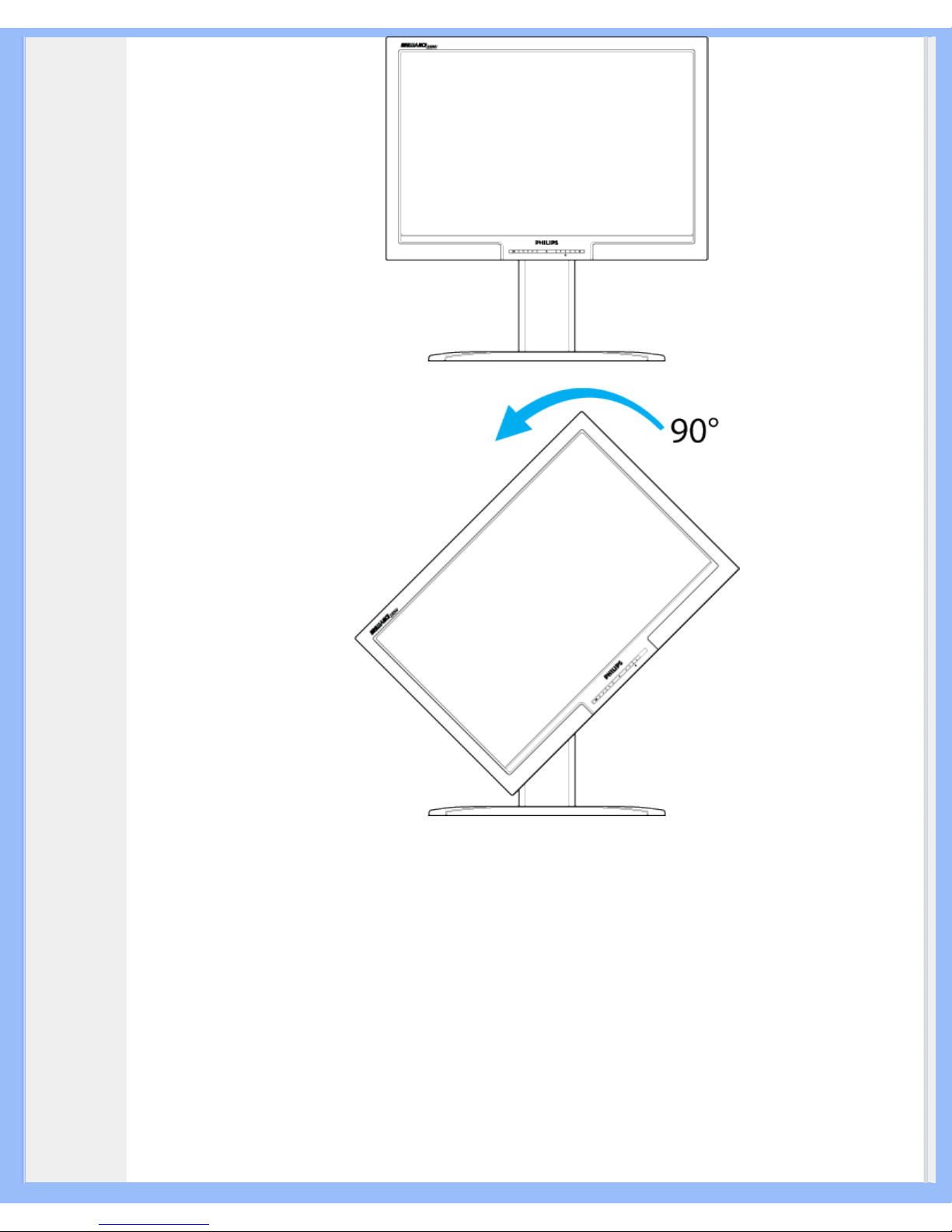

❍90 degree screen rotation and smart cable management
❍Designed for 'just-right' height and angle adjustment
●Best total cost of ownership solution
❍SmartManage compatibility enables LAN-based asset management
❍Power consumption below the industry average
●Outstanding front of screen performance
❍WUXGA, wide format 1920x1200 resolution for sharper display
❍Widest viewing angle up to 178 degrees
❍Dual input accepts both analog VGA and digital DVI signals
●Great convenience
❍Built-in High-speed USB 2.0 solution for easy connections
❍Easy to adjust display settings with Philips SmartControl
❍Embedded power supply eliminates external power adaptors
RETURN TO TOP OF THE PAGE
Lead-free Product
Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health
and promotes environmentally sound recovery and disposal of waste from electrical and electronic
equipment.Philips complies with the European Community stringent RoHS Directive mandating
restrictions on hazardous substances in electrical and electronic equipment. With Philips, you can be
confident that your display device does not harm the environment.
Technical Specifications*
LCD PANEL
• Type TFT LCD
• Screen size 23.0" / 58.4cm
• Pixel Pitch 0.258 x 0.258mm
• LCD Panel type 1920 x 1200pixels
R.G.B. vertical stripe
Anti-glare polarizer, hard coated
• Effective viewing area 495.36 x 309.6mm
• Display Colors 8 bits interface (16M colors)
SCANNING
Vertical refresh rate 56Hz-85Hz (Analog / Digital input)
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (1 of 9)2006-01-10 3:34:36 PM

Product Information
Horizontal Frequency 30kHz-94kHz (Analog input)
VIDEO
• Video dot rate 205 MHz
• Input impedance
- Video 75 ohm
- Sync 2K2 ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
Composite sync
Sync on green
• Sync polarities Positive and negative
Optical characteristics
• Peak contrast angle 6 o'clock
• White Chromaticity: x: 0.283 y: 0.297 (at 9300°K)
x: 0.313 y: 0.329 (at 6500°K)
* This data is subject to change without notice.
RETURN TO TOP OF THE PAGE
Resolution & Preset Modes
• Maximum 1600 x 1200 at 75Hz(analog input)
1600 x 1200 at 60Hz(digital input)
•
Recommended 1920 x 1200 at 60Hz * at DVI digital input
16 user definable modes
20 factory preset modes:
H. freq (kHz) Resolution V. freq (Hz)
31.5 640*350 70 (IBM VGA 10h)
31.5 720*400 70
31.5 640*480 60
35 640*480 67
37.5 640*480 75
35.2 800*600 56
37.9 800*600 60
46.9 800*600 75
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (2 of 9)2006-01-10 3:34:36 PM

Product Information
49.7 832*624 75
48.4 1024*768 60
60 1024*768 75
68.7 1152*870 75
71.8 1152*900 76
64 1280*1024 60
80 1280*1024 75
91.1 1280*1024 85
75 1600*1200 60
67.1 1920*1080 60
74.6 1920*1200 60
75.0 1600*1200 60
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA DPMS compliance display card or software installed in your PC, the monitor can automatically
reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected,
the monitor will be waken up automatically by your PC. The following table shows the power consumption and signaling
of this automatic power saving feature:
Power Management Definition
VESA Mode Video H-sync V-sync Power Used LED color
Active ON Yes Yes < 90W Green
Sleep OFF No No < 2W Amber
Switch Off OFF - - < 2W OFF
RETURN TO TOP OF THE PAGE
Physical Specifications
• Dimension (WxHxD) 548 x 422.6 x 234.6 mm (incl. Pedestal) (in lowest position)
• Weight 11.8 Kg
• Tilt / Swivel -5° ~ 25° / ± 45°
• Height adjustment rang 130 mm
• Power supply 100— 240 VAC, 60 - 50 Hz
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (3 of 9)2006-01-10 3:34:36 PM

Product Information
• Power consumption 80 W* (typ.)
• Temperature 5° C to 35° C (operating)
-20° C to 60° C (storage)
• Relative humidity 20% to 80%
• System MTBF 50K hrs (excluding CCFL 40K hrs)
• Cabinet color Black/Silver
•Altitude
- storage/shipment
- operating 0 - 40,000 feet (12,192m)
0 - 12,000 feet (3657.6m)
* This data is subject to change without notice.
* Resolution 1920 x 1200, standard size, contrast max., brightness 50%, 6500° K, full white pattern.
RETURN TO TOP OF THE PAGE
Pin Assignment

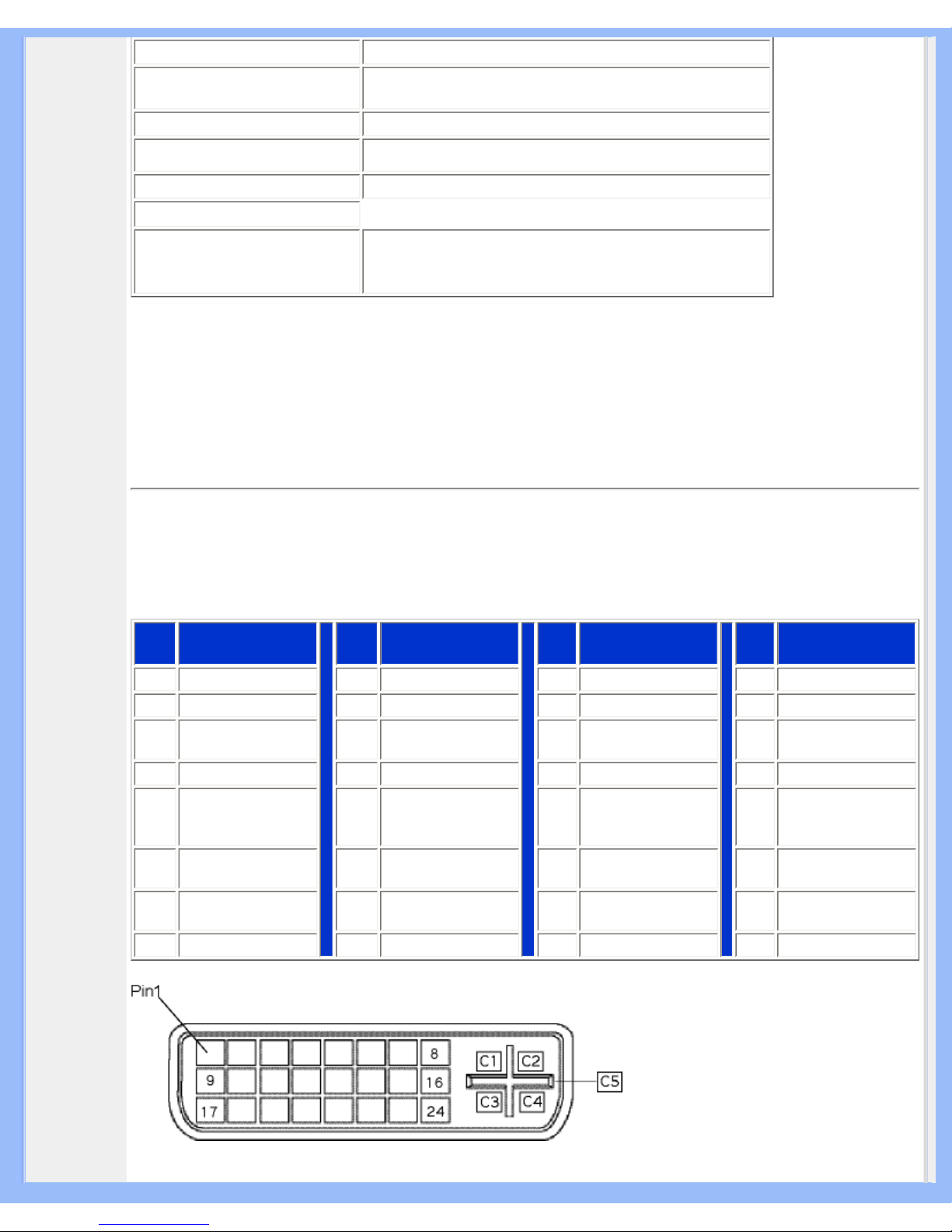

1. The DVI connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are
listed in the following table:
Pin
No. Signal Assignment
Pin
No. Signal Assignment
Pin
No. Signal Assignment
Pin
No. Signal Assignment
1T.M.D.S. Data2- 9T.M.D.S. Data1- 17 T.M.D.S. Data0- C1 * Analog R
2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ C2 * Analog G
3T.M.D.S. Data2
Shield 11 T.M.D.S. Data1 Shield 19 T.M.D.S. Data0
Shield C3 * Analog B
4NC 12 NC 20 NC C4 * Analog H-sync
5NC 13 NC 21 NC C5 * Analog GND
(Analog R, G, B
return)
6DDC Clock 14 +5V 22 T.M.D.S. Clock
Shield
7DDC Data 15 Ground (return for
+5V and H/V-sync) 23 T.M.D.S. Clock+
8* Analog V-sync 16 Hot Plug Detect 24 T.M.D.S. Clock-
2. The 15-pin D-sub connector (male) of the signal cable:
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (4 of 9)2006-01-10 3:34:36 PM

Product Information
Pin
No. Assignment Pin
No. Assignment
1Red video input 9+5V
2Green video input/SOG 10 Ground
3Blue video input 11 Ground
4Ground 12 Serial data line (SDA)
5Cable detect 13 H. Sync / H+V
6Red video ground 14 V. Sync (VCLK for DDC)
7Green video ground 15 Data clock line (SCL)
8Blue video ground
RETURN TO TOP OF THE PAGE
Product Views
Follow the links to see various views of the monitor and its components.
Front View Product Description
RETURN TO TOP OF THE PAGE
Physical Function
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (5 of 9)2006-01-10 3:34:36 PM

Product Information
1) Tilt
2) Swivel
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (6 of 9)2006-01-10 3:34:36 PM

Product Information
3) Height adjustment
4) Portrait display
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (7 of 9)2006-01-10 3:34:36 PM

Product Information
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (8 of 9)2006-01-10 3:34:36 PM

Product Information
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/product/product.htm (9 of 9)2006-01-10 3:34:36 PM

Installing Your LCD Monitor
• Front View
Produt
Description
•
Setting Up
and
Connecting
Your Monitor
• The Base
• Getting
Started
• Optimizing
Performance
Installing Your LCD Monitor

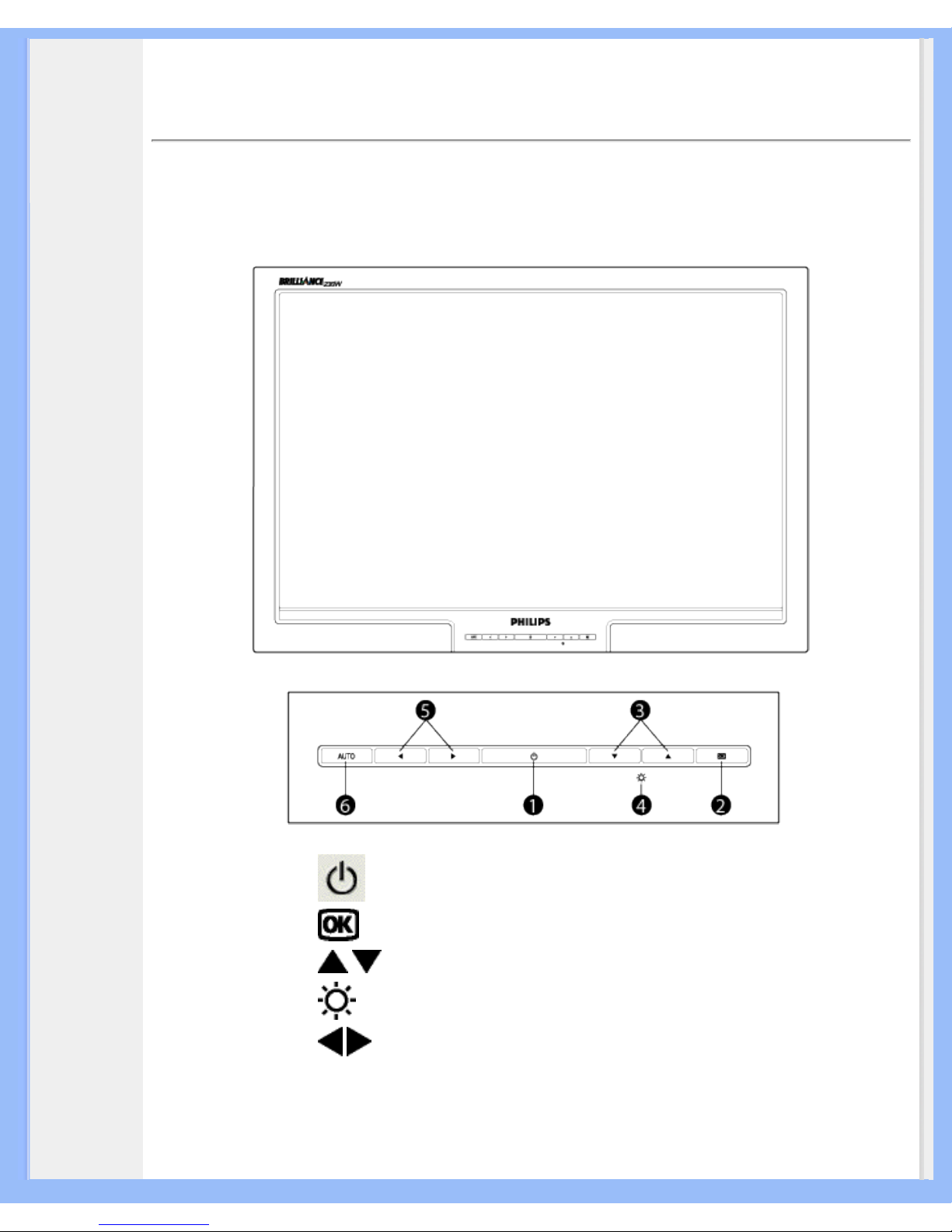

Front View Product Description
1 To switch monitor's power On and Off
2To access OSD menu
3To adjust the OSD
4To adjust brightness of the display
5To adjust the OSD
6AUTO Automatically adjust the horizontal position, vertical
position, phase and clock setting
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/install/install.htm (1 of 3)2006-01-10 3:34:37 PM

Installing Your LCD Monitor
Rear View
1 AC power input
2 DVI-I input
3 D-Sub
4 Kensington anti-thief lock
5 USB upstream and downstream
RETURN TO TOP OF THE PAGE
Optimizing Performance
●For best performance, ensure that your display settings are set at 1920 x 1200 @60Hz
Note: You can check the current display settings by pressing the 'OK' button
once. Go into the Product Information. The current display mode is shown on
the item called RESOLUTION.
●You can also install the Flat Panel Adjust (FP Adjust) program, a program for getting the
best performance out of your monitor. This is included on this CD. Step-by-step instructions
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/install/install.htm (2 of 3)2006-01-10 3:34:37 PM

Installing Your LCD Monitor
are provided to guide you through the installtion process. Click on the link to know more
about this program.
More about FP_setup4.3.exe
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/install/install.htm (3 of 3)2006-01-10 3:34:37 PM

On-Screen Display
• Description
of the On-
Screen
Display
• The OSD
Tree
• SmartControl
On-Screen Display

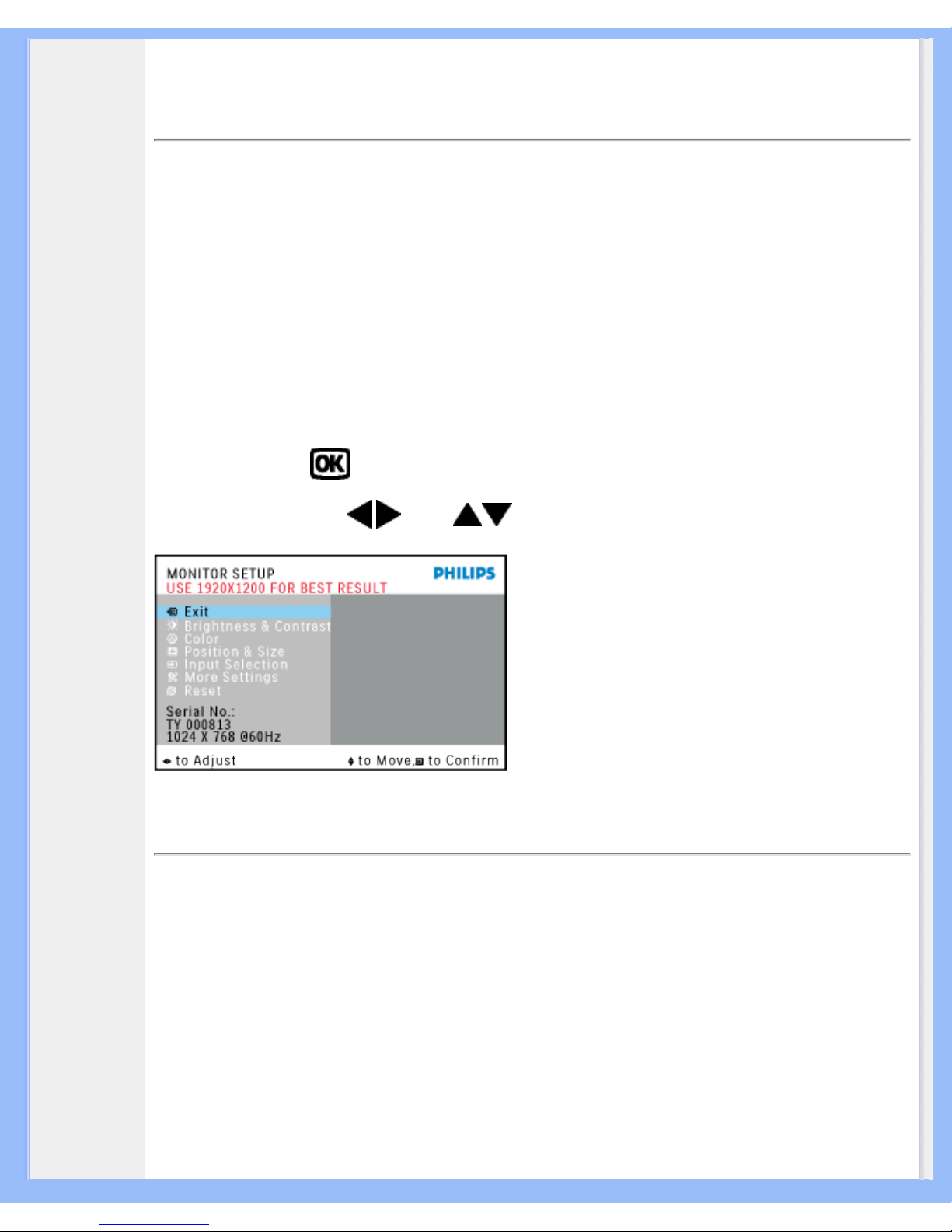

Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of
the monitors directly through an on-screen instruction window. The user interface provides user-
friendliness and ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.
When you press the button on the front control of your monitor, the On-Screen Display (OSD)
Main Controls window will pop up and you can then start making adjustments to your monitor's
various features. Use the or the keys to make your adjustments.
RETURN TO TOP OF THE PAGE

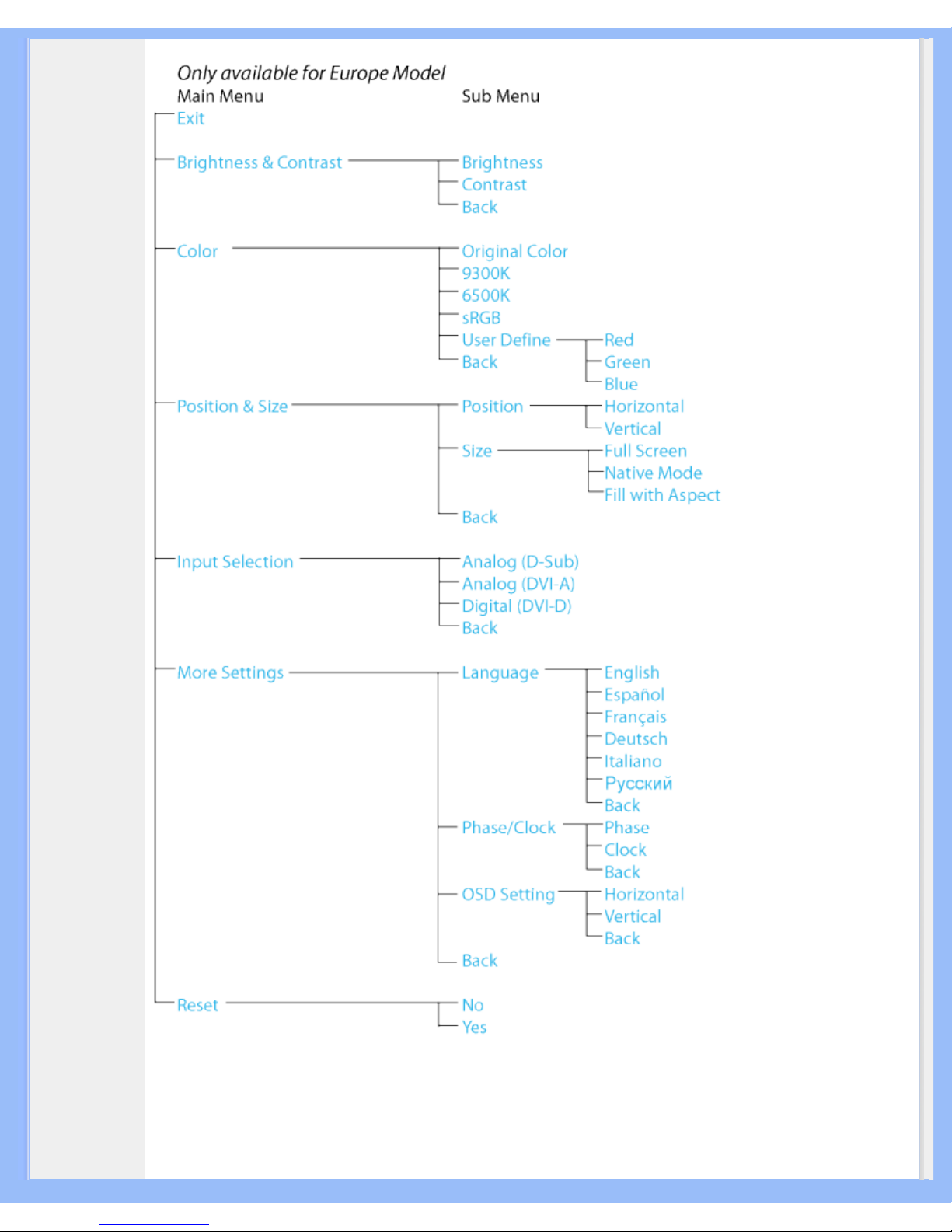

The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as a reference
when you want to work your way around the different adjustments later on.
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/osd/osddesc.htm (1 of 8)2006-01-10 3:34:38 PM

On-Screen Display
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/osd/osddesc.htm (2 of 8)2006-01-10 3:34:38 PM

On-Screen Display
RETURN TO TOP OF THE PAGE
file:///D|/My%20Documents/dfu/230WP7/english/230wp7/osd/osddesc.htm (3 of 8)2006-01-10 3:34:38 PM
