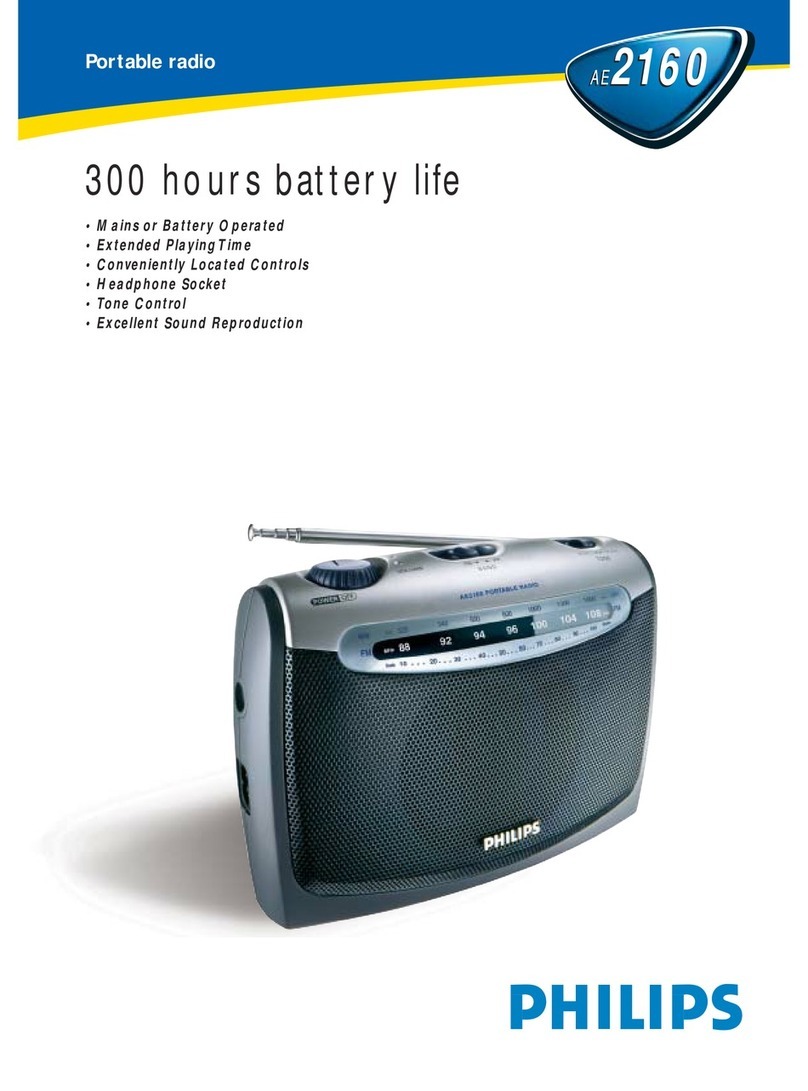

Philips AE2160/05 User manual

AE 2160
Portable Radio
            
            
            
         

    
           
          
          

        
         

8
4
5
6
7
3
2
1
1
            
            
            
         

    
           
          
          

        
         

Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug.To change a
fuse in this type of plug proceed as follows:
1Remove fuse cover and fuse.
2Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI
approved type.
3Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place. If the mains plug
contains a fuse, this should have a value of 5 Amp. If a plug without a
fuse is used, the fuse at the distribution board should not be greater
than 5 Amp.
Note: The severed plug must be disposed of to avoid a possible shock
hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code:
blue = neutral (N), brown = live (L). As these colours may not corre-
spond with the colour markings identifying the terminals in your plug,
proceed as follows:
• ConnectthebluewiretotheterminalmarkedNorcolouredblack.
• ConnectthebrownwiretotheterminalmarkedLorcolouredred.
• Donotconnecteitherwiretotheearthterminalintheplug,mar-
ked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is
clamped over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recordingandplaybackofmaterialmayrequireconsent.SeeCopyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.

    
           
          
          

        
         

            
            
            
         
Notice
This product complies with the radio interference requirements of the
EuropeanCommunity.
This product complies with the requirements of the following directives
andguidelines:2004/108/EC+2006/95/EC
Anychangesormodicationsmadetothisdevicethatarenotexpressly
approvedbyPhilipsConsumerLifestylemayvoidtheuser’sauthorityto
operate the equipment.
Recycling
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a
product,itmeanstheproductiscoveredbytheEuropeanDirective
2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products. The correct disposal of your old
product helps prevent potentially negative consequences on the
environment and human health.
        
         

            
            
            
         
Note:
The type plate is located on the bottom of the set.

    
           
          
          

YourproductcontainsbatteriescoveredbytheEuropeanDirective
2006/66/EC,whichcannotbedisposedofwithnormalhouseholdwaste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement
set by the directive for lead:
Pb
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the
packaging easy to separate into three materials: cardboard (box), polysty-
rene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regula-
tions regarding the disposal of packaging materials, exhausted batteries
and old equipment.

             
               
  
 
      
      
       
            
           



           
CONTROLS ( see figure 1 )
1TUNING - tune to a radio station
2TONE - NEWS/MUSIC -
adjusts sound
3BAND -
selects FM/MW (or LW) waveband
4
VOLUME / POWER OFF - switches radio on/off and adjusts vol-
ume level
5Telescopic Aerial -
improves FM reception
6
p
- 3.5mm earphone socket
7AC MAINS ~ - socket for mains lead
8Battery Door-openandinsert2xR20/UM1/D-cellbatteries
POWER SUPPLY
Batteries (Not included)
1
Open the battery compartment and insert two batteries, type
UM1,R20 or D-cells,withthecorrectpolarityasindicatedbythe“+”
and“–”symbols.
2Replace the compartment door.The set is now ready to operate.
•ThebatterysupplyisswitchedoffwhenthesetisconnectedtotheAC
Mains.
•Remove the batteries if the set is not to be used for a long time
Batteries contain chemical substances, so they should be disposed of
properly.

             
               
  
 
      
      
AC Mains
1
Checkifthemainsvoltageasshownonthe type plate on the bot-
tom of set, corresponds to your local mains voltage. If it does not,
consult your dealer or service centre.
2 ConnectthemainsleadtotheACMAINS~socketandthewallsocket.
The mains supply is now connected and ready for use.
3 To switch off completely, withdraw the mains lead from the wall socket.
• Disconnectthemainsleadfromthewallsockettoprotectyoursetdur-
ing heavy thunderstorms.
RADIO
Radio reception
1Turn the VOLUME/POWER OFF knob clockwise to switch on the
radio
and adjust the volume.
• You may connect headphones with a 3.5 mm plug to the socket p
- The built -in speaker will be muted.
2 Select the wave band using the BAND switch.
3 Tune to a radio station using TUNING.
• For FM, pull out the telescopic aerial. Incline and rotate the aerial.
Reduce its length if the signal is too strong (very close to a transmitter).
• For MW (AM or LW) the set is provided with a built-in aerial so the
telescopicaerialisnotneeded.Directtheaerialbyturningthewhole
set.
4Adjust the TONE switch by selecting NEWS or MUSIC.
5To switch off the set, turn the VOLUME/ POWER OFF knob anti-
clockwise to the OFF position and you will hear a small click.
      
         
 
             

MAINTENANCE
• Donotexposethesettohumidity,rain,sandorexcessiveheatcaused
by heating equipment or direct sunlight.
• Tocleantheset,useasoftdrycloth.Donotuseanycleaningagentscon-
taining alcohol, ammonia, benzene or abrasives as these may harm the
housing.
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your
dealer or service centre.
WARNING: Do not open the set as there is a risk of electric shock! Under no
circumstances should you try to repair the set yourself, as this will
invalidate the guarantee.
No power
– Wrong battery polarity
• Insertbatteriescorrectly
– Batteries exhausted
• Replacebatteries
No sound (see also No power)
– Volume is turned down
• Turn up volume
– Headphones plug is inserted
• Disconnectheadphonesifyouarenotusingthem
Poor headphones sound/ sound from one channel only
–Headphones plug not fully inserted
• Insert plug fully
S
–
C
–
      
       
            
           



           
      
         
 
             

             
               
  
 
      
Severe radio hum/distortion
–FM aerial not fully extended
• Extend FM aerial fully
Continuous crackling/hiss disturbance during MW (AM/LW) broadcast
– Electrical interference from TV, computer, fluorescent lamp, etc.
• Movesetawayfromotherelectricalequipment
       
            
           



           
      
         
 
             

             
               
  
 
      
      
AE 2160 - Portable radio
Printed in China
AE2160_05_UM_V2.0
© 2009 Koninklijke Philips
Electronics N.V.
All rights reserved.
       
            
           



           
      
         
 
             
