Philips AE9011/02 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual 3
DE Benutzerhandbuch 25
AE9011

2

3EN
Contents
1 Important 5
Safety 5
Notice 6
2 Your FM/DAB radio 8
Introduction 8
What’s in the box 8
Overview of the main unit 9
3 Get started 11
Place the radio 11
Prepare FM/DAB antenna 11
Connect power 12
Turn on 14
Adjust the volume level 14
4 Listen to FM radio 15
Tune to FM radio 15
Store FM stations manually 15
Select a preset FM radio station 16
Use FM menu 16
5 Listen to DAB radio 17
Tune to DAB radio 17
Change DAB station 17
Scan DAB radio stations 18
Display station information 18
Store DAB stations manually 19
Select a preset DAB radio station 19
Use DAB menu 19
English

4EN
6 Product information 21
Tuner (FM) 21
Tuner (DAB) 21
General information 21
7 Troubleshooting 22
8 About DAB 23

5
1 Important
Safety
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing.This product can•
produce sounds in decibel ranges that may cause hearing loss for a normal
person, even for exposure less than a minute.The higher decibel ranges are
offered for those that may have already experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts to•
higher volumes of sound. So after prolonged listening, what sounds ‘normal’
can actually be loud and harmful to your hearing.To guard against this, set
your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and clearly,•
without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also cause•
hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.•
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around you.•
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a motorized
vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal
in many areas.
Where the mains plug or an appliance coupler is used as the disconnect device,
the disconnect device shall remain readily operable.
EN
English

6
Warning
Never remove the casing of this unit.•
Never lubricate any part of this unit.•
Place this unit on a flat, hard and stable surface.•
Never place this unit on other electrical equipment.•
Keep this unit away from water, moisture and liquid-filled objects.•
Keep this unit away from direct sunlight, naked flames or heat.•
Notice
Any changes or modifications made to this device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s authority to operate the equipment.
This product complies with the radio interference requirements of the European
Community.
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that
the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and
electronic products.
Please act according to your local rules and do not dispose of your old products
with your normal household waste. Correct disposal of your old product helps to
prevent potential negative consequences for the environment and human health.
EN

7
Your product contains batteries covered by the European Directive 2006/66/EC,
which cannot be disposed with normal household waste.Please inform yourself
about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the packaging
easy to separate into three materials: cardboard (box), polystyrene foam (buffer)
and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled
by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
EN
English

8
2 Your FM/DAB radio
Congratulations on your purchase, and welcome to Philips!To fully benefit from
the support that Philips offers, register your product at www.philips.com/welcome.
Introduction
With this unit, you can enjoy both FM radio and Digital Audio Broadcasting (DAB)
radio.
Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally through
a network of transmitters. It provides you with more choice, better sound quality
and more information.
What’s in the box
Check and identify the contents of your package:
Main unit•
AC adaptor•
User manual•
EN

9

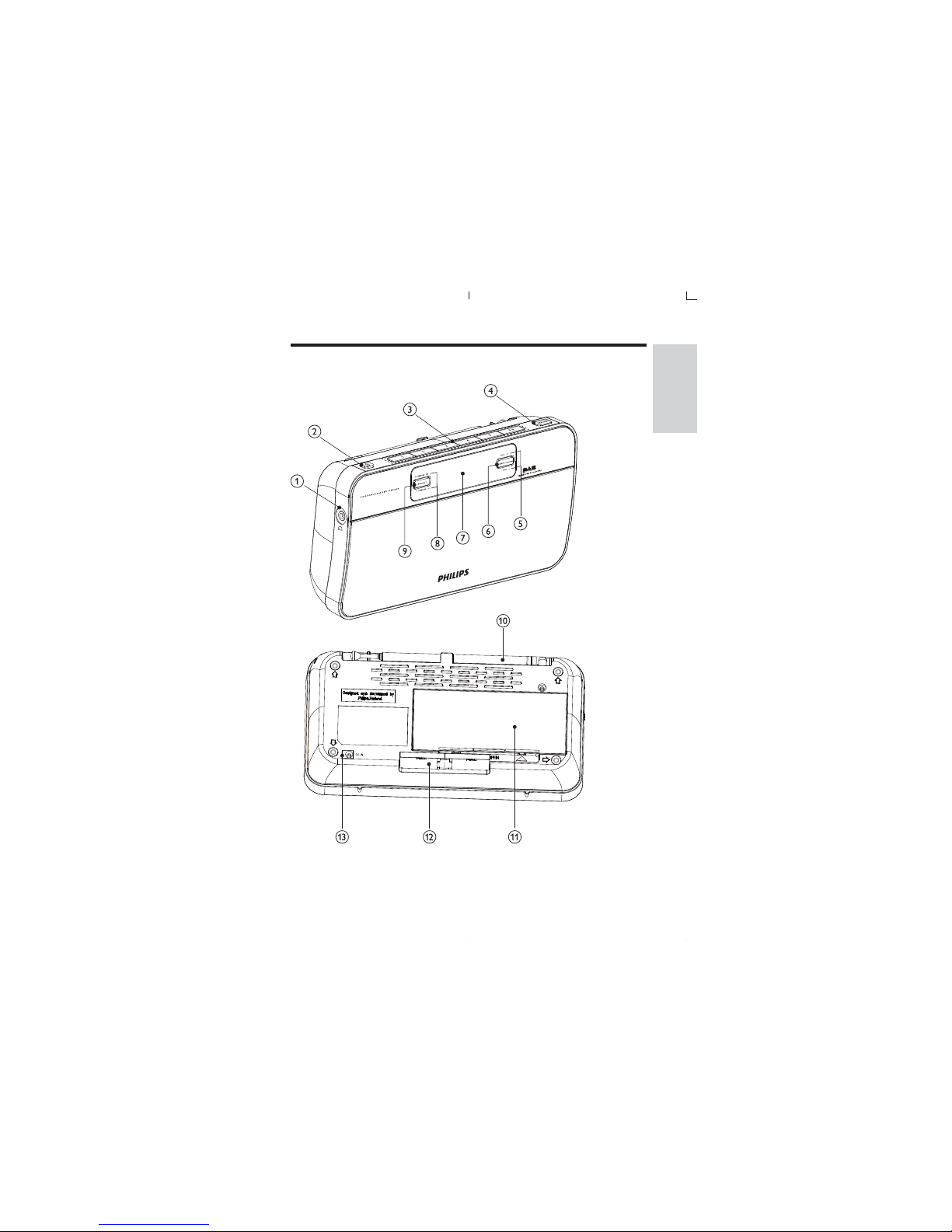

Overview of the main unit
EN
English

10
a
Jack for the headphone.•
b
Turn on or off the unit.•
c1 - 5+
Numeric keypads: Set/select a preset radio station.•
dDAB/FM
Select DAB or FM radio.•
eVOL+/-
Adjust volume.•
fMENU/SCAN
Select DAB/FM menu option.•
Scan DAB radio stations.•
gDisplay panel
Display current status.•
hTUNING +/-
Tune to a FM station.•
Navigate DAB station list.•
Navigate FM/DAB menu.•
iSELECT
Display DAB station information.•
Confirm DAB station selection.•
Confirm menu selection.•
jFM/DAB antenna
Improve FM/DAB reception.•
kBattery compartment door
lRetractable stand
Provide stand support.•
mDC
Jack for the AC adaptor(supplied).•
EN

11
3 Get started
Caution
Use of controls or adjustments or performance of procedures other than herein may result in•
hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of this
apparatus.The model number and serial number are on the back of the apparatus.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Place the radio
To place the unit on a flat, stable surface, pull out the retractable stand from
bottom of the unit at back-side.
Prepare FM/DAB antenna
For optimal reception, fully extend and adjust the position of the FM/DAB antenna.
Tip
Position the antenna as far away as possible from your TV,VCR or other radiation source to prevent•
interference.
EN
English

12
Connect power
You can use this radio player on AC power or battery power.
Battery Life (Approx. hours)
When using FM DAB
alkaline R6 (size AA) 8 8
Option 1:AC power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed•
on the back or the underside of the product.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket.
•
Never pull the cord.
Use only the AC adaptor specified by the manufacturer or sold with this unit.
•
Note
The type plate is located on the back of the apparatus.•
1Connect one end of the AC adaptor to the DC socket on the main unit.
2Connect the other end of the AC adaptor to the wall outlet.
EN

13
Option 2: Battery power
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fire. Never discard batteries in fire.•
Do not mix batteries (old and new or carbon and alkaline, etc.).•
Remove batteries if they are exhausted or if the unit is not to be used for a long time.•
1Open the battery compartment at the back of the unit.
2Insert 6 R6/UM-3/AA size batteries (not supplied) with correct polarity (+/-)
as indicated, then close the battery compartment.
3The unit is ready to operate.
Tip
“Battery low’ message is shown when the battery power is low. Change batteries to ensure normal•
operation.
Note
Batteries contain chemical substances, so they should be disposed of properly.•
EN
English

14
Turn on
1Press .
The unit switches to the last selected source.»
To turn off the unit:
1Press again.
Adjust the volume level
1During play, press VOL+/-to increase/decrease the volume level.
EN

15
4 Listen to FM radio
Tune to FM radio
1Press DAB/FMrepeatedly to select FM radio.
2Press TUNING +/- to tune to a radio station.
Search FM radio stations
1Tune to FM radio.
2Press and hold TUNING +/- for more than two seconds to start searching
stations.
The FM tuner tunes to a station with strong reception automatically.»
3Repeat step 1 if necessary until you find the desired station.
Store FM stations manually
You can program a maximum of 10 preset FM radio stations.
1Tune to your desired FM station.
2To preset number 1 - 5, press and hold the numeric keypad 1 - 5 for two seconds;
To select the preset number 6 - 10, press and hold the numeric keypads 5+
simultaneously with other keypad (e.g. 5+ with 1 for 6; 5+ with 5 for 10) for
two seconds.
The preset number of the saved station appears.»
Note
To overwrite a preset station, store another station in its place.•
EN
English

16
Select a preset FM radio station
1Press DAB/FMrepeatedly to select FM radio.
2Press numeric keypads to select a preset number.
Note
If you want to select a preset number 6-10, press and hold 5+ and then press corresponding•
number key.(For example, if you want to select 6, press and hold 5+ and then press 1.)
Use FM menu
1In FM mode, press MENU/SCAN to enter the FM menu.
2Press TUNING +/- to scroll the menu options:
• [Audio setting]
• [System]
3To select an option, press SELECT.
4Repeat step 2-3 if sub-option is available under one option.
[Audio setting]
This function enables you to select mono or stereo
• [Forced mono] Select mono broadcast.
• [Stereo allowed] Select stereo broadcast.
[Systcem]
• [Factory reset] Resets all the settings of this radio player to factory
default.
• [SW version] Software version of the radio player is shown.
Note
If no button is pressed within 15 seconds, the menu exits.•
EN

17
5 Listen to DAB radio
Tune to DAB radio
When you enter the DAB mode for the first time, the radio player automatically
scans DAB radio stations.Then station list is retained in memory so the next time
the radio player is switched on, the station scan does not take place.
1Press DAB/FMrepeatedly to select DAB radio.
A bar graph indicates the progress of the search and the number of»
stations found increase as the scan progresses.
AWhen scan is completed, the stations are listed in numerical then alphabetic
order.
First available station is played.»
BIf there is no DAB coverage currently available
»[No DAB Station] is displayed.
aChange the location or adjust antenna.
bPress SELECT to scan again.
Change DAB station
1Tune to a DAB station.
2Use TUNING +/- to navigate through available stations.
3Press SELECT to choose a station.
Number of
Stations found
Progress bar
EN
English

18
Scan DAB radio stations
1When playing a DAB station, or the current station is not available, press and
hold MENU/SCAN for more than two seconds.
The radio player scans all available DAB radio stations and broadcasts»
the current station.
Tip
New stations and services will be added in the DAB broadcast.To make new DAB stations and•
services available on your radio player, do scan on a regular base.
Display station information
1Tune to a DAB radio station.
2Press SELECT repeatedly to scroll through the following information (if
available):
Dynamic label segment (DLS)»
Program type (PTY)»
Ensemble Name»
Channel and frequency»
Signal error rate»
Bit rate and audio status»
Time»
Date»
EN

19
Store DAB stations manually
You can store a maximum of 10 preset DAB radio stations.
1Tune to your desired DAB station.
2To preset number 1 - 5, press and hold the numeric keypad 1 - 5 for two
seconds;
To select the preset number 6 - 10, press and hold the numeric keypads 5+
simultaneously with other keypad (e.g. 5+ with 1 for 6; 5+ with 5 for 10) for
two seconds.
The preset number of the saved station appears.»
Note
To overwrite a preset station, store another station in its place.•
Select a preset DAB radio station
1Press DAB/FMrepeatedly to select DAB radio.
2Press numeric keypads to select a preset number.
Use DAB menu
1In DAB mode, press MENU/SCAN to enter the DAB menu.
2Press TUNING +/- to scroll the menu options:
• [Station list]
• [Full scan]
• [Manual tune]
• [DRC] (dynamic range control)
• [System]
3To select an option, press SELECT.
4Repeat step 2-3 if sub-option is available under one option.
EN
English

20
[Full scan]
Full scan is used to perform a wide range of DAB radio search (outside UK).
Note
If no button is pressed within 15 seconds, the menu exits.•
[Manual tune]
It is possible to manually tune to a specific channel/frequency and add this to the
station list.
This function can be used to obtain the optimum reception for a specific channel/
frequency, taking into account the position of the aerial.
A rectangle will be displayed on first line of the display.The position of»
this rectangle indicates the signal strength (the further towards the right,
the greater the signal strength).
The second line of the display shows the selected channel and its»
frequency.The first line of the display shows a rectangle.
Tip
Adjust the position of the antenna to obtain the optimum signal strength.•
[DRC]
Dynamic range control (DRC) adds or removes a degree of compensation for the
differences in the dynamic range between radio stations.
• [DRC ] (DRC is switched on.)
• [DRC off] (DRC is switched off.)
• [System]
• [Info] (Software version of the radio player is shown.)
• [Factory reset] (Resets all the settings of this radio player to factory
default.)
Press ‘SELECT” to confirm reset.•
EN
