Philips DA9011/02 User manual

Register your product and get support at DA9011
EN User manual

EN
1 Important
Safety
• Never lubricate any par t of this unit
• Never place this unit on other electrical equipment.
• Neverexposethisdevicetodirectsunlight,nakedames,or
heat.
• Onlyuseattachments/accessoriesspeciedbythe
manufacturer.
• Referallservicingtoqualiedservicepersonnel.Servicingis
required when the digital radio has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the digital radio, the digital
radio has been exposed to rain or moisture, does not operate
normally, or has been dropped.
• The unit shall not be exposed to dripping or splashing.
• Donotplaceanysourcesofdangerontheunit(e.g.liquidlled
objects, lighted candles).
• Where the mains plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.
Hearing safety
Listen at a moderate volume.

• Using earphones at a high volume can impair your hearing. This
product can produce sounds in decibel ranges that may cause
hearing loss for a normal person, even for exposure less than
a minute. The higher decibel ranges are offered for those that
may have already experienced some hearing loss.
• Soundcanbedeceiving.Overtimeyourhearing‘comfortlevel’
adaptstohighervolumesofsound.Soafterprolongedlistening,
whatsounds‘normal’canactuallybeloudandharmfultoyour
hearing. To guard against this, set your volume to a safe level
before your hearing adapts and leave it there.
To establish a safe volume level:
• Setyourvolumecontrolatalowsetting.
• Slowlyincreasethesounduntilyoucanhearitcomfortablyand
clearly, without distortion.
Listen for reasonable periods of time:
• Prolongedexposuretosound,evenatnormally‘safe’levels,can
also cause hearing loss.
• Be sure to use your equipment reasonably and take appropriate
breaks.
Be sure to observe the following guidelines when using your
earphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Donotturnupthevolumesohighthatyoucan’thearwhat’s
around you.
• You should use caution or temporarily discontinue use in
potentially hazardous situations. Do not use earphones while
operating a motorized vehicle, cycling, skateboarding, etc.; it
maycreateatrafchazardandisillegalinmanyareas.

Notice
This product complies with the radio interference requirements of
the European Community.
Anychangesormodicationsmadetothisdevicethatarenot
expresslyapprovedbyPhilipsConsumerLifestylemayvoidtheuser’s
authority to operate the equipment.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product
it means that the product is covered by the European Directive
2002/96/EC. Please inform yourself about the local separate
collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your
old products with your normal household waste.
Correct disposal of your old product helps to prevent potential
negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste.
Please inform yourself about the local rules on separate collection
of batteries because correct disposal helps to prevent negative
consequences for the environmental and human health.
Always bring your product to a professional to remove the built-in
battery.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.

Note
•The type plate is located on the back of the unit.
2 Your FM/DAB radio
Congratulations on your purchase, and welcome to Philips!To fully
benetfromthesupportthatPhilipsoffers,registeryourproductat
www.philips.com/welcome.
Introduction
With this unit, you can enjoy both FM and Digital Audio Broadcasting
(DAB) radio.
Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally
through a network of transmitters. It provides you with more choice,
better sound quality, and more information.
What’s in the box
Check and identify the contents of your package:
• Main unit
• Power adapter
• USBcable
• Earphones
• User manual

Overview of the main unit
a
• Earphones socket.
bDisplay panel
• Showcurrentinformation.
cINFO
• DisplayDAB/RDSinformation
c
e
b
a
f
d
h
i
g

d(USB socket)
• ConnectpowerthroughaUSBcable.
• Connect PC for software update.
eMENU
• Access DAB/FM menu.
fNavigation keys
/
• Adjust volume.
/
• Adjust settings.
• Tune to a radio station.
• Searchfornextradiostationautomatically.
OK
• Conrmaselection.
• Searchfornextradiostationautomatically.
gDAB/FM
• SelectDAB/FMsource.
hPRESET
• Storeradiostationsmanually.
• Selectapresetradiostation.
iPower selector
• Turn on/off the power.

3 Get started
Caution
•Use of controls, or adjustments or performance of procedures other
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of this device.The model number and serial number are on the back of
the device. Write the numbers here:
Model No. __________________________
SerialNo.___________________________
Connect power
Caution
•Risk of product damage! Ensure that the power supply voltage
corresponds to the voltage printed on the back or the underside of
the unit.
•Risk of electric shock! When you unplug the AC power cord, always
pull the plug from the socket. Never pull the cord.
•Before connecting the AC adapter, ensure that you have completed
all other connections.
•Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type.
•The battery contains chemical substances, so it should be disposed
of properly.

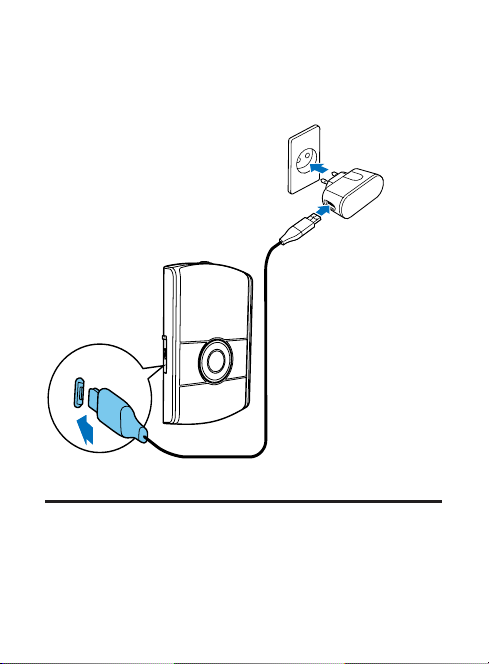

This digital radio can be powered on by AC mains or build-in battery.
1Pull the cover out of the (USB)socketontheleftofthe
unit.
2 InsertoneendoftheUSBcableintotheUSBsocket.
3 ConnecttheotherendoftheUSBcabletotheACadapter.
4Connect the AC adapter to the wall outlet.
»This digital radio begins to charge automatically.
Note
•Whenusebuild-inbattery,pleasemakesurethepowerissufcient.
If not, follow above steps to charge your digital radio.

Turn on

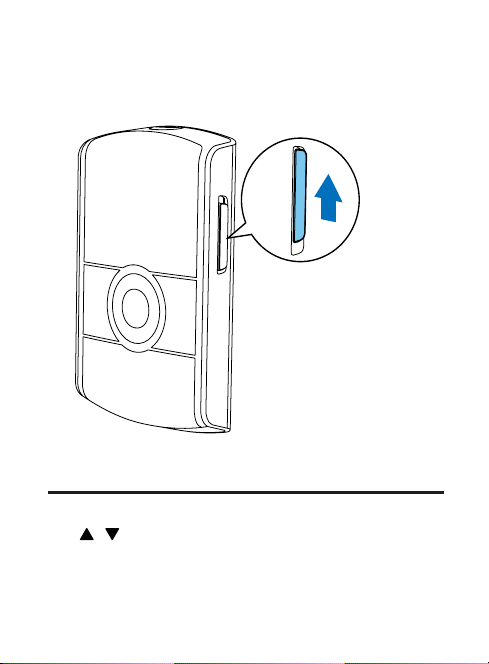

Push the selector upward to turn on the unit.
»[Welcome to Digital Radio] (welcome to digital radio) is displayed.
»The unit switches to the last selected source.

To turn off the unit, push the selector downward.
Adjust volume
Press / repeatedly to increase/decrease the volume.

Connect the earphones
Before tune to a radio station, plug the supplied earphoned into the
socketonthetopoftheunit.Otherwise,youcan’tlistentotheradio.
For optimal reception, fully extend your earphones cable and adjust the
position of your digital radio.
Note
•To prevent interference, position your digital radio as far as possible
from TV, VCR, or other radiation source.
4 Listen to DAB radio
Tune to DAB radio stations
WhenyouentertheDABmodeforthersttime,orthestationlist
is empty, the digital radio automatically scans DAB radio stations, and
station list is retained in memory. Next time when you turn on the unit,
the station scan does not take place.
1Press DAB/FMrepeatedly to select DAB mode.

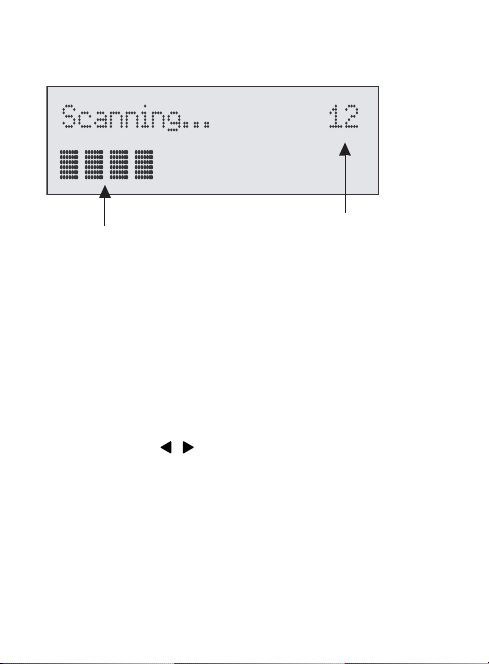

»A bar graph indicates the progress of the search and the
number of stations found increase as the scan progresses.

2When scan is completed,
»Thestationsarelistedandrstavailablestationbroadcasts
automatically.
»If no DAB station is available, [No DAB Station] (no DAB
station) is displayed.
• Change the location.
• Press OK to scan again.
To change DAB stations:
In DAB mode, press / repeatedly to tune to a desired station,
and then press OKtoconrm.Ifnot,theradioexitsthestationlist
automatically.
Number of
stations found
Progress bar

Scan DAB radio stations automatically
Note
•New stations and services will be added in the DAB broadcast. To
make new DAB stations and services available, perform full scan
regularly.
1In DAB mode, press MENU to access the DAB menu.
2Press / repeatedly to display [Full scan] (full scan).
3Press OKtoconrm.
»TheunitscansallDABradiostationsandbroadcaststherst
available station.
Store DAB radio stations manually
Note
•You can store up to 10 DAB radio stations.
1Tune to a DAB radio station.
2Press and hold PRESET for more than two seconds to activate
the storing mode.
»[Preset Store] (preset store) is displayed.
3Press / repeatedly to select a preset number.
4Press OKtoconrm.
5Repeat steps 1 to 4 to store more DAB stations.

Note
•To overwrite a preset station, store another station in its place.
Select a preset DAB radio station
1In DAB mode, press PRESET.
2Press / repeatedly to select a preset DAB radio station.
3Press OKtoconrm.
Note
•When you go through the preset station list, if no button is pressed
within 15 seconds, the radio tunes to last selected station.
Display DAB information
1Tune to a DAB radio station.
2Press INFO repeatedly to scroll through the following
information (if available):
»DynamicLabelSegment(DLS)
»Signalstrength
»Program Type (PTY)
»Ensemble name
»Channel and frequency
»Signalerrorrate
»Bit rate and audio status
»Time

Use DAB menu
1In DAB mode, press MENU to access the DAB menu.
2Press / repeatedly to display the menu options:
• [Station list] (station list): display all DAB radio stations that
have been found.
• [Full scan] (full scan):scan all available DAB radio stations.
• [Manual tune](manualtune):tunetoaspecicchannel/
frequency manually and add it to the station list.
• [DRC] (DRC)
• [Station order] (station order): change station order.
• [Prune] (prune): remove unavailable stations from the
station list.
• [System] (system): adjust system settings.
3To select an option, press OK.
4Repeat steps 2-3 if sub-option is available under one option.
[DRC] (DRC)
Dynamic range compression (DRC) adds or removes a degree of
compensation for the differences in the dynamic range between radio
stations.
• [DRC high] (DRC high): set DRC in high level.
• [DRC low] (DRC low): set DRC in low level.
• [DRC off] (DRC off ): turn off DRC.
Note
•DRConlyworksifitisenabledbythebroadcasterforaspecic
station.
[Station order] (station order)
• [Alphanumeric] (alphanumeric): list stations in alphanumeric
order.

• [Ensemble] (ensemble):list groups of stations that are broadcast
together on the same ensemble.
[System] (system)
• [Backlight] (backlight): select timeout mode for the backlight.
• [Language] (language): select a language.
• [Factory Reset] (factory reset): reset all settings to factory
default.
• [Software Upgrade] (software upgrade):upgrade software if
available.
• [SW version] (software version):know the software version of
this digital radio.
Note
•If no button is pressed within 15 seconds, the menu exits.
5 Listen to FM radio
Tune to FM radio stations
1Press DAB/FM repeatedly to select FM mode.
2Press / repeatedly to tune to a radio station.
Scan FM radio stations automatically
In FM mode, press OK or press and hold / for more than two
seconds.
»The unit scans the next available station and broadcasts it
automatically.

Store FM radio stations manually
Note
•You can store up to 10 FM radio stations.
1Tune to an FM radio station.
2Press and hold PRESET for more than two seconds to activate
storing mode.
3Press / repeatedly to select a preset number.
4Press OKtoconrm.
5Repeat steps 1-4 to store more FM stations.
Tip
•To overwrite a preset station, store another station in its place.
Select a preset FM radio station
1In FM mode, press PRESET.
2Press / repeatedly to select a preset FM radio station.
3Press OKtoconrm.
Note
•When you go through the preset station list, if no button is pressed
within 15 seconds, the radio tunes to last selected station.

Display RDS information
RadioDataSystem(RDS)isaservicethatallowsFMstationstoshow
additional information.
IfyoulistentoanFMstationwithRDSsignal,thestationnameis
displayed.
1 TunetoanRDSstation.
2Press INFO repeatedly to scroll through the following
information (if available):
»Radio text
»Program type such as [NEWS] (news), [SPORT] (sport),
[POP M] (pop music)...
»Stationname
»Mono/stereo
Use FM menu
1In FM mode, press MENU to access FM menu.
2Press / repeatedly to scroll the menu options:
• [Scan setting] (scan setting)
• [Audio setting] (audio setting)
• [System] (system)
3To select an option, press OK.
4Repeat steps 2-3 if sub-option is available under one option.
[Scan setting] (scan setting)
• [All stations] (all stations): scan all FM radio stations.
• [Strong stations only] (strong stations only): scan stations with
strong signals only.
[Audio setting] (audio setting)
• [Stereo allowed] (stereo allowed): select stereo broadcast.
