1 General information
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register
your product at www.philips.com/welcome.
1.1 What is digital TV?
Digital Television offers a far wider choice of TV viewing, free from the
interference that you may experience on analogue TV. It promises to
transform television viewing into a whole new experience. There is a
greater selection of widescreen programming. Many of your favorite
programmes are in widescreen on the digital channels - something the
analogue TV cannot do properly.
There is new whole experience of interactivity on digital TV. By using
your remote control, you can access all kinds of information like the
digital text which is much clearer than the old teletext system. It gives
you the added enjoyment of related information running alongside
the programme you are watching. You can also access an Electronic
Programme Guide that provides you with a quick and easy way to view a
complete list of digital programmes as you would in a newspaper or TV
magazine.
1.2 Safety
Warning: The connections do not have to be made before hanging
but the cables must be inserted into connectors of the TV.
1.2.1 General

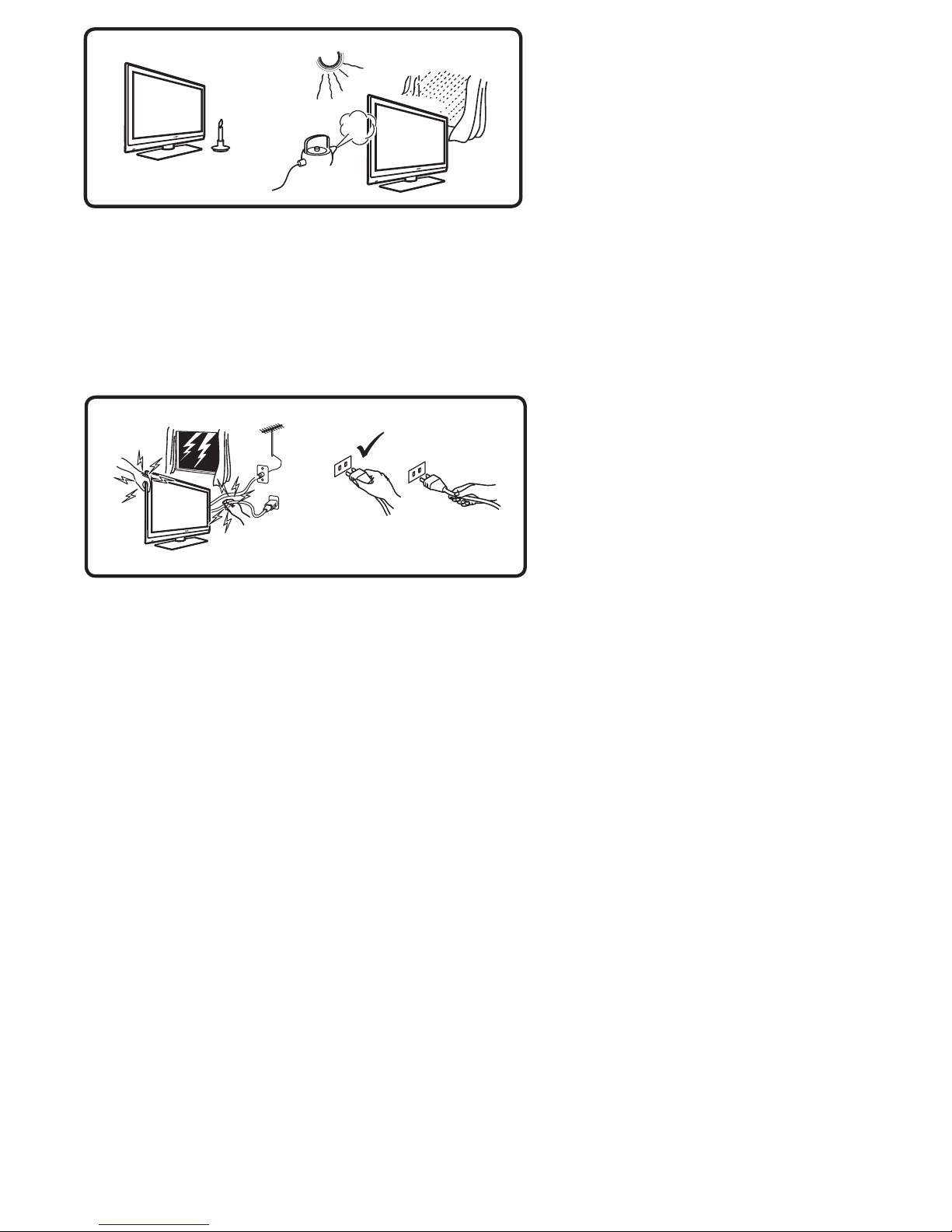

Place or hang the TV wherever you want but make sure that air can
circulate freely through the ventilation slots.
Do not install the TV in a confined space such as a book case or a
similar unit.
To prevent any unsafe situations, no naked flame sources such as
lighted candles should be placed in the vicinity of the TV set. Avoid
heat, direct sunlight and exposure to rain or water.
1
2
3
PDV1075_12_A_CCR.indd 5PDV1075_12_A_CCR.indd 5 2007-10-24 11:06:29 AM2007-10-24 11:06:29 AM

XX
As a safety precaution, do not touch any part of the TV, power lead
or aerial lead during lightning storms.
Pull the power lead by the plug. Do not pull on the power lead. Do
not use a poor fitting mains socket. Insert the plug fully into the mains.
If it is loose, it may cause arching and result in fire.
X
X
X
Take care not to connect too many equipment to the same mains
socket as it may cause overloading resulting in fire or electric shock.
Avoid placing a vase or vases filled with water on top or near the
TV. Water spilled into the set could result in electric shock. Do not
operate set if water is spilled into the set. Unplug the power cord
from the mains immediately and have the set checked by a qualified
serviceman.
Installation of the TV set on the wall should be carried out by a
qualified serviceman. Improper and incorrect installation may render
the set unsafe.
1.2.2 Care of the screen

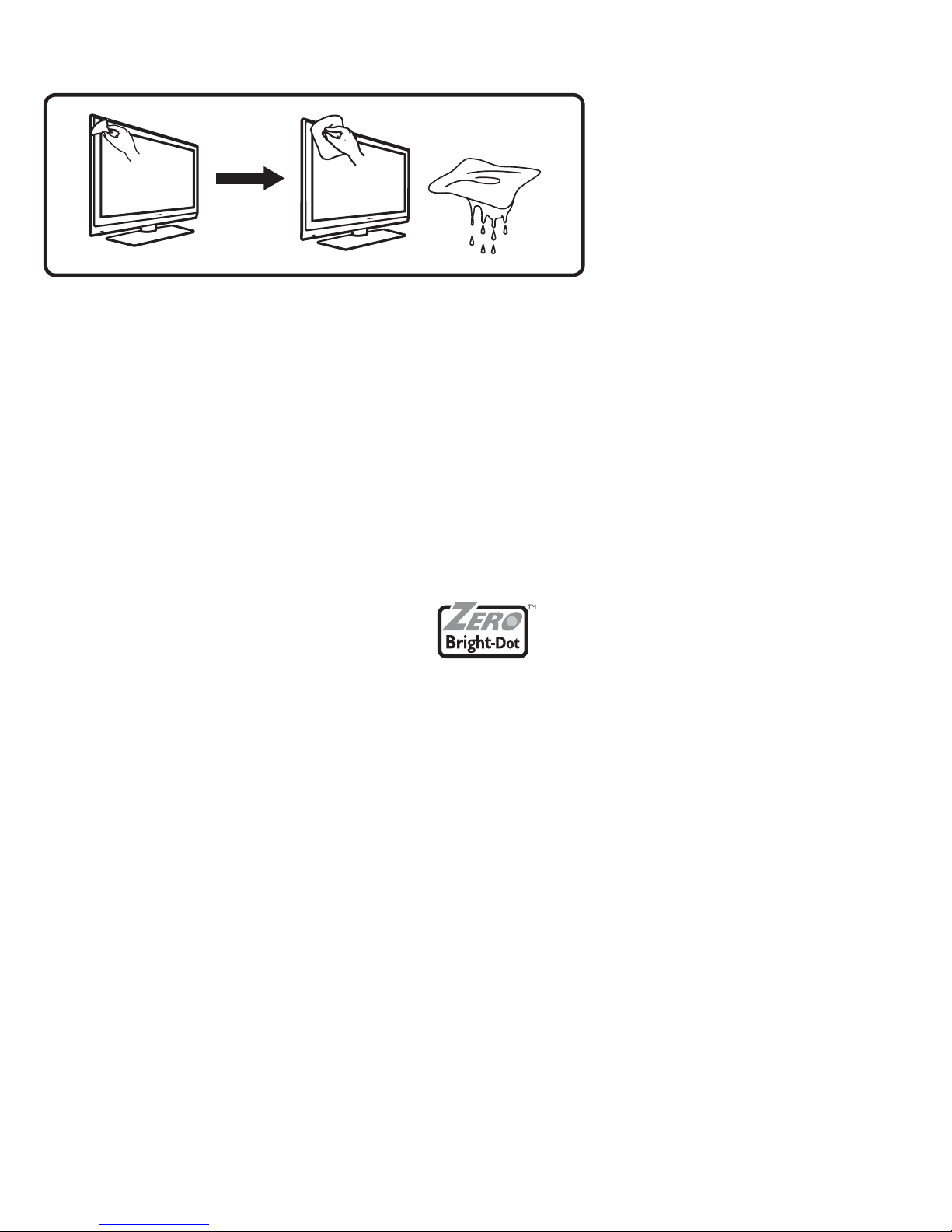

Do not remove the protective sheet until you have completed the
stand/wall mounting and connections. Please handle with care.
Do not use too wet a cloth which is dripping with water. Do not use
acetone, toluene or alcohol to clean the TV. As a safety precaution,
unplug the power cord from the mains when cleaning the set.
4
5
6
7
8
1
2
PDV1075_12_A_CCR.indd 6PDV1075_12_A_CCR.indd 6 2007-10-24 11:06:29 AM2007-10-24 11:06:29 AM

Note
Use only the soft cloth provided to clean the glossy front of the TV.
X
Do not touch, push or rub or strike the screen with anything hard as
this may scratch, mar or damage the screen permanently.
1.3 Unpacking
First check and identify the contents of your package, as listed below:
TV set • Remote control
AV cable • TV set stand
Power adaptor • User manual
Auxiliary antenna
1.4 Zero Bright DotTM
Enjoy highest-quality images that are free from annoying blank spots on
the LCD screen. LCD displays commonly have imperfections, termed as
'bright dots' by the LCD industry. A limited number of bright dots were
once considered an inevitable side effect of LCD mass production. With
Philips' strict quality control procedures used in our Portable DVD
Players, our LCD displays are produced with zero tolerance for bright
dots. Select Portable DVD Players come with Philips Zero Bright DotTM
Policy to guarantee optimal screen quality.
Warranty service varies from region to region. Contact your local Philips
representative for more detailed information.
3
•
•
•
•
PDV1075_12_A_CCR.indd 7PDV1075_12_A_CCR.indd 7 2007-10-24 11:06:30 AM2007-10-24 11:06:30 AM

2 Overview of television keys and connectors
2.1 Main unit controls (see figure 1)
POWER 2; : to switch the TV on and off. (Note: For zero power
consumption, you need to remove the mains cord from the mains
socket.)
VOLUME 1 2 : to increase or decrease the volume.
MENU 9: to display or exit menus.
CHANNEL 4 3: to select channels.
2.2 Left of the TV (see figure 1)
: Jack for the external USB mass storage devices.
AV IN: Audio/Video input.
;: Headphone jack.
DC IN 9V: Power supply socket.
2.3 Right of the TV (see figure 1)
SD: SD card slot.
75 Ω antenna: to connect antenna.
2.4 Rear of the TV (see figure 1)
RESET: to reset the TV.
Hooking hole: to mount the TV on the wall.
1
2
3
4
5
6
7
8
9
10
11
12
PDV1075_12_A_CCR.indd 8PDV1075_12_A_CCR.indd 8 2007-10-24 11:06:31 AM2007-10-24 11:06:31 AM

3 Getting started
3.1 Stand installation
Use the stand to place the TV set on a flat surface. To install the stand,
align the catches on the stand base with the slots at the bottom of the
set, as shown in the figure below. Then fit the stand into the slots and
turn anticlockwise until you hear a "click" sound.
2
1
Note: When you install the TV on the wall (refer to the Wall Mounting
section), please release the stand. To release the stand, lift up the latch and
turn the stand clockwise.
3.2 Connecting to antenna for either home
antenna or auxiliary antenna
Insert the aerial plug firmly into the 75 Ωaerial socket on the right side
of the TV and in the wall antenna socket.
3.3 Charging the TV set
Plug in the AC/DC adaptor.
PDV1075_12_A_CCR.indd 9PDV1075_12_A_CCR.indd 9 2007-10-24 11:06:31 AM2007-10-24 11:06:31 AM

The RED LED indicates that charging is in progress.
When the set is not in use, it will take about 6 hours to fully charge it.
However, when in use, it will take more than 8 hours to fully charge it.*
The RED LED will turn off when the set is fully charged. When the
low battery icon appears on the screen, please charge the set.
* Rechargeable batteries have a limited number of charge cycles and may
eventually need to be replaced. Battery life and number of charge cycles
vary by use and settings.
3.4 Switching on the TV
To switch on the TV, press and hold the POWER key on the top of the
set and the GREEN indictor also comes on.
VOLUME CHANNEL MENU POWER
1 2 3 4 9 2;
Notes:
1. For the first time to power on the set, use the AC power adaptor.
2. In case of failure to power on the set with built-in batteries, use the AC
power adaptor to charge batteries.
3.5 Using the Remote Control
Open the battery compartment. Remove the protective
plastic tab (first time users only).
•
•
1
PDV1075_12_A_CCR.indd 10PDV1075_12_A_CCR.indd 10 2007-10-24 11:06:32 AM2007-10-24 11:06:32 AM

Insert 1 x lithium 3V battery, type CR2025, then close the
compartment.
3.6 Remote Control functions (see figure 2)
2: Power On/Off the TV set
SOURCE: Switch between TV > Radio > USB > SD > AV-in
TELETEXT : Activate Teletext
AUDIO : Audio language selection
SUBTITLE : Subtitle languages selection
Color keys: Coloured areas are displayed at the bottom of the
screen. The 4 coloured keys are used to access the items or
corresponding pages. The coloured areas flash when the item or the
page is not yet available.
MENU: Press briefly to return to previous menu page. Press and
hold about 2 seconds to return to the top menu page.
EPG: Activate Electronic Program Guide
Navigation keys:
OK Confirm a selection or start/interrupt playback
3/ 4Up/down navigation key
J( / )K Left/right navigation key or previous/next track or fast search
backward/forward
OPTION: Access additional functions
INFORMATION : List program information
+ Vol -: Volume control
9: Press once to stop playback of digital files
MUTE: Mute the volume
+P(age)-: Change TV channels or Teletext pages
0-9: Numerical keys
FAV: Activate favorite TV/Radio channel mode
SLIDESHOW/MUSIC: Activate digital photo slide show with music
back ground
ROTATE: Rotate digital photos
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
PDV1075_12_A_CCR.indd 11PDV1075_12_A_CCR.indd 11 2007-10-24 11:06:33 AM2007-10-24 11:06:33 AM

ZOOM: Zoom in digital photos
SETUP: Enter setup menu
ASPECT RATIO : to adjust the screen of 16:9 or 4:3
3.7 First time installation
Setup DTV channels
During first time installation, you are prompted to select your country.
To confirm selection, press OK.
> After selecting your country, you are prompted to Auto Channel Search.
To start auto search, press OK.
> Auto channel search starts.
When Auto channel search is complete, the screen displays the total
number of TV and Radio channels found.
Select OK to view programs of the first found channel.
20
21
22
1
2
3
PDV1075_12_A_CCR.indd 12PDV1075_12_A_CCR.indd 12 2007-10-24 11:06:34 AM2007-10-24 11:06:34 AM

4 Further TV functions

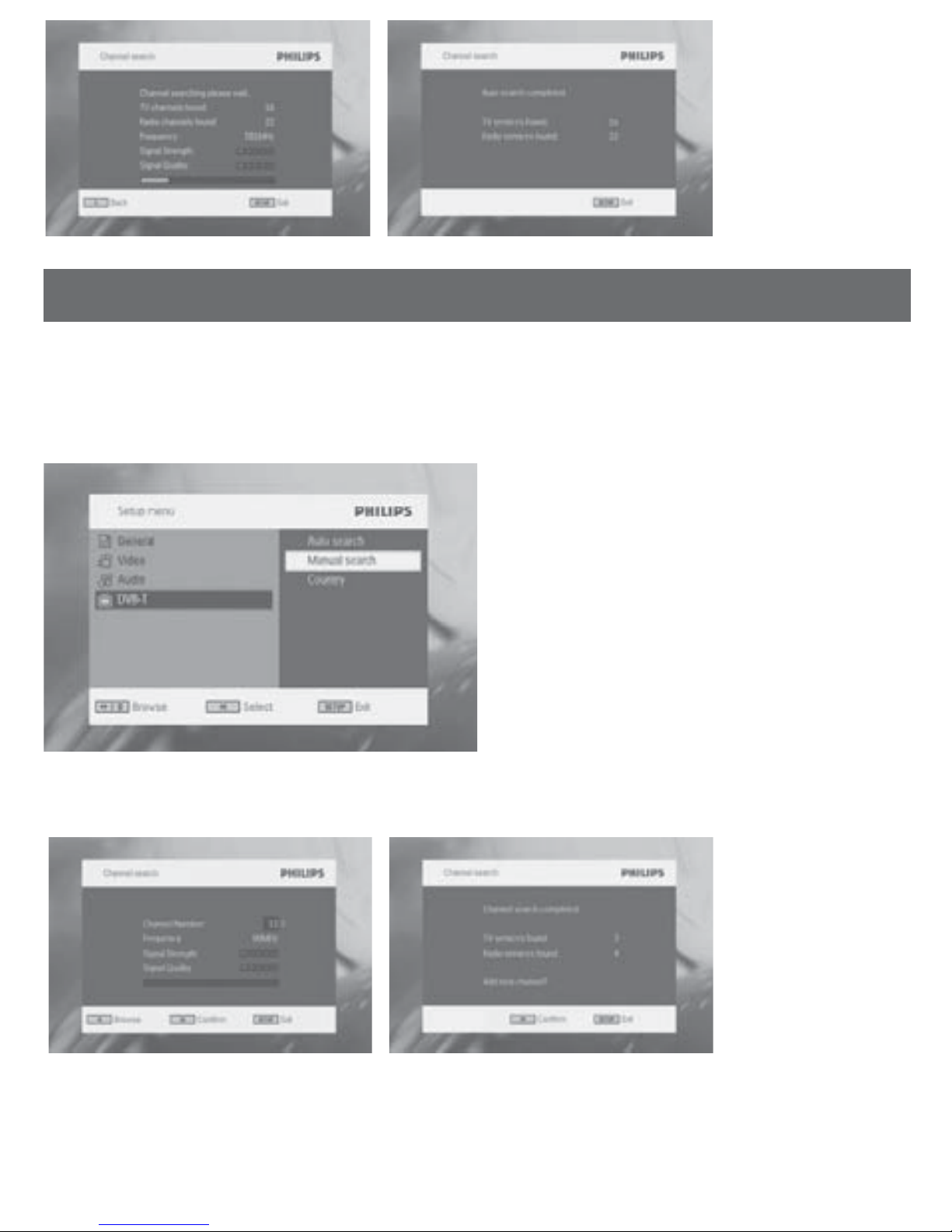

4.1 Manual Channel Search
1 Press SETUP > DTTV > Country to select your country.
2 Press SETUP > DTTV > Manual search.
3 Select Channel number.
To confirm a channel, press OK.
4.2 Set Time Zone
Select whether the local time offset with regard to Greenwich mean time
is to be set automatically, or if you want to specify it yourself.
PDV1075_12_A_CCR.indd 13PDV1075_12_A_CCR.indd 13 2007-10-24 11:06:35 AM2007-10-24 11:06:35 AM

To set local time, press SETUP, select DTTV > Time settings.
Time format
Set your time format to 12-hour or 24-hour.
Time zone
Select the entry GMT +01:00 for Germany and Central Europe (time
difference with regard to the Greenwich mean time).
Daylight saving
Set the menu item summer time to off if it is not summer time at the
moment. You can also select the setting automatic. In case of this setting,
the receiver obtains the information regarding summer time from the
currently selected channel.
4.3 Adjust Parental Control
To adjust Parent control setting, press SETUP, select DTTV >
Parental.
Parental options are only selectable when password
mode is deactivated.
4.4 On Screen Program Information
To view information of current program, press the INFORMATION
key.
: TV program
: Radio program
Next program’s information
Program number
Program name
Local time
Signal strength indicator. More the bars stronger the signals.
Program information icons
: Program contains different audio languages. You can press the
•
•
•
1
2
3
4
5
6
7
PDV1075_12_A_CCR.indd 14PDV1075_12_A_CCR.indd 14 2007-10-24 11:06:35 AM2007-10-24 11:06:35 AM

AUDIO or OPTION key on the remote to access this function.
: Program contains subtitles. You can press the SUBTITLE or
OPTION key on the remote to access this function.
: Program contains Teletext. You can press the TELETEXT key on
the remote to select Teletext function.
3
3
1
2
4 5
6
7

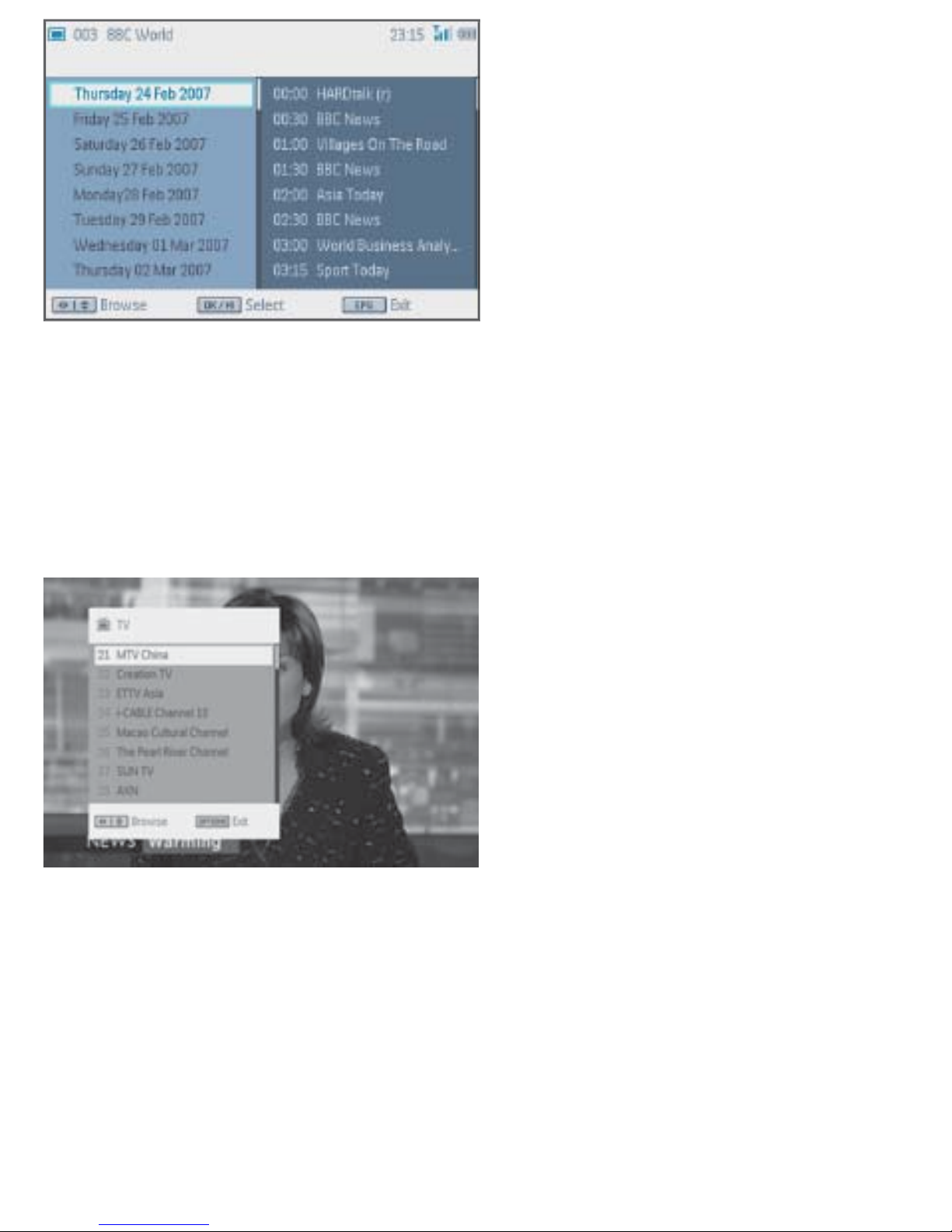

4.5 Electronic Program Guide (EPG)
The EPG offers you an overview of all programmes to be broadcasted in
the next week on the current channel. The information presented for the
selected event are: Start time, Title, Short description.
Not all channels offer an extensive EPG.
Many broadcasting services broadcast the current day
programme but do not offer detailed descriptions.
There are broadcasting services that do not offer any EPG
information.
•
•
•
Select the desired channel.
Press EPG to call up the electronic programme guide.
The following functions are offered to you by the EPG:
A press on 3/ 4allows you to consult all event pages for the days, a
press on 4when last event of the list is highlighted displays the next
page.
1
2
•
PDV1075_12_A_CCR.indd 15PDV1075_12_A_CCR.indd 15 2007-10-24 11:06:36 AM2007-10-24 11:06:36 AM

4.6 Channel List
To view available channel in your TV set:
Press OK.
Press 3/ 4to select a channel.
To change channel, press OK.
To exit Channel list, press OPTION.
4.7 Manage your channel
Press SETUP. Go to DTTV.
Select Manage Channel.
1
2
3
4
1
2
PDV1075_12_A_CCR.indd 16PDV1075_12_A_CCR.indd 16 2007-10-24 11:06:37 AM2007-10-24 11:06:37 AM

Lock: The feature allows you to lock channels to prevent your children
from watching certain channels.
Hide: This feature allows you to hide the program from channel selection
list.
Favorite: This feature allows you to skip programmes that you do not
watch often and only keep your favourite channels.
4.8 Other TV functions
Remote
button Function
SOURCE Switch between input source (TV, Radio, USB, SD
Card, AV-in).
TELETEXT If the current channel has Teletext available, will be
shown in the program INFO screen. You can access
the function by pressing TELETEXT. The program
may request using color key to access or control the
viewing feature. Please follow indication from the
Teletext screen.
Color keys They will be mainly used in the Teletext page to
control the viewing. It will be various from different TV
teletext program design.
AUDIO If the current channel has audio available, will be
shown in the program INFO screen. Press AUDIO to
activate the subtitle audio.
PDV1075_12_A_CCR.indd 17PDV1075_12_A_CCR.indd 17 2007-10-24 11:06:38 AM2007-10-24 11:06:38 AM

Remote
button Function
SUBTITLE If the current channel has subtitle available, will be
shown in the program INFO screen. Press SUBTITE
to activate the subtitle.
To adjust the screen of 16:9 or 4:3
5 Multimedia Player
The set can let you display pictures, video clips and music files stored
on a USB device or a SD memory card. The multimedia application is
invoked from the main menu.
Menu To
TV Watch the TV programs
Radio-DTTV Listen to the DTTV radio programs
Picture View your Photo Album
Music Play your digital music tracks
Video Watch the video clips
Folder view Browse the content of USB drive / SD card
Settings Customize the settings of the set
The following inputs are accepted.
USB: Only FAT/DOS-formatted memory device are supported.
SD card except SDHC cards
•
➜
➜
PDV1075_12_A_CCR.indd 18PDV1075_12_A_CCR.indd 18 2007-10-24 11:06:38 AM2007-10-24 11:06:38 AM

The following file formats can be reproduced.
Picture: JPEG
Video clips: MEPG1/2/4. DivX 4,5
Music file: MP3 and WMA
Note: Philips can not be held responsible if your USB
or SD card are not supported or recognized by this set.
Tip: If your USB device does not fit into the USB
connector at the side, use an USB extension cable to connect the
USB device to the USB port. Ask your dealer for more information.
Transferring and recording of data from the DTTV
to the USB port or SD card is not possible.
5.1 Photo Album
5.1.1 Preview / Slide Show
After you insert the USB drive or SD card, press MENU to go to
home page.
Select Picture from the home page. Then select you source of USB
or SD card.
All the picture files will be sorted out. You can then use navigation key
to highlight the picture from the left side area.
•
➜
➜
➜
•
•
•
PDV1075_12_A_CCR.indd 19PDV1075_12_A_CCR.indd 19 2007-10-24 11:06:39 AM2007-10-24 11:06:39 AM

Press OK to start the slide show.
Press STOP to return to photo thumb nail browser screen.
5.1.2 Slide Show with Music
To add music during slide show, press on the remote when you
start slideshow, you can browse the music file location.
Tip: Your music file must be store in the same device
as your picture file.
Then the set will continue to run the slideshow with your favorite
music.
Press STOP to return to Photo Album thumb nail browser screen.
5.1.3 Rotate and Zoom of Photos
During the slideshow playback, you can press the OPTION key from
the remote. It will pop up a function window.
•
•
•
•
•
PDV1075_12_A_CCR.indd 20PDV1075_12_A_CCR.indd 20 2007-10-24 11:06:40 AM2007-10-24 11:06:40 AM
