Philips BDL4230E/00 User manual

Description Page
Important Safety Notice--------------------------------------2
Technical Data--------------------------------------------------3
Installation----------------------------------------------------4~6
On Screen Display----------------------------------------8~19
---------------------------------20
Mechanical Instructions ------------------------------21~26
Color adjustment ---------------------------------------27~28
Electrical instruction -----------------------------------29~31
DDC Instructions & Serial Number -----------------34~41
DDC DATA ----------------------------------------------------42
-------------------------43~46
Philips Pixel Defect Policy
Firmware Upgrade for CPU--
Horizontal frequencies
31-83kHz
TABLE OF CONTENTS
Description Page
------------------------------------47
Wiring Diagram----------------------------------------------48
Block Diagram-------------------------------------------49~50
Power Diagram & C.B.A. ----------------------------56~58
Control Diagram & C.B.A. ----------------------------59~60
General product specification---------------------61~110
Exploded View ---------------------------------------------111
Repair tips---------------------------------------------114~115
Repair Flow chart------------------------------------116~121
Safety Test Requirments---------------------------------122
Spare/ arts List-----------------------112
Recommended P
Failure Mode Of Panel -
SAFETY NOTICE
42 inch FHD LCD PUBLIC DISPLAY
REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES
ANY PERSON ATTEMPTING TOSERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOL TAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING.
Published by Philips Consumer Lifestyle Copyright reserved Subject to modification
Scaler Diagram & C.B.A. -----------------------------51~55
PCBA photos-------------------------------------------------113
GB
Troubleshooting------------------------------------------------7
Service Tool-----------------------------------------------32~33
BDL4230E/00
Aug 21 2009

Important Safety Notice
Proper s ervice and repair is important to the safe, reliable
operation of all Philips Consumer Electronics Company
equipment. The service procedures recommended by Philips and
described in this service manual a re effective methodsof
performing service ope rations .Someofthese service
operations require the us eof tools speciall y desi gned for the
purpose. The special tools should be used when and as
recomm ended.
It is im portant to note that this m anual c ontains various
CAUTI ONS and NOTICES which should becarefully read in
order to m inimize the risk of personal injury to service
personnel . The possibility exis ts that improper service
methods may damage the equipment . It is also important to
underst and that these CAUTIONS and NOTICES ARE NOT
EXHAUSTIVE. Philips coul d not possibly know, evaluate and
advise the servic etrade of all conceivable ways i n which
service might be done or of the possible hazardous
consequences of each way. Consequently, Philips has not
undertaken any such broad evaluation. Accordingly,
who uses a servi ce procedure or tool which is not
recommended by Philipsmust first satisfy himself thoroughly that
neither his saf ety nor the safeoperation of the equipment will
be jeopardized by the service method selected.
* * Hereafter throughout this manual, PhilipsConsumer
Electronics Company will be referred to as Philips.**
Critical components having special safety characteristics are
identified with a by the Ref. No. in the parts list and
enclosed within a broken line
(where several critical components are grouped in one area)
along with the safety symbol on the schematics or
exploded views.
Use of substitute replacement parts whic h do not have the
same speci fied safety characteristics may create shock, fire,
or other hazards .
Under no circumstances should the original design be
modified or altered without written permission from Philips.
Philips assumes no liability, express or implied, arising out of
any unauthorized modification of design.
Servicer assumes all liability.
WARNING
Take care during handling the LCD module with backlight
unit
- Must mount the module using mounting holes arranged in four
corners.
- Do not press on the panel, edge of the frame strongly or electric
shock as this will result in damage to the screen.
- Do not scratch or press on the panel with any sharp objects, such
as pencil or pen as this may result in damage to the panel.
- Protect the module from the ESD as it may damage the electronic
circuit (C -MOS).
-Make certain that treatment body are grounded through
wrist band.
- Do not leave the module in high temperature and in areas of high
humidity for a long time.
- Avoid contact with water as it may as hort circuit within the module.
-If the surface of panel become dirty, please wipe it off with a soft
material. (Cleaning with a dirty or rough cloth may damage the
panel.)
FOR PRODUCTS CONTAINING LASER :
DANGER - Invisible laser radiation when open.
AVOID DIRECT EXPOSURE TO BEAM.
CAUTION - Use of controls or adjustments or
performance of procedures other than
those specified herein may result in
hazardous radiation exposure.
CAUTION - The use of optical instruments with this
product will increase eye hazard.
TO ENSURE THE CONTINUED RELIABILITY OF THIS
PRODUCT, USE ONLYORIGINAL MANUFACTURER'S
REPLACEMENT PAR TS, WHICH ARE LISTED WITH THEIR PART
NUMBERS IN THE PARTS LIST SECTION OF THIS
SERVICE MANUAL.
2 BDL4230E LCD

Technical Data
LGD panel Interface Requirement
LCD Panel LC420WUN-SBA1
LCD size 42.02” inch
Display Resolution 1920(H) x 1080(V)
Pixel Pitch 0.4845 mm
Viewing Angle R/L 178 degree (min)/
UD178 degree (min)
Display Response Time (Tr+Tf) 5 ms (G-to-G)
Display Color 1.06B (10bits)
Contrast Ratio 1400:1(Typ)
Luminance 500 cd/m2 (Typ.)
Surface 3H, Haze10%
Lamp Life Time 50,000hrs (Min.)
Features
Max & Native Panel Resolution 1920 x 1080 @ 60 Hz
8-bit 162 MHz ADC Yes
Picture in Picture(PIP) Yes
3D comb-filter, 3D De-interlace Yes
Fully Programmable White Balance
functions Yes
Enhanced H & V Sharpness Yes
PC Auto Phase adjustment and Auto
Mode Detect Yes
Advanced video enhance. noise
reduction Yes
RS232 control in and out Yes
Screen saver with image sticking
protection Yes
VGA input and output Yes
Display wall support up to 5x5 Yes
Remote control lock in OSD Yes
Front panel keypad lock Yes
Scheduling Y es
HDMI Overscan Yes
Auto Adjustment Yes
Power Requirement
Built-in AC power board
Power Supply
By pass AC plug-in for external BOX PC
Power Cable Detachable AC power cord
Power Supply
Voltage
AC power adaptor: 90~264V AC 50/60Hz
Power Consumption Power ON mode: < TBD W
Standby mode: < 1 W
Off mode < 1 W
DPMS Support
Power Saving Mode <1 W
Power Control On/off control via IR/RS232/Push button
Configuration
External Connector Input Output
Power (AC)
1 1
Power hard switch
1 0
VGA (D-sub)
1 1
DVI
1 0
Audio (PC)
0 1
HDMI
1 0
Component (YPbPr)
1 1
Audio (RCA/YPbPr)
2 2
1
RS232
1 1
AV (VIDEO)
BNC/CBVS
1 1
S-Video
1 0
Environment Requirement
Operating Condition
Operating
Temperature Temperature 0 to 40 degrees к
Humidity Relative Humidity: 85%@50к
(non-condensing)
Altitude 0 meter to +3000 meters above sea level
Storage Condition
Temperature Temperature-20 to 60 degree к
Humidity Relative Humidity: 10~85%@50к
(non-condensing)
Altitude 0 meter to 12,000 meters above sea level
BDL4230E LCD 3

4 BDL4230E LCD
Installation
Front View Product Description
Rear View
Input/ Output Terminals
Remote Control

Package Contents
Connecting external equipment (DVD/ VCR/VCD)
Using component video input
BDL4230E LCD 5
Using s-video input
Using video input
Using HDMI input
Connecting a PC
Using VGA input

6 BDL4230E LCD
Using DVI input
Using DVI input
External audio connection
Connecting external speakers
Connecting external audio device
Connecting another BDL4230E monitor

BDL4230E LCD 7
Troubleshootingʳ
Symptom Possible Cause Remedy
No picture is displayed
1. The power cord is disconnected.
2. The main power switch on the back of the
monitor is not switched on.
3. The selected input has no connection.
4. The monitor is in standby mode in VGA mode.
1. Plug in the power cord.
2. Make sure the power switch is switched on. 3.
Connect a signal connection to the monitor.
Interference displayed on the
monitor or audible noise is heard
Caused by surrounding electrical appliances,
cars/motorcycles or fluorescent lights.
Move the monitor to another location to see is the
interference is reduced.
Color is abnormal The signal cable is not connected properly Make sure that the signal cable is attached firmly to
the back of the monitor.
Picture is distorted with abnormal
patterns
1. The signal cable is not connected properly.
2. The input signal is beyond the capabilities of
the monitor.
1. Make sure that the signal cable is attached firmly.
2. Check the video signal source to see if it is
beyond the range of the monitor. Please verify its
specifications with this monitor’s specification
section.
Display image doesn’t fill up the
full size of the screen The zoom mode is not correctly set.
Use the ZOOM MODE or CUSTOM ZOOM function
in the SCREEN menu to fine tune display geometry
and time frequency parameter.
Can hear sound, but no picture Improperly connected source signal cable. Make sure that both video inputs and sound inputs
are correctly connected.
Can see picture but no sound is
heard
1. Improperly connected source signal cable.
2. Volume is turned all the way down.
3. MUTE is turned on.
4. No external speaker connected
1. Make sure that both video inputs and sound
inputs are correctly connected.
2. Use VOL UP/VOL DOWN button to hear sound.
3. Switch MUTE off by using the MUTE button.
4. Connect external speakers and adjust the
volume to a suitable level.
Some picture elements do not
light up Some pixels of the display may not turn on.
This monitor is manufactured using an extremely
high level of precision technology: however,
sometimes some pixels of the monitor may not
display. This is not a malfunction.
After-Images can still be seen on
the monitor after the monitor is
powered off. (Examples of still
pictures include logos, video
games, computer images, and
images displayed in 4:3 normal
mode)
A still picture is displayed for an over extended
period of time
Do not allow a still image to be displayed for an
extended period of time as this can cause a
permanent after-image to remain on the monitor.

8BDL4230E LCD
On-Screen Display
Description of the On Screen Displayʳ
What is the On-Screen Display?ʳ
On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or
select functions of the monitors directly through an on-screen instruction window. A user friendly on screen display
interface is shown as below:ʳ
Picture Menu
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ

BDL4230E LCD 9
On-Screen Display
ʳ
ʳ
ʳ
ʳ

10 BDL4230E LCD
On-Screen Display

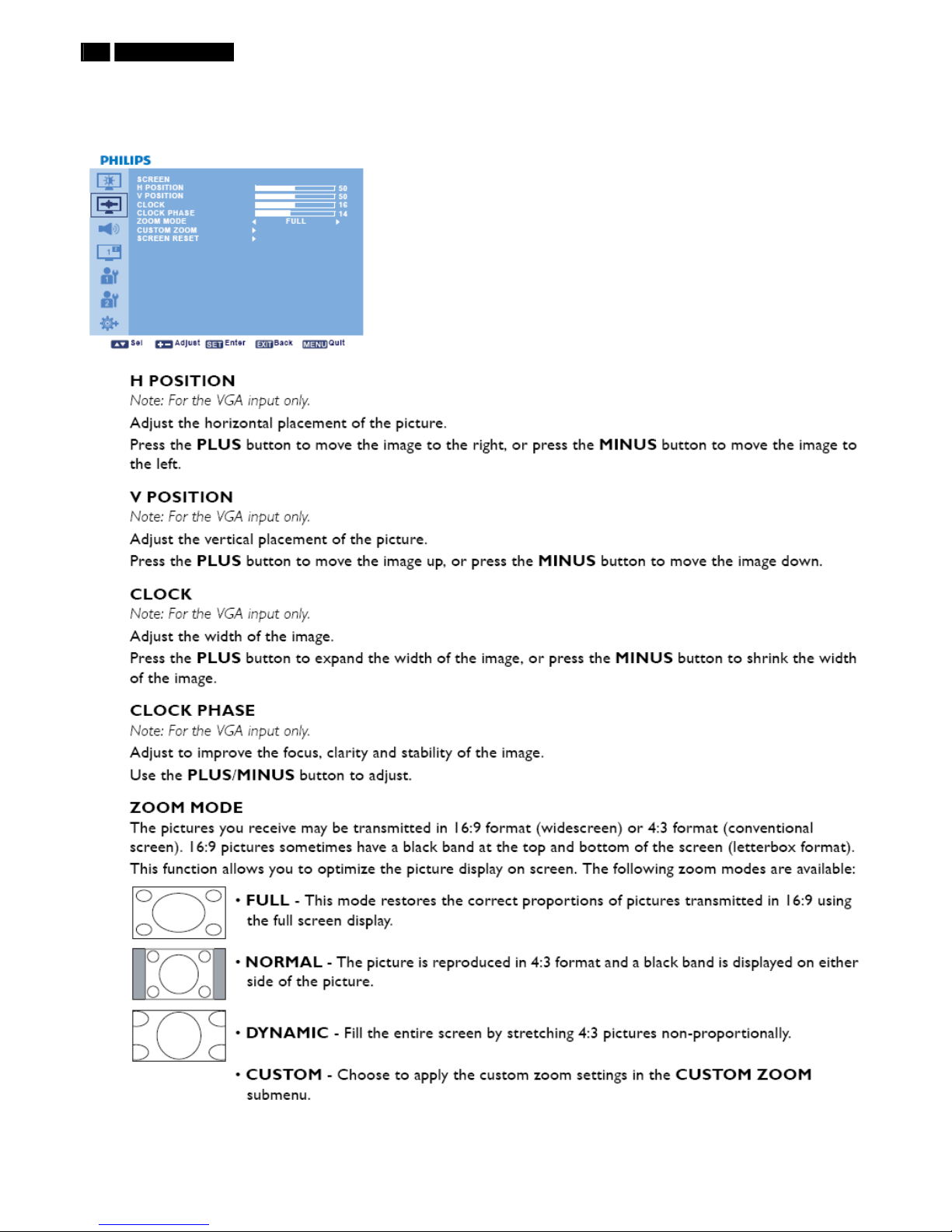

Screen Menu
ʳ
ʳ
ʳ
ʳ

BDL4230E LCD 11
On-Screen Display
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ

12 BDL4230E LCD
On-Screen Display

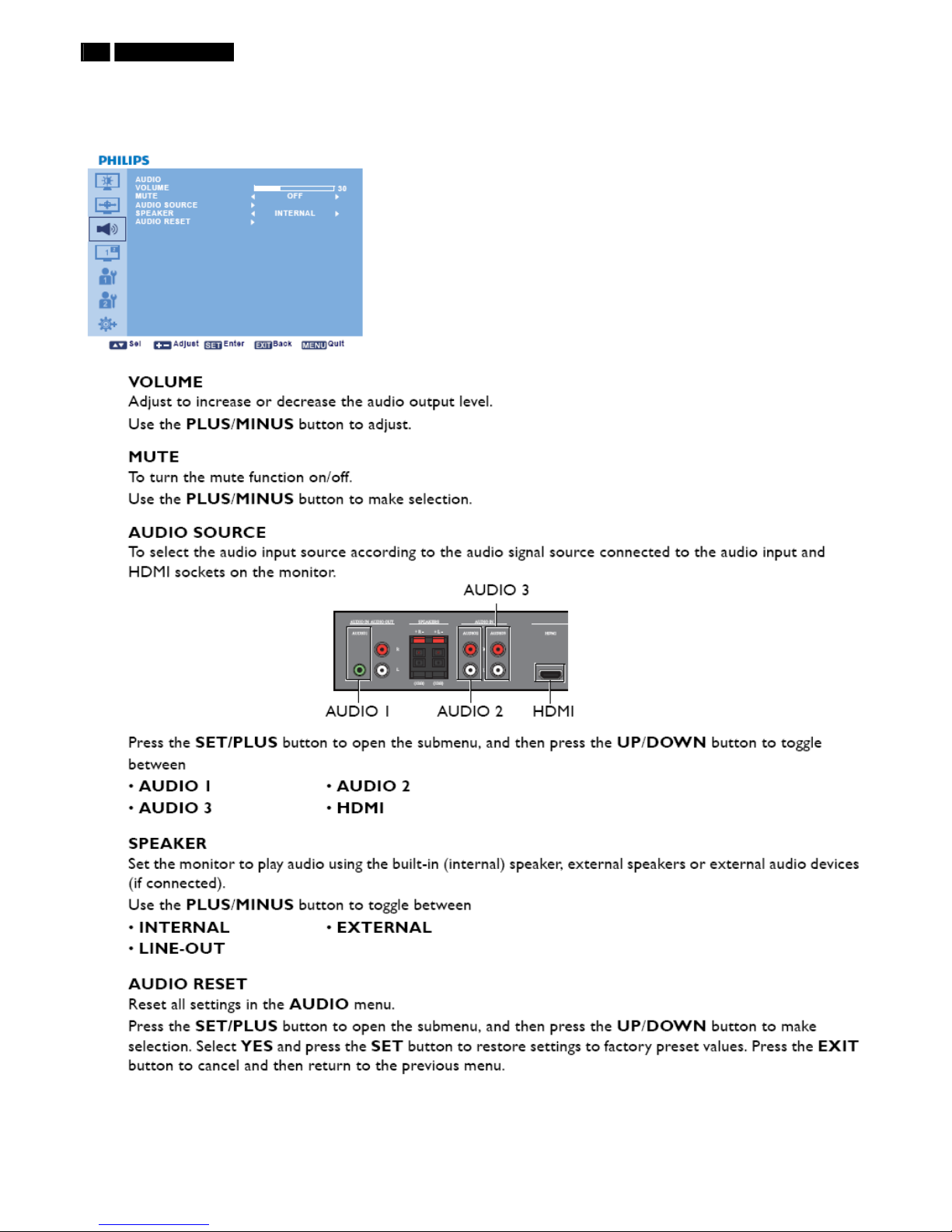

Audio Menu
ʳ

BDL4230E LCD 13
On-Screen Display

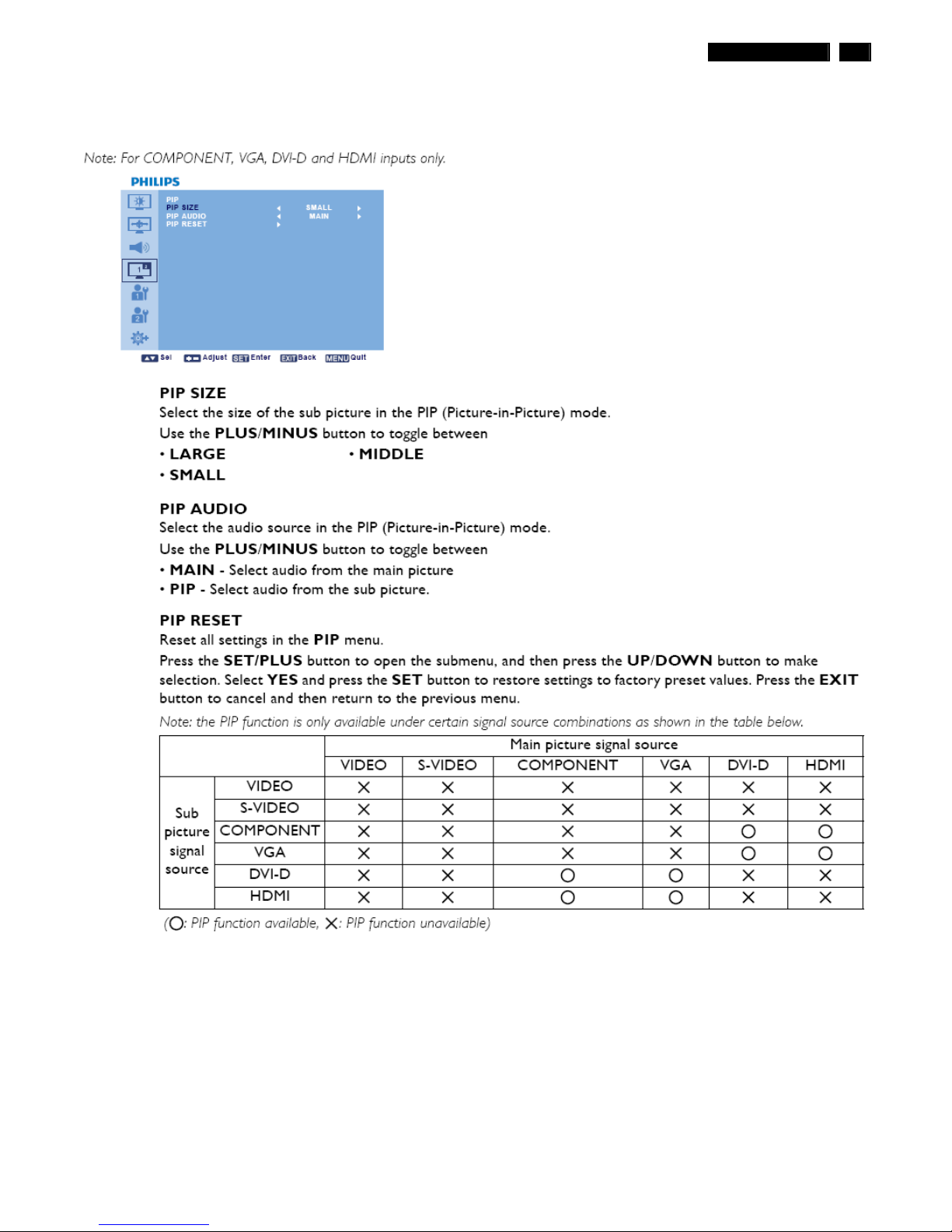

PIP Menu

14 BDL4230E LCD
On-Screen Display
Configuration 1 Menu

BDL4230E LCD 15
On-Screen Display
Configuration 2 Menu

16 BDL4230E LCD
On-Screen Display
Advanced Option Menu

BDL4230E LCD 17
On-Screen Display

18 BDL4230E LCD
On-Screen Display

BDL4230E LCD 19
On-Screen Display

20 BDL4230E LCD
Philips Pixel Defect Policyʳ
Philips' Flat Panel Displays Pixel Defect Policyʳ
Philips strives to deliver the highest quality products. We use some of the
industry's most advanced manufacturing processes and practice stringent
quality control. However, pixel or sub-pixel defects on the PDP / TFT panels
used in Plasma- & LCD- displays are sometimes unavoidable. No
manufacturer can guarantee that all panels will be free from pixel defects,
but Philips guarantees that any Plasma- & LCD- displays with an
unacceptable number of defects will be repaired during the warranty period
in line with your local guarantee conditions. This notice explains the different
types of pixel defects and defines the acceptable defect level for the
BDL4230E LCD screen. In order to qualify for repair under warranty, the
number of pixel defects must exceed a certain level which is given in the
reference table. If the LCD screen is within specification a warranty
exchange / claim back will be refused. Additionally, because some types or
combinations of pixel defects are more noticeable than others, Philips sets
even higher quality standards for those.
Pixels and Sub pixels
A pixel, or picture element, is composed of three sub-pixels in the primary
colors of red, green and blue. Many pixels together form an image. When all
sub-pixels of a pixel are lit, the three colored sub-pixels together appear as a
single white pixel. When all are dark, the three colored sub-pixels together
appear as a single black pixel. Other combinations of lit and dark sub-pixels
appear as single pixels of other colors.
Types of Pixel Defects + Dot Definition
Pixel and sub-pixel defects appear on the screen in different ways. There are
three categories of pixel defects and several types of sub-pixel defects within
each category. Dot definition = What is a defective "Dot"? : One or more
defective, adjacent sub-pixel are defined as one "dot". The no. of defective
sub-pixels are not relevant to define a defective dot. This means that a
defective dot can consist of one, two or three defective sub-pixels which can
be dark or lit.
Bright Dot Defects
Bright dot defects appear as pixels or sub-pixels that are always lit or "on".
These are the examples of bright dot defects:
One lit red, green or
blue sub-pixel
Two adjacent lit
sub-pixels: - Red +
Blue = Purple - Red +
Green = Yellow -
Green + Blue = Cyan
(Light Blue)
Three adjacent lit
sub-pixels (one white
dot)
Dark Dot Defects
Black dot defects appear as pixels or sub-pixels that are always dark or "off".
These are the examples of black dot defects
One dark dot l Two adjacent dark
dots = 1 pair of dark
dots Green = Yellow -
Green + Blue = Cyan
(Light Blue)
Two dark dots,
specifications defines
the minimum distance
between dark dots
Proximity of Pixel Defects ʳ
Because pixel and sub-pixels defects of the same type that are nearby one
another may be more noticeable, Philips also specifies tolerances for the
proximity of pixel defects. In the table below you can find specifications
about: • Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair
of dark dots) • Minimum distance between dark dots • Total no. of all
defective dots
Pixel Defect Tolerances
In order to qualify for repair due to pixel defects during the warranty period, a
PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or
sub-pixel defects exceeding the tolerances listed in the following table.
BRIGHT DOT DEFECTSʳACCEPTABLE LEVEL
MODELʳBDL4230Eʳ
1 lit sub pixelʳ3ʳ
2 adjacent lit sub pixelsʳ1ʳ
3 adjacent lit sub pixels (one white pixel) 0
50% ~ Less Dot (Weak Dot) 7
Distance between two bright dot defects* 5mm
Total bright dot defects of all types 7
BLACK DOT DEFECTSʳACCEPTABLE LEVEL
MODELʳBDL4230Eʳ
1 dark sub pixelʳ9ʳ
2 adjacent dark sub pixelsʳ3ʳ
3 adjacent dark sub pixelsʳ1ʳ
Distance between two black dot defects*ʳNAʳ
Total black dot defects of all typesʳ9ʳ
TOTAL DOT DEFECTSʳACCEPTABLE LEVEL
MODELʳBDL4230Eʳ
TOTAL DOT DEFECTS OF ALL TYPESʳ10ʳ
Note:
* 1 or 2 adjacent sub pixel defects = 1 dot defect
