Philips Fidelio XS1 User manual

XS1
Register your product and get support at
www.philips.com/support
Always there to help you
Question?
Contact
Philips
Manuale utente
Gebruiksaanwijzing
Brukerhåndbok
Instrukcja obsługi
Manual do utilizador
Manual de utilizare
Príručka užívateľa
Användarhandbok
Kullanım kılavuzu
User manual
Příručka pro uživatele
Brugervejledning
Benutzerhandbuch
Εγχειρίδιο χρήσης
Manual del usuario
Käyttöopas
Mode d’emploi
Felhasználói kézikönyv
XS1_12_UM_V2.0.indb 1 10/31/2014 10:07:13 AM

XS1_12_UM_V2.0.indb 2 10/31/2014 10:07:13 AM

1
English
EN
Contents
1 Important 2
Help and support 2
Safety 2
Care for your product 3
Care of the environment 3
Compliance 3
2 Your product 4
Main unit 4
Remote control 5
Connectors 6
Wireless subwoofer 6
3 Placement 7
Place the main unit 7
Place the subwoofer 7
4 Connect 8
Pair up with the subwoofer 8
Connect toTV 8
Connect digital devices through HDMI 9
Connect audio fromTV and other devices 9
5 Use your product 10
Adjust the volume 10
Choose your sound 10
Play audio through Bluetooth 11
Connect Bluetooth via NFC 12
USB storage devices 12
MP3 player 13
Auto standby 13
Set display brightness 13
Apply factory settings 13
6 Update software 14
Check software version 14
Update software via USB 14
7 Product specications 15
8 Troubleshooting 16
XS1_12_UM_V2.0.indb 1 10/31/2014 10:07:13 AM

2EN
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Help and support
For extensive online support, visit
www.philips.com/support to:
• download the user manual and the quick
start guide
• watch video tutorials (available only for
selected models)
• ndanswerstofrequentlyanswered
questions (FAQs)
• email us a question
• chat with our support representative.
Follow the instructions on the website to select
your language, and then enter your product
model number.
Alternatively, you can contact Consumer Care
in your country. Before you contact, note down
the model number and serial number of your
product.Youcanndthisinformationonthe
back or bottom of your product.
Safety
Risk of electric shock or re!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Consumer Care to
have the product checked before use.
• Never place the product and accessories
nearnakedamesorotherheatsources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or re!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Risk of injury or damage to this product!
• For wall-mountable products, use only the
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount.WOOX Innovations bears no
responsibility for improper wall mounting
that results in accident, injury or damage.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Risk of overheating!
• Neverinstallthisproductinaconned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Risk of contamination!
• Do not mix batteries (old and new or
carbon and alkaine, etc.).
XS1_12_UM_V2.0.indb 2 10/31/2014 10:07:13 AM

3
English
EN
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compartment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Care for your product
Useonlymicroberclothtocleantheproduct.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product contains
batteries covered by European Directive
2013/56/EU which cannot be disposed of with
normal household waste.
Inform yourself about the local separate
collection system for electrical and electronic
products and batteries. Follow local rules and
never dispose of the product and batteries
with normal household waste. Correct disposal
of old products and batteries helps prevent
negative consequences for the environment and
human health.
Removing the disposable batteries
To remove the disposable batteries, see battery
installation section.
Compliance
This product complies with the radio
interference requirements of the European
Community.
XS1_12_UM_V2.0.indb 3 10/31/2014 10:07:14 AM

4EN
Hereby,WOOX Innovations declares that
this product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC.You
canndtheDeclarationofConformityon
www.p4c.philips.com.
2 Your product
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
supportthatPhilipsoffers(e.g.notication
of product software upgrade), register your
product at www.philips.com/welcome.
Main unit
This section includes an overview of the main
unit.
Front view
a Display panel
b NFC tag
Tap the NFC-enabled device on the tag for
Bluetooth connection.
Side view
a
Switch this product on or to standby.
b SOURCE
Select an input source for this product.
c +/- (Volume)
Increase or decrease volume.
ab
bc
a
XS1_12_UM_V2.0.indb 4 10/31/2014 10:07:15 AM

5
English
EN
Remote control
This section includes an overview of the
remote control.
a (Standby-On)
Switch this product on or to standby.
b Source buttons
• HDMI ARC: Switch your source to
HDMI ARC connection.
• HDMI IN: Switch your source to the
HDMI IN connection.
• : Switch to Bluetooth mode.
• USB: Switch to USB mode.
• AUDIO IN: Switch your audio source
to the MP3 connection (3.5mm jack).
• COAX: Switch your audio source to
the coaxial connection.
b
a
c
d
f
g
h
i
j
k
l
e n
m
• OPTICAL: Switch your audio source
to the optical connection.
• AUX: Switch your audio source to the
AUX connection.
c / (Previous/Next)
Skip to the previous or next track in USB
mode and Bluetooth mode (only for
AVRCP-supported Bluetooth devices).
d (Play/Pause)
• Start, pause or resume play in USB
mode and Bluetooth mode (only for
AVRCP-supported Bluetooth devices).
e BASS +/-
Increase or decrease bass.
f Volume control
• +/-: Increase or decrease volume.
• : Mute or restore volume.
g VOICE
Press to toggle on or off sound
enhancement.
h MUSIC
Select stereo sound mode.
i AUDIO SYNC +/-
Increase or decrease audio delay.
j AUTO VOL ON/OFF
Turn auto volume on or off.
k NIGHT ON/OFF
Turn night mode on or off.
l DIM
Set the brightness of the display panel for
this product.
m MOVIE
Select surround sound mode.
n TREBLE +/-
Increase or decrease treble.
XS1_12_UM_V2.0.indb 5 10/31/2014 10:07:16 AM

6EN
Connectors
This section includes an overview of the
connectors available on this product.
Rear connectors
a OPTICAL IN
Connect to an optical audio output on the
TV or a digital device.
b COAX IN
Connect to a coaxial audio output on the
TV or a digital device.
c AUX L/R
Connect to an analog audio output on the
TV or an analog device.
d HDMI IN
Connect to the HDMI output on a digital
device.
e HDMI OUT (ARC)
Connect to the HDMI input on theTV.
f AC MAINS~
Connect to the power supply.
Side connectors
a
• Audio input from a USB storage device.
• Upgrade software of this product.
b AUDIO IN
Audio input from, for example, an
MP3 player (3.5mm jack).
a b c d e f
a b
Wireless subwoofer
This product comes with a wireless subwoofer.
a Subwoofer indicator
• When the power is turned on, or
when the pairing succeeds, the
indicator lights up.
• During wireless pairing between the
subwoofer and the main unit, the
indicator blinks quickly.
• When the pairing fails, the indicator
blinks slowly.
• When wireless connection is
disconnected for one minute, the
indicator turns off.
b CONNECT (connect)
Press to to enter the pairing mode for the
subwoofer.
c AC MAINS~
Connect to the power supply.
a
b
c
XS1_12_UM_V2.0.indb 6 10/31/2014 10:07:18 AM

7
English
EN
3 Placement
Place the main unit
This product is designed to be placed under
yourTV.
Caution
•This product is designed forTVs that weigh no more
than 44 kg. Do not place a CRT typeTV on this
product.
•Do not place this product on an unstable cart, stand,
bracket or table. Otherwise, this product may fall, and it
may cause serious injury to people and serious damage
to this product.
•Make sure the ventilation openings on the rear panel
are not blocked.
•The top cover of the main unit is made of tempered
glass. Pay special care to the top cover to avoid being
scratched or cracked.
•Do not change the position of this product after placing
yourTV on top of it.
1 Placethisproductonanyatandstable
surface near yourTV.Then place yourTV
on top of this product.
2 Make sure theTV base is centered on it
and not hanging over any of its edges.
Tip
•If theTV base is too large to put on top of this product,
place this product in another location such as on an
open shelf under theTV, but keep it close to yourTV so
the audio cable will reach.You can also mount your TV
on the wall above this product.
•If yourTV comes with an anti-tip device, install it
according to the manufacturer's instructions and adjust
the tether after placing theTV on top of this product.
•If placing this product in a cabinet or on a shelf, for
optimum audio performance, make sure the front of
this product as close as possible to the front edge of
the shelf.
•If placing this product backed up to a wall, make sure
there is at least a distance of 1 inch between the wall
and the rear of this product.
Place the subwoofer
You may place the subwoofer horizontally or
vertically. See the quick start guide for details.
Note
•If you place the subwoofer vertically, install the supplied
foot stand to prevent instability of the subwoofer.
Place the subwoofer at least 1 meter (3 feet)
away from the main unit, and ten centimeters
away from the wall.
For best results, place your subwoofer as shown
inthegureofStep1above.
XS1_12_UM_V2.0.indb 7 10/31/2014 10:07:18 AM

8EN
4 Connect
This section helps you connect this product to a
TV and other devices.
For information about the basic connections of
this product and accessories, see the quick start
guide.
Note
•Foridenticationandsupplyratings,seethetypeplate
at the back or bottom of the product.
•Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Pair up with the subwoofer
The wireless subwoofer automatically pairs up
with this product for wireless connection when
you turn on this product and the subwoofer.
If no audio from the wireless subwoofer can be
heard, manually pair up the subwoofer.
1 Turn on this product and the subwoofer.
» If the connection to this product is lost,
the indicator on the subwoofer blinks
slowly.
2 Press the CONNECT (connect) button
on the subwoofer to enter the pairing
mode.
» The indicator on the subwoofer blinks
quickly.
3 On the remote control, within six seconds,
press twice, then press BASS -,
TREBLE - and in sequence.
» If the pairing succeeds, the indicator on
the subwoofer lights up.
» If the pairing fails, the indicator on the
subwoofer blinks slowly.
4 If the pairing fails, repeat the steps above.
Connect to TV
Connect this product to aTV to watch videos.
You can listen to the TV audio through this
product.
Use the best quality connection available on
your product andTV.

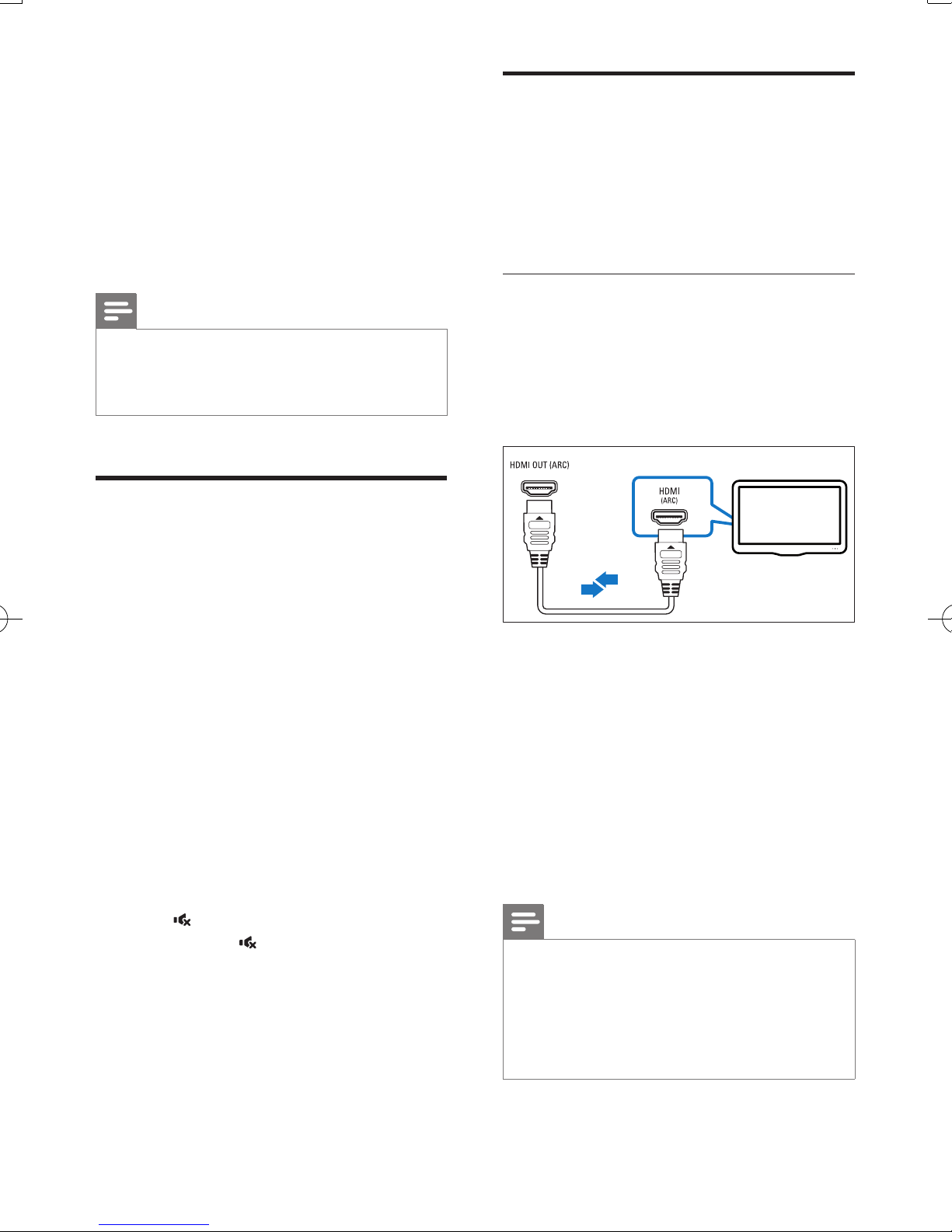

Connect to TV through HDMI (ARC)
Best quality audio
This product supports HDMI with Audio
Return Channel (ARC). If yourTV is HDMI ARC
compliant, you can hear theTV audio through
this product by using a single HDMI cable.
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on this
product to the HDMI ARC connector on
theTV.
• The HDMI ARC connector on the TV
might be labeled differently. For details,
see theTV user manual.
2 On yourTV, turn on HDMI-CEC
operations. For details, see the TV user
manual.
Note
•If yourTV is not HDMI ARC compliant, connect an
audio cable to hear theTV audio through this product
(see 'Option 3: Connect audio through analog audio
cables' on page 10).
•If yourTV has a DVI connector, you can use an HDMI/
DVI adapter to connect to TV. However, some of the
features may not be available.
TV
XS1_12_UM_V2.0.indb 8 10/31/2014 10:07:19 AM

9
English
EN
Connect digital devices
through HDMI
Connect a digital device such as a set-top box,
DVD/Blu-ray player, or games console to this
product through a single HDMI connection.
When you connect the devices in this way and
playaleorgame,the
• video is automatically displayed on your
TV, and
• audio is automatically played on this
product.
1 Using a High Speed HDMI cable, connect
the HDMI OUT connector on your digital
device to the HDMI IN on this product.
2 Connect this product toTV through HDMI
OUT (ARC).
• If theTV is not HDMI CEC compliant,
select the correct video input on your
TV.
3 On the connected device, turn on HDMI-
CEC operations. For details, see the user
manual of the device.
Connect audio from TV and
other devices
Play audio fromTV or other devices through
the speakers of this product.
Use the best quality connection available on
yourTV, this product, and other devices.
Note
•When your product andTV are connected through
HDMI ARC, an audio connection is not required.
Option 1: Connect audio through a
digital optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL IN connector on this product
to the OPTICAL OUT connector on the
TV or other device.
• The digital optical connector might be
labeled SPDIF or SPDIF OUT.
Option 2: Connect audio through a
digital coaxial cable
Best quality audio
1 Using a coaxial cable, connect the COAX
IN connector on this product to the
COAXIAL/DIGITAL OUT connector on
theTV or other device.
• The digital coaxial connector might be
labeled DIGITAL AUDIO OUT.
TV
XS1_12_UM_V2.0.indb 9 10/31/2014 10:07:19 AM

10 EN

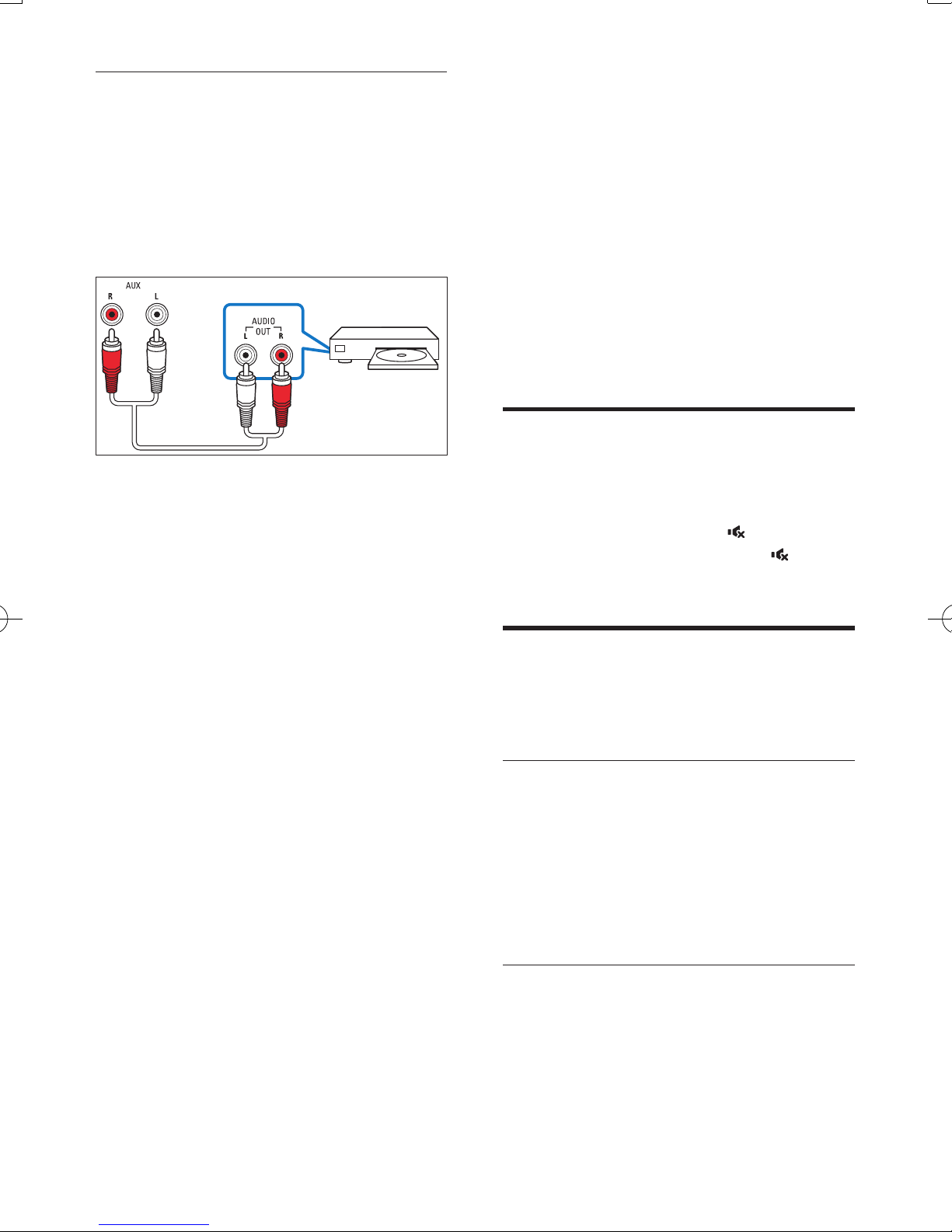

Option 3: Connect audio through
analog audio cables
Basic quality audio
1 Using an analog cable, connect the AUX
connectors on this product to the AUDIO
OUT connectors on the TV or other
device.
DVD
5 Use your
product
This section helps you use this product to play
media from a wide range of sources.
Before you start
• Make the necessary connections described
in Quick start guide and User manual.
• Switch this product to the correct source
for the other devices.
Adjust the volume
1 Press +/- (Volume) to increase or decrease
a volume level.
• To mute sound, press .
• To restore the sound, press again or
press +/- (Volume).
Choose your sound
This section helps you choose the ideal sound
for your video or music.
Surround sound mode
Experience an immersive audio experience with
surround sound modes.
• Press MOVIE to create a surround listening
experience.
• Press MUSIC to create two-channel or multi-
channel stereo, ideal for listening to music.
Sound enhancement
• Press VOICE to toggle on or off sound
enhancement.
» When sound enhancement is toggled
on, VOICE (voice) is displayed.
» When sound enhancement is toggled
off, NORMAL (normal) is displayed.
XS1_12_UM_V2.0.indb 10 10/31/2014 10:07:20 AM

11
English
EN
Equalizer
Change the high frequency (treble) and low
frequency (bass) settings of this product.
1 Press TREBLE +/- or BASS +/- to change
the treble or bass level.
Synchronize video and sound
If the audio and video are not synchronized,
delay the audio to match the video.
1 Press AUDIO SYNC +/- to synchronize
the audio with the video.
Auto volume
Turn the auto volume on to keep the volume
constant when you switch to a different source.
1 Press AUTO VOL ON/OFF to turn auto
volume on or off.
Night mode
For quiet listening, night mode decreases the
volume of loud sounds when audio is played.
Night mode is only available for Dolby Digital
soundtracks.
1 Press NIGHT ON/OFF to turn night
mode on or off.
Note
•If auto volume is set to turned on, you cannot enable
the night mode.
Play audio through Bluetooth
Through Bluetooth, connect this proudct with
your Bluetooth device (such as an iPad, iPhone,
iPod touch,Android phone, or laptop), and then
youcanlistentotheaudiolesstoredonthe
device through this product.
What you need
• A Bluetooth device which supports
BluetoothproleA2DP,AVRCPandwith
Bluetooth version as 4.0 + EDR.
• The operational range between this
product and a Bluetooth device is
approximately 10 meters (30 feet).
1 Press on the remote control to switch
this product to Bluetooth mode.
» BT is displayed on the display panel,
blinking.
2 On the Bluetooth device, switch on
Bluetooth, search for and select PHILIPS
XS1 to start connection (see the user
manual of the Bluetooth device on how to
enable Bluetooth).
» During connection, BT on the display
panel blinks.
3 Wait until this product beeps.
» When the Bluetooth connection
succeeds, BT is displayed on the display
panel.
» If the connection fails, BT on the
display panel blinks continuously.
4 Selectandplayaudiolesormusicon
your Bluetooth device.
• During play, if a call is coming, music
play is paused. Play resumes when the
call ends (this feature is dependent on
the connected mobile device).
• If your Bluetooth device supports
AVRCPprole,ontheremotecontrol
you can press / to skip to a track,
or press to pause/resume play.
5 To exit Bluetooth, select other source.
• When your switch back to Bluetooth
mode, Bluetooth connection remains
active.
XS1_12_UM_V2.0.indb 11 10/31/2014 10:07:20 AM

12 EN
Note
•The music streaming may be interrupted by obstacles
between the device and this product, such as wall,
metallic casing that covers the device, or other devices
nearby that operate in the same frequency.
•If you want to connect this product with another
Bluetooth device, press and hold on the remote
control to disconnect the currently connected
Bluetooth device.
Connect Bluetooth via NFC
NFC (Near Field Communication) is a
technology that enables short-range wireless
communication between NFC-enabled devices,
such as mobile phones.
What you need
• A Bluetooth device with NFC function.
• For pairing, tap the NFC device on the
NFC tag of this product.
1 Enable NFC on the Bluetooth device (see
the device' s user manual for details).
2 Tap the NFC device onto the NFC tag of
this product until this product beeps.
• Forrsttimeconnection,onsome
mobile devices prompt for pair-up
appears, select "YES" for connection.
» When the Bluetooth connection
succeeds, BT is displayed on the display
panel.
» If the connection fails, BT on the
display panel blinks continuously.
3 Selectandplayaudiolesormusicon
your NFC device.
• To break the connection, tap again the
NFC device onto the NFC tag on this
product.
USB storage devices
Enjoy audio on a USB storage device, such as an
MP3playerandUSBashmemory,etc.
What you need
• A USB storage device that is formatted for
FATorNTFSlesystems,andcomplies
with the Mass Storage Class.
• AnMP3orWMAleonaUSBstorage
device
1 Connect a USB storage device to this
product.
2 Press USB on the remote control.
3 Use the remote control to control play.
• Press to start, pause or resume
play.
• Press / to skip to the previous or
next track.
• During USB play, press and hold USB
to enter repeat mode, then press USB
to select one of the following play
modes.
• ONE REPEAT: repeat the current
track.
• ALL RPT: repeat all the tracks in
one folder.
• SHUFFLE: play randomly in one
folder.
• OFF RPT:exitrepeatorshufe
play mode.
XS1_12_UM_V2.0.indb 12 10/31/2014 10:07:20 AM

13
English
EN
Note
•ThisproductsupportsWMAleswhichareconverted
viaWindowsMediaPlayer(WMAlesconvertedvia
otherleformatconvertersmaynotwork).
•If a USB storage device has a large media library, it takes
some time to load those contents.
•This product may not be compatible with certain types
of USB storage device.
•If you use a USB extension cable, USB HUB, or USB
multi-reader, the USB storage device may not be
recognized.
•Digital camera PTP and MTP protocols are not
supported.
•Do not remove the USB storage device while it is
being read.
•DRM-protectedmusicles(MP3,WMA)arenot
supported.
•Support a USB port: 5V 1A.
MP3 player
Connect your MP3 player to play your audio
lesormusic.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
1 Using the 3.5mm stereo audio cable,
connect the MP3 player to the AUDIO IN
connector on this product.
2 Press AUDIO IN on the remote control.
3 Press the buttons on the MP3 player to
selectandplayaudiolesormusic.
Auto standby
When playing media from a connected device,
this product automatically switches to standby
after 18 minutes of button inactivity and no
audio/video play from a connected device.
Set display brightness
You can press DIM repeatedly to select a
different brightness level of the display panel on
this product.
Apply factory settings
You can reset this product to the default
settings programmed at the factory.
1 In any source mode, on the remote control
press Volume-, BASS -, and TREBLE - in
sequence within three seconds.
» When the factory settings restore is
complete, the product automatically
switches off and restarts.
XS1_12_UM_V2.0.indb 13 10/31/2014 10:07:20 AM

14 EN
6 Update software
To get the best features and support, update
your product with the latest software.
Check software version
1 In any source mode, on the remote
control, within three seconds press once
then AUX twice.
» On the display panel, the current
software version is displayed.
Update software via USB
1 Check the latest software version on
www.philips.com/support.
• Search for your model and click on
"Software and drivers".
2 Download the software into a USB storage
device.
a Unzip the download if zipped, and
make sure that the unzipped le is
named "XS1.bin".
b Put the "XS1.bin" le in the root
directory.
3 Connect the USB storage device to the
(USB) connector on this product.
4 Switch this product to HDMI ARC source
(press HDMI ARC).
5 On the remote control, within six seconds,
press twice then Volume + once, and
then hold down MOVIE.
» On the display panel, "UPG" (upgrade)
blinks slowly, then blinks quickly.
6 When "UPG" (upgrade) blinks quickly,
press to start the upgrade.
» Then "UPG" (upgrade) is displayed on
the display panel.
7 Wait until the upgrade is completed.
» If the upgrade is complete, this product
automatically turns off and on again.
Caution
•Do not turn off the power or remove the USB storage
device when the software update is in progress because
you might damage this product.
Note
•The upgrade time may take around 5 minutes.
XS1_12_UM_V2.0.indb 14 10/31/2014 10:07:21 AM

15
English
EN
7 Product
specifications
Note
•Specicationsanddesignaresubjecttochangewithout
notice.
Amplier
• Total output power:
320W RMS (+/- 0.5 dB, 10% THD)
• Frequency response: 20 Hz-20 kHz / ±3 dB
• Signal-to-noise ratio: > 65 dB (CCIR) /
(A-weighted)
• Input sensitivity:
• AUX: 2V
• AUDIO IN: 1V
Audio
• S/PDIF Digital audio input:
• Coaxial: IEC 60958-3
• Optical:TOSLINK
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
(MSC)
• File system: FAT16, FAT32, NTFS
• SupportsMP3andWMAleformats
• Sampling frequency:
• MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz,
22 kHz, 24 kHz, 32 kHz, 44.1 kHz,
48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 8 kbps-320 kbps
• WMA: 32 kbps-192 kbps
• Version:
• WMA:V7,V8,V9
Note
•ThisproductsupportsWMAleswhichareconverted
viaWindowsMediaPlayer(WMAlesconvertedvia
otherleformatconvertersmaynotwork).
Bluetooth
•Bluetoothproles:A2DP,AVRCP
•Bluetooth version: 4.0 + EDR
Main unit
•Output power:
6 x 20W RMS (+/- 0.5 dB, 10% THD)
•Power supply: 110-240 V~, 50-60 Hz
•Power consumption: 20 W
•Standbypowerconsumption:≤0.5W
• Speaker impedance: 4 ohm
• Speaker drivers: 6 x racetrack full range
(1.1" x 3.5")
•Dimensions (W x H x D):
730 x 40 x 331 mm
•Weight: 5.3 kg
• Operating temperature and humidity:
0°C to 45°C, 5% to 90% humidity for all
climates
•Storage temperature and humidity: -40°C
to 70°C, 5% to 95%
Subwoofer
• Output power:
200W RMS (+/- 0.5 dB, 10% THD)
• Power supply: 220-240 V~, 50-60 Hz
• Power consumption: 25 W
• Standbypowerconsumption:≤0.5W
• Speaker impedance: 2 ohm
• Speaker drivers: 2 x 165 mm (6.5") woofer
• Dimensions (W x H x D):
730 x 90.3 x 330 mm
• Weight: 7.5 kg
Remote control batteries
• 2 x AAA-R03-1.5 V
XS1_12_UM_V2.0.indb 15 10/31/2014 10:07:21 AM

16 EN
Standby information
• When the product remains inactive for
18 minutes, it automatically switches to
standby or networked standby.
• The power consumption in standby or
networked standby is less than 0.5W.
• To deactivate Bluetooth connection, press
and hold the Bluetooth button on the
remote control.
• To activate Bluetooth connection, enable
Bluetooth connection on your Bluetooth
device, or enable Bluetooth connection via
the NFC tag (if available).
8 Troubleshooting
Warning
•Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at
www.philips.com/support.
Main unit
The buttons on this proudct do not work.
• Disconnect this product from the power
supply for a few minutes, then reconnect.
Sound
No sound from the speakers of this proudct.
• Connect the audio cable from this product
to yourTV or other devices. However, you
do not need a separate audio connection
when:
• the product andTV are connected
through HDMI ARC connection, or
• a device is connected to the HDMI IN
connector on this product.
• Reset this product to its factory settings
(see 'Apply factory settings' on page 13).
• On the remote control, select the correct
audio input.
• Make sure that this product is not muted.
No sound from the wireless subwoofer.
• Wirelessly connect the subwoofer to the
main unit (see 'Pair up with the subwoofer'
on page 8).
Distorted sound or echo.
• If you play audio from the TV through this
product, make sure that the TV is muted.
XS1_12_UM_V2.0.indb 16 10/31/2014 10:07:21 AM

17
English
EN
Audio and video are not synchronized.
• Press AUDIO SYNC +/- to synchronize
the audio with the video.
Error message is displayed on the display
panel.
• When "ERROR" is displayed, it indicates
that an input audio format is not
supported.
• When "USB ERROR" is displayed, it
indicates that the connected USB device is
not supported.
• When "HDMI ARC" blinks, it indicates
that the connectedTV is not HDMI ARC
compliant or an unsupported audio format
is detected.
Bluetooth
A device cannot connect with this product.
• The device does not support the
compatibleprolesrequiredforthis
product.
• You have not enabled the Bluetooth
function of the device. See the user manual
of the device on how to enable the
function.
• The device is not correctly connected.
Connect the device correctly.
• This product is already connected with
another Bluetooth device. Disconnect the
connected device, then try again.
Quality of audio play from a connected
Bluetooth device is poor.
• The Bluetooth reception is poor. Move the
device closer to this product, or remove
any obstacle between the device and this
product.
The connected Bluetooth device connects and
disconnects constantly.
• The Bluetooth reception is poor. Move the
device closer to this product, or remove
any obstacle between the device and this
product.
• Turn off Wi-Fi function on the Bluetooth
device to avoid interference.
• For some Bluetooth, the Bluetooth
connection can be deactivated
automatically to save power.This does not
indicate any malfunction of this product.
NFC
A device cannot connect with this product via
NFC.
• Make sure that the device is supported by
NFC.
• Make sure that NFC is enabled on the
device (see the device' s user manual for
details).
• For pairing, tap the NFC device on the
NFC tag of this produc
XS1_12_UM_V2.0.indb 17 10/31/2014 10:07:21 AM

18
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks, and
DTS Digital Surround is a trademark of DTS,
Inc. © DTS, Inc. All Rights Reserved.
ThetermsHDMIandHDMIHigh-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by WOOX
Innovations is under license. Other trademarks
and trade names are those of their respective
owners.
The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the United
States and in other countries.
© 2013 CSR plc and its group companies.
The aptX®mark and the aptX logo are
trade marks of CSR plc or one of its group
companies and may be registered in one or
more jurisdictions.
XS1_12_UM_V2.0.indb 18 10/31/2014 10:09:39 AM
