Philips AZ1046 User manual

© 2008 Koninklijke Philips Electronics N.V.
All rights reserved.
Document order number:
Register your product and get support at
000000000000
AZ1046/12

EN User manual 4

Contents
1 Important 6
Safety 6
Notice 12
2 Your CD Soundmachine Dynamic Bass
Boost 16
Introduction 16
What’s in the box 17
Overview of the main unit 17
3 Get started 21
Install batteries 21
Connect AC power 23
4 Use your soundmachine 25
Play a CD 25
Select a track 26
Select an album 26
Find a passage within a track 27
Select play modes 27
Program play sequence 29
Listen to radio 31
5 Troubleshooting 33
6 Product information 36

1 Important
Safety
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
hDo not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including ampliers) that
produce heat.
iFor countries with a polarized mains, do not
defeat the safety purpose of the polarized
or grounding-type plug.A polarized plug has
two blades with one wider than the other.
A grounding type plug has two blades and
a third grounding prong.The wide blade
or the third prong are provided for your
safety. If the provided plug does not t
into your outlet, consult an electrician for
replacement of the obsolete outlet.
Caution:To prevent electric shock, match
the wide blade of the plug to the wide slot,
fully insert.
jProtect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
k Only use attachments/accessories specied
by the manufacturer.
lUse only with the cart, stand, tripod,
bracket, or table specied by the

manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
mUnplug this apparatus during lightning
storms or when unused for long periods of
time.
n Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
oBattery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
Install all batteries correctly, + and - as
marked on the unit.
Do not mix batteries (old and new or
carbon and alkaline, etc.).
Remove batteries when the unit is not
used for a long time.
pApparatus shall not be exposed to dripping
or splashing.
qDo not place any sources of danger on the
apparatus (e.g. liquid lled objects, lighted
candles).
rThis product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
How to connect a plug
The wires in the mains lead are coloured with the
following code: blue = neutral (N), brown = live
(L).
•
•
•

As these colours may not correspond with the
colour markings identifying the terminals in your
plug, proceed as follows:
Connect the blue wire to the terminal
marked N or coloured black.
Connect the brown wire to the terminal
marked L or coloured red.
Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Mains plug
This apparatus is tted with an approved 13 Amp
plug.To change a fuse in this type of plug proceed
as follows:
aRemove fuse cover and fuse.
bFix new fuse which should be a BS13625
Amp,A.S.T.A. or BSI approved type.
c Ret the fuse cover.
•
•
•
If the tted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug tted in its place.
If the mains plug contains a fuse, this should have
a value of 5 Amp. If a plug without a fuse is used,
the fuse at the distribution board should not be
greater than 5 Amp.
The severed plug must be disposed off to avoid a
possible shock hazard should it be inserted into a
13 Amp socket elsewhere.

Warning
Never remove the casing of this soundmachine.
Never lubricate any part of this soundmachine.
Never place this soundmachine on other electrical
equipment.
Keep this soundmachine away from direct sunlight, naked
ames or heat.
Never look into the laser beam inside the soundmachine.
Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect the soundmachine
from the power.
•
•
•
•
•
•
Notice
This product complies with the radio interference
requirements of the European Community.
This product complies with the requirements of
the following directives and guidelines: 73/23/EEC
+ 89/336/EEC + 93/68/EEC
Any changes or modications made to this
device that are not expressly approved by
Philips Consumer Electronics may void the user’s
authority to operate the equipment.
The making of unauthorized copies of copy-
protected material, including computer programs,
les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a
criminal offence.This equipment should not be
used for such purposes.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
Performer’s Protection Acts 1958 to 1972.
This soundmachine includes this label:
Disposal of your old product

Your product is designed and manufactured with
highly quality material and components, which can
be recycled and reused.When this crossed-out
wheeled bin symbol is attached to a product, it
means the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and do
not dispose your old products with your normal
household waste.The correct disposal of your
old product will help prevent potential negative
consequences for the environment and human
health.
Environmental information
All unnecessary packaging has been omitted.We
have tried to make the packaging easy to separate
into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective
foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by a
specialized company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.

2 Your CD
Soundmachine
Dynamic Bass
Boost
Congratulations on your purchase, and welcome
to Philips! To fully benet from the support that
Philips offers, register your product at www.Philips.
com/welcome.
Introduction
With the CD Soundmachine you can play audio
discs and listen to FM/MW radio.You can also
program the play sequence of tracks, and you can
enhance the sound with the Dynamic Bass Boost
feature.
What’s in the box
Check and identify the contents of the package:
CD Soundmachine
AC power cord
User Manual
Overview of the main unit
•
•
•
c
f
d
e
a
b
g
c
f
d
e
a
b
g

aVOLUME
Adjust volume level
bDBB
Turn the bass enhancement on/off
cBasic play buttons:
Stop CD play
Erase a CD program
Start or pause CD play
/
•
•
•
•
•
n
h
i
j
k
l
m
n
h
i
j
k
l
m
Select the previous/next track
Fast search backwards/forwards within
the current track
dPROG
Program tracks and browse the program
eMODE
Select a play mode: REPEAT or
SHUFFLE
fALBUM +/-
Skip to the next/previous album in an
MP3-CD
gBAND
Select a wave band
hMP3 LINK
Switch to MP3 LINK that corresponds
to the socket you used to connect the
external device
iTUNING +/-
Tune to radio stations
jLIFT TO OPEN
Open/Close the CD compartment
•
•
•
•
•
•
•

kTelescopic antenna
Improve FM reception
lAC MAINS~
Socket for the power cord
mBattery door
nSource selector: CD,TUNER, MP3
LINK,OFF
Select CD, radio or MP3 source of
sound
Switch to standby mode
•
•
•
•
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial numbers. Find the model
number and serial number of this soundmachine
at the back or the bottom of your soundmachine.
Write these numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
1Open the battery compartment.

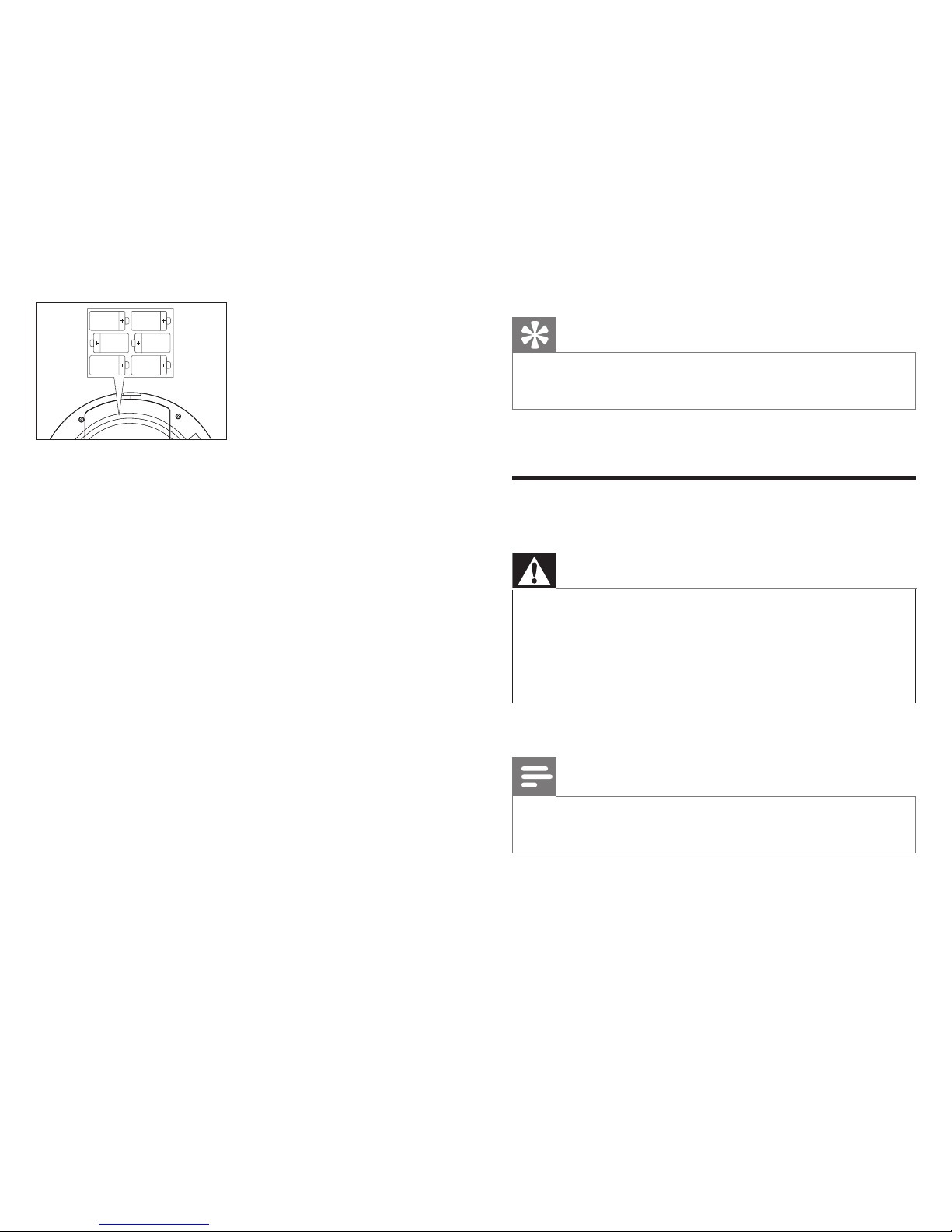

2Insert 6 x 1.5V R14/UM-2/C-cell batteries
with correct polarity (+/-) as indicated.
3Close the battery compartment.
6 x 1.5V R-14/UM-2/C-cell6 x 1.5V R-14/UM-2/C-cell
Tip
If you want to save battery life, use the supplied power
cord.
•
Connect AC power
Warning
Risk of product damage! Ensure that the power supply
voltage corresponds to the voltage printed on the back or
the underside of the soundmachine.
Risk of electric shock! When you unplug the AC adaptor,
always pull the plug from the socket. Never pull the cord.
•
•
Note
Install the unit near the power supply socket and where
the AC power plug can be easily reached.
•

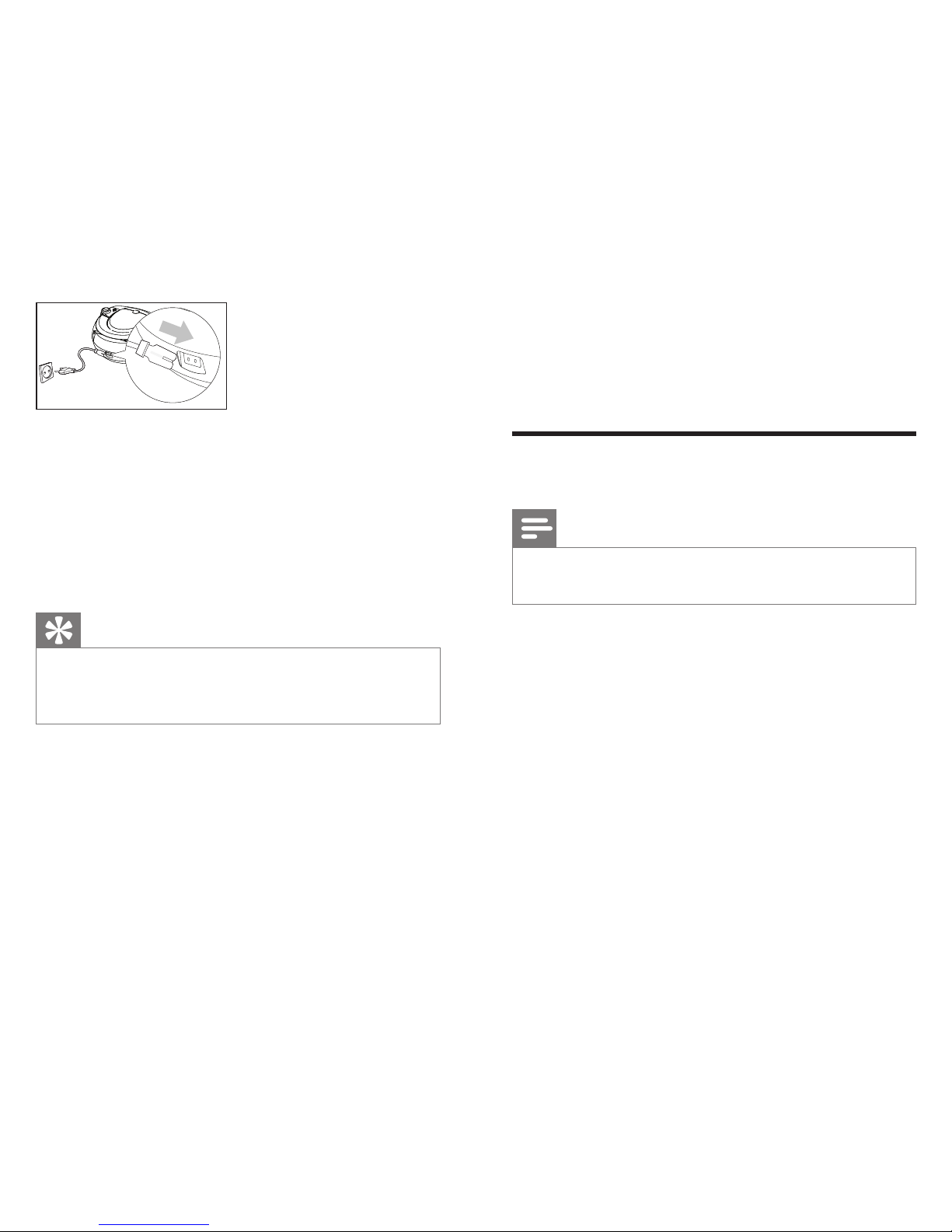

1Connect the power cord to the AC
MAINS~ socket on the soundmachine and
to the power supply socket.
To switch the soundmachine off
completely, disconnect the power cord
from the power supply socket.
Tip
To save energy: After use, set the source selector to OFF.
To turn off the soundmachine, disconnect the plug from
the power supply socket.
•
•
4 Use your
soundmachine
Play a CD
Note
You cannot play CDs encoded with copyright protection
technologies.
•
You can play commercially available audio CDs:
CD-Recordables (CD-R)
CD-Rewritables (CD-RW)
MP3-CDs
1Switch the source selector to CD.
2Lift the lid of the CD compartment.
3Insert a CD with the printed side facing up.
4Close the CD lid gently.
The total number of tracks is displayed.
•
•
•
»

5Press to start play.
[ ] is displayed.
To pause CD play, press .
To resume CD play, press again.
To stop CD play, press .
Select a track
1During play, press /to select a track.
Select an album
For MP3-CDs only.
»
•
•
•
1During play, press ALBUM +/-to select an
album.
Find a passage within a track
1During play, press and hold /.
The CD is played at high speed and with
reduced volume.
2Release /to resume normal play.
Tip
When search reaches the end of the last track, the CD
stops.
•
Select play modes
Repeat play
You can repeat a track, an MP3 album, a disc, or a
program.
»

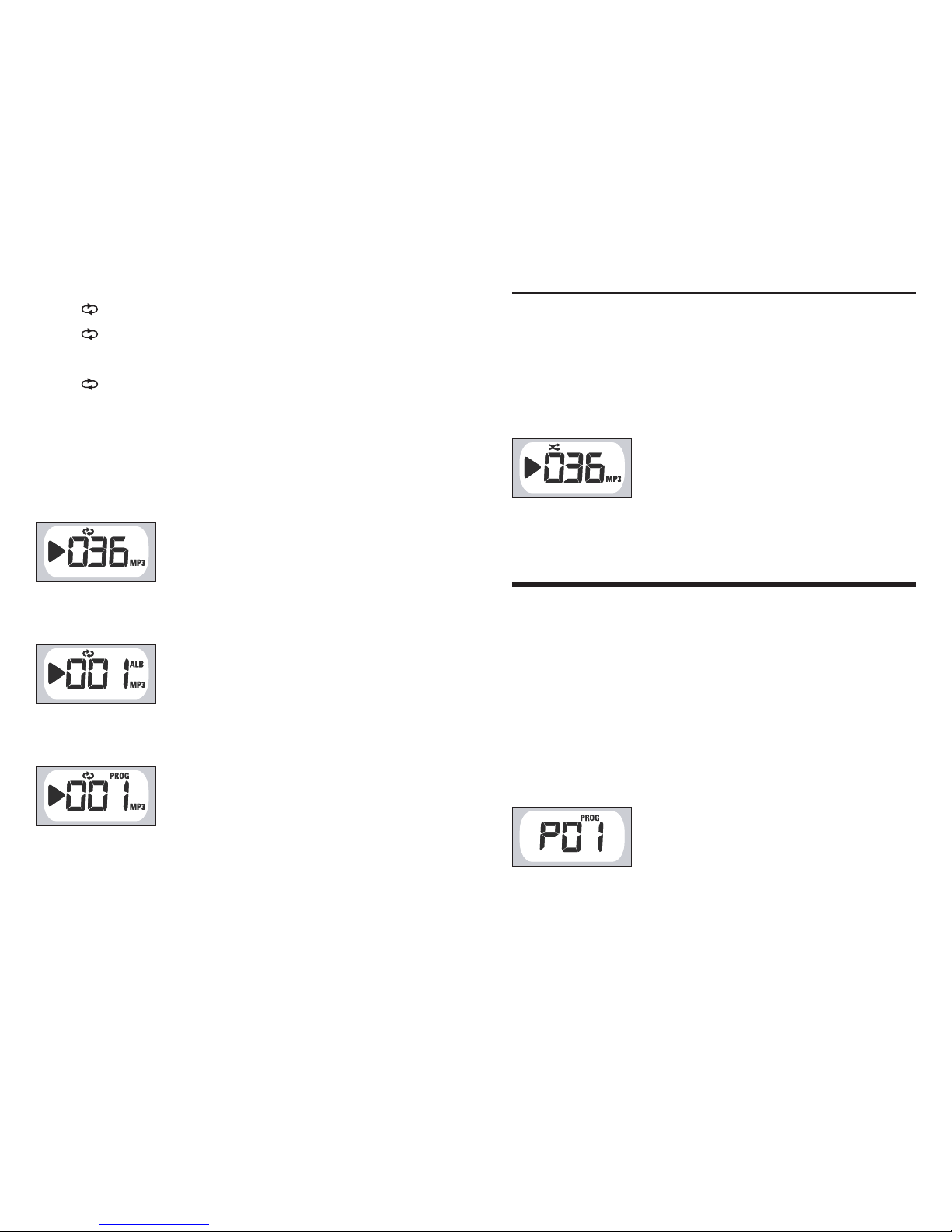

[ ] – plays the current track continuously
[ ALB] – plays the current album
continuously
[ ALL] – repeats the entire CD/program
1During play, press MODE repeatedly until the
display shows the repeat icon.
Repeat one track.
Repeat an album.
Repeat a program.
To stop repeat play, press MODE repeatedly
until the repeat icon is no longer displayed.
•
•
•
•
•
•
•
Shufe play
You can play all tracks in random order.
1During play, press MODE repeatedly until the
display shows the shufe icon.
To stop shufe play, press MODE again.
Program play sequence
You can store up to 20 tracks in the desired
sequence.
1In stop mode, press PROG to start to
program play sequence.
[PROG] and [P01] are displayed.
2Press ALBUM +/- to select an album.
•
»

This step is only applicable for MP3-CDs.
3Press /to select a track.
4Press PROG to store the track.
[PROG] and [P02] are displayed.
5Repeat steps 2 to 4 to select and store all
tracks.
When all 20 tracks are stored, no more
tracks can be selected and the display
shows [PROG] and [---].
6To play program, press .
In stop mode, press PROG repeatedly
to browse stored tracks.
To cancel program, press twice.
»
»
•
•
Tip
When program play stops, the soundmachine returns to
normal play.To play program again, repeat steps 1 to 6.
•
Listen to radio
1Switch the source selector to TUNER.
2Switch BAND to FM or MW.
3Press and hold TUNING +/- until the
frequency in the display starts to run.
When the soundmachine nds a station
with strong signals, it begins to broadcast
that station.
4 Repeat step 3 until you nd a station.
To tune to a weak station, press TUNING
+/- repeatedly until you nd optimal
reception.
»
•

Tip
To improve FM reception, you can extend, incline or turn
the telescopic antenna for best reception.
To improve MW reception, turn the soundmachine to face
a different direction.
•
•
5 Troubleshooting
Warning
Never remove the casing of this soundmachine.•
To keep the warranty valid, never try to repair the
system yourself.
If you encounter problems when using this
soundmachine, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.Philips.
com/support), or contact Philips (see Contact
information).When you contact Philips, ensure
that your soundmachine is nearby and the model
number and serial number are available (see ‘Get
started’ on page 21).
No power
Ensure that the power cord is connected
securely.
Ensure that there is power at the power
supply socket.
•
•

Ensure that the batteries are installed
correctly.
No sound
Adjust the volume.
Ensure that the track played is of a
compatible format.
Display does not function properly./No reaction
to operation of any of the controls.
1Disconnect the AC power cord.
2Connect the AC power cord after a few
seconds.
Cannot play disc
Ensure that the disc label is inserted with the
printed side facing up.
Wipe the disc with bre cleaning cloth from
the centre to the edge in a straight line.
This disc may be defective. Play another disc.
Ensure that the CD is a nalised CD-R/CD-
RW/MP3-CD.
Ensure that the laser lens is clean.
Ensure that the CD is not encoded with
copyright protection technologies.
The CD skips tracks
Ensure that the CD is not damaged or dirty.
•
•
•
•
•
•
•
•
•
•
Ensure that program/shufe mode is
deactivated.
•

6 Product
information
Note
Product information is subject to change without prior
notice.
•
Dimensions (main unit)
(W x H x D)
291 x 146 x 242.5 mm
11.46 x 5.75 x 9.55 inches
Weight (main unit) 1.53 kg
3.37 pound
Power supply DC 9V 1.5 A
AC 230V
Power consumption Active 12W
Standby <2W
Power output 2 x 1W RMS
Operating temperature
range
-10 °C - +50 °C
14 °F - 122 °F
