1 Important

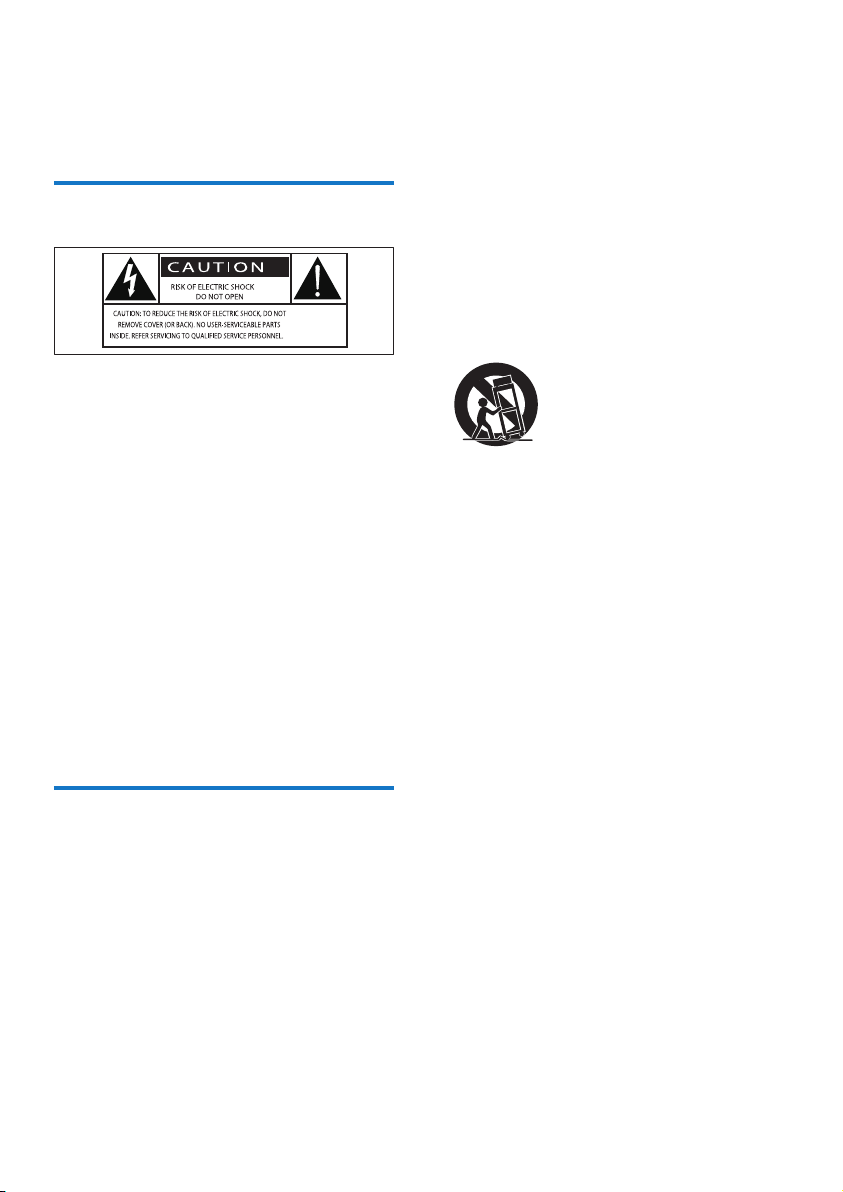

Know these safety symbols
This ‘bolt of lightning’ indicates uninsulated
material within the device may cause an
electrical shock. For the safety of everyone in
your household, please do not remove the
covering.
The ‘exclamation mark’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING:Toreducetheriskofreorelectric
shock, the device should not be exposed to rain
ormoistureandobjectslledwithliquids,such
as vases, should not be placed on the device.
CAUTION:To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs:To prevent electric shock, match wide
blade to wide slot.)
Important Safety Instructions
• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources such
as radiators, heat registers, stoves, or other
unit(includingampliers)thatproduce
heat.
• Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the clock radio.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• Use only with the cart, stand, tripod,
bracket,ortablespeciedbythe
manufacturer or sold with the Hi-Fi system.
When a cart is used, use caution when
moving the cart/unit combination to avoid
injury from tip-over.
• Unplug this Hi-Fi system during lightning
storms or when unused for long periods
of time.
• Referallservicingtoqualiedservice
personnel.Servicingisrequiredwhenthe
Hi-Fi system has been damaged in any
way, such as power-supply cord or plug
isdamaged,liquidhasbeenspilledor
objects have fallen into the Hi-Fi system,
the Hi-Fi system has been exposed to rain
or moisture, does not operate normally, or
has been dropped.
• This Hi-Fi system shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
theHi-Fisystem(e.g.liquidlledobjects,
lighted candles).
• Battery usage CAUTION –To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
• Install all batteries correctly, + and - as
marked on the Hi-Fi system.
• Remove batteries when the Hi-Fi system is
not used for a long time.

3
English
EN
• Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•Never remove the casing of this apparatus.
•Never lubricate any part of this apparatus.
•Never place this apparatus on other electrical
equipment.
•Keep this apparatus away from direct sunlight, naked
amesorheat.
•Never look into the laser beam inside this apparatus.
•Ensure that you always have easy access to the power
cord, plug or adaptor to disconnect this apparatus from
the power.
Risk of overheating! Never install this apparatus
inaconnedspace.Alwaysleaveaspaceof
at least four inches around this apparatus for
ventilation. Ensure curtains or other objects
never cover the ventilation slots on this
apparatus.
Note
•The type plate is located on the bottom of the
apparatus.

4EN
2 Your Mini Hi-Fi
System
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this Hi-Fi system, you can:
• enjoy audio from discs, USB device, or
other external devices, and
• listen to FM/MW radio stations
To enrich sound, this Hi-Fi system offers you
these sound effects:
• Digital Sound Control (DSC)
• Dynamic Bass Boost (DBB)
• Max Sound for instant power boost
The Hi-Fi system supports these media
formats:
What’s in the box
Check and identify the contents of your
package:
• Main unit
• Remote control (with batteries)
• Speaker box x 2
• MW loop antenna
• MP3 link cable
• Short user manual

5
English
EN
Overview of the main unit
a Disc compact
b
• Power on the Hi-Fi system.
• Switch to standby mode.
p
q
n
o
m
l
s
f
e
g
h
i
k
j
b
c
d
a
r
M i n i H i -F i S y s t e m F w m 2 2 0 0
200w RMS
c iR sensor
• Receive the infrared signals from the
remote control.
d ALBUM/PRESET +/-
• Select a preset radio station.
• Skip to previous/next album.

6EN
e
• Start or pause play.
f
• Stop play or erase a program.
g DISC
• Select the disc source.
h USB
• Select USB source.
i Volume controller
• Adjust volume.
j MAX SOUND
• Turn on/off instant power boost.
k DBB
• Turn on/off dynamic bass
enhancement.
l MP3 LINK
• Connect to an external audio device.
m USB DIRECT
• Connect a USB storage device.
n DSC
• Select a preset sound setting.
o MP3 LINK/AUX
• Select the MP3 link/AUX source.
p TUNER
• Select a tuner source.
q /
• Skip to previous/next track.
• Search within a track/disc.
• Tune to a radio station.
• Adjust time.
r
• Eject or close the disc tray.
s Display panel
• Display current status.
Overview of the remote
control
a
• Turn on the Hi-Fi system.
• Switch to standby mode.
b OPEN/CLOSE
• Open/close the disc tray.
MP3 LINK
AUX
a
b
c
e
d
m
l
n
o
p
r
s
q
h
g
f
j
i
k

7
English
EN
c CD
• Select disk source.
d USB
• Select USB source.
e DISP/MUTE
• Mute/unmute sound.
• Display clock and play information.
f Numeric keypad
• Select a track from a disc directly.
g PROG/CLOCK SET
• Set time.
• Program tracks and radio stations.
h SLEEP/TIMER
• Set alarm/sleep timer.
i DSC
• Select a preset sound setting.
j DBB
• Turn on/off dynamic bass
enhancement.
k REPEAT/SHUFFLE
• Play tracks repeatedly/randomly.
l VOL +/-
• Adjust volume.
m MAX
• Turn on/off instant power boost.
n
• Stop play.
• Erase a program.
o MP3 LINK/AUX
• Select MP3 Link/AUX source.
p /
• Search within a track.
• Tune to a radio station.
• Skip to the previous/next track.
• Adjust time.
q
• Start or pause play.
r PRESET/ALBUM
• Select a preset radio station.
• Skip to previous/next album.
s TUNER
• Select tuner source.

8EN
3 Get started
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect the MW antenna
1 Assemble the MW loop antenna.
2 Connect the MW loop antenna to the
AM ANT socket at the back of the Hi-Fi
system.
Connect speakers
Note
•For better sound effect, use the supplied speakers only.
•Connect only speakers with impedance that is the
same or higher than the supplied speakers. Refer to the
Specicationssectionofthismanual.
Insert speaker wires completely into the
speaker sockets at the back of the Hi-Fi system.
Prepare the remote control
Caution
•Risk of explosion! Keep batteries away from heat,
sunshineorre.Neverdiscardbatteriesinre.
•Risk of decreased battery life! Never mix different
brands or types of batteries.
Before using the remote control, install two
AAA batteries with correct polarity (+/-) as
indicated.
a
c
b

9
English
EN
Connect power
Caution
•Risk of product damage! Make sure that the power
supply voltage corresponds to the voltage printed on
the bottom or back of the unit.
•Risk of electric shock! When you unplug the power
cord, always hold the plug securely. Never pull the cord.
Note
•Before connecting the AC power cord, make sure that
you have completed all other connections.
•Before connecting power, switch the power voltage
selector on the back panel to select the voltage that
matches local power supply.
Turn on
Press .
» The Hi-Fi system switches to the last
selected source.
Switch to standby mode
Press to switch the Hi-Fi system to standby
mode.
» The clock (if set) appears on th display
panel.
Set clock
1 In standby mode, press and holdCLOCK
SET for two seconds.
» [SET CLOCK] (set clock) scrolls
on the display, and then [24H/12H]
appears.
2 Press / to select a time format.
• [24H]: 24-hour time format
• [12H]: 12-hour time format
3 Press CLOCK SETtoconrm.
» The hour digits begin to blink.
4 Repeat steps 2 and 3 to set the hour and
minute.
• To exit clock setting mode, press .

10 EN
4 Play from hard
media
Play a disc
Note
•Make sure that the disc contains playable audio content.
1 Press CD to select the disc source.
2 Press .
» The disc tray opens.
3 Insert a disc with the printed side facing up,
then press to close the disc tray.
» [Read] (read) blinks for about 10
seconds, then play starts automatically.
Play from a USB storage device
Note
•Make sure that the USB storage device contains
playable audio content.
1 Insert the USB storage device into the
socket.
2 Press USB to switch the source to USB
storage device.
» Play starts automatically.
Basic play operations
You can control play through following
operations.
Function Action
To stop play press .
To pause/resume play press .
To skip to a track press / .
To search during play press and hold /
, then release to
resume normal play.
To select an album
(for MP3/WMA)
press / .
To select a track
directly
press the numeric
buttons.
Repeat and shufe play
1 Press REPEAT/SHUFFLE repeatedly to
select:
• : play the current track repeatedly.
• (repeat all): play all tracks
repeatedly.
• (for MP3/WMA only): play the
current album repeatedly.
• : play all tracks randomly.
2 To return to normal play, press REPEAT/
SHUFFLE repeatedly until or
disappears.

11
English
EN
Program tracks
You can program a maximum of 20 tracks.
1 In CD/USB mode, when no track is played,
press PROG.
» [PROG] (program) and the preset
number blink on the display panel.
2 For MP3/WMA tracks, press / to
select an album.
3 Press / to select a track number,
and then press PROGtoconrm.
4 Repeat steps 2 and 3 to program more
tracks.
5 Press to play the programmed tracks.
» During play, [PROG] (program) is
displayed.
• To erase the program, press twice.

12 EN
5 Listen to radio
Note
•For optimal reception, fully extend the antenna and
adjust its position.
•You can store a maximum of 30 FM radio stations and
10 MW radio stations.
Tune to a radio station
1 Press TUNER repeatedly to select FM/
MW tuner source.
2 Press and hold / untilthefrequency
changes.
» The Hi-Fi system tunes to the previous
or next station with strong reception
automatically.
To tune to a weak station,
• Press / repeatedlytondoptimal
reception.
Store radio stations
automatically
In tuner mode, press and hold PROG until
[AUTO] (auto) is displayed.
» The system stores all the available
stations.
» After the search is complete, the
rstavailablestationisbroadcast
automatically.
Store radio stations manually
1 Tune to a radio station.
2 Press PROG.
» The preset number begins to blink.
3 Press / repeatedly to select a preset
number.
4 Press PROGagaintoconrm.
5 Repeat steps 1 to 4 to store other stations.
• To replace a preset station, store
another station with its preset number.
Select a preset radio station
In tuner mode, press / repeatedly to select
a preset radio station.

13
English
Play audio via the AUX IN
sockets
1 Press MP3 LINK/AUX repeatedly to select
AUX source.
2 Connect the audio cables to:
• the AUX IN sockets.
• the audio output sockets on an
external device.
3 Play the device (see the user manual of this
device).
AUX IN
R
L
LINE OUT
R
L
6 Play audio from
an external
device
With this Hi-Fi system, you can play audio from
an external audio device.
Play audio via the MP3 LINK
socket
1 Press MP3 LINK/AUX to select MP3 link
source.
2 Connect the MP3 Link cable (not supplied)
to
• the MP3 LINK socket.
• the headphone socket on an external
device.
3 Play audio on the external device (see the
user manual of this device).
MP3 LINK
EN

14
7 Adjust sound
During play, you can adjust volume and select
sound effects:
Function Action
To increase/decrease
volume
Press VOL +/-.
To mute/unmute sound Press and hold
MUTE for two
seconds.
To turn on/off instant power
boost
Press MAX.
To turn on/off dynamic bass
enhancement
Press DBB.
To select a preset sound
effect (ROCK, OPTIMAL,
and TECHNO)
Press DSC
repeatedly.
EN

15
English
8 Display
information
During play, press DISP repeatedly to view time
and other play information.
EN

16
9 Set the alarm
timer
Note
•Make sure that you have set the clock correctly.
1 In standby mode, press and hold
SLEEP/TIMER until SET TIMER scrolls.
2 Press CD, TUNER, or USB to select an
alarm source.
3 Press SLEEP/TIMERtoconrm.
4 Press / to set the hour.
5 Press SLEEP/TIMERtoconrm.
6 Repeat steps 4 and 5 to set the minute.
» is displayed.
• To deactivate the set alarm timer,
press SLEEP/TIMER repeatedly until
disappears.
• To activate the set alarm timer again,
press SLEEP/TIMER repeatedly until
is displayed.
EN

17
English
10 Set the sleep
timer
You can set a time period after which this Hi-Fi
system switches to standby mode automatically.
Press SLEEP/TIMER repeatedly to select a
period (in minutes).
» When the sleep timer is activated,
is displayed.
• To deactivate the sleep timer, press
SLEEP/TIMER repeatedly until SLP
OFF is displayed.
EN

18
Disc
Laser Type Semiconductor
Disc Diameter 12 cm, 8 cm
Support Disc CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
Audio DAC 24 Bits / 44.1kHz
Total Harmonic
Distortion
< 1%
FrequencyResponse 63 Hz - 16 kHz
S/N Ratio > 60 dBA
Tuner
Tuning Range FM: 87.50 - 108.00 MHz
MW: 530 - 1710 kHz
Tuning grid FM: 50 kHz
MW: 10 kHz
Sensitivity ( Mono,
26dB S/N Ratio)
< 22 dBu (FM), < 86
dBu (MW)
Total Harmonic
Distortion
< 3%
Signal to Noise
Ratio
> 45 dBA (FM), > 40
dBA (MW)
Speakers
Speaker Impedance 6 Ohm
USB playability information
Compatible USB devices:
• USBashmemory(USB2.0orUSB1.1)
• USBashplayers(USB2.0orUSB1.1)
• memorycards(requiresanadditionalcard
reader to work with this unit)
Supported formats:
• USBormemoryleformatFAT12,FAT16,
FAT32 (sector size: 512 bytes)
11 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
General information
AC power 110 - 127V/220
- 240V ~,
50/60Hz
Operation power
consumption
100 W
Maximum load of USB
socket
5 V, 0.5 A
Dimensions
- Main Unit (W x H x D)
- Speaker Box (W x H x D)
223 x 313 x
252 mm
195 x 310 x
207 mm
Weight
- With Packing
- Main Unit
- Speaker Boxes
9.7 kg
3.6 kg
2 x 2.1 kg
Amplier
Rated output power 2 X 100 W RMS @
30% THD
Frequencyresponse 63 - 16000 Hz, ±3
dB
Signal to noise ratio > 55 dBA
AUX input 2 V RMS
MP3 Link 650 mV RMS
EN
