Contents
1 Important 2
Safety 2
2 Your Mini Hi-Fi System 4
Introduction 4
What’s in the box 4
Overview of the main unit 5
Overview of the remote control 6
3 Get started 8
Connect speakers 8
Connect FM antenna 8
Prepare the remote control 8
Connect power 9
Set clock 9
Turn on 9
4 Play 10
Basic play operations 10
Play disc 10
Play from iPod/iPhone 10
Play from USB 11
Play audio from an external device 11
5 Play options 12
Adjust sound 12
Repeat and shuffle play 12
Program tracks 12
Display different information 12
6 Listen to FM radio 13
Tune to a FM radio station 13
Store FM radio stations automatically 13
Store FM radio stations manually 13
Select a preset radio station 13
7 Other features 14
Set alarm timer 14
Set sleep timer 14
8 Product information 15
Specifications 15
USB playability information 16
Supported MP3 disc formats 16
Maintenance 16
9 Troubleshooting 17
10 Notice 18

2
stoves, or other unit (including
amplifiers) that produce heat.
Protect the power cord from being•
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
clock radio.
Only use attachments/accessories•
specified by the manufacturer.
Use only with the cart, stand,•
tripod, bracket, or
table specified by the
manufacturer or sold
with the Hi-Fi system.
When a cart is used,
use caution when
moving the cart/unit
combination to avoid
injury from tip-over.
Unplug this Hi-Fi system during•
lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service•
personnel. Servicing is required
when the Hi-Fi system has been
damaged in any way, such as power-
supply cord or plug is damaged, liquid
has been spilled or objects have
fallen into the Hi-Fi system, the Hi-Fi
system has been exposed to rain or
moisture, does not operate normally,
or has been dropped.
This Hi-Fi system shall not be•
exposed to dripping or splashing.
Do not place any sources of danger•
on the Hi-Fi system (e.g. liquid filled
objects, lighted candles).
Battery usage CAUTION – To•
prevent battery leakage which may
result in bodily injury, property
damage, or damage to the remote
control:
Install all batteries correctly, + and -•
as marked on the remote control.
Do not mix batteries (old and new•
or carbon and alkaline, etc.).
1 Important
Safety

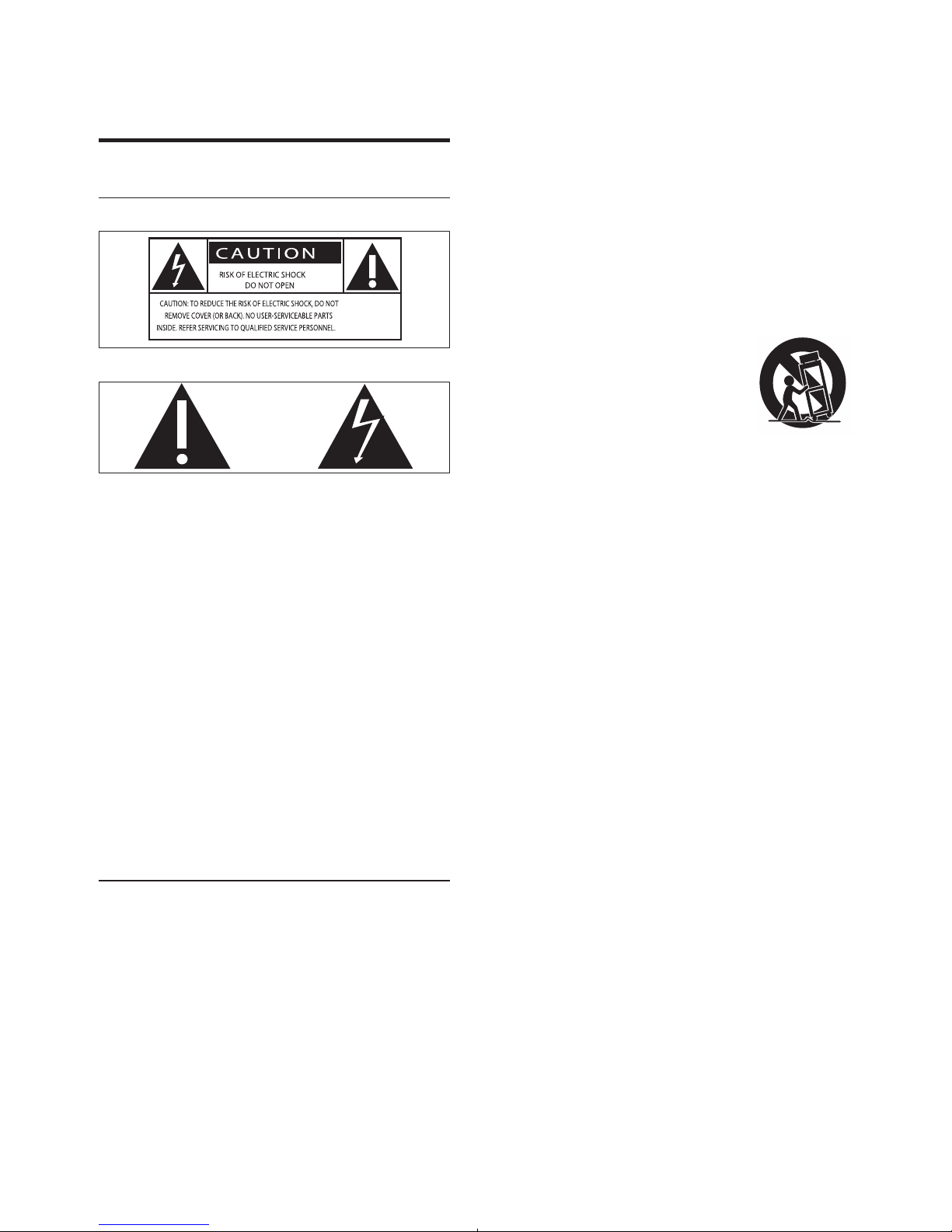

Know these safety symbols
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
Read these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not block any ventilation•
openings. Install in accordance with
the manufacturer’s instructions.
Do not install near any heat sources•
such as radiators, heat registers,
EN

3
Remove batteries when the remote•
control is not used for a long time.
Where the MAINS plug or an•
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily operable.
Warning
Never remove the casing of this apparatus.• Never lubricate any part of this apparatus.• Never place this apparatus on other electrical• equipment.
Keep this apparatus away from direct sunlight,• naked flames or heat.
Never look into the laser beam inside this• apparatus.
Ensure that you always have easy access to the• power cord, plug or adaptor to disconnect this
apparatus from the power.
English
EN

4
What’s in the box
Check and identify the contents of your
package:
Main unit•
Remote control (with batteries)•
Speaker box (x 2)•
FM antenna•
User manual•
Quick start guide•
2 Your Mini Hi-Fi
System
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this Hi-Fi system, you can:
enjoy audio from discs, USB device, iPod/•
iPhone and other external devices; and
listen to radio stations•
To enrich sound, this Hi-Fi system offers you
these sound effects:
Digital Sound Control (DSC)•
Dynamic Bass Boost (DBB)•
Max sound for instant power boost•
The Hi-Fi system supports these media
formats:
EN

5
bALBUM/PRESET +/-
Select a preset radio station.•
Skip to previous/next album.•
Navigate through iPod/iPhone menu.•
Overview of the main unit
a
Turn on the Hi-Fi system.•
Switch to standby or Eco power•
standby mode.
a
c
d
e
f
h
b
gi
k
l
j
n
m
English
EN

6
Overview of the remote
control
a
b
c
e
d
m
l
n
o
p
r
s
q
h
g
f
j
i
k
c/
Stop play or erase a program.•
Start or pause play.•
dDISC
Select disc source.•
eiPod/iPhone
Select iPod/iPhone source.•
fVolume controller
Adjust volume.•
gMP3 LINK
Connect external audio device.•
hDock for iPod/iPhone
iUSB DIRECT
USB socket.•
jMP3 LINK/USB
Select MP3 link/USB source.•
kTUNER
Select tuner source.•
l/
Skip to previous/next track.•
Search within a track/disc.•
Tune to a radio station.•
Adjust time.•
m
Open or close the disc tray.•
nDisplay panel
Show current status.•
EN

7
n/MENU
Stop play.•
Erase a program.•
Navigate through iPod/iPhone menu.•
oiPod/iPhone
Select iPod/iPhone source.•
p/
Search within a track/disc.•
Tune to a radio station.•
Skip to the previous/next track.•
Adjust time.•
q
Start or pause play.•
rPRESET/ALBUM
Select a preset radio station.•
Skip to previous/next album.•
Navigate through iPod/iPhone menu.•
sTUNER
Select tuner source.•
a
Turn on the Hi-Fi system.•
Switch to standby or Eco power•
standby mode.
bOPEN/CLOSE
Open or close the disc tray.•
cCD
Select disk source.•
dMP3 LINK/USB
Select MP3 link/USB source.•
eDISP/MUTE
Mute/unmute sound.•
Show current information.•
fNumeric keypad
Select a track from a disc directly.•
Select a preset radio station directly.•
gPROG/CLOCK SET
Set time.•
Program tracks and radio stations.•
hSLEEP/TIMER
Set alarm/sleep timer.•
iDSC
Select a preset sound setting.•
jDBB
Turn on/off dynamic bass•
enhancement.
kREPEAT/SHUFFLE
Play tracks repeatedly/randomly.•
lVOL +/-
Adjust volume.•
mMAX
Turn on/off instant power boost.•
English
EN

8
Connect FM antenna
Connect FM antenna to the FM ANT socket at
the back of the Hi-Fi system.
Prepare the remote control
Caution
Risk of explosion! Keep batteries away from• heat, sunshine or fire. Never discard batteries
in fire.
Risk of decreased battery life! Never mix• different brands or types of batteries.
Before using the remote control, install two
AAA batteries with correct polarity (+/-) as
indicated.
a
c
b
3 Get started
Caution
Use of controls or adjustments or• performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect speakers

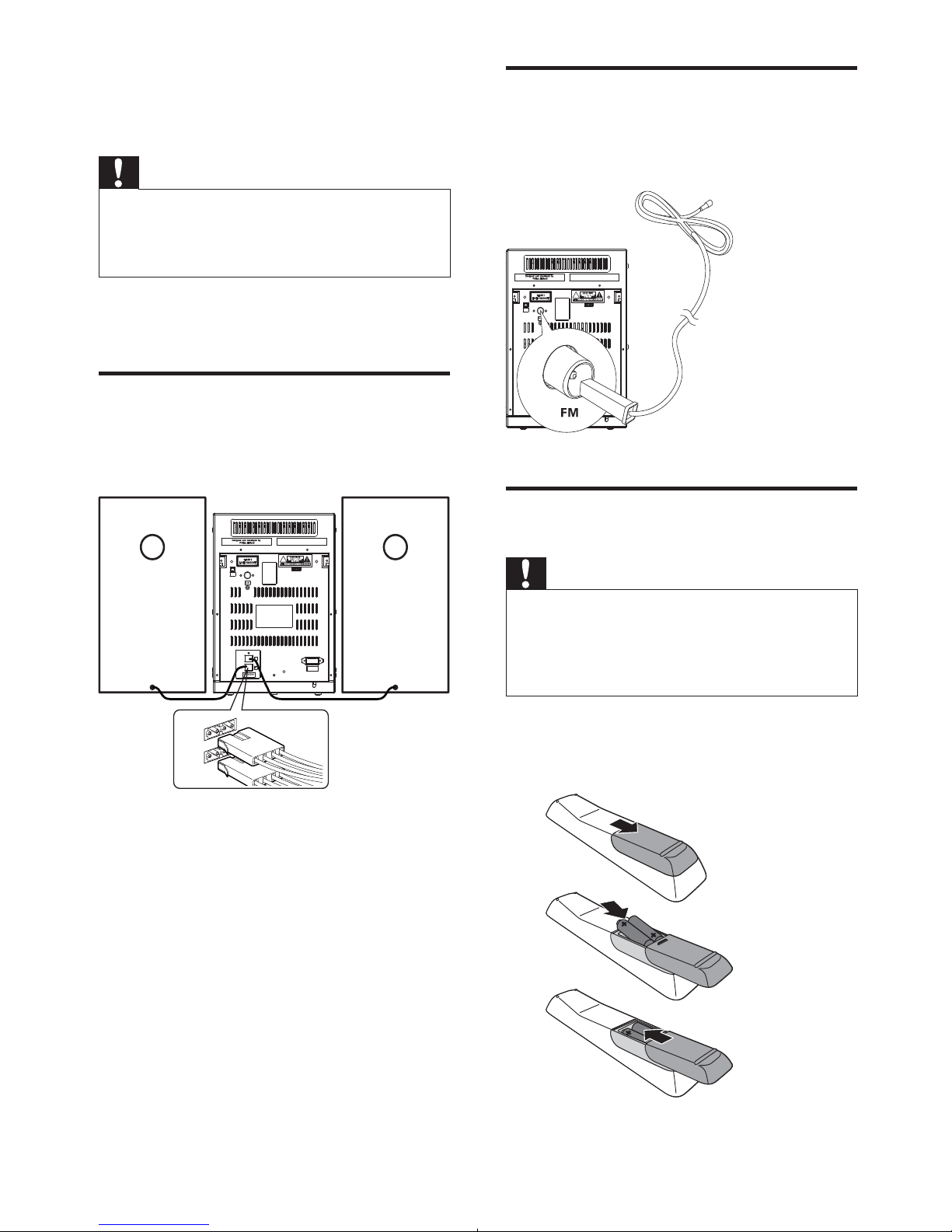

Insert speaker wires completely into the
speaker sockets at the back of the Hi-Fi system.
L
R
EN

9
Set clock
1In standby mode, press and hold CLOCK
SET for 2 seconds.
»[SET CLOCK] (set clock) scrolls on
the display, then [24 HOUR] or [12
HOUR] blinks.
2Press /to select 12/24 hour format.
3Press CLOCK SET to confirm.
The hour digits begin to blink.»
4Repeat Steps 2 to 3 to set the hour and
minute.
Note
To exit clock setting mode, press• .
If clock is not set yet, when iPod/iPhone is• connected, the system synchronizes time from
the iPod/iPhone automatically.
Turn on
Press .
The Hi-Fi system switches to the last»
selected source.
Switch to standby mode
Press to switch the Hi-Fi system to standby
mode.
The clock (if set) appears on the»
display panel.
To switch the system to Eco Power Standby
mode:
In standby mode, press and hold for 2
seconds.
»[ECO POWER] (Eco power) scrolls
on the display, then the backlight turns
off.
Connect power
Caution
Risk of product damage! Make sure that the• power supply voltage corresponds to the
voltage printed on the head of the AC power
cord.
Risk of electric shock! When you unplug the• power cord, always pull the plug from the
socket. Never pull the cord.
Note
Before connecting the AC power cord,• make sure that you have completed all other
connections.
English
EN

10
Play from iPod/iPhone
You can enjoy audio from iPod/iPhone through
this Hi-Fi system.
Compatible iPod/iPhone
The Hi-Fi system supports these iPod and
iPhone models:
Made for.
iPod touch (1st, 2nd, 3rd, and 4th•
generation)
iPod classic•
iPod with video•
iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th•
generation)
iPod with color display•
iPod mini•
iPhone 4•
iPhone 3GS•
iPhone 3G•
iPhone•
4 Play
Basic play operations
Function Action
To stop play press .
To pause/resume
play
press .
To skip to a track press / .
To search during play press and hold /
, then release to resume
normal play.
To select an album
(for MP3/WMA)
press / .
To navigate the
iPod/iPhone menu
press MENU, then press
/ to select, and press
to confirm.
To select a track directly press the numeric
buttons.
Play disc
1Press CD to select the disk source.
2Press .
The disc tray opens.»
3Insert a disc with the printed side facing
up, then press to close the disc tray.
»[Read] (read) blinks for a moment,
then play starts automatically.
EN

11
Play from USB
Note
Make sure that the USB device contains• playable audio content.
1Insert the USB device into the socket.
2Press USB to select the USB source.
Play starts automatically.»
Play audio from an external
device
You can also listen to an external audio device
through this system with an MP3 link cable (not
supplied).
1Connect the MP3 link cable to
the• MP3 LINK socket.
the audio output socket of the•
external device.
2Press MP3 LINK repeatedly to select
MP3 link mode.
3Start to play the external device (see the
user manual of this device).
Listen to audio from iPod/iPhone
1Place the iPod/iPhone in the dock.
2Press iPod/iPhone to select iPod/iPhone
source.
3Start to play audio from the iPod/iPhone.
To remove the iPod/iPhone:
Pull the iPod/iPhone out of the dock.
Charge the iPod/iPhone
When the system is connected to power, the
docked iPod/iPhone starts charging.
English
EN

12
Program tracks
You can program a maximum of 20 tracks.
1In CD/USB mode, press to stop
playback, then press PROG to activate
programming mode.
»[PROG] (program) and the preset
number blinks on the display panel.
2For MP3/WMA tracks, press /to
select an album.
3Press / to select a track number,
then press PROG to confirm.
4Repeat steps 2 to 3 to program more
tracks.
5Press to play the programmed tracks.
During play,»[PROG] (program) is
displayed.
To erase the program, in the stop•
position, press .
Display different information
During play, press DISPLAY repeatedly to view
time and different play information.
5 Play options
Adjust sound
During play, you can adjust volume and select
sound effects:
Function Action
To increase/decrease volume Press VOL
+/-.
To mute/unmute sound Press and
hold MUTE
for two
seconds.
To turn on/off instant power
boost Press MAX.
To turn on/off dynamic bass
enhancement Press DBB.
To select a preset sound effect
(FLAT, OPTIMAL, JAZZ,
ROCK, and TECHNO)
Press DSC
repeatedly.
Repeat and shuffle play
1Press REPEAT repeatedly to select:
• : play current track repeatedly.
• (for MP3/WMA only): play
current album repeatedly.
• (repeat all): play all tracks
repeatedly.
• : play all tracks randomly.
2To return to normal play, press REPEAT
repeatedly until [TRK] (track) is
displayed.
EN

13
Store FM radio stations
manually
1Tune to a FM radio station.
2Press PROG.
The preset number begins to blink.»
3Press / repeatedly to select a number.
4Press PROG again to confirm.
5Repeat Steps 1 to 4 to store other
stations.
Note
To remove a pre-stored station, store another• station in its place.
Select a preset radio station
In tuner mode, press / repeatedly to select a
preset radio station.
6 Listen to FM
radio
Tune to a FM radio station
Note
For better reception, fully extend and adjust• the position of FM antenna.
1Press TUNER to select FM tuner source.
2Press and hold / for 2 seconds.
The Hi-Fi system tunes to a station»
with strong reception automatically.
3Repeat step 2 to tune to more stations.
To tune to a station manually:
1Press /repeatedly until you find
optimal reception.
Store FM radio stations
automatically
Note
You can store a maximum of 20 preset radio• stations.
In FM tuner mode, press and hold PROG for 2
seconds.
»[AUTO](auto) is displayed.
The system stores all the available»
FM stations and broadcasts the first
available station automatically.
English
EN

14
Set sleep timer
This Hi-Fi system can switch to standby mode
automatically after a preset time period.
Press SLEEP repeatedly to select a preset
period (in minutes).
When sleep timer is activated,»
appears.
To deactivate sleep timer, press SLEEP
repeatedly until [SLP OFF] (sleep off) is
displayed.
»disappears.
7 Other features
Set alarm timer
This Hi-Fi system can be used as an alarm clock.
For alarm source, you can select disc, tuner, USB
or iPod/iPhone.
Note
Make sure that you have set the clock• correctly.
1In standby mode, press and hold TIMER
until [SET TIMER] (set timer) appears.
Then [SELECT SOURCE] (select
source)scrolls on the display.
2Press source selection keys to select an
alarm source: DISC, TUNER, USB or
iPod/iPhone.
3Press TIMER to confirm.
The hour digits begin to blink.»
4Press / to set hour.
5Press TIMER to confirm.
The minute digits begin to blink.»
6Repeat steps 4-5 to set minute.
The alarm icon appears.»
Note
In standby mode, press• TIMER repeatedly to
activate/deactivate the alarm timer.
When alarm sounds, you can adjust volume by• pressing VOL +/-.
If Disc/USB/iPod/iPhone is selected as alarm• source, while no disc is inserted or no USB/
iPod/iPhone connected, the system switches
to tuner source instead.
EN

15
Tuner
FM
Tuning Range 87.5 - 108 MHz
Tuning grid 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
- Stereo, 46dB S/N Ratio
<22 dBu
<45 dBu
Search Selectivity <28 dBu
Total Harmonic Distortion <3%
Signal to Noise Ratio >45 dB
Speakers
Speaker Impedance 4ohm
General information
AC power 220-240V~,50/60Hz
Operation power
consumption 55W
Standby power
consumption <2W
Eco Standby power
consumption <1W
USB direct Version 2.0/1.1
Dimensions
- Main Unit (W x H x D)
- Speaker Box (W x H x D)
220 x 312x 270 mm
229 x 359 x 269 mm
Weight
- With Packing
- Main Unit
- Speaker Box
13.2 kg
3.6 kg
2 x 3.7 kg
8 Product
information
Note
Product information is subject to change• without prior notice.
Specifications
Amplifier
Rated Output Power 60W per channel x 4
Frequency Response 63 - 16000 Hz, ±3dB
Signal to Noise Ratio >55dB
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic
Distortion <1%
Frequency Response 63Hz - 16kHz
S/N Ratio >65dBA
English
EN

16
Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 511 (depending•
on file name length)
Maximum album number: 511•
Supported sampling frequencies: 32 kHz,•
44.1kHz, 48 kHz
Supported Bit-rates: 32~320 (kbps),•
variable bit rates
ID3 tag v2.0 or later•
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with•
a mild detergent solution. Do not use
a solution containing alcohol, spirits,
ammonia or abrasives.

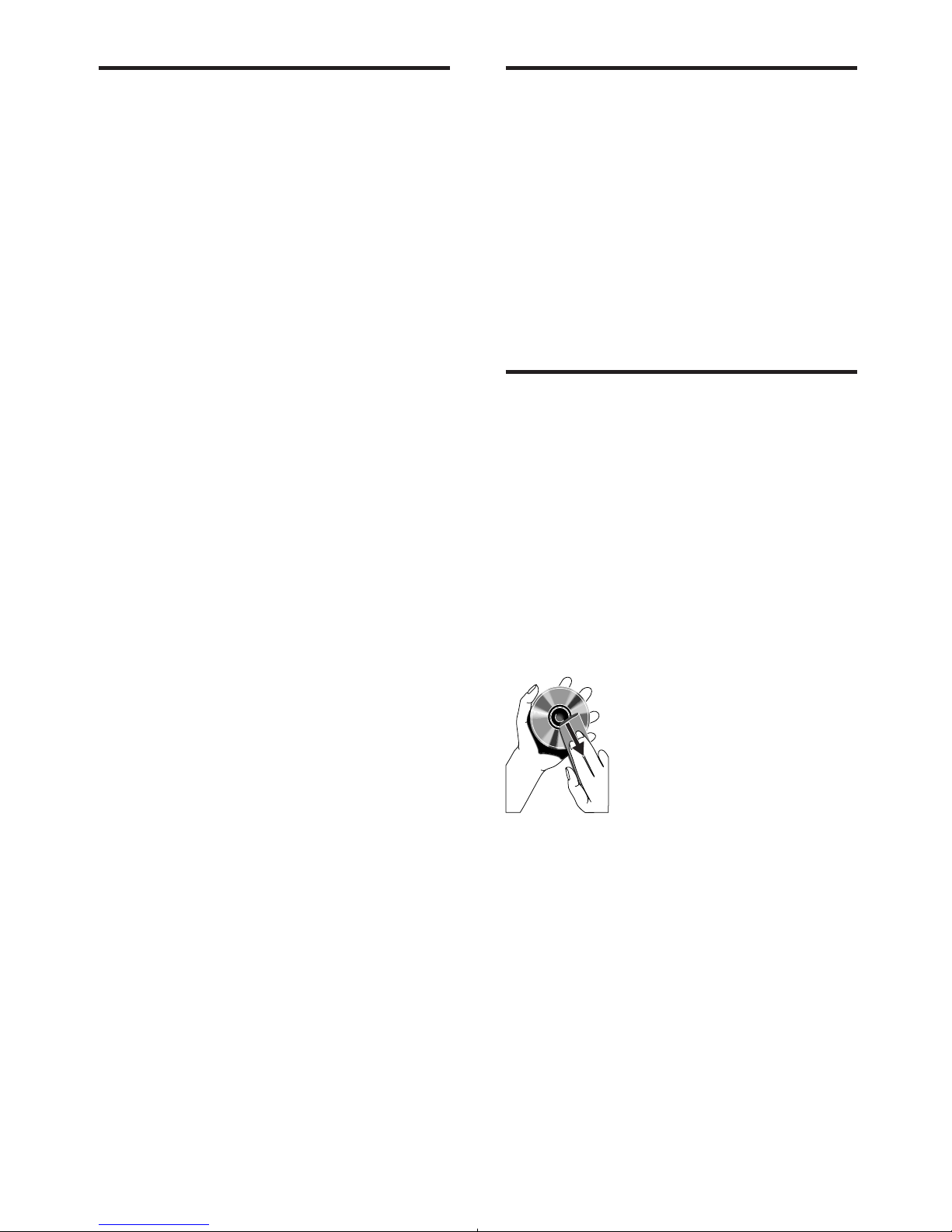

Clean discs
When a disc becomes dirty, clean it with•
a cleaning cloth. Wipe the disc from the
centre out.
Do not use solvents such as benzene,•
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
After prolonged use, dirt or dust may•
accumulate at the disc lens. To ensure
good play quality, clean the disc lens
with Philips CD lens cleaner or any
commercially available cleaner. Follow the
instructions supplied with cleaner.
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or•
USB1.1)
USB flash players (USB 2.0 or•
USB1.1)
memory cards (requires an additional•
card reader to work with this unit)
Supported formats:
USB or memory file format FAT16,•
FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps•
and variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum•
of 8 levels
Number of albums/ folders:•
maximum 999
Number of tracks/titles: maximum•
999
ID3 tag v2.0 or later•
File name in Unicode UTF8•
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an•
album that does not contain MP3/
WMA files, and will not be shown in
the display.
Unsupported file formats are•
skipped. For example, Word
documents (.doc) or MP3 files with
extension .dlf are ignored and not
played.
AAC, WAV, PCM audio files•
DRM protected WMA files (.wav,•
.m4a, .m4p, .mp4, .aac)
WMA files in Lossless format•
EN

17
Reduce the distance between the remote•
control and the unit.
Insert the battery with its polarities (+/–•
signs) aligned as indicated.
Replace the battery.•
Aim the remote control directly at the•
sensor on the front of the unit.
No disc detected
Insert a disc.•
Check if the disc is inserted upside down.•
Wait until the moisture condensation at•
the lens has cleared.
Replace or clean the disc.•
Use a finalized CD or correct format disc.•
Poor radio reception
Increase the distance between the unit•
and your TV or VCR.
Fully extend the FM antenna.•
Timer does not work
Set the clock correctly.•
Switch on the timer.•
Clock/timer setting erased
Power has been interrupted or the power•
plug has been disconnected.
Reset the clock/timer.•
USB device not supported
The USB device is incompatible with the•
unit. Try another one.
9 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome).When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Ensure that the AC power plug of the•
unit is connected properly.
Ensure that there is power at the AC•
outlet.
To save power, the system switches•
off automatically 15 minutes after track
play reaches the end and no control is
operated.
No sound or poor sound
Adjust the volume.•
Check that the speakers are connected•
correctly.
Check if the stripped speaker wires are•
clamped.
Left and right sound outputs reversed
Check the speaker connections and•
location.
No response from the unit
Disconnect and reconnect the AC power•
plug, then turn on the system again.
As a power-saving feature, the unit•
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
Remote control does not work
Before you press any function button,•
first select the correct source with the
remote control instead of the main unit.
English
EN

18
This equipment should not be used for such
purposes.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
10 Notice
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Note
The type plate is located on the bottom of the• apparatus.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards.Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
The making of unauthorized copies of copy-
protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
EN

19
packaging materials, exhausted batteries and old
equipment.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er derfor
ikke frakoplet nettet så lenge apparatet er
tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
English
EN
