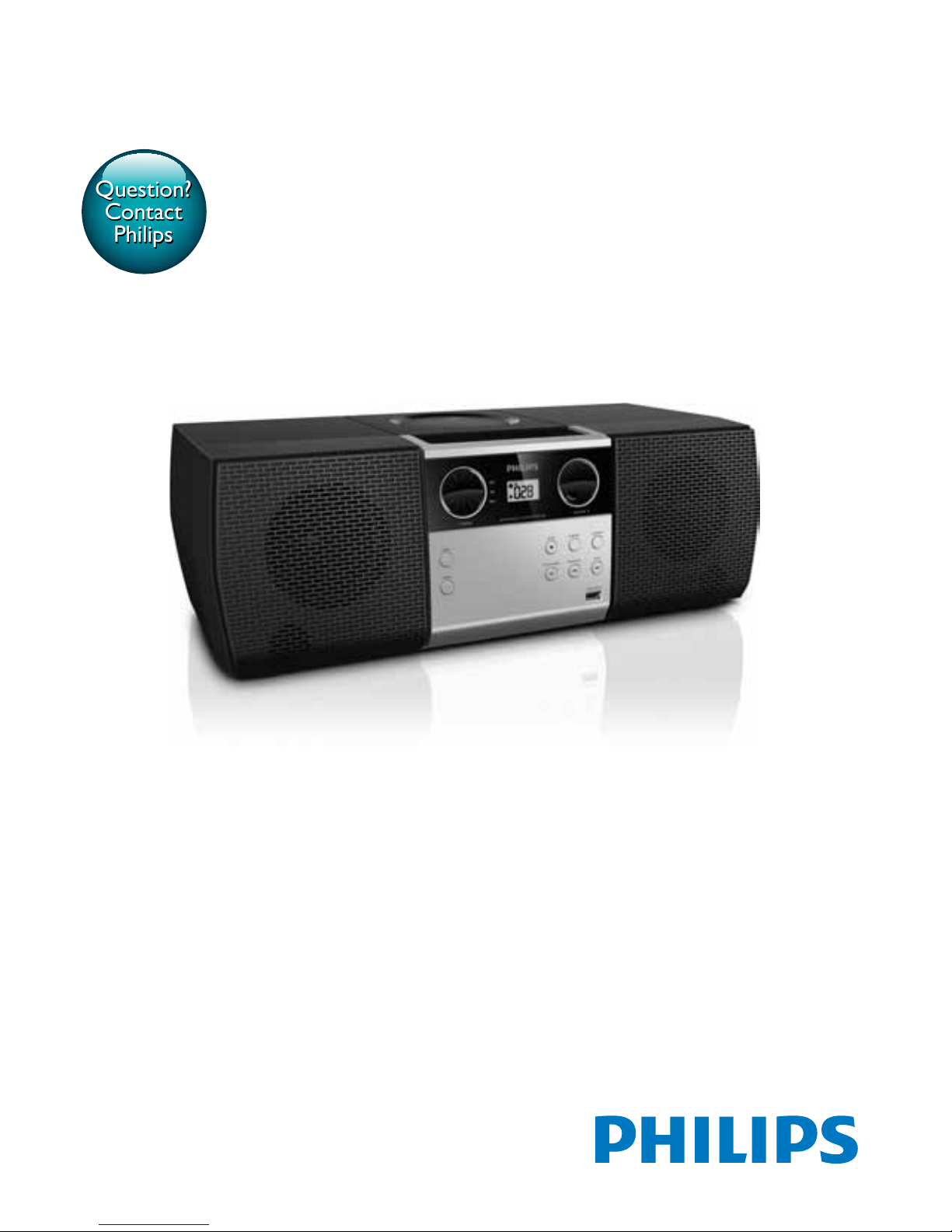

Philips MCM1006 User manual

www.philips.com/welcome
User manual
Always there to help you
Register your product and get support at
MCM1006
Question?
Contact
Philips

1EN
Contents
1 Important 2
Safety 2
Notice 2
2 Your micro music system 4
Introduction 4
What's in the box 4
Overview of the system 5
3 Get started 6
Connect power 6
Turn on and select a source 6
4 Play discs 7
Control play 7
Program tracks 7
5 Play from a USB storage device 9
Control play 9
Program tracks 10
6 Listen to radio 11
7 Listen to an external device 12
8 Adjust sound 13
Adjust the volume level 13
Use the DBB sound effect 13
9 Product information 14
Specications 14
USB playability information 14
Supported MP3 disc formats 15
Maintenance 15
10 Troubleshooting 16

2EN
1 Important
Safety
Read and understand all instructions before
you use this micro music system. If damage is
caused by failure to follow the instructions, the
warranty does not apply.
Risk of electric shock or re!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact the Consumer Care
to have the product checked before use.
• Never place the product and accessories
nearnakedamesorotherheatsources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or re!
• Before you connect the product to the
power outlet, make sure that the power
voltage matches the value printed on the
bottom of the product. Never connect the
product to the power outlet if the voltage
is different.
• Avoid force coming onto power plugs.
Loosepowerplugscancausearcingorre.
Risk of injury or damage to the product!
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
• Neverinstallthisproductinaconned
space. Always leave a space of at least four
inches around the product for ventilation.
• Make sure that curtains or other objects
never cover the ventilation slots on the
product.
Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
This product complies with the radio
interference requirements of the European
Community.
This apparatus includes this label:

3EN
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
Copyright
2014 © WOOX Innovations Limited. All rights
reserved.
Philips and the Philips’ Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.”
Specicationsaresubjecttochangewithout
notice.WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.
Note
•The type plate is located on the bottom of the system.

4EN
2 Your micro
music system
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact the Consumer Care, you will
be asked for the model and serial number of
this apparatus.The model number and serial
number are on the bottom of the product.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this system, you can:
• enjoy audio from discs, USB storage
devices, and other external devices
• listen to FM radio stations
You can enrich sound output with the sound
effect:
• Dynamic bass boost (DBB)
Playable media:
• Discs: CD-DA, CD-R, CD-RW, MP3-CD,
WMA-CD
• Files: .mp3, .wma
What's in the box
Check and identify the contents of the package:
• Micro music system
• MP3 link cable
• User manual
•

5EN
Overview of the system
a Cover of disc compartment
b Disc compartment
c Integrated speaker
d DBB
• Slide to enable or disable the DBB
sound effect.
e Indicator window
• Indicate the frequency of current FM
radio station.
f TUNING
• Rotate to select an FM radio frequency.
g PROG
• Program audio tracks.
h MODE
• Press repeatedly to select a play mode.
i STOP
• Stop the play of audio tracks.
a
b
c
d
e
f
g
h
j
i
n
l
k
m
o
p
q
j PLAY/PAUSE
• Start, pause, or resume the play of
audio tracks.
k / PREVIOUS/NEXT
• Skip to the previous/next audio track.
l ALBUM - /ALBUM +
• Skip to the previous/next album.
m USB DIRECT
• Connect to a USB storage device.
n - VOLUME +
• Rotate to adjust the volume level.
o LCD screen
p MP3-LINK
• Connect to the audio output socket
(usually the headphone socket) of an
external device.
q Power switch and source selector
• Slide to select a source or turn off the
system.

6EN
3 Get started
Caution
•Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect power
Connect the power adaptor to the power
supply socket.
Turn on and select a source
Slide the power switch and source selector to
CD, USB, or FM.
» The LED indicator beside the LCD
screen lights up in red.
• To turn off the system, slide it to OFF.
• When the power switch and source
selector is not in the "OFF" position
and an MP3 link cable is connected
to the MP3-LINK socket, the system
automatically switches the source to
audio input through the MP3-LINK
socket.

7EN
4 Play discs
1 Slide the power switch and source selector
to CD.
2 Lift the cover of disc compartment.
3 Load a disc with the printed side facing
upwards.
4 Close the cover of disc compartment.
» Play starts automatically after a few
seconds.
• If play does not start automatically,
press to start play.
Control play
During play, follow the instructions below to
control play.
Buttons Function LCD
displays
Start or
resume play.
the track
number, ,
and
Pause play. the track
number,
, and
(blinking)
Stop play. the total
number
of tracks
and
/ Press to skip to
the previous or
next track.
the track
number, ,
and
/ Press and hold
to rewind or
search forward
fast within a
track.
the track
number, ,
and
ALBUM -
ALBUM +
Skip to the
previous or
next album
when no less
than one
album exists.
the track
number,
ALB, and
Program tracks
Note
•You can program a maximum of 20 tracks.
•During programming, if no operation is made within
20 seconds, the system returns to stop mode without
saving programmed tracks.
For a CD
1 Press to stop play.
» The total number of tracks is displayed.
2 Press PROG to activate the programming.
» PROG is displayed, and blinks.
3 Press / (or ALBUM - /ALBUM +)
to select a track.
» The track number blinks.
4 Press PROG again to program the selected
track.
5 Repeat steps 3 and 4 to program more
tracks.
6 Press to start play.
For a WMA/MP3 disc
1 Press to stop play.
» The total number of tracks is displayed.
2 Press PROG to activate the programming.
» PROG is displayed, and blinks.
3 Press / (or ALBUM - /ALBUM +)
repeatedly to select an album.
» The album number and ALB blinks.
4 Press PROGagaintoconrmtheselected
album.
» A track number is displayed, and ALB
disappears.
5 Press / (or ALBUM - /ALBUM +)
repeatedly to select a track.

8EN
6 Press PROGagaintoconrmtheselected
track.
7 Repeat steps 3 to 6 to program more
tracks.
8 Press to start play.
Erase the program
To erase the program,
• Press twice.
• Slide the power switch and source selector.

9EN
5 Play from a USB
storage device
Thissystemcanplay.mp3and.wmalesthat
are copied onto a supported USB storage
device:
• Flash drive
• Memory card reader
• HDD: hard disc drive (This product can
detect only a portable HDD with USB
power peak current no more than 500 mA.)
Note
•WOOX Innovations does not guarantee compatibility
with all USB storage devices.
•NTFS(NewTechnologyFileSystem)lesystemisnot
supported.
1 Slide the power switch and source selector
to USB.
2 Connect the USB storage device to the
USB DIRECT socket.
» Play starts automatically after a few
seconds.
• If play does not start automatically,
press to start play.
Control play
During play, follow the instructions below to
control play.
Buttons Function LCD displays
Start or
resume play.
the track
number,
WMA/MP3
(track format),
, and
Pause play. the track
number,
WMA/MP3
(track format),
, and (blinking)
Stop play. the total number
of tracks,
WMA/MP3
(track format),
and
/ Press to
skip to the
previous or
next track.
the track
number,
WMA/MP3
(track format),
, and
/ Press and hold
to rewind or
search forward
fast within a
track.
the track
number,
WMA/MP3
(track format),
, and
ALBUM -
ALBUM +
Skip to the
previous or
next album
when no less
than one
album exists.
the album
number, ALB,
WMA/MP3
(track format),
and

10 EN
Program tracks
Note
•You can program a maximum of 20 tracks.
•During programming, if no operation is made within
20 seconds, the system returns to stop mode without
saving programmed tracks.
1 Press to stop play.
» The total number of tracks is displayed.
2 Press PROG to activate the programming.
» PROG is displayed, and blinks.
3 Press / (or ALBUM - /ALBUM +)
repeatedly to select an album.
» The album number and ALB blinks.
4 Press PROGagaintoconrmtheselected
album.
» A track number is displayed, and ALB
disappears.
5 Press / (or ALBUM - /ALBUM +)
repeatedly to select a track.
6 Press PROGagaintoconrmtheselected
track.
7 Repeat steps 3 to 6 to program more
tracks.
8 Press to start play.
Erase the program
To erase the program,
• Press twice.
• Slide the power switch and source selector.

11EN
6 Listen to radio
Note
•For optimal reception, fully extend the FM antenna and
adjust its position.
1 Slide the power switch and source selector
to FM.
2 Rotate the TUNING knob to tune to an
FM radio station.

12 EN
7 Listen to an
external device
You can use the system as a speaker to amplify
the audio input from an external device, for
example, MP3 player.
1 Slide the power switch and source selector
to CD, USB, or FM.
2 Connect the MP3 link cable to
• the MP3-LINK socket on the system,
and
• the audio output socket (usually the
headphone socket) on the external
device.
3 Play the external device.
Note
•To play audio input from other sources, disconnect the
MP3 link cable from the system.
PM
3
-K
N
I
L

13EN
8 Adjust sound
The following operations are applicable to all
supported media.
Adjust the volume level
Rotate the - VOLUME + knob clockwise or
anti-clockwise to increase or decrease the
volume level.
Use the DBB sound effect
Slide DBB to ON to enable the DBB sound
effect.
• To disable the DBB sound effect, slide DBB
to OFF.

14 EN
9 Product
information
Note
•Product information is subject to change without prior
notice.
Specications
Amplier
Rated output power 2 X 2 W RMS
Frequency response 40 Hz - 20 kHz, ±3 dB
Signal-to-noise ratio > 50 dB
MP3-Link input 600 mV RMS, 22 kOhm
Disc
Laser type Semiconductor
Disc diameter 12cm, 8cm
Support discs CD-DA, CD-R, CD-RW, MP3-
CD,WMA-CD
Audio DAC 24 Bits, 44.1 kHz
Total harmonic
distortion
< 3% (1 kHz)
Frequency
response
40 Hz - 20 kHz (44.1 kHz)
S/N Ratio > 55 dB
Tuner (FM)
Tuning range 88-108 MHz
Sensitivity
- Mono, 26 dB S/N Ratio
- Stereo, 46 dB S/N Ratio
< 22 dBf
< 43 dBf
Total harmonic distortion < 3%
Signal-to-noise ratio > 50 dB
General information
AC power input 100-240 V ~, 50-60 Hz
Output of AC-DC
power adaptor
12 V , 1000 mA
Operation power
consumption
10 W
USB Direct Version 1.1
Dimensions
(W x H x D)
450 x 158 x 208 mm
Net weight 2.05 kg
USB playability information
Compatible USB storage devices:
• USBashmemory(USB1.1)
• USBashplayers(USB1.1)
• Memory cards (an additional card reader
required)
Supported formats:
• USBormemoryleformat:FAT12,FAT16,
FAT32 (sector size: 512 bytes)
• MP3 bitrate (data rate): 32-320 Kbps and
variable bitrate
• WMA v9 or earlier
• Directory nesting up to a maximum of 8
levels
• Number of albums/folders: maximum 99
• Numberoftracks/les:maximum999
• File name in Unicode UTF8 (maximum
length: 16 bytes)
Unsupported formats:
• Empty album: an album that does not
containMP3/WMAles
• Unsupportedleformatsareskipped.For
example,Word documents (.doc) or MP3
leswithextension.dlfareignoredand
not played.
• AAC,WAV,PCMaudioles
• DRMprotectedWMAles(.wav,.m4a,
.m4p, .mp4, .aac)
• WMAlesinLosslessformat

15EN
Supported MP3 disc formats
• ISO9660, Joliet
• Maximumtrack/lenumber:999
(dependingonlenamelength)
• Maximum album number: 99
• Supported sampling frequencies: 32 kHz,
44.1 kHz, 48 kHz
• Supported bitrates: 32-320 kbps, variable
bitrates
Maintenance
Clean the cabinet
• Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits, ammonia
or abrasives.
Clean discs
• When a disc becomes dirty, clean it with
a cleaning cloth.Wipe the disc from the
centre out.
• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
• After prolonged use, dirt or dust may
accumulate at the disc lens.To ensure good
play quality, clean the disc lens with Philips
CD lens cleaner or any commercially
available cleaner. Follow the instructions
supplied with cleaner.

16 EN
10 Troubleshooting
Warning
•Never remove the casing of this product.
To keep the warranty valid, never try to repair the product yourself.
If you encounter problems when using this device, check the following points before requesting service.
If the problem remains unsolved, go to the Philips Web page (www.philips.com/support).When you
contact the Consumer Care, make sure that the product is nearby and the model number and serial
number are available.
Problem Solution
No power. Make sure that the power adaptor is securely connected to the power supply.
Make sure that the power supply is available.
No sound or poor
sound.
Adjust the volume level.
To play audio input from a source other than MP3-LINK socket, disconnect the
MP3 link cable.
No response from
the system.
Disconnect and reconnect the power adaptor, and then turn on the system
again.
No disc is detected. Insert a disc.
Make sure that the printed side of the disc faces outwards.
Wait until the moisture condensation at the lens is cleared.
Replace or clean the disc.
Makesurethatthediscisnalizedandwithsupportedformat.
No USB storage
device is detected.
Make sure that the USB storage device is supported. USB 2.0 storage device
andNTFSlesystemarenotsupported.
MakesurethattheUSBstoragedeviceincludessupported.wmaor.mp3les.
Radio reception is
poor.
Increase the distance between the system and your TV or VCR.
Fully extend the FM antenna.
Adjust the position of the FM antenna.
Connect an outdoor FM antenna instead.

2014 © WOOX Innovations Limited.
All rights reserved.
This product was brought to the market by WOOX Innovations Limited or one
of its affiliates, further referred to in this document as WOOX Innovations, and is
the manufacturer of the product.WOOX Innovations is the warrantor in relation
to the product with which this booklet was packaged. Philips and the Philips Shield
Emblem are registered trademarks of Koninklijke Philips N.V.
MCM1006_51_UM_V2.0
