Philips MCW770 User manual

MCW770
Wireless PC Link Micro
Custom Installation
MCW770
Contents
Manual installation of the driver
for the wireless USB adapter, the
Philips Media Manager software
and the network setup ___________ 2
Installation of an additional audio
system or recovery if audio system
PC link settings are lost ________ 3–4
Installation of an additional PC server
or recovery of PC link settings
on your PC __________________ 4–5
Integration of MC W770 into an
existing (home) network _______ 6–9
Network utilities _______________ 10–13
Check connection ______________10
Change of USB port using the
MC W770 _________________ 10–11
Change of the wireless channel ___12–13
Using a different wireless network
adapter ______________________ 14–19
MC W770/eng 8/23/01 15:34 Page 1

2
English
Custom installation
Beside the Quick
installation there are also
Custom installation
menus for setting up
more complex
configurations.
– Integration of MC
W770 into an
existing network
– Add an additional
audio system
– Add an additional PC server
Manual installation of the driver for the wireless USB adapter, the Philips Media
Manager software and the network setup
These 3 installation steps perform the same functionality and have the same behaviour as the
quick installation (see
“Quick installation”) in a
single piece, except for
the following additional
window, which will
appear during the
network setup:
●Do not select Do not
perform automatic
setup for this type of
installation as this is necessary only to integrate the MC W770 into an existing network as
described later. Just click on Next to proceed.
Custom Installation Wireless PC link
Please use this kind of
installation only if you
are experienced in
setting up networks
with additional options:
MC W770/eng 8/23/01 15:34 Page 2

3
English
Installation of an additional audio system or recovery if audio system PC link
settings are lost
If you want to add an additional MC W770 or an equivalent audio system into your existing
MC W770 network, you can connect them to the same PC server without changing the
settings of the current PC link installation.This procedure can also be used when the PC link
settings have been lost on the audio set.
1Select Add additional Audio System in the Custom Installation menu and click on Install.
2➜The PC checks the
PC link configuration
and the following
window appears:
Click on Next to
continue.
3➜After some time the
following window will
appear:
Wireless PC link Custom Installation
MC W770/eng 8/23/01 15:34 Page 3

4
English

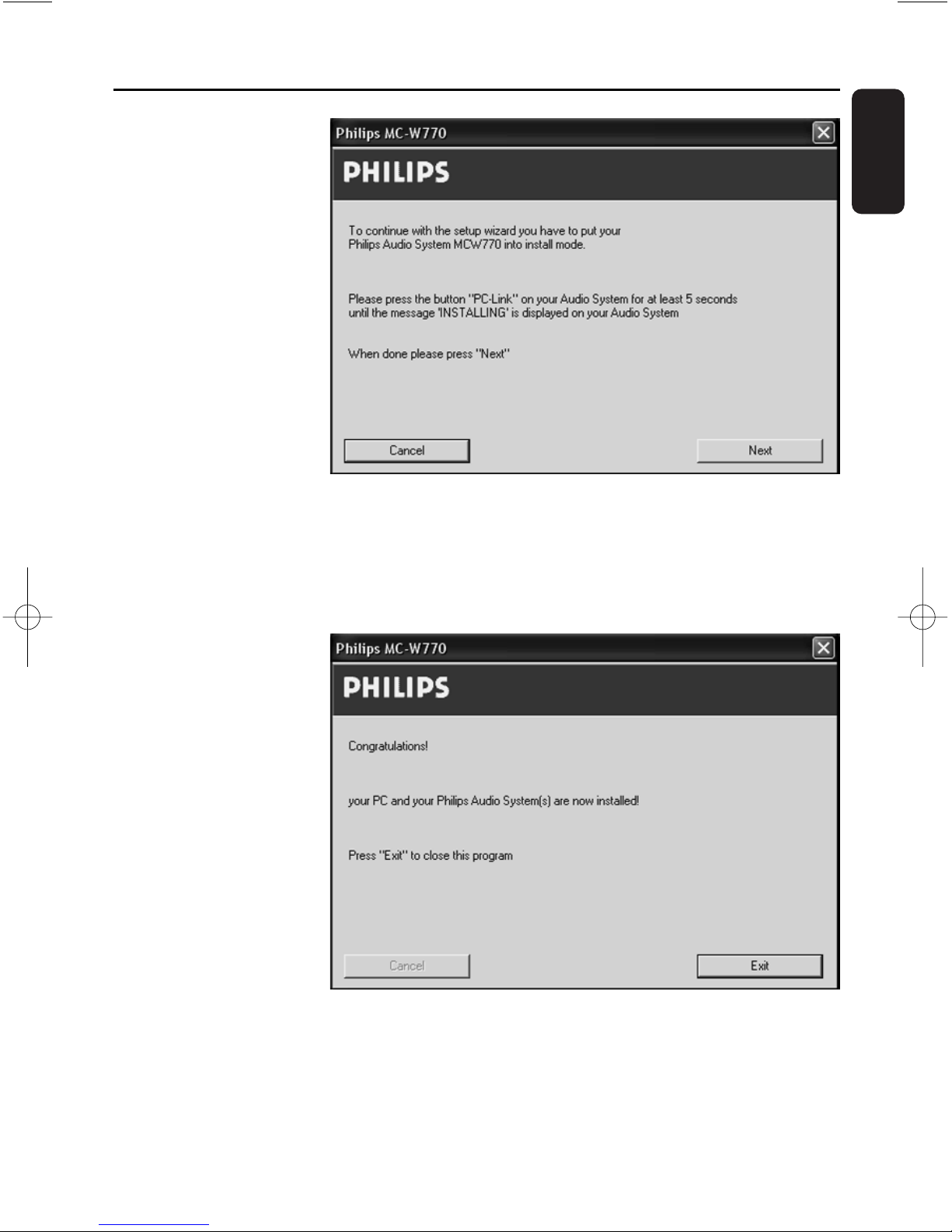

4Press PC LINK Aon the additional audio system for at least 5 seconds until INSTALLING is
scrolled on the set.
➜The set searches for a connection to the PC.This can require up to about a minute.When
the connection is established, Next is activated.
Note: If the additional audio system is not an MC W770, please look at the user manual of the
device on how to enter the installation mode.
Click on Next.
5➜The installation steps
will be executed
automatically by the
PC. Afterwards PC
LINK and
COMPLETED are
displayed on the set
and the following
window will appear:
Click on Exit and the
installation is finished.
Installation of an additional PC server or recovery of PC link settings on your PC
If you want to use your MC W770(s) together with more than one PC, you have to install the
Philips Media Manager Software and the PC link setting on your PC. A wireless USB adapter is
required. If you want to use a different network adapter as bypacked with the MC W770
proceed according to chapter “Using a different wireless network adapter” (Please note that a
proper function cannot be guaranteed by using a different network adapter).This procedure
can also be used when your PC link settings on your PC are lost or destroyed.
If you use the bypacked wireless USB adapter proceed as follows:
1Enter the Custom installation menu on PC side, select Add New PC server and click on
Install.
➜You will be asked if you want to install the driver for the wireless USB adapter.
2If the driver is not installed and you want to use it: Click on Ye s .
➜The drivers will be installed and the PC has to be rebooted.
If the wireless USB adapter is already installed: Click on No.
Custom Installation Wireless PC link
MC W770/eng 8/23/01 15:34 Page 4

5
English
3If you have clicked on
No or the driver
installation is finished,
the Philips Media
Manager Software will
be installed.Then the PC
is rebooted and PC
configurations are
checked. Finally the
following window will
appear:
4Press PC LINK Aon the audio system for at least 5 seconds until INSTALLING is scrolled on
the set.
➜The set searches for a connection to the PC.This can require up to about a minute.When
the connection is
established, Next is
activated. Click on
Next.
5➜The following
window will appear:
Click on Exit and the
installation is finished.
Wireless PC link Custom Installation
MC W770/eng 8/23/01 15:34 Page 5

6
English
Integration of MC W770 into an existing (home) network
You can also install the MC W770 in any other, perhaps existing network, which is compliant to
the Wi-Fi or IEEE802.11b,g rules. Please use this kind of installation only if you are
experienced in handling wireless networks and experienced in setting up these
networks! In general there are 2 types of network modes: ad-hoc mode (used for direct
connections to PC’s) and infrastructure mode (used when you have accesspoint(s) in your
network). Both modes are supported.
Before starting this installation process:
– There should be a PC in the network having the dedicated Philips Media Manager Software
installed.Therefore install the Philips Media Manager software from the installation CD only.
– The wireless USB adapter has to be already installed and connected on the PC you use for
installation.
–You should have the
wireless settings for
your network like
SSID and WEP keys
available.

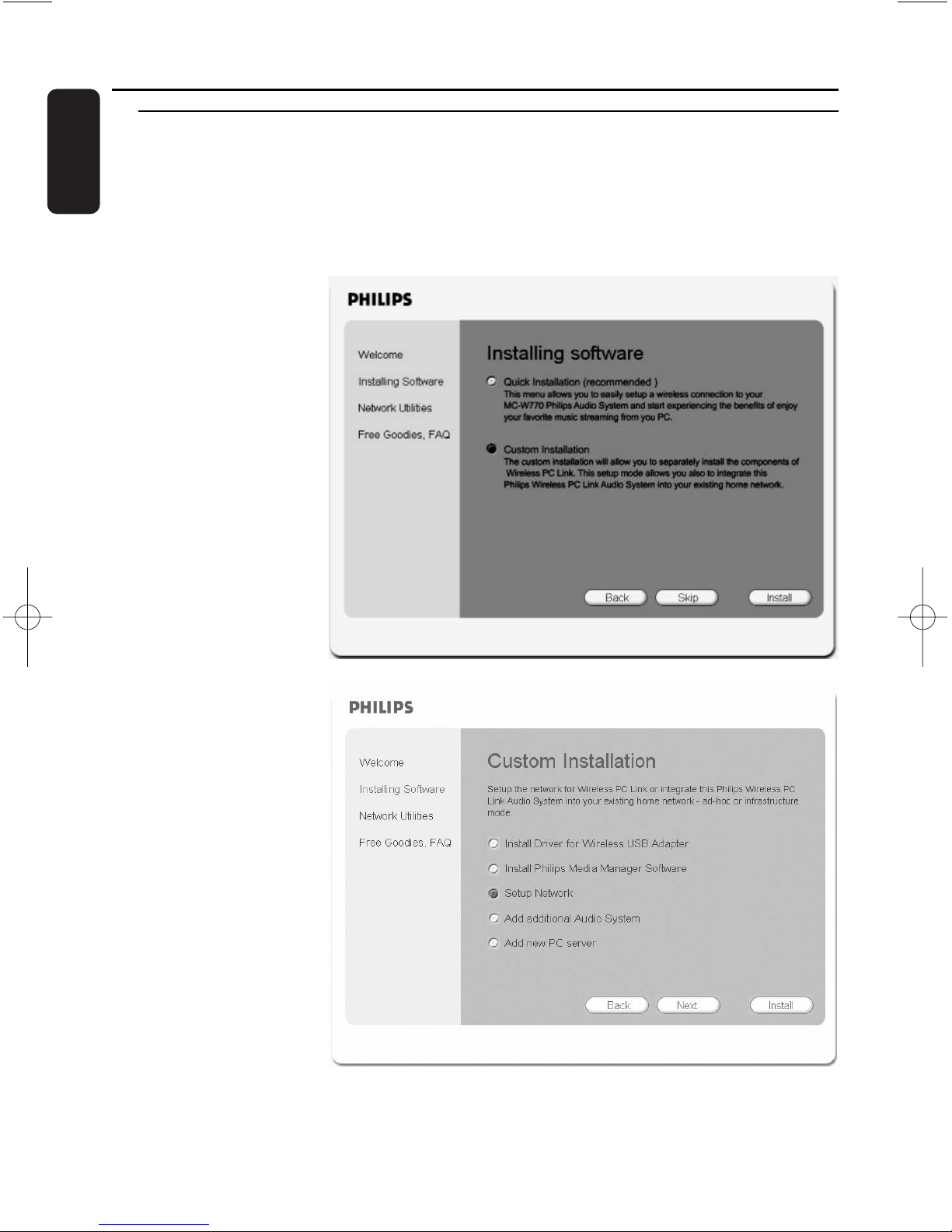

1Insert the installation
disc.The installation
guide will appear
automatically. If it does
not, start the installation
manually by running
setup_.exe from the
installation CD. Follow
the installation process
until the following
window appears:
Select Custom
Installation and click on
Install.
2➜The following window
appears.
Select Setup Network
and click again on Install.
Custom Installation Wireless PC link
MC W770/eng 8/23/01 15:34 Page 6

7
English
3➜The PC checks the
PC link configuration
and, depending on
the PC configuration,
the following window
will appear:
Following the
procedure will not
change your PC link
settings. Click on Next.
4➜The following
window appears:
Tick the option Do not
perform automatic
setup and then click on
Next.
Wireless PC link Custom Installation
MC W770/eng 8/23/01 15:34 Page 7

8
English
5➜The installation
procedure configures
your network
settings. Afterwards
the following window
appears:
6Press PC LINK Aon your MC W770 for at least 5 seconds until INSTALLING is scrolled on
the set.
➜The set searches for a connection to the PC.This can require up to about a minute.When
the connection is established, Next is activated.Click on Next.
7➜The PC will read out
the network
configurations.The
following window will
appear.
Select a network
configuration, in the best
case an empty one (“”).
You should not select
STANDARD. Up to
5 network
configurations are
possible. In case all
network configurations
are used already, select
one that you don’t use
anymore. Click on edit.
Custom Installation Wireless PC link
MC W770/eng 8/23/01 15:34 Page 8

9
English

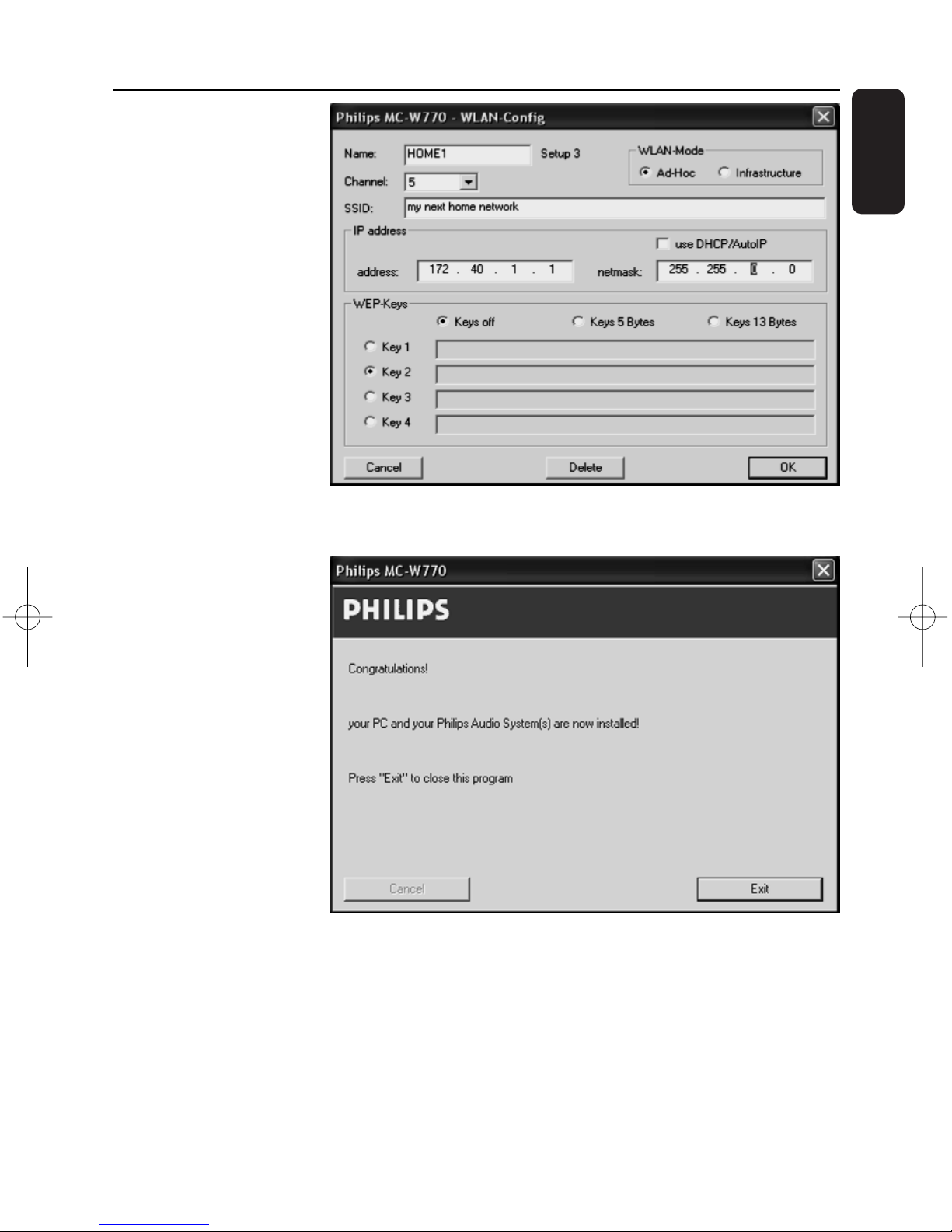

8➜If you have selected
edit, the following
window appears.
Enter your wireless
settings and click on
OK.Then click on Save
in the previous window.
It is recommended to
use WEP keys
encryption for network
security reasons.
Note:The active network
you have to select from
the MCW770 (refer to
the chapter ‘How to
select another network’)
9➜The new network
configurations are
stored in the MC
W770 and the
wireless settings on
your PC are
reconfigured.
Afterwards the
following window
appears:
The installation is
finished, click on Exit to
leave the installation
programme.
10 Your MC W770 is now able to connect to your network. Please note that music can only be
played from PCs in the same network having the dedicated Philips Media Manager Software
installed.
Wireless PC link Custom Installation
MC W770/eng 8/23/01 15:34 Page 9

10
English
Network utilities
Check connection
Perform a quick check of your wireless PC link connection.
Change of USB port using the MC W770
The installation of the MC W770 is optimised for the USB port used during installation.
Therefore the supplied wireless USB adapter should be connected only to this specific USB
port.
Changing the USB port can have the following disadvantages (Windows XP, 2000 and newer):
– Connecting MC W770 to your PC can require up to 2 minutes
– In some cases a new installation of wireless USB adapter driver can be necessary
If you nevertheless want to change the USB port (e.g. because you are using a USB hub),
proceed as described below.
1Connect the wireless USB adapter to the new USB port.
➜Windows will recognise it and will load the appropriate drivers.Windows may display a
warning that the driver is not approved by Microsoft (message differs with Windows
version). Ignore the message and continue with the installation.
00If the correct driver is not found, cancel and use Installation of the wireless USB adapter
in Custom installation first.
2Enter Network
Utilities, select Install
different USB port
and click on Start.
➜The configuration on
PC side is checked
and, depending on
the PC configuration,
the following window
will appear:
Click on Next to
continue.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 10

11
English
3➜The network settings
are reconfigured and
the following window
will appear:
4Press PC LINK Aon your MC W770 for at least 5 seconds until INSTALLING is scrolled on
the set.
➜The set searches for a connection to the PC.This can require up to about a minute.When
the connection is established, Next is activated.Click on Next.
5➜The PC will connect
to your MC W770
and read out the
presets and update
your installation.The
following window will
appear:
Click on Exit and the
installation is finished.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 11

12
English
Change of the wireless channel
The wireless PC link uses the worldwide standardised so-called 2.4GHz ISM band.The wireless
PC link can use different transmission channels and it might be necessary to change to another
channel in order to optimise link quality.
1Enter Network Utilities, select Change transmission channel and click on Start.
2➜The configuration on
PC side is checked
and the following
window will appear:
Click on Next to
confirm.
3➜The settings are
reconfigured and the
following window will
appear:
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 12

13
English
4Press PC LINK Aon your MC W770 for at least 5 seconds until INSTALLING is scrolled on
the set.
➜The set searches for a connection to the PC.This can require up to about a minute.When
the connection is established, Next is activated. Click on Next.

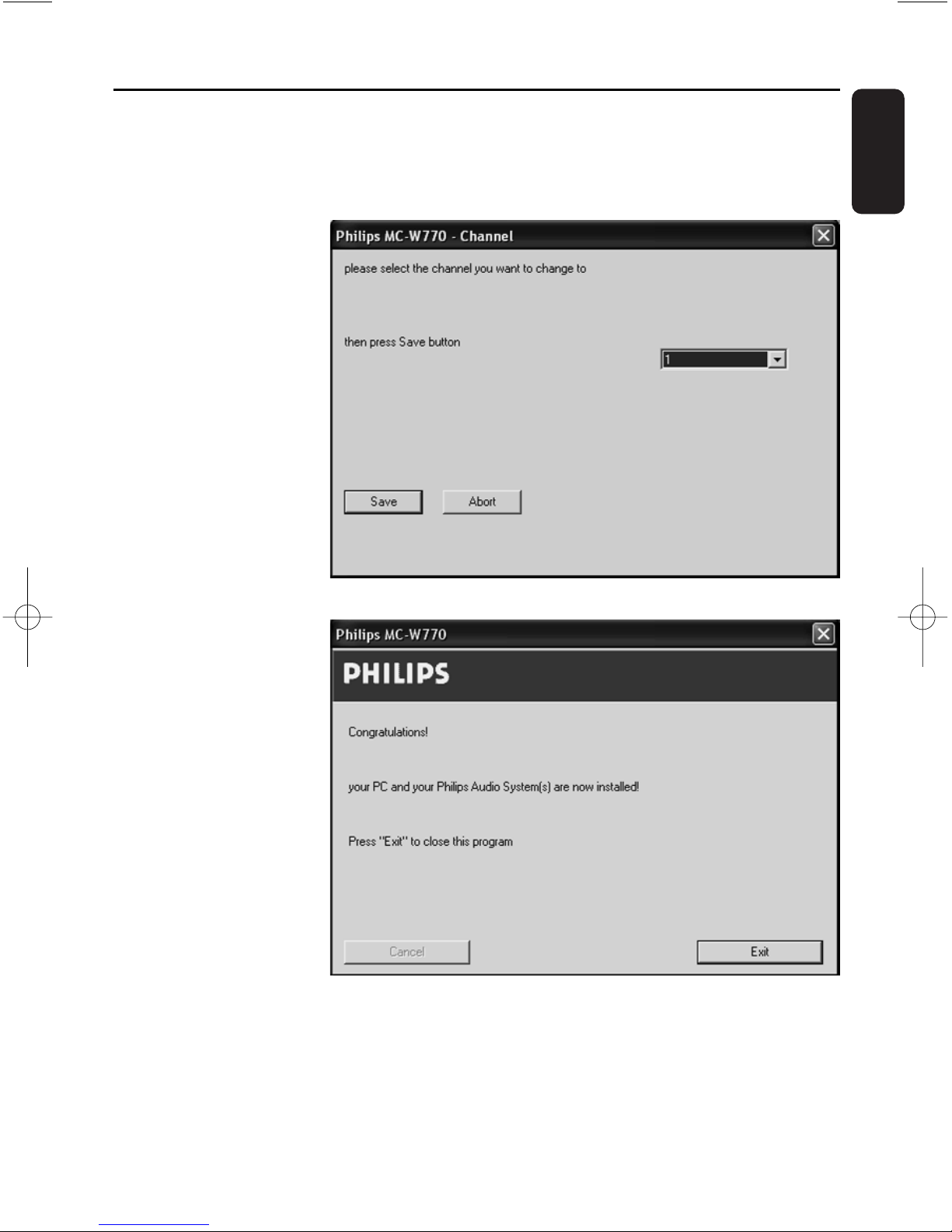

5➜The following
window for selecting
a channel will appear:
Select a random
channel.We
recommend using
channel 1, 6, or 11. In
any case the new
selected channel should
be different from the
current setting.
Click on Save to
confirm.
6➜The network settings
are changed and the
following window will
appear:
Click on Exit and the
installation is finished.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 13

14
English
Using a different wireless network adapter
The following steps describe how you can use a wireless network adapter different to the one
bypacked with the MC W770 to set up the MC W770 with that adapter.Your network adapter
should be installed already, connected to the PC and ready for wireless function. Nevertheless
please note that a proper function cannot be guaranteed by using a different network adapter.
1Insert the installation disc into the CD-ROM drive of your PC.
➜The installation guide
will appear
automatically. If it
does not, start the
installation manually
by running
setup_.exe from
the installation CD.
Follow the installation
process until the
following window
appears:
Select Custom
Installation and click
on Install.
2➜The following window
appears.
Select Setup Network
and click on Install again.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 14

15
English
3➜The network setup
programme starts.
This will first look for
the installed wireless
USB adapter which
was delivered with
the set. If this adapter

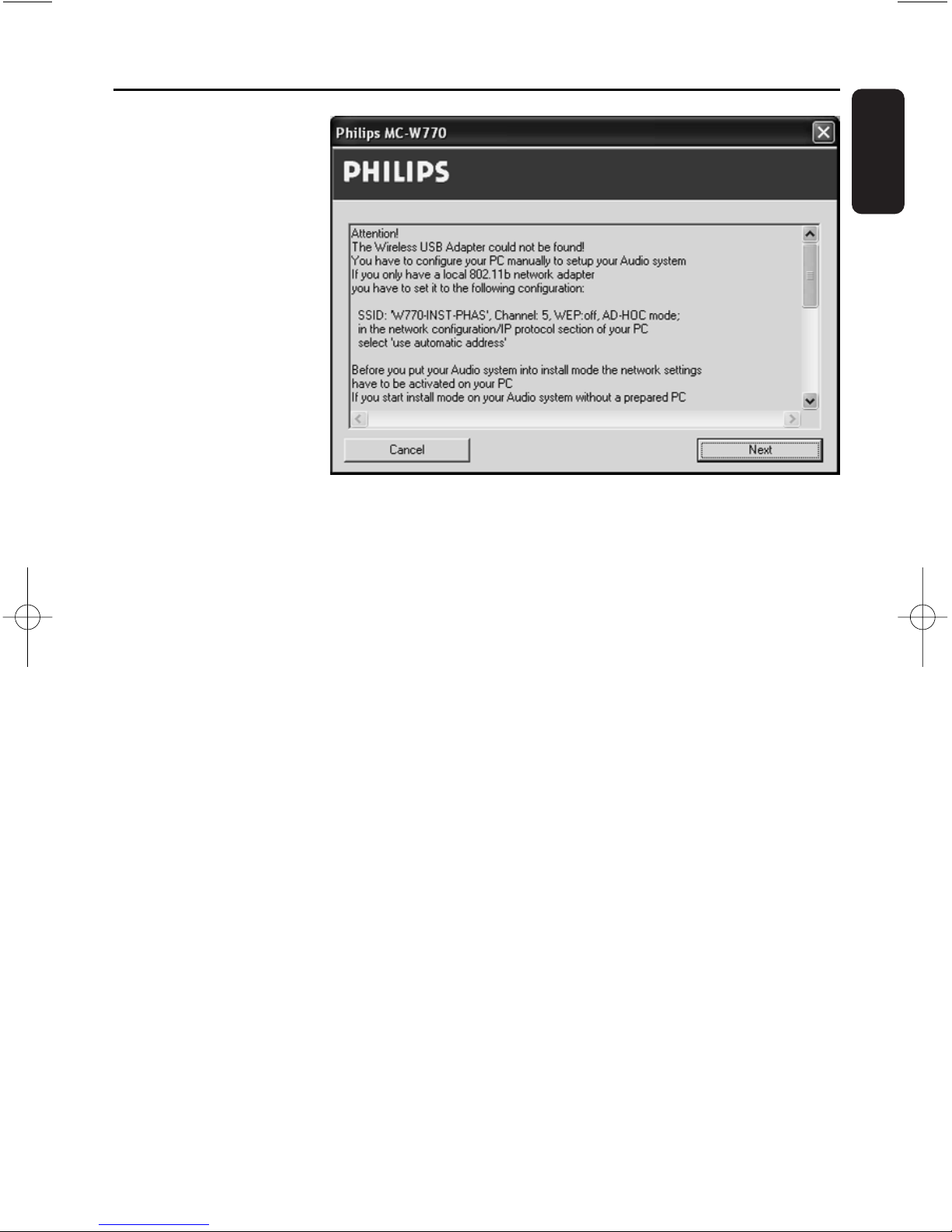

is not found, the
following window
appears:
4You have to set up the installation network for the MC W770 with your network adapter.The
installation network has the following parameter:
SSID:W770-INST-PHAS
Channel: 5
WEP: off
AD-HOC mode
Use the utility of your network adapter to set up these settings.
Note: Before setting up your network adapter to the MC W770 installation network, you might write
down the current network settings used by your adapter, which you will probably want to use for
MC W770 as network settings in normal operation.
5Further settings have to be made in Windows Network configuration setup. Select Windows
Start/Settings/Network Connections.
6➜The overview of your network adapter appears.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 15

16
English
7➜Set in the
Properties window
of your network
adapter the option
Obtain an IP
address
automatically.
Click on OK.
➜In Windows XP:
under Properties
select the Wireless
Networks tab and
deselect the option
Use Windows to
configure my
wireless network
settings.
Click on OK.
8Your wireless network adapter is now ready for installation with the MC W770.With the utility
software of your wireless adapter you might check once more if the correct installation
network with the correct network parameter is set up and activated.
9Now you have to activate the Expert Install mode on your MC W770. Press PC LINK Aon
your MC W770 to select the PC as source.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 16

17
English
10 Press PC LINK Aon your MC W770 for at least 5 seconds until INSTALLING is scrolled on
the set.
11 Press HOME on your MC W770 for at least 2 seconds until EXPERT INSTALL is scrolled on
the set.
12 Click on Next in the
network setup
programme on your PC.
13 ➜The network setup
programme now
searches for the
MC W770 and reads
out the current
network
configurations from
your set.The
following window will
appear.
Select a network
configuration you want
to change, in the best
case an empty one (“”).
You should not change
STANDARD. Click on
edit.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 17

18
English
14 ➜The following
window appears.
Enter the network
parameter of your
network and click on
OK.Then click on Save
in the previous window.
It is recommended to
use WEP keys
encryption for network
security reasons.
15 ➜The following
window appears:
The network parameter
will be transferred now
to the MC W770 and
stored as one network
configuration in the set.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 18

19
English
16 ➜The new network
settings are stored in
the MC W770 and
ready for using in
normal operation of
the set.The following
window appears:
Click on Exit to close
the network setup
programme on the PC.
17 The MC W770 will automatically exit the Expert Install mode and will go into normal
operation. It will setup a network for normal operation.
18 Now you have to set up your PC wireless adapter to the network which has just been stored
to the MC W770, so both can connect in normal mode too (the wireless adapter is still set up
for Expert Install mode).To do this, use your wireless adapters utility software again. For correct
function, the IP address of the PC has to be set properly too.
19 On PC installation software press Next/Next/Finish to exit the PC installation.
20 Please do not forget that for successful operation the Philips Media Manager Software has to be
set up too and operate on a PC which is part of the network you have just set up.
If more than one network configuration is stored into the MC W770, you might select the one
which has just been set up (see How to select another network in chapter “PC link
function”). Otherwise (one network configuration stored into the MC W770) the audio set will
connect to network/PC and your PC link is fully operational.
Wireless PC link
MC W770/eng 8/23/01 15:34 Page 19

MCW770
Wireless PC Link Micro
THANK YOU FOR CHOOSING PHILIPS!
NEED HELP FAST?
Read your Quick-Use guide and/or owner's manual first for quick tips
that make using your Philips product more enjoyable. If you have read
your instructions and still need assistance,
you may access our online help at www.p4c.philips.com
or call 1-888-PHILIPS(744-5477) while with your
product.
User manual
Manuel d'utilisation
Manual del usuario
MC W770/37.1 us eng 8/13/04 17:32 Page 1
