Philips SPC230NC/00 User manual

SPC230NC
User manual

2

EN
3
Please check that the following items are packed in the Philips
SPC230NC box.They are provided to help you set up and use
your Philips SPC230NC.
Philips SPC230NC Installation CD-ROM Microphone
WebCam including manual (SPC230NC/00,
SPC230NC/27)
SPC 230 NC
InstallationCD v.1.00
9082 100 03367
What’s in the box?

EN
4

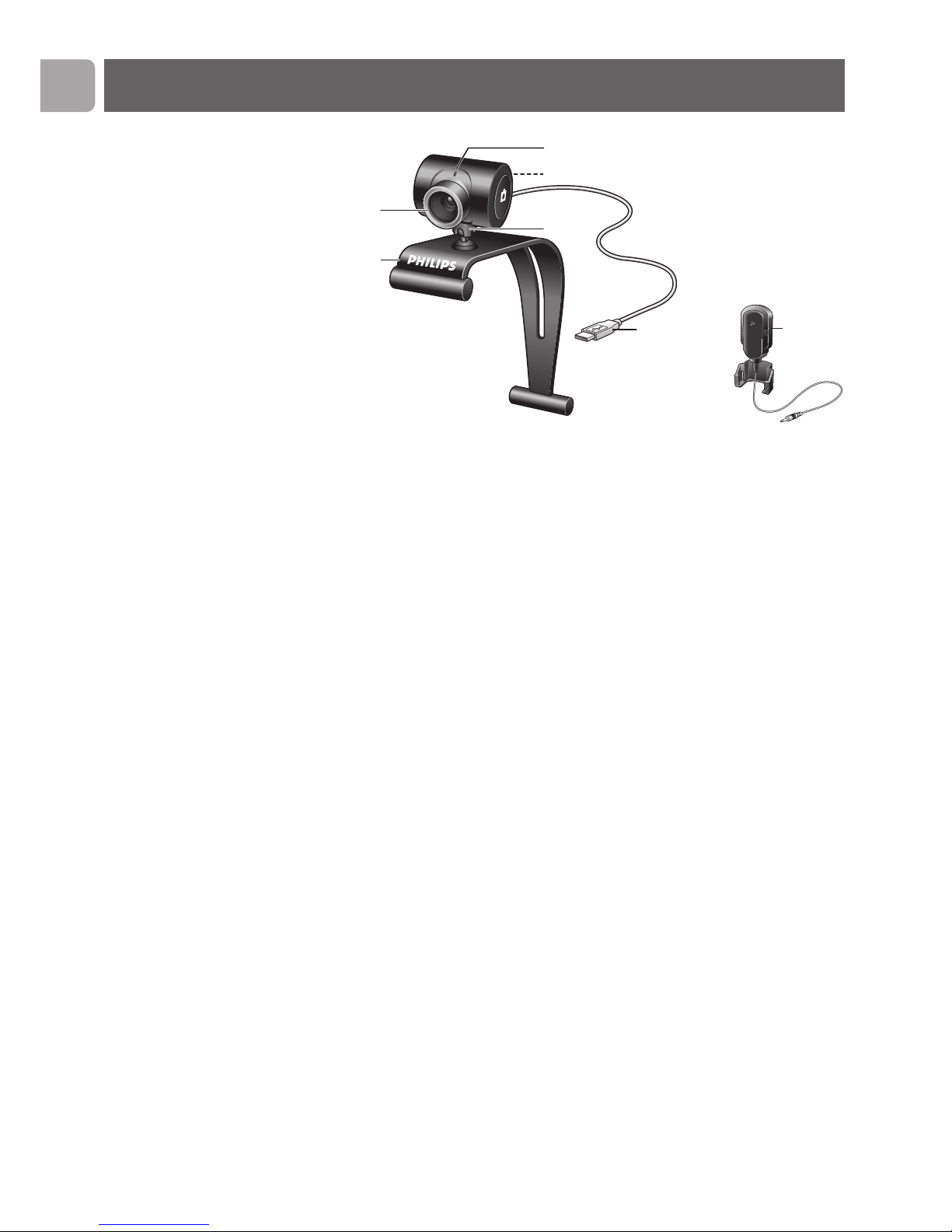

1 Focus ring
For adjusting the focus of the image manually.
2 Clamp with rubber rims
For attaching the WebCam to your PC monitor or laptop
screen.
3 USB connector
For connecting the WebCam to the USB port of the laptop
or desktop PC.
The WebCam will derive its power from the laptop or
desktop PC when a USB connection is made.
4 Rotating foot
For manually changing the vertical angle of the WebCam.
5 Snapshot button
Enables you to take photos without using your mouse.
6 Power LED
Lights up red when the WebCam is in use.
7 External microphone (SPC230NC/00, SPC230NC/27)
For adding voice and sound when video chatting and video
recording.
Legend of functions
5
3
1
2
6
4
7

EN
5
3 What’s in the box?
4 Legend of functions
5 Contents
6 Welcome
7 Things you should know
7 Safety precautions
7 Copyright
8 Installation
8 Installing the WebCam software
10 Connecting the WebCam to your PC / laptop
11 WebCam settings
11 General settings
12 Picture settings
15 Operating the WebCam
15 WebCam Video Viewer
16 Instant messaging (video chatting, video calling and VoIP)
17 Technical specifications
18 Important information
19 Disclaimer
18 FCC compliance
19 Environmental information
19 System requirements
19 Disclaimer of warranty
19 Limitations of damages
Contents

EN
6
The Philips SPC230NC WebCam you have just purchased is
manufactured to the highest standards and will give you years of
trouble-free use. Brilliant images and blazing colors, that's what
you get with the SPC230NC WebCam.
After installation, the new WebCam can be used for all sorts of
applications, such as:
•Video: use the Philips SPC230NC WebCam for video chatting
and video calling.The WebCam works with Skype,Windows®
Live Messenger,Yahoo! Messenger,
AOL Messenger, QQ and other free instant messaging and VoIP
(Voice over Internet Protocol) services;
•Video e-mail / Video capture: create your own video
presentations, video mail, product demonstrations, training
videos, Internet clips etc.;
•Snapshot images: use images in presentations, create postcards,
or send them via e-mail.
•Editing and special effects: after recording the images you want
with the Philips SPC230NC WebCam, the images can be easily
edited using image or video editing programs.
The following sections in this manual give a step-by-step
description of the installation process and explain how to use the
Philips SPC230NC WebCam.
Welcome

EN
7
Please read the following instructions carefully, and retain them for
future reference. It may be helpful to have the instructions for use
for the PC at hand for reference.
Safety precautions
Observe the following guidelines to ensure that the WebCam will
operate safely and to prevent defects.
• Do not use your WebCam in environments outside the
following range: temperature: 0°C to 40°C, relative humidity:
45% ~ 85%.
• Do not use or store your WebCam in/under:
– direct sunlight exposure;
– very humid and dusty environment;
– near any kind of heat sources.
• If your WebCam gets wet, dry it with soft cloth as soon as
possible.
• If the lens is dirty, Do NOT touch the lens with your fingers.
• Clean the outside of the WebCam with a soft cloth.
• Do NOT use cleaning fluids based on alcohol, methylated spirit,
ammonia, etc.
• Do NOT attempt to disassemble or repair your WebCam by
yourself. Do not open the WebCam. In the event of technical
difficulties return it to your Philips retailer.
• Do NOT use your WebCam in the water.
•
Protect the WebCam from oil, vapour, steam, moisture, and dust.
• Never point the WebCam lens at the sun.
Copyright
Copyright©2007 by Philips Consumer Electronics B.V. All rights
reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual
or otherwise, without prior written permission from Philips.
Brands and product names are trademarks or registered
trademarks of their respective companies.
Things you should know

EN
8

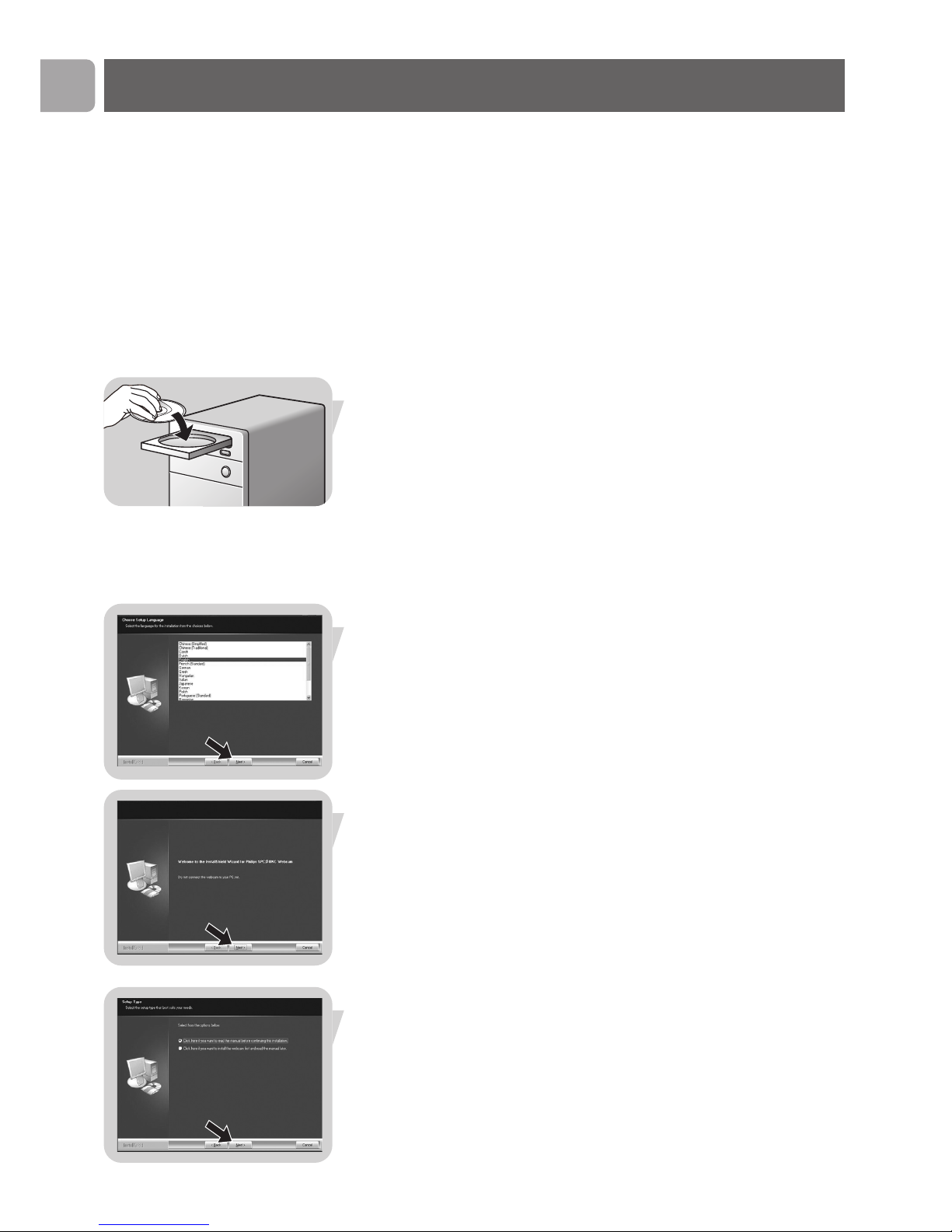

Installation
Installing the WebCam software
The software supplied only works on PCs with the operating
systems Microsoft®Windows®98SE, ME, 2000, XP and Vista.
Notes!
– Unplug all your USB devices (except USB keyboard and
USB mouse) before you start.
– Do not plug in your WebCam yet. Run the Installation CD-ROM
first.
– Have your Windows®CD-ROM at hand.
1Place the installation CD-ROM in your PC’s / laptop’s
CD-ROM / DVD drive.
> After a couple of seconds the ‘Language selection’ screen
appears.
Note!
If the 'Language selection' screen does not appear automatically,
open the Microsoft®Windows®Explorer and double click on the
'Set-up.exe' icon in the CD-ROM directory.
2Select your language.
> Installation continues automatically.
> The ‘Welcome’ screen appears.
3Click ‘Next’ to continue.
> The ‘Manual’ screen appears.
4Select the first option if you wish to read the user manual
before continuing installation.You can print out the manual so
you will have it at hand during the rest of the installation
process.
After you read or printed the user manual, continue
installation by selecting the second option.

EN
9
Or:
Select the second option if you wish to continue installation.
Click ‘Next’ to continue.
> The ‘Installation’ screen appears.The items that can be installed
are shown on the left side of the screen.An explanation of each
item is given on the right side.
All items are already selected for installation.
5Click the 'Next' button if you wish to install all items.
Or:
If there are certain items you do not wish to install, check the
boxes before these items.
Select at least ‘SPC230NC WebCam Driver’ and ‘WebCam
Video Viewer’. Click the 'Next' button.
> The following software license agreement appears.
6Click on 'Yes' to continue the installation.
> The following screen appears when the installation was
successful.
7Select the user manual.
Or:
Click 'Next' to continue.
> The ’Reboot’ screen appears.
8Select ‘Yes’ to restart your PC / laptop, then click ‘Finish’.
> The WebCam Video Viewer desktop shortcut will be installed
after installation.
> Via the WebCam Video Viewer you have access to all camera-
related software. See ‘Operating the WebCam’.
9You can now connect your WebCam.
Installation

Connecting the WebCam to your PC /
laptop
1Be sure to run the installation CD first, before connecting the
WebCam to the PC / laptop.
2Turn on the PC / laptop.
3Connect the USB connector of the USB cable to the USB port
of the PC / laptop.
> The WebCam will now derive its power from the PC / laptop.
4
Aim the webcam as required.
5 Push the USB cable into the cable management slot.
6Use the clamp and the two rubber rims to attach the WebCam
to your PC monitor or laptop screen.
7Peel off the protective foil on the rear of the microphone
(SPC230NC/00, SPC230NC/27) and attach the microphone to
the PC monitor or laptop screen.
8Connect the microphone plug to the microphone or green
socket of the sound card.
Installation
EN
10
7
3
3
5
66
8
5

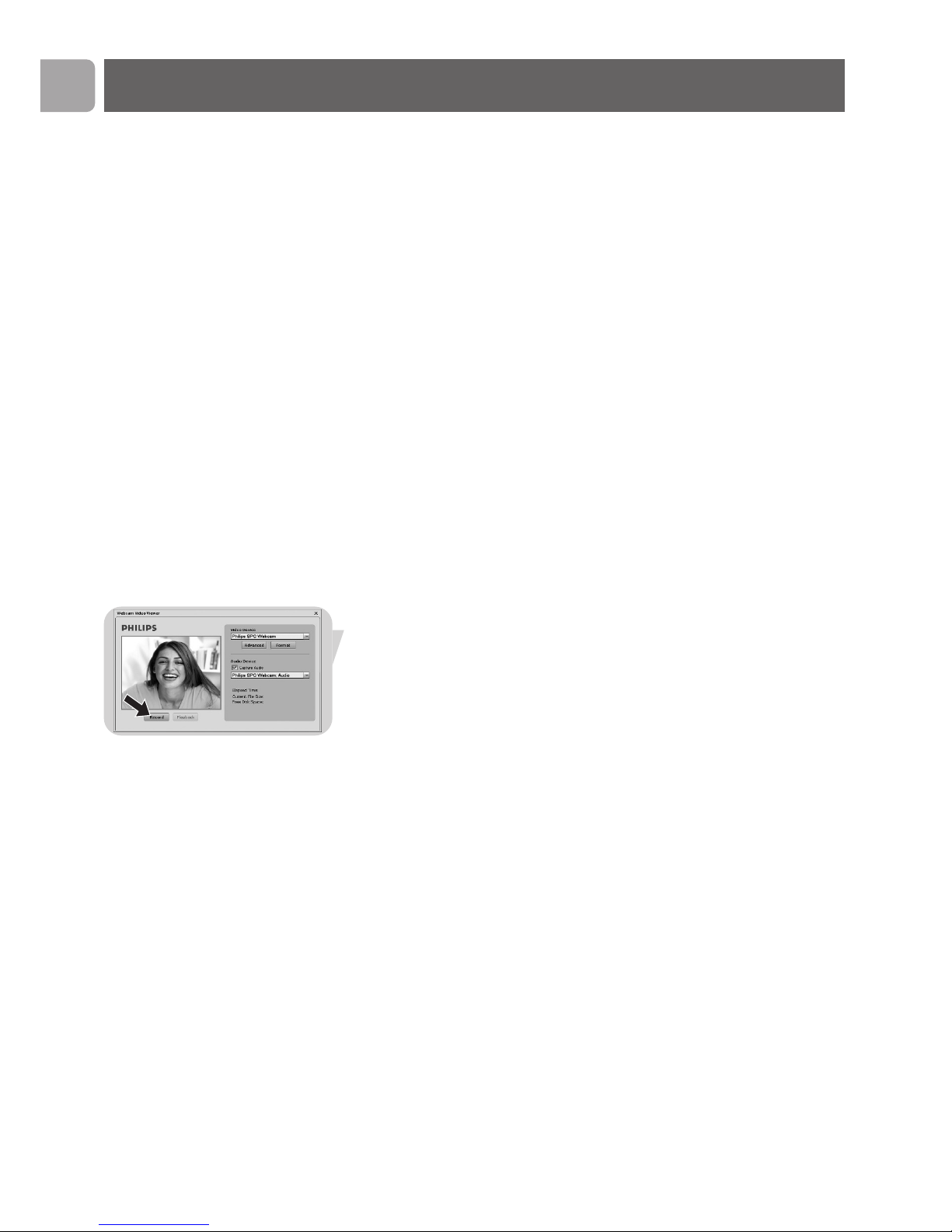

The Philips SPC230NC video properties can be changed:
- from within an application;
- by clicking the WebCam Video Viewer icon in the Windows
taskbar, bottom right of your screen, or
- by selecting ‘Advance’ in the WebCam Video Viewer. See
‘Operating the WebCam.
Most applications can show a 'live preview' video image on your
monitor. Always use this option to see the effect of changed
settings on your screen.
General settings
1Flickerless
The Flickerless option should only be used under flickering
light conditions (e.g. fluorescent or neon lamps) to prevent
flickering or strangely colored video images.
If this option is used under normal lighting conditions the
video image may be overexposed.
2Region
If you are using the Philips SPC230NC in Europe, select
'50 Hz' and if you are using the Philips SPC230NC in North
America, select '60 Hz'. For Asia this setting is dependent on
the local mains output. E.g. for China, select ‘50 Hz’ and for
Taiwan, select ‘60 Hz’. For Japan the setting is region
dependent.
Please check your local mains output to find the correct
‘Region’ setting.
1
2
WebCam settings EN
11

EN
12
Picture settings
3Full automatic control: on/off
This full automatic control mode provides a very easy way to
get the best out of your Philips SPC230NC WebCam.
Or you can choose to have maximum manual control over
the WebCam settings by switching the full automatic control
mode off. Full automatic control 'on' is the preferred setting
for normal use.
Techniques active within full automatic control mode are:
– Automatic exposure control and automatic white balance
control, to provide the best video source signal possible;
– Automatic frame rate selection for improved WebCam
sensitivity in low light conditions.
4Frame rate
You can use the scroll open menu to set the frame rate of
the video you wish to capture. E.g. 30 fps means that the
WebCam will capture video at 30 frames per second.
3
8 4
6
7
9
!
#
0
@
5
&
$%
^
WebCam settings

EN
13
5Auto Exposure & Exposure slider
The exposure is the amount of light received by the sensor
and is determined by how long the sensor is exposed to
capture a snapshot or video frame.The result depends on the
sensitivity of the sensor.The WebCam will find the optimal
setting if you select the automatic exposure option.You can
use the exposure slider if you would like to set the WebCam
according to your personal preferences.
6Reset
Press this button if you would like to reset the WebCam
settings to the default factory settings.
7Save
Press this button if you would like to save your personal
preferred settings.
8Restore
Press this button if you would like to restore your personal
preferred settings.
9Auto White Balance
Most light sources are not 100% pure white but have a
certain ‘color temperature’. Normally our eyes compensate
for lighting conditions with different color temperatures.
If the automatic white balance is selected, the WebCam will
look for a reference point which represents white. It will then
calculate all other colors based on this white point and
compensate the other colors accordingly, just like the human
eye.
You can also select fixed settings for ‘Indoor’,‘Outdoor’ and
‘Fluorescence’ conditions or use the ‘Red’ and ‘Blue’ sliders if
you would like to set the WebCam according to your
personal color temperature preferences.
0Brightness
Brightness enables you to adjust the brightness of the
displayed image or video to suit your own preference.
Use the slider to find your preferred setting.
WebCam settings

EN
14
!Contrast
Contrast enables you to control the ratio between dark and
light according to your own preference.
Use the slider to find your preferred setting.
@Gamma
Gamma enables you to brighten dark areas within the
displayed image or video and visualize more details without
over-exposing already light areas.
Use the slider to find your preferred setting.
#Saturation
Saturation enables you to set the color reproduction from
black and white to a full color image or video according to
your own preference.
Use the slider to find your preferred setting.
$Black and white
The 'Black and white' checkbox is used to switch from color
images to black and white and back.
%Backlight compensation
Turn on the backlight compensation to improve the image
quality when you have a scene where the background has a
high illumination level (for instance when you are sitting in
front of a bright light).
^Mirror
Clicking the 'Mirror Image' checkbox flips the image
horizontally.You can use this feature when you want to use
the Philips SPC230NC and monitor as a mirror, or to take
pictures of mirrored images.
&Low light enhancement
Enabling the Low light enhancement function makes it
possible to notice more details under low light conditons by
an additional video gain boost.
WebCam settings

EN
15
WebCam Video Viewer
All WebCam applications can be accessed via the WebCam Video
Viewer.The WebCam Video Viewer is the central application for
easy access to your Philips WebCam and all image and video
applications installed during setup.
• Start the WebCam Video Viewer:
- through the Windows QuickLaunch menu in your taskbar,
- via the program group ‘SPC230NC WebCam’, or
- by clicking the the WebCam Video Viewer icon on the
desktop.
> The WebCam Video Viewer will now be initiated and the
WebCam Video Viewer selection screen appears.
• Select ‘Format’ if you wish to adjust the video format:
> The ‘Properties’ screen appears.
- Frame Rate: the number of frames displayed per second.The
higher the frame rate, the better the video quality.
- Color Space (RGB 24) / Compression (1420):
Compression 1420 reduces the quantity of data used to show
video content without excessively reducing the picture quality.
Compressed video files are easier to store and transmit than
non-compressed video files. Select this option for Internet
applications.
Operating the WebCam

- Color space is a representation of the amount of color
gradations the WebCam is able to capture, expressed in bits
per pixel (
individual point of color). RGB24, also known as
Truecolor, refers to 8 bit per color component (Red, Green,
Blue), resulting in 24 bits per pixel.This mode makes it
possible to represent 256 gradations of each color
component.
Select this option for non-Internet applications.
- Output size (resolution):
Resolution is the number of pixels (individual points of color)
on both horizontal and vertical axis of a monitor.The sharpness
of the displayed image depends on the resolution and the size
of the monitor.The higher the output size, the higher the
resolution (and sharpness) of the displayed image.
• Select ‘Advance’ to access the WebCam settings.
See ‘WebCam settings’.
• Check the ‘Capture Audio’ box if you wish to capture your
voice as well during video recording.
Making a video recording
1Select ‘Record’.
2Select a folder to store the recording in.
> Recording starts immediately.
> Elapsed playing time, file size and free disk space are shown.
• Select ‘Stop’ to stop recording.
• Select ‘Playback’ to play the recording.
Instant messaging and Internet calling
(video chatting, video calling and VoIP)
The Philips SPC230NC WebCam works with all free instant
messaging and VoIP (Voice over Internet Protocol) applications
such as Skype,Windows®Live Messenger,Yahoo! Messenger, AOL
Messenger and QQ.
• Download and install the desired applications via their
websites.
• Follow the on-screen instructions during downloading and
installing.
• After installing an application, make the required WebCam
settings within the application in order to be able to properly
use the WebCam via the application.
Operating the WebCam
EN
16

Sensor....................................................................................VGA CMOS
Real video resolution (Max.)................................................640 x 480
Interpolated video resolution (Max.) .......................................1.3 MP
Real still image resolution (Max.)........................................640 x 480
Interpolated still photo resolution (Max.) ..............................1.3 MP
Frames per second.........................................................................30 fps
F-number................................................................................................2.5
Lens view angle ......................................................................50 degrees
Data format ..................................................................................RGB 24
Interfacing.....................................................................USB 1.1, USB 2.0
USB cable length..............................................................................1.5 m
Microphone ........................................ External microphone supplied
(SPC230NC/00, SPC230NC/27)
Power ..................................................................supplied via USB cable
Voltage requirements................................................5V ( ), 0.5A
Technical specifications EN
17

EN
18
Disclaimer
Philips makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Philips assumes no responsibility for any error that may appear in
this document. Philips makes no commitment to update nor to
keep current the information contained in this document.
FCC compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received, including
interference that may cause undesired operation.
Note!
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized modification to this equipment could result in
the revocation of the authorization to operate the equipment.
Important information

Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste.The correct
disposal of your old product will help prevent potential negative
consequences for the environment and human health.
WARNING
Plastic bags can be dangerous.To avoid danger of suffocation,
keep this bag away from babies and small children.
System requirements
• Microsoft®Windows®2000, XP or Vista;
• Pentium®III, 500 Mhz or equivalent;
• 128MB RAM and 200 MB free hard disk space;
• One free USB port (USB 1.1, USB 2.0) and CD-ROM or DVD
drive.
Disclaimer of warranty
The software on the CD-ROM supplied is sold ‘as is’ and without
warranties whether expressed or implied. Because of the various
software and hardware environments into which this program
may be put, no warranty of fitness for a particular purpose is
offered.
Limitations of damages
The vendor will not be liable for any indirect, special, incidental or
consequential damages (including damages for loss of business,
loss of profits, or the like), whether based on breach of contract,
tort (including negligence), product liability or otherwise, even if
the vendor or its representatives have been advised of the
possibility of such damages and even if a remedy set forth herein
is found to have failed its essential purpose.
Important information EN
19

Where to go for information and support?
Please visit our website: www.philips.com for the latest product information.
Go to: www.philips.com/support for the latest version of drivers and for troubleshooting tips.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
2007 © Koninklijke Philips Electronics N.V.All rights reserved.
www.philips.com
