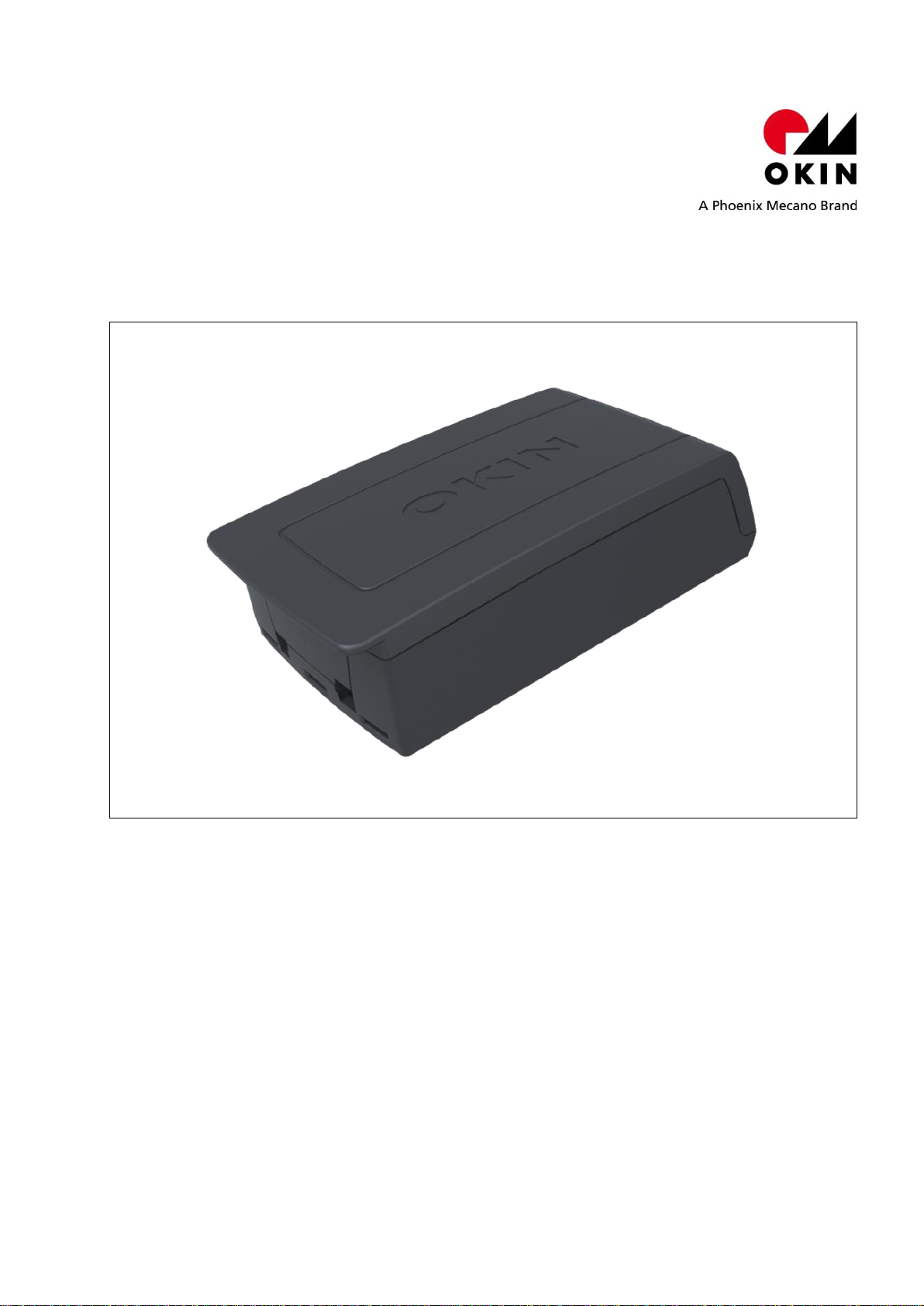

POWER PACK 1300
Installation Instruction
(Original installation instruction, translation)

POWER PACK 1300
76265(e) 2/18
Foreword
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
failure to observe these instructions,,
changes made to this product which have not been approved by DewertOkin, or
the use of replacement parts which have not been approved or manufactured by DewertOkin.
We reserve the right to make unannounced technical changes in the course of our continal
product improvement process!
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should
not be given to the operator of the end product. The factual information contained within may
be used as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However
it is not sufficient to simply follow these notices. You should also carry out an internal risk as-
sessment for your end product. This can then be used as the basis for the safety notices in
your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the drive as partially completed
machinery.
The instructions are intended for the technicians responsible for manufacturing an end product
and not for the operators of the end product.

POWER PACK 1300
3/18 76264(e)
Table of Contents
Foreword 2
Disclaimer and exclusion of liability 2
Creation of a complete operating instruction manual for the entire end product 2
Table of Contents 3
1. General 5
1.1 Conventions used 5
1.2 Warranty 5
1.3 Selection and qualification of personnel 5
2. Safety notices 6
2.1 Type label 7
3. Description 8
3.1 Dimensions POWER PACK 1300 and mounting bracket 10
3.2 Connection options 10
4. Notes for packaging and transport 11
5. Storage 12
5.1 Charging periods during storage 12
5.2 Handhabung Fehler! Textmarke nicht definiert.
5.3 Technical Data for storing the batteries 13
6. Charging the battery 14
7. Commissioning 14
7.1 Notes for operation 15
8. Cleaning and care 15
9. Disposal 15
10. Troubleshooting 16
EU Declaration of Conformity 17

POWER PACK 1300
76265(e) 4/18

POWER PACK 1300
5/18 76264(e)
1. General
The manufacturer of the end product must create an operating manual for that end product.
The contents and especially the safety notices found in this document can be used in the op-
erating instructions for the end product.
Read attentively and follow this information carefully before handling the rechargeable batter-
ies. Keep this document in a safe place.
Be sure to follow the notices and information found on the battery and packaging.
1.1 Conventions used
Notices which do not relate to safety are indicated in these instructions with a triangle:
Triangular notice symbol
Safety notice explanations
CAUTION
CAUTION against dangerous situation, risk of injury
NOTICE
NOTICE is used to address practices which are not related to personal injury but may result
in damage to the product or surroundings.
1.2 Warranty
Rechargeable batteries, by their nature, have a limited lifespan and are characterized by
gradual power loss over time. The normal depreciation and continual power loss exhibited by
the battery are not covered by any warranty claims.
1.3 Selection and qualification of personnel
The installation of the POWER PACK 1300 in the end product may only be performed by qual-
ified personnel.

POWER PACK 1300
76265(e) 6/18
2. Safety notices
CAUTION
Leaking batteries present a health hazard!
Leaking battery fluid can injure your skin or eyes.
The fluid is harmful when touched or swallowed.
If you come into contact with battery fluid, clean the affected area with water and con-
tact a doctor.
CAUTION
If the battery is damaged, it must be disposed immediately.
Do not open or destroy the battery.
Do not solder or weld at the battery or in the vicinity of the battery.
Avoid contact with water.
Use only by DewertOkin approved Chargers.
The POWER PACK 1300 should not be used:
in any environment where combustible or explosive gases or vapours (e.g., anesthesiology)
may be present,
in the proximity of open fires or other heat sources (such as furnaces, ovens or direct sun-
light),
in any application that will be cleaned with an automated washing system,
in a moist environment,
outdoors,
as a power source for toys or games.
The POWER PACK 1300 can be used by children of 8 years and older, persons with reduced
physical, sensory or mental capabilities, or persons with lack of experience or knowledge
when they are supervised or instructed concerning the safe use of the device and when they
understand the resulting risks. Do not allow children to play with this device. The cleaning and
user maintenance must not be carried out by children without supervision.
NOTICE
Improper storage can reduce the performance of your battery or destroy it.

POWER PACK 1300
7/18 76264(e)

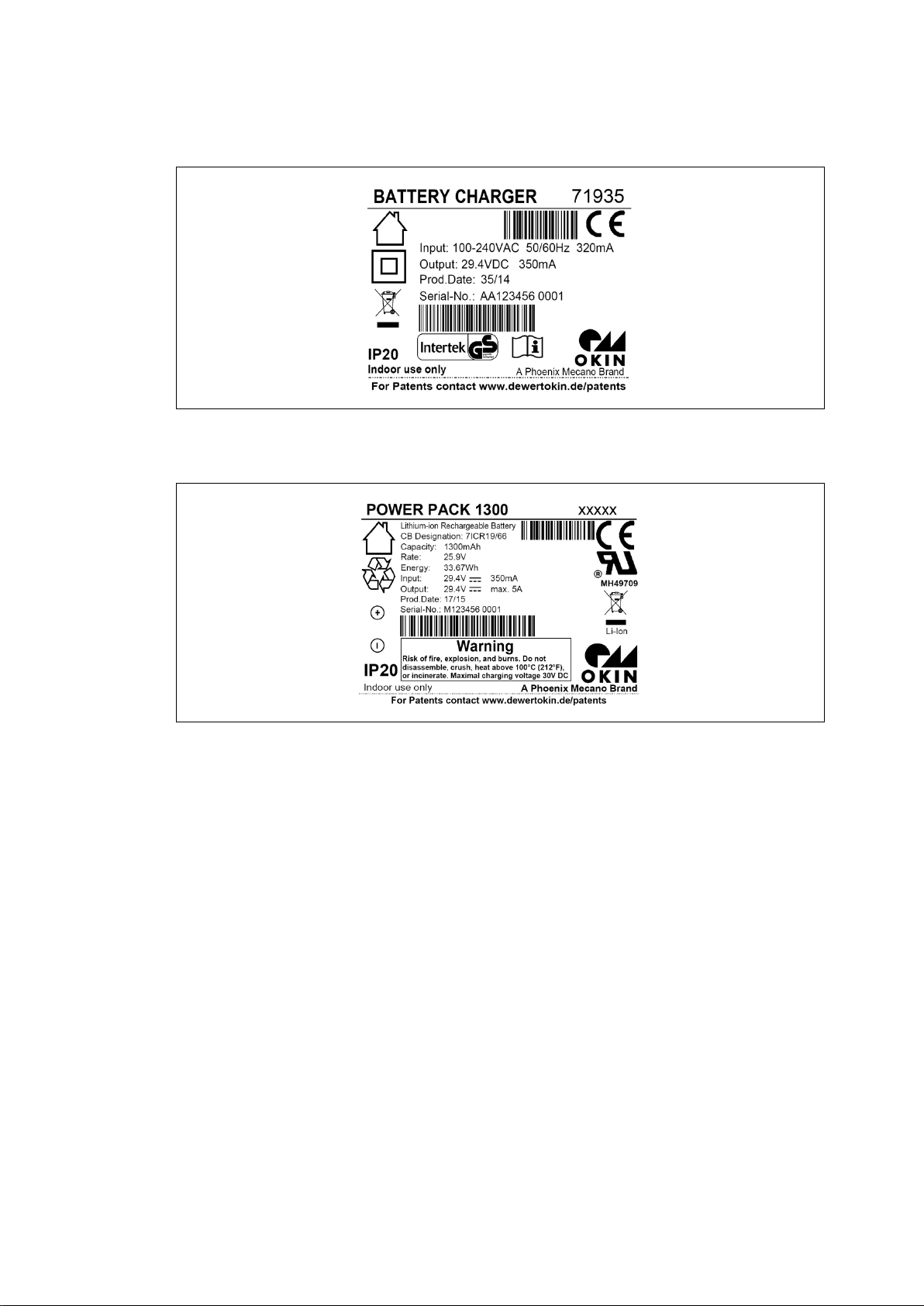

2.1 Type label
Fig.
1
: Type label BATTERY CHARGER (example)
Fig.
2
: Type label POWER PACK 1300 (example)

POWER PACK 1300
76265(e) 8/18
3. Description
The POWER PACK 1300 serves for mains independent power supply of electro motorical
adjustable applications. The PowerPack 1300 has the following special features:
The POWER PACK 1300 is used as a power supply at power failure.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
To charge the POWER PACK 1300 the special OKIN BATTERY CHARGER with the
appropriate country version is necessary, alternate use the PD12 POWER SUPPLY with a
special connecting cable (see Fig. 06)
Fig. 03: POWER PACK 1300
Important Features
Very low self-discharge rate
Short circuit proof
Overcurrent switch off
Mounting bracket (always enclosed in package)
Technical data
Lithium-Ion Akku (li-Ion) Lithium-Ion (li-Ion)
Capacity: 1300 mAh (38.22 Wh)
Energy: 33,67Wh
max. voltage 29.4 V DC
max. output current 5A
Temperature range 0°C - 40°C
Charging time approx. 3 - 6 h (depending on charging state)
If charging with PD 12 it can be up to 12 h
Low weight: approx. 450g
approx. 500 charging cycles (depending on usage and operational conditions)
Options
Acoustic warning signal for low remaining charge

POWER PACK 1300
9/18 76264(e)

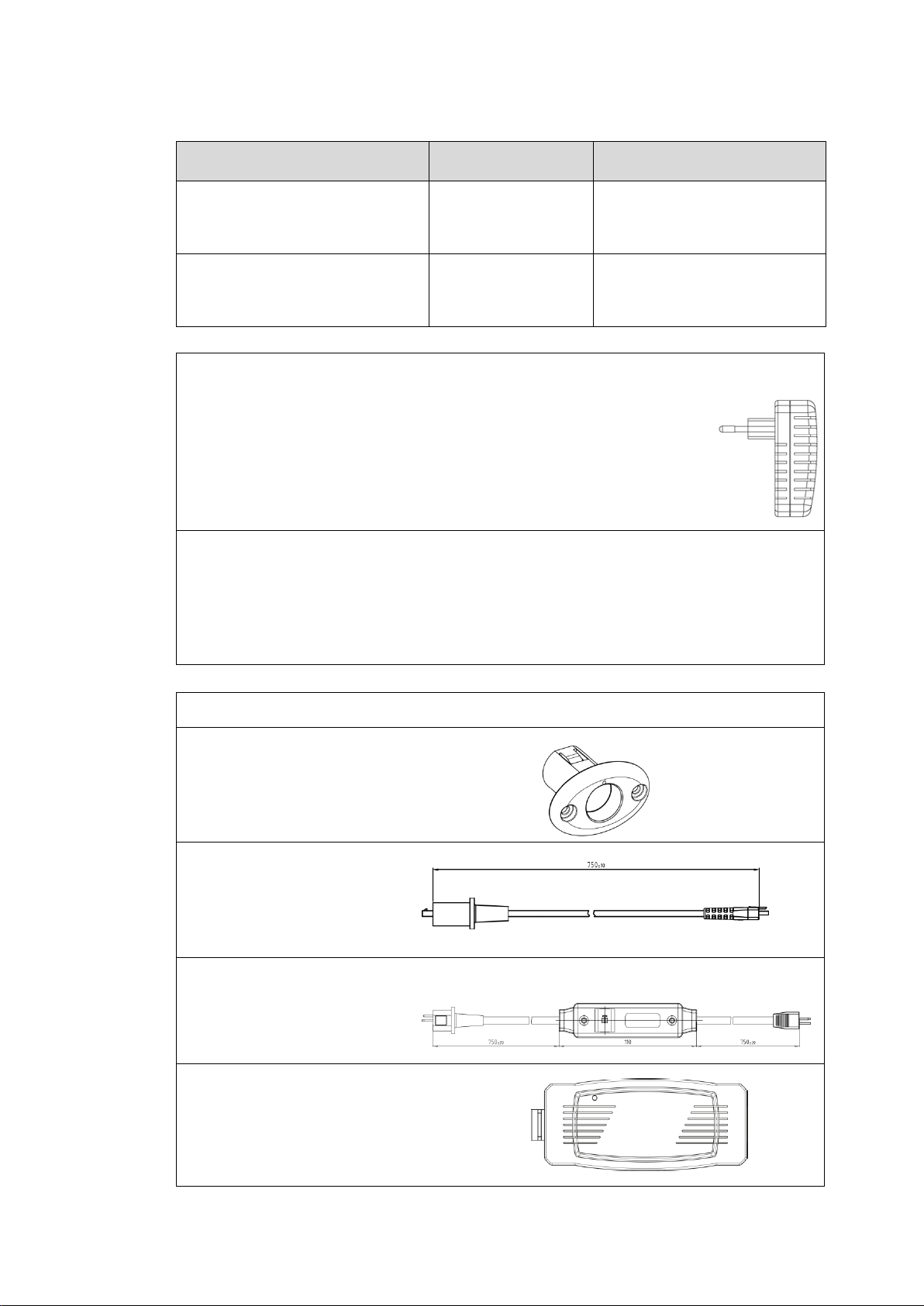

Version
Low charge warning
Power supply
POWER PACK 1300 WH-BK/
without remaining capacity warning
UN 3481, CB/IEC62133, UL 1642
no
1300 mAh/DC 29,4V/<= 5A DC
POWER PACK 1300 WH-BK /
with remaining capacity warning
UN 3481, CB/IEC62133, UL 1642
yes
1300 mAh/DC 29,4V/<= 5A DC
OKIN BATTERY CHARGER
(100-240 VAC, 50/60 Hz , 350 mA/ 29,4 VDC)
BATTERY CHARGER for POWER PACK 1300 power plug (EURO version)
BATTERY CHARGER for POWER PACK 1300 power plug (USA version)
BATTERY CHARGER for POWER PACK 1300 power plug (UK version)
Warning:
For charging the POWER PACK 1300 the special OKIN BATTERY CHARGER or the
PD12 POWER SUPPLY with special connecting cable must be used! (see fig. 06)
LED display (OKIN BATTERY CHARGER)
(green = power on - battery charged / red = charging)
Accessories
Charging socket
BK / RAL 9005
Connecting cable
2x0,34MM²x 500MM BK
Connecting cable
2x0,75x 840mm
BK LS/PVC/LS-
charging socket
PD12 POWER SUPPLY with
LS socket
Fig. 04: Overview accessories POWER PACK 1300

POWER PACK 1300
76265(e) 10/18
3.1 Dimensions POWER PACK 1300 and mounting bracket
Fig. 05: Overview from the accessories POWER PACK 1300
3.2 Connection options
As standard the POWER PACK 1300 is charged as needed with the OKIN BATTERY
CHARGER.
Optionally, instead of OKIN BATTERY CHARGER the PD12 POWER SUPPLY be used
possible with special connection cable (71691) application. It is possible to adjust the
application during the charging process.
Fig. 06: Overview of charging options POWER PACK 1300
NOTICE
Should the POWER PACK 1300 be used in combination with operating elements that have
a power consumption at rest, such as touch sensors, RF-systems or Bluetooth-adapters it
perhaps must be charged more frequently.
Please contact your supplier!

POWER PACK 1300
11/18 76264(e)
4. Notes for packaging and transport
CAUTION
Damaged POWER PACK 1300
A damaged POWER PACK 1300 must not be connected or taken into operation. Please
contact your sales partner/supplier immediately!
The POWER PACK 1300 is shipped ex works according to the applicable packaging regula-
tions. Take care when transporting, that the risk of falling or slipping is avoided. Before un-
packing, check the secondary packaging for damages. Also check optional accessories for
completeness.
To prevent injury please follow the safety instructions given in chapter 2, before you unpack
your product.
If the packaging is damaged or you note a damage after unpacking, please immediately re-
port.
In case of product return the following notes need to be observed:
When transporting Li-ion storage batteries the current regulations according to ADR for road
transport and/or IATA for air shipping must be observed.
Damaged storage batteries must be assessed case by case with respect to safe transport.
Please contact your sales partner/supplier.
Please consider the disposal notes in chapter 9.

POWER PACK 1300
76265(e) 12/18
5. Storage
CAUTION
The battery should be stored so that the battery terminals cannot short circuit each other
and so the terminals cannot be short circuited by any metal surroundings.
NOTICE
Rechargeable batteries must be charged at least six months after their production date or
charged immediately upon delivery and then after six months of storage. For some drive
systems, a minimal level of current may flow even when the drive is not being used. After a
prolonged period this can lead to a low charge status.
If the POWER PACK 1300 is discharged and not in use for a long time it can be damaged.
NOTICE
The battery may not be connected to a drive system or control unit in delivery or storage
condition!
The connection cable for the battery should be disconnected from the control unit or drive
as well as from mains supply if you are not planning to used the drive system for an ex-
tended period. It should then be reconnected before you plan to use the system. This will
prevent the battery from losing its charge in certain applications.
Do not store in direct sunlight.
5.1 Charging periods during storage
NOTICE
Following longer periods of storage, the batteries may need to be charged and discharged
several times so that performance reaches a peak.

POWER PACK 1300
13/18 76264(e)
5.2 Operation
Type of check /
action
Explanation
Time interval
Recharging
To maintain battery performance
No longer than six months
after date of manufacture.
Recharging dur-
ing storage
Recharge during storage to maintain
battery performance capability approx.
three months
At least every six months.
Limit the storage
time
Dispose of the battery after the maxi-
mum storage time is exceeded!
Maximum storage time is
12 months
5.3 Technical Data for storing the batteries
Storage temperature: from 0°C to +40°C
Relative humidity: from 30% to 90%
Air pressure: from 800 hPa to 1060 hPa
Altitude < 2000m

POWER PACK 1300
76265(e) 14/18
6. Charging the battery
NOTICE
Due to the chemical reactions the POWER PACK 1300 warms-up during charging.
If the POWER PACK 1300 should become really hot, the protective circuit is defective. In
this case remove the charging cable and the connection cable of the drive / control unit and
check the unit (POWER PACK 1300 and OKIN BATTERY CHARGER) by an authorized
technician or producer.
Exclusively use the recommended OKIN BATTERY CHARGER for charging (and make your-
self familiar with the operation of the device.
Do not set up the OKIN BATTERY CHARGER in bath- or shower rooms. The charger is not
splash proof.
Only recharge the POWER PACK 1300 at the temperatures given below:
Charging temperature: from 0°C to + 40°C
Once the POWER PACK 1300 is fully charged, the LED light will turn green on the charger,
indicating the charging cycle is complete.
Charging time of the OKIN BATTERY CHARGER may take approx. 3 - 6 h.
Charging time of the PD12 POWER SUPPLY up to 12 h. (no LED for charging indication
available).
If the charging cycle is completed, disconnect the OKIN BATTERY CHARGER from the socket
and the POWER PACK 1300.
7. Commissioning
NOTICE
Charge the POWER PACK 1300 completely before first use.
The POWER PACK 1300 can then perform optimally when the product is being used
at normal room temperatures from 18 °C to 25 °C. The operating temperature should
never exceed 40 °C.
The acoustic low battery-warning built-in to the POWER PACK 1300 is only active
when the drive is moving!
The POWER PACK 1300 deliver their full capacity after 5-10 charge and discharge
cycles.
It is possible that after long periods of storage, several cycles of charging and re-
charging may be required to restore the performance of the POWER PACK 1300.
Connect the POWER PACK 1300 to the OKIN BATTERY CHARGER ensur-
ing the correct connection port is used. The plug should fit securely in place.
Connect the OKIN BATTERY CHARGER to the socket. During charging lights
the LED of the OKIN BATTERY CHARGER red. If the charging cycle is com-
plete lights the LED green.

POWER PACK 1300
15/18 76264(e)
7.1 Notes for operation
NOTICE
If you not use the drive system for an extended period, disconnect the POWER PACK
1300 from the control unit/drive system as well as from the mains supply. It should then be
re-connected if you plan to use the system. This will prevent the battery from losing its
charge in certain applications.
8. Cleaning and care
The POWER PACK 1300 is maintenance free.
Clean the POWER PACK 1300 as needed using a dry cloth.
NOTICE
Do not let the POWER PACK 1300 come into contact with humidity as water or organic
solvents such as alcohol, oil, solvents and antirust agents, or agents abrasive to the sur-
face such as chemical cleaning agents
9. Disposal
The POWER PACK 1300 consists of electronic components, cables and metal
and plastic parts. You should observe all corresponding national and regional en-
vironmental regulations when disposing of the system.
The disposal of the end product is regulated in Germany by Elektro-G,
internationally by the EU Directive 2012/19/EC (WEEE), or by any applicable
national laws and regulations.
The POWER PACK 1300 should not be disposed of with normal household
waste!

POWER PACK 1300
76265(e) 16/18
10. Troubleshooting
This chapter describes troubleshooting methods for fixing problems. If you experience an error
that is not listed in this table, please contact your supplier.
Problem
Possible cause
Solution
Handset or drive
system without
function
Handset or drive system defective
POWER PACK 1300 is discharged
Contact your supplier/dealer
Charge the POWER PACK 1300
Drives suddenly no
longer respond, no
movement takes
place
The unit's fuse may have been trig-
gered
A cable has been disconnected
(mains power or handset, slave
drive)
POWER PACK 1300 is discharged
Overload fuse has been triggered
Contact your supplier/dealer
Check the cables, if necessary
restore contact
Charge the POWER PACK 1300
Stop operating the system for 5
sec. and charge the POWER
PACK 1300

EG-Konformitätserklärung
EU Declaration of Conformity
Nach Anhang IV der EMV-Richtlinie 2014/30/EU In compliance with Appendix IV of the EMC-Directive
2014/30/EU
Nach Anhang IV der EU-Niederspannungsrichtlinie
2014/35/EU In compliance with Appendix IV of the LVD-Directive
2014/35/EU
Nach Anhang VI der RoHS-Richtlinie 2011/65/EU
(inkl. Delegierte Richtlinie (EU) 2015/863) In compliance with Appendix VI of the EU RoHS
Directive 2011/65/EU
(incl. Commission delegated Directive (EU) 2015/863)
Der Hersteller The manufacturer
DewertOkin GmbH
Weststraße 1
32278 Kirchlengern
Deutschland - Germany
erklärt hiermit, dass das Produkt
declares that the following product
Power Pack 1300
mit DewertOkin Antriebssystem / with DewertOkin drive system
mit DewertOkin Steuerungssystem / with DewertOkin ontrol system
die Anforderungen folgender EG-Richtlinien erfüllt: meets the requirements of the following EU directives:
Richtlinie über elektromagnetische Verträglichkeit
2014/30/EU
Electromagnetic Compatibility Directive 2014/30/EU
Niederspannungsrichtlinie 2014/35/EU
Low Voltage Directive 2014/35/EU
DELEGIERTE RICHTLINIE (EU) 2015/863 DER
KOMMISSION vom 31. März 2015 zur Änderung von
Anhang II der Richtlinie 2011/65/EU des Euro-
päischen Parlaments und des Rates hinsichtlich der
Liste der Stoffe, die Beschränkungen unterliegen.
COMMISSION DE
LEGATED DIRECTIVE (EU)
2015/863 of 31 March 2015 am ending Annex II to
Directive 2011/65/EU of the European Parliament
and of the Council as regards the list of restricted
substances.
Angewendete Normen Applied standards:
•EN 60335-1:2012/A13:2017
•EN 55014-1:2006/A1:2009/A2:2011
•EN 55014-2:1997/A1:2001/A2:2008
•EN 61000-3-2:2014
•EN 61000-3-3:2013
•EN 62233:2008
•EN 62133-1:2017(Power Pack 1300)
•EN 62133-2:2017(Power Pack 1300)
Konstruktive Änderungen, die Auswirkungen auf die in
der Montageanleitung angegebenen technischen Daten
und den bestimmungsgemäßen Gebrauch haben, das
Produkt also wesentlich verändern, machen diese
Konformitätserklärung ungültig!
This declaration of conformity is no longer valid if
constructional changes are made which significantly
change the drive system (i.e., which influence the
technical specifications found in the instructions or the
intended use)!
Kirchlengern, Germany 25 November 2019 Dr.-Ing. Josef G. Groß
Geschäftsführer / Managing Director

DewertOkin GmbH
Weststraße 1
32278 Kirchlengern
Tel: [phone]
Fax: [phone]
http://www.dewertokin.de
[e-mail]
ID-Nr.: 76265
