Installation and Operation Manual
Tire Changer
PWC – 2950/PWC – 2950A
ATTENTION - Please read the instruction before using this product. Failure
to follow the instructions may result in serious injury. Keep the instruction
for reference by operators.

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
2 / 22
Table of Contents
1. Safety Instructions …………..................................................3
a. Owner’s Responsibility
b. Intended Use
c. Precaution
d. General Safety Rule
e. Technical Terms
2. Product Specification ..............................................................6
a. Equipment Specification
b. Equipment Presetting and Special Requirements
c. Problem due to misoperation and means of settlement
3. Product Installation …………..................................................6
a. Unpacking
b. Parts Included
c. Positing and Assembly
i. For PWC - 2950 and PWC – 2950A Main Body Assembly
ii. For PWC -2950A Assist arm Assembly
4. Operating Test ........................................................................15
a. Test the Rotation Direction of the Motor
b. Operating Test
5. Operation ................................................................................15
a. Breaking the Bead
b. Removing the Tire
c. Mounting the Tire
6. Inflation ...................................................................................19
7. Maintenance ............................................................................20
8. Moving …….............................................................................21
9. Storage .....................................................................................21
10. Trouble Shooting ...................................................................22

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
3 / 22
1. Safety Instructions
a. Owner’s Responsibility
In order to maintain your product properly and to ensure operator
safety, it is the responsibility of the owner to read and follow these
instructions:
 All operators should be properly trained.
 All operators should not wear loose clothing or jewelry. These
things may become entangled with the wheel or turntable
while using the changer and could cause serious injury.
 All operators should wear protective eye gear. Safety glasses
with side shields, goggles, or face shields are acceptable
 All operators recommend wear sturdy leather work shoes with
steel toes and oil resistant soles, to prevent injury in typical
shop activities.
 Safety guard should be used to avoid injury.
 The tire changer contains electronics and should be kept
indoors and in a dry environment. Exposure to water can cause
damage and is not covered under any warranty.
 Exposure to extreme heat can damage internal parts of the tire
changer.
 Do not use the tire changer beyond its measurement or weight
range. Using the tire changer beyond its measurement or
weight range could cause damage to the tire changer and does
not ensure a precise function of the tire changer.
 Other safety regulations may be in place according to OSHA or
your local city and county. These should all be followed in
addition to the instructions in this manual.
 Keep all instructions permanently with the unit and all labels
and notices are clean and visible

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
4 / 22
b. Intended Use
 The semi-automatic tire changer has been designed and
manufactured exclusively for removing and mounting tires
from/onto rims and inflating the tires. With the unique help
device, it could handle tires with hard and stiff tire wall.
 Max. Tire Dia. 43”
 Max. Tire Width. 15”
 In particular the manufacturer cannot be held responsible for
any damage caused through the use of this tire changer for
purposes other than those specified in this manual, and
therefore inappropriate, incorrect and unreasonable.
c. Precaution
 Any tampering or modification to the equipment carried out
without the manufacturer’s prior authorization will free
Manufacturer from all responsibility for damage caused directly
or indirectly by the above actions.
d. General Safety Rule
 When placing the tire changer, be sure that to complies with
current safety code at work regulations.
 The tire changer must be connected to the main electric power
supply and the compressed air system. Please install the
machine near the power sources.
 Must provide at least the space shown in (Fig.1) to allow all
parts of the machine to operate correctly and without any
restriction.
 If the machine is installed outside it must be protected.
 The tire changer comes with electric motor, so it cannot be
used in explosive atmospheres.

Phoenix Auto Equipment
-Address:
2711 East Craig Road Ste
- Website:
https://www.phoenixautoequipment.com
- Phone: [phone]
e.
Technical Terms
Before the installation and operation, you have to understand
the t
echnical terms of the machine.
1.
Inflating control pedal
2.
Clamp control pedal
3.
Bead breaker control pedal
4.
Reverser control pedal
5. Whee
l support
6.
Bead breaker
7.
Oil segregator
8. Turntable
9. Clamps
10.
Mounting tool/head
11.
Locking lever
12.
Pressure gauge
13. deflati
ng button
14.
Vertical arm
2711 East Craig Road Ste
#E, North Las Vegas, NV, 89030 Unite
d States
https://www.phoenixautoequipment.com
(Fig.1)
Technical Terms
Before the installation and operation, you have to understand
echnical terms of the machine.
(Fig.2)
Inflating control pedal
Clamp control pedal
Bead breaker control pedal
Reverser control pedal
l support
Bead breaker
Oil segregator
Mounting tool/head
Locking lever
/handle
Pressure gauge
ng button
Vertical arm
d States
5 / 22
Before the installation and operation, you have to understand

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
6 / 22
2. Product Specification
a. Equipment Specification
 Rim clamping inside 13"-26"
 Rim clamping outside 15"-28"
 Maximum Tire Diameter 43"
 Maximum wheel Width 15"
 Includes bead blast air blast
 Includes assist arm
 ALU front foot pedal valve ,ALU air distributor valve last longer
than the regular plastic valve
 ALU canister of the bead breaker cylinder avoid getting rusty
and more powerful for braking the bead
 Blast Inflation
 Bead Break force 5700 lbs.
 Operating pressure 120 psi
 Voltage 110v, 1.5HP motor
 Includes 4 clamp protect covers
 Plastic mount/demount Head
b. Equipment Presetting and Special Requirements
 Air pressure presetting: The machine could run normally when
the air pressure is 8-10bar. The air pressure should not less
than 8 bars.
 Mounting tool presetting: The mounting tool is already
calibrated according to a standard 13” rim. For a bigger or
smaller rim, you have to lose bolts fixing on the mounting tool
and at the bottom of the hexagonal bar. Adjust the mounting
tool to a suitable position.
 Oil mass presetting: The oil mass in the oil segregator is already
well prepared before it leaves the factory. If the fluid rate is too

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
7 / 22
fast or too slow, adjust the needle valve by using a screwdriver.
Check that a drop of oil is injected into the reservoir every 5-6
times the pedal is pressed down.
c. Problems due to Misoperation and Means of Settlement
 Make sure that the machine is well grounded to avoid electric
leakage.
 To prevent industrial accidents, do not place your legs between
the bead breaker and the wheel supporter. When the bead
breaker pedal is operated the bead breaker arm moves quickly
and powerfully. Anything within its range of action can be in
danger of being crushed.
 Bead breaking with the clamps in open position can be
extremely dangerous for operator's hands.
 ALWAYS keep hands and body back from inflating tire
 To prevent industrial accidents, keep hands and other parts of
the body as far as possible from the tool arm when the table
top is turning.
 Do not place your hands on the wheel: when moving the arm to
its working position your hand could be crushed between the
rim and the mounting head.
 During bead breaking operations NEVER touch the side of the
tire.
3. Product Installation
a. Unpacking
 Un-package and remove all plastic wrapping from tire changer.
 After removing the package be sure that the equipment is
complete and intact, checking that no visible damage is present.

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
8 / 22
 Do not leave packaging parts (plastic bags, foamed polystyrene,
nails, screws, wooden parts etc) within the reach of children as
they may be dangerous.
 Note: When unpacking the machine, wear a proper glove
.
b. Parts Included
 For PWC - 2950 and PWC - 2950A

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
9 / 22
 For PWC - 2950A ONLY

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
10 / 22
 For PWC - 2950A ONLY
In addition to these parts, the main body of the machine is included.
With some preinstalled parts and internal air lines preinstalled.
c. Positing and Assembly
i. For PWC - 2950 and PWC – 2950A Main Body Assembly

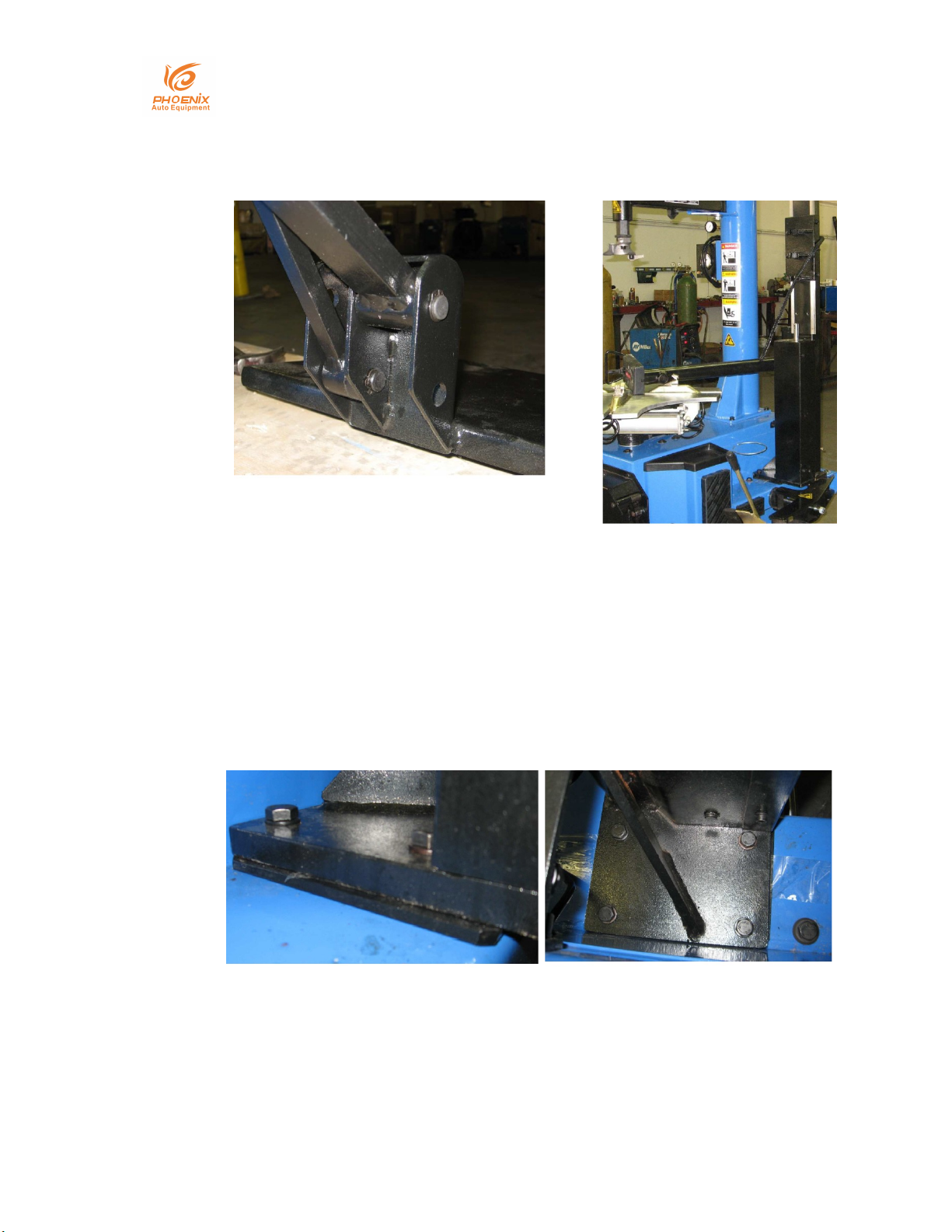

 Remove the 4 bolts shown (Fig. 3)
 With the help of 2 people, lift and place the
large vertical main column on top of the
changer, align with the bolt holes, place and
tighten the four bolts. (Fig. 4)

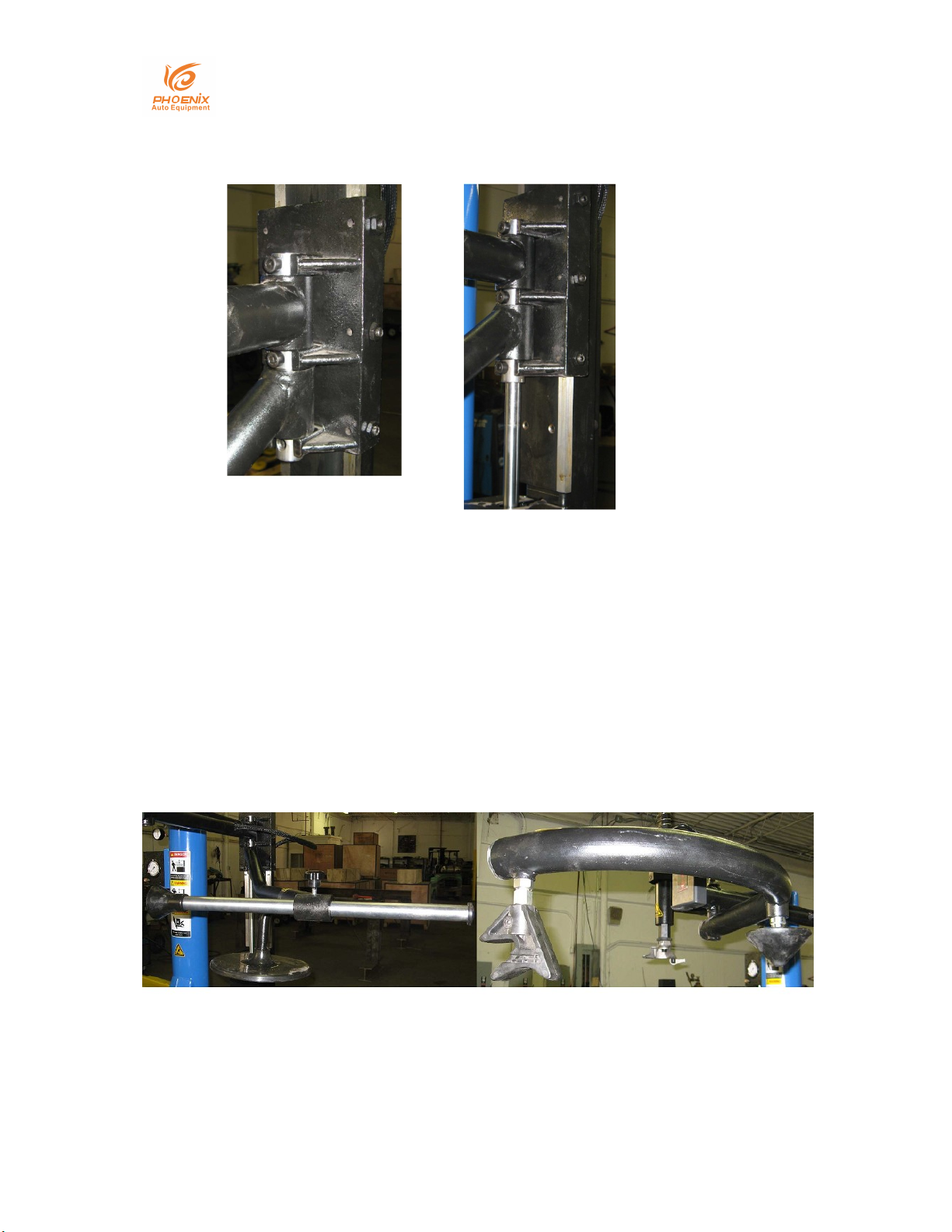

 Place hexagon mounting bar through hole in
horizontal swivel bar. Then place the large
spring over the hexagon bar. Next with the
help of another person, push spring down
while placing plastic cap on top of hexagon
(Fig. 3)
(Fig. 4)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
11 / 22

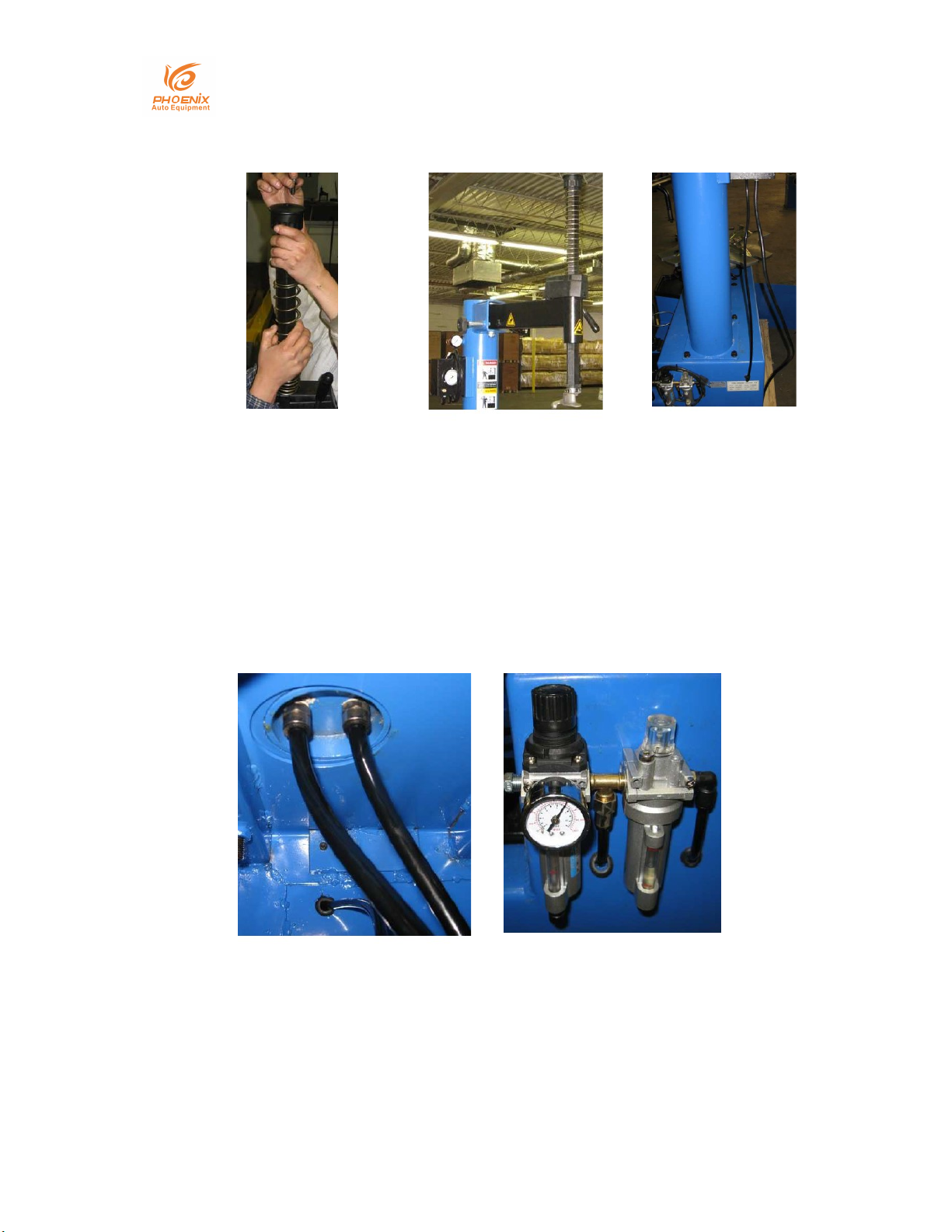

bar and use the hex bolt to keep in place. See picture (fig. 5)
 The result will look like this (Fig. 6)

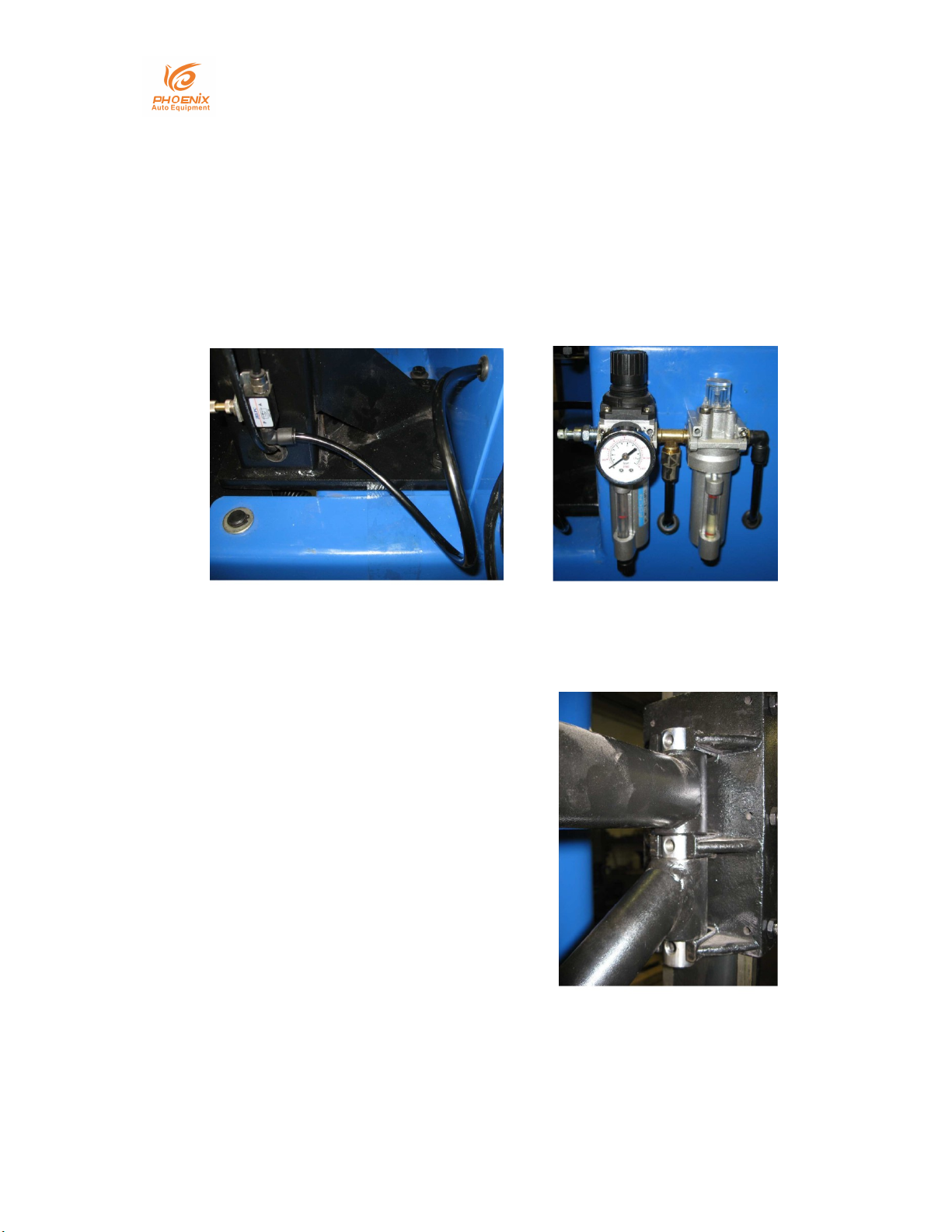

 Hook small air hose from inflating black box to the 90 degree
fitting on the back of the tire machine. See picture (Fig.7)
 Open side panel of the tire changer. Install the two size 10
hoses to the bottom of the large vertical main column. These 2
air lines are identical and can be connected to either of the
fittings. Connect the hoses to the two fittings shown (Fig. 8)
 Install air gauge to oil segregator on back of machine See
picture (Fig. 9)
(Fig. 5) (Fig. 7) (Fig. 6)
(Fig. 8) (Fig. 9)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
12 / 22
 Connect part CAA-020 wheel lift surface to pre-installed wheel
lift mechanism using provided rods and snap rings. See (Fig. 10)
ii. For PWC -2950A Assist arm Assembly
 Assist arm assembly begins by mounting RAA-011 (main assist
arm column) to main side of tire changer body using RAA-001
(mounting plate) RAA-007(mounting bolts). See (Fig. 11)
 Place RAA-001 mounting plate on main machine body and align
with the holes. See (Fig. 12 & Fig. 13)
 Use some tape to hold RAA-001 plate in place. Position RAA-
011 main assist arm in position as shown in (Fig. 11). Use RAA-
(Fig. 10)
(Fig. 11)
(Fig. 12)
(Fig. 11)
(Fig. 13)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
13 / 22
007 mounting bolts to bolt RAA-011 and RAA-001 to main
machine body. RAA-001 mounting plate must be placed under
RAA-011 (Fig.12). This allows the bead breaker arm to move
freely under without rubbing on RAA-011.
 To complete assist arm assembly, you must first complete air
hookup. Connect air hose coming out of main machine body to
pre-installed air valve on back of assist arm. (Fig. 14)
 Connect air to the air gauge on back of machine (Fig. 15). Use
your own regulator on your compressor to keep air at 100-120
PSI.
 Now you can continue with
assembly of the assist arm. First
place top assist arm (arm with
up/down controls that is pre-
installed to main assist arm) and
RAA-009 bottom assist arm in
place. Place RAA-002 assist arm
mounting rod through both assist
arms as show below. (Fig. 16).
(Fig. 14) (Fig. 15)
(Fig. 16)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
14 / 22
 Use 2 of RAA-008 mounting bolts in top 2 holes of RAA-002. See
(Fig. 17)
 Use up/down switch to raise preinstalled rod up and inside
RAA-002 as shown (Fig. 18) Use the other RAA-008 mounting
bolt to finish connection.
 Now install remaining assist arm parts as shown in (Fig.19).
Installation is now complete. Be sure to check compressor oil level in oil
segregator on back of machine before use. Always turn off compressor
before connecting to the machine. Once connected to machine, then turn
on compressor.
(Fig. 17) (Fig. 18)
(Fig. 19)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
15 / 22
4. Operating Tests
a. Test the rotation direction of the motor
 This test is only for the tire changer with 1phases.
 When the reverser control pedal (4) is pressed down, the
turntable should turn in a clockwise direction.
b. Operating test
 Turn the handle (10) to lock the horizontal arm.
 When the reverser control pedal (4) is pressed down, the
turntable (8) should turn in a clockwise direction.
 When the reverser control pedal (4) is pulled up, the turntable (8)
should turn in a counterclockwise direction.
 Pressing the clamp control pedal (2) opens the four clamps (9);
when the pedal is pressed again they close.
 Pressing the bead breaker control pedal (3) activates the bead
breaker; when the pedal is released the bead breaker returns to
its original position.
 Pressing lightly the Inflating control pedal (1) the inflating gun
inflates.
 Pressing inflating control pedal (1) again, the inflating gun inflates
and the eyelet near the sliding block blast inflate at the same
time.
5. Operation
The operation of the tire changer is divided into three parts:
breaking the bead, removing the tire and mounting the tire.
Note: The tire changer must be operated by professional personnel.
a. Breaking the Bead

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
16 / 22
 Before carrying out any operation, deflate the tire and take off all

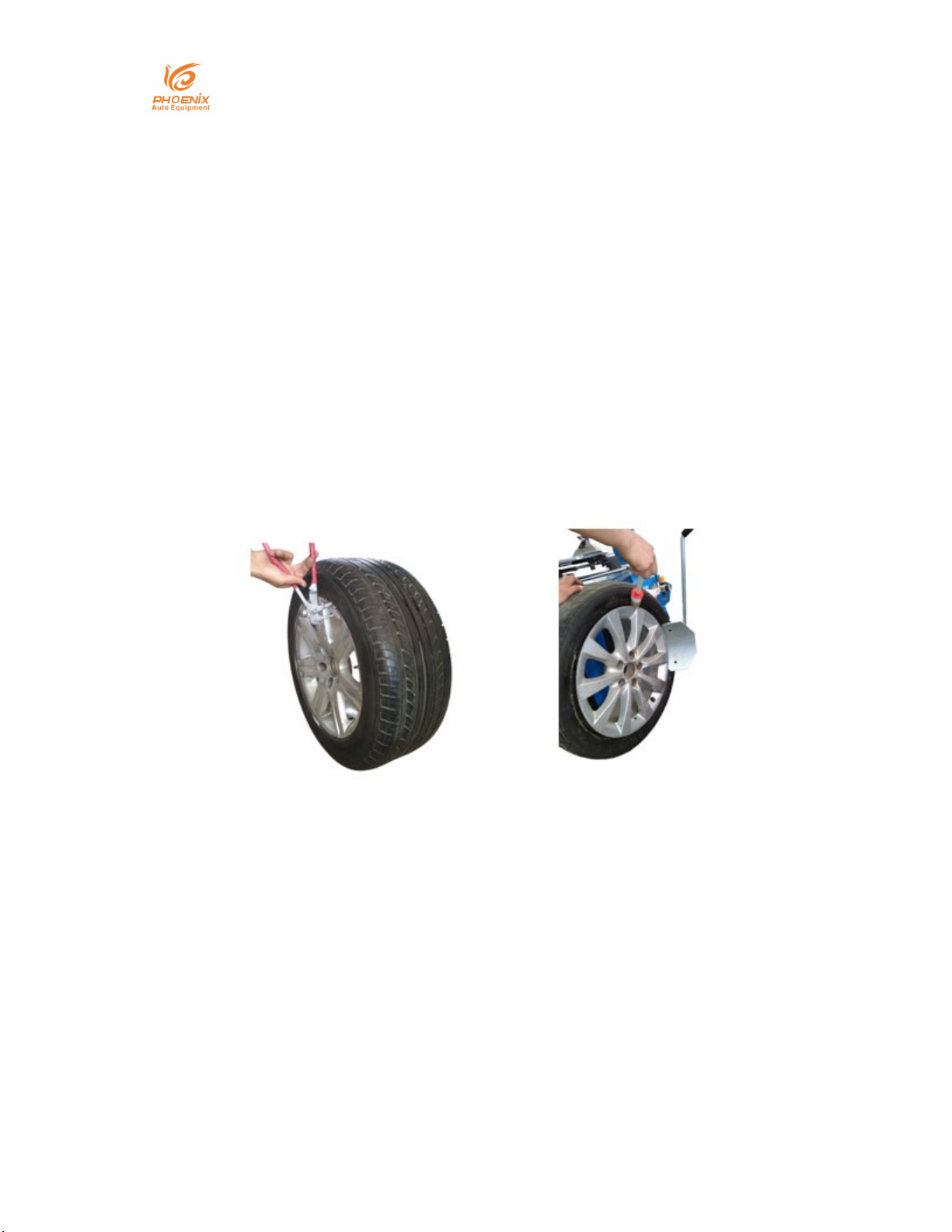

the wheel balancing weights. (Fig. 20)
 Position the wheel against the rubber stops on the right side of the
tire changer
 Position the bead breaker blade against the tire bead at a distance
of about 1 cm from the rim. Press down the bead breaker control
pedal (3) to activate the bead breaker and release it when the blade
has reached the end of its travel or in any case when the bead is
broken. Before use, spread the grease onto the tire bead. (Fig. 21)
 Rotate the tire slightly and repeat the operation around the entire
circumference of the rim and from both sides until the bead is
completely detached from the rim.
b. Removing the Tire
 Clean the turntable.
 Spread the grease onto the tire bead.
 Determine the mounting side of the wheel. The mounting side is
the narrow side of tire rim.
 Place tire on table top with mounting side up.
 Lock the rim on the turntable.
(Fig. 20) (Fig. 21)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
17 / 22
 Clamp locking from outside: (External Clamping) Pressing clamp
control pedal (2) to push the clamps inward against the outside
rim edge
 Clamp locking from inside: (Internal Clamping) Pressing clamp
control pedal (2) again to push the clamps outward against wheel.
 Make sure the rim is firmly fixed to the clamps.
 Unlock the locking handle pull the handle away from you so that
hex bar can move freely.
 Lower the hex bar until the
mounting head rests against
the edge of the rim in a
distance of about 2mm from
the rim. The mounting head
should not be in contact with
the rim edge, but the demount
head curve should be
perpendicular to curve of the
rim. (Fig. 22)
 Then lock the locking handle, pull the locking handle toward you
to lock the hex bar.
 Use provided crow bar to raise lip of tire above demount head.
Let lip of tire come to rest on tire side of demount head.
 With the crow bar inserted between
the bead and the front section of
the mounting head. See (Fig. 23)
Rotate the turntable in a clockwise
direction by pressing down on
reverser control pedal (4) until the
tire is completely separated from
(Fig. 22)
(Fig. 22)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
18 / 22
the rim. You may also use part RAA-006 on assist arm to help.
 Repeat the operation for the lower lip of tire.
 Insert the crowbar and mounting
head below the lower lip of tire.
See (Fig. 23)
 Push the crowbar down toward the
wheel to lift the tire bead up, move
the mounting head in position. You
may also use part RAA-003 on assist
arm to help lift the tire.
 Rotate the turntable in a clockwise
direction by pressing down on
reverser control pedal (4) until the tire is completely separated
from the wheel rim.
 Unlock the locking handle for the hex bar and rise out of way.
 Remove tire and rim from tire changer.
c. Mounting the Tire
Warning: Check the wheel and rim closely for any damage before mounting
the tire. Free from any light corrosion or rubber residue.
 Do not attempt to service any corroded wheels
 Match the diameter of the rim and tire. Never try to mount a tire
on a rim if you cannot identify the diameter of both.
 Lock the rim on the turntable.
 Lubricate the tire beads with the grease in order to avoid damage.
 Move the tire so that the bead passes below the front section of
the mounting head and is brought up against the edge of the rear
section of the mounting head itself.
(Fig. 23)

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
19 / 22
 Keep the tire bead pressed down into the wheel rim with your
hands; press the reverser control pedal (4) to rotate the
turntable clockwise. Continue until you have covered the whole
circumference of the wheel rim; insert the inner tube (if there is
one).
 While mounting new tire on rim, you may use part RAA-006 and
RAA-004 on the assist arm to help push sidewall of tire down
during rotation.
 Repeat the same operations to mount the upper side of the tire.
 Push the crowbar down, move the mounting head in position.
 Rotate the turntable in a clockwise direction by pressing down on
reverser control pedal (4) until the tire is bead is mounted.
WARNING: demounting and mounting are always done with the clockwise
turntable rotation. Counterclockwise rotation is used only to correct
operator's errors or if the turntable stalls.
6. Inflation
a. Once tire is on the rim, hook tire inflation hose to valve and use
bead blast or inflation pedal to set bead and inflate the tire.
a. Inflate the tire with inner tube or some easy-inflating vacuum tire
b. Press the inflating control pedal (1) to 1 shift. (Fig.24)
c. Continue to inflate the tire and constantly checking the pressure
between air jets until the required pressure has been reached.
b. Inflate the hard-inflating tire.
d. If the bead of tire is not well seated, due to a strong bead, inflate
the tire with the blast inflation, press the inflating control pedal
(1) to the shift 2 position, a strong jet of air will be released
through the eyelet near the sliding block. Lift tire manually or you

Phoenix Auto Equipment
-Address: 2711 East Craig Road Ste #E, North Las Vegas, NV, 89030 United States
- Website: https://www.phoenixautoequipment.com
- Phone: [phone]
20 / 22
may also use part RAA-003 on assist arm to help until the upper
bead seals against the rim.
e. NEVER exceed the maximum inflating pressure given by the tire
manufacturer.
f. Check the state of wear of the tire and that it has no defects
before beginning the inflation stage. Never exceed the pressure
3.5 bar.
7. Maintenance
a. Frequently check the compressor oil level of the oiler in the back
of the machine.
b. If low, please refill with compressor oil. Do not use any other
type of oil. This keeps the air lines lubed and clean and greatly
extends the life of the machine.
c. Keep any air holes free of dirt.
d. Grease the spot where the rim clamp jaws move along the
turntable. This will let machine work easier and extend its life.
e. Make sure you do not exceed 145 PSI. Remember that the tire
changer does not have a pressure regulator. The gauge on the
back of the machine is simply that, a gauge. You must put a
pressure regulator on your compressor.
(Fig. 24)
