Phonak Audeo User manual

1
Thank you for choosing the Audéo Perfect Fit Earphones from
Phonak, the world’s leading designer and manufacturer of
hearing systems.
Audéo intensifies the listening experience thanks to the fusion of
design, perfect fit, and rich sound. They are the perfect earphones
for those who want to enjoy music without limits.
Cable
Earphone
"leg"
Silicone- or ComplyTM
foam tips
Sound tube
Descriptions
User Guide
AudeoPFE_UserGuide_GB_final_web.qxp:A6_5_s_Template 24.9.2008 9:09 Uhr Seite 1
Please read this manual carefully before using your
earphones.
1. Package contents
a. Earphones
b. Audio filter box with 6 audio filters and changing tool
c. Silicone ear tips – 1 pair S, 1 pair M, 1 pair L
d. ComplyTM foam tips – 1 pair M
e. Cleaning tool for ear tips
f. 2 silicone ear guides
g. Carrying case
a. b. c.
d. e. f.
g.
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 5
2. Important information
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may occur if earphones are
used at high volumes for prolonged periods of time.
NOTE: For France, these earphones have been tested to comply
with the Sound Pressure Level requirement stipulated in
French article L. 5232-1.
In order to protect your hearing, we recommend
the following:
�
Always listen to the lowest possible volume for limited periods
of time.
�
You should immediately stop listening if you experience ringing
in your ears or other pain or discomfort.
�
Ideally, do not exceed 50% of the maximum volume of an MP3
player and do not listen for more than 1 hour a day.
�
In order to avoid dangerous sound bursts, always turn the
volume of the sound source down before connecting your
Audéo earphones to it.
i
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 7

2
Warnings
�
Do not use this product in other ways than described in this
manual.
�
Since the earphones block out ambient noise, never use them
while operating machinery or driving any kind of vehicle,
walking, biking, jogging or during any other activity where
failure to hear outside sounds or alerts can be dangerous.
�
Keep this product and its accessories out of the reach of
children. Handling or use by children may pose a threat of
death or serious injury. This product contains small parts and
a cord that may pose a risk of choking or strangulation.
�
If an ear tip or an audio filter becomes lodged in your ear, seek
medical assistance to remove the ear tip or audio filter. If removal
is performed without proper medical assistance, the ear may be
damaged.
�
Before inserting the earphones, make sure that the ear tips are
attached firmly to the sound tube.
�
If the earphones cause discomfort or irritation, stop using them.
Consult a physician or audiologist if needed.
�
Handle the earphones with care and store them in the provided
carrying case.
�
Do not expose the earphones to extreme temperatures or to
strong magnetic fields. Do not immerse them in liquid. Avoid
sharp blows to the earphones.
�
Keep these instructions and recommendations so you can
review them in the future.
i
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 9
a. Wearing the earphones
Audéo earphones deliver amazing sound if correctly inserted in the
ears and if an absolute seal is achieved. To experience their best
performance, proceed as follows:
3. How to use
Only use Audéo PFE with original parts. Never use accessories from
other manufacturers. They are not compatible with Audéo
PFE and can modify the frequency response of your earphones,
damage them or even cause injury!
Original accessories can be purchased from authorized Phonak
dealers or on the www.audeoworld.com website (available only in
some countries).
1. Turn the volume of the sound
source to a minimum before
connecting the earphones.
2. Identify the left and right
earphones.
L
R
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 11
3. Attach the silicone ear guides
to the cables and pull through to
the earphones. The ear guides
route the wires comfortably around
the ears and ensure a perfect fit
and reduced cable noise. The snug
fit is especially great during
exercise because the earphones
stay firmly in place. Use of
the ear guides is optional.
4. If you are using ComplyTM foam
tips, compress them with your
fingers.
5. Hold each earphone by the "leg", with
the cable pointing up, and the ear tips
towards your head.
6. Place the cable behind the ear
and insert the ear tips into your ear
canal with a gentle push. Do not
force the earphones into the ears!
If the ear tips are too big, try a
smaller size.
7. The cables hang behind the ears and
then "down the back" or "on the chest".
With the ear guides attached, the cable
is routed perfectly around your ear.
L
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 13

3
8. The ear tips should seal the
ear canal and fit without any
discomfort. Rotate the eaphones
so that the "leg" points diagnally
towards the top of the ear.
If you feel that the ear tips are too loose (insufficient seal) or too
tight (discomfort), try using another size.
To remove the earphones from the ears, hold them by the "leg"
and pull them out gently with a small rotation in order to break
the seal.
Do not pull on the cable to remove the earphones from your ear.
b. Ear tips
The Audéo PFE comes with both silicone and ComplyTM foam
eartips; the silicone tips are washable and better for use
during exercise. The ComplyTM foam eartips are better at filtering
out ambient noise, making them the best choice for travel or
use in noisy surroundings.
To change the ear tips (foam or silicone), grab the ear tip in the
middle and pull it slowly until it comes loose. Do not use
your fingernails or any other sharp object to remove the ear tips,
as otherwise they could be damaged.
L
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 15
c. Audio filters
The audio filters have an essential acoustic function for the frequency
response of the earphones. The purpose of this filter is to deliver sound
that matches what one perceives when listening with non-occluded
ears. The product comes with two different types of audio filters:
The grey filter is for enhanced perception of the mid-frequencies, and
the black audio filter for enhanced perception of bass and treble. The
grey audio filter is mounted on the earphones by default. Because each
individual's perception of sound is unique, Audéo PFE allows you to
choose the filter that suits your personal preferences. Another function
of the audio filter is to prevent dirt from entering the sound tube.
�
Make sure that the audio filters are in place before using the
earphones. The earphones only function correctly if the audio
filters are inserted in the output tube.
�
Replace the audio filters when they become dirty or clogged and
the sound of the earphones is affected.
�
Always use audio filters having the same color for both the right
and left earphone.
To replace the audio filters proceed as follows:
1. To change the ear tips (foam or
silicone), grab the ear tip in the
middle and pull it slowly until it
comes loose.
2. Gently push and twist the
"threaded end" of the changing
tool into the used audio filter.
R
L
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 17
3. Do not overtwist the tool;
stop when you feel a slight
resistance (about 1 rotation) or
you could damage the audio
filter.
Pull the used audio filter out.
4. So you can reuse the audio
filter, insert it in an empty slot
in the audio filter box; turn and
remove the changing tool.
Dispose of any soiled or
damaged audio filters.
R
R
5. Proceed with placing a new
audio filter in the earphones.
Make sure that the audio filter is
sitting in the dispenser with the
open side facing upwards.
6. Press the "flat end" of the
changing tool into the filter ring
and pull out vertically.
7. Push the new audio filter into
the sound tube of your
earphones. Tip the changing
tool sideways to release it.
R
R
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 19

4
d. Maintenance
To extend the lifetime of your earphones, keep them clean and
follow the recommendations below.
�

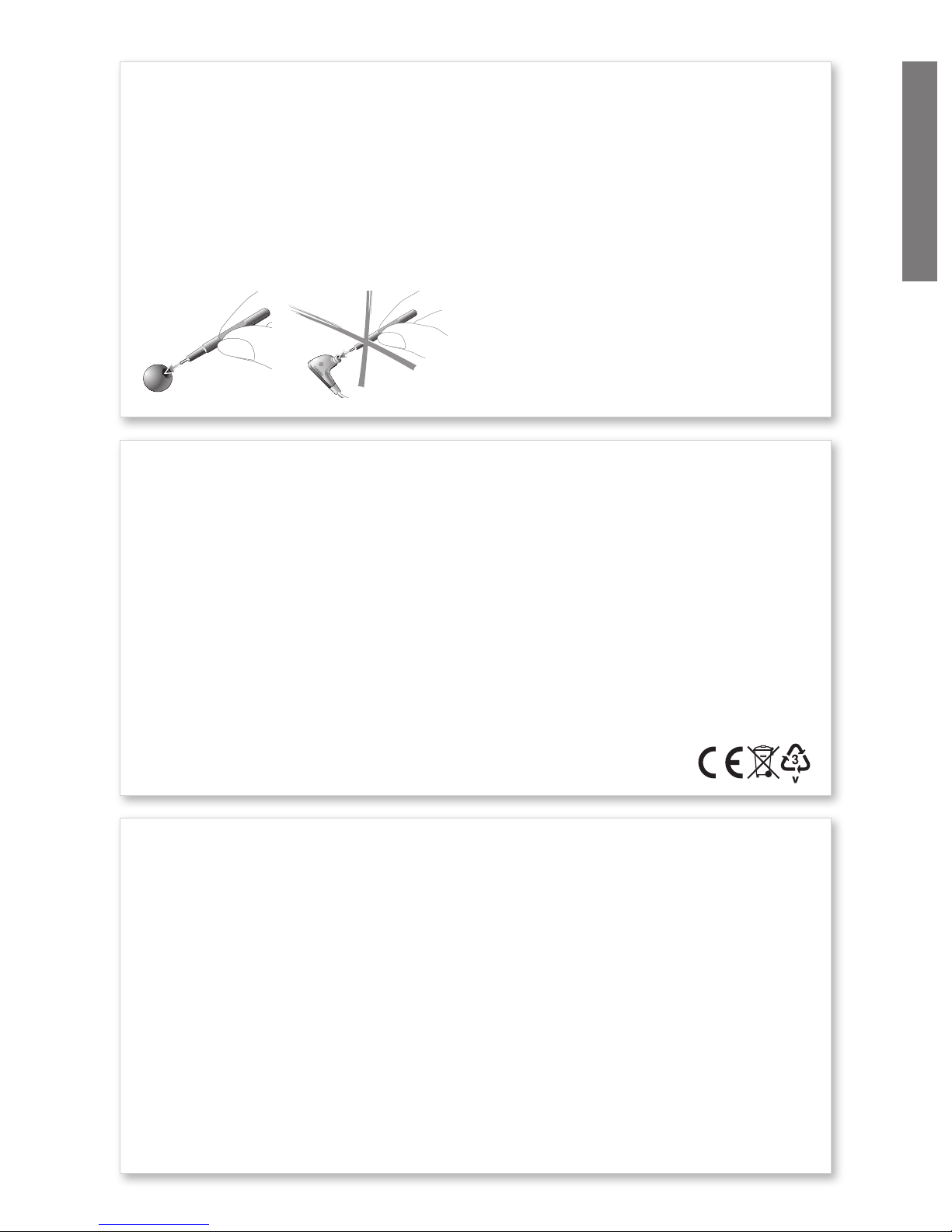

The cleaning tool is for the tube of the ear tips (silicone or
foam) and serves to remove earwax build-up.
�
Never use the cleaning tool for the earphone sound tube!
R
�
The silicone ear tips should be cleaned regularly with water
and mild soap, or with an antiseptic wipe. Always make sure
that the ear tips are dry before reusing.
�
ComplyTM foam tips cannot be cleaned. They should be replaced
when they become soiled.
�
After extended us, the ComplyTM foam tips may no longer seal
properly because they lose their elasticity. Please replace them
with new ComplyTM foam tips.
�
The earphones can be cleaned with an antiseptic wipe.
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 21
4. Technical characteristics
Driver: high precision balanced armature
Sensitivity: 107 dB SPL / mW, 1 kHz
Impedance: 32 Ohm, 1 kHz
Frequency range: 5 Hz –17 kHz
Cord length: 3.6 ft / 110 cm
Weight: 0.5 oz / 14 g
Connector: ⅛ inch/ 3.5 mm
gold-plated stereo jack
5. Certification
© 2008 Phonak. All rights reserved. Audéo and the Audéo Logo
are trademarks of Phonak. Swiss design, patent pending.
Audéo earphones conform to EMC Directive 2004/108/EC and
have been tested according to European Standards EN
55022:2006 and EN 55024:1998.
Audéo earphones meet applicable criteria listed in European
Standard EN 50332-2:2003.
ComplyTM is a registered trademark of Hearing Components.
Manufactured under Hearing Components U.S. patent number
4,880,076 and 5,002,151 and international equivalents.
Audéo PFE should not be discarded in a trash receptacle. To
discard Audéo PFE, take them to an approved collection site.
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 23
6. Audéo PFE: limited warranty
Phonak AG warrants that this product will be free from defects
in materials or workmanship for a period of two (2) years from
the date of original retail purchase. This warranty is available only
to the original retail purchaser, and only if the product was
purchased through the official Webshop or an authorized retailer.
Upon a breach of this warranty, Phonak AG will, at its sole
discretion, replace or repair the product. If Phonak AG replaces
the product, you are entitled to a replacement of equal or at least
equivalent quality and technical functionality. When we replace
the product, the replaced product becomes the property of Phonak
and the new product becomes your property.
Repair or replacement shall be your sole remedy upon any
breach of this warranty. In particular, Phonak AG shall not be
responsible or liable to you for any money damages, including
for any special, incidental or consequential damages, even if
Phonak AG was aware of the possibility of such categories
of damages.
If your product evidences a defect within the warranty
period, you may make a warranty claim, by presenting the
defective product and valid proof of purchase from one
of our authorized retailers or the Webshop.
If you ordered the product through the Webshop, you
can return it to the address on your invoice. You must return
a copy of the proof of purchase with the product.
This warranty applies only to the external shell of the
product and all internal components. The ear tips,
cleaning tool, audio filters (incl. dispenser and replacement
tool), ear guides, carrying case and adapters for mobile
telephones are not covered by this warranty.
AudeoPFE_UserGuide_GB_final.qxp:A6_5_s_Template 24.9.2008 8:43 Uhr Seite 25

5
Phonak AG
Laubisrütistrasse 28
CH-8712 Stäfa
Switzerland
www.audeoworld.com
This warranty is available to you only if the product was
handled properly, subject to normal use, and used solely for the
purpose intended. This warranty does not cover normal wear
and tear, damage caused by acts of God or misuse. In addition, this
warranty does not apply if the product or individual
components were repaired or modified by anyone other than
Phonak.
This warranty is in lieu of all other standard implied warranties if
the law allows, or if not, only to the extent the laws allows. WITH-
OUT LIMITING THE GENERALITY OF THE PRIOR
SENTENCE, PHONAK AG HEREBY DISCLAIMS ALL IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE. In some countries, implied warranties cannot
be limited. Under certain conditions, these limitation
or exclusions may therefore not apply to you.
This warranty replaces all other warranties for this product.
AudeoPFE_UserGuide_GB_final_web.qxp:A6_5_s_Template 24.9.2008 9:09 Uhr Seite 3
