330T Transmitter
216MHz
4075 330T Trans User Guide 8/17/04 3:52 PM Page 2

contents
connecting CD, TV and other
audio sources . . . . . . . . . . . . . . . . . . . . .14
troubleshooting . . . . . . . . . . . . . . . . .15-16
caring for your 330T . . . . . . . . . . . . . . . .17
product specifications . . . . . . . . . . . . . . .18
frequencies and corresponding
Phonic Ear channel numbers . . . . . . .19-20
battery warnings . . . . . . . . . . . . . . . . . . .21
product warranty . . . . . . . . . . . . . . . .22-24
code of federal regulations . . . . . . . . . . .25
regulatory approvals . . . . . . . . . . . . . . . .26
330T transmitter features . . . . . . . . . . .1-2
330T available accessories . . . . . . . . . .3-4
330T setup and operation
inserting batteries . . . . . . . . . . . . . . . . . . . .5
charging batteries using 230R
EasyListener 2 sound field system . . . .6-7
charging batteries using wall charger . . . . . .8
wearing 330T . . . . . . . . . . . . . . . . . . . . . .9
330T microphone options . . . . . . . . . . . .10
plugging in microphone and using
mute button . . . . . . . . . . . . . . . . . . . . . .11
turning on 330T . . . . . . . . . . . . . . . . . . .12
verifying channel setting . . . . . . . . . . . . . .13
4075 330T Trans User Guide 8/17/04 3:52 PM Page 6

1
330T transmitter features
front back
1
3
5
2
4
top
6 7 8 9
4075 330T Trans User Guide 8/17/04 3:52 PM Page 7

2
10 on/off(chg) switch
1 on/off, low battery and charging
indicator light
2 channel number label
5 battery compartment
3 belt clip
6 mute button ( on off)
7 charging input jack (1.3mm)
9 microphone input jack (2.5mm)
8 auxiliary input jack (3.5mm)
side
10
4 serial number/part number/operating band
on = Dim red light
low batt = Blinking red light indicates
approximately 1 hour of battery life
remaining
batt charging = Bright red light
improper charging = No light
4075 330T Trans User Guide 8/17/04 3:52 PM Page 8

3
330T available accessories
1 2 3 4
5 6 7 8
4075 330T Trans User Guide 8/17/04 3:52 PM Page 9

4
1 330T carrying case
(841-6440-101)
2 rechargeable NiMH AAA batteries
(374-30-310-09)
4 wall charger*
(AT0749)
3 elastic belt
(AT0712)
5 lavalier cord*
(AT0512-BK)
6 aux-in adaptor cord*
(384-01-210-08)
3.5mm - 3.5mm connects 330T to external audio,
CD player, stereo, computer, etc.
7 aux-in adaptor cord*
(300-6332-107)
3.5mm- dual RCA connects 330T to external
audio, TV, VCR, DVD
8 antenna*
(AT0529A)
For use during auxiliary input only.
*optional accessory
4075 330T Trans User Guide 8/17/04 3:52 PM Page 10

5
1inserting batteries
Open battery compartment door by
pressing and sliding downwards.
1
Insert rechargeable AAA NiMH
batteries (or alkaline batteries) and
replace door. Check polarity
markings to confirm batteries
are positioned correctly.
2
2
1NOTE: The 330T uses high performance
NiMH (nickel-metal hydride) batteries.
To achieve maximum battery efficiency,
charge batteries for 12 hours before initial
use. Charge batteries nightly for 12 hours
during normal use.
330T setup and operation
4075 330T Trans User Guide 8/17/04 3:52 PM Page 11

6

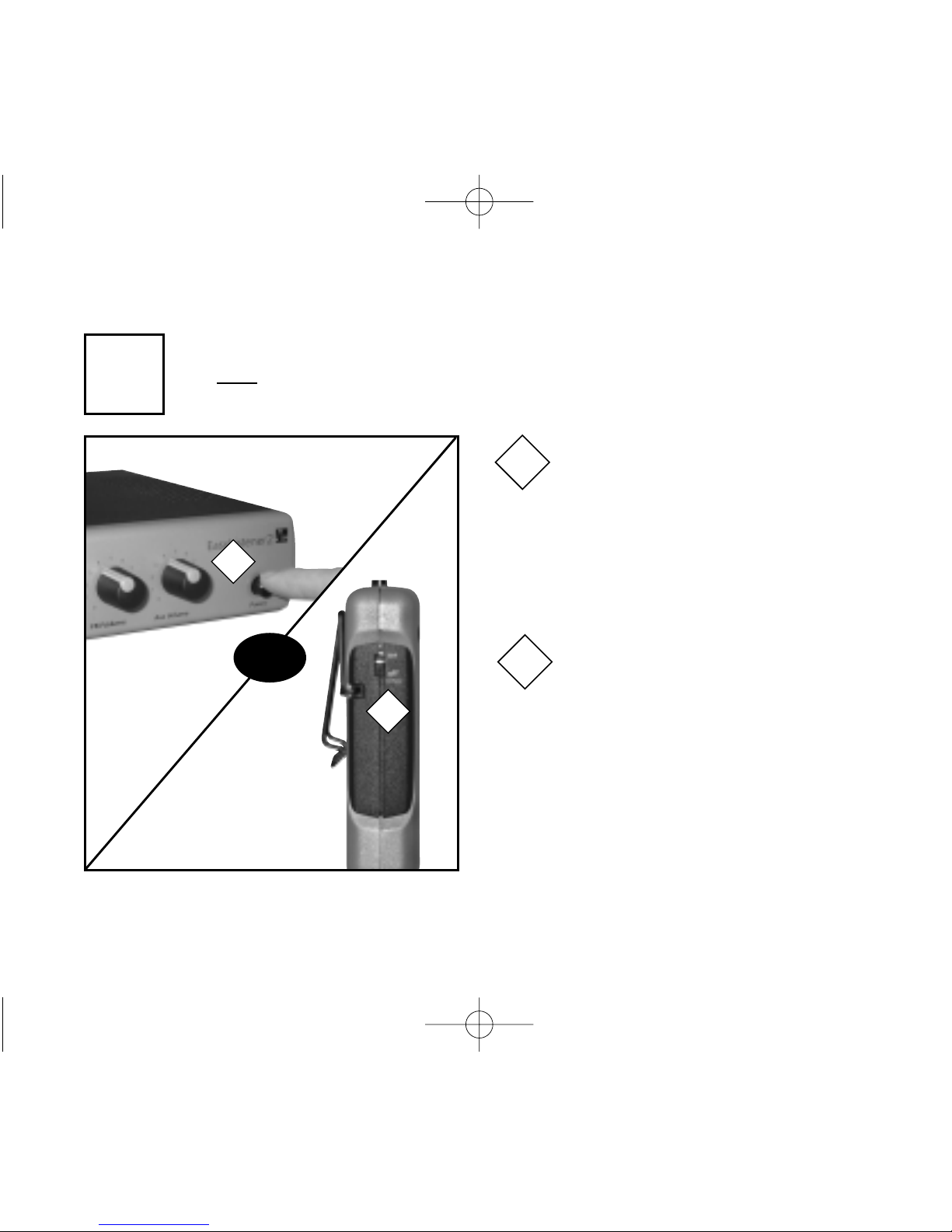

2a charging batteries using 230R EasyListener 2™ sound field system
Do NOT attempt to charge alkaline batteries in the 330T.
Only Phonic Ear rechargeable batteries can be recharged.
Push power button to turn 230R
receiver off.
1
Turn 330T power switch to
off (chg) position.
2
1
then
2
NOTE: Sleep/standby power light
on 230R receiver will remain lit
during power off mode.
4075 330T Trans User Guide 8/17/04 3:52 PM Page 12

7
2b charging batteries using 230R EasyListener 2™ sound field system
Do NOT attempt to charge alkaline batteries in the 330T.
Only Phonic Ear rechargeable batteries can be recharged.
230R (back)
Plug any end of charge cord into
charge out jack on back of 230R
receiver.
3Plug any end of 300-6497-105
charge cord (included with 230R
system) into 330T charge/ jack.
4
4
300-6497-105
3
5
NOTE: Charge for 12 hours before first use.
After daily use, charge unit overnight for at
least 12 hours for up to 12 hours of battery life.
Check indicator light on 330T.
bright red = Battery charging
no light = Improper charge
5
4075 330T Trans User Guide 8/17/04 3:52 PM Page 13

8

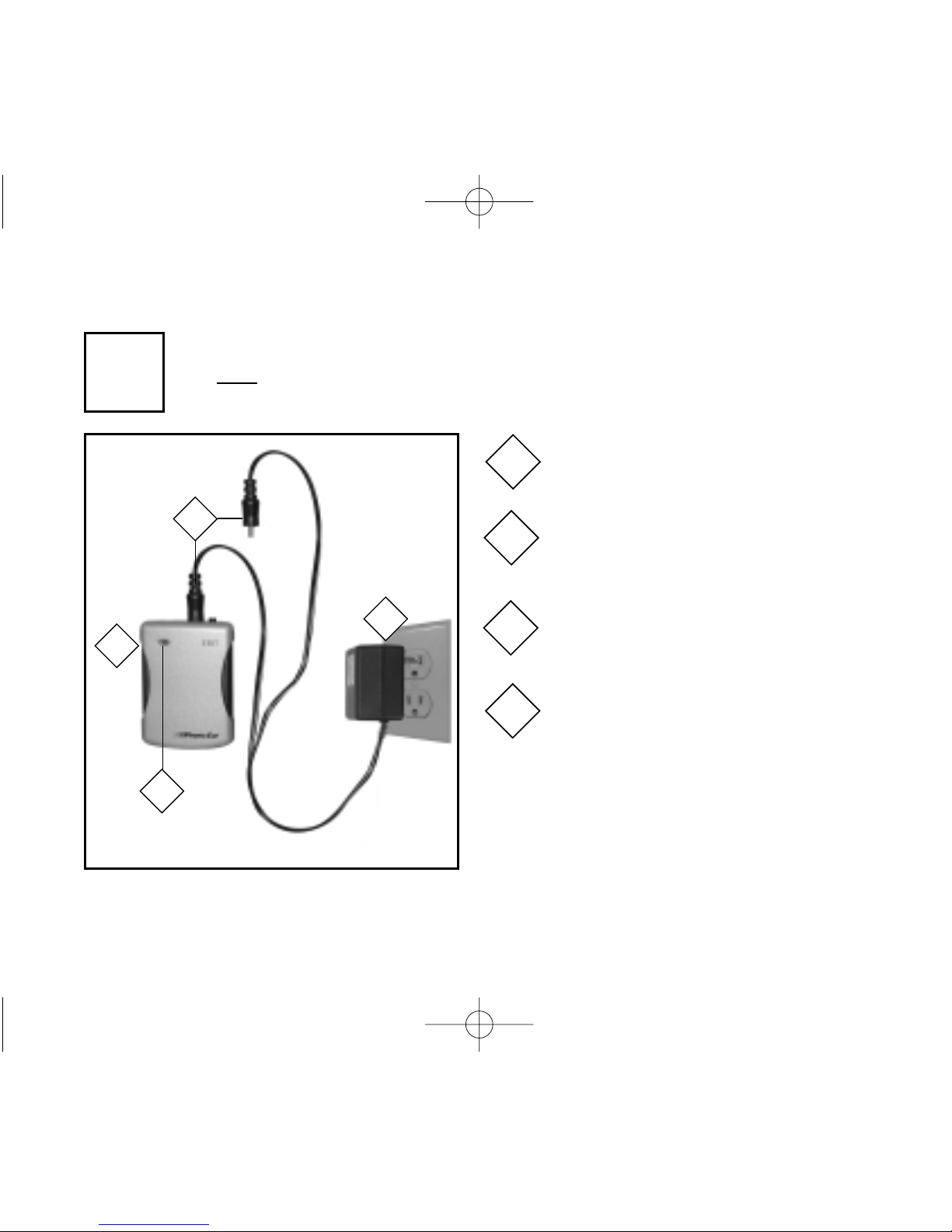

2c charging batteries using wall charger
Do NOT attempt to charge alkaline batteries in the 330T.
Only Phonic Ear rechargeable batteries can be recharged.
Plug either end of AT0749 charging
cord into charge jack on top of the
330T transmitter.
2
IMPORTANT: Charge for 12 hours before first
use. After daily use, charge unit overnight for at
least 12 hours for up to 12 hours of battery life.
2
Plug other end of AT0749 charging
cord into wall socket.
3
3
AT0749
Switch 330T power to off (chg)
position.
1
1
Check indicator light on 330T.
bright red = Battery charging
no light = Improper charge
4
4
4075 330T Trans User Guide 8/17/04 3:52 PM Page 14

9
3wearing 330T
Clip to elastic belt (AT0712), pocket,
pants or clothes.
or
Attach transmitter to necklace-style
lavalier cord (AT0512-BK).
AT0712
AT0512-BK
or
4075 330T Trans User Guide 8/17/04 3:52 PM Page 15

10
AT0814
earhook
AT0655
behind-the-neck
boom
AT0291-L*
lapel with lavalier
cord
AT0816
collar
330T microphone options
AT0164-L**
omni lapel with
lavalier cord
* Lapel style
microphones are
less resistant to
feedback when
used with a sound
field system.
4a
AT0667-L**
omni lapel with
lavalier cord
** Not recommended
for use with sound
field systems
4075 330T Trans User Guide 8/17/04 3:52 PM Page 16

11

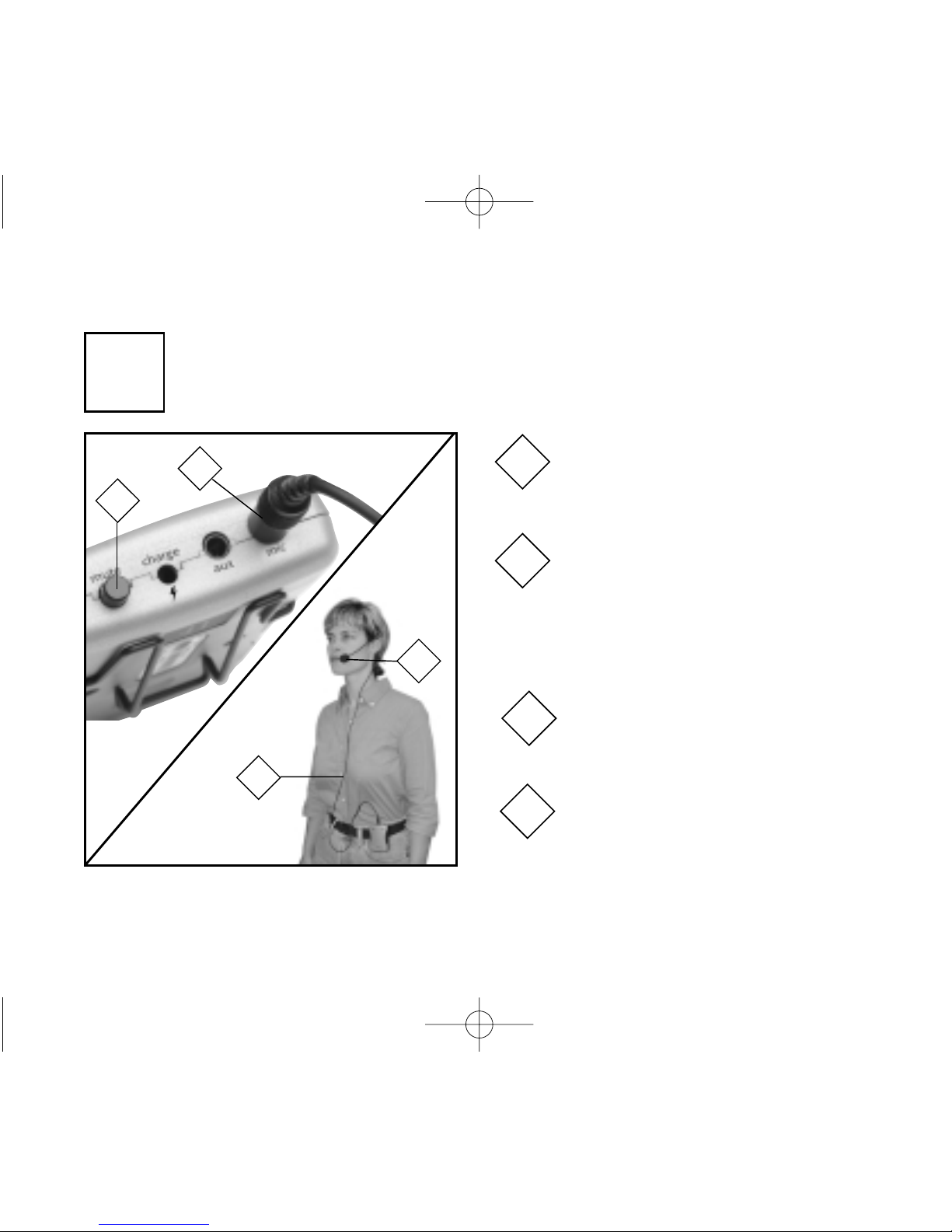

plugging in microphone and using mute switch
4b
The microphone cord also acts
as the antenna for the 330T.
To ensure a consistent transmis-
sion, keep the microphone cord
as straight as possible.
Plug microphone into mic jack on
330T unit.
1
2
2
1
Position microphone approximately
3in/7.6cm from mouth.
3
3
To mute microphone, press down
on 330T mute button
4
4
4075 330T Trans User Guide 8/17/04 3:52 PM Page 17

12
turning on 330T
5
Push power switch up to turn
transmitter power on.
1
Confirm red indicator light is on.
2
1
2
indicator light features:
on = Dim red light
low battery = Blinking red light
indicates approximately 1 hour of
battery life remaining
battery charging = Bright red light
improper charging = No light
4075 330T Trans User Guide 8/17/04 3:52 PM Page 18

13
Locate channel number on back of
330T transmitter. Confirm your
receiver unit (LEXIS, EASYLISTENER 2,
RADIUM or SPRITE) is operating on
the same channel.
verifying channel setting
6
1
330T (back) NOTE: The 330T is available on 19 chan-
nels in the 216MHz frequency. See the
chart on pages 19 & 20 for a complete list
of frequencies and corresponding Phonic
Ear channel numbers.
1
LEXIS receiver
EASYLISTENER 2
230R
OR
41
4075 330T Trans User Guide 8/17/04 3:53 PM Page 19

14
Using auxiliary inputs:
connecting CD, TV and other audio sources
Plug external antenna (AT0529A) or
any microphone into 330T mic jack.
(To ensure a consistent transmission,
keep the microphone cord as straight
as possible.)
1
1
7
300-6332-107
(3.5mm –dual RCA)
Using appropriate auxiliary input
cord, connect the 330T to the
secondary sound source.
2
The 330T auxiliary input jack (aux) allows
transmission of an external audio source such
as a CD player, TV, VCR, or computer.
OR
384-01-210-08
(3.5mm –3.5mm)
2
AT0529A
(antenna)
OR
NOTE: Check the type of connection need-
ed for the secondary sound source – refer to
page 4 for available aux-in adaptor cord
specs and usage descriptions.
TV
4075 330T Trans User Guide 8/17/04 3:53 PM Page 20

15
troubleshooting
No Sound
• verify the mute switch on the top of the unit
is in the off (up) position.
• verify the transmitter is operating on the
same FM channel as the receiver
• verify the transmitter power is on
• verify the microphone cord is inserted
properly into the mic jack
• if using the aux jack on the transmitter for
external sound, verify the AT0529A antenna
is plugged into the mic jack. If using a
microphone cord as an antenna, make sure it
is not coiled.
• verify an approved PE microphone is being
used (AT0655, AT0814, AT0816, AT0291-L
or AT0668-L)
Batteries NOT charging
• verify only Phonic Ear NiMH batteries are
being charged. 330T unit will not charge dis-
posable alkaline or other rechargeable batteries.
• check battery polarity markings to verify
batteries are oriented properly
• verify the power switch is in the off(chg)
position
• verify the charging cord is plugged in to the
chg port and NOT the aux port
• verify the wall transformer is plugged into an
operational electrical outlet
4075 330T Trans User Guide 8/17/04 3:53 PM Page 21

16
troubleshooting (cont’d)
330T won't turn on
• verify NiMH batteries are inserted properly and
fully charged
• verify AAA alkaline batteries are inserted
properly
• check battery polarity markings to verify
batteries are oriented properly
Acoustic feedback (high-pitched
squeal)
• make sure the user microphone is not too
close to external speakers in the room
• make sure an omni-directional mic is not
being used. Omni-directional mics should
not be used with the 330T.
• lower the FM volume/gain control on the
LEXIS, EASYLISTENER 2 or other receiver
• turn OPTIVOICE to medium, or low position
• have a sound professional adjust 3-band
equalizer controls on the receiver, confirm
they are not set to a high frequency setting
Static
• confirm microphone cord is not coiled
• verify approved PE microphones are being
used (AT0655, AT0814, AT0816, AT0291-L,
AT0668-L)
4075 330T Trans User Guide 8/17/04 3:53 PM Page 22

17
caring for your 330T
cleaning
Clean as needed, using a soft, damp cloth.
Do not immerse in water
storage
Clean with a soft damp cloth and remove the
batteries from the transmitter. Place the unit into
the 841-6440-101 carrying case.
other important notes
• Protect your 330T transmitter from excessive
moisture, heat, and mechanical shocks.
• The AT0749 wall transformer may get warm
under normal operation.
• To protect the transmitter’s case front, position
it face down on a soft surface when removing
or inserting the batteries.
4075 330T Trans User Guide 8/17/04 3:53 PM Page 23

18
transmitting 216MHz, Crystal Controlled (U.S./Canada)
frequency
modulation FM narrow-band
operating range up to 50m/160ft
user controls off/on; push button mute switch
inputs/outputs 3.5mm auxiliary input jack
2.5mm microphone input jack
1.3mm charge jack
battery life 15Hr (AAA alkaline)
12Hr (AAA NiMH)
size ( W x H x D )5.9 x 8.2 x 2.0 cm/2.3 x 3.3 x 0.8 in
weight 74.8g/2.64oz (with batteries)
case ABS plastic, painted
battery/power/ on: power on
charge LED flashing: low battery – 1 hour life
on (bright): charging
transmitter: 330T
product specifications
4075 330T Trans User Guide 8/17/04 3:53 PM Page 24
