POWERPOD408 USER’S MANUAL
GETTING STARTED
1. Beforeturning onthe power, setthe Masteroutput
control to the off position.
2. Always turn the power off before connecting or
disconnecting cables.
3. Cleck the AC Voltage before connecting the AC
plug.
4. Do not obstruct the back panel at all for proper
ventilation.
PHONIC CORPORATIONPage 4
INTRODUCTION / FEATURES / GETTING STARTED
INTRODUCTION
Congratulations on your purchase of the Phonic
Powerpod408Powered Mixer.The Powerpod408
is built into a rugged wooden cabinet for heavy-
duty use. In order to get the best performance
from your Powerpod408, please read all of this
safety and operation manual before operating
the mixers and keep the manual for future refer-
ence.
FEATURES
4 mono input channels for a wide range of Mi-
crophoneand Linelevel signalsfrom separate
input sockets
 Built-in 80 watt power amplifier (max. output)
 Built-in Digital Delay
Super musical 2-band EQ at mono chan-
nels
 Record out
 Tape in

POWERPOD408 USER’S MANUALPHONIC CORPORATION Page 5
TYPICAL CONNECTING LEADS
TYPICAL CONNECTING LEADS

POWERPOD408 USER’S MANUAL PHONIC CORPORATION
Page 6

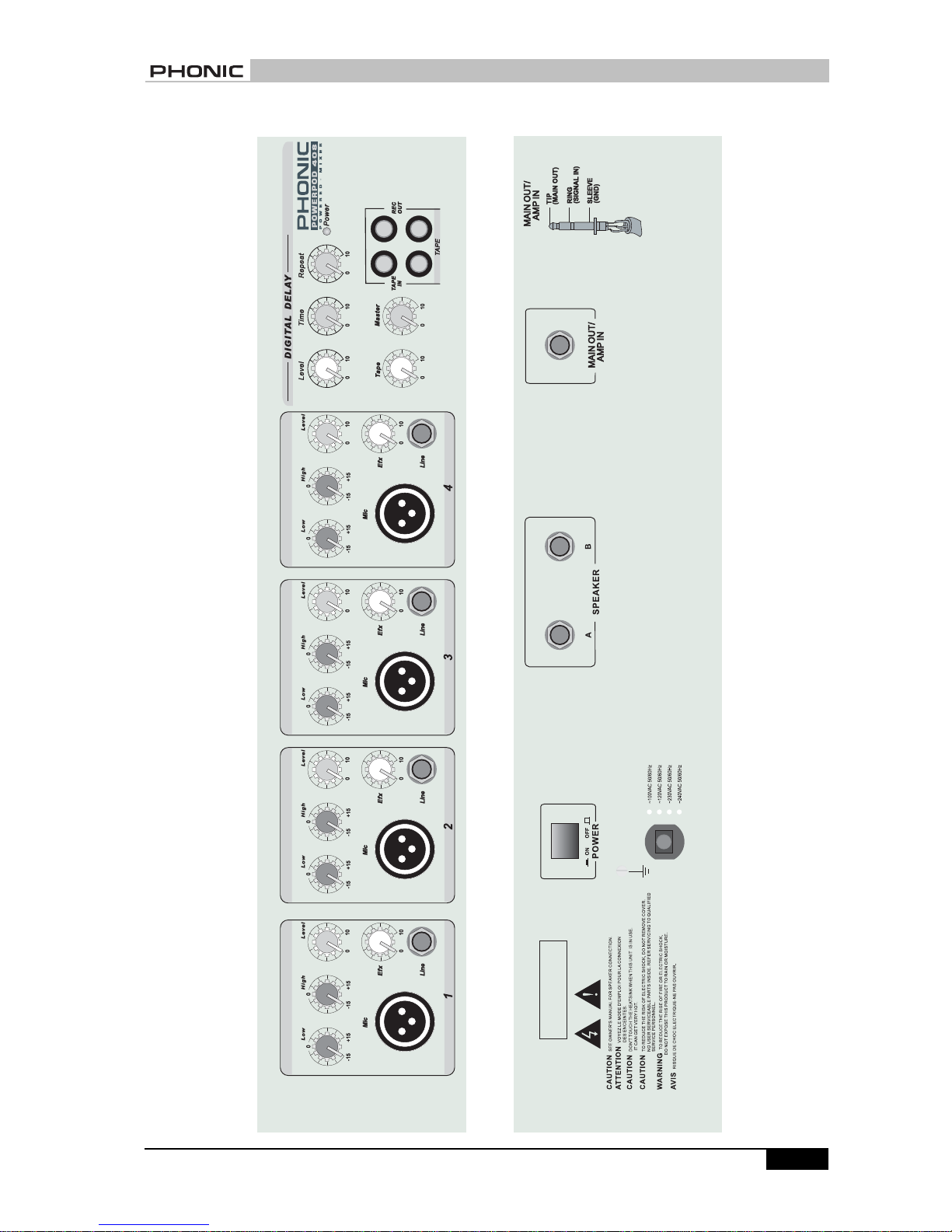

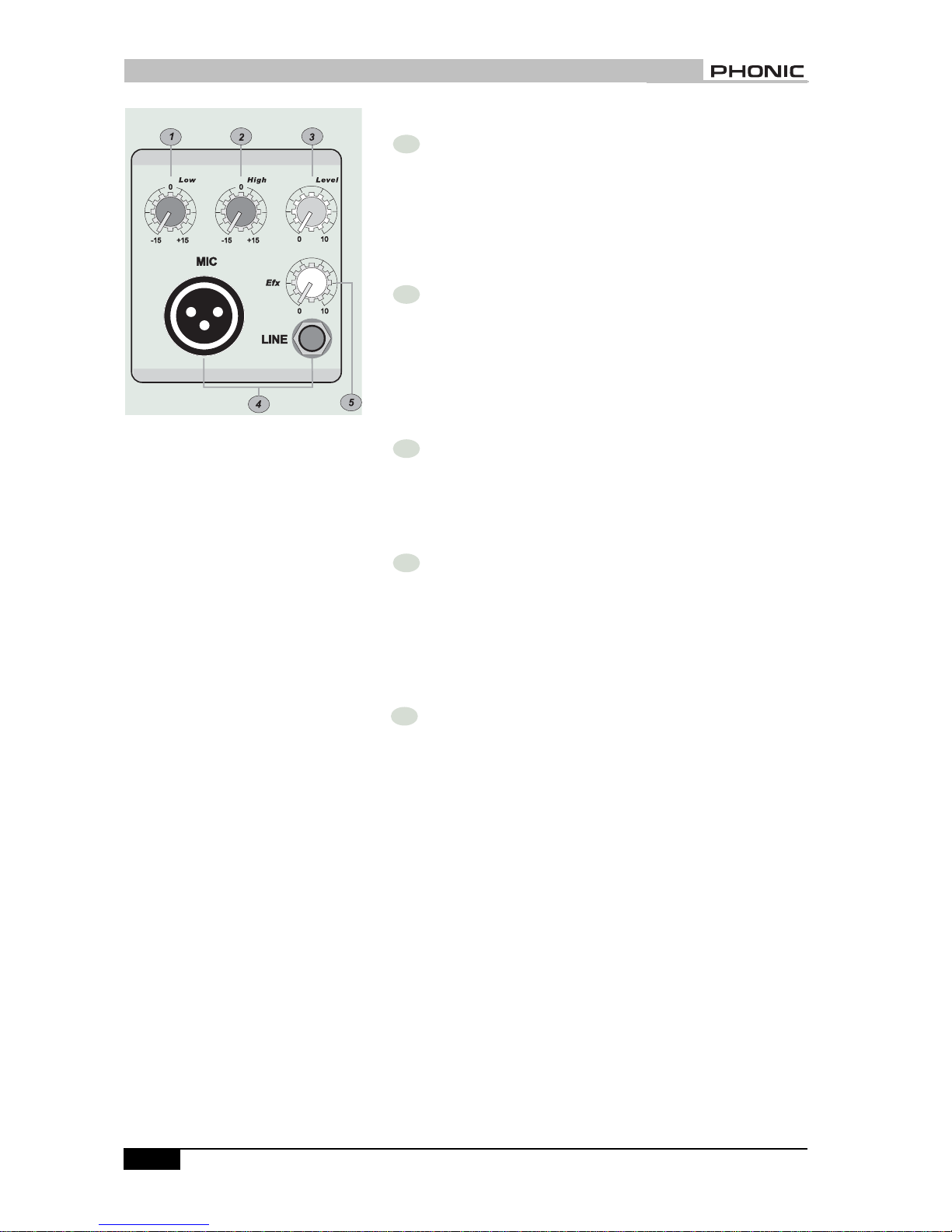

CHANNEL STRIP DESCRIPTION
CHANNEL STRIP DESCRIPTION
1 LOW EQ
The control has shelving response giving 15dB of boost or cut
at 80Hz. Add warmth to vocals or extra punch to guitars, drums
and synths by turning to the right. Turn to the left to reduce stage
rumble, hum or to improve a mushy sound.
2 HIGH EQ
Turn to the right to boost high frequencies, adding crispness to
percussion from drum machines, cymbals and synths. Turn to the
leftto cutthese frequencies,reducing sibilanceor hiss.Thecontrol
has a shelving response giving 15dB of boost or cut at 12kHz.
3 LEVEL CONTROL
The Level Control determines the proportion of the channel sig-
nal in the mix, and provides a clear visual indication of channel
level.
4 MIC & LINE INPUT
The MIC input accepts XLR phone jack while the LINE input
accepts a 1/4
” type phone jack. Please use a low impedance
microphone and a properly wired cable for best results. You can
only use one of the two connectors at the same time.
5 EFFECT
This knob decides the signal level which will be sent to the built-in
digital delay effect control.

POWERPOD408 USER’S MANUAL Page 7
MASTER SECTION DESCRIPTION
6 DIGITAL DELAY
The signal from the input channels, processed
bythe built-in digitaldelay willfeedto themaster
output.Thereare threeknobshere tocontrol the
effect of digital delay.
LEVEL
This knob adjusts the mix level of the effect
sound.
TIME
Thisknob adjusts theinternal time ofthe delays;
turn to the right to increase the interval time be-
tween two delays.
REPEAT
Toincreasethe rate of the delays, turnthis knob
to the right. You will hear the signal repeat at a
faster rate.
7 POWER INDICATOR
When the power switch at the rear panel is
turned on , this indicator will illumnate so the
user may be aware of it.
8 TAPE IN CONTROL
This knob adjusts the level of signal from the
Tape In to the Main bus.
9 MASTER CONTROL
This adjusts the final level of the Main bus. It
controls the Main bus signal which is output to
the speakers.
10 TAPE IN AND REC OUT
TheTAPEINsockets allowcassette recordersor
CD players to be added to the Main output. The
RECORD OUTPUT, with RCA phono sockets,
provides signal output to a cassette deck and
homeaudioequipment.Thenominaloutput level
and impedance are -10dBV/600ohms.
PHONIC CORPORATION
MASTER SECTION DESCRIPTION

POWERPOD408 USER’S MANUAL PHONIC CORPORATION
Page 8
REAR PANEL DESCRIPTION
REAR PANEL DESCRIPTION
11 POWER SWITCH
This switches the powered mixer on and
off. While turn it on, the power on blue LED
indicator will light up on the master section
of front panel.
12 SPEAKER OUTPUT JACKS
Speakers can be connected to these sock-
ets, two speakers can be connected to the
powered mixer. When using 2 speakers at
the same time, use 8~16 ohms speakers.
When using one speaker only, use a 4~8
ohms speaker. The total minimum required
load is 4 ohms. If the total load is less than
4 ohms, it may damage this powered mixer.
13 MAIN OUT / AMP IN
This unbalanced insert point is a break between the main
out and built-in amplifier to allow the main output to be
sent to an external signal processor or power amplifier.
The insert is a 1/4
’ phone jack socket which is normally
bypassed. When a jack is inserted, the signal path is
broken.

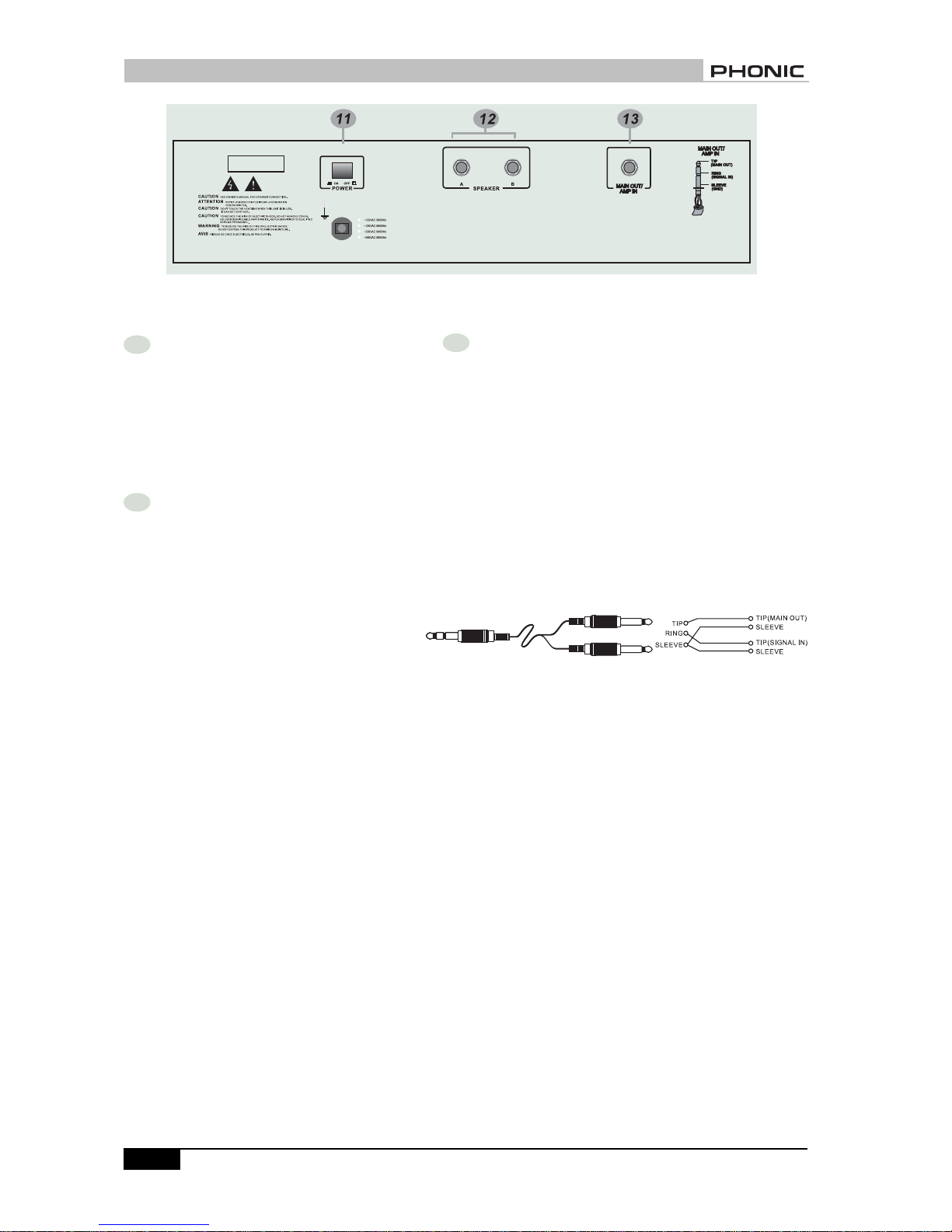

Themain output signal appearson theTIPof the plugand
the external signal is returned on the RING. A “ Y ” lead
may be required to connect to equipment with separate
send and return jacks as shown below:

POWERPOD408 USER’S MANUAL
PHONIC CORPORATION Page 9
APPLICATIONS
APPLICATIONS

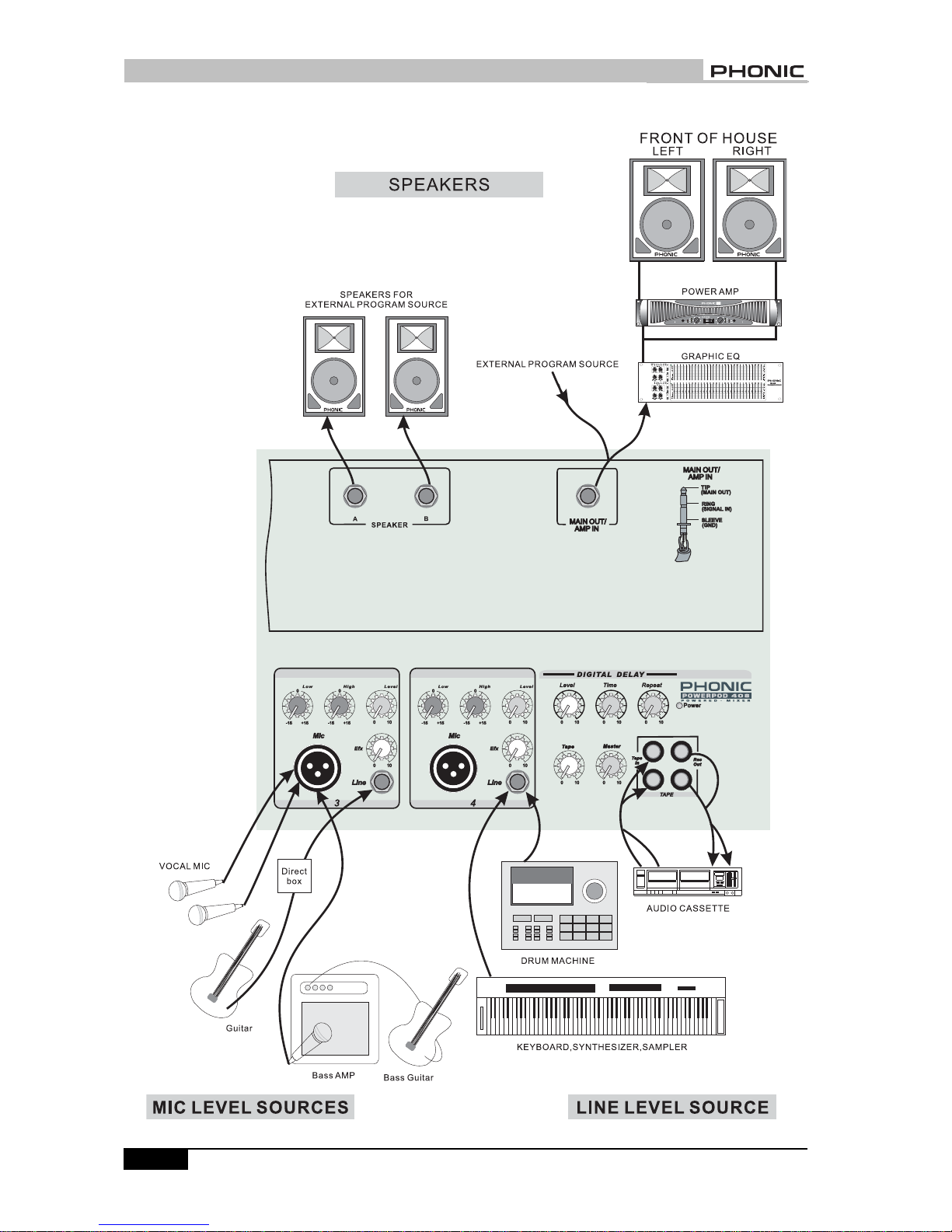

GENERAL APPLICATION

POWERPOD408 USER’S MANUAL PHONIC CORPORATION
Page 10
APPLICATIONS
LIVE BAND WITH ADDITIONAL AMPLIFIER

POWERPOD408 USER’S MANUALPHONIC CORPORATION Page 11
DIMENSIONS

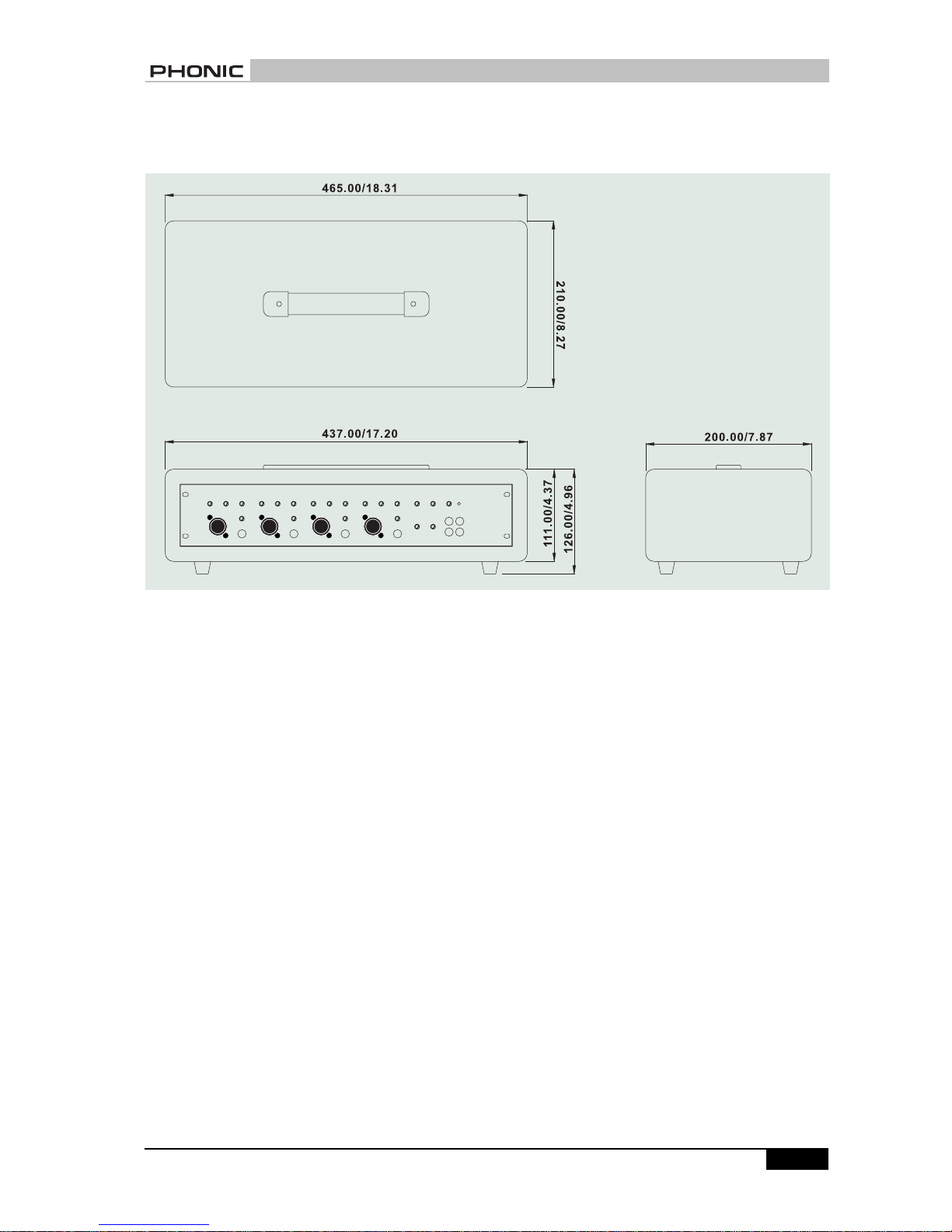

DIMENSIONS
POWERPOD408
Measurements are shown in mm/inch.

POWERPOD408 USER’S MANUAL
Specifications are subject to change without notice.
PHONIC CORPORATIONPage 12
SPECIFICATIONS
SPECIFICATIONS
Powerpod 408
POWER AMP, max. output power in watts
Number of Power channels 1
8Ω52
4Ω80
Inputs
Balanced mono Mic/Line channels 4
2T input 1
Outputs
Main out TRS, unbal.
Channel Strips 4
Volume Controls Rotary
Master Section
Rotary Fader Master
Built-in Digital Effect Digital Delay (2ms-150ms)
Noise (20Hz to 20KHz bandwidth, line inputs to
master output)
Master output, all faders down -86dBu
Power amp output, all faders down -52dBu
THD
Power output, 20Hz to 20KHz @40 watts, 4Ω<1%
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz
bandwidth, channel in to master output)
Channel fader down <-63dB
Frequency Response (Mic input to output)
20Hz ~ 20KHz, line level o/p @ +4dBu into 600Ω+1/-3dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8Ω+1/-3dB
Sensitivity @ mixer output +4dBu
Mic/Line -50dBu/-35dBu
Tape in -6dBu
Channel Equalization 2-band, ±15dB
Low EQ 80Hz
Hi EQ 12KHz
Microphone Preamp E.I.N. (150 ohms
terminated, max. gain) <-122dBm
