Phonic WM40-L User manual

FEATURES
● Operates on a UHF band,
614.175~804.800 MHz (FCC)
614.175-864.800 MHz (CE)
● 16 selectable UHF channels preset
● Internal squelch and mute circuit
mode can resist extraneous noise
● Space-saving integrated compact
module
● Left or Right channel receiver module
to be installed in any Phonic Performer
powered speaker
● Power indicator
● True diversity receiving mode
PRODUCT DESCRIPTION
Insert the wireless receivers into the Ac-
tive Performer Speakers to allow them
to receive signals sent by the wireless
transmitters. These modules should be
inserted and xed into the right hand side
(when facing the rear of the speaker)
compartment at the top of the speaker,
and screwed into place with an M3x4
screw.

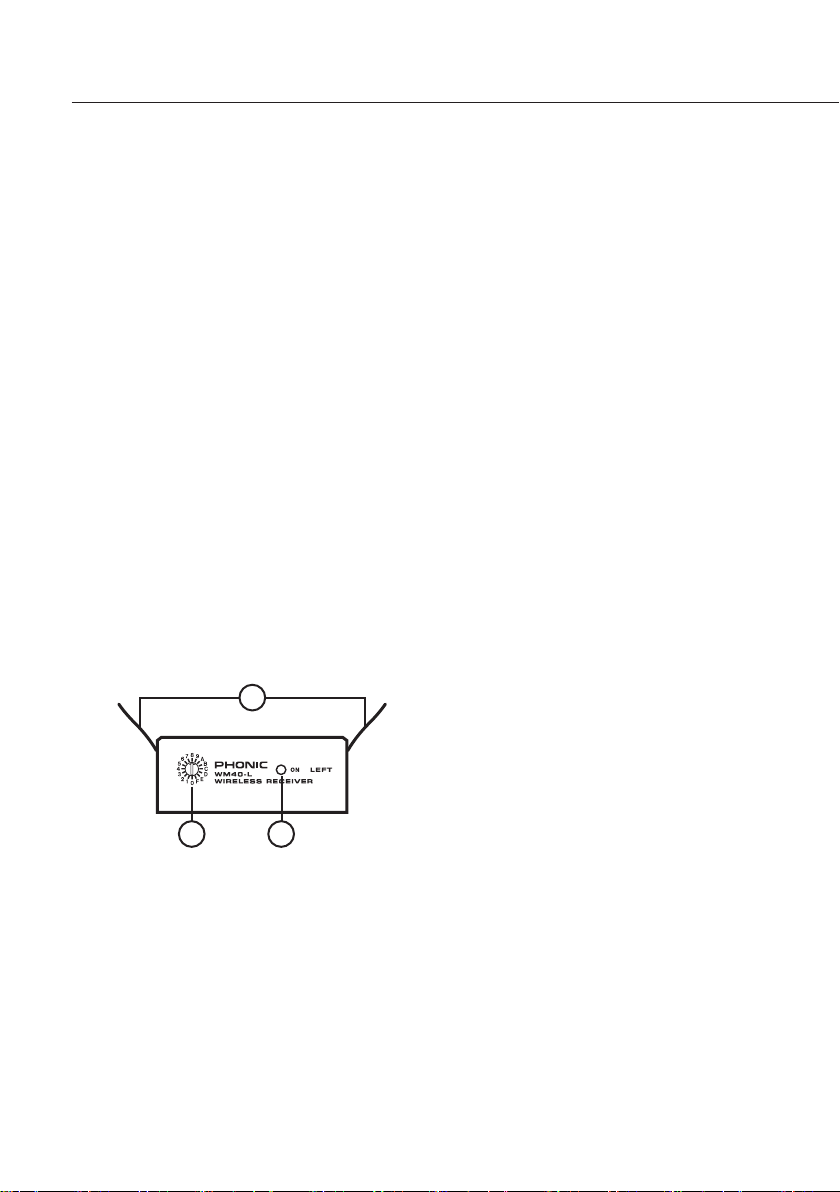

1. Channel Selector – adjusting this
dial to one of the preset channels
allows the WM40 to know which
frequency to look for the wireless in-
formation. The wireless transmitter
should be set to the identical chan-
nel if transmission is to occur suc-
cessfully.
2. On Indicator – this LED indicator il-
luminates when the WM40 Receiver
is powered.
3. Antenna – The wireless receiver’s
antenna comes in the form of 2 small
wires protruding from the casing.
When you insert the module into the
appropriate slot on the Performer
speaker, it is best to sticky-tape the
antennas to either side of the com-
partment wall.
1 2
3
WM40-L and WM40-R
Wireless Receivers For The Performer Speakers

WWW.PHONIC.COM
INSTALLATION
1. Unscrew the module cover (on the
top-right, while facing the rear of the
speaker) on the Performer speaker.
2. Slide the WM40 module into the sock-
et.
3. Use the provided screw to fasten
the WM40 module to the Performer
speaker.
4. Use sticky – tape to attach the 2 an-
tenna wires to the rear-inner wall of
the module slot, ensuring they do not
cross one another. This will allow for
greater quality of reception.
5. Replace the module cover.
IMPORTANT
Whenever using the WM40L or WM40R,
the included short pin should be inserted
into the unused wireless microphone
module slot to enable the wireless mod-
ule to be used.
SPECIFICATIONS
WM40-L and WM40-R
Type : Single Channel Receiver
Preset Channels : 16 Channels
RF Frequency : 614.175~804.800 MHz (FCC)
614.175-864.800 MHz (CE)
Frequency Stability : ±0.005%
S/N Ratio : >100 dB
RF Sensitivity : -100 dBm
Image Rejection : 75 dB
T.H.D. : <0.5% @ 1 kHz
LED Indicator : Power On
AF Output Impedance : 600Ω Unbalanced
Squelch : Pilot Tone & Noise Mute
Operation Voltage : 6 ~ 8 VDC, 500 mA
For more information, please consult the
WM Series User’s Manual.
