PI Manufacturing HDMI-HGWI-200M User manual
PI MANUFACTURING
Powered by Innite Solutions
Wireless HDMI
Extender
HDMI-HGWI-200M Installation Manual
PI Manufacturing, www.pimfg.com
Product FeaturesContents
PI Manufacturing, www.pimfg.com
Important Safety Instructions ............................................................ 3
What’s Included ................................................................................... 4
Overview ........................................................................................... 5
Panel Illustration .............................................................................. 5-6
Setup Instructions ........................................... 7-8
Technical Specications ...................................................................... 9-11
Troubleshooting ........................................................................ 12
FCC ........................................................................ 13
Product FeaturesSafety Information
To ensure your safety and the safety of others, please ensure you read the
safety information before you operate this product.
- Do not use this product in humid or damp conditions.
- Avoid water from getting on / into the product.
- Do not use liquid or aerosol cleaners.
- To clean the product, use a soft, slightly damp cloth.
- The slots and openings on this product are for ventilation purposes. Do
not cover or block them as this could cause overheating.
- There are no user-serviceable parts in this product.
- If servicing is required, always refer to a qualied service technician.
PI Manufacturing, www.pimfg.com 3
PI Manufacturing, www.pimfg.com 4
Product FeaturesWhat’s Included
2 - TX / RX HDMI Extenders 2 - HDMI Cables
2 - IR Emitter / Receiver
2 - 5V 2.5A Power Adapters
1 - User Manual
Product FeaturesOverview
Wirelessly extend HDMI signals up to 656 feet with IR support. The
wireless HDMI extender supports resolutions up to 1080p 60Hz with a
HDMI local loopout included for HDMI display on both the local (transmit-
ter) and remote (receiver) side. Perfect for applications requiring both
sides to be viewed. Built-in USB ports allow an additional keyboard and
mouse to be plugged in for control if necessary. The wireless HDMI
extender features low end to end latency (16ms), and can be used for
various commercial or residential applications faced with wired limita-
tions.
PI Manufacturing, www.pimfg.com 5

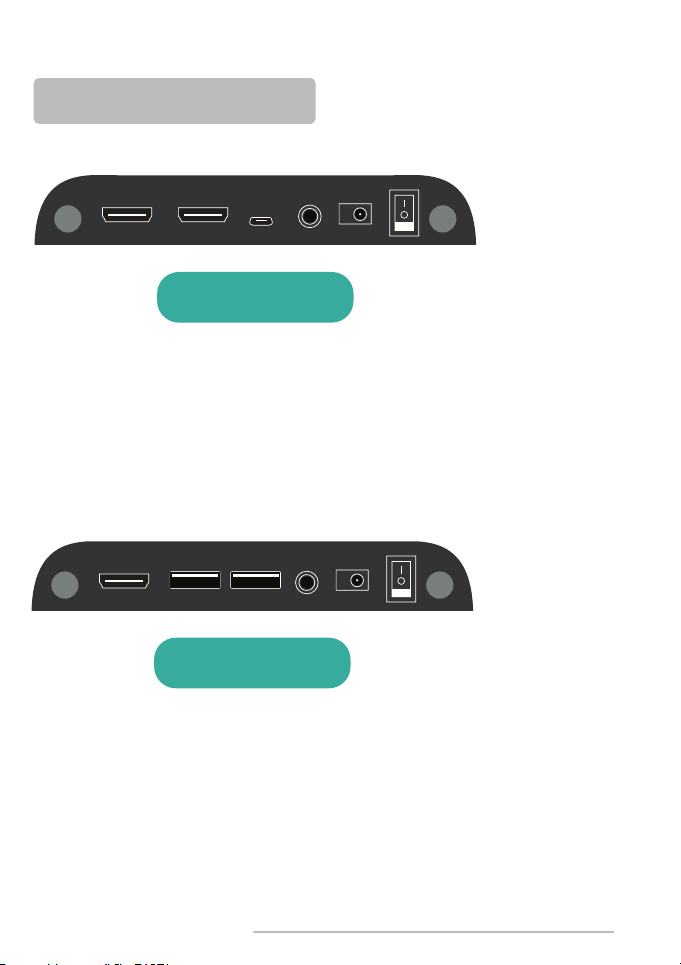

Product FeaturesPanel Illustration
PI Manufacturing, www.pimfg.com 6
Transmitter
1. On/O Switch
2. 5V DC In Power
3. IR (IR emitter)
4. Micro-USB (For connecting keyboard / mouse)
5. HDMI In (HDMI Source)
6. HDMI Out (HDMI Display)
Receiver
1. On/O Switch
2. 5V DC In Power
3. IR (IR receiver)
4. USB (Keyboard or Mouse)
5. USB (Keyboard or Mouse)
6. HDMI Out (HDMI Display)
123456
123456
PI Manufacturing, www.pimfg.com 7

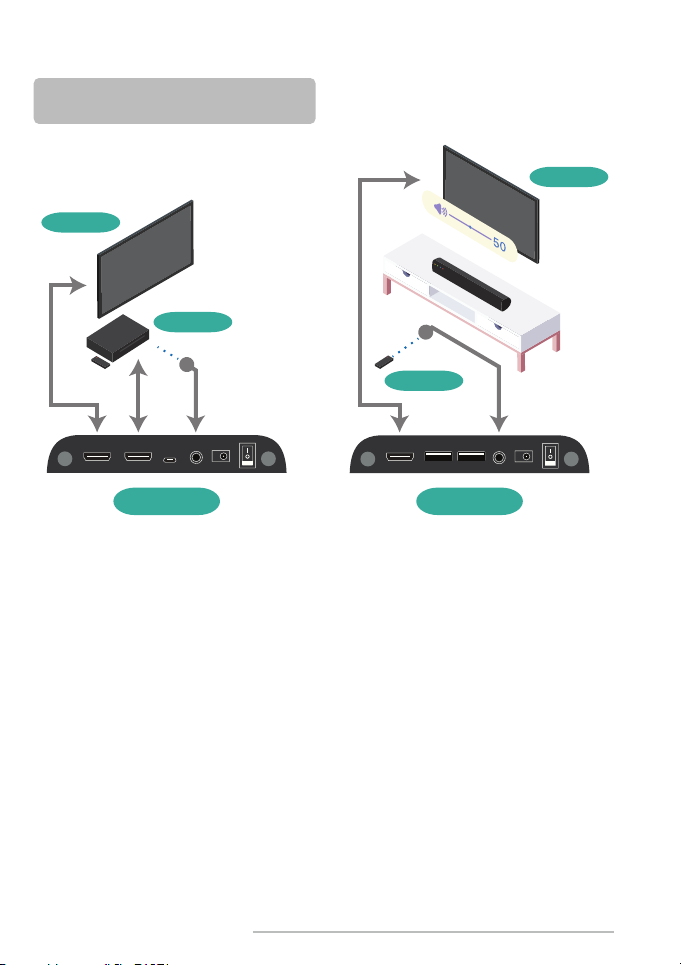

Product FeaturesSetup Instructions
TV
Source
Remote
TV
ReceiverTransmitter
Transmitter
Step 1: Connect the HDMI In to a HDMI source.
Step 2: Connect the HDMI Out to a HDMI display.
Step 3: Connect the IR emitter and point it to the IR window of the HDMI
source.
Step 4. Connect the 5V DC power adapter.
Receiver
Step 5. Connect the HDMI Out to a HDMI display.
Step 6. Connect the IR receiver cable and place it near the television
where you will point the remote control.
Step 7. Connect the 5V DC power adapter.
Step 8. Turn on the power switch on for both the transmitter and receiver.
Product FeaturesSetup Instructions
PI Manufacturing, www.pimfg.com 8
TV
Receiver
Transmitter
Source
TV
Keyboard & Mouse

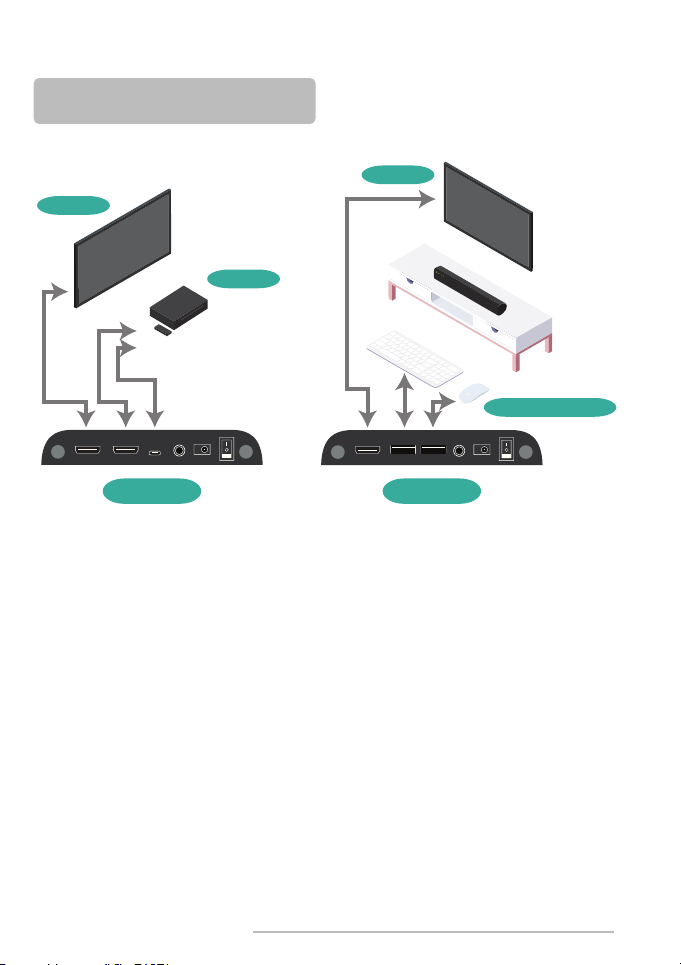

Keyboard / Mouse Control
The HDMI extender includes support for plugging in a USB keyboard /
mouse for control.
Transmitter
Step 1: Plug in a Micro-USB B Male to USB Type A Male cable from the
transmitter to the HDMI source (Note: The source needs to be able to
support USB keyboards / mice).
Receiver
Step 2: Plug in the USB keyboard / mouse on the USB ports
PI Manufacturing, www.pimfg.com 9
Product FeaturesTechnical Specications
Specications
Power Supply
Video Formats
HDCP
Transmit Distance Up to 656ft (200m) at 1080p
(clear line of sight)
1.3
1080p / 50 / 60Hz
1080i / 50 / 60Hz
720p / 50 / 60Hz
576p / 50Hz
576i / 50Hz
480p / 60Hz
480i / 60Hz
5V DC 2.5A
System Latency
IR Frequency
Antenna
16ms
20-60KHz
Detachable external antennas
(5dBi)
Audio format 48/44.1 KHz, 16bit digital audio
PI Manufacturing, www.pimfg.com 10
Product FeaturesTechnical Specications
Specications (Continued)
Operating Temperature
Storage Temperature
Product Dimensions
(L x W x H) 9.5 x 13.9 x 2cm (each)
0°C ~ 40°C (32°F ~ 104°F)
-40°C ~ 70°C (-40°F ~ 158°F)
Enclosure Plastic
Weight 120g (0.26 lbs / each)
LED Indicators
Blue & Red Light (Power)
Orange (Pairing) Blinking orange: Unpaired
Solid orange: Paired
Red light: Power is o or
abnormal
Blue light: Power is on and
detected HDMI input source
Green (WiFi)
Solid green: WiFi working
Flickering green: Data is
transferring
Product FeaturesTechnical Specications
PI Manufacturing, www.pimfg.com 11
Product FeaturesTroubleshooting
PI Manufacturing, www.pimfg.com 12
No Video or Bad Video Connection
- It takes about 45 seconds after powering on the HDMI extender for the
signal to relay correctly on both the TX and RX
- Make sure the HDMI cables are plugged in correctly. HDMI cables are
included in the package. If you are using another HDMI cable, please sure
you use one that includes good shielding to prevent noise
- The HDMI extender uses a 2.4GHz frequency. Avoid interference by
other 2.4GHz wireless devices
- If problems still occur, please restart both the TX and RX
Bad Audio
- The HDMI extender only supports 48/44.1kHz 16-bit digital audio. Make
sure the source device is set to the correct audio standard before use
Short Coverage Distance
- The wireless distance between the TX and RX is up to 200 meters or 656
feet with a clear line of sight. Distance will be shortened if there are too
many interfering signals or when going through concrete walls
IR Blaster is not Working
- Use the original remote control that came with your source device
- Make sure the IR emitter is pointed at the IR window of the source
device
- The distance from the IR receiver to the remote control should be within
5 meters
- The IR cables are based on a 20-60kHz frequency. This should support
most IR remote controls in the market
USB Keyboard / Mouse not Working
- Make sure the TX side is connected via a Micro-USB to USB Type A cable
Product FeaturesFCC
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interfer-
ence that may cause undesired operation.
To comply with FCC RF exposure compliance requirements, this grant is
applicable to only mobile congurations. The antennas used for this
transmitter must be installed to provide a separation distance of at least
20 cm from all persons and must not be colocated or operating in
conjunction with any other antenna or transmitter.
PI Manufacturing, www.pimfg.com 13
