Piczel 5170 User manual

16 Channel Multiplexed DVR
Model 5170
Owner’s Manual
15540 Herriman Blvd. Noblesville, IN 46060 -Customer Support 1-800-774-0284
www.piczel.com

2
Table of Contents
1.Introduction
1-1Safety Warning …………………………………………………………………………………
1-2Features ………………………………………………………………………………………….
1-3 Specifications …………………………………………………………………………………..
2.Installation
2-1 Package contents ……………………………………………………………………………….
2-2 Connection ………………………………………………………………………………….….
2-3 Rack mount installation …………………………………………………………….………….
2-4 RS232 /RS485 Remote protocol …………………………………………………………….…
3.Configuration
3-1 Install HDD …………………………………………………………………………………….…
3-2 Front panel keypad …………………………………………………………………………….
3-3 Back panel connection ………………………………………………………………………….
3-4 Menu setup ……………………………………………………………………………………….
3-5 System setup …………………………………………………………………………………….
3-6Search setup …………………………………………………………………………………..
3-7 Timer setup (Schedule Time-Lapse record mode setup)………………………………….…
3-8 Record Setup ………………………………………………….………………………….…. .
3-9 Camera setup ……….……………………………………………………………………….….
3-10 Motion Detection setup …………….…………………………………………………….…
3-11 Event ……………………………………………………………………………………….….
4.Operation
4-1 Power on …………………………………………………………………………………………
4-2 Recording ………………………………………………………………………………………..
4-3 Camera Select (1-16) ……….. ……………………………………………………………….….
4-4 Select…….………………………………………………………………………………………..
4-5Picture in Picture……….………………………….……………………………………………..
4-6 Zoom ………………………………………………………………………………………………
4-7 Play ……………………………………………………………………………………………….
4-8 Video Loss ……………………………………………………………………………………….
4-9 Key Lock …………………………………………………………………………………………….
5.Trouble shooting & appendix
5-1 Trouble shooting …………………………………………………………………………………
5-2 Compatible HDD brands …………………………………………………………………..…..
3
4
5
6
6
7
8
9
11
13
19
19
25
27
29
31
33
36
37
37
38
38
39
39
39
40
40
41
42

3
1. Introduction
Thank you for choosing this high quality Digital Multiplex Recorder. The DMR converts analog
NTSC or PAL video to digital images and records them to a removable hard disk drive. Digitally
recorded video has many advantages compared to analog video recorded on tape. There is no
need to adjust tracking. Digital video can be indexed by time schedule or events, and you can
instantly view video after selecting the time or event. You can freeze frames, fast-forward, fast-
reverse, slow-forward, and slow-reverse without image streaking or tearing. It can be used as a
replacement for both a time-lapse VCR and a multiplexer in a security installation.
1.1 Safety Warning
All the safety and operating guidelines should be read prior to operation. Improper
operation may cause permanent damage to the unit.
1.1.1 Use the provided adaptor.
1.1.2 Lift and place this equipment gently.
1.1.3 Do not expose this equipment to open sunlight.
1.1.4 Do not use this equipment near water or in contact with water.
1.1.5 Do not spill liquid of any kind on the equipment.
1.1.6 Power down the unit before unplugging.
1.1.7 This equipment should be operated only with the power source from the standard
package.
1.1.8 Unauthorized repairsor part substitutions may result in fire, electric shock or other
hazards.
1.1.9 Do not switch the Power On & Off within a short period oftime (within 3 seconds).
1.1.10 Do not attempt to service this equipment yourself. Refer all servicing and repair to
qualified service personnel.
1.1.11 This unit should be operated only from the power source indicated on the manufacturer’s
label.
1.1.12 Installation should be made by qualified service personnel and should conform to all
local safety codes and regulations.

4
Full Screen Quad 7CH 9CH 10 CH 13 CH 16 CH
1.2 Features
1.2.1 Wavelet Compression Format replaces Time-Lapse VCR +Multiplexer
1.2.2 Four Audio inputs / Two Audio outputs
1.2.3 On Screen Display and RTC (Real time clock) Function
1.2.4 Multiplexing
??Support from 4 channels up to 7, 9, 10, 13 and 16 channels.
??
16 channels can record or display real-time recorded images.
??16 channelswith a loop out terminal.
1.2.5 Resolution
Screen Modes Resolution
Full screen 704(H) x 468(V) <NTSC> / 704(H) x 564(V) <PAL>
4 channels 352(H) x 234(V) <NTSC> / 352(H) x 282(V) <PAL>
9 channels 224(H) x 156(V) <NTSC> / 224(H) x 188(V) <PAL>
16 channels 176(H) x 117(V) <NTSC> / 176(H) x 141(V) <PAL>
1.2.6 Independent main and call monitor outputs allow simultaneous multi-camera or
full screen viewing.
1.2.7 Multi Screen Display Mode
??Shown below are optional display modes during surveillance & DMR play back:
1.2.8 Picture-In-Picture (PIP) is available in live and DMR playback modes. Offers Zoom
capability up to 2 X 2 in live and DMR playback modes
1.2.9 16 channels are swappable and each channel has an independent title generator (up to
6 characters).
1.2.10Motion detection uses 15x12 target (NTSC) or 15x14 target (PAL) motion detection grids
for each video channel.
1.2.11Video Quality Adjustable on Each Channel
1.2.12Alarm Input Function & Output Function
1.2.1316 channel alarm input, ALARM display and one alarm output.
1.2.14Power-loss memory function: set up parameter will remain, in case of power failure.
1.2.15Call Monitor: Switch Display
1.2.16Support 2 Removable HDD, IDE Type
1.2.17Timer: Schedule recording
1.2.18Display refresh rate up to 72 IPS (60 IPS for PAL)
1.2.19Record refresh rate up to 25 IPS (18 IPS for PAL)
1.2.20Quick Multiple Search by date/time, alarm and full list
1.2.21Fast and slow playback in multiple speeds.
1.2.22Security password protection
1.2.23RS-232 and RS-485 communication protocol

5
1.3 Specifications DMS-MBR 1.0
Video format NTSC/EIA or PAL/CCIR
Hard disk storage IDE type, UTMA 66 above, 2 removable HDDssupported
Record mode Manual / Alarm / Timer
Camera Input Signal Compositevideo signal 1 Vp-p 75OBNC, 16 channels
Camera Loop Back Composite video signal 1 Vp-p 75OBNC, 16 channels
Main Monitor Output Composite video signal 1 Vp-p 75OBNC
Call Monitor OutputComposite video signal 1 Vp-p 75OBNC
Audio input 4audio inputs, (RCA)
Audio output 2 audio outputs, (RCA)
Motion Detect Area 15 * 12 targets per camera (NTSC) / 15 * 14 targets per camera (PAL)
Motion Detect Sensitivity 256 Levels
Video Loss Detection Yes
Refresh Rate 72 images/sec. for NTSC / 60 images/sec. for PAL
Recording Rate 25images/sec. for NTSC / 18images/sec. for PAL
Dwell Time Programmable (1~10 Sec)
Picture in Picture Yes (Movable)
Key Lock Yes
Picture Zoom 2*2 (Movable)
Camera Title 6letters
Video Adjustable Color/ Contrast/ BrightnessAdjustable
Alarm Input TTL input, Hi (5V), Low (GND)
Alarm Output N.O. (Normally Open)24 Volt / 2 Amp Max Load
Remote Control RS-232 or RS-485
Time Display Format YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF
Power Source AC100~240V +10% switching adaptor
Power Consumption <45W
Operation Temperature 10 ~ 40?
RS-232C / RS-485 (bps) 115200?57600?19200?9600?4800?3600?2400?1200
Dimension (mm) 432(W) x 110(H) x 325(D)
Net Weight 5.7 kgs
Specifications are subject to change without notice.

6
2. Installation
2.1 Package contents
The package contains the following items.
??Digital Multiplex Recorder
??HDD cartridge
??Key for cartridge (Inside of HDD cartridge)
??Power cord
??User manual
??Rack mounting kit (Optional)
2.2 Connection
2.2.1 Connect with cameras
Alarm Input
Video Camera
16 ....
Main Monitor
2 1
RS232
PC
Sensor
Alarm
Call Monitor
.. . .
AUDIO
(4 CHANNEL)

7

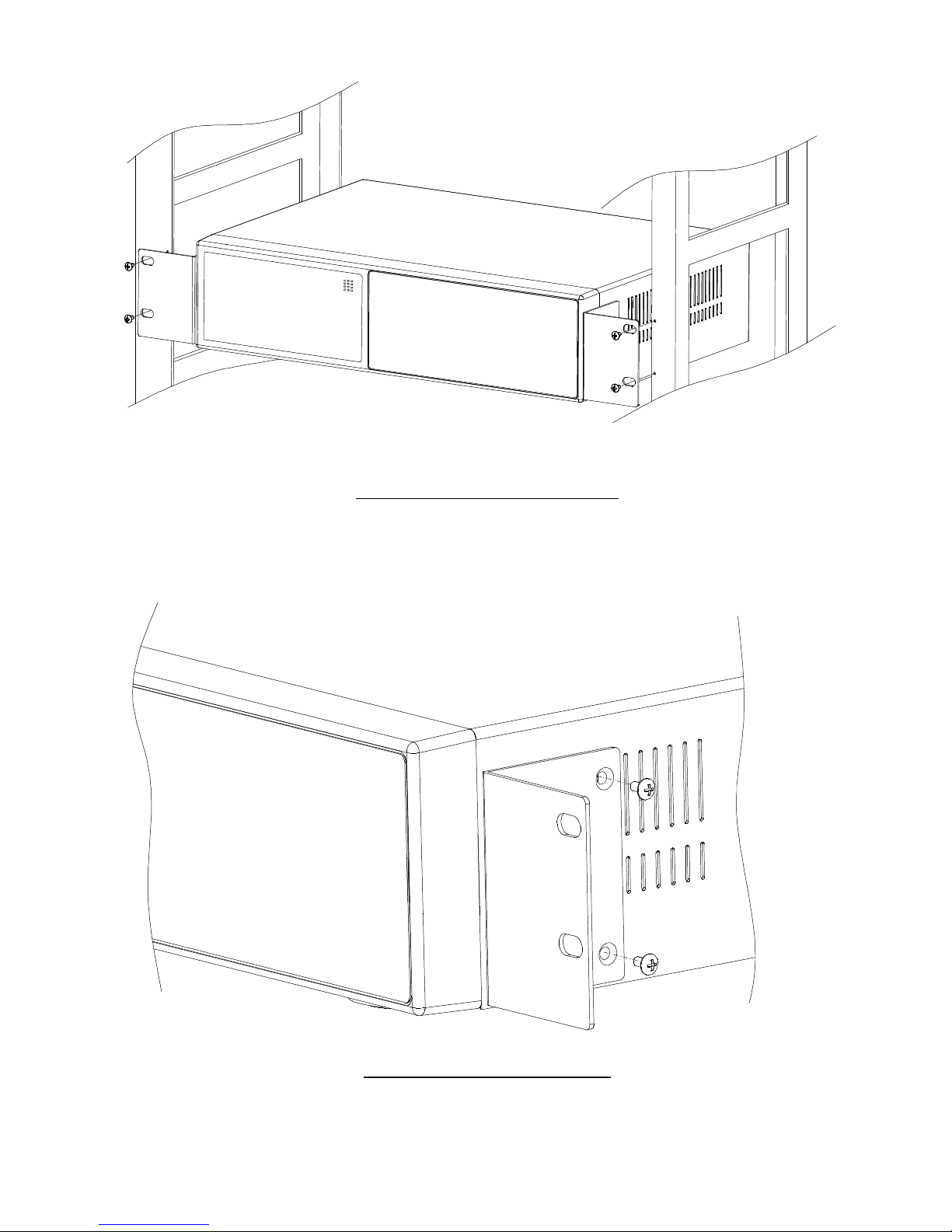

2.3 Rack mount installation
Front Angle with Rack Mount
Side View with Rack Mount

8

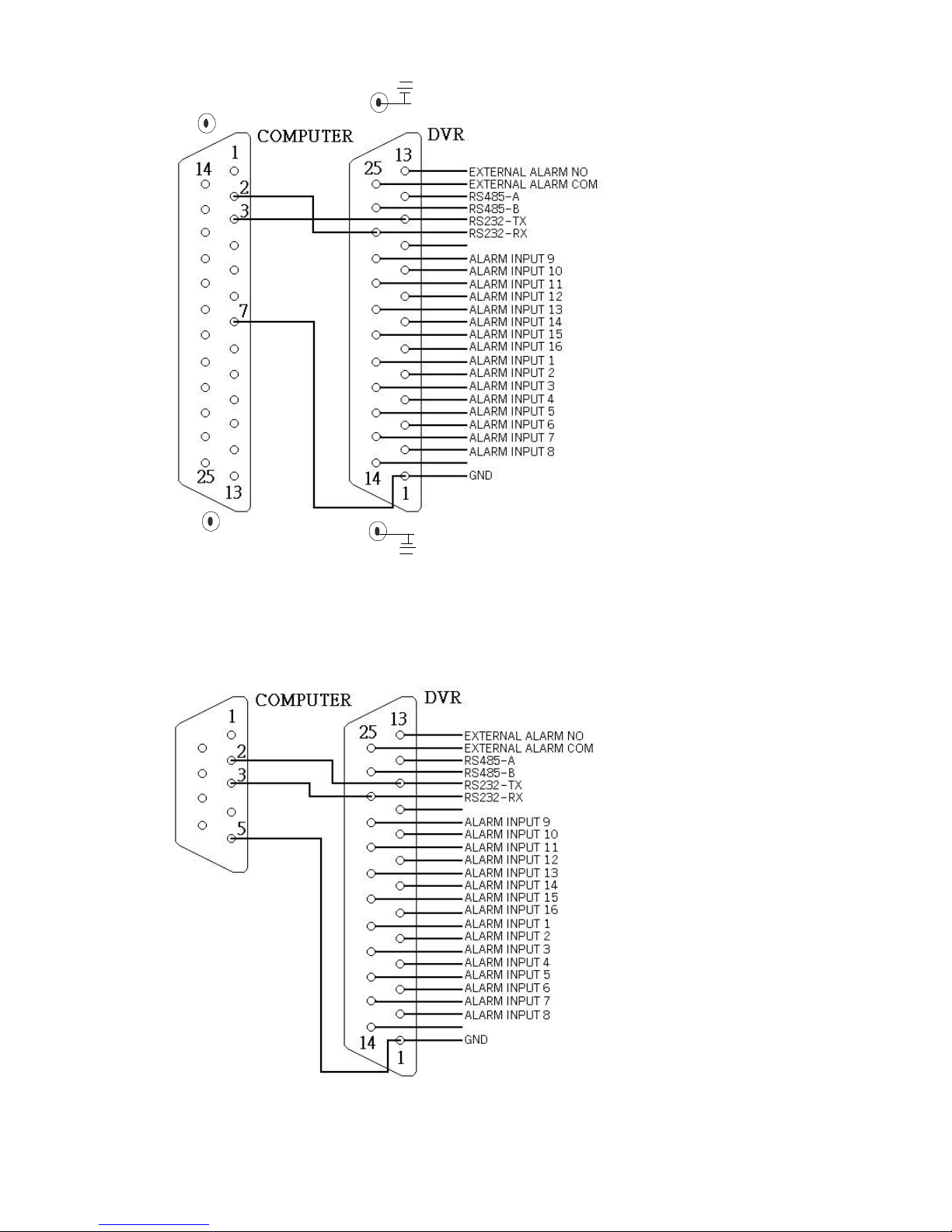

2.4 RS232 Remote Protocol
You can use a PC keyboard to simulate a DMR keypad.
DATA: REMOTE PROTOCOL using 8 bit data?1 start bit?1stop bit
ACT C0HID FUNCTION STOP
(FFH) (7FH)
FUNCTION CODE ASCII FUNCTION CODE ASCII
KEY_MENU 0x4D MKEY_CH1 0x31 1
KEY_SELECT 0x73 sKEY_CH2 0x32 2
KEY_ENTER 0x0D ENTER KEY_CH3 0x33 3
KEY_4CUT 0x61 aKEY_CH4 0x34 4
KEY_ZOOM 0x5A ZKEY_CH5 0x35 5
KEY_9CUT 0x62 bKEY_CH6 0x36 6
KEY_PIP 0x70 pKEY_CH7 0x37 7
KEY_16CUT 0x63 cKEY_CH8 0x38 8
KEY_SLOW 0x53 SKEY_CH9 0x39 9
KEY_REC 0x72 rKEY_CH10 0x41 A
KEY_LEFT 0x4C LKEY_CH11 0x42 B
KEY_UP 0x55 UKEY_CH12 0x43 C
KEY_PLAY 0x50 PKEY_CH13 0x44 D
KEY_DOWN 0x4E NKEY_CH14 0x45 E
KEY_RIGHT 0x52 RKEY_CH15 0x46 F
KEY_POWER 0x57 WKEY_CH16 0x47 G
KEY_KEY_LOCK 0x4B K
3. Configuration

9
3.1 Installing the HDD
3.1.1 Installing Hard Drive into Cartridge
3.1.1.1. Please find the drawer Key in the extra tray.
3.1.1.2. Push the front cover of the HDD cartridge back and use the miniature key
provided and insert into the keyhole, turning the key counter-clockwise.
3.1.1.3. Pull the handle outwards to remove the tray from the cartridge frame.
3.1.1.4. Push the open button to slide the top cover backwards and remove.
3.1.1.5. Insert the DC power cable and IDE cable into the HDD.
3.1.1.6. Position the HDD into the carrier body and secure the HDD with the four
#6/32 screws provided.
3.1.1.7. Slide the top cover back over the tray by sliding it forward to secure.
3.1.1.8. Slide the tray back into the cartridge frame.
3.1.2 Function Settings and Operation
3.1.2.1 Power Indicator and HDD Access indicator
When power is on, the indicator will display the following:
3.1.3 Key lock
Status
Segment
Power
status
Security status
AON Locked (Irremovable)
BOFF Unlocked (Removable)
You must turn the key lock to the “A ”position before powering on the unit. Otherwise
the HDD will not operate properly.
3.1.4 If two HDDs are to be used, one should be selected as “ Master “ and the other should be
selected as “ Slave”. Otherwise, please set the jumpers on the two HDDs to Cable Select
(CS).
3.1.1.1 This product does not support hot swap. Please power off the unit first before
removing the HDD.
3.1.1.2 The models and manufactures of the HDDslisted in the back of this manual have
been tested and proven compatible with this unit.
3.1.1.3 Please remove the hard disk drive ONLY after the power has been shut off for
more than 60 seconds. This will protect and extend the operating life of the hard disk
drive.
3.1.1.4 Master or Slave HDD should be determined before installing new HDD(s).
3.1.1.5 Cable Select (CS) is recommended for the jumper on the back of the new HDD.
Item Indicator
Power Indicator Green LED
HDD Access Indicator Yellow LED
A
B

10
3.1.4Total recording time varies depending on Record Speed,Record Quality, and size of HDD
selected.
Please refer to following table.
NTSC SYSTEM
IPS 25A15 8421
Best 48hr 96hr 180hr 360hr 720hr 1440hr
High 60hr 120hr 226hr 450hr 900hr 1800hr
Normal
96hr 192hr 360hr 720hr 1440hr 2880hr
Record
Quality
Basic 160hr 320hr 600hr 1200hr 2400hr 4800hr
HDD Type 240GB
PAL SYSTEM
IPS 18A 12 6321
Best 48hr 100hr 202hr 406hr 608hr 1216hr
High 60hr 126hr 254hr 506hr 760hr 1520hr
Normal
98hr 202hr 406hr 810hr 1216hr 2440hr
Record
Quality
Basic 162hr 336hr 676hr 1350hr 2026hr 4050hr
HDD Type 240GB
Note: Above data is from actual test data obtained from recording a normal TV program.
(Reference only)

11

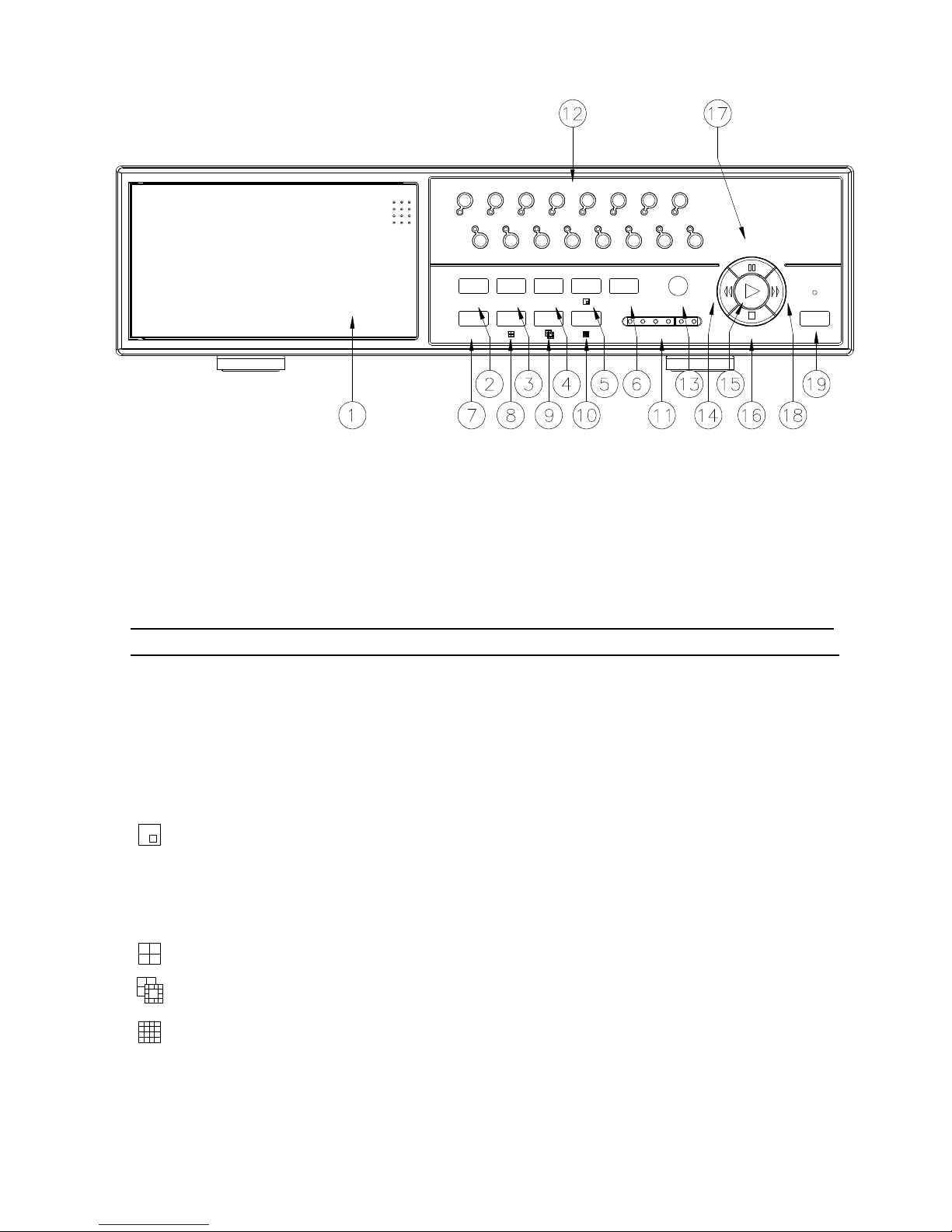

3.2 Front panel keypad
REC
SELECT
MENU
ENTER
ZOOM SLOW
ALARM
HDD
Full
HDD
TIMER
PLAY
REC
Down
Left
Right
POWER
16
7
2 4 6
15 3
810 12 14
911 13 15
Up
Please follow the instructionsbelow for proper operation of this unit.
1. Install HDD
This device comes equipped with a removable hard disk drivetray.Before turning on this
device, you must install the hard disk drive(unless already included), and prepare it for
operation.
If two HDDs are to be set up, one should be selected as “Master”and the other should be
selected as “Slave”. Otherwise, please set the jumpers on both HDDs to Cable Select (CS).
2. MENU:Press MENU to enter main menu operation mode, and enter administrator password
(default:0000) to access main menu.
3. ENTER:Press ENTER for confirmation.
4. ZOOM:Press the ZOOM button to enlarge the main monitor picture display.
5. :Picture in Picture. Press PIP button to enter PIP display screen.
6. SLOW: Press SLOW to slow down speed of play mode.
7. Select: Press Select to choose the camera (1~16) to display in full screen mode.
8. :4 channel display mode
9. :7, 9, 10, and 13 channel display mode
10. :16 channel display mode
11. LED Light: Under the following conditions, the LED Light remains ON.
(1) HDD:HDD is activated
(2) HDD Full:HDD is full

12
(3) ALARM:When Alarm is Enabled: Yes (when the alarm is triggered, the led flashes)
(4) TIMER:When Timer is Enabled: Yes
(5) PLAY:Play operation
(6) REC:Recording operation
12. CAMERA (1-16): Press the Camera Select (1-16) to choose a camera.
13. REC: PressREC to start recording.
14. REW / Left:
REW: Under DMR play mode, it can play video backwards at a high speed. Press REW again
to select the speed (1x, 2x, 4x, 8x, 16x, 32x).
Left: Under setup mode, it works as the Left button.
15. PLAY: Press PLAY to play recorded video.
16. STOP / Down:
STOP: Under DMR Record/Play mode, it stops recording and playing video.
Down: Under setup mode, it works as the Down button.
17. PAUSE / Up:
Pause: Under DMR play mode, it pauses played video.
Up: Under setup mode, it works as the Up button.
18. FF / Right:
FF: Under DMR play mode, it plays video forward at a high speed. Press FF again to select the
speed (1x, 2x, 4x, 8x, 16x, 32x).
Right: Under setup mode, it works as the Right button.
19. POWER: To power on,press the power button.
To power off, press the power button again.
Note: After 60 seconds of suspended operation, the function setup will be turned off automatically.

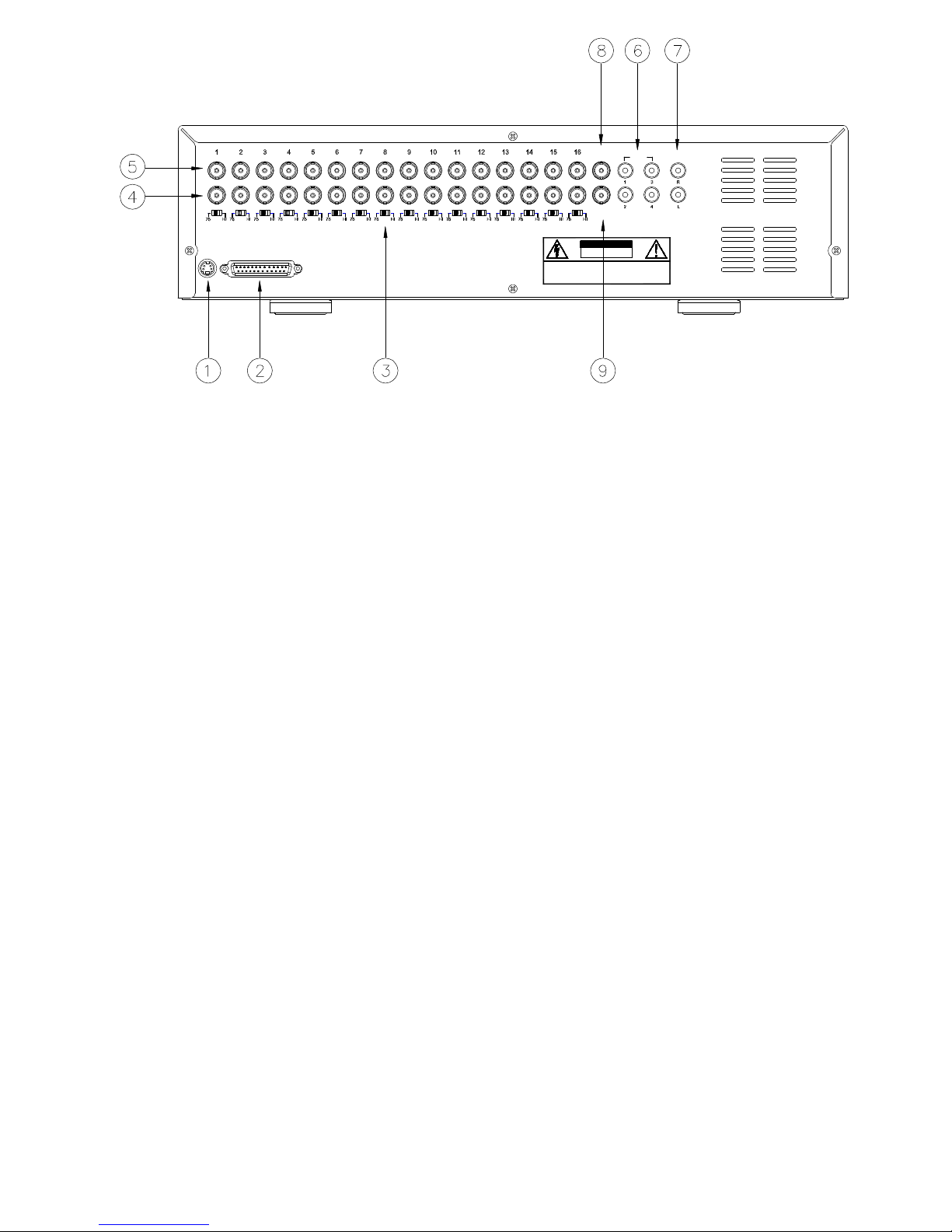

3.3 Back panel connection

13
LOOP
EXTERNAL I/OPOWER
INPUT
WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NOUSER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IN
CALL
AUDIO
MONITOR OUT
AUDIO
3.3.1 Power input
Please use only the provided power adaptor.
3.3.2 External I/O
Controlled remotely by an external device or control system.
Alarm input, external I/I explanation.
3.3.3 75 / HI
When using the Loop function, please switch to HI or 75 (Ohm).
3.3.4 VIDEO INPUT (1-16)
Connectsto a video source, such as acamera.
3.3.5 Loop
Outputs the video signal from that channel to another device if needed.
3.3.6 AUDIO IN (1-4)
Connectsto an audio source, such as a microphone.
* IPS (Record Menu –Images Per Second) should be set to 25A (for NTSC) or 18A (for PAL)
3.3.7 AUDIO OUT (R/L)
Connectsto a monitor or speaker.
* IPS should be set to 25A (for NTSC) or 18A (for PAL)
3.3.8 MONITOR
Connectsto a Main monitor.
3.3.9 CALL
3.3.10 Connectsto a CALL monitor. Show the Switch Display.
3.3.9 External I/O

14
25 pin com port
9 pin com port
PIN 1. GND

15
GROUND
PIN 2. ALARM INPUT 8
Connect a wire from ALARM INPUT 8 (PIN 2) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate.
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”, the unit
starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 3. ALARM INPUT 6
Connect a wire from ALARM INPUT 6 (PIN 3) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 4. ALARM INPUT 4
Connect a wire from ALARM INPUT 4 (PIN 4) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate.
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 5. ALARM INPUT 2
Connect a wire from ALARM INPUT 2 (PIN 5) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 6. ALARM INPUT 16
Connect a wire from ALARM INPUT 16 (PIN 6) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,

16
the unit starts to record and the buzzer will activate.
PIN 7. ALARM INPUT 14
Connect a wire from ALARM INPUT 14 (PIN 7) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 8. ALARM INPUT 12
Connect a wire from ALARM INPUT 12 (PIN 8) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate.
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 9. ALARM INPUT 10
Connect a wire from ALARM INPUT 10 (PIN 9) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 10. No Connection
PIN 11. RS232-TX
DMR can be controlled remotely by an external device or control system, such as a
control keyboard, using RS-232 serial communications signals.
PIN 12. RS485-A
DMR can be controlled remotely by an external device or control system, such as a
control keyboard, using RS485 serial communications signals.
PIN 13. EXTERNAL ALARM NO (Normally Open)
Under normal operation COM is not connected to NO. When an alarm is triggered,
COM connectswith NO for triggering recommended low voltage accessories.
(Dry relay contact = 24 Volt / 2 Amp Load)
PIN 14. No connection

17
PIN 15. ALARM INPUT 7
Connect a wire from ALARM INPUT 7 (PIN 15) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 16. ALARM INPUT 5
Connect a wire from ALARM INPUT 5 (PIN 16) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 17. ALARM INPUT 3
Connect a wire from ALARM INPUT 3 (PIN 17) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to“High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 18. ALARM INPUT 1
Connect a wire from ALARM INPUT 1 (PIN 18) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 19. ALARM INPUT 15
Connect a wire from ALARM INPUT 15 (PIN 19) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,

18
the unit starts to record and the buzzer will activate.
PIN 20. ALARM INPUT 13
Connect a wire from ALARM INPUT 13 (PIN 20) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 21. ALARM INPUT 11
Connect a wire from ALARM INPUT 11 (PIN 21) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 22. ALARM INPUT 9
Connect a wire from ALARM INPUT 9 (PIN 22) to GND (PIN 1) connector, DMR will
start recording and the buzzer will activate. .
Menu/ Camera/ Alarm is set to “Low”: When the alarm input signal is “Low”,
the unit starts to record and the buzzer will activate.
Menu/ Camera/ Alarm is set to “High”: When the alarm input signal is “High”,
the unit starts to record and the buzzer will activate.
PIN 23. RS232-RX
A DMR can be controlled remotely by an external device or control system, such as a
control keyboard, using RS-232 serial communications signals.
PIN 24. RS485-B
A DMR can be controlled remotely by an external device or control system, such as a
control keyboard, using RS485 serial communications signals.
PIN 25. EXTERNAL ALARM COM (Common)
Under normal operation COM is not connected to NO. When an alarm is triggered,
COM connectswith NO for triggering recommended low voltage accessories.
(Dry relay contact = 24 Volt / 2 Amp Load)
3.4 Menu setup

19
Press ”MENU” to enter the main menu. You will
need to enter apassword to access the main
menu. Press “Right”or “Left”to move digits.
Then press “Up”or “Down”to select a number.
Press the “ENTER” button to confirm the
password.
Ex.: Password:0000 (Default: 0000)
PASSWORD: 0000
After keying in the correct password, and
confirming it by pressing the “ENTER” button.
The screen on the right will be displayed:
SEARCH ------- Find Recordings
TIMER ------- Schedule Recording Times
RECORD------- Record Mode Setup
CAMERA ------- Camera Channel Setup
SYSTEM ------- System Setup
EVENT -------- Event List
(MENU)
? SEARCH
TIMER
RECORD
CAMERA
SYSTEM
EVENT
*To understand the proper operation of this unit, we must start with an introduction to
System setup.
3.5 System setup
Press ”MENU” to enter the main menu. You will
need to enter the password to access the main
menu. Press “Right”or “Left”to move digits.
Then press “Up”or “Down”to select a number.
Press the “ENTER” button to confirm the
password.
Ex.: PASSWORD: 0000 (Default: 0000)
PASSWORD: 0000
After keying in the correct password, and
confirming it by pressing the “ENTER” button.
The screen on the right will be displayed:
SEARCH ------- Find Recordings
TIMER ------- Schedule Recording Times
RECORD------- Record Mode Setup
CAMERA ------- Camera Channel Setup
SYSTEM ------- System Setup
EVENT -------- Event List
(MENU)
? SEARCH
TIMER
RECORD
CAMERA
SYSTEM
EVENT

20
Press ”Up”or “Down”to select SYSTEM
setup
SEARCH
TIMER
RECORD
CAMERA
?SYSTEM
EVENT
(Menu)
SEARCH
TIMER
RECORD
CAMERA
?SYSTEM
EVENT
Press ”ENTER”to confirm SYSTEM setup, and the screen will display the following options.
(SYSTEM)
?
AUDIO INPUT: 1
INT AUDIBLE ALARM: ON
EXT AUDIBLE ALARM: ON
ALARM DURATION: 10 SEC
DWELL TIME: 02 SEC
MESSAGE LATCH: NO
TITLE DISPLAY:ON
TIME DISPLAY: Y/M/D
2003-JAN-02(THU) 17:37:09
NEW PASSWORD: XXXX
CLEAR HDD: MASTER
SYSTEM RESET: NO
REMOTE MODE: RS-232
BAUD RATE: 9600
REMOTE ID: 000
3.5.1 AUDIO INPUT setup:
This feature allows the user to set the AUDIO INPUT.
The user can choose 1 of 4 channels to record.
3.5.1.1 Press ”Up” or “Down” to choose AUDIO INPUT:
3.5.1.2 Press the ”ENTER”button to confirm AUDIO INPUT:
3.5.1.3 Press ”Up” or “Down” to choose theAUDIO INPUT: 1~4
3.5.1.4 Press ”MENU”to exit and confirm current operation.
3.5.1.5 Press ”MENU”again to exit SYSTEM setup mode.
