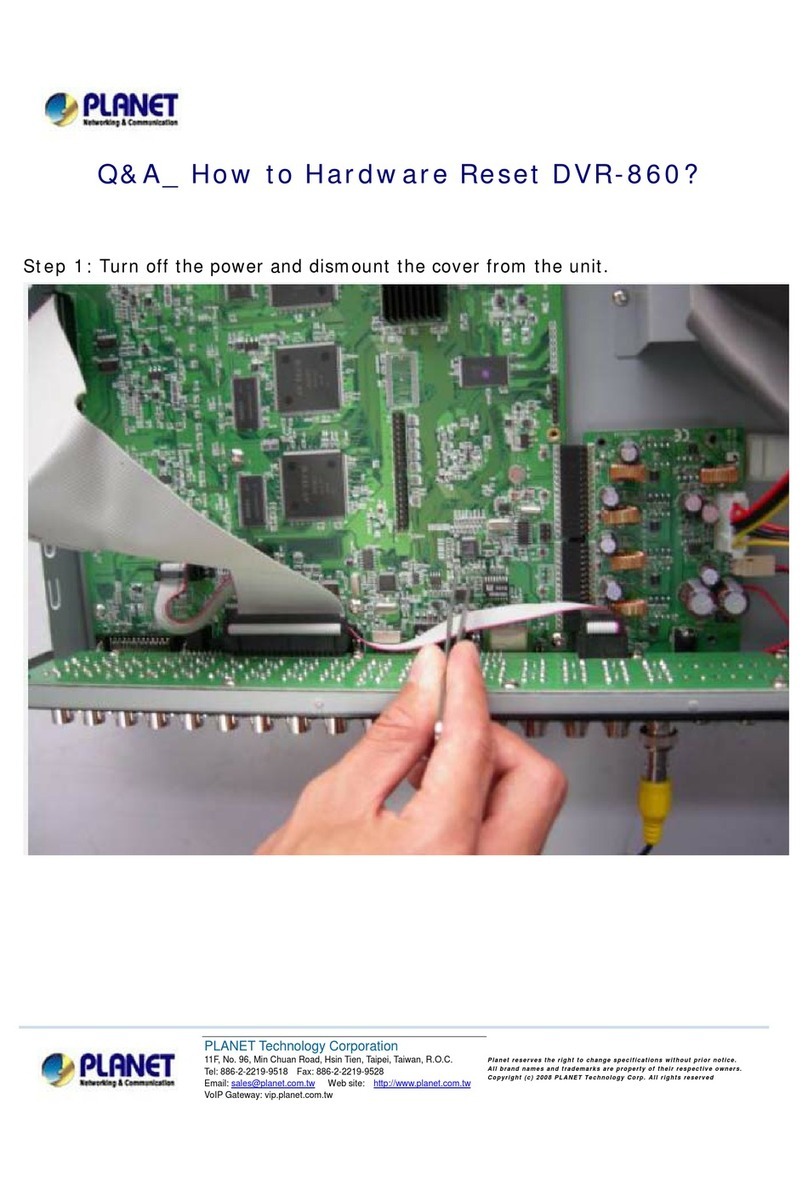

Planet DVR-860 User manual

8-Channel MPEG-4 Digital Video Recorder
Key Feature
Data Sheet
1
PLANET DVR-860, 8-Channel MPEG-4 Digital Video Recorder, is not only a
powerful gear for upgrading traditional CCTV surveillance system into
network security system, but also designed to be a professional type of
security devices. Video data recording, remote surveillance over a secure IP
network and viewing / recording / playback at the same time are the key
features to a full-time security application.
The DVR-860 has provided triplex operation of IP surveillance products to
meet more application demands. It can be placed either in LAN or WAN
connected with easy-to-remember DDNS feature. With Plug-N-Watch
capability of web browser, a network administrator or system operator can
easily complete network deployment in a few minutes.
In various applications of surveillance via RS-485 interface, the DVR-860 is
capable of controlling PTZ camera. With integrated alarm I/O, it can detect,
record and ring a siren. The Network DVR can also do motion detection /
schedule recording to complete surveillance plans.
Securing content stored on hard-disk is based on digital video recorder
systems and provides conditional access to manage stored content. The
PLANET Digital Video Recorder series offer a perfect solution for both
professional security and business owners who want the unparalleled
flexibility and reliability in IP surveillance field.
DVR-860
• Supports 8 channels video input
• Variety compression format provides crystal clear images with real
time performance
• Long-Recording Hours. 500GB can record more than 4 days. (8CH,
Frame Best Quality, 60IPS)
• Supports backup image with USB flash drives and remote network
recording and backup
• Supports remote surveillance up to 5 users simultaneously with
licensed software of AP and IE browser
• With the advanced functions of motion detection, scheduled
recording of motion detection (4 different adjustable factors for
motion detection sensitivity) and quick search, the customized
security environments are achieved
• A mask replaces the live image with a blank screen and the
monitor shows nothing
• Supports multi-language OSD
• Supports IR remote controller
• Supports PTZ camera operations through RS-485 signals
• Supports manual / timer / motion / alarm / network remote
recording
• Supports TCP/IP, PPPoE, DHCP and DDNS network connection
• DVD-RW / CD-RW interface supported

8-Channel MPEG-4 Digital Video Recorder
Product
Specification
2
Model
Video System
Video Compression Format
Video Input
Video Loop Out
Video Output
Maximum Recording Rate
Adjustable Recording Speed
Hard Disk Storage
HDD Quick Cleaning
Recording Mode
Watermark
Refresh Rate
Audio I/O
Motion Detection Area
Motion Detection Sensitivity
Pre-alarm Recording
USB Interface
Backup Device
Web Transmitting Compression Format
Ethernet
Web Interface
Remote Alarm Notification
Network Connection
PTZ Control
Alarm I/O
Digital Zoom
DVD-RW / CD-RW Interface
Key Lock
Video Loss Detection
Video Adjustable
Power Source
Power Consumption
Operating Temperature
Dimensions (mm)
System Recovery
Data Sheet
DVR-860
NTSC / PAL
Frame: M-JPEG ; CIF: MPEG4
8 Channels. Composite video signal 1 Vp-p 75ΩBNC
8 Channels. Composite video signal 1 Vp-p 75ΩBNC
Main Monitor Output: Composite video signal 1 Vp-p 75ΩBNC
Call Monitor Output: Composite video signal 1 Vp-p 75ΩBNC
Frame: 720 × 480 pixels with 60 IPS〈NTSC〉/ 720 × 576 pixels with 50 IPS〈PAL〉
CIF: 352 × 240 pixels with 240 IPS〈NTSC〉/ 352 × 288 pixels with 200 IPS〈PAL〉
Frame: 60, 30, 15, 7 IPS〈NTSC〉/ 50, 25, 12, 6 IPS〈PAL〉
CIF: 240, 120, 60, 30 IPS〈NTSC〉/ 200, 100, 50, 25 IPS〈PAL〉
Accommodates 2 HDD (IDE type, ATA66), supports HDD capacity over 500GB
Quick clean up the “index system” of the recorded files. 500GB under 2 seconds
Manual / Timer / Motion / Alarm / Remote
YES
240 IPS for NTSC / 200 IPS for PAL
4 audio input, 2 audio output (Mono)
16 × 12 grids per camera for all channels
4 adjustable variables with precise calculation for motion detection
YES (8MB)
USB 1.1 / 2.0 flash drive
USB 1.1 / 2.0 flash drive and network remote backup
M-JPEG
1 * 10/100 Base-TX. Supports remote control and lives view via Ethernet
Supports licensed software of AP and IE browser
E-mail images and upload images to FTP site's specific account
TCP/IP, PPPOE, DHCP and DDNS functions
PELCO-D protocol
8 inputs, 1 output
2X digital zoom (live mode)
IDE
YES
YES
Hue / Color / Contrast / Brightness
DC 19V
＜64 W
10 ~ 40 degree C
423mm (W) x 90mm (H) x 326mm (D)
System auto-recovery after power reconnected
DVR-860

PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property or
their respective owners. Copyright©2007 PLANET Technology Corp. All rights reserved.
08-07 C-DVR860-1
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan R.O.C.
Tel: [phone] Fax: [phone]
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
8-Channel MPEG-4 Digital Video Recorder
DVR-860
Applications
Ordering Information
3
Mini Dome Camera (NTSC)
Mini Dome Camera (PAL)
Vandal-Proof Dome Camera (NTSC)
Vandal-Proof Dome Camera (PAL)
15M Infrared Camera (NTSC)
15M Infrared Camera (PAL)
30M IR Camera (NTSC)
30M IR Camera (PAL)
15M Infrared Vandal-Proof Camera (NTSC)
15M Infrared Vandal-Proof Camera (PAL)
25M Infrared Vari-Focal Vandal-Proof Camera (NTSC)
25M Infrared Vari-Focal Vandal-Proof Camera (PAL)
CAM-DM33-NT
CAM-DM33-PA
CAM-VP38-NT
CAM-VP38-PA
CAM-IR138-NT
CAM-IR138-PA
CAM-IR338-NT
CAM-IR338-PA
CAM-IVP52-NT
CAM-IVP52-PA
CAM-IVP52V-NT
CAM-IVP52V-PA
Related Products
DVR translates the traditional CCTV surveillance system
into IP surveillance network
Up to 8 analog cameras can be connected; DVR-860 can be deployed to monitor
anywhere, day and night, or inside and outside.
With the bundled DVR utility, the manager can easily check and play back the
video captured in the system.
Data Sheet
DVR-860
DVR utility WEB Browser
CAM-IR138 CAM-IR138
CAM-IVP52V
up tp 8 cameras
DVR-860
CAM-IVP52
Internet
