Pierlite Aether AETUVC12349D User manual

PAGE 1 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
INSTALLATION / WARRANTY INSTRUCTIONS issue date: 7/3/2021
PRODUCT BRAND - PIERLITE
PRODUCT NAME / CODES - Aether UVC Troffer/ AETUVC12349D
PLEASE READ THESE INSTALLATION INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR MAINTAINING THIS
EQUIPMENT. THE PRODUCT IS DESIGNED FOR INSTALLATION AND MAINTENANCE IN ACCORDANCE WITH
RELEVANT AUSTRALIAN STANDARDS (AS3000) AND LOCAL REGULATIONS (WHERE APPLICABLE), BY AN
AUTHORISED AND LICENCED ELECTRICIAN. THE INSTALLATION INSTRUCTIONS WERE CORRECT AT THE TIME OF PRINT.
TO REFLECT CHANGES IN TECHNOLOGY AND AUSTRALIAN STANDARDS; PIERLITE RESERVES THE RIGHT TO AMEND THE
INSTRUCTIONS WITHOUT NOTICE. UPDATED GUIDELINES CAN BE FOUND ON THE RELEVANT BRAND WEB SITE.
IMPORTANT - THE PRODUCT MUST BE MAINTAINED AND OPERATED IN ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTIONS, FAILURE TO DO SO MAY DAMAGE THE PRODUCT AND SERVICES. IT IS STRONGLY RECOMMENDED THAT THIS
IMPORTANT NOTE BE COMMUNICATED TO THE OWNER AND OR OPERATOR OF THE INSTALLATION AT THE TIME OF SITE
COMMISSIONING. GOOD PRACTICE DOES NOT RECOMMEND THE 24/7 USE OF PRODUCTS WITHOUT THE APPLICATION OF
SUITABLE SWITCH CYCLE INTERVALS. FURTHERMORE, WITH THE OMISSION OF NOMINATED SURVIVAL CURVES AND OR
RECOMMENDED OPERATING HOURS, PRODUCT DESIGN EXPECTATIONS PROVIDE FOR A CONTINUAL DAILY USAGE OF 6 HOURS
FOR RESIDENTIAL APPLICATIONS AND A CONTINUAL DAILY USAGE OF 12 HOURS FOR COMMERCIAL AND INDUSTRIAL
APPLICATIONS. ALL PRODUCTS MUST BE THOROUGHLY CLEANED ON A REGULAR BASIS AT INTERVALS THAT REFLECT IN THE
INSTALLATION ENVIRONMENT, ENSURING THE OPTICAL PERFORMANCE, TOGETHER WITH THE ELECTRICAL, MECHANICAL AND
STRUCTURAL INTEGRITY AS DESIGNED, IS MAINTAINED THROUGHOUT THE SERVICE LIFE OF THE PRODUCT.
1. PRODUCT SPECIFICATION:
Product brand - Pierlite
Type of Protection - Class II
IP Rating - for interior products, the IP rating nominated
is “from below the ceiling” unless specifically nominated. - IP20
Nominal design Voltage - 240V
Luminaire Specification:
Product Code
Wattage
(W)
Driver Settings
(mA)
Line Current
(A)
Lumens Output
(lm)
Inrush Current
Remark
AETUVC12349D
36W
900 mA
0.15A
3600 lm
13.7A/260us
32W
800 mA
0.13A
3200 lm
13.7A/250us
28W
700 mA
0.11A
2800 lm
12.3A/250us
Default settings
24W
600 mA
0.10A
2400 lm
12.7A/260us
22W
550 mA
0.09A
2200 lm
13.3A/280us
DC Motor Table (Power consumption of Luminaire not included)
Product Maximum Wattage Line Current RPM Maximum Current
DC Motor 21.5W 1A 1010 ＜5A
Luminaire + DC Motor + UVC LED Module
Product Maximum Wattage Line Current Inrush Current
AETUVC12349D
(Luminaire + DC Motor + UVC Module) 60W 0.29A 13.1A /344 us
Important – when installing electronic or HID lighting equipment, the installer must consider the in-rush start current (if any) as
documented on the control gear identification label when selecting appropriate circuit controls or protective devices.
Power factor - >0.9
Nominal Freq. (Hz) - 50 Hz
Rated Maximum Ambient Temperature - 40°C
Suitable for direct mounting on flammable surfaces - YES
Dimmable (if relevant refer brand web for approved list) - Yes (DALI Dimming)
Installation orientation - Recessed Mount
Designed application - Commercial Interior
Rated average design life - 54,000 hours (to L70)
Weight -7kg
*For accessible installations, application of the security screws must be employed.
2. APPROVALS: The RCM marking of this product applies to AS/NZS CISPR15 (EMC) “Limits and methods of
measurement of radio disturbance characteristics of electrical lighting and similar equipment”. This
product is designed to conform to AS/NZS60598 “Luminaires, general requirements and tests”.
3. STORAGE: Prior to installation products are to be stored in cool and dry conditions.
Building insulation
may abut the sides of
the luminaire.

PAGE 2 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
4. APPLICATION: The installation application and orientation of the product is designed in accordance with the nominated
product IP rating, class designation and these installation instructions. Installation environments and operating conditions
beyond these instructions are not recommended.
5. INSTALLATION / GENERAL: Installation of the product is to be completed by an authorized and licensed electrician, in
accordance with these instructions, relevant Australia standards and local regulations (where applicable). Termination of product
wiring, together with the installation of the product must be in a manner and orientation that maintains the integrity of the
designated IP rating of the product For electronic control equipment (when supplied) DO NOT MEGGER between A and N.
6. INSTALLATION / SPECIAL CONDITIONS (relevant only for products approved for such an installation):
(a) products installed in high wind environments must have suitable installation / fastening methods applied to ensure the
product’s mounting points are not damaged through, corrosion, constant vibration and or movement. Exterior products are
designed with precise vertical aiming limits, which should not be exceeded. Any vertical floodlight aiming requirements should
be specifically validated in writing with the relevant brand before consideration.
(b) products installed in corrosive or salt laden environments require special consideration and such; specific product
selection, inclusive of suitable fastening methods and extensive ongoing maintenance of products installed in these environments
require professional advice. It is essential that all aspects of the product selection, material specification and maintenance are
specifically designed for such use and a cleaning program be adopted that maintains the design integrity of the product.
(c) interior highbay products must be vertically suspended. The method of suspension (chain etc) must be able to support at
least 5 times the total weight of the fitting. Do not install where air movement will cause the fitting to swing about, causing wear
and tear of attachment points. Luminaires should be installed where access for maintenance is practical and allows for
maintenance to be completed in accordance with the manufacturer’s recommendations.
(d) interior (downlight) products must be installed to ensure the lamp unit or the driver (if supplied) are not covered with
any combustible materials or insulation; minimum spacings nominated for these materials are mandatory. Unless otherwise
specified, minimum clearances are in accordance with AS3000 requirements. The product is not designed for installation
environments which restrict conventional airflow movements eg: enclosed boxes or concrete profiles. For dimming purposes
please see the relevant product brand web site for the dimming compatibility chart. When mounting multiple fixtures to
conductive structures, it is recommended that the structure is earthed. The mounting facilities provided for the
transformer/driver (if any), need only be utilized if in the application of the product is required by AS3000. IP ratings stated (if
any) are from below the ceiling unless stated otherwise and the installation of the product must be in a manner that maintains
the integrity of the relevant IP rating.
7. MAINTENANCE:
(a) The supply must be isolated before opening or accessing the luminaire. Product maintenance is IMPORTANT and is critical to
the products designed performance. The product is to be maintained in accordance with the manufacturer’s instructions. For the
latest product maintenance guides please go to relevant brand web site. Pierlite is not responsible for any product not
maintained in accordance with the recommended procedure or intervals. (b) lamps (where provided): The product is
designed with the supplied (LEDs) / LAMP/s and it is strongly recommended that any LAMP / (LEDs) changes (if any) be made in
accordance with the type, colour and brand supplied. For recommended LAMP / LED maintenance or operating guides (inclusive
of recommended product switch cycles and mandatory run-in procedures for HID and Fluorescent lamps when used with
dimming circuits), PIERLITE recommends the application of the lamp manufacturer’s operating guidelines, which can be found on
manufacturer’s website. PIERLITE is not responsible for the product performance of alternative lamp/s used. As a member of
FluroCycle, we encourage recycling of lamps and components. (c) battery (where provided): The battery is designed with a
rated average battery design life of 25,000 hours in standby mode. The battery is supported with a standard 3 year warranty;
conditional of the product being maintained and operated in accordance with the manufacturer’s guidelines and tested in
accordance with AS/NZS2293. For guidelines see product installation instructions or visit the relevant brand web site. (d) for
products supplied with glass visors or covers, do not operate the product with a damaged visor or cover; it is
recommended the product be turned off, area surrounding the product vacated and the damaged glass replaced by a
professional installer immediately.
8. WARRANTY INSTRUCTIONS: For the purpose of warranty claims (if any) the following instructions apply:
Warranty components – THE PRODUCT, (identified as the THE PRODUCT only). Warranty period -
•5-year warranty for UV device housing, mechanical, white light-emitting components, ballast, and driver or Maximum
50,000 hrs
•3-year warranty on UV device fans and other electrical components or Maximum 30,000 hrs
•2-year warranty on UV-C led or Maximum 15,000 hrs
•6 months warranty on HEPA filter
The above components are provided with a warranty against manufacturing defects or failure to perform to specifications for
products installed by an authorised installer in accordance with the manufacturer’s installation instructions and which have not
been subject to incorrect operation or maintenance, unauthorised modification or damage arising from any intervening cause.

PAGE 3 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
Warranty reference - The warranty reference date commences from the date of purchase. Warranty point of contact –
PIERLITE Pty Ltd, 96 Gow Street Padstow NSW 2211,
phone T 02 9794 9300 contact – PIERLITE After Sales Support.
Warranty claim procedure – For the purpose of making a claim the customer must:
1. Contact the “point of contact” above and upon provision of proof of purchase the customer will receive a goods return advice
(GRA) number. 2. At the customer’s expense, collect and return the goods to the “point of contact” with the issued GRA number.
3. Upon receipt of the goods, PIERLITE will review the claim and if found to be accepted, PIERLITE will return a replacement
product to the customer to install at the customer’s expense. Alternatively if the claim is rejected, the customer may request the
return of the goods at their expense. Consumer Contracts - The benefits to the customer given by the PIERLITE warranty are
in addition to other rights and remedies of the customer if the goods are the subject of a Consumer Contract under the
Australian Consumer Law. In that event the following statement is required to be brought to the Consumer’s attention:- Our
goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure. Limitation of Liability – if the goods are not purchased by the customer under a Consumer Contract within the
Australian Consumer Law then but not otherwise;- (a) the Company is not liable in tort for any loss or damage suffered by the
customer or by any third party; and (b) in no circumstances is PIERLITE liable to the customer or to any third party for any loss
of profits, loss of anticipated savings, economic loss or interruption of business or for any indirect or
consequential loss
(Consequential Loss). Terms of Sale – these Warranty provisions are in substitution for any inconsistent provisions in the
PIERLITE Terms and Conditions of Sale in so far as they apply to the Warranty components.

PAGE 4 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
Installation Instructions
Line Drawing
Installation Steps (Recessed mount):
•Turn off the power source before installing.
•Carefully unpack the unit and inspect it for defects before installation.
•Remove the ceiling tile from the area where the Aether Troffer will be installed. (A1)
(A1)
•Check the position of the safety wire (A2) before installation, and if there is no suitable bracket structure, install
expansion screws first.
(A2)

PAGE 5 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au

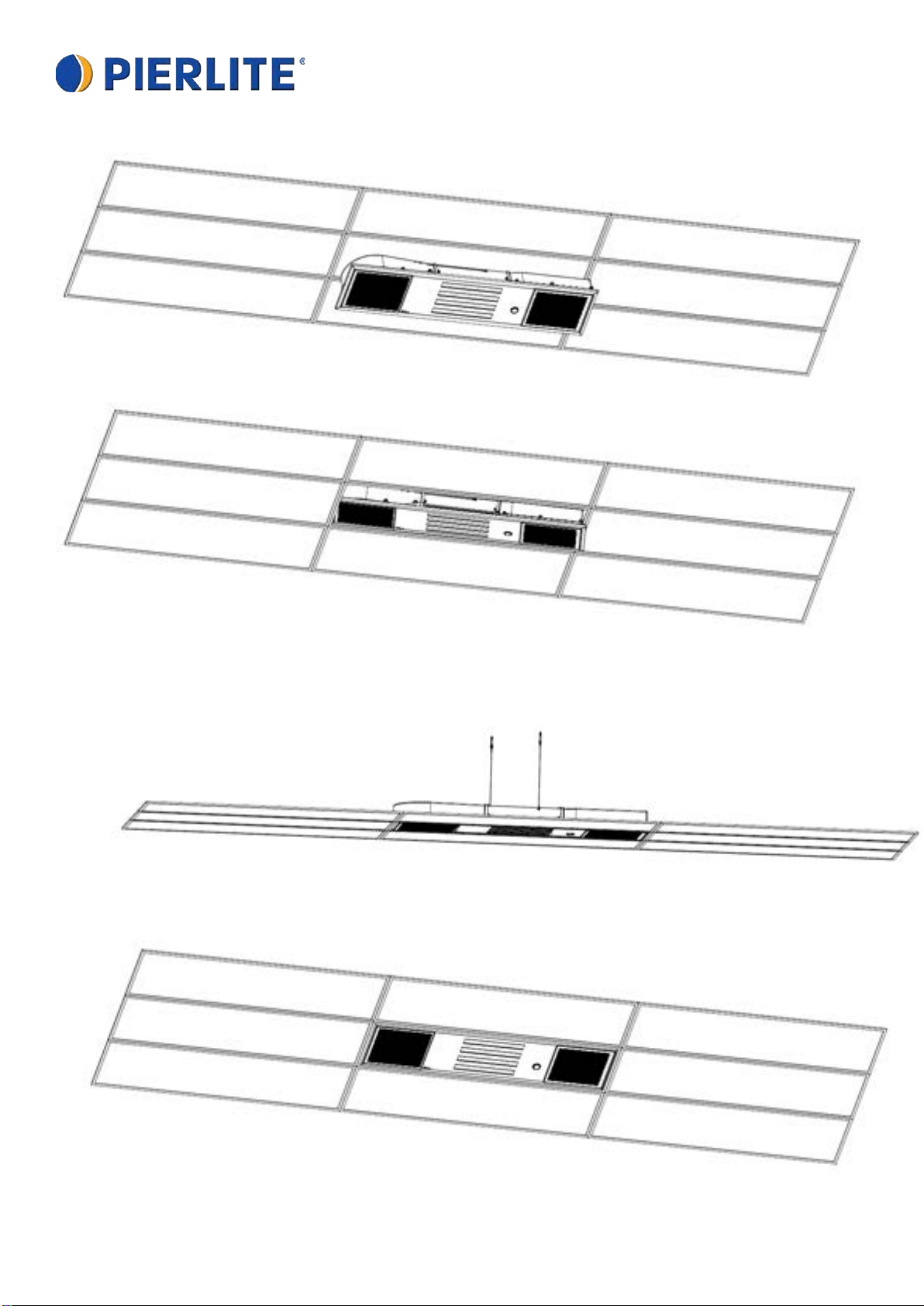

•Install the troffer in the appropriate ceiling cavity. (A3/A4)
(A3)
(A4)
•Take out the ceiling tile next to the PANEL to provide more space for safe operation. Suspend the safety wire to the
ceiling. (A5)
(A5)
•Reposition the other ceiling tile and complete the installation (A6).
(A6)

PAGE 6 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
•The plug drawing is shown below.
HEPA Installation Steps:
•Open the air vent. (B1)
(B1)

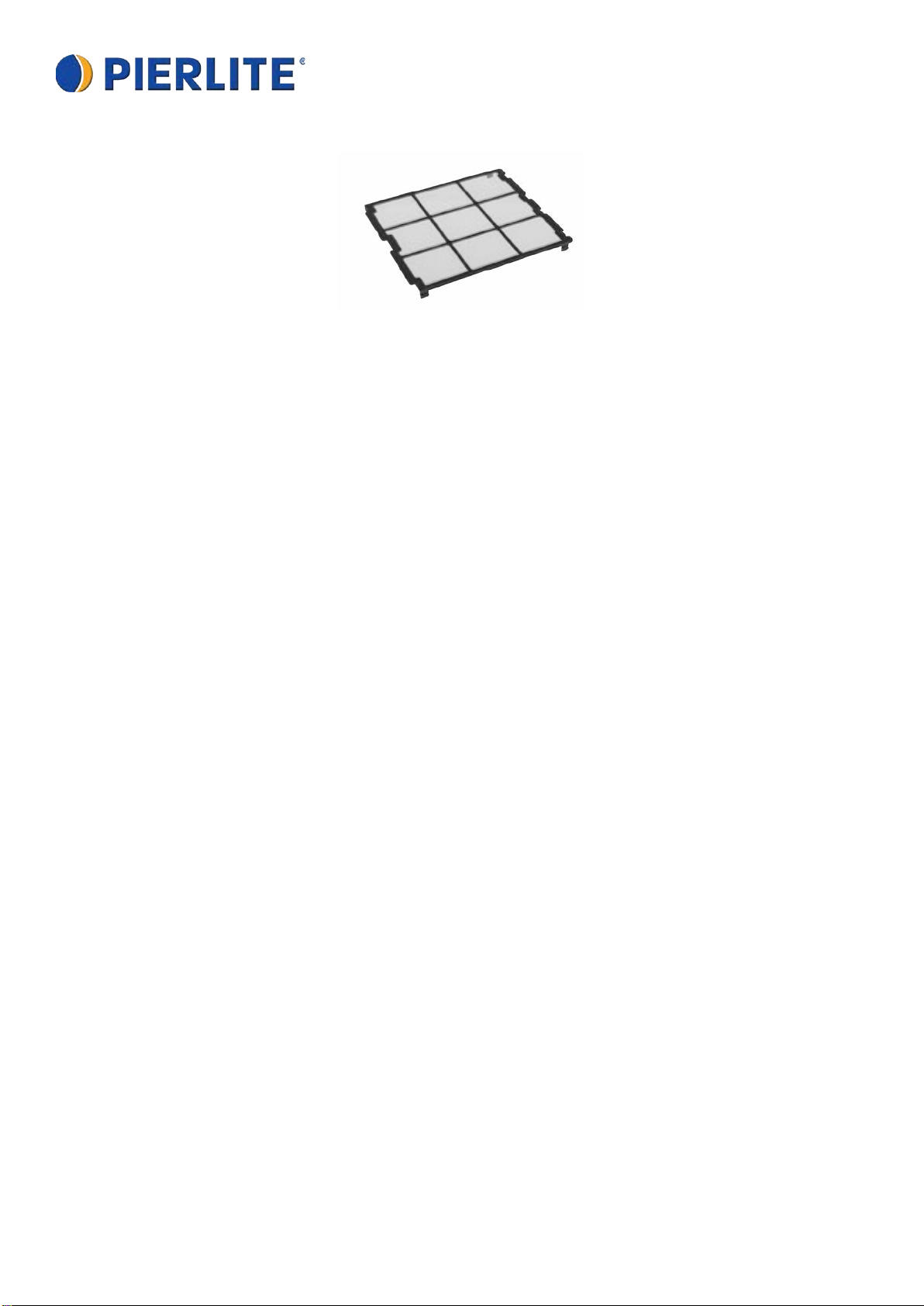

•Remove the HEPA from the bag and confirm its direction based on the silk print prompt. (B2)
(B2)

PAGE 7 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
•Insert the HEPA in the outlet according to the direction indicated. (B3)
(B3)
•Complete the air outlet installation by pushing it up. (B4/B5)
(B4)

PAGE 8 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
(B5)
UVC Module Replacement Steps:
•Turn off the power source before replacing the part.
•Remove the ceiling tile next to the Troffer. (C1)
(C1)
•Locate and remove the UV module from the Troffer. (C2/C3)
(C2)

PAGE 9 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc: AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
(C3)
•In order to complete the replacement, remove the four screws and install the new module.
Remote Control Introduction:
Battery not included.
Logic of Remote Control (D1)
After Installation or replacement of new heap filter, the indicator is red, please press power button on the remote control or
power off/power on again to start UVC and fan function, the indicator turns purple.
1. Power button:
On Status – Fan (max flow level 2) + UVC start working, indicator appears purple.
Off Status – Fan + UVC stop working, indicator off.
2. Fan Level Control Button:
Level 1-90m³/h. Level 2-170m³/h. indicator no change, users can feel it physically.
3. UVC Control Button:
Off status (manual off, fan remains working) – Indicator changes from purple to blue.
On status (manual open)-indicator changes from blue to purple
PS: UVC can’t work solely.
4. The straight reception range of the remote control is 4m
5. Battery Specification:
Type: CR2032
Spec: 3V 210mAh
Battery Chemistry: Li-Mn (Lithium Manganese Dioxide battery)
(D1)

PAGE 10 OF 10 COPYRIGHT GERARD LIGHTING ABN 71 115 184 999 Doc:
AETINSTALLV6
Pierlite
96-112 Gow Street, Padstow, NSW 2211
T: 02 9794 9300 | www.pierlite.com.au
PET Filter:
The filter needs to be cleaned with water every six months. (E1)
(E1)
General Cleaning
•Wear a protective face mask and gloves.
•Clear anyone with severe allergies out of the room.
•Turn off the unit.
•Wipe down the unit exterior including Air intake grill with a clean damp cloth.
Battery Warnings:
•Do not ingest battery – Chemical burn hazard
•The remote control supplied with this product do not contains a coin/button cell battery. Battery to per purchased
separately as per the below specification.
Battery Specification:
Type: CR2032
Spec: 3V 210mAh
Battery Chemistry: Li-Mn (Lithium Manganese Dioxide battery)
•If the coin/button cell battery is swallowed it can cause severe internal burns in just 2 hours and can lead to death.
•Keep new and used battery away from children.
•If the battery compartment does not close securely, stop using the product and keep it away from Children
•If you think the battery might have been swallowed or placed inside any part of the body, seek immediate medical
attention.
UVC Warnings
•This appliance contains a UVC emitter
•Inappropriate use of the troffer or damage to the housing may result in the escape of dangerous UVC radiation may,
even in little doses, cause harm to the eyes and skin.
•Damaged troffer must not be operated.
•UV radiation is dangerous for the eyes and skin. Do not operate the UV-C emitter outside the appliance.
Replacement Schedules
•UVC module must be replaced after 15,000 hrs of operation. Please contact Pierlite for suitable replacement.
Product Code: AETUVCLED
The luminaire must be disconnected from the supply before replacing the UVC module.
•The HEPA filter must be replace after 6 months of operation. Please contact Pierlite for suitable replacement.
Product Code: AETHEPA
Others:
•If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the licensed
electrician to avoid a hazard.
•The light source contained in this luminaire shall only be replaced licensed electrician.
•The troffer is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction
- children being supervised not to play with the troffer.
-The instructions for this troffer incorporating a functional earth state that the appliance incorporates an earth
connection for functional purposes only.
