PikeSystems Pike-1000 User manual

1
Pike-1000 Disinfectant Sprayer
20-VOLT MAX* | 4.0 Ah
IMPORTANT!
Safety Instructions
Model: Pike1000
6. Remove accessories orattachmentsbeforeturning
sprayer on.
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death. Save all warnings and
instructions for future reference.
GeneralSafety
WARNING! When using the sprayer basic safety
precautions should always be followed to reduce the riskof
fire, electric shock, and personal injury. These include:
Work Area Safety
1. Keep work area clean and well-lit –Cluttered,dark
areas invite accidents.
2. Keep children, bystanders, and pets away –All
spectators, includingpets, should bekept asafe distance
away from the workarea.
3. Do not operate sprayer in explosive atmospheres
–Such as in the presence of flammable liquids, gases, or
dust. Sprayers create sparks which may ignite the dust or
fumes.
Personal Safety
1. Stay alert –Watch what you are doing. Use common
sense. Do not operate the sprayer when you aretired,
or under the influence of alcoholor drugs.
2. Dress properly –Do not wear loose clothing or jewelry.
They can get caught in moving parts. Loose clothes,
jewelry,or longhair canbe caughtinmoving parts.
3. Avoidunintentionalstarting–EnsuretheOn/Offswitch
isin the OFF position before inserting the battery, picking
up or carrying the tool. Do not carry the tool with your
finger on thetrigger.
4. Do not overreach –Keep proper footing and balance at
all times. Proper footing and balance enable better control
of the sprayer in unexpected situations.
5. Use personal protective equipment –Always wear eye
protection. Protective equipment such as dust mask, non-
skidsafety shoes,hardhat,orhearing protection used for
appropriate conditions will reduce personal injuries.
connected and properly used –Use of dust collection
can reduce dust-related hazards.
Tool Use and Care
1. Do not force the tool –It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it wasdesigned.
2. Do not use the sprayer if switch does not turn on or off
- Any sprayer that cannot be controlled with the switch is
dangerous and must berepaired.
3. Disconnect the battery pack from the sprayer
before making any adjustments, changing
accessories, or storing the sprayer –Such
preventive safety measures reduce risk of starting the
sprayer accidentally.
4. Store idle sprayer out of reach of children orother
untrained persons –sprayers are dangerousin the
hands of untrained users.
5. Maintain the sprayer –Check for misalignment or
binding of moving parts, breakage ofparts,andany
other condition that may affect thesprayer's
operation.If damaged,have the sprayer serviced
beforeusing. Many accidentsare causedby poorly
maintainedtools.
6. Use the sprayer, accessories etc. inaccordance with
these instructions, taking into account the working
conditions and the work to beperformed
–Useofthesprayerforoperationsdifferentfrom those
intended couldresultin ahazardous situation.
Battery Tool Use and Care
1. Recharge only with the charger specified by the
manufacturer –A charger that is suitable for one type
ofbatterypackmaycreateariskoffirewhenusedwith
another battery pack.
2. Use this sprayeronly with Pike Systems Battery 1000
–Use ofotherbatterypacksmaycreateariskofinjury or
fire.
SAVE THESE INSTRUCTIONS
OPERATOR’S MANUAL

2
3. Under abusive conditions, liquid may beejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
seekmedicalhelp –Liquidejectedfromthebattery may
cause irritation orburns.
Service
1. If your sprayer requires service, contact Pike
Systems at [email protected] or call
630- 896-6373. Only identical replacement parts
shouldbe utilized for repairs. This will insure that the
safety of the sprayer is maintained.
2. If the battery charger cable is damaged, it must be
immediately replaced to avoid a hazard. Contact
Pike Systems at [email protected] or call
630- 896-6373 for assistance.
3. Accessories: The use of accessories or attachment
other than those recommended in this manual might
present ahazard.
4. Whenservicing,onlyusetheidenticalreplacementparts.
Safety Rules for Sprayer
CAUTION! DANGER OF INJURY! Never point the
sprayer at yourself or other person or pets.
1. Only cleaning chemicals and disinfectants, with a flash
point of 73.5°F (23°C) and above can be sprayed
without any additional warming.
2. When spraying, make sure there is no source of
ignition, likeopenfire,cigarettes,cigars,pipes,sparking,
glowing wires, hot surfaces, etc. inthe area.
3. Wear breathing protection when spraying if indicated on
the chemical/disinfectant’s safety data sheet. Consult
the safety data sheet on anything used in your Pike
1000 Sprayer prior to use.
4. When working outdoors, consider the effect of
wind,which willaffect the direction ofthe spray.
5. Whenworkingindoors,make suretherewill
be sufficient ventilation.
6. Do not spray at the sprayer.
7. Do not let children play with this sprayer. Keep it
out of reach of children.
8. Do not use the sprayer to spray flammable liquids.
9. Do not clean the sprayer with flammable solvents.
10. Takeprecautionary measures against potential
hazards from the liquid that need to besprayed.
Follow the instructions given by the liquid
manufacturer.
11. Do not sprayanyliquid withunknown potentialhazard.
Battery + Charger
Safety Instructions
We pay a great deal of attention to the design of everybattery
packtoensurethatwesupplyyouwithbatteriesthataresafe,
durableandhaveahighenergydensity.Thebatterycellshave
a wide range of safety devices. Each individual cell is initially
formatted, and its electrical characteristic curves are
recorded. This data is then used exclusively to be able to
assemble the best possible battery packs.
Despite all the safety precautions, caution must always be
exercised when handling batteries. The following points must
be obeyed at all times to ensure safe use. Safe use can only
be guaranteed if undamaged cells are used. Incorrect handling
of the battery pack can cause cell damage.
IMPORTANT! Analyses confirm that incorrect use and poor
care of high-performance batteries are the main factors
responsible for personal and/or product damage.
WARNING! Use only approved replacement batteries;
other batteries may damage the cordless sprayer and
cause it to malfunction, which can lead to personal injury.
WARNING! Do not use a battery pack or appliance that
is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire, explosion or
risk of injury.
Do not modify or attempt to repair the appliance or the battery
pack except as indicated in the instructions for use and care.
Have your battery pack serviced by a qualified repair person
usingonlyidenticalreplacementparts.Thiswillensurethatthe
safety of the battery pack is maintained.
CAUTION!Toreduce theriskofinjury,chargethe
20Vlithium-ion batterypack only initsdesignated
20Vlithium-ioncharger. Othertypesofchargerspresent riskof
fire,personalinjuryanddamage.Donotwireabattery pack to
a power supply plug or car cigarette lighter. Such misuse will
permanently disable or damage the batterypack.
• Avoid dangerous environments –Do not charge the
battery pack in rain, snow or in damp or wet locations.
Do not use the battery pack or charger in the presence of
explosive atmospheres (gaseous fumes, dust or flammable
materials) because sparks may be generated when inserting
or removing the battery pack, which could lead to a fire.
• Charge in a well-ventilated area –Do not block the
charger vents. Keep them clear to allow for proper
ventilation. Do notallow smoking or open fames neara
charging battery pack. Vented gases mayexplode.
NOTE: Thesafetemperature rangefor thebattery
is 41°F-105°F(5°C-40.5°C).Donotchargethe
battery outside in freezing weather; charge it at
room temperature.

3
• Maintain charger cord –Whenunpluggingthe
charger,pull the plug, not the cord, from the
receptacle to reduce the riskofdamage to the
electrical plugand cord.Nevercarry the charger by
its cord or yank it by the cord to disconnect it from
the receptacle. Keep the cord away from heat, oil
and sharp edges. Make sure the cord will not be
stepped on,tripped overor subjected to damageor
stress whenthe charger is in use. Do not use the
charger with a damaged cord or plug. Replace a
damaged chargerimmediately.
• Do not use an extension cord unless it is absolutely
necessary –Using the wrong, damaged or improperly
wired extensioncordposes ariskof fireandelectricshock.
If an extension cord must be used, plug the charger into a
properly wired 16 gauge or larger extension cord with the
female plug matching the male plug on the charger. Make
sure that the extension cord is in good electricalcondition.
• Charger 24VCHRG-AC is rated for 100 –240volt AC
only –The charger must be plugged into an
appropriate outlet.
• Use only recommended attachments –Use of an
attachment not recommended or sold by the battery
charger or battery pack manufacturer may result in riskof
fire, electric shock or personal injury.
• Unplug charger when not in use –Make sure toremove
battery packs from unplugged chargers.
WARNING! To reduce the risk of electric shock,
always unplug the charger before performing any cleaning or
maintenance. Do not allow water to flow into the charger.
Use a Ground Fault Circuit Interrupter (GFCI) to reduce
shock hazards.
• Do not burn or incinerate battery packs –Battery
packs may explode, causing personal injury or damage.
Toxicfumesandmaterialsare createdwhenbatterypacks
are burned.
• Do not crush, drop or damage battery packs –Do not
use the battery pack or charger if they have sustained a
sharpblow, beendropped, run over orhave been damaged
in any way (i.e. pierced with a nail, hit with a hammer,
stepped on, etc.).
• Do not disassemble –Incorrect reassembly may pose
a serious risk of electric shock, fire, or exposure to toxic
batterychemicals.Ifthebatteryorchargeraredamaged,
Contact Pike Systems at [email protected] or
call 630-896-6373 for assistance.
Battery chemicals cause serious burns –Never let a
damagedbatterypack contactthe skin,eyes or mouth. Ifa
damaged battery pack leaksbattery chemical,use rubber
or neoprene gloves to safely dispose of it. If skin is
exposed to batteryfluids,wash the affectedareawith soap
and water and rinse with vinegar. If eyes are exposed to
battery chemicals, immediately flush with water for 20
minutes and seek medical attention. Remove and
dispose of contaminated clothing.
• Do not short circuit –A battery pack will short circuit if a
metal object makes a connection between thepositive and
negative contacts on the battery pack. Do not place a battery
pack near anything that may cause a short circuit, such as
paper clips, coins, keys, screws, nails, and other metallic
objects. A short-circuited battery pack poses a risk of fire and
severe personal injury.
• Store your battery pack and charger in a cool, dry
place –Do not store the battery pack or charger where
temperatures may exceed 105°F (40.5°C), such as in
direct sunlight or inside a vehicle or metal buildingduring
the summer.
Information about the battery
1. The battery pack supplied with your sprayer is only
partially charged. The battery pack must be charged
completely before you use the sprayer for the firsttime.
2. Foroptimumbattery performance, avoidlow discharge
cycles by chargingthe batterypack frequently.
3. Storethebatterypack inacoolplace,ideallyat77°F
(25°C) and charged to at least40%.
4. Lithium-ion batteries are subject to a natural aging
process.The batterypackmust bereplaced atthe latest
when its capacity falls to just 80% of its capacity when
new. Weakened cells in an aged battery pack are no
longer capable of meeting the high power requirements
needed for the proper operation of your sprayer, and
therefore pose a safety risk.
5. Do not throw battery packs into an open fire asthis poses
a risk of explosion.
6. Do not ignite the battery pack or expose it to fire.
7. Do not exhaustively discharge batteries. Exhaustive
discharge will damage the battery cells. The most
common cause of exhaustive discharge is lengthy
storage or non-use of partially discharged batteries.
Stop working as soon as the performance of thebattery
falls noticeably or the electronic protection system
triggers. Place the battery pack in storage only after it
has been fully charged.
8. Protect batteries and the sprayer from overloads.
Overloads willquicklyresultinoverheatingandcell
damage inside the battery housing even if this
overheating is not apparent externally.
9. Avoid damage and shocks. Immediately replace batteries
that have been dropped from a height of more than one
meter or those that have been exposed to violent shocks,
even if the housing of the battery pack appears to be
undamaged.Thebatterycellsinsidethebatterymayhave
suffered serious damage. In such instances, please read
the waste disposal information for proper batterydisposal.
10. Ifthebatterypacksuffersoverloadingandoverheating,
the integrated protective cutoff will switch off the
equipment for safetyreasons.
IMPORTANT! Do not press the ON/OFF switch any more
if the protective cut-off has been activated. This may
damage the battery pack.
11. Useonlyoriginalbatterypacks.Theuseofotherbatteries
posesa firerisk andmayresultin injuriesor anexplosion.

4
Information about the charger and the
charging process
1. Please check the data marked on the rating plate of the
battery charger. Be sure to connect the battery charger
to a power supply with the voltage marked on the rating
plate.Neverconnectittoadifferent mains voltage.
2. Protect the battery charger and its cord from damage.
Keep the charger and its cord away from heat, oil, and
sharp edges. Have damaged cords repaired without delay
by a qualified technician Pike Systems. Contact Pike
Systems at [email protected] or call 630-896-
6373 for assistance.
3. Electrical plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
4. Keepthe batterycharger, batterypackandthecordless
tool out of the reach of children.
5. Do not use the supplied battery charger to charge other
cordless tools.
6. During periods of heavy use, the battery pack will become
warm. Allow the battery pack to cool to room temperature
before connecting it to the charger torecharge.
7. Do not overcharge batteries. Do not exceed themaximum
charging times. These charging times only apply to
discharged batteries. Frequent insertion of a charged or
partially charged battery pack will result in overcharging
and cell damage. Do not leave batteries connected to the
charger for days onend.
8. Never use or charge batteries if you suspect that it has
been more than 12 months since the last time they were
charged. There is a high probability that the battery
pack has already suffered dangerous damage
(exhaustive discharge).
9. Chargingbatteriesatatemperaturebelow41°F(5°C)will
cause chemical damage to the cells and may cause a fire.
10. Do not use batteries that have been exposed to heat
duringthe charging process,as the batterycells may have
suffered dangerousdamage.
11. Do not use batteries that have suffered curvature or
deformation during the charging process or those that
exhibit other atypical symptoms (gassing, hissing,
cracking, etc.).
12. Never fully discharge the battery pack (maximum
recommended depth of discharge is 80%). A complete
discharge of the battery pack will lead to prematureaging
of the battery cells.
Protection from environmental influences
1. Wear suitable work clothes. Wear safetygoggles.
2. Protect your sprayer and the battery charger from
moisture and rain. Moisture and rain can cause dangerous
cell damage.
3. Do not use the sprayer or the battery chargernear
vapors and flammable liquids.
4. Use the battery charger and cordless tools only in dry
conditions and at an ambient temperature of 41°F-
105°F (5°C -40.5°C).
5. Do not keep the battery charger in places where the
temperature is liable to reach over 105°F (40.5°C). Do
notleavethebatterychargerinacarthatis parked in the
sunshine.
6. Protect batteries from overheating. Overloads,
overcharging and exposure to direct sunlight will result
in overheating and cell damage. Never charge or work
with batteries that have been overheated –replace them
immediately, ifpossible.
7. Store the charger and your sprayer only in dry locations
with an ambient temperature of 41°F - 105°F (5°C -
40.5°C). Store your lithium-ion battery pack in a cool,dry
placeatatemperatureof77°F(25°C).Protect thebattery
pack, charger and sprayer from humidity and direct
sunlight. Only place fully charged batteries in storage
(charged to at least40%).
8. Prevent the lithium-ion battery pack from freezing.
Battery packsthat werestored below32°F(0°C)for
more than 60 minutes must be discarded.
9. When handling batteries, be wary of electrostatic charge.
Electrostatic discharges can damage the electronic
protection system and the battery cells. Avoid electrostatic
charging and never touch the batterypoles.

5
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
Symbols
Descriptions
Symbols
Descriptions
READ THE OPERATOR'S
MANUAL(S) –Read, understand,
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
SAFETY ALERT –Indicates a
precaution, a warning, or a danger.
WARNING! Do not expose the unit
to rain or wet conditions. Keep dry.
WEAR EYE PROTECTION –
For protection against injury, wear
safety goggles.
Respirators, protective clothing, and
gloves will reduce the possibility of
personal injuries.
WARNING! Risk of Explosion-
Do not spray flammable liquids.
Keep bystanders and children a
safe distance away.
Indoor use only. Only use
battery charger indoors.
DISPOSAL –Waste produced by electrical machine items should not be handled like normal
household rubbish. Please recycle where recycle facilities exist. Check with your local authority or
retailer for recycling advice.

6

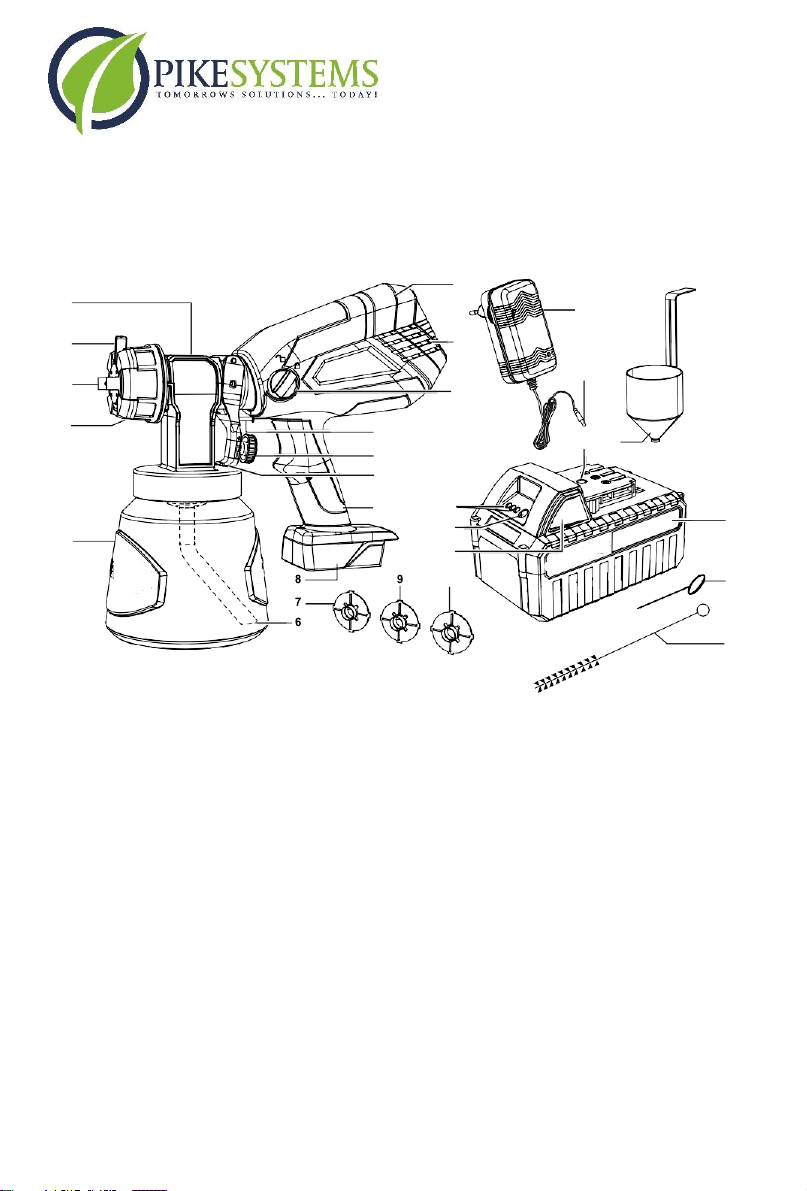

Know Your Sprayer
Read the owner’s manual and safety instructions carefully before operating the sprayer. Compare the illustration below to the
sprayer to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
1
2
3
4
25
5
26
27
1. Spray gun assembly
2. Spray width control lever
3. Air cap
4. Tip collar
5. Container
6. Suction tube(inside)
7. 1.5mmnozzletip(White)
8. Battery compartment
9. 1.8mmnozzletip(Black)
10. 2.2mm nozzletip(Red)
11. Push lock button
12. Push button for battery
indicator
13. Battery indicators
14. Handle
15. On/Off switch
16. Flow control knob
17. Switch trigger lever
18. Quick release knob
19. Air Vent
20. Turbine
21. 20V lithium-ioncharger
22. Charger plug
23. Charge socket
24. Viscosity cup
25. 20V lithium-ion battery
(BAT1000)
26. Needle clean-outtool
27. Cleaning brush
20
21
19
22
18
17
16
15
23 24
14
13
12
11
10

7
Technical Data
Battery Voltage*...............................20 V D.C.
Battery Capacity..............................4.0 Ah
Battery Run Time Max .....................20 mins
ChargerInput................................ 100 - 240 V AC,
50 - 60 Hz, 50 W
ChargerOutput..............................25.2 V DC
1400 mA
Charging Time Max .........................2 hrs 40 min
Motor ...............................................210 W
Max Flow.........................................3.2 Gallon/charge
(12 l/charge)
Nozzle Size......................................1.5mm/1.8mm/2.2mm
MaxViscosity................................ 85 - 100DIN-s
Container Capacity..........................32 f oz (1.0l)
Weight (sprayeralone).....................2.64 lbs (1.2kg)
Weight(With battery installed)..........4.4 lbs (2kg)
*Initial no-load voltage, when fully charged, peaks at 24 volts; nominal voltage
under typical load is 21.6 volts.
Unpacking
Carton Contents
• Sprayer turbine assembly
• Spray gunassembly
• 2nozzletips(the thirdoneispre-assembled
inside the sprayer)
• Viscosity cup
• 20V lithium-ionbattery
• 20V lithium-ion batterycharger
• Needle clean-outtool
• Cleaning brush
1. Carefully remove the sprayer and checkto see that all of
the above items aresupplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you find damaged or
missing parts, contact Pike Systems at
[email protected] or call 630-896-6373 for
assistance.
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use your new cordless
sprayer. The packaging is made of recyclable materials.
Properly dispose of these materials in accordance with
local regulations.
IMPORTANT!Theequipmentandpackagingmaterialare
nottoys.Donotletchildrenplaywithplasticbags,foils, or
small parts. These items can be swallowed and pose a
suffocation risk!
Assembly
WARNING! Do not insert the battery until assembly is
complete. Failure to comply could result in accidentalstarting
and possible property damage.
WARNING! Assemble this unit in well ventilated area.
Make sure there is no flammable vapors around.

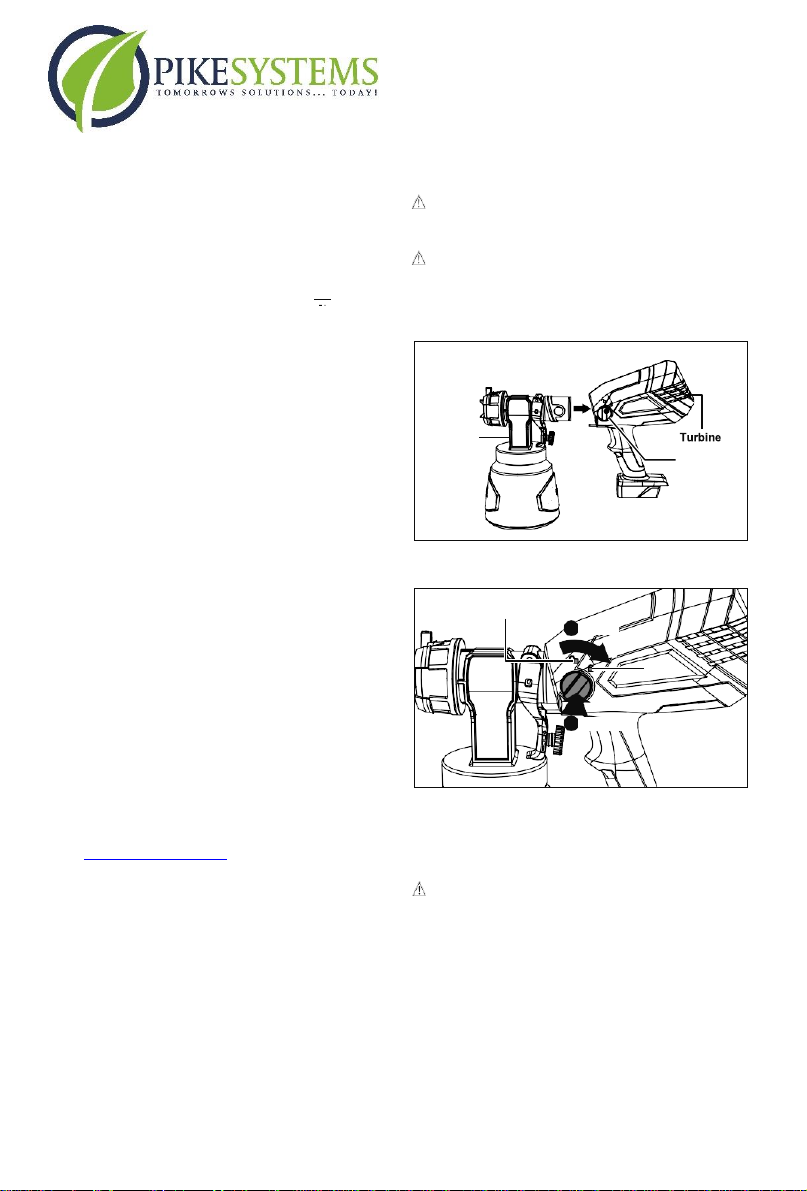

1. Make sure the quick release knob is in the unlock position
and insert the spray gun assembly fully inside the opening
on theend of the sprayer turbine assembly (Fig. 1).
2. Push and rotate the quick release knob to lockin position
to fix the assembly (Fig. 2).
Battery Pack Operation
The equipment is powered by a lithium-ion battery. The battery
pack is completely sealed and maintenance free.
WARNING!Beforefirstuse,thebatteryrequiresatleast
2 hours 40 min charge time to be fully charged. When the
battery is at low capacity, recharge for 2 hours 40 min again
before resuming operation.

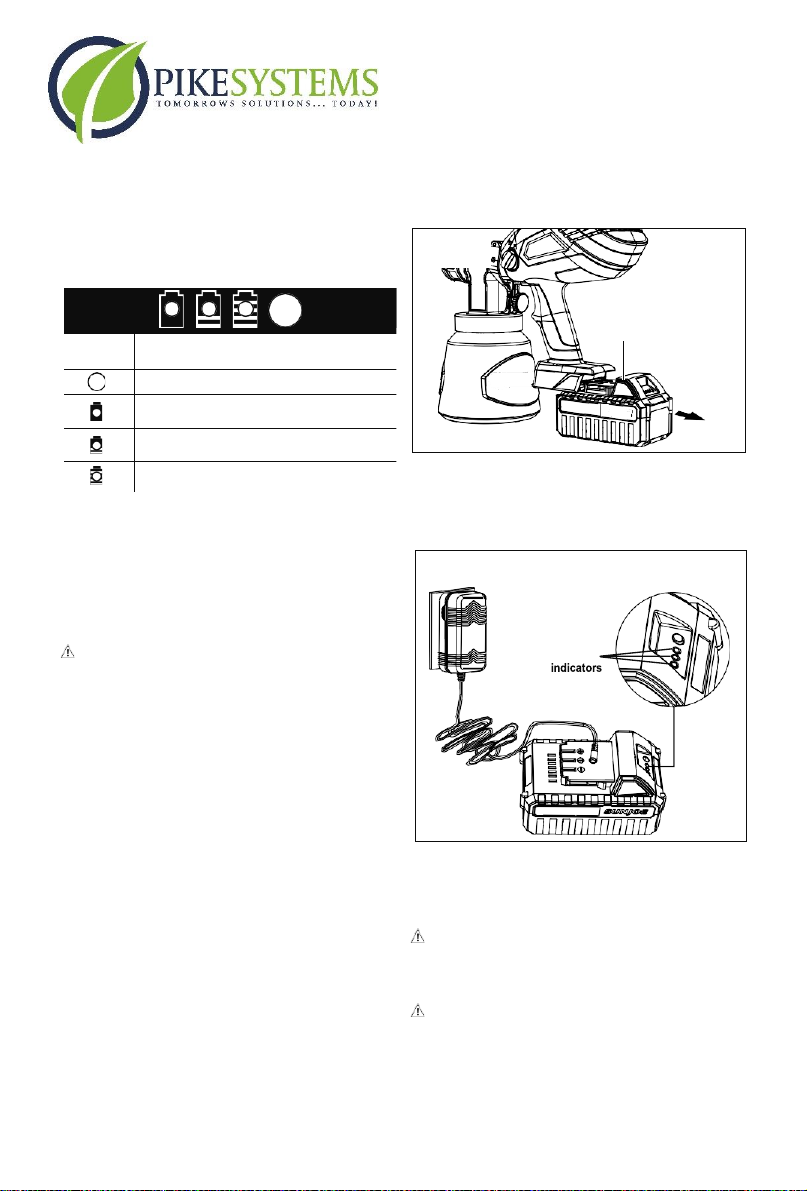

Battery Charge Level Indicator
The battery pack is equipped with a push button for checking
the charge level. Simply press the push button to read off the
battery charge level from the LEDs of the battery indicator:
Fig. 1
Spray gun
assembly
Quick
release
button
Fig. 2
Unlock
2Rotate
Lock
1Push in

8
• All 3 levelmonitoring LEDsare lit: Battery charge level
is high.
• 2levelmonitoringLEDsarelit:Batterychargelevelis
decreasing. Stop work as soon as possible.
• 1 level monitoring LED is lit: Battery is fat. Stop work
IMMEDIATELY and charge the battery. Otherwise the
battery’s service life will be greatly shortened.
NOTE:Ifthechargelevelbuttondoesnotappeartobeworking,
connect the battery to the charger and charge as needed.
NOTE: Immediately after using the battery pack, the charge
level button may display a lower charge than it will if checked
a few minutes later. The battery cells "recover" some of their
charge after resting.
Charger Operation
WARNING! Charge only 20V lithium-ion battery packs
with its compatible 20V lithium-ion charger.
Other types of batteries may cause personal injury and
damage. Other types of batteries may cause personal injury
and damage.
Toreduce the risk ofelectric shock,do notallowwater to flow
into the charger's AC/DC plug.
When to Charge the 20VBAT
Lithium-Ion Battery
NOTE: The 20VBAT lithium-ion battery packs do not
develop a "memory" when charged after only a partial
discharge.Therefore,it is notnecessarytorundownthe
battery pack before placing it into the charger.
• Usethebatterychargeindicatorlightstodeterminewhento
charge your 20VBAT lithium-ion battery pack.
• Youcan "top-off" your battery pack's charge before starting
a big job or after a long day of use.
Charging the Battery
1. Press the push lock buttons on the battery to pull the
battery pack out of the equipment (Fig. 3).
2. Check that the mains voltage is the same as that marked
on the rating plate of the battery charger. Then, plug the
charger adapter into an appropriate AC power outlet.
Connect the charger plug into the charge socket of the
battery to start charging (Fig. 4).
3. Thebatterywilltakeapproximately2 hours40min to
charge. ThebatteryindicatorLEDswilltwinkleand
illuminateone by one during the charging process. Unplug
the charger immediately when the3 LEDs are all
illuminated.
CAUTION! FIRE HAZARD. When disconnecting the
chargerfromthebattery,be suretounplugthechargerfrom
the outlet first, then disconnect the charger from the
battery.
WARNING! This charger does not automatically turn
off when thebatteryis fullycharged. Pleasetake care not
toleave the battery pluggedintothe charger.Switchoff or
unplug the charger at the mains when charging is complete.
Fig. 3
Push lock button
(on both sides)
Fig. 4
Battery
Lights
Light Indicators
Charge level button
Thebatteryisat30%capacity
and requirescharging
Thebatteryisat60%capacity
andrequireschargingsoon
The battery is at full capacity

9
4. Timely recharging of the battery will help prolong the
battery's life.Youmust recharge the battery packwhen
you notice a drop in the equipment's power.
IMPORTANT! Never allow the battery pack to become fully
discharged as this will cause irreversible damage to the battery.

10
Fig. 10
Suction tube
Operation
Filling the container
1. Before filling the container, check that the spray gun
assembly is securely attached to the turbineassembly.
2. Unscrew the container and remove it fromthe
container lid (Fig. 7).
3. Place the container on a smooth and horizontalsurface
firmly. Pourtheproper material into the container (Fig.8).
4. Cleananyresidual liquidfrom the threads orbody of
the container.
5. Align both the sprayer and container and attach the lid
securely to the top of the container. Tighten securely.
Check the lid tomake sure it is threaded on squarely
and securely before picking up the sprayer (Fig. 9).
Align the Suction Tube
Before reattaching the container, adjust the direction of the
suction tube based on the direction of the project (Fig. 10). A
properly directed suction tube will use the material more
efficiently and reduce the need to refill during the project.
1. Tospray in a downward direction, the angled end ofthe
suction tube should be pointing toward the front of the
sprayer (Fig. 11).
Fig. 8
Fig. 9
Fig. 7
Container lid
Container

11
To change the nozzle tip, follow the instructions below:
1. Make sure the tool is switched off and the battery is
removed from the compartment.
2. Unscrewandremovethetipcollarslowly,becarefulthat
the small parts may fall out, and remove the nozzle tip
inside (Fig.13).

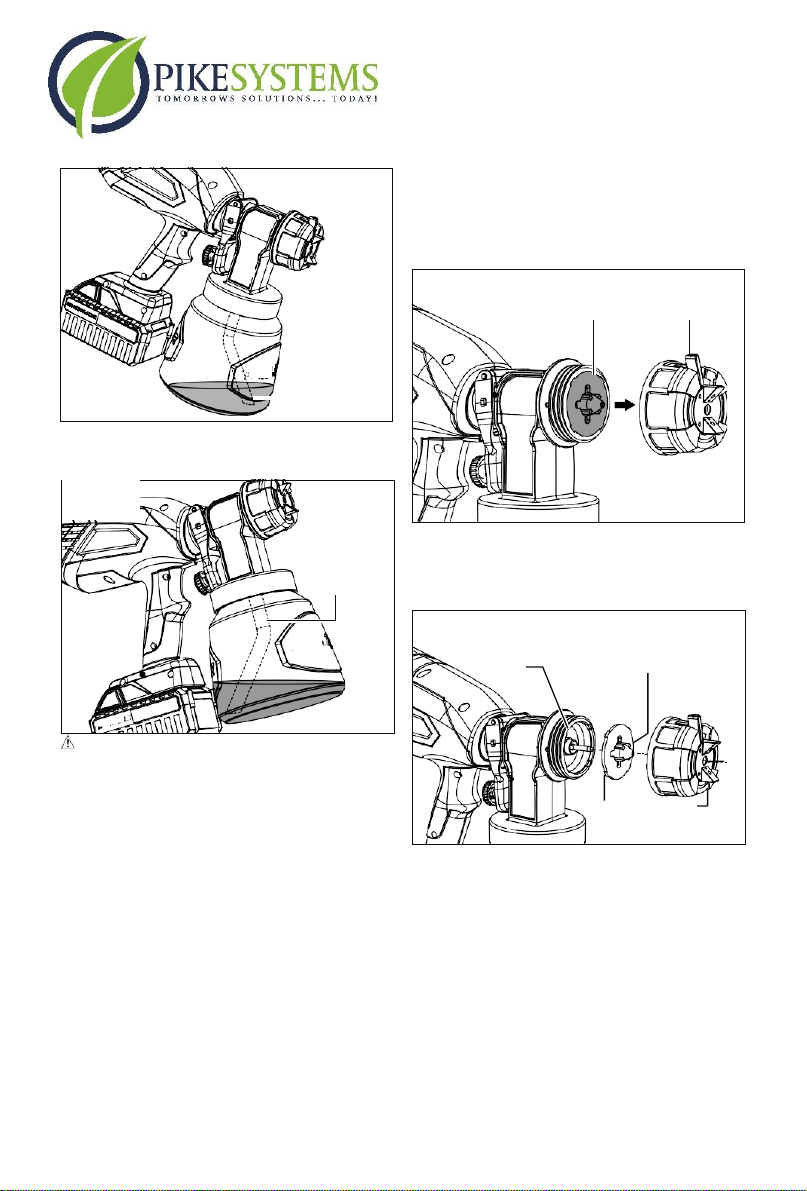

2. Tospray in an upward direction, the angled end of the
suction tube should be pointing toward the rear of the
sprayer (Fig. 12).
3. Assemble the desired nozzle tip byaligning the4 tabs on
the tip with the notches on the sprayer and inserting the
middleneedleinthemiddleholeofthenozzletip. Press
firmlyuntilthenozzletipsitsecurelyinposition.Replace
the tip collar and tighten securely (Fig.14).
WARNING!Nevertiltthe sprayer atan anglegreater
than45°. Materialcouldgetintotheturbineanddamage
the sprayer.
Change the Nozzle Tip
The machine comes with 3 nozzle tips. To use the
sprayer to apply disinfectant or chemical, use only the
red nozzle. Discard the others to prevent confusion.
• White –1.5 mm orifice. Pre-assembled in thegun
• Black –1.8 mm orifice. Packed separately
• Red –2.2 mm orifice. 50 micron spray for use with
various chemicals and disinfectants approved for use
through sprayers per label guidelines and EPA
registration.

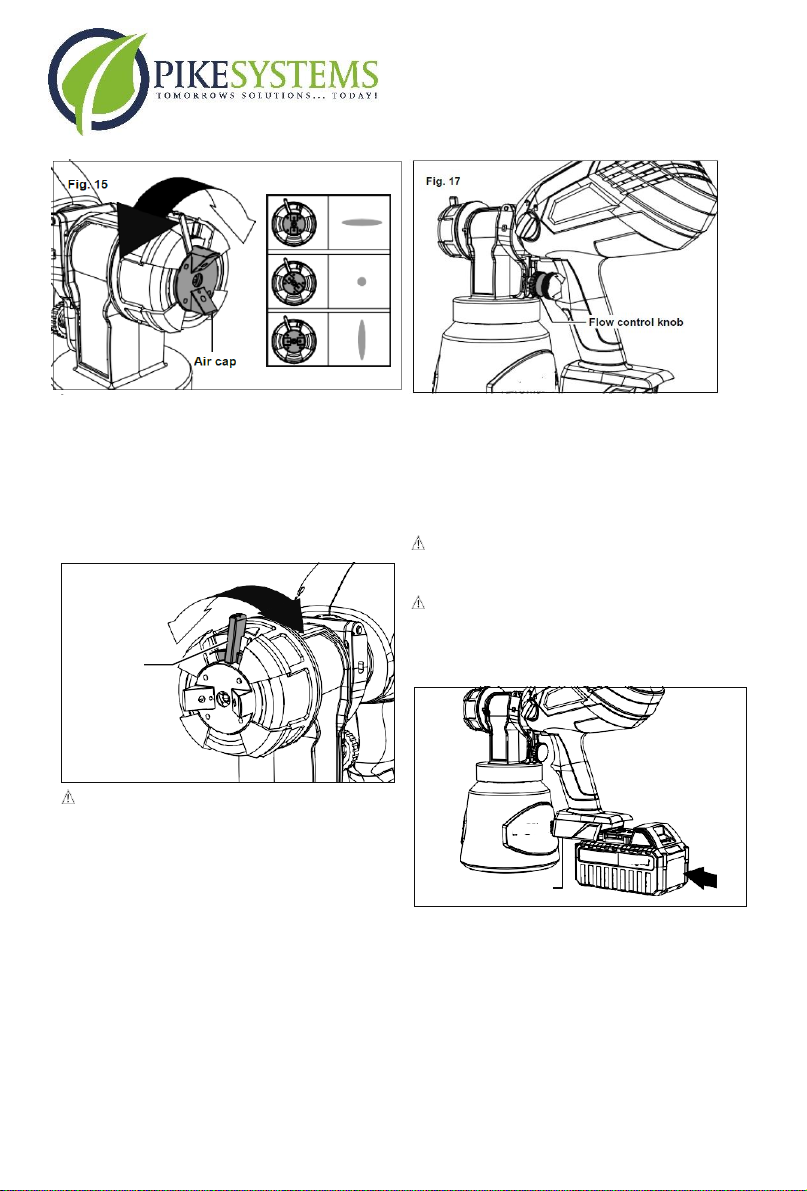

Adjusting the Spray Patterns
The spray pattern shape can be adjusted by turning the ears
of the air cap to either the vertical, horizontal, or diagonal
positions. The positions of the air cap and the corresponding
spray pattern shapes are illustrated below (Fig. 15).
Test each pattern and use whichever pattern is suitable for
your application.
Fig. 11
Suction tube
pointing
forward
Fig. 13
Nozzle tip
Tip collar
Fig. 14
Notch
New nozzle tip
Tab
Tip collar
Suction tube
pointing to
rear
Fig. 12

12
WARNING! Switch off the unit and remove the battery
before adjusting the spray pattern. NEVER point the sprayer
at any part of the body.
Adjusting the Spray Width
Thesprayer width canbe adjustedbythe spraywidth control
lever. Turn the lever counterclockwise for a narrow spray,
clockwise for a wider spray (Fig. 16).
WARNING! Switch off the sprayer and remove the battery
before adjusting the spray width. NEVER point the sprayer at
anypartofthebody.
Adjusting the Spray Amount
The flow control knob regulates the amount of liquid that can
be sprayed. Turning the knob clockwise increases the flow of
liquid; turning the knob counterclockwise decreases the flow of
the liquid (Fig.17).
NOTE: Always test the spray on scrap cardboard and
similar material first. Begin with largest flow setting. If less
flow is desired, adjust the flow control knob slowly until the
appropriate flow amount is achieved.
Basic Spray Process
WARNING! DO NOT insert the battery until all settings
are done and you are ready to use the sprayer. Do not
squeeze the On/Off switch until you are ready tospray.
WARNING! Always do a test spray on scrap
material before a new project, after changing material
and spray settings.
1. Insert the battery into the battery compartment on the
back of the sprayer, until it clicks into position (Fig.18).
2. Position the sprayer perpendicular to the spray
surface, keep the distance between the sprayer and
thesurfacebetween2inch (5cm) and12 inch(30 cm),
dependingon the spray pattern and size desired.
Fig. 16
Spray width
control
lever
Fig. 18
Battery compartment

13
3. SqueezetheOn/Offswitch,whichwillactuatethetrigger
switchlevertopressthetriggerinsidethesprayer(Fig.
19).
4. Spray perpendicular to the surface with smooth passes at
a consistent speed as illustrated below. This will help to
avoid irregularities in the finish (Fig.20).
NOTE: When spraying, always switch on the sprayer after
moving and release the On/Off switch before stopping
moving. Always keep the sprayer pointed perpendicular to
the spray surface and overlap passes slightly to obtain the
most consistent and professional finish possible.
5. Releasethe On/Offswitch to stoptheunit. Remove the
battery before storage or any adjustment.
Spray Tips
• Practice spraying on a scrap material like cardboard to
testthespraypatternandgetfamiliarwiththeflowcontrol
feature of thesprayer.
• Ensure the surface to besprayed is free ofdust, dirt,
and grease.
• Ensure spray area is cleanand free of dust thatcould be
blown onto the newly sprayed surface.
• Keep the nozzleata minimumof 12inch and a maximum of
36 inchaway fromthe surface (Fig. 20).
• Toget an even spray distribution, keep your arm at the
same distance and avoid moving the wrist duringspraying
(Fig. 21).
Starting the Machine
1. Next fill the container by removing it from the sprayer.
Turn the container counter-clockwise to remove it. Note:
you must hold on to the container, or the container will
fall to the floor.
2. Insert the tank into the sprayer and rotate the container
until you the container is snug and not loose.
3. Insert the charged battery into the battery socket and
lock in place.
4. Pull on the handheld trigger to begin the flow of solution.
Apply solution as fast as you can walk 2-3 feet from
surfaces. Do not over saturate.
After working, before leaving the machine:
1. Remove Battery from the unit
2. Remove the container by removing it from the sprayer.
Turn the container counter-clockwise to remove it. Note:
you must hold on to the container, or the container will
fall to the floor.
3. Add: Clean water to container
4. Insert the container into the sprayer and rotate the
container until you the container is snug and notloose.
5. Spray (1 Minute) until clear water is present
Fig. 20
12 inch
(30 cm) to
36inch
(91cm)
Fig. 21

14

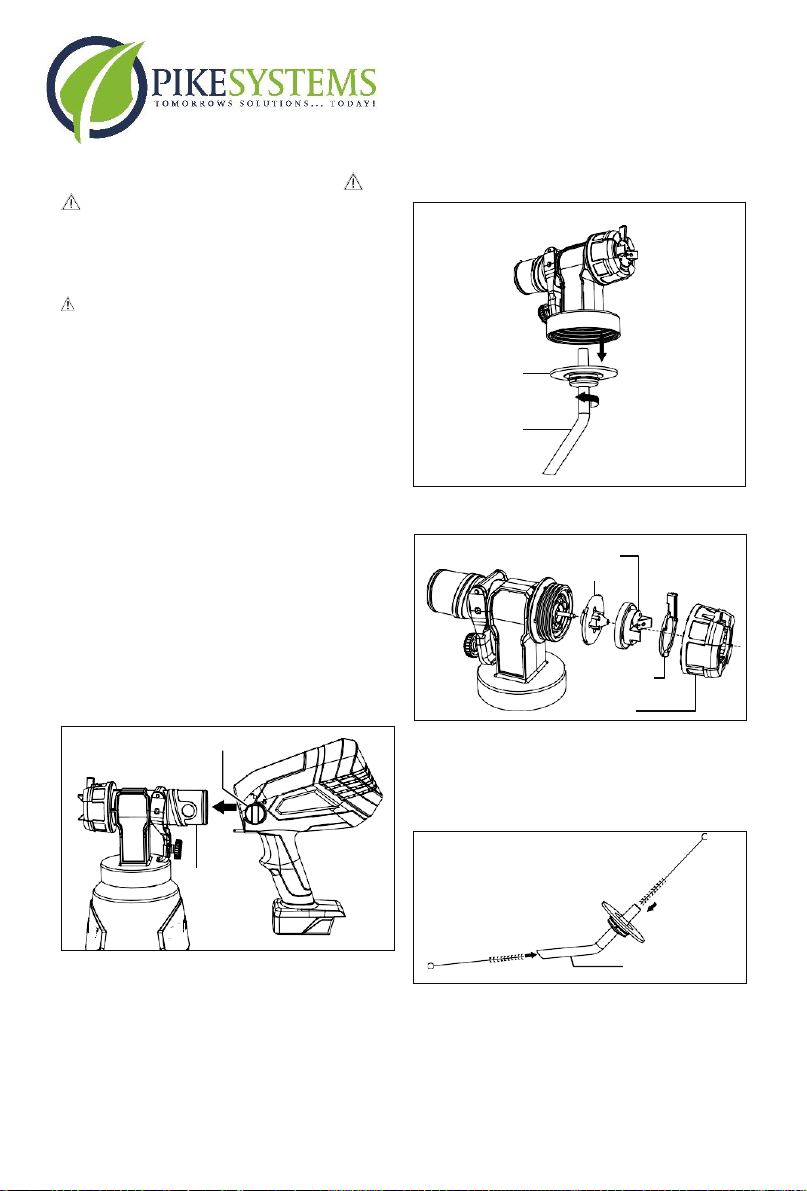

Cleaning + Maintenance
WARNING! To avoidaccidents,alwaysremovethe
batteryanddisconnectthechargerfromthepowersupply.
Never immerse the sprayer in any liquid for cleaning.
The sprayer can only be operated normally if it's cleaned and
preserved after each use. When cleaning, use the appropriate
cleaning solution.
WARNING! NEVER use any solvent that have a flash
point lower than 73.5°F (23°C).
Clean the Container
1. Stopthesprayerandremovethebattery.Pressthe On/Off
switch so that the material inside the spray gun assembly
flows back into thecontainer.
2. Unscrew the container. Discard any unused solvent to its
original container.
NOTE:. Discard appropriately according to regulations or
save in a separate container.
3. Pour a small amount of water into the container. Clean
the container and properly dispose of the dirty water.
Refillthecontainerwith clean water.
4. Reattached the container on the sprayer.Insert the battery
and spray the clean water through the sprayer in a safe
area. Refill and repeat spray process, until the water
being sprayed is clean and clear.
5. Stopthesprayerandremovethebattery.Pressthe On/Off
switch so that the material inside the spray gun assembly
flows back into thecontainer.
Clean the Housing and the Parts
1. Remove the container and pour out any remaining
solution.
2. Turnthequickrelease knob tothe unlockposition andpull
out the spray gun assembly (Fig. 23).
3. Turnthesuctiontube clockwiseandpullouttoremove the
seal and the suction tube (Fig. 24).
4. Unscrewthetipcollar,removethespraywidthcontrol
lever + ring,air capand the nozzle tip(Fig.25).
5. Dipacleanclothinwaterorproper solvent,andcleanall
the disassembled parts, the spraygun assembly, andthe
motorhousing.
6. Double check the suction tube. If it's blocked, use the
supplied cleaning brush to clean through the inlet and the
outlet (Fig. 26).
7. Ifneeded,usetheneedlecleanouttoolto cleanthe
nozzle tip (Fig.27).
Fig. 23
Quick release knob
Spray gun
assembly
Fig. 24
Seal
Suctiontube
Fig. 25
Air cap
Nozzle tip
Spray width
control lever
+ ring
Tip collar
Fig. 26
Suction tube

15
8. Before storage, make sure to dryoutall the parts.
Clean the Air Filter
Periodically inspect the air filter in the turbine to see if it is
excessively dirty. Follow the instructions below to clean if it
is dirty.
1. Makesurethesprayeristurned offandthebatteryis
removed.
2. Use a screwdriver to remove the small screw on the back
ofthe turbine, thenremovethe airventcover toexpose the
air filter (Fig.28).
3. Cleantheairfilterwithcleanwater,dry outthoroughly,and
reposition it on the air vents. Replace the air vent cover
and fix with thescrew.
WARNING! Never operate your unit without the air
filter.Dirtcouldbe suckedinandinterferewiththefunction
of the sprayer.
Storage
1. Examine the sprayer thoroughly for worn, lose or
damaged parts. Should you need to repair or replacea
part, Contact Pike Systems at
[email protected] or call 630-896-6373 for
assistance.
2. Remove the battery from the sprayerbefore storing.
3. Store the sprayer indoors in a locked, dry placeoutofthe
reachofchildrentopreventunauthorized use or damage.
Battery + Charger Off-Season Storage
1. Do not expose your battery pack or charger to water,
rain or allow them to get wet. This could permanently
damage the charger and the battery pack. Do not use oil
or solvents to clean or lubricate your battery pack as the
plastic casing can become brittle and crack, causing a
serious risk of injury.
2. Store the battery pack and charger at room temperature
away from moisture. Do not store in damp locationswhere
corrosion of terminals may occur. As with other battery
pack types, permanent capacity loss can result if the pack
is stored for long periods of time at high temperatures
(over 120°F/49°C).
3. Battery 1000 lithium-ion battery packs maintain their
charge during storage longer than other battery pack
types. As a general practice, it is best to unplug the
batterychargerandremove thebatterypackwhenthey
arenotinuse.Rechargethebatterypackevery6months
to50%capacity(2lightson)duringoff-seasonstorageto
maintain optimal battery performance.
Battery Caution + Disposal
Always dispose of your battery pack according to federal,
state,andlocalregulations.Contactarecyclingagencyin your
area for recycling locations.
CAUTION! Even discharged battery packs contain
some energy. Before disposing, use electrical tape to cover
theterminalstopreventthebatterypackfromshorting,which
could cause a fire or explosion.
WARNING! Toreduce the risk of injury or explosion,
neverburnor incinerateabatterypackevenifitis damaged,
dead or completely discharged. When burned, toxic fumes and
materials are emitted into the surrounding atmosphere.
1. Failure to insert batteries in the correct polarity, as
indicated in the battery compartment or manual, may
shorten the life of the batteries or cause batteries toleak.
2. Do not mix old and newbatteries.
3. Do not mix Alkaline, Standard (Carbon-Zinc) or
Rechargeable(Nickel Cadmium, NickelMetalHydride,or
Lithium-Ion) batteries.
4. Do not dispose of batteries in fire.
5. Batteries should be recycled or disposed of as per state
and local guidelines.
Fig. 28
Air filter
Air vent cover
Screw
Fig. 27
Needle clean out tool

16
Service and Support
If your sprayer requires service or maintenance, contact Pike
Systems at [email protected] or call 630-896-6373
for assistance.
BAT1000
Federal Communications Commission
(FCC)
WARNING! Any changes or modifications to this
unit not expressly approved by the party responsiblefor
compliance could void the user's authority to operate
the equipment.
Class B device:
NOTE: This equipment has been tested and found to comply
withthe limitsfor a ClassB digital device, pursuant topart 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation.
Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedby turningthe
equipmentoffandon,theuserisencouraged totry tocorrect
theinterferencebyoneormoreof thefollowingmeasures:
• Reorient or relocate the receiving antenna.
• Increase theseparation between the equipment
and receiver.
• Connecttheequipmentintoanoutletonacircuitdifferent
from that to which the receiver is connected.
• Consultthe dealeror an experiencedradio/TVtechnician
for help.

17
Troubleshooting
Most difficulties are easy to fix. Consult the troubleshooting table for common problems and their solutions. If you
continue to experience problems or need repairs beyond these minor adjustments, please contact Pike Systems at
[e-mail] or call 630-896-6373 for assistance.
Problem
Possible Cause
Solution
Little or no material flow
a) Nozzle clogged.
b) Suction tube clogged.
c) Material volume setting turned too low.
d) Suction tube loose.
e) No pressure build up in container.
f) Air filter clogged.
a) Clean the nozzle with the supplied
needle clean-out tool.
b) Clean the suction tube with the supplied
cleaning brush.
c) Increase the spray amount byadjusting
the flow control knob.
d) Tighten the suction tube.
e) Tighten the container.
f) Clean the air filter.
Material leaking
a) Nozzle is loose.
b) Nozzle isworn.
c) Suction tube loose.
d) Material builds up and blocks the air
cap and nozzle.
a) Insert the nozzle tip securely.
b) Replace the nozzle.
c) Tighten the suction tube.
d) Clean the blocked air cap and the nozzle.
The spray is not fine
a) Spray tip orifice is too large.
b) Material volume setting too high.
c) Nozzle clogged.
d) Air filter clogged.
e) Too little pressure build-up in container.
a) Change to a smaller nozzle tip.
b) Decrease the spray amount byadjusting
the flow control knob.
c) Clean the nozzle with the supplied needle
clean-out tool.
d) Clean the air filter.
e) Tighten the container.
Cannot generate
continuous spray
a) Material in the container is
running out.
b) Airfilteris clogged.
a) Refill the container.
b) Clean the air filter.
Not reaching the
appropriate dwell
time
a) Theirs is not enough solution on the
surface.
a) Increase the spray amount byadjusting
the flow control knob.
b) Move slower with the sprayer.
Too much overspray
a) The sprayer is too far from the surface.
b) There's too much solvent applied on
the surface.
a) Reduce the distance.
b) Decrease the spray amount by adjusting
the flow control knob or move quickly
with the sprayer.
Solution is not on the surface
a) The sprayer is moved too fast during
spraying.
a) Increase the spray amount by adjusting
the flow control knob or move slower
with the sprayer.
