Pinnacle Outdoor 1.5m Flat Roof Series User manual
GARDENSHED
1.5W x 0.8D x 1.53Hm
Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses, 3mm
steel drill bit, 4mm steel drill bit and a 10mm masonry drill bit.
Assembly instructions
1.5m Flat Roof Series
Congratulations on purchasing your new Pinnacle garden shed. Before assembling, we recommend
you read the instructions thoroughly. Your new garden shed comes with pre-drilled holes to make
assembly quicker. We recommend you assemble it using a trestle table or sawhorses and planks.
This will ensure that you are working off the ground and make it easier for you. Assembly is a
two-person job and should not be attempted in windy conditions.
GARDENSHED1.5W x 0.8D x 1.53Hm
Build your garden shed in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door
Step 7: Fit the panels together
100mm

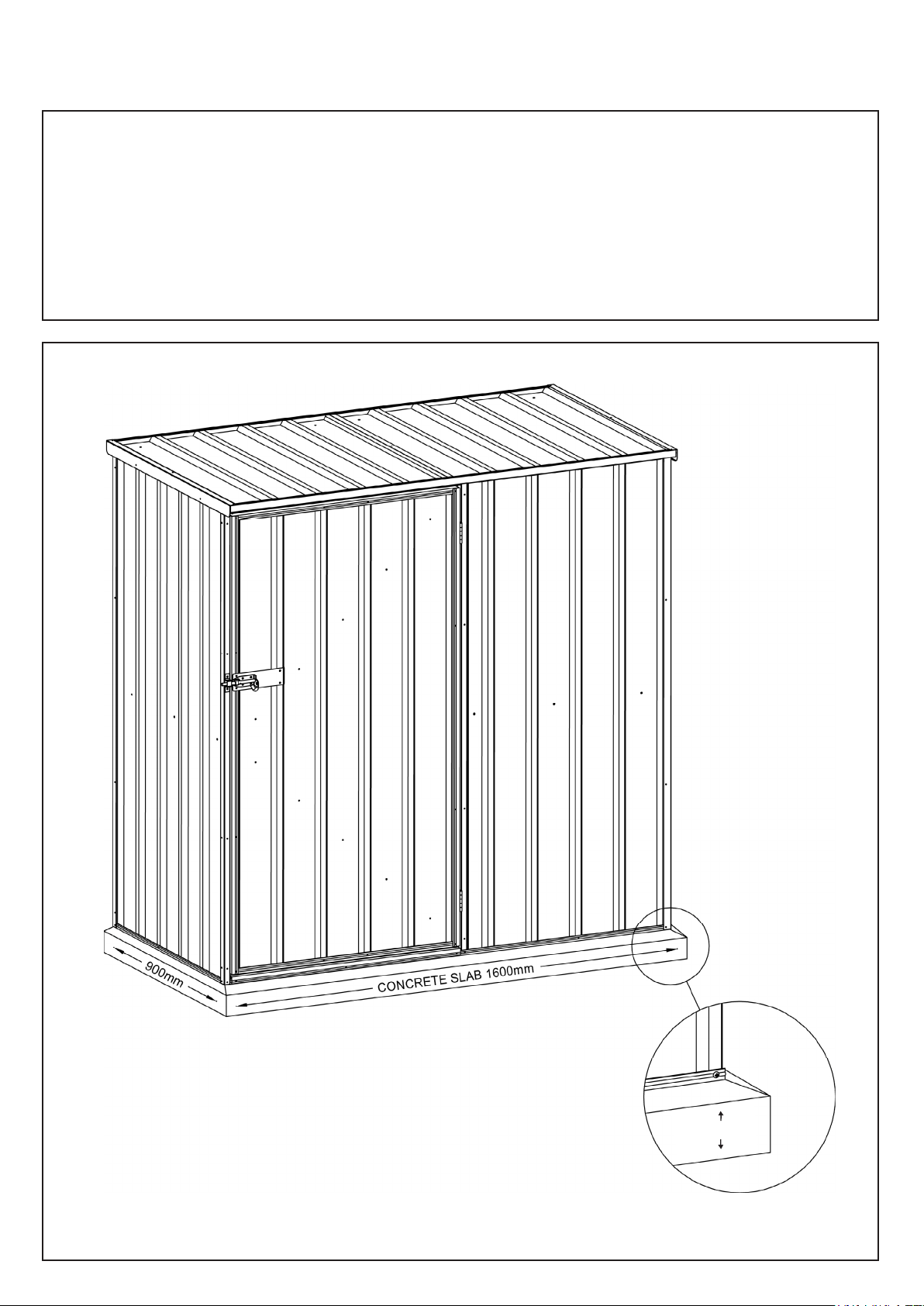

Concrete slab: Please ensure that your site is level. It is
recommended that your slab is 100mm thick and you use builder’s
plastic and F52 reinforcing mesh. We recommend that you make
your slab 100mm bigger than the base dimensions of your garden
shed. This will allow for a 50mm edge around your garden shed. We
recommend that you slope the 50mm edges downward by 10mm
so that rainwater can drain away from your garden shed.
Picture Description Component Location Part
No. QTY Check
Sheet Sheet 1500x770mm Rear wall 14N 2
Sheet Sheet 1500x770mm Side wall 14M 2
Sheet Sheet 855x770mm Roof 3A 2
Sheet Sheet 1500x708mm Front S74 1
Door sheet Sheet 1443x770mm Door D32 1
Channel Channel 1443mm Door 81H 1
Channel Channel 1443mm Door 81G 1
Channel Channel 768mm Door M26 2
Brace Brace 955 Door U17 2
Channel Channel 1508mm Roof 20A 2
Channel Channel 1508mm Rear 20B 1
Channel Channel 1508mm Rear 20C 1
Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check off against parts list.
GARDENSHED1.5W x 0.8D x 1.53Hm
Picture Description Component Location Part
No. QTY Check
Channel Channel 1508mm Front 20D 1
Channel Channel 1508mm Front 20E 1
Channel Channel 768mm Side 21B 2
Channel Channel 768mm Side 21F 2
Channel Channel 775mm Front 23 1
Channel Channel 1458mm Rear 31 1
Channel Channel 718mm Side 32 2
Channel Channel 674mm Front 33R 1
Jamb Jamb 1498mm Front J27 1
Jamb Jamb 1498mm Front J28 1
Jamb Jamb 775mm Front 42 1
Jamb Jamb 1498mm Corners Z24 3
Jamb Jamb 1498mm Corners Z31 1
5

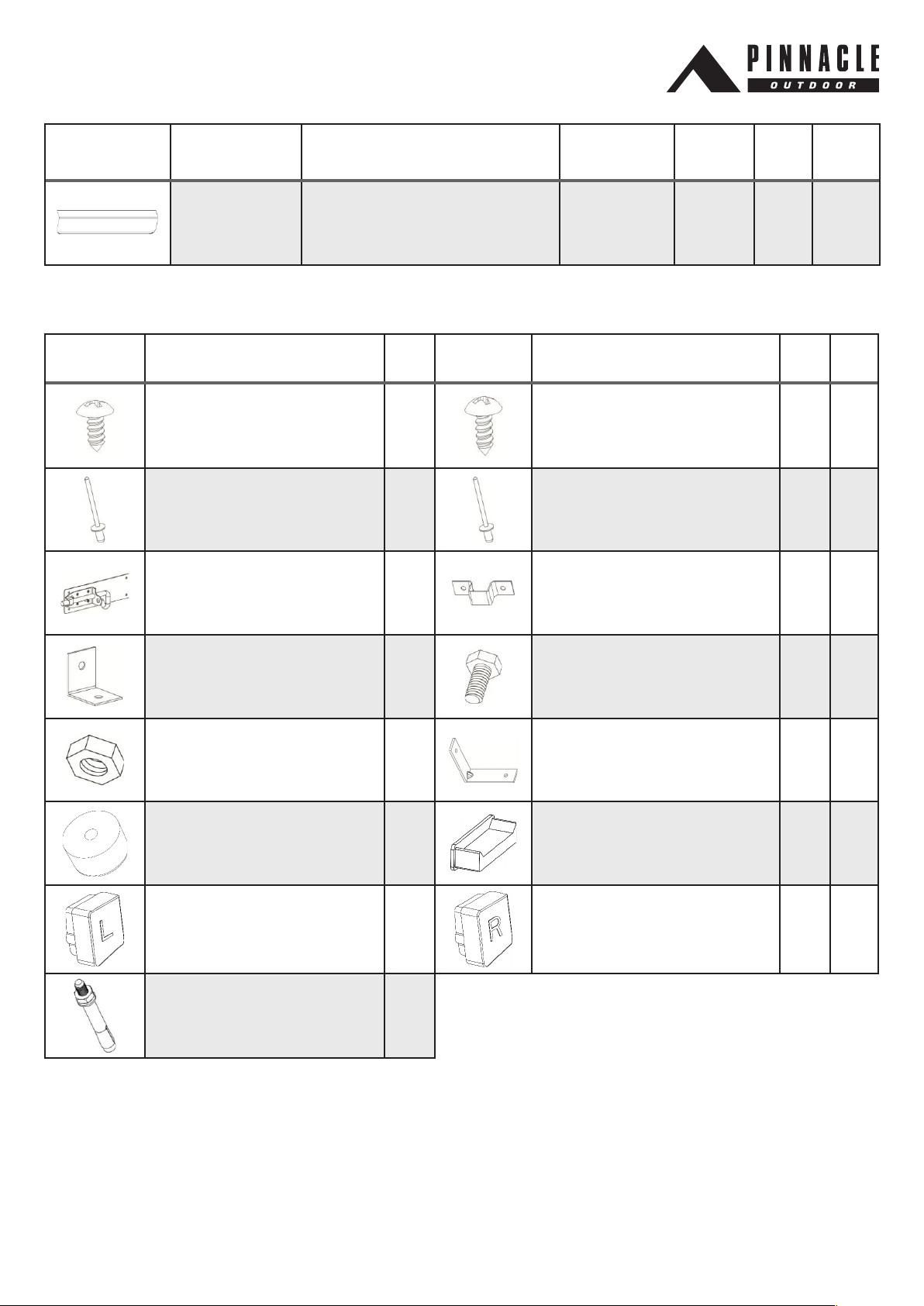

Fittings part list:
Picture Component QTY Picture Component QTY
Self-tapping screws (10mm) 130 Self-tapping screws (16mm) 10
4.0 x 10mm Rivet 6 3 x 10mm Rivet 30
Pad bolt (Part 70) 1 Keeper (Part 71) 1
Bracket 5 5/16 x 19mm Hexagonal bolt 5
5/16 Hexagonal Nut 5 Mid wall bracket
(Part 72) 3
Screw safety cover 25 Plastic stopper 4
Left channel safety cover 1 Right channel safety cover 1
Sleeve anchor bolt 5
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _________________________________________
In the unlikely event that you nd you are missing a part, Australian customers please contact Pinnacle on 1800 349 776. New Zealand customers
please contact Harco (Harkness & Young Ltd) on: 09 276 4071. A copy of proof of purchase may be requested.
Picture Description Component Location Part
No. QTY Check
Lip Lip 856mm Roof 50A 2
GARDENSHED1.5W x 0.8D x 1.53Hm
6
Garden shed overview:
7
Step 2: Assemble the rear wall panels
For easier assembly of your garden shed use sawhorses with timber studs as per diagram below (timber needs to be the same length
as the shed panels (1.5 M)) or alternatively, use a trestle table.
Place 2x part 14N (sheets) on your worktable and join together with the self-tapping screws as per the diagram below.
Now t parts 20B (top channel) and 20C (bottom channel) onto the sheeting by tapping it in (diagram A) or sliding it in (diagram B).
Make sure the small lip of the channel is always facing out. This ensures water cannot build up inside your garden shed.
RIDGES FACING UP
A
ROOF TOP EDGE
GARDENSHED1.5W x 0.8D x 1.53Hm
8Tip: If panel and screw holes do not line up, try pulling panel to match up holes.
RIDGES FACING UP
RIDGES FACING UP
Step 2: Assemble the rear wall panels (continued)
Now position part 31 (mid wall channel) on the inside of the wall panel and x with the provided screws. Please ensure mid wall channel is
xed through the front of the wall panel (ridges facing up). Do not x screws with a cross mark in the diagram below at this stage.
B
ROOF TOP EDGE
ROOF TOP EDGE
9
Step 3: Assemble the side wall panels

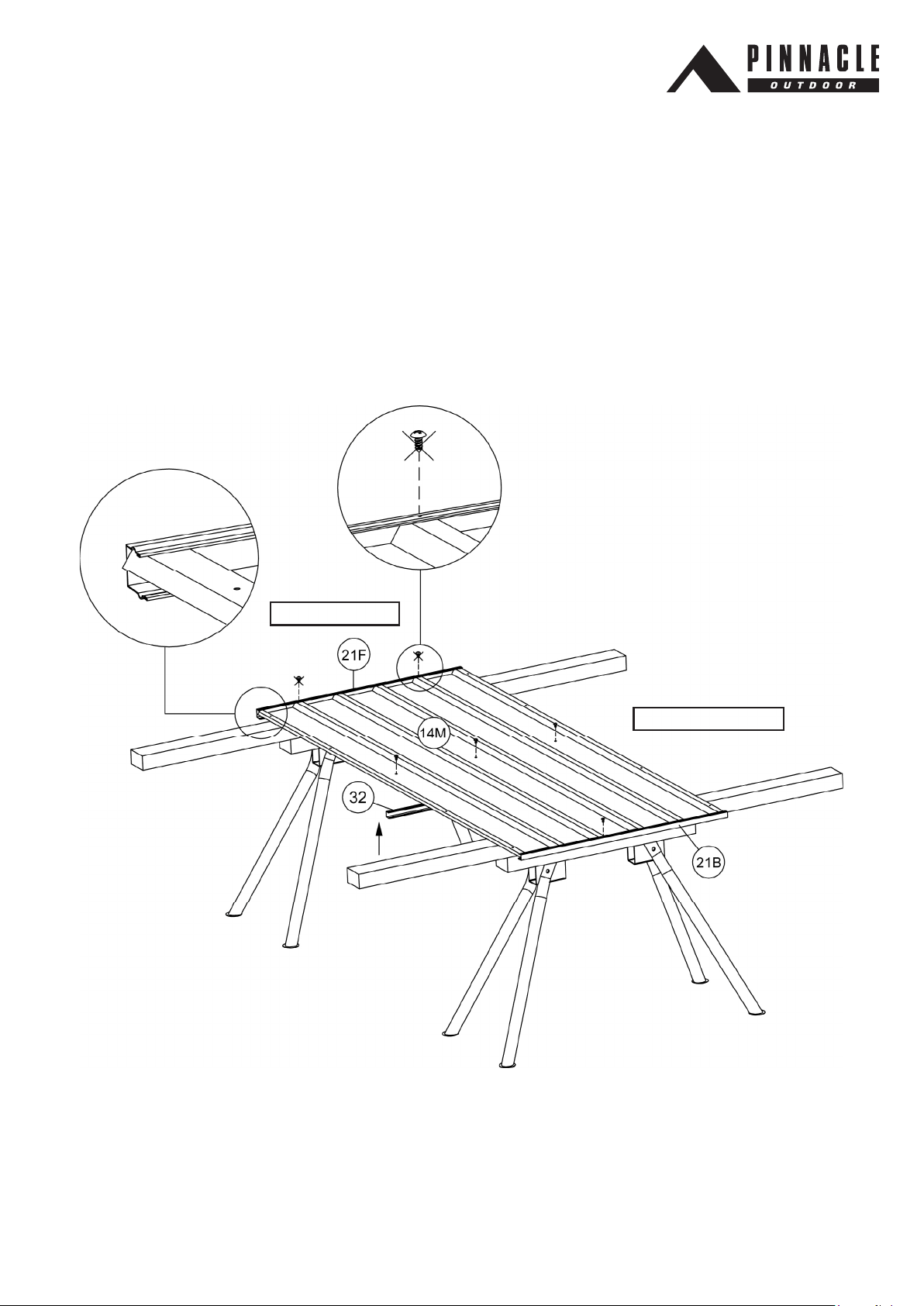

Place part 14M (sheet) on your worktable and tap or slide on parts 21F (top channel) and 21B (bottom channel). Fix part 21B (bottom
channel) with self-tapping screws but not part 21F (top channel) at this stage. Make sure the small lip of the channels is always facing
out. This ensures rain water cannot build up inside your shed. NOTE: All screws marked with a cross should not be xed at this stage.
RIDGES FACING UP
ROOF TOP EDGE
GARDENSHED1.5W x 0.8D x 1.53Hm
10
Step 4: Assemble the roof panel
Place 2x part 3A (sheeting) on your worktable and join together with the self-tapping screws as per the diagram below.
Now tap or slide 2x part 20A (channels) onto the sheeting and x them to the top and bottom with self-tapping screws. Make sure the
small lip of the channels is always facing out. This ensures rain water cannot build up inside your fowl house.
11
Step 4: Assemble the roof panel (continued)

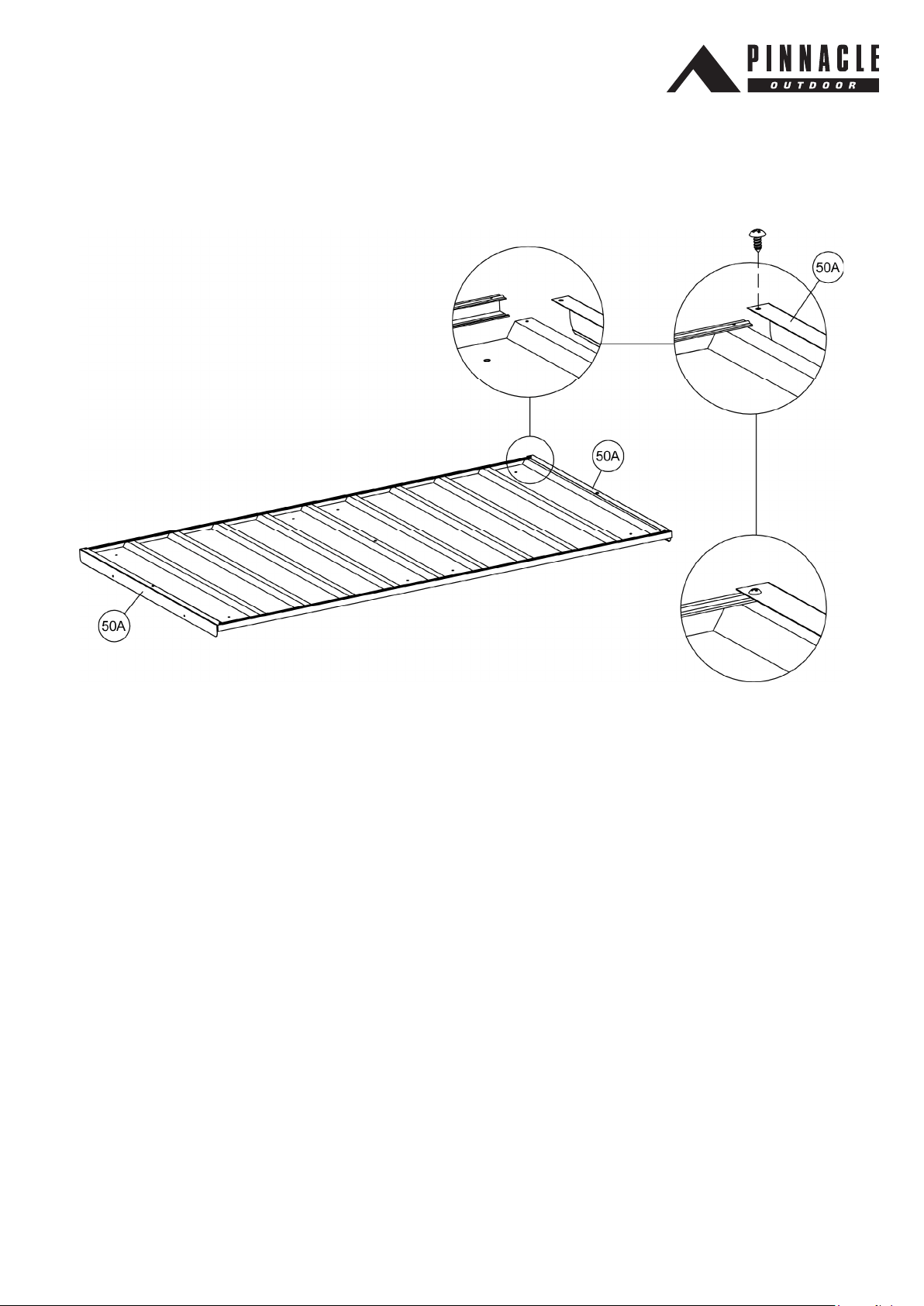

Now t 2x part 50A (side lips) to the sheeting and x them with self-tapping screws.
GARDENSHED1.5W x 0.8D x 1.53Hm
12
Step 5: Assemble the front wall panels
Place part S74 (sheet) on the worktable then t parts 20D (top channel), 20E (bottom channel), J27 (jamb) and 33R (mid wall channel)
with self-tapping screws. Do not x screws with a cross mark in the diagram below at this stage. Make sure the small lip of the
channels is always facing out. This ensures rain water cannot build up inside your shed.
Fix parts J28, 42 (Jambs) and part 23 (bottom channel) with the provided self-tapping screws. Do not x screws with a cross mark in
the diagram above at this stage. Make sure the small lip of the channels is always facing out. This ensures rain water cannot build up
inside your shed.
ROOF TOP EDGE
RIDGES FACING UP
13
Step 6: Assemble the front door
Place D32 (door sheet) on your worktable and x 2x parts M26, part 81H and 81G (channels) with the provided 3.0x10mm rivets.
FIX WITH 3.0 x 10MM RIVETS
FIX WITH 3.0 x 10MM RIVETS
ROOF TOP EDGE
GARDENSHED1.5W x 0.8D x 1.53Hm
14
Step 6: Assemble the front door (continued)
Once channels are attached line up 2x part U17 (bracing) on the inside of your door panel. Please ensure ridges are facing down.
BACK
RIDGES FACING DOWN
15
Step 6: Assemble the front door (continued)

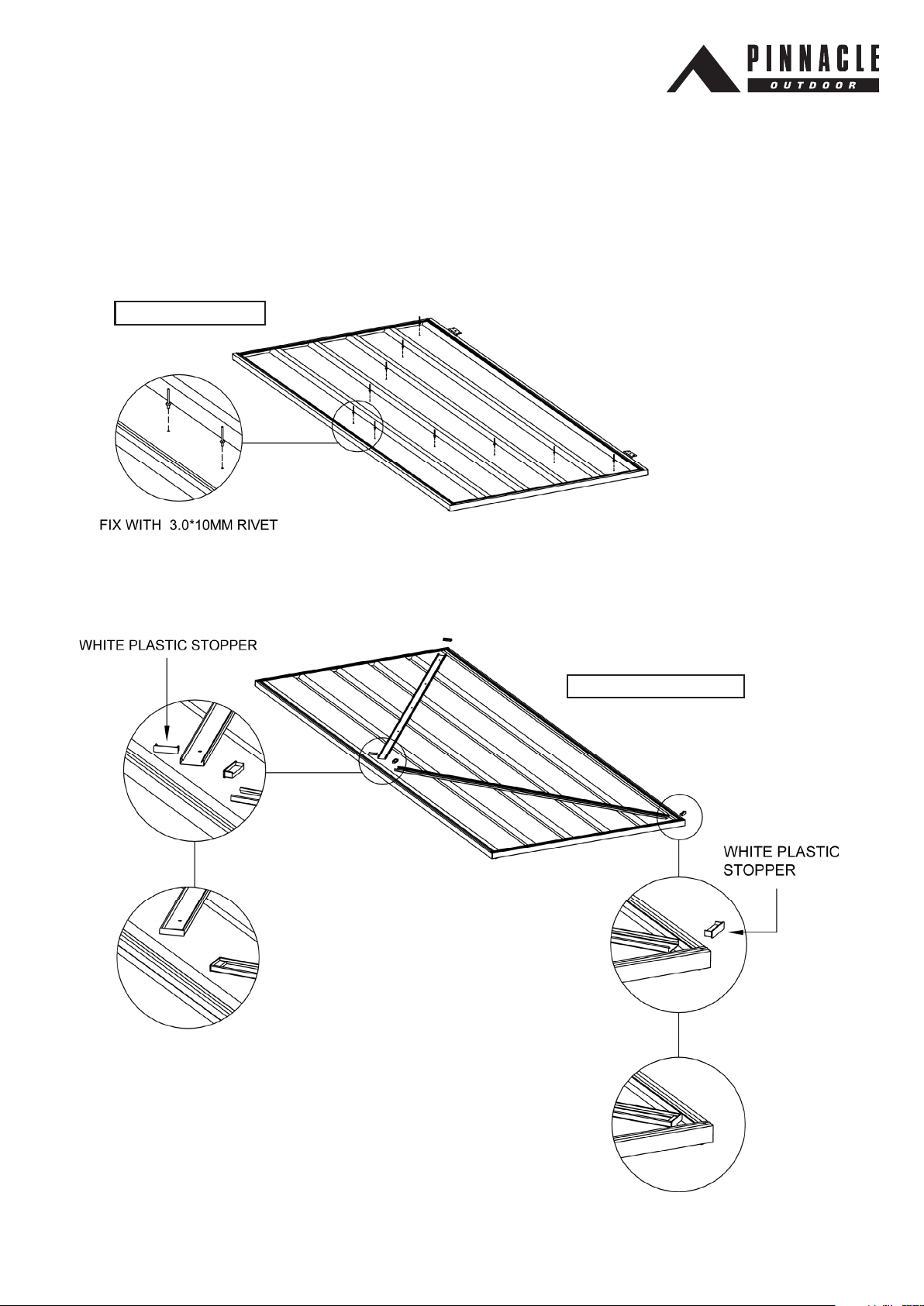

When bracing is lined up on the back of the door panel ip over to the front and x using the provided 3.0x10mm rivets. Please
ensure rivets are inserted through the front of the door panel (ridges facing up). Once 2x part U17 (bracing) is xed attach the white
plastic safety covers to the ends to cover any sharp edges as per diagram below.
FRONT
BACK
RIDGES FACING DOWN
RIDGES FACING UP
GARDENSHED1.5W x 0.8D x 1.53Hm
16
Step 6: Assemble the front door
Fix part D32 (assembled door) to the front wall panel using a rivet gun and the provided 4.0 x 10mm rivets. Once the door is xed to
the front wall panel attached the padbolt (part 70) (but not the keeper at this stage) with the provided screws or 3.0 x 10mm rivets.
B
A
FIX WITH SCREWS FIX WITH 3x10MM RIVETS
17
Step 7: Fit the panels together
Attach the two side walls to the back wall, then the front wall by xing 3 x parts Z24 and part Z31 (corner bracing) followed by the
roof. Fix all of these components together using the provided self-tapping screws. Note: Fix the pad bolt keeper (part 71) with the
provided self-tapping screws or rivets at this stage as well.
FIX PADBOLT KEEPER
WITH 3x10MM RIVETS
FIX PADBOLT KEEPER
WITH 16MM SCREWS
FIX WITH 16MM SCREWS
B
A
GARDENSHED1.5W x 0.8D x 1.53Hm
18

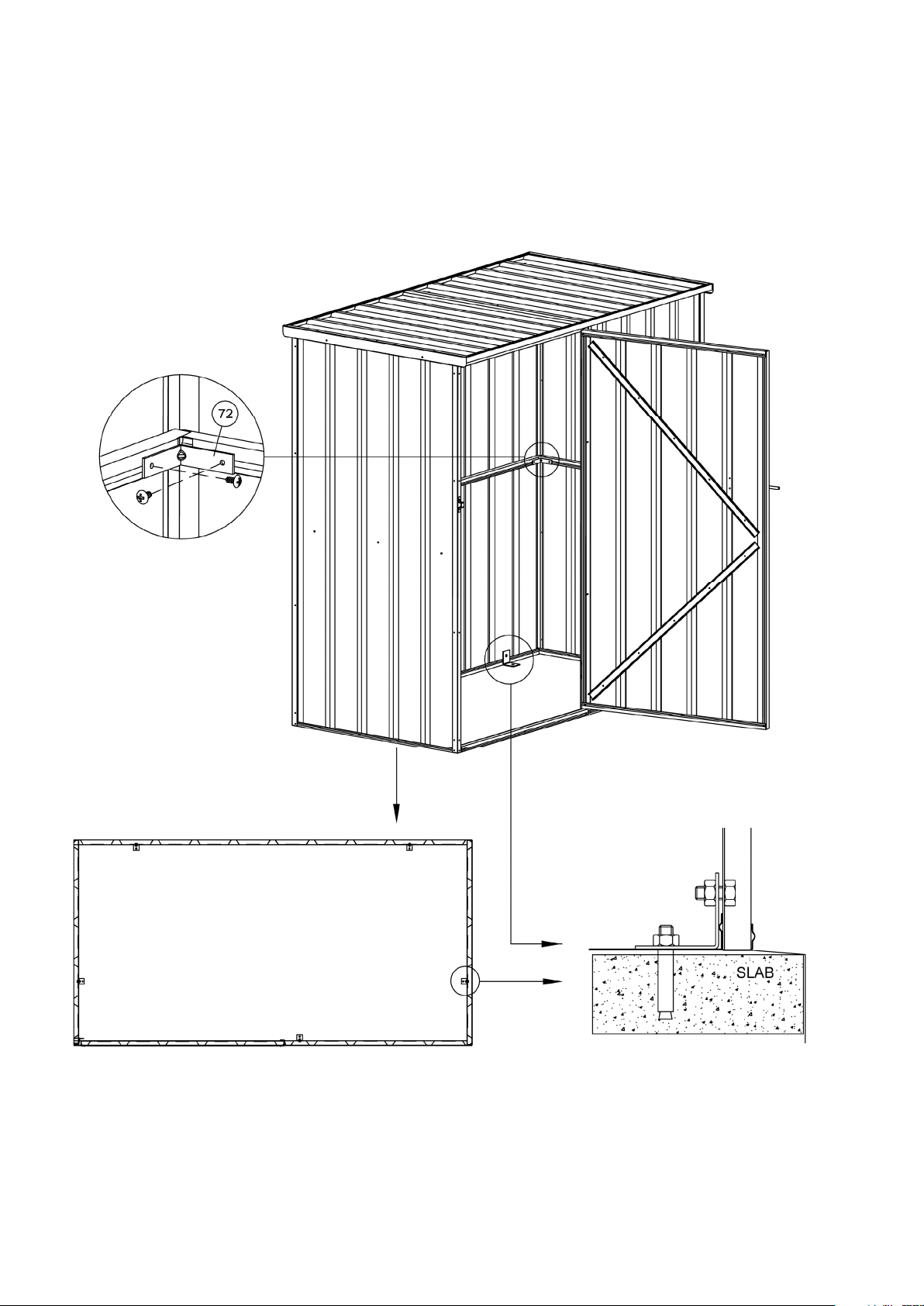

Now t the bolt down kit as per the diagram below. Strengthen your shed by xing the provided mid wall bracing (part 72) on each
corner.
DOOR
BOLT & NUT
STEEL ANGLE
WALL SHEET
SLEEVE ANCHOR BOLT
19

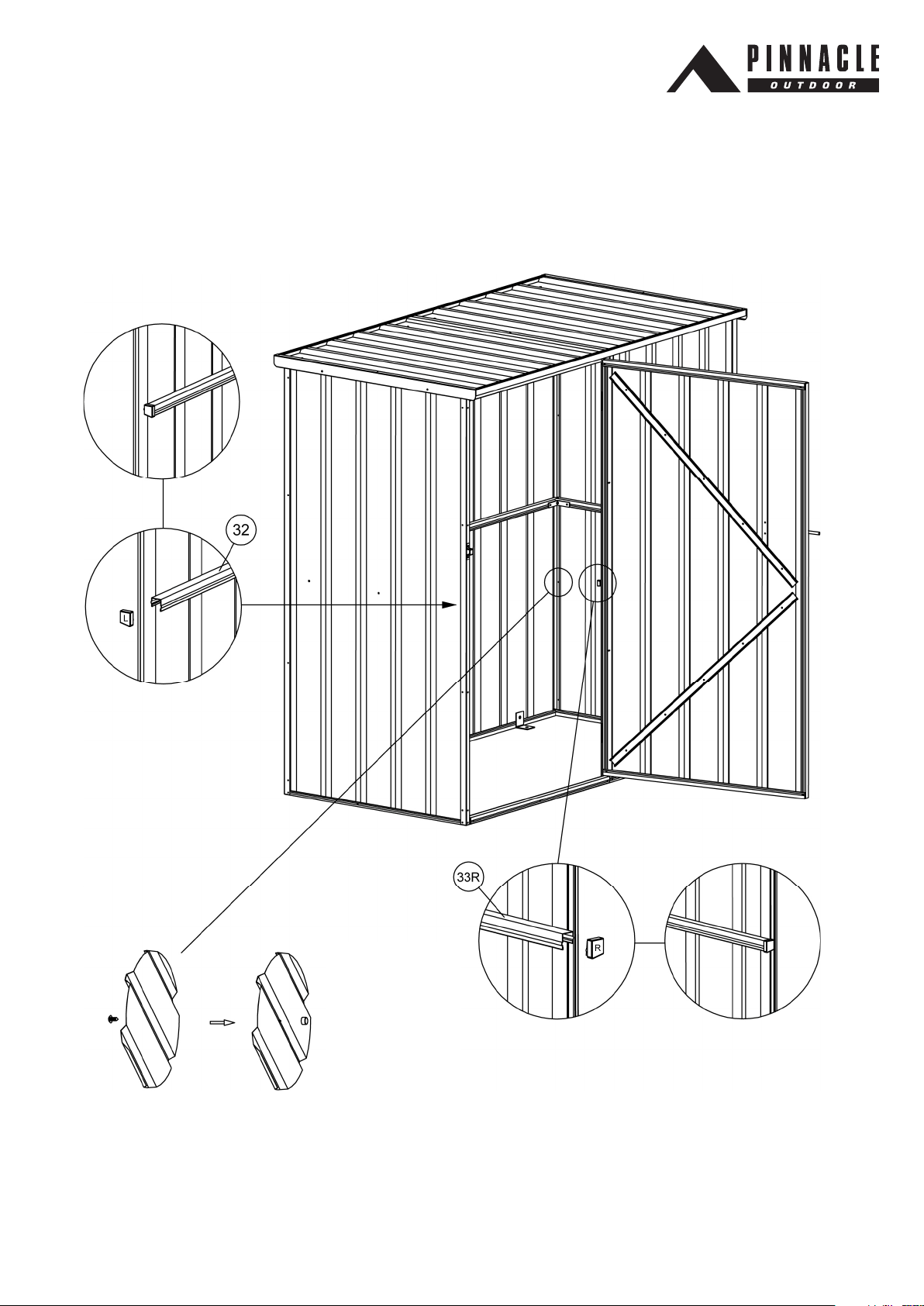

Attach safety covers L to channel 32 and safety covers R to channel 33R to cover the sharp ends. Also attach self-tapping screw covers
to all screws on the wall panels to prevent injuries.
GARDENSHED1.5W x 0.8D x 1.53Hm
20
Warranty statement:
This warranty against defects is given by:
Pinnacle Hardware
Business Address: 28 Hudson Court, Keysborough VIC 3173
Ph: 1800 349 776
New Zealand customers please contact:
HARCO (Harkness & Young Ltd)
Ph: 09 276 4071
Email: [email protected]
Details of Manufacturer’s Warranty
This product comes with a 15 year limited structural warranty (“the Warranty Period”) from the date of purchase. This warranty
also applies where there are missing or damaged parts identied in the parts list referred to in the instruction kit within the
product packaging.
Please ensure that you keep this warranty form in a safe place along with your proof of purchase.
Product: ………………………………………………………….
Place of purchase & Postcode: ...........................................
Date of Purchase: ........ /........ /........
The benets of this warranty are in addition to your rights under the Australian Consumer Law (ACL) or Consumer Guarantees
Act 1993 (NZ) and in particular, the guarantees implied under the ACL or Consumer Guarantees Act 1993 (NZ) and any other
rights and remedies of the consumer under a similar law in relation to the goods and services to which this warranty relates.
Process of claiming Warranty:
To make a claim under the Warranty within the Warranty Period, you will need to contact the manufacturer directly by
phone or email:
Australian Customers please contact Pinnacle Hardware on:
Claims Department contact number: 1800 349 776
New Zealand Customers contact Harco (Harkness & Young) on:
Claims Department contact number: 09 276 4071
You will be required to produce proof of purchase (this is at discretion of the manufacturer) at the time of the claim.
The manufacturer bears the cost of replacing the products or spare parts or repairing the products and reasonable direct
expenses of claiming under this warranty:
– Where parts are replaced, the manufacturer will bear the cost of sending the spare part and will endeavour to deliver it to
the customer’s nearest reseller within 10 working days for the customer to pick up. At such time the customer may be required
to return the alleged faulty parts.
