Pioneer AVIC-F930BT User manual
Precautions
Your new navigation system and this
manual 3
Important safeguards 3
Connecting the system
Precautions before connecting the
system 4
Before installing this product 4
To prevent damage 5
–Notice for the blue/white lead 5
Parts supplied 6

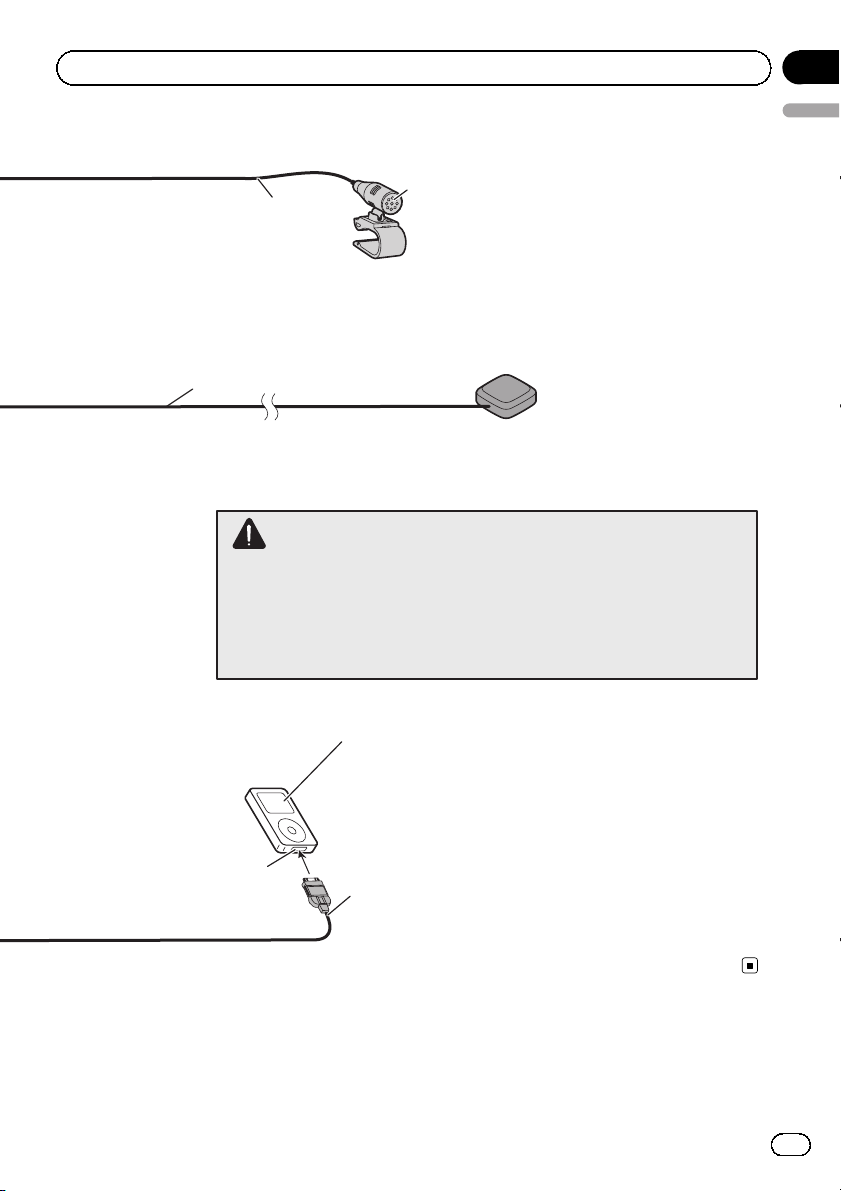

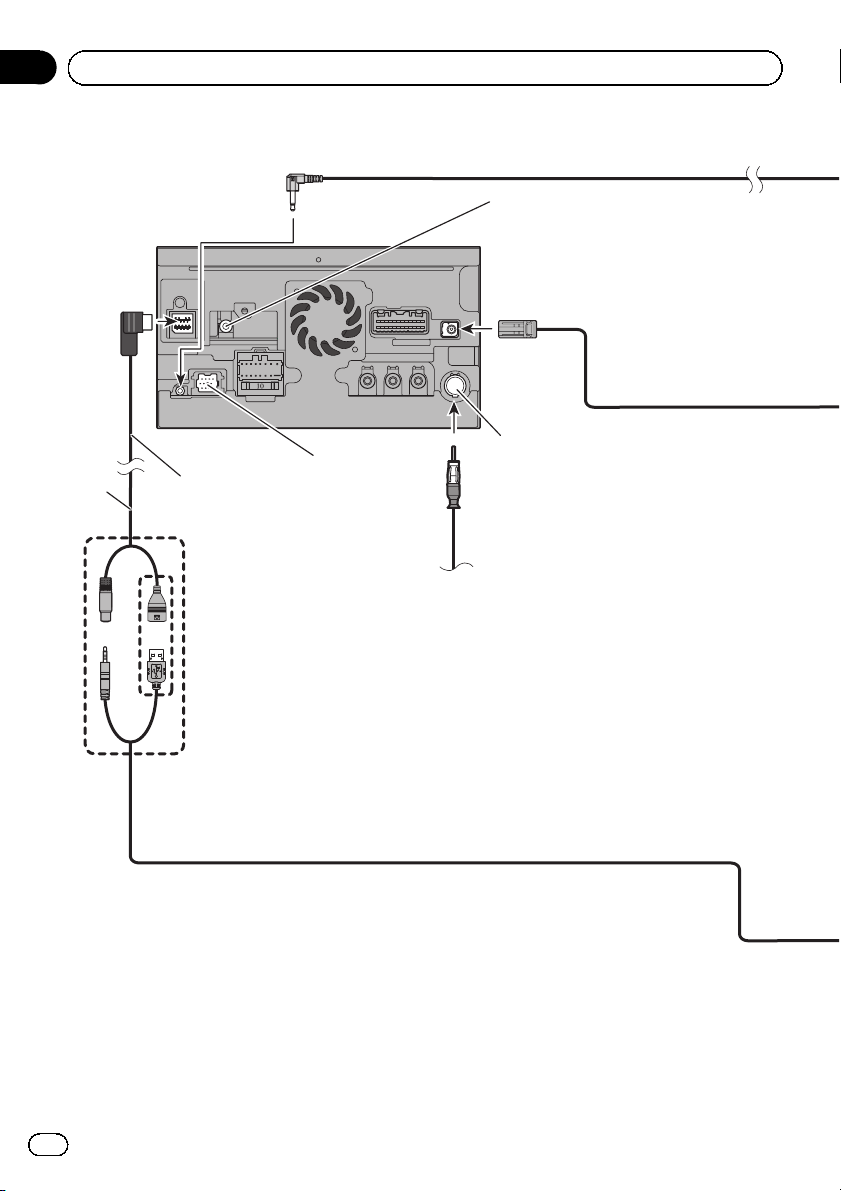

Connecting the system 8

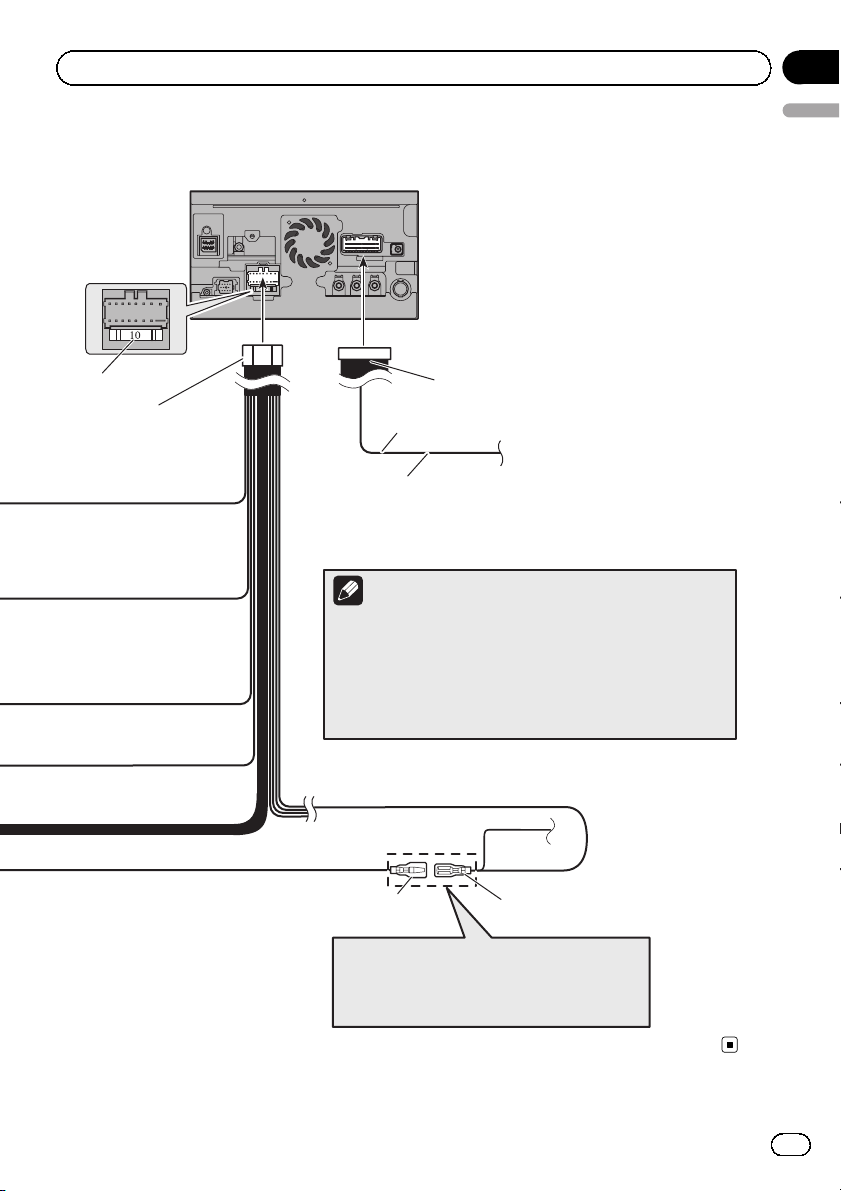

Connecting the power cord (1) 10
Connecting the power cord (2) 12
When connecting to separately sold power
amp 14

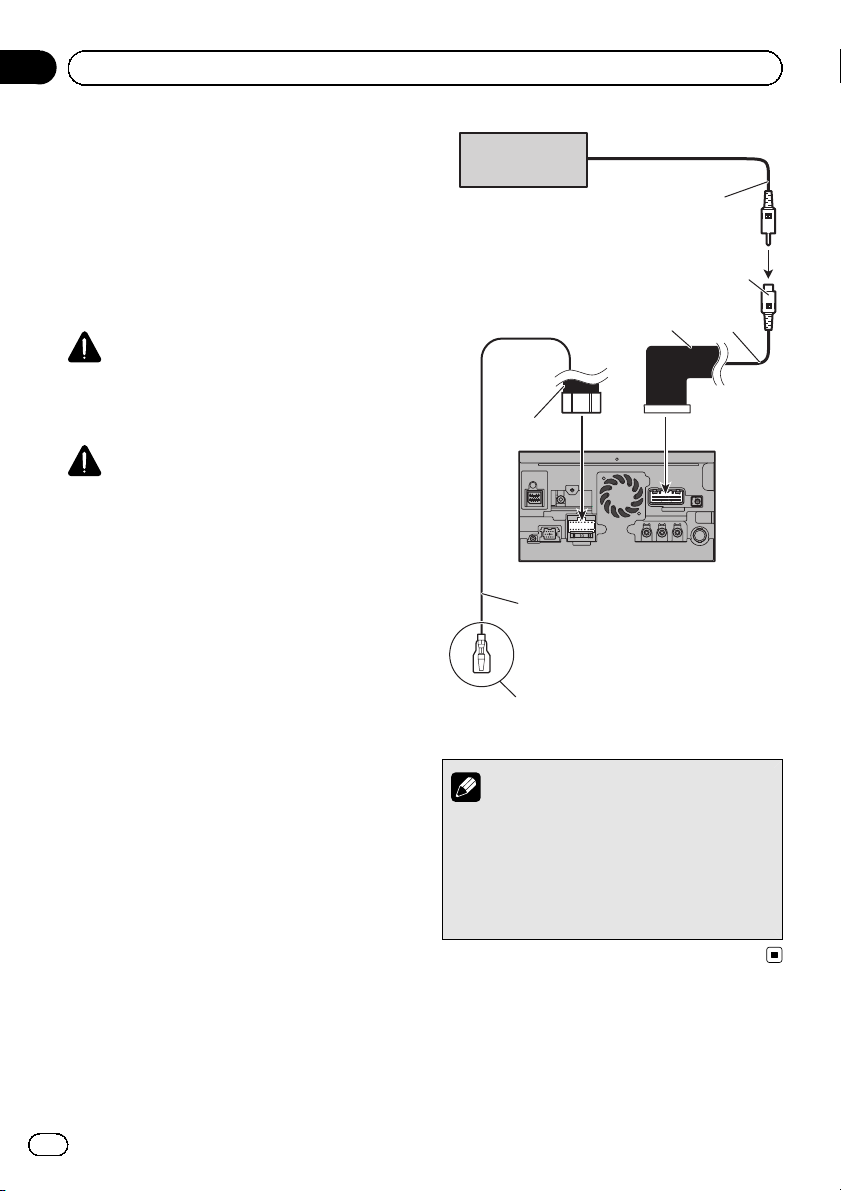

When connecting a rear view camera 16
When connecting the external video
component 17
–Using an AV input (AV1) 17
–Using an AV input (AV2) 18

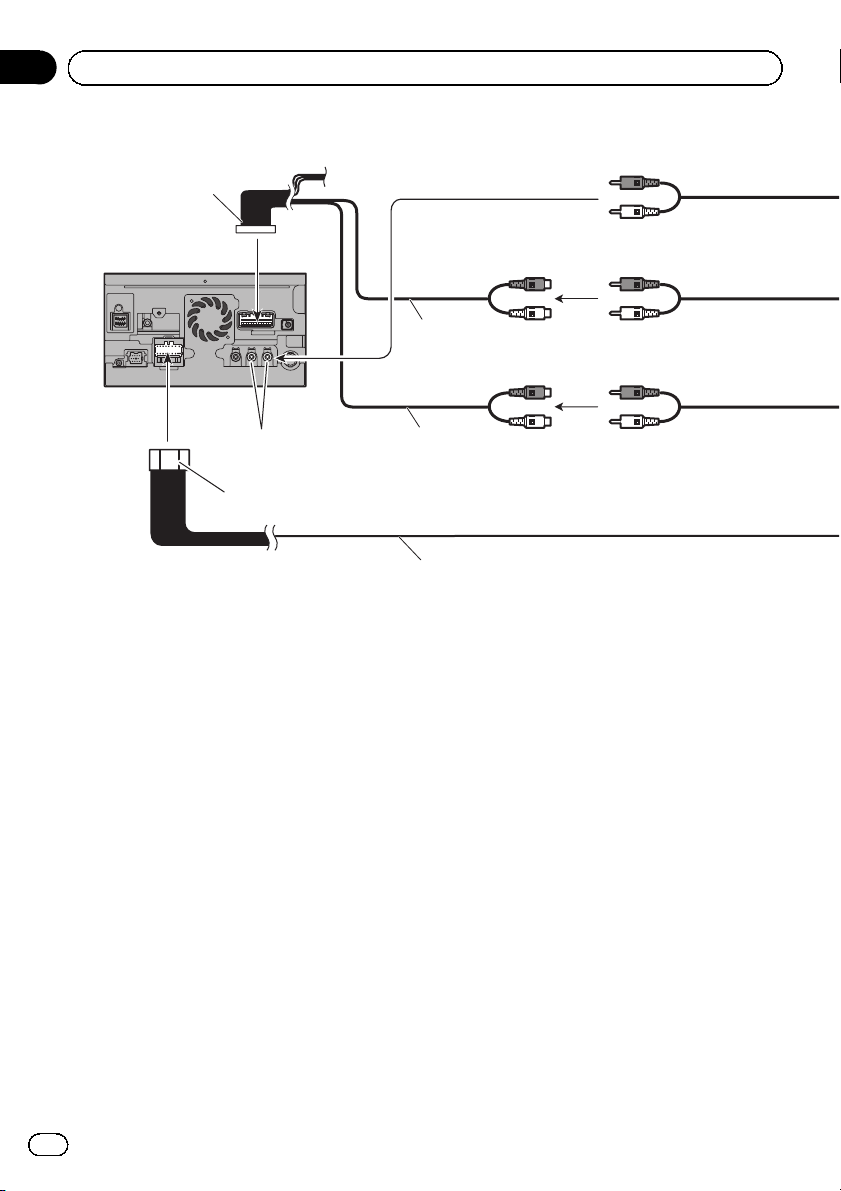

When connecting the rear display 18
–When using a rear display connected to
rear video output 18
When connecting the external unit featuring
video source 19
Installation
Precautions before installation 20
To avoid electromagnetic interference 20
Before installing 20
Installing the navigation system 21
–Installation notes 21
–Parts supplied 22
–Before installing this navigation
unit 23
–Installation with the holder and side
bracket 23
–Installation using the screw holes on
the side of the navigation unit 24
Installing the GPS aerial 25
–Installation notes 25
–Parts supplied 25
–When installing the aerial inside the
vehicle (on the dashboard or rear
shelf) 26
Installing the microphone 27
–Parts supplied 27
–Mounting on the sun visor 27
–Installation on the steering column 28
–Adjusting the microphone angle 28
Contents
Engb
2
Your new navigation
system and this manual
!The navigation features of this product
(and the rear view camera option if pur-
chased) are intended solely to aid you in
the operation of your vehicle. It is not a sub-
stitute for your attentiveness, judgement
and care when driving.
!Never use this navigation system to route
to hospitals, police stations, or similar facil-
ities in an emergency. Please call the ap-
propriate emergency number.
!Do not operate this navigation system (or
the rear view camera option if purchased) if
doing so will divert your attention in any
way from the safe operation of your vehicle.
Always observe safe driving rules and fol-
low all existing traffic regulations. If you ex-
perience difficulty in operating the system
or reading the display, park your vehicle in
a safe location and apply the handbrake be-
fore making the necessary adjustments.
!This manual explains how to install this na-
vigation system in your vehicle. Operation
of this navigation system is explained in
the separate manuals for the navigation
system.
!Do not install this product where it may (i)
obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operat-
ing systems of safety features, including
airbags, hazard lamp buttons, or (iii) impair
the driver’s ability to safely operate the vehi-
cle. In some cases, it may not be possible
to install this product because of the vehi-
cle type or the shape of the vehicle inter-
ior.
Important safeguards
WARNING
Pioneer does not recommend that you install
your navigation system yourself. We recom-
mend that only authorised Pioneer service
personnel, who have special training and ex-
perience in mobile electronics, set up and in-
stall this product. NEVER SERVICE THIS
PRODUCT YOURSELF. Installing or servi-
cing this product and its connecting cables
may expose you to the risk of electric shock
or other hazards, and can cause damage to
the navigation system that is not covered by
warranty.
!Read this manual fully and carefully before
installing your navigation system.
!Keep this manual handy for future refer-
ence.
!Pay close attention to all warnings in this
manual and follow the instructions care-
fully.
!This navigation system may in certain cir-
cumstances display inaccurate position of
your vehicle, the distance of objects shown
on the screen, and compass directions. In
addition, the system has certain limita-
tions, including the inability to identify one-
way streets, temporary traffic restrictions
and potentially unsafe driving areas. Please
exercise your own judgement in the light of
actual driving conditions.
!As with any accessory in your vehicle’s in-
terior, the navigation system should not di-
vert your attention from the safe operation
of your vehicle. If you experience difficulty
in operating the system or reading the dis-
play, please make adjustments while safely
parked.
!Please remember to wear your seat belt at
all times while operating your vehicle. If
you are in an accident, your injuries can be
considerably more severe if your seat belt
is not properly fastened.
!Certain country and government laws may
prohibit or restrict the placement and use
of this system in your vehicle. Please com-
ply with all applicable laws and regulations
regarding the use, installation and opera-
tion of your navigation system.
Engb 3
English
Section
01
Precautions
Precautions before
connecting the system
CAUTION
!If you decide to perform the installation
yourself, and have special training and ex-
perience in the mobile electronics instal-
lations, please carefully follow all of the
steps in the installation manual.
!Secure all wiring with cable clamps or
electrical tape. Do not allow any bare wir-
ing to remain exposed.
!Do not directly connect the yellow lead of
this product to the vehicle battery. If the
lead is directly connected to the battery,
engine vibration may eventually cause
the insulation to fail at the point where
the wire passes from the passenger com-
partment into the engine compartment. If
the yellow lead’s insulation tears as a re-
sult of contact with metal parts, short-cir-
cuiting can occur, resulting in
considerable danger.
!It is extremely dangerous to allow cables
to become wound around the steering col-
umn or gearstick. Be sure to install this
product, its cables, and wiring away in
such so that they will not obstruct or hin-
der driving.
!Make sure that the cables and wires will
not interfere with or become caught in
any of the vehicle’s moving parts, espe-
cially the steering wheel, gearstick, hand-
brake, sliding seat tracks, doors, or any of
the vehicle’s controls.
!Do not route wires where they will be ex-
posed to high temperatures. If the insula-
tion heats up, wires may become
damaged, resulting in a short circuit or
malfunction and permanent damage to
the product.
!Do not cut the GPS aerial cable to shorten
it or use an extension to make it longer.
Altering the aerial cable could result in a
short circuit or malfunction.
!Do not shorten any leads. If you do, the
protection circuit (fuse holder, fuse resis-
tor or filter, etc.) may fail to work properly.
!Never feed power to other electronic pro-
ducts by cutting the insulation of the
power supply lead of the navigation sys-
tem and tapping into the lead. The current
capacity of the lead will be exceeded,
causing overheating.
Before installing this product
!Use this unit with a 12-volt battery and ne-
gative earthing only. Failure to do so may
result in a fire or malfunction.
!To avoid shorts in the electrical system, be
sure to disconnect the (–) battery cable be-
fore installation.
Engb
4
Section
02 Connecting the system
To prevent damage
WARNING
!Use speakers over 50 W (output value)
and between 4 Wto 8 W(impedance value).
Do not use 1 Wto 3 Wspeakers for this
unit.
!The black lead is earth. Please earth this
lead separately from the earth of high-cur-
rent products such as power amps. Do not
earth more than one product together
with the earth from another product. For
example, you must separately earth any
amp unit away from the earth of this navi-
gation system. Connecting earths to-
gether can cause a fire and/or damage the
products if their earths became detached.
!When replacing the fuse, be sure to only
use a fuse of the rating prescribed on this
product.
!When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.
!This product cannot be installed in a vehi-
cle without ACC (accessory) position on
the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
!To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
!Attach the connectors of the same colour
to the corresponding coloured port, i.e.,
blue connector to the blue port, black to
black, etc.
!Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
!Since a unique BPTL circuit is employed,
do not directly earth the *side of the
speaker lead or connect the *side of an-
other side of the speaker lead together. Be
sure to connect the *side of the speaker
lead to the *side of the speaker lead on
this navigation system.
!If the RCA pin jack on this product will not
be used, do not remove the caps attached
to the end of the connector.
Notice for the blue/white lead
!When the ignition switch is turned on (ACC
ON), a control signal is output through the
blue/white lead. Connect to an external
power amp’s system remote control term-
inal, the auto-aerial relay control terminal,
or the aerial booster power control terminal
(max. 300 mA 12 V DC). The control signal
is output through the blue/white lead, even
if the audio source is switched off.
!Be sure not to use this lead as the power
supply lead for the external power amps.
Such connection could cause excessive
current drain and malfunction.
!Be sure not to use this lead as the power
supply lead for the auto-aerial or aerial
booster. Such connection could cause ex-
cessive current drain and malfunction.
Engb 5
English
Section
02
Connecting the system
