PRECAUTIONS DURING USE

The prior acceptance of the General Conditions of Sale is mandatory before using the system.

The description of the models given in this manual is based on the specifications at the time of writing. This manual covers all

existing functions for the models described. Whether or not they are fitted depends on the equipment model, options selected

and the country where it is sold. This manual may also contain information about functions to be introduced later in the year.

Precautions when operating the system

– Operate the controls and read the information on the screen only when road conditions allow.

– Set the volume to a reasonable level so that outside noise can be heard.

Precautions regarding navigation

– Use of the navigation system does not in any way replace the responsibility or vigilance of the driver when driving the vehi-

cle.

– Depending on the geographical area, the map on the SD card may not have the latest information on new roads. Be alert.

In all cases, Road Traffic Regulations and road signs always take precedence over the directions of the navigation system.

Precautions concerning the equipment

– Do not attempt to dismantle or modify the system, as there is a risk of damage to equipment and fire.

– Contact a representative of the manufacturer in the event of malfunction and for all operations involving disassembly.

– Do not insert foreign objects or a damaged or dirty SD card into the reader.

– Always clean your screen with a microfibre cloth.

– Use an SD card which is suitable for your navigation system.

It is essential to follow the precautions below when using the system, both in the interest of safety and to prevent material damage.

You must always comply with the laws of the country in which you are travelling.

GB.4

GENERAL DESCRIPTION

Menu screen

OGo to previous page.

PName of menu.

QGo to next page.

RName of function or of sub-menu.

SReturn to previous menu.

Welcome screen

(depending on the vehicle, the dis-

played information varies)

AAudio information.

BSystem notifications.

CPhone menu access/State of con-

nected phone

DExterior temperature.

ETime.

FTraffic information.

GInstructions for navigation and dis-

tance to next change of direction.

Drive to...

Home Saved loca-

tions

Address

Recent desti-

nations

TomTom

Places

Charging

station

FM1

flow

Preset 3

A O QC

B PD E

HIKLM

HPop-up menu.

INavigation map.

JCurrent vehicle position.

KFavourites.

LDriving Eco² / Energy for electric ve-

hicles.

MMain menu.

Note: You can change the configura-

tion of the welcome screen. Please see

the information on “Welcome screen” in

the “System settings” section. S

GB.5

Function

1From a list: move upwards.

From the map: change scale (ZOOM mode).

2Confirmation button

3From a list: move down.

From the map: change scale (ZOOM mode).

4Display the welcome screen.

5Press: on/off

Rotate: adjust source volume while listening.

INTRODUCTION TO THE CONTROLS (1/8)

Screen controls

GB.6

INTRODUCTION TO THE CONTROLS (2/8)

Multimedia panel (optional/depending on the vehicle)

6 7 8 8 9 10

1114 1215 13

GB.7

INTRODUCTION TO THE CONTROLS (3/8)

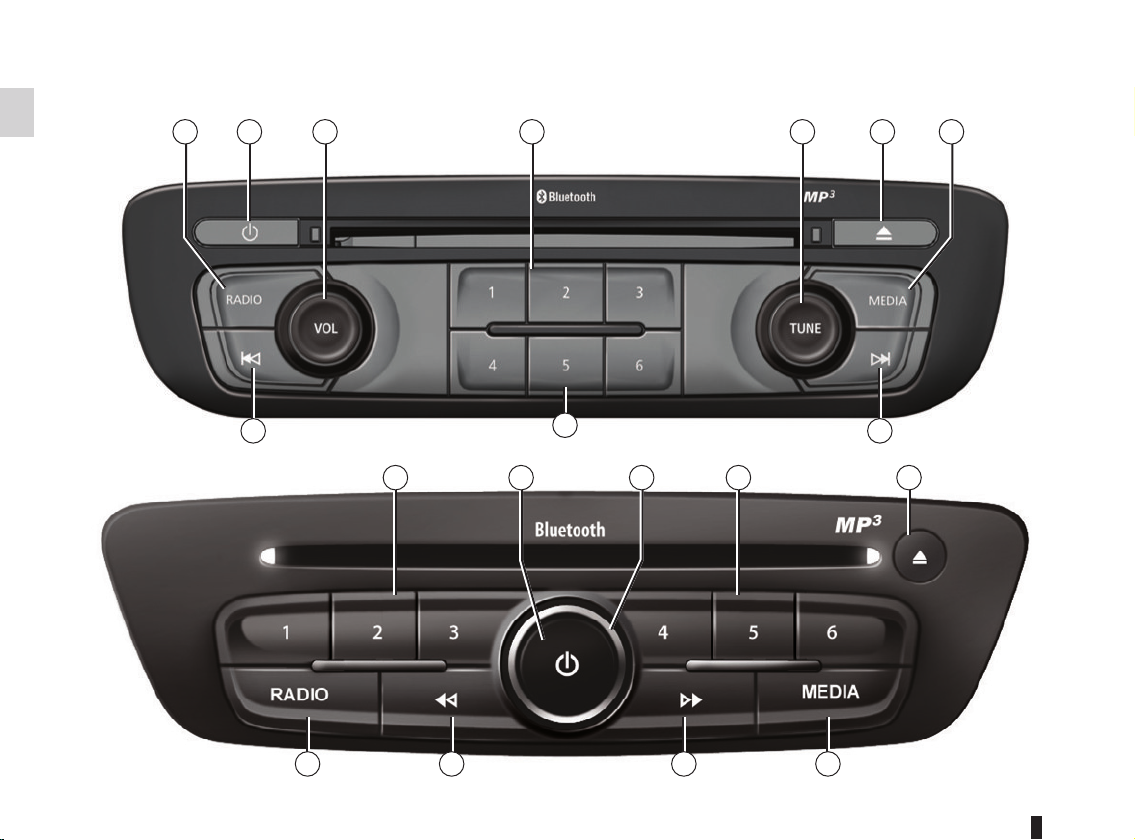

Function

6Short press: on/off

Rotate: adjust the volume of the source currently in use.

7Listen to the radio/change band.

8Change a CD track or playlist.

9Choose an external source.

10 Eject a CD.

11 Go to the main menu.

12 Open the pop-up menu.

Switching:

– moving around the card;

– up/down: move to different areas of the screen (upper bar, central zone, lower bar);

– left/right: move to different parts of a menu.

Rotate:

– move around the various elements of a zone;

– modify the scale (ZOOM mode).

Press:

– confirm.

14 Go back to the previous menu.

15 Go to the welcome screen.

GB.8

Radio panels (depending on the vehicle)

For more functions, please refer to the description of the central control.

INTRODUCTION TO THE CONTROLS (4/8)

16 17 18 19 21

19 17 19 21

16 2323 22

GB.9

INTRODUCTION TO THE CONTROLS (5/8)

Function

16 Listen to the radio/change band.

17 On/off

18 Rotate: adjust the volume of the source currently in use.

19 Short press: recall a stored radio station.

Long press: store a radio station.

20 Rotate: search for radio stations, change tracks on a CD (depending on the country).

21 Eject a CD.

22 Choose an external source.

23 Short press: change a CD track or playlist.

GB.10

Function

24 Select the audio source.

25 Answer/end a call (phone mode)

26 Increase the volume of the source currently in use.

27 Decrease the volume of the source currently in use.

26+27 Radio mute on/off.

Pause/play an audio track.

28 Change radio mode (preset/list/frequency) (depending on the vehicle).

29 Search for radio stations/change track or audio file.

30 Change radio band (AM/FM1/FM2/DR1/DR2).

Short press:

– mute on/off;

– answer/end a call (phone mode)

INTRODUCTION TO THE CONTROLS (6/8)

Steering column control

24 25

2829

24 30

GB.11

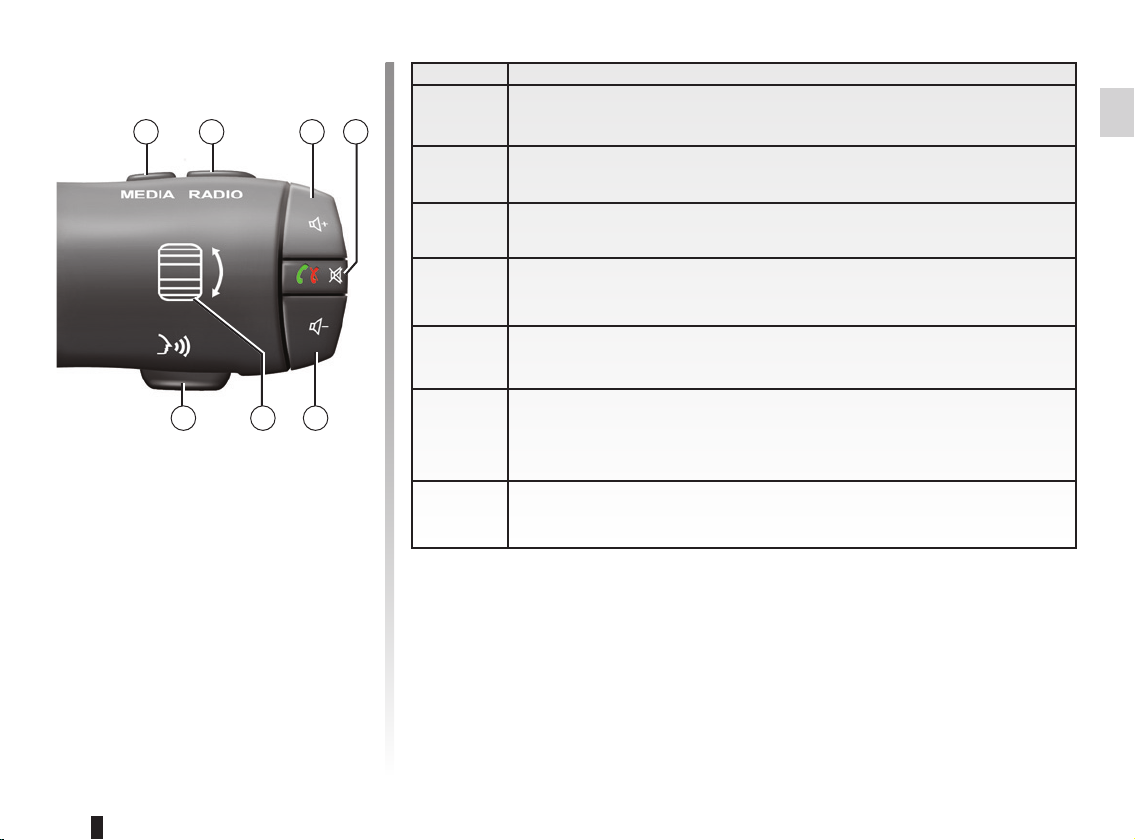

Function

32 Select the audio source.

33 Change radio band (AM/FM1/FM2/DR1/DR2).

34 Increase the volume of the source currently in use.

Short press:

– answer/end a call (phone mode);

– mute on/off.

36 Decrease the volume of the source currently in use.

37 Rotate: search for radio stations/change track or audio file.

Press: change radio mode (preset/list/frequency).

38 Activate/deactivate voice recognition (depending on the vehicle).

INTRODUCTION TO THE CONTROLS (7/8)

Control on the steering wheel

with voice command

32 33

34 35

3638

GB.12

INTRODUCTION TO THE CONTROLS (8/8)

Central control

39 41 42

434445464748

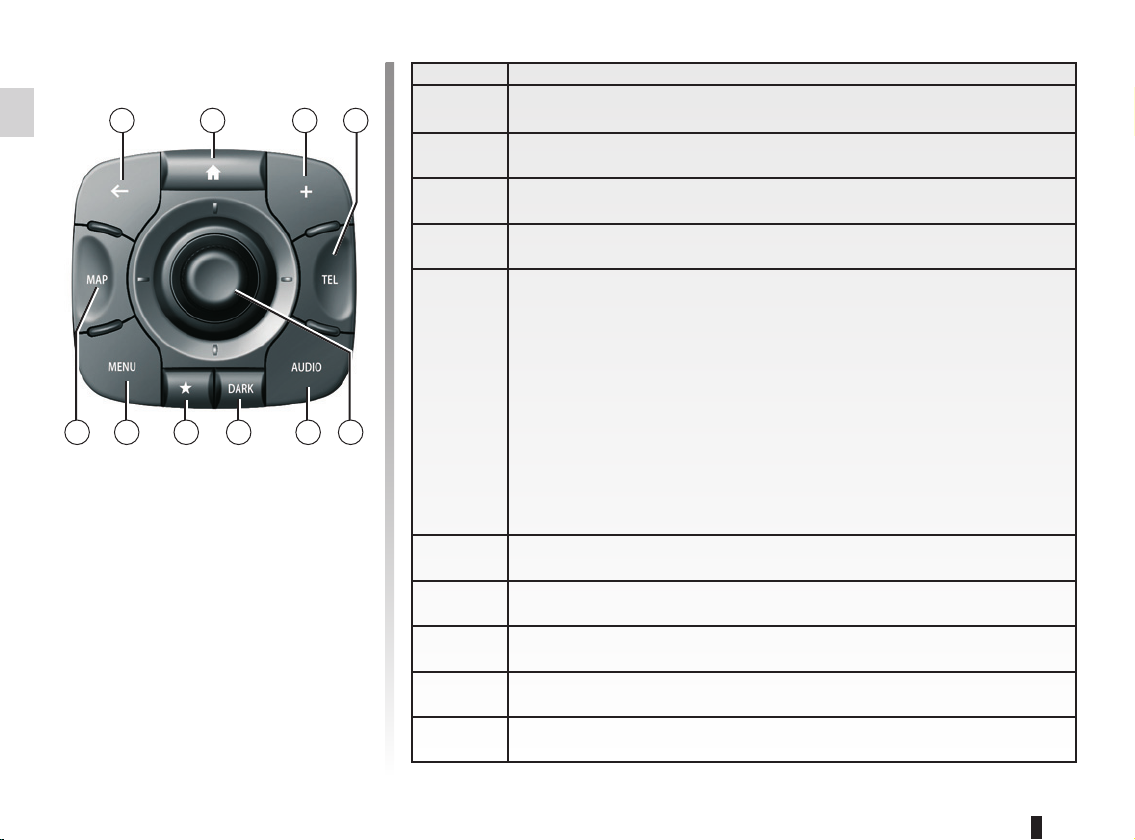

Function

39 Go back to the previous menu.

40 Go to the welcome screen.

41 Open the pop-up menu.

42 Access the telephone menu

Switching:

– move around the map or in a menu/page;

– up/down: move around the various areas of a menu (upper bar, cen-

tral zone, lower bar);

Rotate:

– move around the various elements of a zone;

– move around a list;

– modify the scale (ZOOM mode).

Press:

– confirm.

44 Open the source screen while listening (radio, audio CD, etc).

45 Activate the standby screen to hide the map.

46 Access favourites

47 Go to the main menu.

48 Access the navigation page.

GB.13

Upon delivery of your new vehicle, you

have a maximum of 60 days to update

your maps free of charge. Beyond this

time, updates will become paid.

SD card

A SD card is supplied with the naviga-

tion system. Amongst other things, this

includes maps for your country or set of

countries.

Updates (especially of maps) are pub-

lished regularly. They are only avail-

able for download by inserting the SD

card of your navigation system into

your computer’s SD port, online at the

“R-Link Store”.

SD CARD: USE, INITIALISATION (1/2)

Only use your SD card for operat-

ing and updating your navigation

system. Do not insert any other

device (camera, portable GPS,

etc.), or in another vehicle. Only use an SD card which is com-

patible with your vehicle's naviga-

tion system.

You can also download maps cover-

ing more countries than your origi-

nal map (e.g. Western Europe).

GB.14

SD CARD: USE, INITIALISATION (2/2)

Inserting the SD card

With the ignition off, insert the SD card

in the SD 1port of your vehicle.

An SD card is fragile:

– do not bend it;

– insert it correctly;

– do not force insertion.

For safety reasons, carry

out these operations when

the vehicle is stationary.

Removing the SD

card

From the main menu, press “System”,

then “Remove SD card” to eject the SD

card safely.

To remove the SD card from the SD 1

port, press the card, then release it.

The card will jut out of the slot by a few

millimetres. Pull the card to remove it

completely.

GB.15

Screen controls

Navigating a menu

Press 3to enter a menu. Use the 2but-

tons to scroll through telephone con-

tacts, radio stations, etc.

Confirming/cancelling a selection

Press 4to go back to the welcome

screen.

Touchscreen 1

Navigating a menu

The touchscreen 1grants access to

the system functions. Touch the touch-

screen 1to scroll through the pages

and open a menu.

Note: depending on the vehicle, usage

of the touchscreen may be restricted

while the vehicle is moving.

Confirming/cancelling a selection

Always confirm a change of settings by

pressing the “Done” button.

OPERATING PRINCIPLES (1/3)

For safety reasons, carry

out these operations when

the vehicle is stationary.

678

Multimedia screen

Navigating a menu

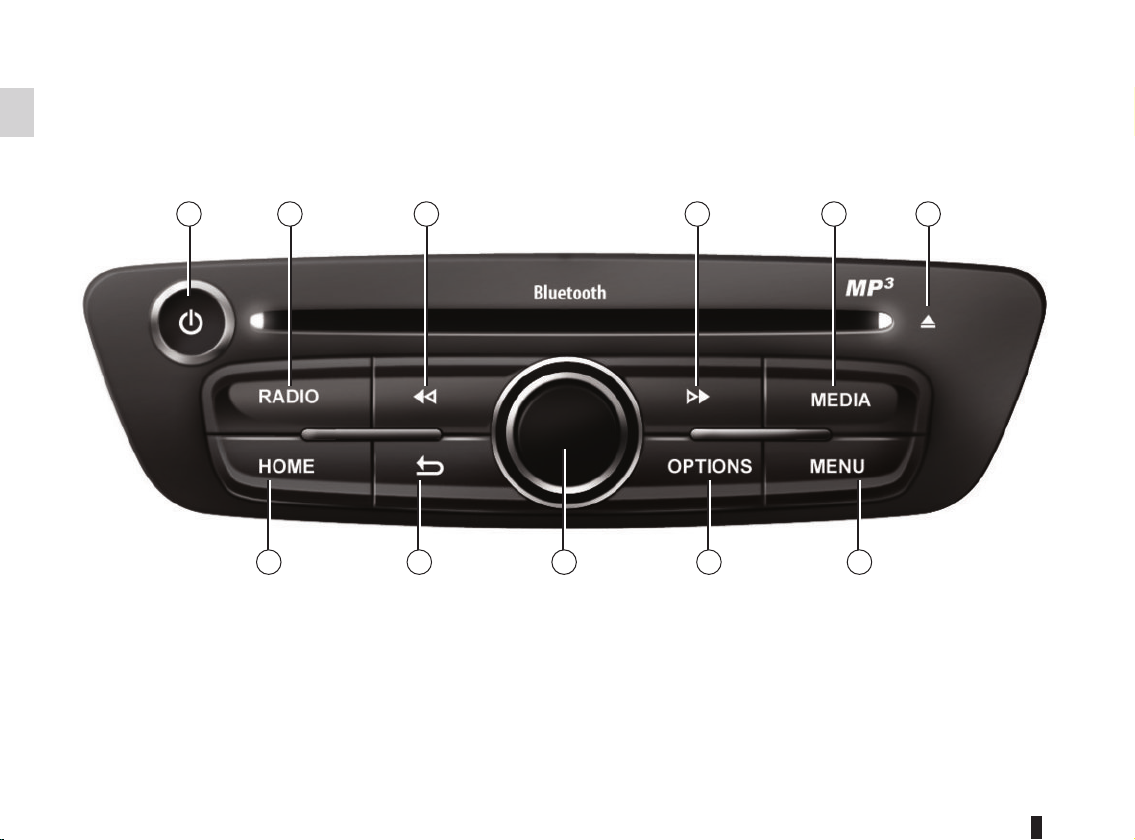

Use the rotating control 5to move from

menu to menu. Confirm by pressing the

central 6button to enter the menu.

Confirming/cancelling a selection

Press the central button 6to confirm a

change.

Press the 7button to cancel a choice

and return to the previous menu.

Press the 8button to go back to the

welcome screen.

GB.16

Pop-up menus

Available in most system menus, the

pop-up menu Alets you quickly access

current page functions.

Favourites - Navigation

Add Favourite

Remove a Favourite

Remove all Favourites

– press the joystick 11 to open the se-

lected element;

– in the tabs menus, move the joy-

stick 11 left or right to switch from

one tab to another.

Confirming/cancelling a selection

Press the joystick 11 to confirm a

change.

Press the 9button to cancel a choice

and return to the previous menu.

Press the 10 button to go back to the

welcome screen.

OPERATING PRINCIPLES (2/3)

For safety reasons, carry

out these operations when

the vehicle is stationary.

109

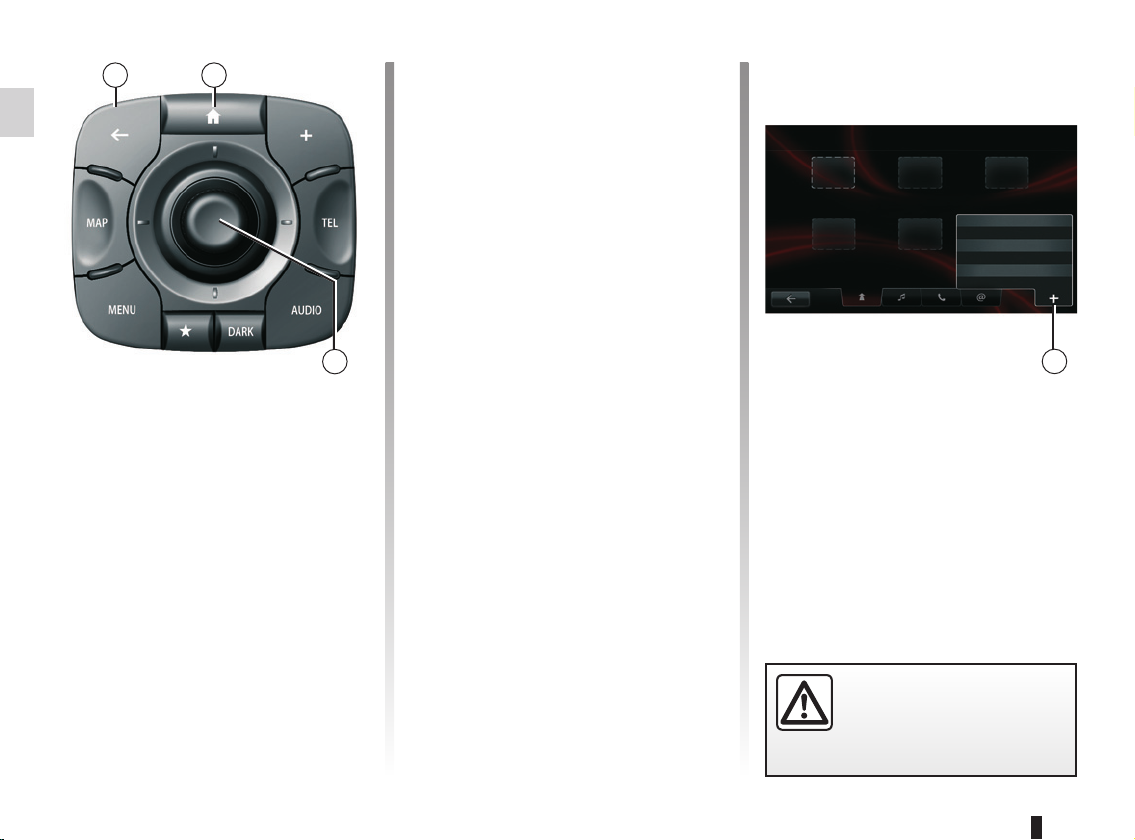

Central control

Navigating a menu

Use the joystick 11 to move from menu

to menu:

– Move the joystick 11 up or down to

move around the different areas of

the screen (upper bar, central zone,

lower bar);

– turn the joystick 11 to move between

different elements of a zone;

GB.17

OPERATING PRINCIPLES (3/3)

Introduction to the main

To access the main menu, press “Menu”

from the welcome screen.

The system is made up of six major

sections, all of which can be accessed

from the main menu:

Navigation

This function includes all the satellite

navigation features, road maps, traffic

information, LIVE services and warn-

ing areas (depending on the country).

Multimedia

This function enables management of

the radio, and audio and video play-

back.

Phone

This function is used to pair the system

with a mobile phone and to use the

hands-free mode.

Introduction to the welcome

screen

The welcome screen is the default

screen for your multimedia system. It is

made up of a certain number of short-

cuts to other functions, such as naviga-

tion and radio.

For a description of the welcome

screen, please refer to the “General de-

scription” section.

Note: You can change the configura-

tion of the welcome screen. Please see

the information on “Welcome screen” in

the “System settings” section.

FM1

flow

Preset

Vehicle

This function includes management

of equipment such as the reversing

camera (depending on the vehicle), on-

board computer and Driving Eco², and

some electric vehicle items.

Services

This function includes the R-Link Store

and the applications.

System

This function is for adjusting various

settings on the multimedia system, e.g.

display, language, date and time.

GB.18

SWITCHING ON/OFF

Switching on

The multimedia system switches on au-

tomatically when the ignition is switched

on. In other cases, press the start/stop

button .

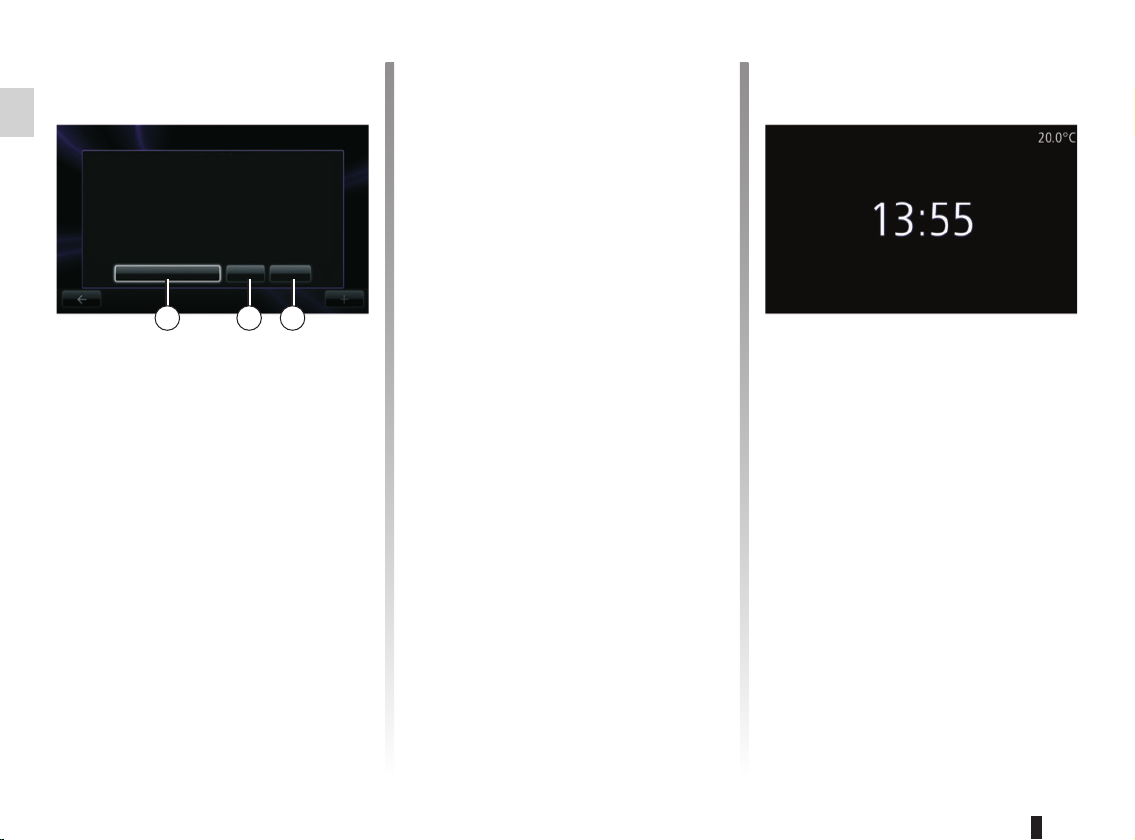

At start-up, the system displays a

safety screen to show you the state of

data sharing if connected. This screen

lets you set certain functions:

– Press “Change settings” 1to author-

ise or reject data sharing.

Clock/temperature screen

(depending on the vehicle)

This screen is displayed when the driv-

er’s door is opened, before the ignition

is switched on.

It is displayed when the system is stop-

ped: with the ignition on, press the

audio system on/off button . The

system then stops the guidance and

displays the clock and temperature.

– Press “Language” 3to change the

system language.

– Press “Done” 2to begin using the

multimedia system.

Switching off

With the ignition off, the system is deac-

tivated automatically when the driver’s

door is opened.

With the ignition on, press the audio

system on/off button .

Resetting the system

To reset all the system settings and/or

delete all personal data, select “System”

from main menu, then “Restore factory

settings” and follow the on-screen in-

structions.

Note: Resetting the system means de-

leting all the applications.

Safety

Data sharing authorised

Warning: always drive safely and obey local traffic regula-

tions.

You have selected to share information outside of this vehicle.

You can change this setting any time in the Services menu.

Change settings Done Language

1 2 3

Other manuals for R-Link

This manual suits for next models

Table of contents

Renault R-Link User manual
