About this manual
This unit features a number of sophisticated
functions ensuring superior reception and oper-
ation. All the functions have been designed for
the easiest possible use, but many are not self-
explanatory. This operation manual will help you
benefit fully from this product’s potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin using
this unit. It is especially important that you read
and observe precautions on this page and in
other sections.
Precautions
• Keep this manual handy as a reference for
operating procedures and precautions.
• Always keep the volume low enough so you
can hear sounds outside of the car.
• Protect this product from moisture.
• If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
• Should this product fail to operate properly,
contact your dealer or nearest authorized
Pioneer Service Station.
Protecting your unit from theft
The front panel can be detached from the head
unit and stored in the protective case provided
to discourage theft.
Important
• Never use force or grip the display and the
buttons tightly when removing or attaching.
• Avoid subjecting the front panel to excessive
shocks.
• Keep the front panel out of direct sunlight and
high temperatures.

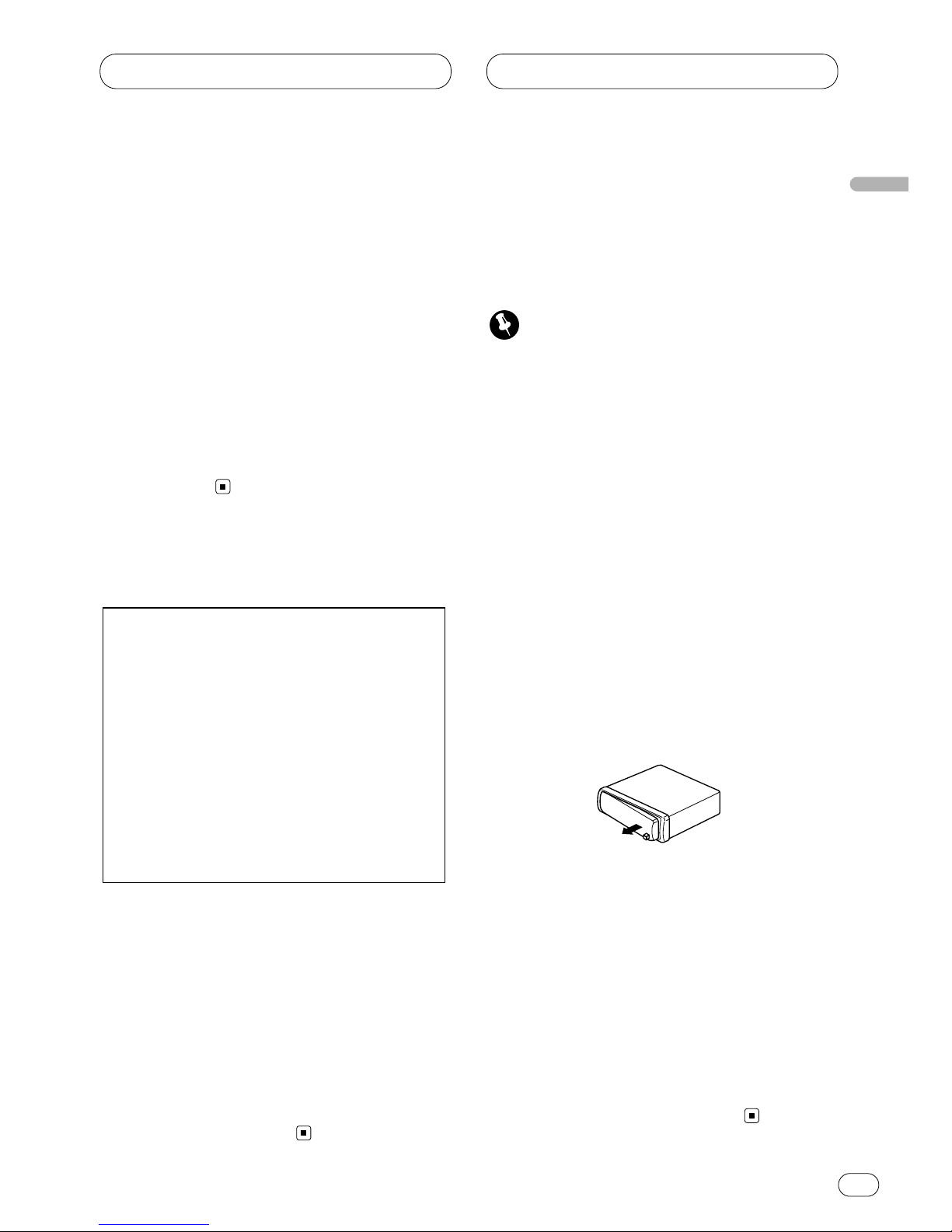

Removing the front panel
1 Press DETACH to release the front panel.
Press DETACH and the right side of the panel is
released from the head unit.
2 Grab the front panel and remove.
Grab the right side of the front panel and pull
away to the left. The front panel will be detached
from the head unit.
3 Put the front panel into the protective case
provided for safe keeping.
Attaching the front panel
1 Place the front panel flat against the head
unit.
2 Press the front panel into the face of the
head unit until it is firmly seated.
CAUTION: USE OF CONTROL OR
ADJUSTMENT OR PER-
FORMANCE OF PROCE-
DURES OTHER THAN
THOSE SPECIFIED
HEREIN MAY RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
CAUTION: THE USE OF OPTICAL
INSTRUMENTS WITH
THIS PRODUCT WILL
INCREASE EYE HAZARD.
Before You Start
En 2
English Español Deutsch Français Italiano Nederlands

En
3
Before You Start

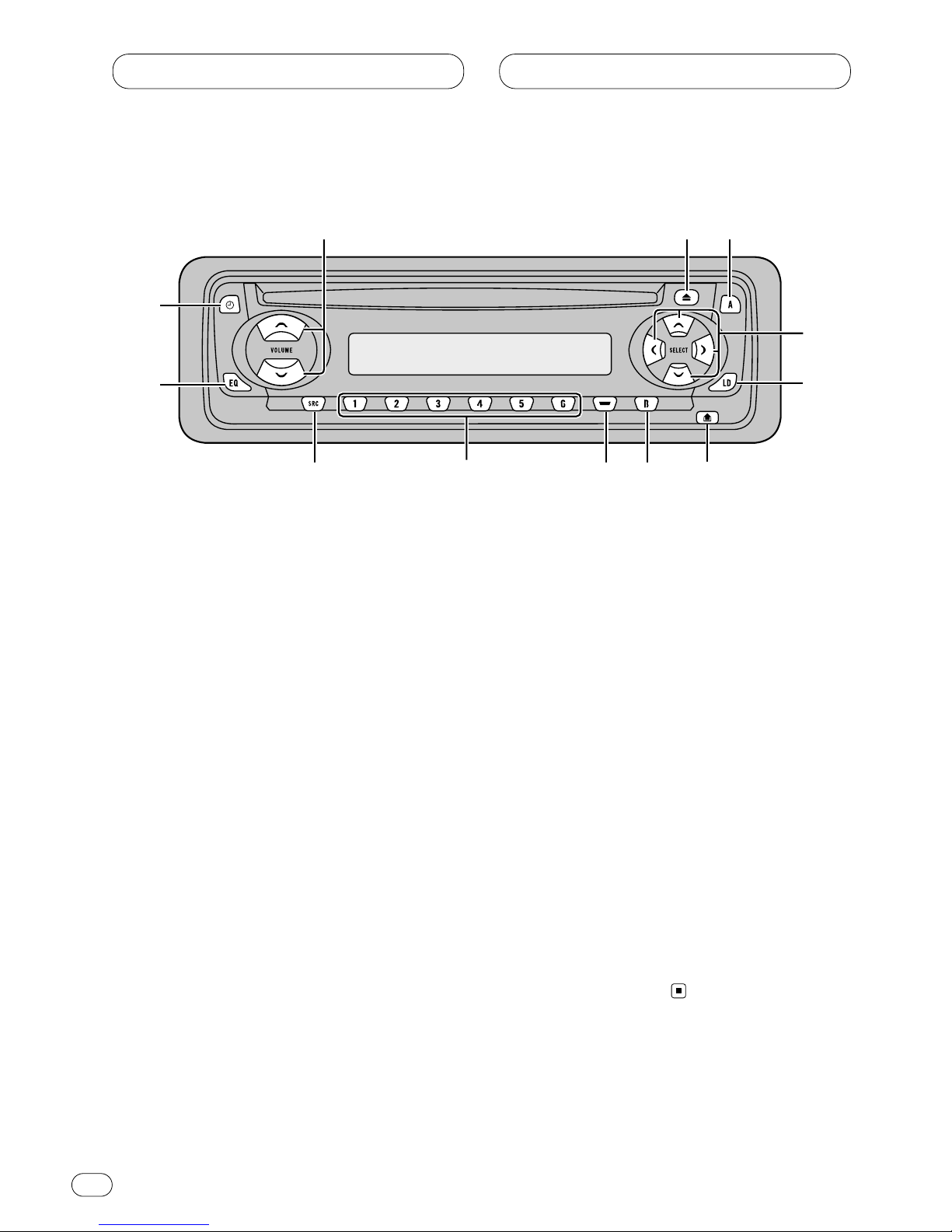

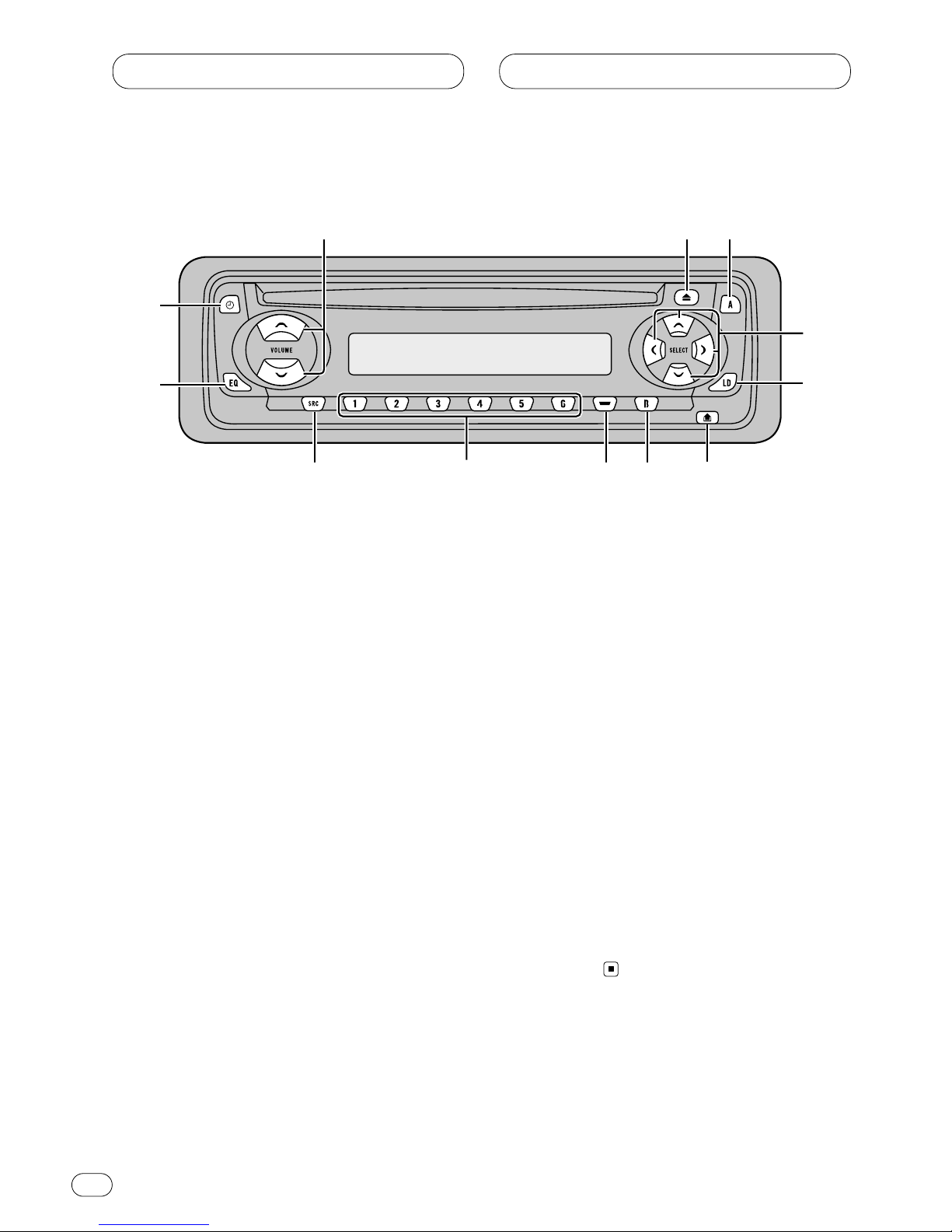

What’s what
1VOLUME button
Press to increase or decrease the volume.
2CD EJECT button
Press to eject a CD from your built-in CD
player.
3AUDIO button
Press to select various sound quality con-
trols.
4CLOCK button
Press to switch clock display on or off.
5EQ button
Press to select various equalizer curves.
65/∞/2/3buttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls. Also
used for controlling functions.
7LOUDNESS button
Press to switch loudness function on or off.
8SOURCE button
This unit is switched on by selecting a
source. Press to cycle through all of the
available sources.
91–6(PRESET TUNING) buttons
Press for preset tuning.
0LOCAL/BSM button
-BAND button
Press to select among three FM and one AM
band.
=DETACH button
Press to remove the front panel from the
head unit.
13
4
5
6
7
890-=
2

Power ON/OFF Tuner
En 4
English Español Deutsch Français Italiano Nederlands
Turning the unit on
Press SOURCE to turn the unit on.
When you select a source the unit is turned on.
Selecting a source
You can select a source you want to listen to. To
switch to the built-in CD player, load a disc in
this unit (refer to page 6).
Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Built-in CD player—Tuner
Notes
• When no disc is set in this product, built-in
CD player source will not change.
• When this unit’s blue/white lead is connected
to the car’s auto-antenna relay control termi-
nal, the car’s antenna extends when this
unit’s source is switched on. To retract the
antenna, switch the source off.
Turning the unit off
Press SOURCE and hold for at least one sec-
ond to turn the unit off.
Listening to the radio
If you are using this unit in North, Central or
South America, reset the AM tuning step (see
Setting the AM tuning step on page 12).
1BAND indicator
Shows which band the radio is tuned to, AM
or FM.
2FREQUENCY indicator
Shows to which frequency the tuner is
tuned.
3STEREO () indicator
Shows that the frequency selected is being
broadcast in stereo.
4PRESET NUMBER indicator
Shows what preset has been selected.
14
3
2

En
5
Tuner
1 Press SOURCE to select the tuner.
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 Press BAND to select a band.
Press BAND until the desired band is displayed,
FM1, FM2, FM3 for FM or AM.
4 To perform manual tuning, press 2or 3
with quick presses.
The frequencies move up or down step by step.
5 To perform seek tuning, press and hold 2
or 3for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
• You can cancel seek tuning by pressing either
2or 3with a quick press.
• If you press and hold 2or 3you can skip
broadcasting stations. Seek tuning starts as
soon as you release the buttons.
Note
• When the frequency selected is being broad-
cast in stereo the STEREO ()indicator will
light.
Storing and recalling broadcast
frequencies
If you press any of the PRESET TUNING buttons
you can easily store up to six broadcast frequen-
cies for later recall with the touch of a button.
When you find a frequency that you want to
store in memory press a PRESET TUNING but-
ton and hold until the preset number stops
flashing.
The number you have pressed will flash in the
PRESET NUMBER indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same PRESET TUN-
ING button the radio station frequency is
recalled from memory.
Notes
• Up to 18 FM stations, 6 for each of the three
FM bands, and 6 AM stations can be stored in
memory.
• You can also use 5and ∞to recall radio sta-
tion frequencies assigned to PRESET TUNING
buttons.

Tuner Built-in CD player
En 6
English Español Deutsch Français Italiano Nederlands
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals for
good reception.
1 Press LOCAL/BSM to turn local seek tuning
on.
Local seek sensitivity (LOC) appears in the dis-
play.
2 When you want to return to normal seek
tuning, press LOCAL/BSM to turn local seek
tuning off.
Storing the strongest broadcast
frequencies
BSM (best stations memory) lets you automati-
cally store the six strongest broadcast frequen-
cies under PRESET TUNING buttons 1–6 and
once stored there you can tune in to those fre-
quencies with the touch of a button.
Press and hold LOCAL/BSM for about two
seconds to turn BSM on.
BSM begins to flash. While BSM is flashing the
six strongest broadcast frequencies will be
stored under PRESET TUNING buttons in order
of their signal strength. When finished, BSM
stops flashing.
• To cancel the storage process, press
LOCAL/BSM.
Note
• Storing broadcast frequencies with BSM may
replace broadcast frequencies you have saved
using PRESET TUNING.

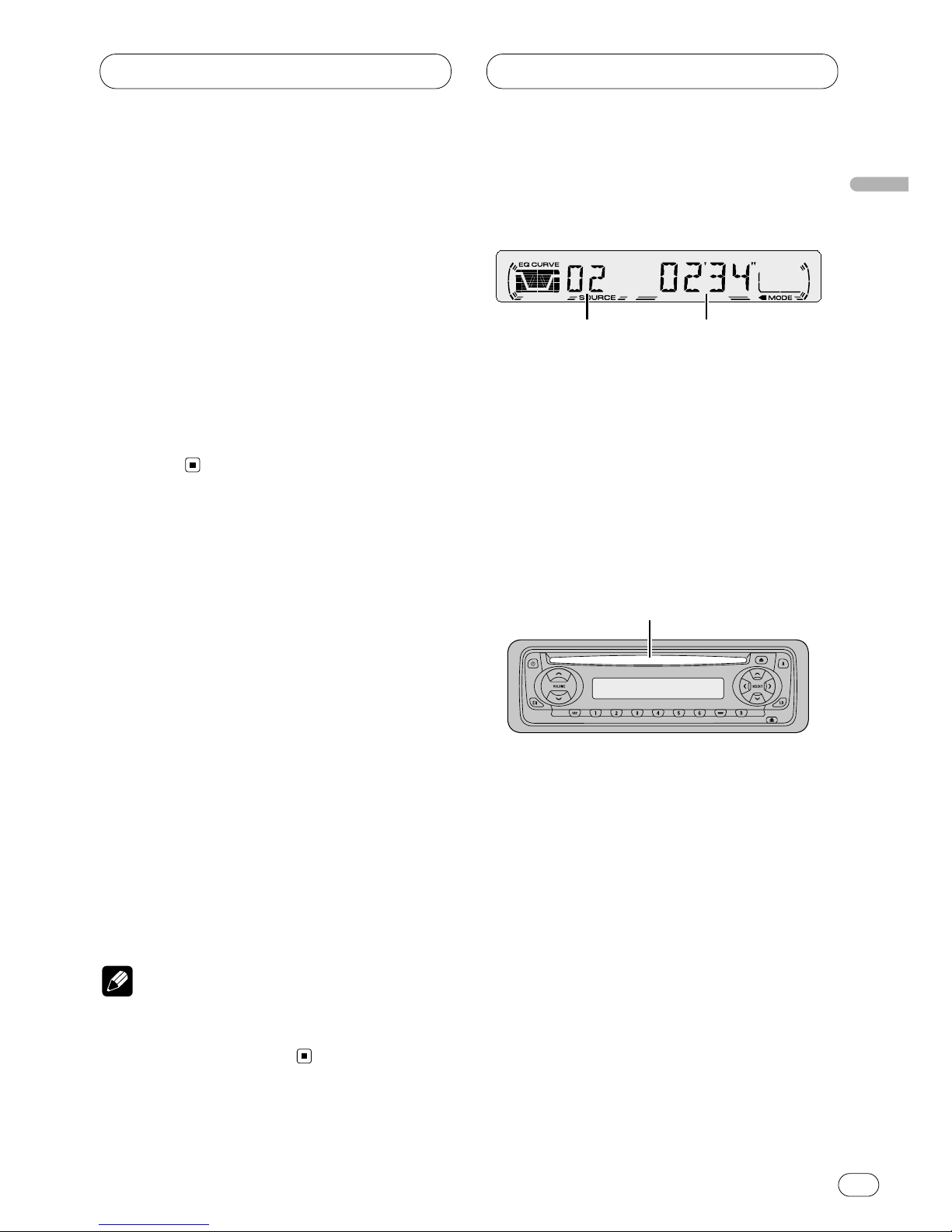

Playing a CD
1TRACK NUMBER indicator
Shows the track currently playing.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent track.
1 Insert a CD into the CD loading slot.
Playback will automatically start.
CD loading slot
• You can eject a CD by pressing CD EJECT.
2 After a CD has been inserted, press
SOURCE to select the built-in CD player.
3UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
21

En
7
Built-in CD player
4 To perform fast forward or reverse, press
and hold 2or 3.
5 To skip back or forward to another track,
press 2or 3.
Pressing 3skips to the start of the next track.
Pressing 2once skips to the start of the current
track. Pressing again will skip to the previous
track.
Notes
• The built-in CD player plays one, standard,
12-cm or 8-cm (single) CD at a time. Do not
use an adapter when playing 8-cm CDs.
• Do not insert anything other than a CD into
the CD loading slot.
• If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press CD EJECT to eject the disc, and check
the disc for damage before inserting the disc
again.
• If the built-in CD player does not operate prop-
erly, an error message such as ERR14 may be
displayed. Refer to Understanding built-in CD
player error messages on page 13.
Playing tracks in a random order
Random play lets you play back tracks on the
CD in a random order.
1 Press 4 to turn random play on.
RDM appears in the display. Tracks will play in a
random order.
2 Press 4 to turn random play off.
Tracks will continue to play in order.
Repeating play
Repeat play lets you hear the same track over
again.
1 Press 5 to turn repeat play on.
RPT appears in the display. The track presently
playing will play and then repeat.
2 Press 5 to turn repeat play off.
The track presently playing will continue to play
and then play the next track.
Note
• If you perform track search or fast
forward/reverse, repeat play is automatically
cancelled.
Pausing CD playback
Pause lets you temporarily stop playback of the
CD.
1 Press 6 to turn pause on.
PAUSE appears in the display. Play of the cur-
rent track pauses.
2 Press 6 to turn pause off.
Play will resume at the same point that you
turned pause on.

Audio Adjustments
En 8
English Español Deutsch Français Italiano Nederlands
Introduction of audio
adjustments

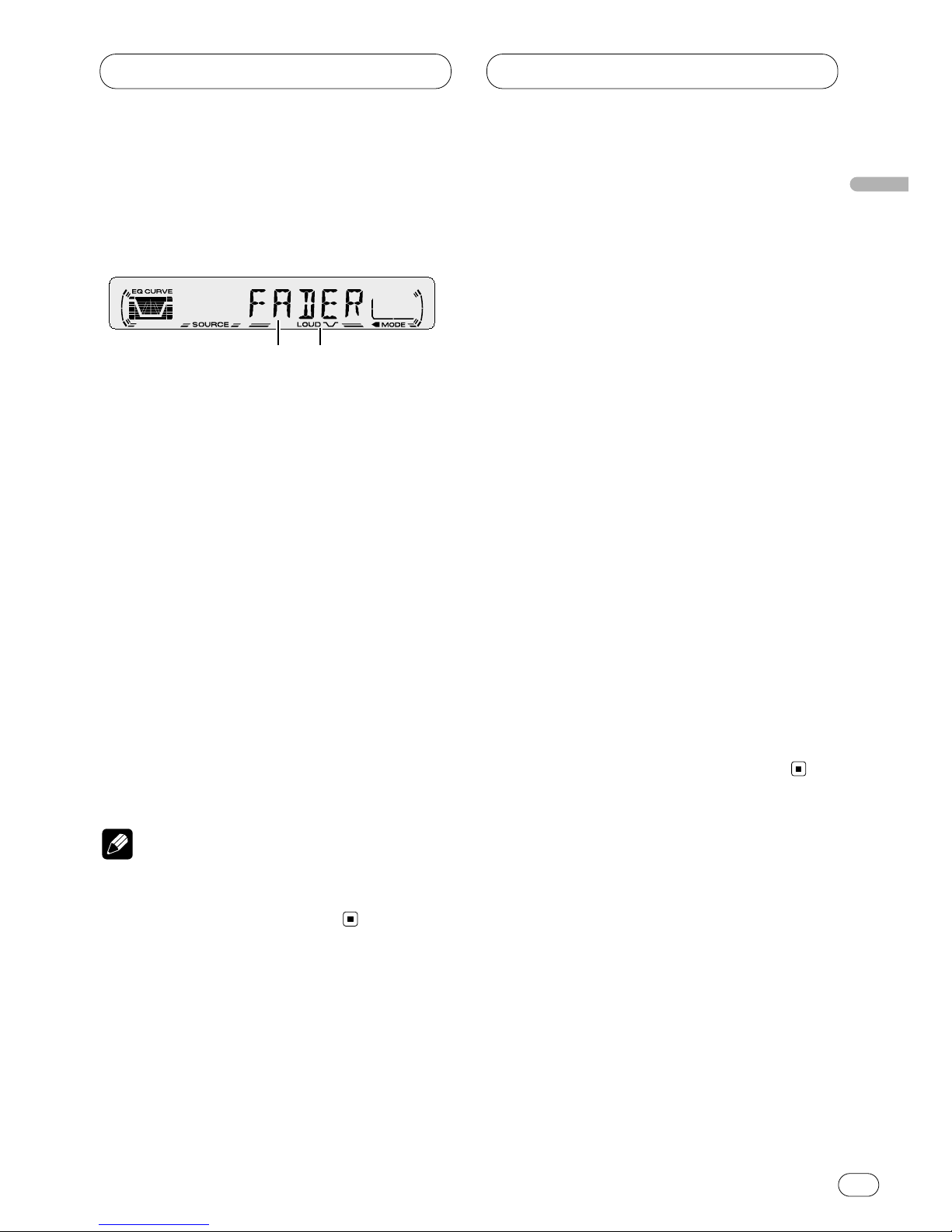

1AUDIO display
Shows the audio adjustments status.
2LOUD indicator
Appears in the display when loudness is
turned on.
Press AUDIO to display the audio function
names.
Press AUDIO repeatedly to switch between the
following audio functions:
FADER (balance adjustment)—EQ (equalizer)—
LOUD (loudness)—FIE (front image
enhancer)—SLA (source level adjustment)
• When selecting the FM tuner as the source,
you cannot switch to SLA.
• To return to the display of each source, press
BAND.
Note
• If you do not operate the audio function within
about 30 seconds, the display is automatically
returned to the source display.
Using balance adjustment
You can select a fader/balance setting that pro-
vides an ideal listening environment in all occu-
pied seats.
1 Press AUDIO to select FADER.
Press AUDIO until FADER appears in the dis-
play.
• If the balance setting has been previously
adjusted, BAL will be displayed.
2 Press 5or ∞to adjust front/rear speaker
balance.
Each press of 5or ∞moves the front/rear
speaker balance towards the front or the rear.
•F15 –R15 is displayed as the front/rear
speaker balance moves from front to rear.
•0is the proper setting when only two speak-
ers are used.
3 Press 2or 3to adjust left/right speaker
balance.
When you press 2or 3, BAL: 0 is displayed.
Each press of 2or 3moves the left/right
speaker balance towards the left or the right.
•BAL:L9 – BAL:R9 is displayed as the left/right
speaker balance moves from left to right.
1 2

Using the equalizer
The equalizer lets you adjust the equalization to
match car interior acoustic characteristics as
desired.
Recalling equalizer curves
There are six stored equalizer curves which you
can easily recall at any time. Here is a list of the
equalizer curves:
Display Equalizer curve
SBASS Super bass
PWRFL Powerful
NTRL Natural
VOCAL Vocal
CSTM Custom
FLAT Flat
•CSTM is an adjusted equalizer curve that you
create.
• When FLAT is selected no supplement or
correction is made to the sound. This is useful
to check the effect of the equalizer curves by
switching alternatively between FLAT and a set
equalizer curve.
Press EQ to select the equalizer.
• If the equalizer has been previously set to an
equalizer curve other than PWRFL then the title
of that previously selected equalizer curve will
be displayed, such as SBASS, NTRL, VOCAL,
CSTM, or FLAT.
Adjusting equalizer curves
You can adjust the currently selected equalizer
curve setting as desired. Adjusted equalizer
curve settings are memorized in CSTM.
1 Press AUDIO to select the equalizer mode.
Press AUDIO until EQ appears in the display.
2 Select the band you want to adjust with
2/3.
L (low) —M (mid) —H (high)
3 Press 5or ∞to adjust the equalizer curve.
Each press of 5or ∞increases or decreases
the equalizer curve respectively.
•+6 ––6is displayed as the equalizer curve is
increased or decreased.
• The actual range of the adjustments are differ-
ent depending on which equalizer curve is
selected.
Note
• If you make adjustments when a curve other
than CSTM is selected, the newly adjusted
curve will replace the previous curve. Then a
new curve with CSTM appears on the display
while selecting the equalizer curve.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
Press AUDIO until LOUD appears in the display.
Audio Adjustments
En
9

Audio Adjustments
En 10
English Español Deutsch Français Italiano Nederlands
2 Select LOUD on or off with 5/∞.
3 Select the desired level with 2/3.
LOW (low) —MID (mid) —HI (high)
Note
• You can also switch LOUD on or off by press-
ing the LOUDNESS.
Front image enhancer (FIE)
The F.I.E. (Front Image Enhancer) function is a
simple method of enhancing front imaging by
cutting mid- and high-range frequency output
from the rear speakers, limiting their output to
low-range frequencies. You can select the fre-
quency you want to cut.
Precaution
• When the F.I.E. function is deactivated, the
rear speakers output sound of all frequencies,
not just bass sounds. Reduce the volume
before disengaging F.I.E. to prevent a sudden
increase in volume.
1 Press AUDIO to select FIE.
Press AUDIO until FIE appears in the display.
2 Select FIE on or off with 5/∞.
3 Select the desired frequency with 2/3.
100—160—250 (Hz)
Notes
• After switching the F.I.E. function ON, select
the Fader/Balance mode in the Audio Menu,
and adjust front and rear speaker volume
levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-
speaker system.
Adjusting source levels
SLA (Source level adjustment) lets you adjust
the volume level of each source to prevent radi-
cal changes in volume when switching between
sources.
• Settings are based on the volume level of the
FM tuner, which remains unchanged.
1 Compare the FM tuner volume level with
the level of the source you wish to adjust.
2 Press AUDIO to select SLA.
Press AUDIO until SLA appears in the display.
3 Press 5or ∞to adjust the source volume.
Each press of 5or ∞increases or decreases
the source volume.
•SLA +4 – SLA –4is displayed as the source
volume is increased or decreased.
Notes
• Since the FM tuner volume is the control, it is
not possible to apply source level adjustments
to the FM tuner.
• The AM tuner volume level can also be
adjusted with source level adjustments.

En
11
Adjusting initial setting
Initial settings lets you perform initial set up of
different settings for this unit.
1 Press SOURCE and hold until the unit turns
off.
2 Press AUDIO and hold until TIME (12:00)
appears in the display.
Press AUDIO repeatedly to switch between the
following settings:
TIME—FM STEP—AM STEP
Use the following instructions to operate each
particular setting.
• To cancel initial settings, press BAND.
• You can also cancel initial settings by holding
down AUDIO until the unit turns off.
Setting the time
This is used to set the time on the unit’s clock
display.
1 Press AUDIO to select the time.
Press AUDIO until the time appears in the dis-
play.
2 Select the portion of the time display you
wish to set with 2/3.
Pressing 2/3will select a portion of the clock
display:
HOUR—MINUTE
As you select portions of the clock display the
portion selected will blink.
3 Select the correct time with 5/∞.
Pressing 5will increase the selected hour or
minute. Pressing ∞will decrease the selected
hour or minute.
Initial Settings

Initial Settings Additional Information
En 12
English Español Deutsch Français Italiano Nederlands
Setting the FM tuning step
The tuning step employed by Seek Tuning in the
FM mode can be switched between 100 kHz
(preset at the factory) and 50 kHz.
1 Press AUDIO to select FM STEP.
Press AUDIO repeatedly until FM 100 appears in
the display.
2 Select the FM tuning step with 2/3.
Note
• If seek tuning is performed in 50 kHz steps,
stations may be tuned in imprecisely. Tune in
the stations with manual tuning or use seek
tuning again.
Setting the AM tuning step
The AM tuning step can be switched between 9
kHz, the preset step, and 10 kHz. When using
the tuner in North, Central or South America,
reset the tuning step from 9 kHz (531 – 1,602
kHz allowable) to 10 kHz (530 – 1,640 kHz allow-
able).
1 Press AUDIO to select AM STEP.
Press AUDIO repeatedly until AM 9 appears in
the display.
2 Select the AM tuning step with 2/3.
Pressing 2/3will switch the AM tuning step
between 9 kHz and 10 kHz. The selected AM
tuning step will appear in the display.
Setting the time display on or off
You can turn the time display on even when the
sources are off.
Press CLOCK to select the time display.
Each press of CLOCK turns time display on or
off.
• The time display disappears temporarily when
you perform other operations, but the time indi-
cation is displayed again after 25 seconds.

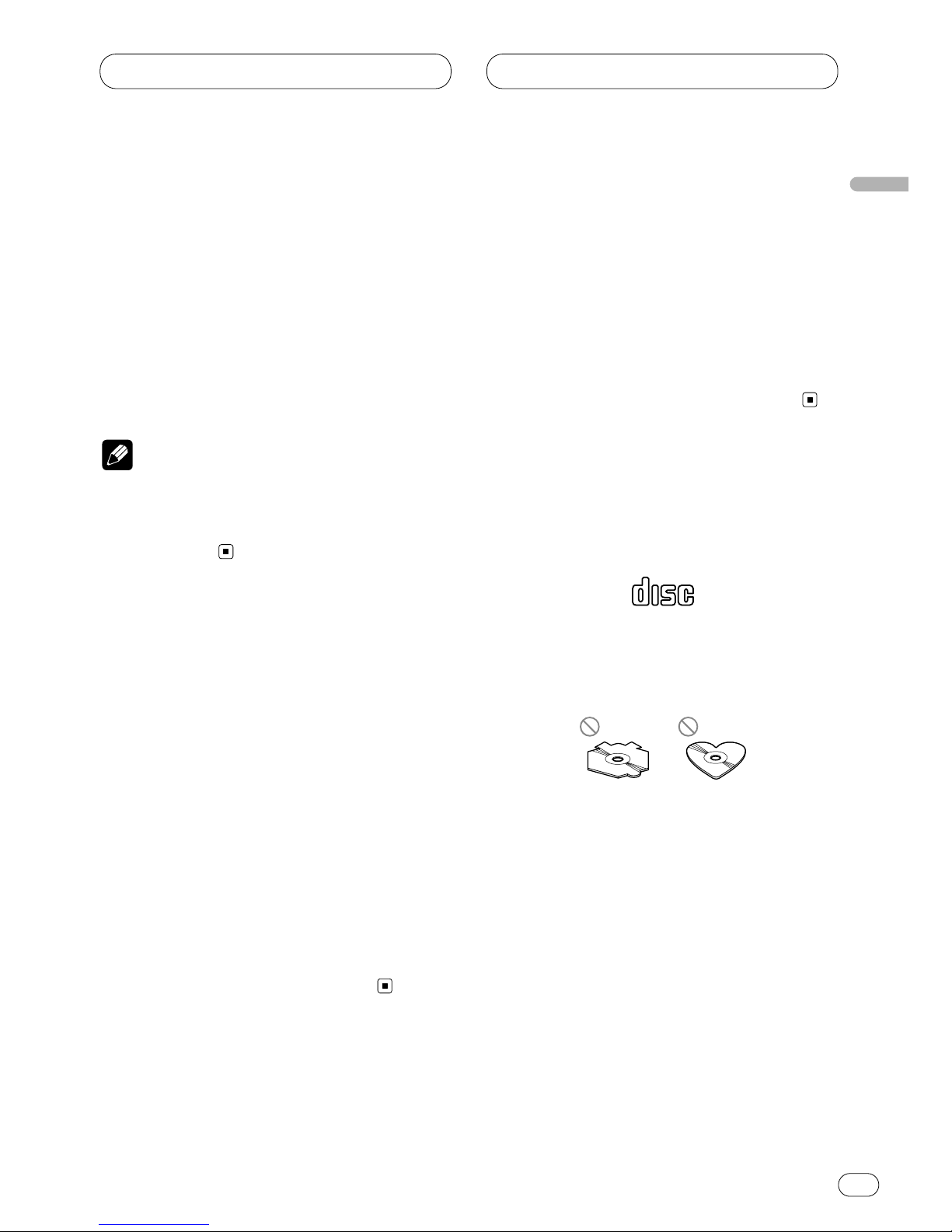

CD player and care
• Use only CDs that have the Compact Disc
Digital Audio mark as shown below.
• Use only normal, round CDs. If you insert
irregular, non-round, shaped CDs they may
jam in the CD player or not play properly.
• Check all CDs for cracks, scratches or warped
discs before playing. CDs that have cracks,
scratches or are warped may not play prop-
erly. Do not use such discs.
• Avoid touching the recorded (non-printed
side) surface when handling the disc.
• Store discs in their cases when not in use.
• Keep discs out of direct sunlight and do not
expose the discs to high temperatures.
• Do not attach labels, write on or apply chemi-
cals to the surface of the discs.
COMPACT
DIGITAL AUDIO

En
13
Additional Information
• To clean dirt from a CD, wipe the disc with a
soft cloth outward from the center of the disc.
• If the heater is used in cold weather, moisture
may form on components inside the CD
player. Condensation may cause the CD
player to not operate properly. If you think that
condensation is a problem turn off the CD
player for an hour or so to allow the CD player
to dry out and wipe any damp discs with a soft
cloth to remove the moisture.
• Road shocks may interrupt CD playback.
CD-R/CD-RW discs
• CD-R (CD-Recordable) and CD-RW (CD-
Rewritable) discs recorded on CD-R/CD-RW
units other than a music CD recorder may not
play properly on this CD player.
• Music CD-R/CD-RW discs, even recorded on a
music CD recorder, may not play properly on
this CD player due to differing disc character-
istics, scratches or dirt on the disc. Dirt or
condensation on the lens inside this unit may
also prevent playback.
• Read the precautions with CD-R/CD-RW discs
before using them.
Understanding built-in CD player
error messages
When problems occur during CD play an error
message may appear on the display. If an error
message appears on the display refer to the
table below to see what the problem is and the
suggested method of correcting the problem. If
the error cannot be corrected, contact your
dealer or your nearest Pioneer Service Center.
Message Cause Action
ERR11, 12, 17,
30
Dirty disc Clean disc.
ERR11, 12, 17,
30
Scratched disc Replace disc.
ERR14 Blank disc Check the disc.
ERR10, 11, 12,
14, 17, 30, A0
Electrical or
mechanical
Turn the ignition
ON and OFF, or
switch to a
different source,
then back to the
CD player.
HEAT CD player over-
heated
Turn off the CD
player until the
CD player cools
down.

Additional Information
En 14
English Español Deutsch Français Italiano Nederlands
Specifications
General
Power source ...................... 14.4 V DC (10.8 – 15.1 V
allowable)
Grounding system .............. Negative type
Max. current consumption
............................................. 10.0 A
Dimensions (W ×H ×D):
(DIN)
Chassis ................ 178 ×50 ×157 mm
Nose ..................... 188 ×58 ×19 mm
(D)
Chassis ................ 178 ×50 ×162 mm
Nose ..................... 170 ×48 ×14 mm
Weight ................................. 1.3 kg
Audio
Continuous power output is 20 W per channel min. into
4 ohms, both channels driven 50 to 15,000 Hz with no
more than 5% THD.
Maximum power output ..... 45 W ×4
Load impedance ................. 4 Ω(4 – 8 Ωallowable)
Preout max output level/output impedance
............................................. 2.2 V/1 kΩ
Equalizer (3-Band Equalizer):
(LOW) .......................... Level: ±12 dB
(MID) ........................... Level: ±12 dB
(HIGH) ......................... Level: ±12 dB
Loudness contour
(LOW) .......................... +3.5 dB (100 Hz),
+3 dB (10 kHz)
(MID) ........................... +10 dB (100 Hz),
+6.5 dB (10 kHz)
(HIGH) ......................... +11 dB (100 Hz),
+11 dB (10 kHz)
(volume : –30 dB)
CD player
System ................................ Compact disc audio
system
Usable discs ....................... Compact disc
Signal format:
Sampling frequency ... 44.1 kHz
Number of quantization bits
..................................... 16; linear
Frequency characteristics
............................................. 5 – 20,000 Hz (±1 dB)
Signal-to-noise ratio ........... 94 dB (1 kHz) (IEC-A
network)
Dynamic range ................... 92 dB (1 kHz)
Number of channels .......... 2 (stereo)
FM tuner
Frequency range ................. 87.5 – 108.0 MHz
Usable sensitivity ............... 9 dBf (0.8 µV/75 Ω, mono,
S/N: 30 dB)
50 dB quieting sensitivity ... 15 dBf (1.5 µV/75 Ω, mono)
Signal-to-noise ratio ........... 70 dB (IEC-A network)
Distortion ............................ 0.3% (at 65 dBf, 1 kHz,
stereo)
Frequency response ........... 30 – 15,000 Hz (±3 dB)
Stereo separation ............... 40 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ................. 531 – 1,602 kHz (9 kHz)
530 – 1,640 kHz (10 kHz)
Usable sensitivity ............... 18 µV (S/N: 20 dB)
Selectivity ............................ 50 dB (±9 kHz)
50 dB (±10 kHz)
Note
• Specifications and the design are subject to
possible modifications without notice due to
improvements.

Antes de empezar
Acerca de este manual 2
Precauciones 2
Protección del producto contra robo 2
• Extracción del panel delantero 2
• Colocación del panel delantero 2
Qué es cada cosa 3
Encendido y Apagado
Encendido del sistema 4
Selección de una fuente 4
Apagado del sistema 4
Sintonizador
Audición de radio 4
Almacenaje y llamada de frecuencias 5
Sintonía de señales fuertes 5
Almacenaje de las frecuencias de radio
más fuertes 6
Lector de CD incorporado
Reproducción de un CD 6
Reproducción de pistas en un orden
aleatorio 7
Repetición de reproducción 7
Pausa de la reproducción de CD 7
Ajustes de audio
Introducción a los ajustes de audio 8
Uso del ajuste del equilibrio 8
Uso del ecualizador 9
• Llamada de las curvas de
ecualización 9
• Ajuste de las curvas de ecualización 9
Ajuste de la sonoridad 9
Mejorador de imagen delantera (FIE) 10
Ajuste de los niveles de la fuente 10
Ajustes iniciales
Configuración de los ajustes iniciales 11
Ajuste de la hora 11
Ajuste del paso de sintonía de FM 12
Ajuste del paso de sintonía de AM 12
Informaciones adicionales
Activación y desactivación de la
visualización del reloj 12
Lector de CD y cuidados 12
Discos CD-R/CD-RW 13
Comprensión de los mensajes de error
del lector de CD incorporado 13
Especificaciones 14
Gracias por haber comprado este producto Pioneer.
Sírvase leer con detención estas instrucciones sobre la operación de modo que
aprenda el modo de operar correctamente su modelo. Una vez que haya leído las
instrucciones, consérvelas en un lugar seguro para consultarlas en el futuro.
Contenido
Sp
1

Acerca de este manual
Este producto viene con diversas funciones
sofisticadas que aseguran una recepción y
operación superior. Todas las funciones han sido
proyectadas para facilitar su uso al máximo, pero
muchas funciones requieren explicación. El
propósito de este manual de instrucciones es
ayudarle a beneficiarse completamente del
potencial del producto y maximizar su disfrute de
audición.
Se recomienda familiarizarse con las funciones
y operaciones leyendo con detención el manual
antes de usar el producto. Es especialmente
importante leer y observar las precauciones en
esta página y en otras secciones.
Precauciones
• Mantenga este manual a mano como una
referencia para los procedimientos de
operación y precaución.
• Siempre mantenga el volumen suficiente-
mente bajo de modo que pueda escuchar los
sonidos fuera del coche.
• Proteja este producto de la humedad.
• Si se desconecta o se descarga la batería, la
memoria preajustada se borrará y se debe
reprogramarla.
• Cuando este producto no funciona correcta-
mente, comuníquese con su concesionario o
centro de servicio Pioneer autorizado.
Protección del producto contra
robo
El panel delantero se puede extraer de la unidad
principal y se almacenar en su caja protectora
proveída como una medida antirrobo.
Importante
• Nunca presione ni agarre la pantalla y los
botones con fuerza excesiva al extraer o colo-
car el panel delantero.
• Evite sujetar el panel delantero a impactos
excesivos.
• Mantenga el panel delantero fuera del alcance
de los rayos de luz del sol o alta temperaturas.

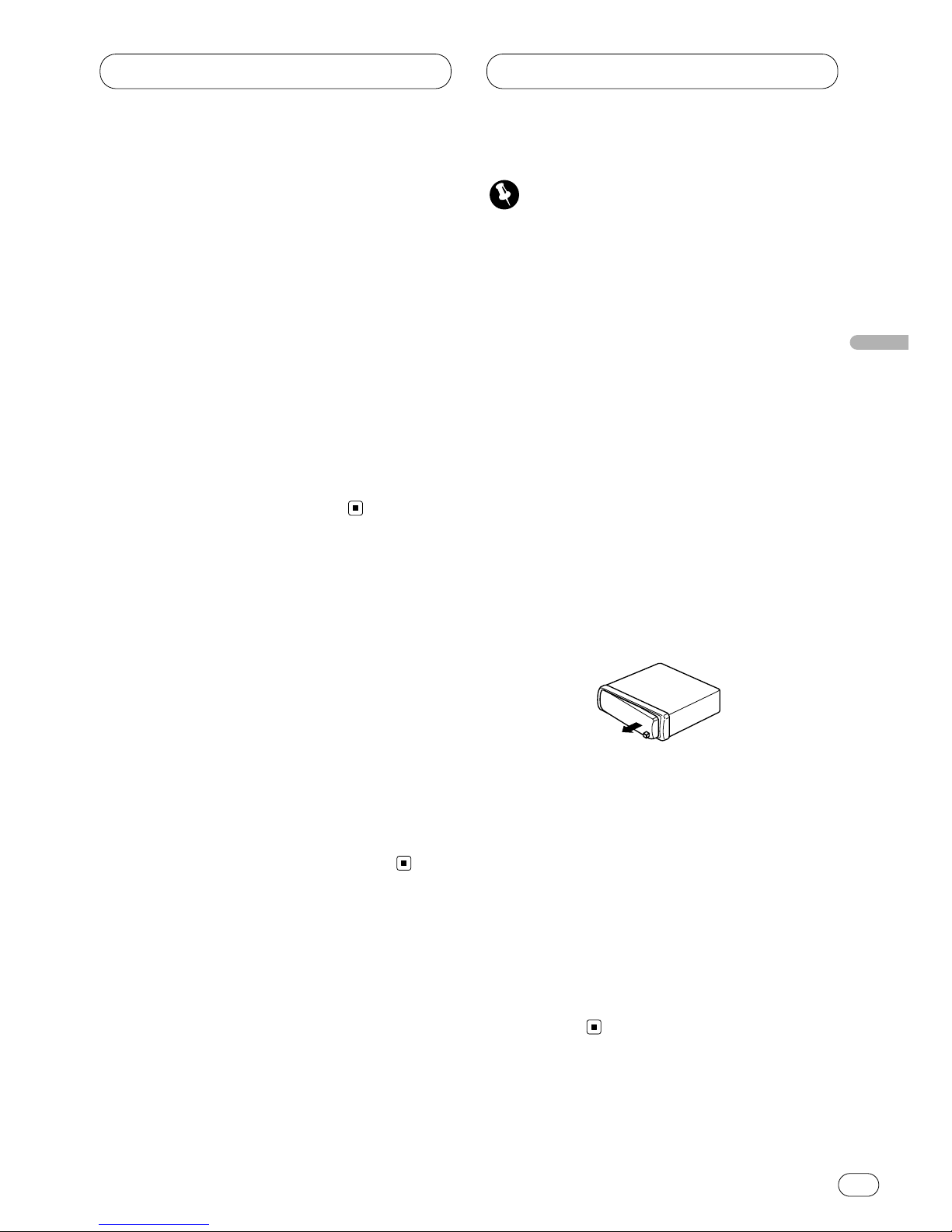

Extracción del panel delantero
1 Presione DETACH para soltar el panel
delantero.
Presione DETACH y el lado derecho del panel se
suelta de la unidad principal.
2 Agarre el panel delantero y extráigalo.
Agarre el lado derecho del panel delantero y tire
del panel hacia la izquierda. El panel delantero
sale de la unidad principal.
3 Coloque el panel delantero en su caja pro-
tectora proveída para almacenamiento seguro.
Colocación del panel delantero
1 Coloque el panel delantero de modo plano
contra la unidad principal.
2 Presione el panel delantero hacia la cara
de la unidad principal hasta que se asiente
firmemente.
Antes de empezar
Sp 2
English Español Deutsch Français Italiano Nederlands

Sp
3
Antes de empezar
Qué es cada cosa
1Botón VOLUME
Presione para aumentar o disminuir el
volumen.
2Botón CD EJECT
Presione para expulsar un CD desde el lector
de CD incorporado.
3Botón AUDIO
Presione para seleccionar los diversos con-
troles de calidad del sonido.
4Botón CLOCK
Presione para activar o desactivar la visual-
ização de reloj.
5Botón EQ
Presione para seleccionar las varias curvas
del ecualizador.
6Botones 5/∞/2/3
Presione para los controles de sintonía de
búsqueda manual, avance rápido, inversión
y búsqueda musical. También se usan para
controlar las funciones.
7Botón LOUDNESS
Presione para activar o desactivar la función
de sonoridad.
8Botón SOURCE
Esta unidad se enciende por la selección de
una fuente. Presione para cambiar a través
de todas las fuentes disponibles.
9Botones 1–6 (PRESET TUNING)
Presione para la sintonía preajustada.
0Botón LOCAL/BSM
-Botón BAND
Presione para seleccionar entre tres bandas
FM y una banda AM.
=Botón DETACH
Presione para extraer el panel delantero de
la unidad principal.
13
4
5
6
7
890-=
2

Encendido y Apagado Sintonizador
Sp 4
English Español Deutsch Français Italiano Nederlands
Encendido del sistema
Presione SOURCE para encender el sistema.
Cuando se selecciona una fuente, la unidad se
encende.
Selección de una fuente
Puede seleccionar la fuente que desea
escuchar. Para cambiar al lector de CD incorpo-
rado, coloque un disco en el sistema (refiérase
a la página 6).
Presione SOURCE para seleccionar una
fuente.
Presione SOURCE repetidamente para cambiar
entre las siguientes fuentes:
Lector de CD incorporado—Sintonizador
Notas
• Cuando no hay un disco cargado en este pro-
ducto, la fuente del lector de CD incorporado
no cambia.
• Cuando se conecta el cable azul/blanco de
este producto al terminal de control de relé de
antena automática del automóvil, la antena
del automóvil se extiende cuando se enciende
el producto. Para retraer la antena, cambie a
otra fuente.
Apagado del sistema
Presione SOURCE durante por lo menos un
segundo para apagar el sistema.
Audición de radio
Si está usando este sistema en América del
Norte, Central o Sur, reajuste el paso de sintonía
de AM (consulte Ajuste del paso de sintonía de
AM en la página 12).
1Indicador BAND
Visualiza cuál banda la radio está
sintonizada: AM o FM.
2Indicador FREQUENCY
Visualiza la frecuencia en que el sintonizador
está sintonizado.
3Indicador STEREO ()
Visualiza que la frecuencia seleccionada
está siendo transmitida en estéreo.
4Indicador PRESET NUMBER
Visualiza la emisora preajustada
seleccionada.
14
3
2

Sp
5
Sintonizador
1 Presione SOURCE para seleccionar el sin-
tonizador.
2 Utilice VOLUME para ajustar el nivel de
sonido.
Presione VOLUME + para aumentar el volumen,
y VOLUME – para disminuir el volumen.
3 Presione BAND para seleccionar una
banda.
Presione BAND hasta que se visualice la banda
deseada: F1, F2, F3 para FM o AM.
4 Para realizar la sintonía manual, presione
2o 3rápidamente.
Las frecuencias se desplazan hacia arriba o
hacia abajo paso por paso.
5 Para realizar la sintonía por búsqueda,
presione 2o 3durante aproximadamente un
segundo y suelte.
El sintonizador explorará las frecuencias hasta
que encuentre una emisora con suficiente
intensidad para una buena recepción.
• Se puede cancelar la sintonía por búsqueda
presionando 2o 3rápidamente.
• Si mantiene presionado 2o 3, puede saltar
las emisoras. La sintonía por búsqueda empieza
así que se suelta el botón.
Nota
• Cuando la frecuencia seleccionada está
siendo transmitida en estéreo, el indicador
STEREO ()se ilumina.
Almacenaje y llamada de
frecuencias
Si se presiona uno de los botones PRESET
TUNING, se puede fácilmente almacenar hasta
seis frecuencias de emisoras para una llamada
subsiguiente con la presión de un botón.
Cuando encuentre una frecuencia que desea
almacenar en la memoria, presione un botón
PRESET TUNING hasta que el número preajus-
tado pare de destellar.
El número seleccionado destellará en el indi-
cador PRESET NUMBER y permanecerá ilumi-
nado. La frecuencia de la emisora seleccionada
ha sido almacenada en la memoria.
Cuando presione el mismo botón PRESET
TUNING en la próxima vez, la frecuencia de la
emisora se llamará de la memoria.
Notas
• Hasta 18 emisoras FM, 6 para cada una de las
tres bandas FM, y 6 emisoras AM se pueden
almacenar en la memoria.
• También se puede usar 5y ∞para llamar a
las frecuencias de radio designadas a los
botones PRESET TUNING.
Sintonía de señales fuertes
La sintonía por búsqueda local le permite sin-
tonizar solamente las emisoras con señales
suficientemente fuertes para una buena recep-
ción.
1 Presione LOCAL/BSM para activar la sin-
tonía por búsqueda local.
La sensibilidad de búsqueda local (LOC)
aparece en la pantalla.
