Pioneer DEH-4700MP User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
DEH-4700MP/XU/EW
CRT3398
HIGH POWER CD/MP3/WMA PLAYERWITH RDSTUNER
DEH-4700MP
/XU/EW
DEH-4700MPB
/XU/EW
This service manual should be used together with the following manual(s):
Model No. Order No. Mech.Module Remarks
CX-3158 CRT3394 S10.1AAC CD Mech. Module :Circuit Description, Mech. Description, Disassembly
For details, refer to "Important Check Points for Good Servicing".
K-ZZA. DEC. 2004 Printed in Japan

DEH-4700MP/XU/EW
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely
repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

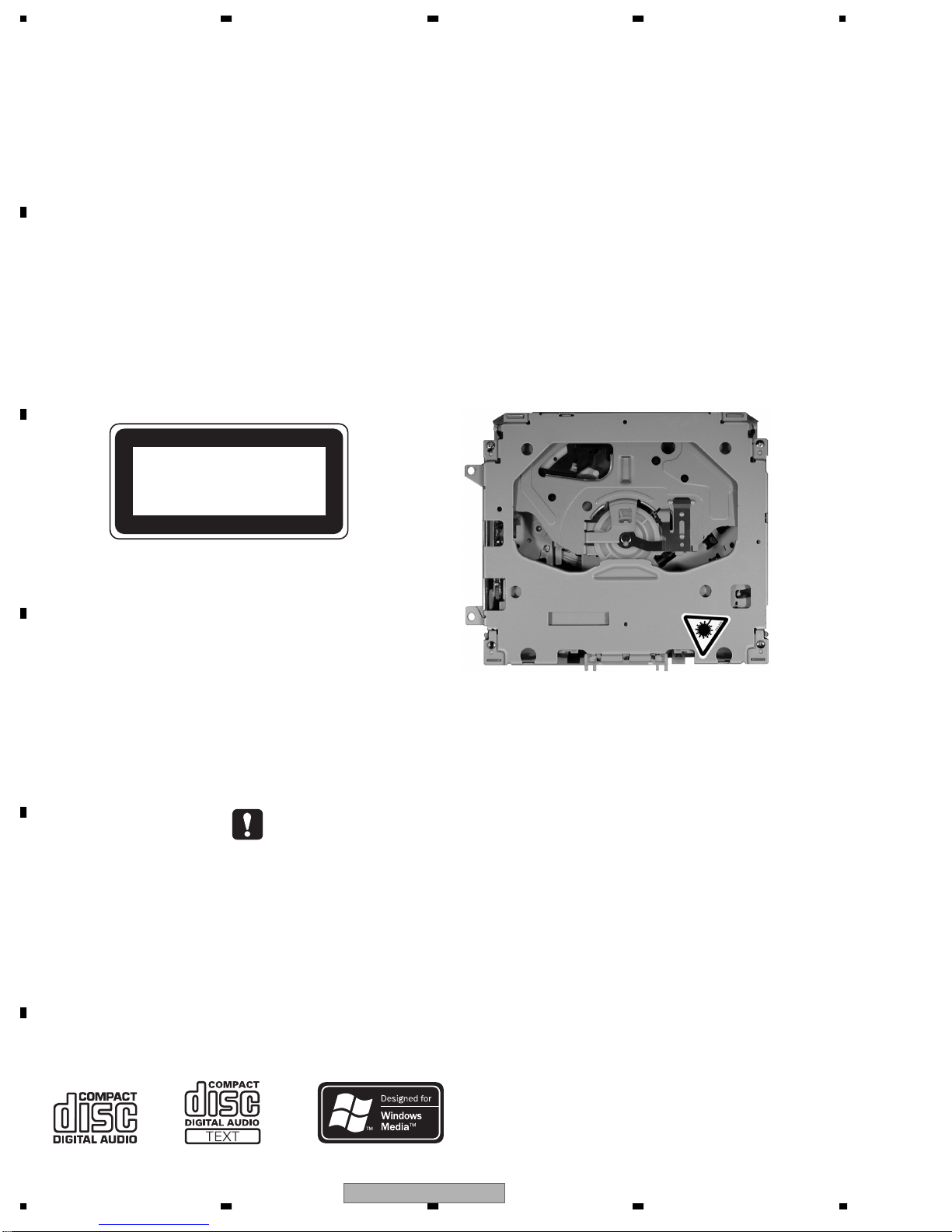

2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
CLASS 1
LASER PRODUCT
-Service Precaution
1. You should conform to the regulations governing the product (safety, radio and noise, and other
regulations), and should keep the safety during servicing by following the safety instructions
described in this manual.
2. Before disassembling the unit, be sure to turn off the power. Unplugging and plugging the connectors
during power-on mode may damage the ICs inside the unit.
3. To protect the pickup unit from electrostatic discharge during servicing, take an appropriate treatment
(shorting-solder) by referring to "the DISASSEMBLY".
4. After replacing the pickup unit, be sure to check the grating.

DEH-4700MP/XU/EW 3
5678
5678
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
0Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.

DEH-4700MP/XU/EW
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION.....................................................................................................................................2
1. SPECIFICATIONS ............................................................................................................................................ 5
2. EXPLODED VIEWS AND PARTS LIST............................................................................................................6
2.1 PACKING ...................................................................................................................................................6
2.2 EXTERIOR................................................................................................................................................. 8

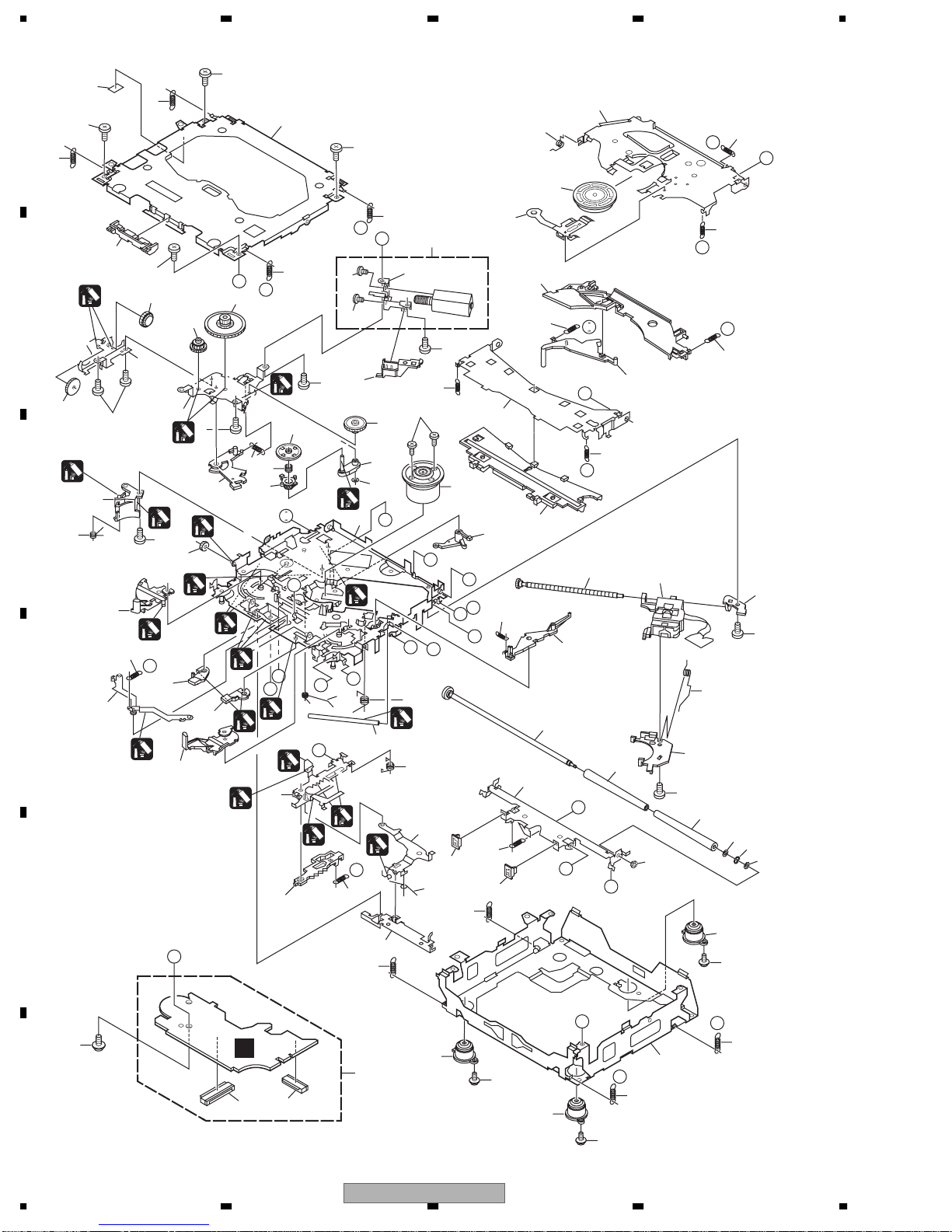

2.3 CD MECHANISM MODULE.....................................................................................................................10
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..........................................................................................12

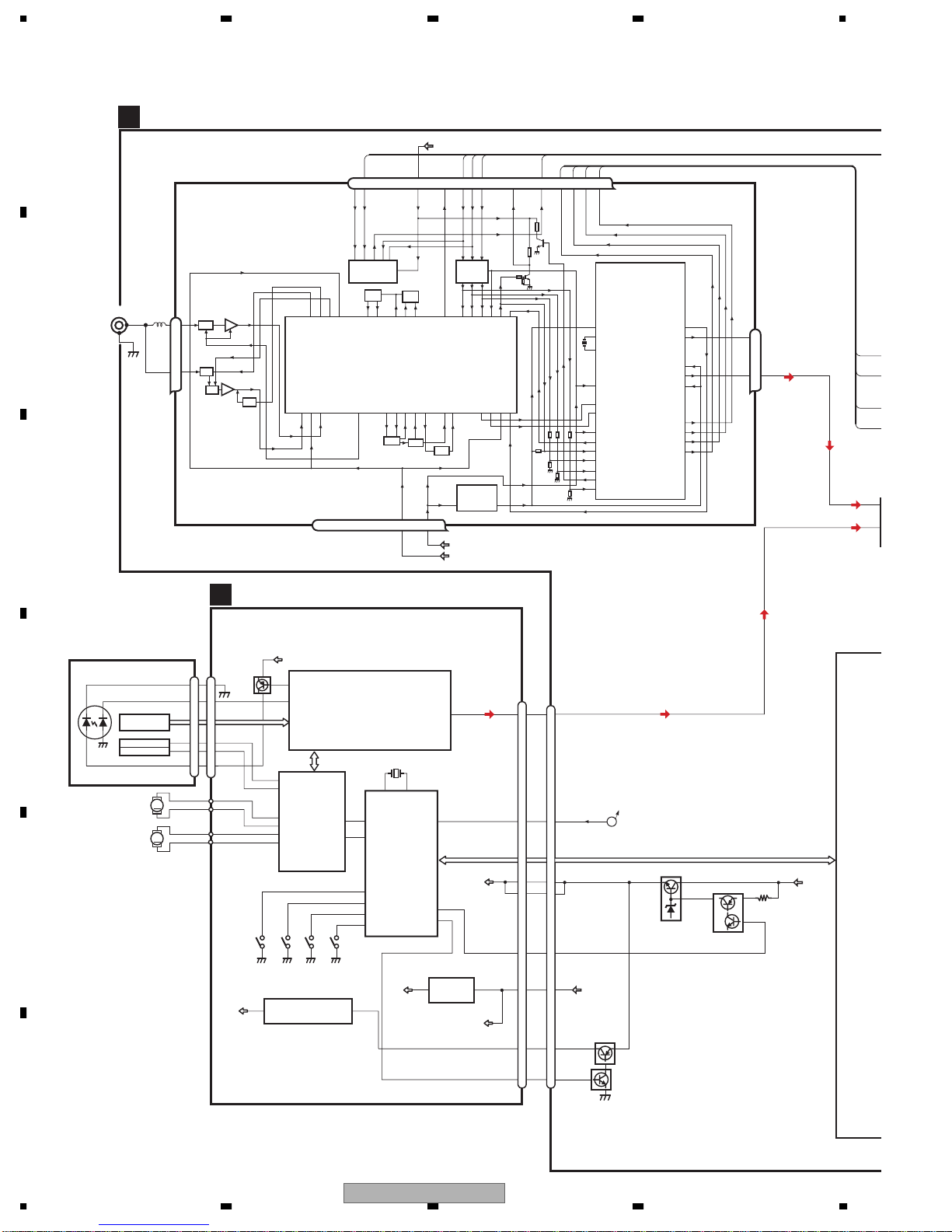

3.1 BLOCK DIAGRAM................................................................................................................................... 12

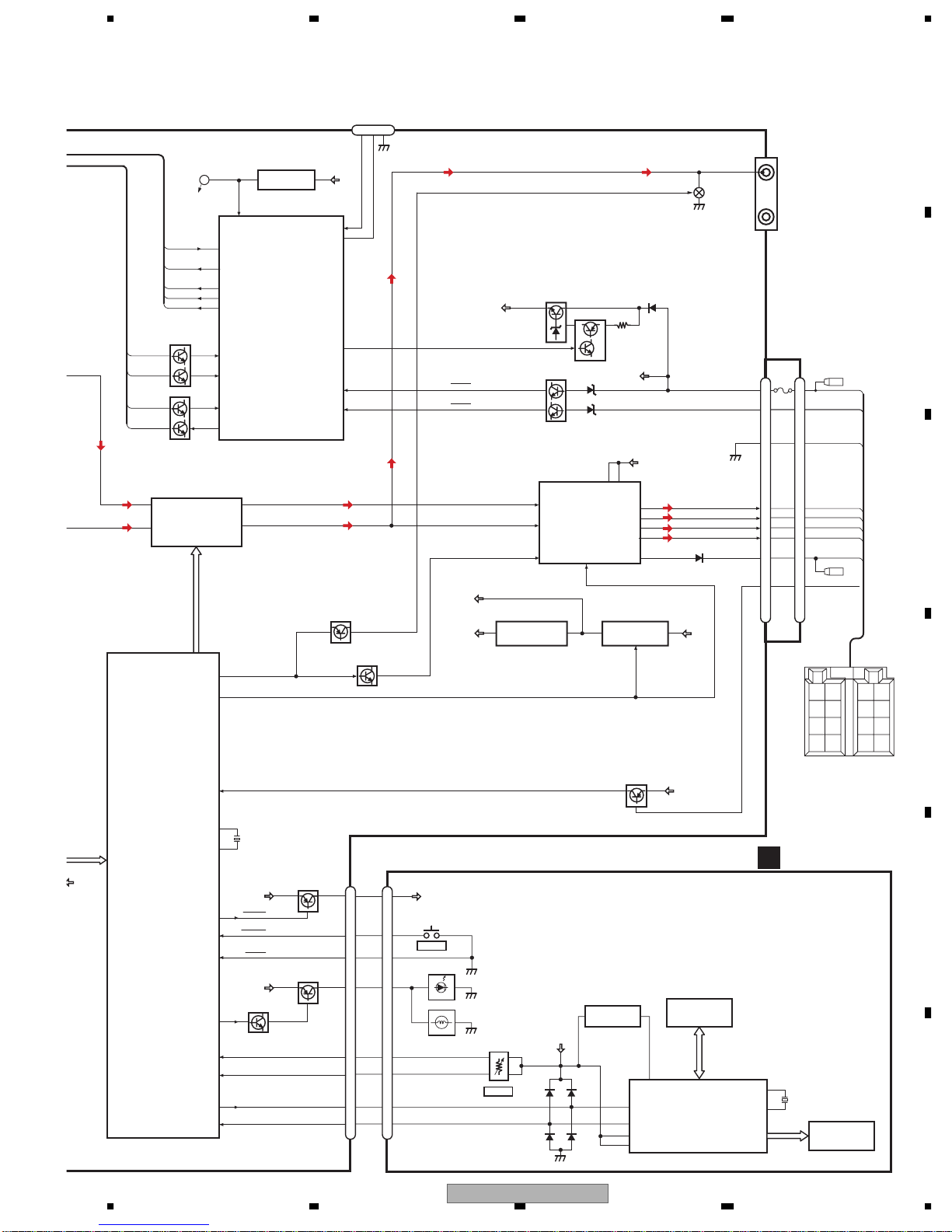

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)..............................................................................14

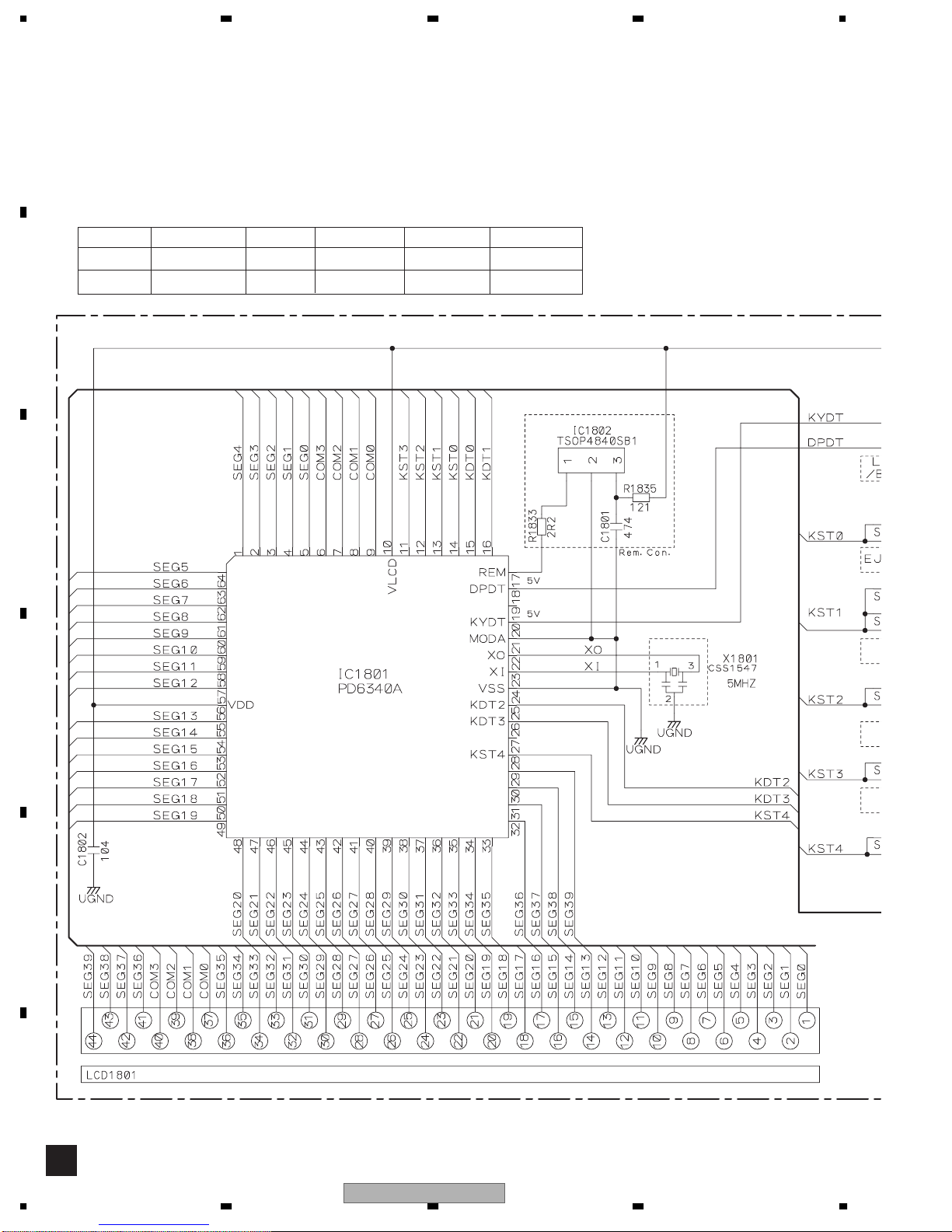

3.3 KEYBOARD UNIT.................................................................................................................................... 20

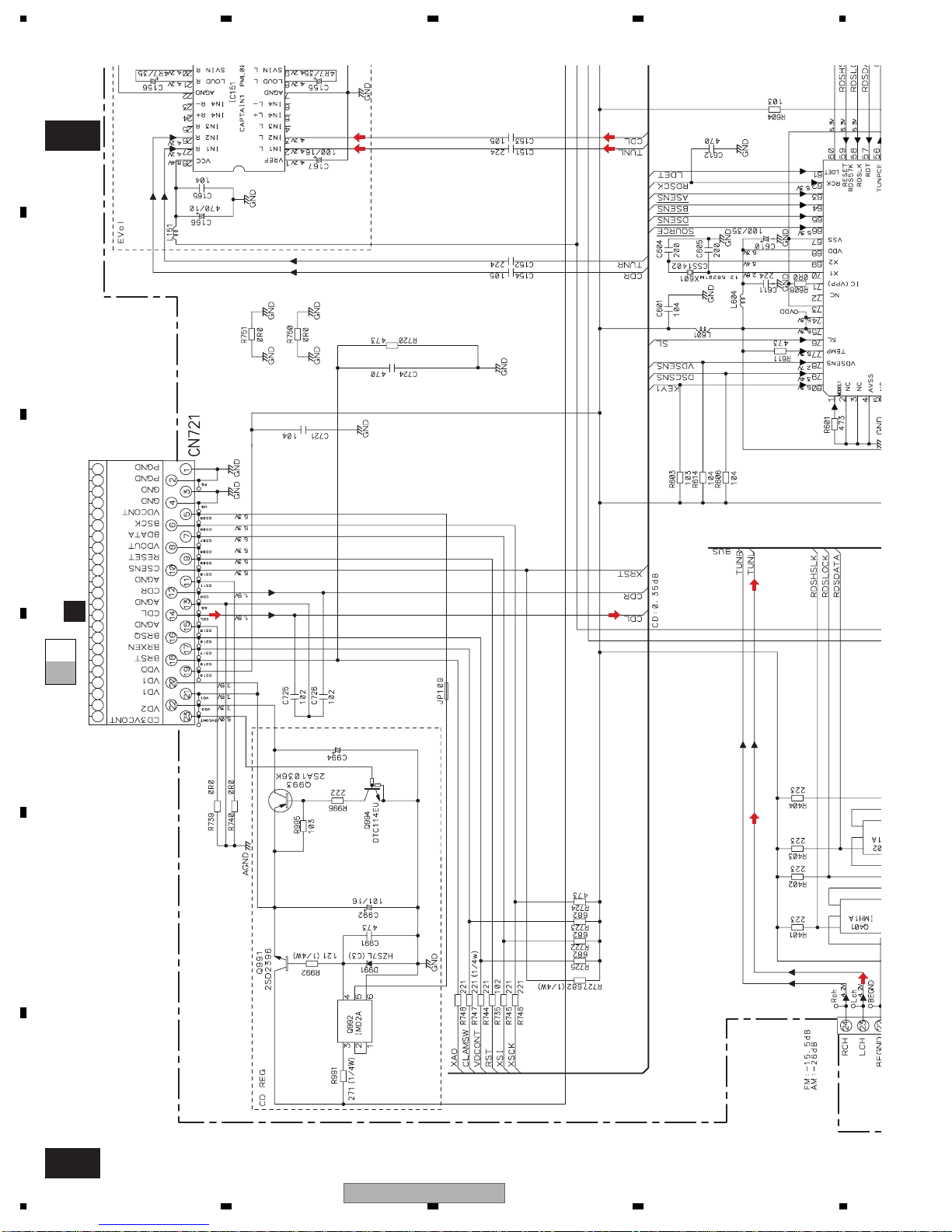

3.4 CD MECHANISM MODULE(GUIDE PAGE)............................................................................................22
4. PCB CONNECTION DIAGRAM .....................................................................................................................32
4.1 TUNER AMP UNIT................................................................................................................................... 32
4.2 KEYBOARD UNIT.................................................................................................................................... 36
4.3 CD CORE UNIT(S10.1) ...........................................................................................................................38
5. ELECTRICAL PARTS LIST ............................................................................................................................40
6. ADJUSTMENT ............................................................................................................................................... 45
6.1 CD ADJUSTMENT................................................................................................................................... 45
6.2 CHECKING THE GRATING AFTER CHANGING THE PICKUP UNIT....................................................47
6.3 ERROR MODE ........................................................................................................................................49
7. GENERAL INFORMATION............................................................................................................................. 50
7.1 DIAGNOSIS............................................................................................................................................. 50
7.1.1 DISASSEMBLY.....................................................................................................................................50
7.1.2 CONNECTOR FUNCTION DESCRIPTION..........................................................................................53
7.2 PARTS...................................................................................................................................................... 54
7.2.1 IC ..........................................................................................................................................................54
7.2.2 DISPLAY............................................................................................................................................... 62
7.3 OPERATIONAL FLOW CHART ...............................................................................................................63
7.4 CLEANING...............................................................................................................................................64
8. OPERATIONS ................................................................................................................................................ 65

DEH-4700MP/XU/EW 5
5678
5678
C
D
F
A
B
E

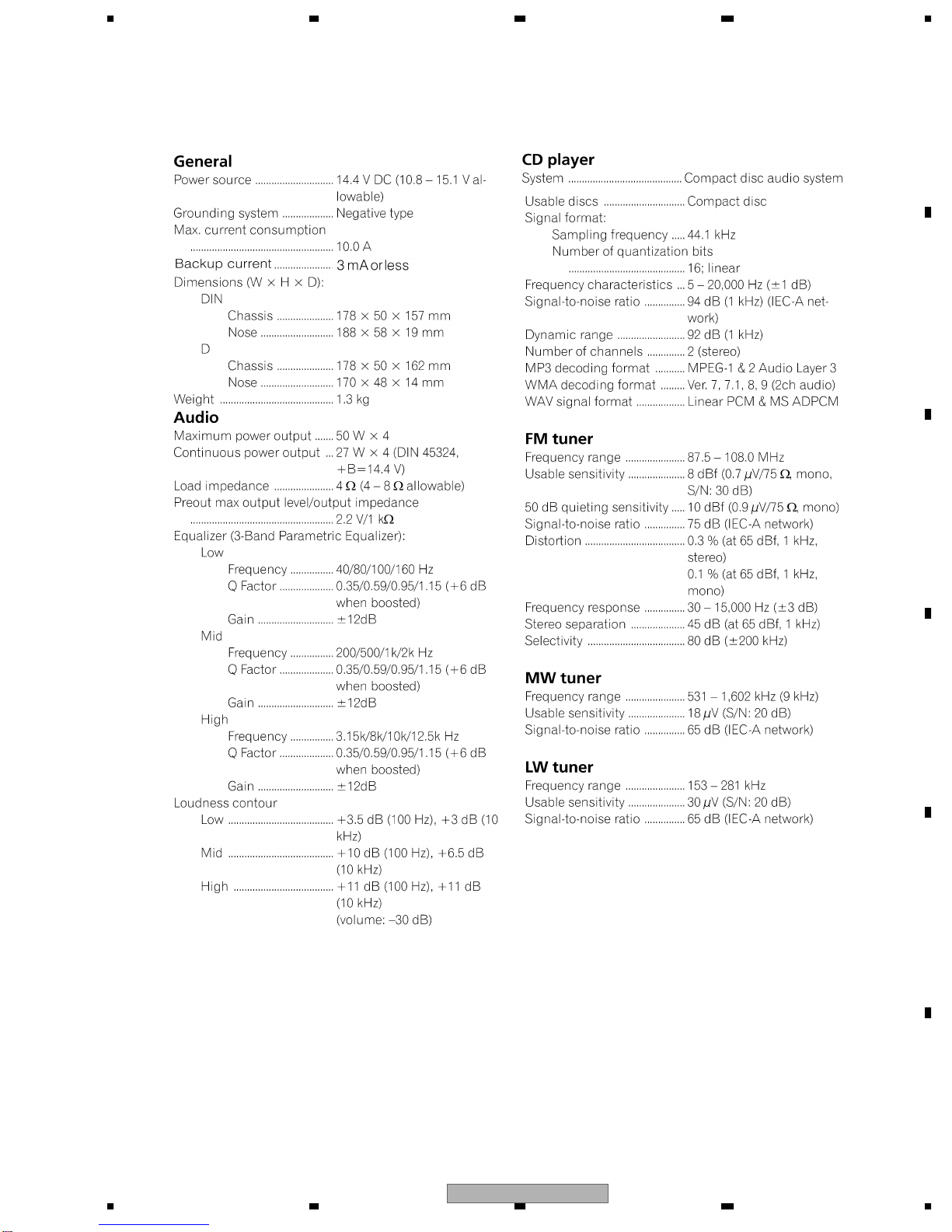

1. SPECIFICATIONS

DEH-4700MP/XU/EW
6
1234
1234
C
D
F
A
B
E
2. EXPLODEDVIEWS AND PARTS LIST
2.1 PACKING
N
OTES : • Parts marked by " * " are generally unavailable because they are not in our Master Spare Parts List.
• The >mark found on some component parts indicatesthe importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
• Screw adjacent to mark on the product are used for disassembly.
• For the applying amount of lobricants or glue, follow the instructions in this manual.
(In the case of no amount instructions,apply as you think it appropriate.)
"

DEH-4700MP/XU/EW 7
5678
5678
C
D
F
A
B
E
(1) PACKING SECTION PARTS LIST
(2) CONTRASTTABLE
DEH-4700MP/XU/EW and DEH-4700MPB/XU/EW are constructed the same except for the following:
Owner's Manual,Installation Manual
Mark No. Description Part No.
1 Cord Assy CDE7059
2 Accessory Assy CEA4610
3 •••••
4 Screw Assy CEA4611
5 Fixing Screw(M2x4) CBA1488
6 Screw CBA1650
* 7 Polyethylene Bag CEG-127
8 Screw CRZ50P090FTC
9 Screw TRZ50P080FTC
* 10 Polyethylene Bag CEG-158
11 Handle CNC5395
12 •••••
13 •••••
14 Bush CNV3930
15 Polyethylene Bag CEG-162
16 •••••
17 Carton See Contrast table(2)
18 Contain Box See Contrast table(2)
19 Protector XHP7003
20 Protector XHP7004
21-1 Owner's Manual YRD5019
21-2 Owner's Manual YRD5027
21-3 Installation Manual YRD5022
* 21-4 Warranty Card CRY1157
* 21-5 Passport CRY1013
22 Case Assy YXB5005
Mark No. Description Part No.
Mark No. Description DEH-4700MP/XU/EW DEH-4700MPB/XU/EW
17 Carton YHG5018 YHG5025
18 Contain Box YHL5018 YHL5025
Part No. Language
YRD5019 English, Spanish, German
YRD5027 French, Italian, Dutch
YRD5022 English, Spanish, German, French, Italian, Dutch

DEH-4700MP/XU/EW
8
1234
1234
C
D
F
A
B
E
2.2 EXTERIOR
C
C
B
A
A
B
A
B
4
5
33
43
35
36
37
42 40
39
34 32
2
8
3
3
3
14
30
1
1
11
41 15 10 10
18
17 69
28
27
26 23
21 19 20
25
68
66
67
67
6
13
12
22
24
16
16
29
99
38
49
4847
46
45 44 31
64
65 60
71 6156
63
62
55
58
64
64
57
54
59
31
11
31
7
70 51
52
50
53
72
73

DEH-4700MP/XU/EW 9
5678
5678
C
D
F
A
B
E
(1) EXTERIOR SECTION PARTS LIST
(2) CONTRASTTABLE
DEH-4700MP/XU/EW and DEH-4700MPB/XU/EW are constructed the same except for the following:
Mark No. Description Part No.
1 Screw BSZ26P060FTC
2 Screw BSZ30P060FTC
3 Screw BSZ30P200FTC
4 Cord Assy CDE7059
5 Cap CKX-003
6 Cable YDE5008
7 Case CNB2793
8 Holder CNC8659
9 Earth Plate CNC8915
10 Cushion CNM8890
11 Panel See Contrast table(2)
12 CD Mechanism Module(S10.1AACA) CXK5668
13 Insulator XNM7106
14 Insulator YNM5012
15 Tuner Amp Unit See Contrast table(2)
16 Screw ASZ26P060FTC
17 Screw BPZ26P080FTC
18 Screw BSZ26P160FTC
> 19 Fuse(10A) CEK1208
20 Pin Jack(CN352) CKB1057
21 Plug(CN901) CKM1376
22 Connector(CN721) CKS3837
23 Connector(CN621) CKS4124
24 Connector(CN831) CKS4944
25 Antenna Jack(CN401) CKX1056
26 Holder CND1328
27 Heat Sink CNR1668
28 Holder CND1054
29 Holder YNC5002
30 Chassis Unit See Contrast table(2)
31 Screw BPZ20P100FZK
32 Spring CBH2210
33 Knob(VOLUME) YAA5001
34 Button(DETACH) YAC5027
35 Button(TA, EQ) YAC5029
36 Button(SOURCE) YAC5030
37 Button(1-6, LOCAL/BSM) YAC5031
38 Button(AUDIO, LOUDNESS) YAC5032
39 Button(BAND) YAC5033
40 Button(EJECT, DISPLAY) YAC5034
41 Button(DOWN, RIGHT) YAC5035
42 Button(UP, LEFT) YAC5036
43 Spring YBL5001
44 Cover See Contrast table(2)
45 Connector(CN1801) CKS4943
46 Sheet CNM7932
47 Connector CNV7369
48 LCD(LCD1801) See Contrast table(2)
49 Holder YNC5005
50 Lighting Conductor YNV5004
51 Lighting Conductor YNV5005
52 Rubber Contact See Contrast table(2)
53 Grille Unit See Contrast table(2)
54 Button(DETACH) CAC4836
55 Spring CBH1835
56 Spring CBH2208
57 Spring CBH2367
58 Bracket CNC6791
59 Holder CNC8042
60 Cover CNM6276
61 Arm CNV4692
62 Arm CNV4728
63 Arm CNV5576
64 Screw IMS20P030FZK
65 Panel See Contrast table(2)
66 IC(IC921) NJM2388F84
67 Transistor(Q911, 991) 2SD2396
68 IC(IC302) PAL007A
69 FM/AM Tuner Unit(Z401) CWE1645
70 Sheet See Contrast table(2)
71 Panel Unit See Contrast table(2)
72 Cushion YNM5004
73 IC(IC1802) TSOP4840SB1
Mark No. Description Part No.
Mark No. Description DEH-4700MP/XU/EW DEH-4700MPB/XU/EW
11 Panel CNS8046 CNS8048
15 Tuner Amp Unit YWM5031 YWM5033
30 Chassis Unit YXA5043 YXA5045
44 Cover YNS5038 YNS5060
48 LCD(LCD1801) YAW5024 YAW5025
52 Rubber Contact YNV5006 YNV5023
53 Grille Unit YXA5047 YXA5050
65 Panel YNS5046 *YNS5082
70 Sheet Not used YNM5009
71 Panel Unit Not used YXA5079

DEH-4700MP/XU/EW
10
1234
1234
C
D
F
A
B
E
2.3 CD MECHANISM MODULE
A
D
H
L
M
NO
Q
R
A
B
C
D
E
F
GH
I
J
K
L
M
N
O
Q
B
16
25
13 83
42
68
28
82
4
71
23
J
K
38
23
59
87
86
5
13 34
5
5
13
44 5C
52
53
36
4
73
29
51
18
64
76
50
10
72
75
49
77
67
27
78
60
90 48
8
17
46
6
60
11 89
43
70
14
31
65
85
66
85
31
35 14
74
85
1
2
3
R
91
12
33
61
63
21
79
57
58
62 80
13
4
86
I
45
28
7
24
47
P
41
20
40
69
39
30
P
19
56
F
E22
81
15
G26
5
54
37
55
93
92
10
C
1GEM1024
2GEM1045
3GEM1035
1
1
1
1
1
1
1
1
2
2
2
2
1
1
1
1
1
2
2
1
3

DEH-4700MP/XU/EW 11
5678
5678
C
D
F
A
B
E
CD MECHANISM MODULE SECTION PARTS LIST
Mark No. Description Part No.
1 CD Core Unit(S10.1) CWX3096
2 Connector(CN101) CKS4182
3 Connector(CN901) CKS4017
4 Screw BMZ20P035FTC
5 Screw BSZ20P040FTC
6 Screw(M2x4) CBA1362
7 Screw(M2x3) CBA1824
8 Screw(M2x3) CBA1825
9 •••••
10 Washer CBF1038
11 Washer CBF1060
12 Spring CBH2390
13 Spring CBH2606
14 Spring CBH2607
15 Spring CBH2608
16 Spring CBH2609
17 Spring CBH2610
18 Spring CBH2735
19 Spring CBH2612
20 Spring CBH2613
21 Spring CBH2614
22 Spring CBH2615
23 Spring CBH2616
24 Spring CBH2617
25 Spring CBH2620
26 Spring CBH2621
27 Spring CBH2641
28 Spring CBH2642
29 Spring CBH2643
30 Spring CBH2659
31 Spring CBH2688
32 •••••
33 Shaft CLA4441
34 Frame CND2443
35 Frame CNC9963
36 Bracket CND2712
37 Bracket CND1895
38 Arm CNC9968
39 Arm CND1909
40 Lever CND2032
41 Lever CNC9984
42 Sheet CNM8134
43 Collar CNV8447
44 Guide CNV8448
45 Arm CNV8403
46 Rack CNV8374
47 Holder CNV8376
48 Holder CNV8377
49 Arm CNV8378
50 Gear CNV8379
51 Gear CNV8380
52 Gear CNV8381
53 Gear CNV8382
54 Gear CNV8383
55 Gear CNV8384
56 Rack CNV8385
57 Arm CNV8386
58 Arm CNV8387
59 Guide CNV8388
60 Roller CNV8189
61 Gear CNV8389
62 Arm CNV8391
63 Arm CNV8390
64 Arm CNV8392
65 Damper CNV7313
66 Damper CNV7314
67 Arm CNV8394
68 Arm CNV8395
69 Guide CNV8396
70 Guide CNV8397
71 Holder CNV8398
72 Arm CNV8402
73 Gear CNV8400
74 Damper CNV7618
75 Motor Unit(M1) CXC4440
76 Chassis Unit CXC2318
77 Screw Unit CXB8729
78 Gear Unit CXC2397
79 Arm Unit CXC2316
80 Arm CND1896
81 Arm CND1894
82 Motor Unit(M2) CXB8933
83 Bracket CNC9985
84 •••••
85 Screw(M2x5) EBA1028
86 Screw JFZ20P020FTC
87 Screw JGZ17P022FTC
88 •••••
89 Washer YE20FTC
90 Pickup Unit(P10)(Service) CXX1647
91 Screw IMS26P030FTC
92 Spring CBL1635
93 Clamper CNV8372
Mark No. Description Part No.

DEH-4700MP/XU/EW
12
1234
1234
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
BRST,BRXEN,BSRQ
C
CN901
Q101
M
LASER
DIODE
MONITOR
DIODE
S903
DSCSNS
FOCUS ACT.
M1
SPINDLE
MOTOR
M
M2
LOADING/CARRIAGE
MOTOR
TRACKING ACT.
LD-
MD
FOP
TOP
15
5
1
4
PICKUP UNIT
(P10)(SERVICE)
HOLOGRAM
UNIT
IC 301
BA5835FP
IC 201
UPD63763GJ
IC 703
3V REGULATOR
RF AMP, CD DECODER,
MP3 AND WMA DECODER,
DIGITAL SERVO/DATA PROCESSOR
CD
DRIVER
3
VD
VD
3VDD
10
LOUT
5
CN101
TOP
FOP
16 SOP
15 SOM
18 LCOP
17 LCOM
22
2
LOEJ
31
LOUT
9
CONT
12 FOP
FD,TD
AC,BD
E,F
SD,MD
3
13 TOP
S901
HOME
S904
12EJ S905 8EJ
LD+ 14
142 LD
143 PD
CD CORE UNIT(S10.1)
1312
X701
DSCSNS
CONT
LOEJ
HOME
32
97
53
47
VDD
IC 203
NJM2885DL1-33
3.3V REGULATOR
V3R3D 1
3
VDCONT 49
S-812C33AUA-C2N
MICRO
COMPUTER
IC 701
PE5454A
4
V3R3D
19
BDATA,BSCK
VD2
VDD
2
15
5
1
4
14
VD2
VDCONT
30
31 8EJ
12EJ
X1 X2
reset 14 15
RESET
CD3VON 46
1
CD3VON
2
E
TUN L
3
CDL
SYSTEM
I
C
P
CN401
1
2
CN721
TUNER AMP UNIT
CD L
A
TUN 3.3V
SYS 8V
VDD
ANTENNA
RDS_C
K
RDS_D
A
RDS_L
O
RDS_H
S
Q991
RESET RST
14
21
5
20
VDCONT
VD1
43
5
Q992 B.UP
A
VDD
19
9
XSI,XSCK,CLAMSW,VDCONT,XAO
Q993
Q994
VD2
CD3VCONT
22
23
FM/AM TUNER UNIT
FMRF
ANT adj RF adj
FM ANT
T51 CF52
CF51
RFGND OSCGND DGND AUDIOGND NC VCC VDD_3.3
3.3V 2.5V
IC 4
3.3V 2.5V
←
IC 2
2.5V
WC
CE2
ROM_VDD
SL
DI
CK
CE1
LDET
DO
RDS_CK
RDS_DATA
RDS_LOCK
RDS_HSLK
7 6 13 5 10 9 8 11 14 18 19 20 21
1
3
212 1522 16 4 17
IC 1
3.3V
AM ANT FMRF
ATT
LPF
OSC
IC 3 EEPROM
5.0V
IC 5
5V 3.3V
←
ATT
MIXER, IF AMP DET, FM MPX,
RDS DECODER
24
23
Rch
Lch

DEH-4700MP/XU/EW 13
5678
5678
C
D
F
A
B
E
FL-
FL+
RL-
RL+
MUTE
BACK UP
GND
RR
+
RR
-FR
+
FR
-FL
+
FL
-RL
+
RL
-
ACC
GND
BACK
UP B.
REM
ACC
B.REM
3
9
11
12
10
1
6
2
FUSE
10A
11
R Lch
IN1-L
IN2-L
2IC 151
PML003AM
ELECTRONIC VOLUME/
SOURCE SELECTOR
TUN L
3
CDL
10
F Lch
IC 1801
PD6340A
LCD DRIVER/
KEY CONTROLLER
KEY DATA
LCD1801
60
BSENS
ASENS
VDD
B.UP
63
64
48
MUTE
21
23
3
5
FL-
FL+
RL-
RL+
ACC
RLIN
12
22
POWER AMP
IC 601(1/2)
PE5459A
SYSTEM CONTROLLER
IC 601(2/2)
PE5459A
IC 961
S-80834CNY
IC 302
PAL007A
VDD Q911
Q931
VDD
MUTE
3
5
CN1801CN831
Q801
KEYBOARD UNIT
VCK, VDT, VST
6
7
Q452
Q453
B.UP
Q821
17
19
DPDT
KYDT
SYSTEM CONTROLLER
VDD REGULATOR
BACKUP SENSE
ACC SENSE
3
9
11
12
10
1
2
B
CN901
TUNPCE1
TUNPCE2
TUNPDI
RESET
TUNPDO
56
55
11
12
TUNPCK
13
TUNPDO
TUNPDI
CE1
CE2
TUNPCK
Q912
DALMON 32
4
8
10
9
3
5
6
7
4
8
10
9
SOURCE
VOLUME
LAMP
IL1801
SWVDD
SWVDD
SRC
DSENS
ILM
ROT1
ROT0
DPDT
KYDT
S1827
SWVDD 21
SOURCE 66
DSENS 65
ILMPW 22
ROT1 36
ROT0 35
DPDT 9
KYDT 8
R Lch
CN352
2
3
FLIN
14
SWVDD
Q822
DSENS
SOURCE
SWVDD
BSENS
ASENS
X1
X2
70
X601
12.58291MHz
69
XO
XI
22
X1801
5MHz
23
Q352
RESET
4
SYSPW
SYSPW
STBY
TU 3.3V
TUN 3V REG.
MUTE
MUTE
IC 921
NJM2388F84 B.UP
SYS 8V REG.
SYS8V
IC 981
BA33BC0FP
ARST
B.UP
20 6
43
SYSPW
10
57 VLCD
VDD
CN621
KEY2
STRKEY
46
80
1 2 3
6
8
8
B. REM
25
B. REM
VCC VCC
KEY MATRIX
WIRED REMOTE CONTROL
REAR OUTPUT
MUTE
34
TELIN VDD
Q951
CELLULAR MUTE
Q402
Q401
RDS_CK
RDS_DATA 57
RCK
62
RDSLK
58
RDS57K
59
RDT
RDS_LOCK
RDS_HSLK
SWVDD
17
1
3
REM
IC1802
TSOP4840SB1
REM.CON.
B.UP

DEH-4700MP/XU/EW
14
1234
1234
C
D
F
A
B
E
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
Note: When ordering service parts, be sure to refer to " EXPLODED VIEWS AND PARTS LIST" or
"ELECTRICAL PARTS LIST". A-a
A
471/16
2322212019181716151413121110987654321
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
ADPW
BDATA
VSS
AVDD
AVREF1
DISCSENS
STRKEY1
RECEIVE
STRKEY2
swvdd brst brxen
bsrq
isens
asens bsens dsens
source
CCN901
FM/AM TUNER UNIT
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
For resistors and capacitors in the circuit diagrams, their resistance values or
capacitance values are expressed in codes:
Ex. *Resistors
Code Practical value
123 12k ohms
103 10k ohms
*Capacitors
Code Practical value
103 0.01uF
101/10 100uF/10V
ANTENNA
B
CN1801
SYSTEM CONTROLLER

DEH-4700MP/XU/EW 15
5678
5678
C
D
F
A
B
E
A-b
A-a A-b
A-a A-b
A-b
A-a
A
332/16
CEK1286 3A
CEK1208
>
RECEIVE
STRKEY2
bsrq
isens
asens bsens dsens
source
ATUNER AMP UNIT
>
REAR
L CH
REAR
R CH
10A
RR
+
RR
-FR
+
FR
-FL
+
FL
-RL
+
RL
-
ACC
GND
BACK
UP B.
REM
N
TROLLER
FM: 32.6dB
AM: 23.1dB
CD: 36.45dB
WIRED REMOTE CONTROL

DEH-4700MP/XU/EW
16
1234
1234
C
D
F
A
B
E
A-a A-b A-a
A-a
A-b
471/16
2322212019181716151413121110987654321
VSS
AVDD
AVREF1
DISCSENS
STRKEY1
asens
bsens
dsens
source
C
CN901

DEH-4700MP/XU/EW 17
5678
5678
C
D
F
A
B
E
A-a A-b A-a
A-a
A-b
2
1
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
ADPW BDATA
VSS
AVDD
AVREF1
DISCSENS
STRKEY1
RECEIVE
STRKEY2
swvdd
brst
brxen
bsrq
isens
asens
bsens
dsens
source
FM/AM TUNER UNIT
The >mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
For resistors and capacitors in the circuit diagrams, their resistance values or capacitance values are expressed in codes: Ex. *Resistors Code Practical value 123 12k ohms 103 10k ohms *Capacitors Code Practical value 103 0.01uF 101/10 100uF/10V
ANTENNA
B
CN1801
SYSTEM CONTROLLER

DEH-4700MP/XU/EW
18
1234
1234
C
D
F
A
B
E
A-a A-b
A-b
332/16
CEK1286
3A
ATUNER AMP UNIT
>
REAR L CH
REAR R CH
FM: 32.6dB
AM: 23.1dB
CD: 36.45dB

DEH-4700MP/XU/EW 19
5678
5678
C
D
F
A
B
E
A-a A-b
A-b
2
1
CEK1208
>
10A
RR
+
RR
-FR
+
FR
-FL
+
FL
-RL
+
RL
-
ACC
GND
BACK
UP B.
REM
WIRED REMOTE CONTROL

DEH-4700MP/XU/EW
20
1234
1234
C
D
F
A
B
E
3.3 KEYBOARD UNIT
B
4700MP GREEN(PG) CEL1651 SML-310PT 181 151
4700MPB VW RED(SR) CEL1662 SML-310VT 331 331
MODEL ILM COLOUR IL1801 D1805-1816 R1804-1813 R1816-1819
4700MP:YAW5024 4700MPB:YAW5025
LCD DRIVER/
KEY CONTROLLER
DIS
