Pioneer DEH-P5100R User manual
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZU. FEB. 2000 Printed in Japan
ORDER NO.
CRT2466
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P5100R X1N/EW
Service
Manual
DEH-P5100R-W X1NEW
DEH-P5100R-B X1NEW
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM...10
4. PCB CONNECTION DIAGRAM................................28
5. ELECTRICAL PARTS LIST ........................................38
6. ADJUSTMENT..........................................................45
7. GENERAL INFORMATION .......................................49
7.1 DIAGNOSIS ........................................................49
7.1.1 TEST MODE..............................................49
7.1.2 DISASSEMBLY .........................................53
7.2 PARTS .................................................................57
7.2.1 IC................................................................57
7.2.2 DISPLAY....................................................63
7.3 OPERATIONAL FLOW CHART...........................64
8. OPERATIONS AND SPECIFICATIONS.....................65
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
2
DEH-P5100R,P5100R-W,P5100R-B
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 53)
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 47).
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

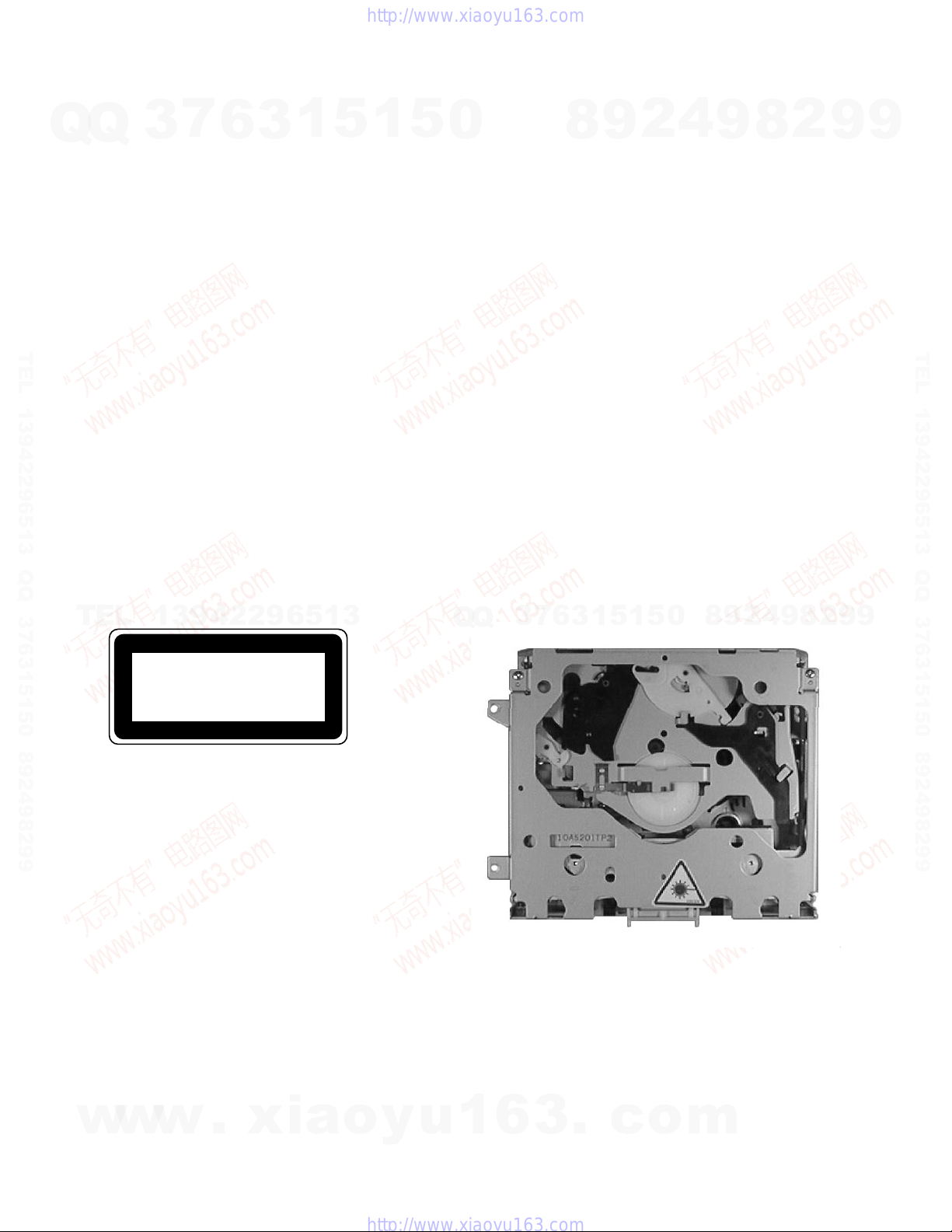

2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player. 3. The triangular label is attached to the mechanism
unit frame.
CLASS 1
LASER PRODUCT
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DEH-P5100R,P5100R-W,P5100R-B
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
11
8
9
5
4
6
3
2
7
12
13
10
1
14
1 Cord Assy CDE6240
* 2 Accessory Assy CEA2397
3 Screw CBA1002
4 Handle CNC5395
5 Bush CNV3930
* 6 Polyethylene Bag E36-615
7 Polyethylene Bag CEG-162
8-1 Polyethylene Bag CEG1116
8-2 Owner’s Manual CRD3146
8-3 Owner’s Manual CRD3147
8-4 Owner’s Manual CRD3148
8-5 Installation Manual CRD3149
* 8-6 Passport CRY1013
* 8-7 Warranty Card CRY1157
9 Case Assy CXB3520
10 Carton See Contrast table(2)
11 Contain Box See Contrast table(2)
12 Protector CHP2251
13 Protector CHP2252
14 Inner Box CHW1754
Mark No. Description Part No. Mark No. Description Part No.
(1) PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
3
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
4
DEH-P5100R,P5100R-W,P5100R-B
Part No.
Mark No. Symbol and Description DEH-P5100R/X1N/EW DEH-P5100R-W/X1NEW DEH-P5100R-B/X1NEW
10 Carton CHG4001 CHG4002 CHG4003
11 Contain Box CHL4001 CHL4002 CHL4003
(2) CONTRAST TABLE
DEH-P5100R/X1N/EW, DEH-P5100R-W/X1NEW and DEH-P5100R-B/X1NEW are constructed the same
except for the following:
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P5100R/X1N/EW CRD3146 English, Spanish
DEH-P5100R-W/X1NEW CRD3147 German, French
DEH-P5100R-B/X1NEW CRD3148 Italian, Dutch
CRD3149 English, Spanish, German, French, Italian, Dutch
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
5
DEH-P5100R,P5100R-W,P5100R-B
A
A
B
C
B
C
10
90
2
37 37 37
37
2
60
2
2
6
8
61
19
32
17
27
93
20
21
24
22
23
29
91
3
30
318
91 18
50
53
52
57
54
86
15
92
59
51
56
49
55
9
89
73
71
62
81
64
78 7966
74
64
75
63
89
89
68
8880
72
64
69
64 76 65
82 77
87
64 67
84 85
83 70
1
135
3
4
14 16
34 33
11
12
13
13
28
31
25
26
48
46 5
4
42 44
94 47
39
40 43
36
45
41
38
58
7
2.2 EXTERIOR
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
6
DEH-P5100R,P5100R-W,P5100R-B
1 Screw BMZ30P040FZK
2 Screw BSZ26P060FMC
3 Screw BSZ30P060FMC
4 Screw BSZ30P100FMC
5 Cable CDE6160
6 Cord Assy CDE6240
7 Fuse(10A) CEK1136
8 Cap CKX-003
9 Sheet See Contrast table(2)
10 Holder CNC6798
11 Holder CNC8300
12 Holder CNC8357
13 Spacer CNM6482
14 Insulator CNM6606
15 Panel See Contrast table(2)
16 Tuner Amp Unit See Contrast table(2)
17 Screw BPZ26P060FMC
18 Screw BSZ26P060FMC
19 Screw BSZ26P160FMC
20 Antenna Cable(CN502) CDH1254
21 Pin Jack(CN431) CKB1028
22 Terminal(CN501) CKF1059
23 Plug(CN952) CKM1294
24 Connector(CN411) CKS3408
25 Plug(CN651) CKS3537
26 Connector(CN681) CKS3838
27 Panel CNB2477
28 Holder CNC7533
29 Holder CNC8298
30 Holder CNC8615
31 Insulator CNM5967
32 Heat Sink CNR1550
33 FM/AM Tuner Unit CWE1500
34 Holder CNC7532
35 Chassis Unit See Contrast table(2)
36 Detach Grille Assy See Contrast table(2)
37 Screw BPZ20P100FZK
38 Knob CAA1525
39 Button(SOURCE) CAC6331
40 Button(OPEN) CAC6333
41 Button(F,A) CAC6337
42 Button(DISP) CAC6339
43 Button(BAND) CAC6442
44 Spring CBH2316
45 Spring CBH2320
46 Cover See Contrast table(2)
47 Holder CNV6177
48 Keyboard Unit See Contrast table(2)
49 LCD(LCD901) See Contrast table(2)
50 Connector(CN901) CKS4205
51 Holder CNC8562
52 Spacer CNM6710
53 Spacer CNM6711
54 Spacer CNM6733
55 Spacer CNM6734
56 Connector CNV5990
57 Lighting Conductor CNV6001
58 Knob Unit CXB5350
59 Grille Unit See Contrast table(2)
60 CD Mechanism Module(S8.1)CXK5201
61 Screw ISS26P055FUC
62 Button(EJECT) CAC6428
63 Screw(M2x2) CBA1176
64 Washer CBF1038
65 Spring CBH2310
66 Spring CBH2393
67 Spring CBH2312
68 Spring CBH2313
69 Spring CBL1492
70 Holder CNC8616
71 Cushion CNM5486
72 Cover CNM6854
73 Panel CNS5791
74 Arm CNV5991
75 Arm CNV5992
76 Arm CNV5993
77 Lever CNV5994
78 Gear CNV5995
79 Gear CNV5996
80 Gear CNV5997
81 Pin CNV6027
82 Lighting Conductor CNV6069
83 Panel PCB Unit CWM7157
84 Socket(CN902) CKS3550
85 Connector(CN903) CKS4206
86 Damper Unit CXB5070
87 Holder Unit CXB5736
88 Holder Unit CXB5737
89 Screw IMS20P045FZK
90 Case Unit CXB5788
91 Transistor(Q954,Q991) 2SD2396
92 Cover See Contrast table(2)
93 IC(IC551) PAL005A
94 Spacer CNM6871
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DEH-P5100R,P5100R-W,P5100R-B
7
Part No.
Mark No. Symbol and Description DEH-P5100R/X1N/EW DEH-P5100R-W/X1NEW DEH-P5100R-B/X1NEW
9 Sheet Not used Not used CNM6796
15 Panel CNS5992 CNS5913 CNS5992
16 Tuner Amp Unit CWM6897 CWM6898 CWM6899
35 Chassis Unit CXB5062 CXB5493 CXB5494
36 Detach Grille Assy CXB4911 CXB4912 CXB4913
46 Cover CNS5737 CNS5912 CNS5737
48 Keyboard Unit CWM6906 CWM6910 CWM6907
49 LCD(LCD901) CAW1566 CAW1573 CAW1601
59 Grille Unit CXB5375 CXB5376 CXB5377
92 Cover Not used CNM4710 Not used
(2) CONTRAST TABLE
DEH-P5100R/X1N/EW, DEH-P5100R-W/X1NEW and DEH-P5100R-B/X1NEW are constructed the same
except for the following:
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
9
DEH-P5100R,P5100R-W,P5100R-B
1 Control Unit CWX2411
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2773
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FMC
7 Screw BSZ20P040FMC
8 Screw(M2x3) CBA1077
9 Screw(M2x5) EBA1028
10 Screw CBA1243
11 Screw(M2x4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
15 •••••
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2314
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2318
22 •••••
23 Spring CBH2324
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2377
29 Spring CBH2260
30 Spring CBH2262
31 Bracket CNC8568
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6x6) CBA1458
37 Frame CNC8565
38 Frame CNC8749
39 Lever CNC7546
40 Arm CNC8663
41 Bracket CNC8567
42 •••••
43 Spacer CNM3315
44 Sheet CNM6659
45 •••••
46 •••••
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV6037
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV6272
59 Damper CNV6010
60 Arm CNV6096
61 Arm CNV6031
62 Arm CNV6211
63 Guide CNV6012
64 Guide CNV5510
65 •••••
66 Guide CNV5751
67 Clamper CNV6013
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB5892
71 Chassis Unit CXB4797
72 Gear Unit CXB4728
73 Arm Unit CXB5753
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB4730
76 Arm Unit CXB4731
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB4732
79 Bracket Unit CXB4795
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE20FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
87 Damper CNV6011
88 Rack CNV6014
89 Spring CBH2315
Mark No. Description Part No. Mark No. Description Part No.
-CD MECHANISM MODULE SECTION PARTS LIST
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
10
DEH-P5100R,P5100R-W,P5100R-B
1234
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

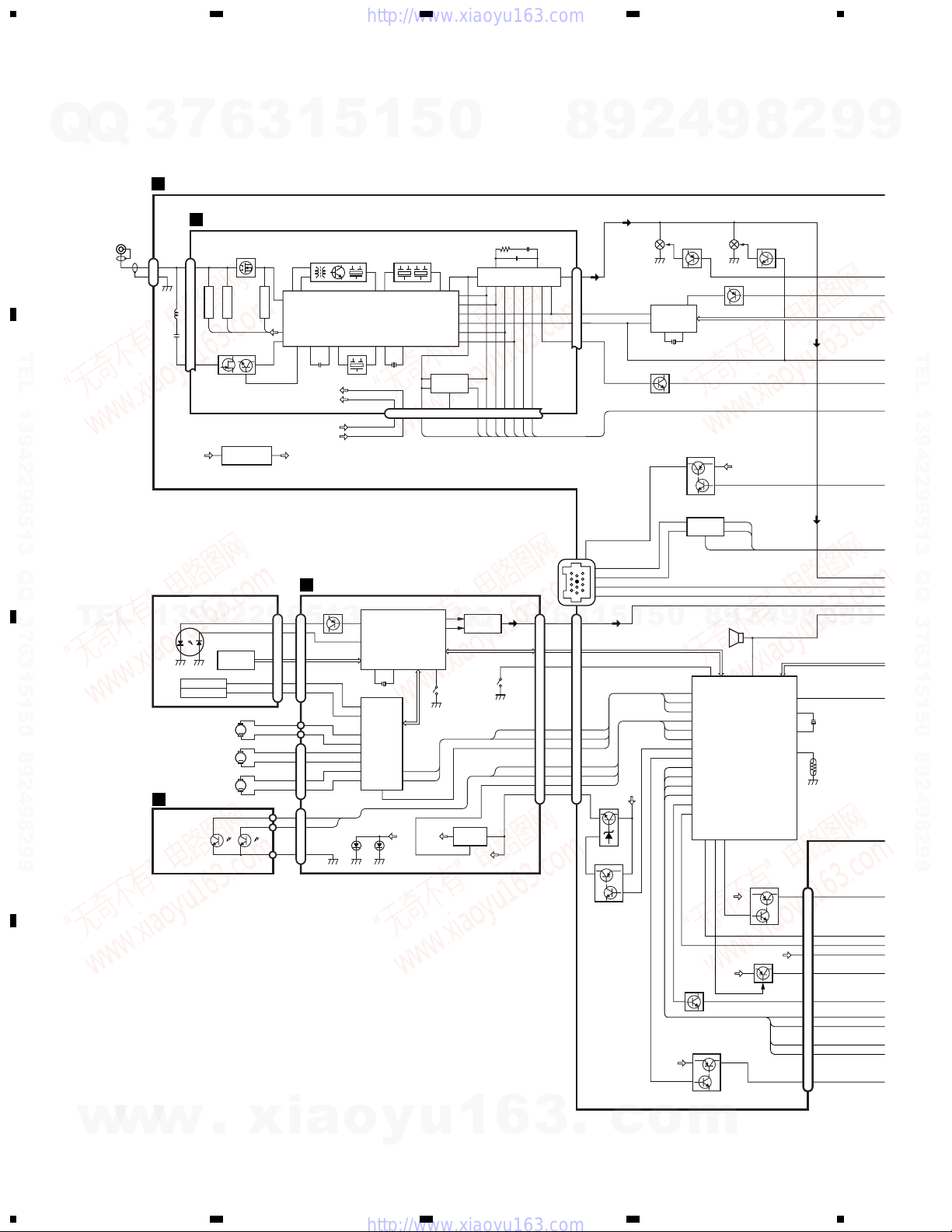

3.1 BLOCK DIAGRAM
Q524 Q527
Q525
Q541
Q411
Q412
Q528
Q701
IC 701
PM4009A
IC 411
CA0008AM
X701
RDS
DECODER
IP-BUS DRIVER
1211
20
8
28
MUTE
X1
X2
B.U
IL+B
EJECT
CSENS
SW5V
DPDT
KYDT
ROT1(H)
ROT0(L)
BL+B
CDLOAD
clamp PEE
54
61 100
CDEJET
55
CONT
59
EJTSNS
78
DSCSNS
79
CD5VON
58
VDCONT
56
LCDPW
23
eject
75
DPDT
96
KEYDT
95
KEYIN1
42
KEYIN2
43
120
SYSTEM -COM
IC 601(2/2)
PE5116B
M
M
M
35
22 38 42 4639
CN502
44 63 69
70
54
78
65
71
46
24
+
19
COMP
LDET
6
21
18
25
32DI/DO
34 33 41 44 11 12 13
33 45 55 57 61 74 75
4
3
8
CE2
CK
CE1
SDBW
SL
FMSD
NL1
NL2
5
6
CF202
AM 2ND IF 450kHz
T51 Q51 CF51 CF52 CF53
FM MPX
22 10 14 7 12 15 16 8 13 32
4
VDDB U
VDD
VCC
VCC
VDD
AM RF AM RFAGC
Q201
Q3
ANT FM FRONT END FM/AM 1ST IF 10.7MHz
Q204
127
28
2
8
21
6
5
11
22
23
7
24
2
5
4
2
1
3
4
3
FO +
TO +
FO +
TO +
16
23
X201 S801
HOME
S802
CLAMP
CLAMP
CDLOAD
CDEJET
CONT
EJTSNS
CDCSNS
CD5VON
VD
VD
V+5
VD
ED/TD/SD/MD
97
14
5
4
3
98 21
LD
PSW
L +
L —
PD
FDP
TDP
SOP
F
MUTE R
SOM
COP
COM
LOP
LOM
20
10
11
6 LOUT
24 39
17
12
11
14
13
10
9
21
D802
DISC SENSE
SELECT
SENSE
LOADING
MOTOR
CARRIAGE
MOTOR
SPINDLE
MOTOR
D801
28 DSCSNS
CD5VON
1 CDLOAD
LD +
MD
MD
LD
2
1
ANT1 TV
ANT2 TV
RF TV
HOLOGRAM
UNIT
FOCUS ACT
TRACKINGACT
MIXER,IF AMP DET
IC 1
PML002A
IC 3
BR9010FV
IC 501
S-81250SGUP
POWER ON MUTE
EEPROM
IC 601
TA2063F
IC 2 PM4008A
IC 201
UPD63710GC
IC 301
BA5985FM
CD DRIVER
RF-AMP,SERVO,DSP,DAC LPF
CN701
CN802
CN801
CN101
5V REGULATOR
IC 701
BA05SFP
PICKUP UNIT(SERVICE)(P8)
BUS—
B.U
BUS+
BUS+L
BUS—L
5
8
1
7
11
1
2
8
6
5TX
RX
IPPW
swvdd
44
csens
ILMPW
B.U
VDD
B.U
2
10
11
12
14
13
4
8
FLAP IL+
5
FLAP IL— 6
7
CN651
CN681
CN411
Q652
B.U
Q655
Q654
Q653
Q651
Q656
Q992
Q991
ATUNER AMP UNIT
BFM/AM TUNER UNIT
DCONTROL UNIT
EPHOTO UNIT
BZ601
ALARM
BUZZER
16
TEMP 81
X601
TH601
15
17
4
19
20
14
3
2
18
1
FLPILM
77
(S8)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
11
DEH-P5100R,P5100R-W,P5100R-B
5678
5678
D
C
B
A
C
88 ldet
29 fM/AM
36 11
1
tnute adpw
bsens
asens
NL2
VDD B.U
B.U
B.U
NL1
7
91
92
93
83
72
22
SD
SL
SDBW
PCE1
tunpck
tunpce@
tunpdo
ASENBO
10
FL 11
RL 9
B.U
SYSPW
IL+B
COMGND
CSENS
SW5V
DPDT
KYDT
KEYIN1
KEYIN2
BL+B
Preout_L
23 10
12
9
11
RL—
21 RL+
3 FL—
5 FL+
FL—
FL+
RL—
RL+
8
B.REM
SLO
7
MUTE
5
ILL
6
ACC
2
GND 1
BACK UP BACK UP
GND
TELIN
isens
(VDD)
DALMON
3
76
38
74
TUN L
40
BUS+L
43
BUS—L
44
CD L
41
DFS
35
10
99
97
32
98
25
86 85 24
FLIN
12
RLIN
14
22 4 25
SYSTEM -COM
RESET
POWER AMP
IC 601(1/2)
PE5116B
IC 451
PML004AF
IC 631
S-80734ANDYI
IC 551
PAL005A
IC 902
RS-140
reset
VDD
Q601
Q952 Q959
Q953
Q951
Q434 Q431
SYSPW
Q551
Q957
Q954 Q955
Q901 Q903
Q904
D904
D903
Q902
Q905
Q905
Q958
TX
RX
IPPW
ELECTRONIC VOLUME/
SOURCE SELECTOR
SYS+B
B.REMSTBYMUTE
REMOTE CONTROL
SENSOR
IC 901
PD6279
LCD DRIVER
KEY MATRIX
LCD
OPT IN 1
11
8
7
9
6
5
3
4
11
2
8
7
5
6
10
11
12
14
13
4
3
4
6
5
7
8
14
10
2
4
SI
SO
X0
X1
dim
KEY DATA
LCD DATA
GRN/amb
REMIN
VCC
53
52
57
X901
58
61
48 50 60 62
CN903 CN901CN902
S930
KEYBOARD UNIT
FPANEL PCB UNIT
1
2SUB W.
CN431
ACC
RL—
RL+
ILL
MUTE
FL—
FL+
B.REM
RR—
FR—
FL—
RL—
RR+
FR+
FL+
RL+
BACK UP
ILL
GND
B.REM
ACC
2
CN952
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
CN902
IL GND
BL+
IL +B
CSENS
SW5V
uGND
DPDT
KYDT
ROT0(L)
ROT1(H)
NC
NC
CN901 CN903
12
DEH-P5100R,P5100R-W,P5100R-B
1234
1234
D
C
B
A

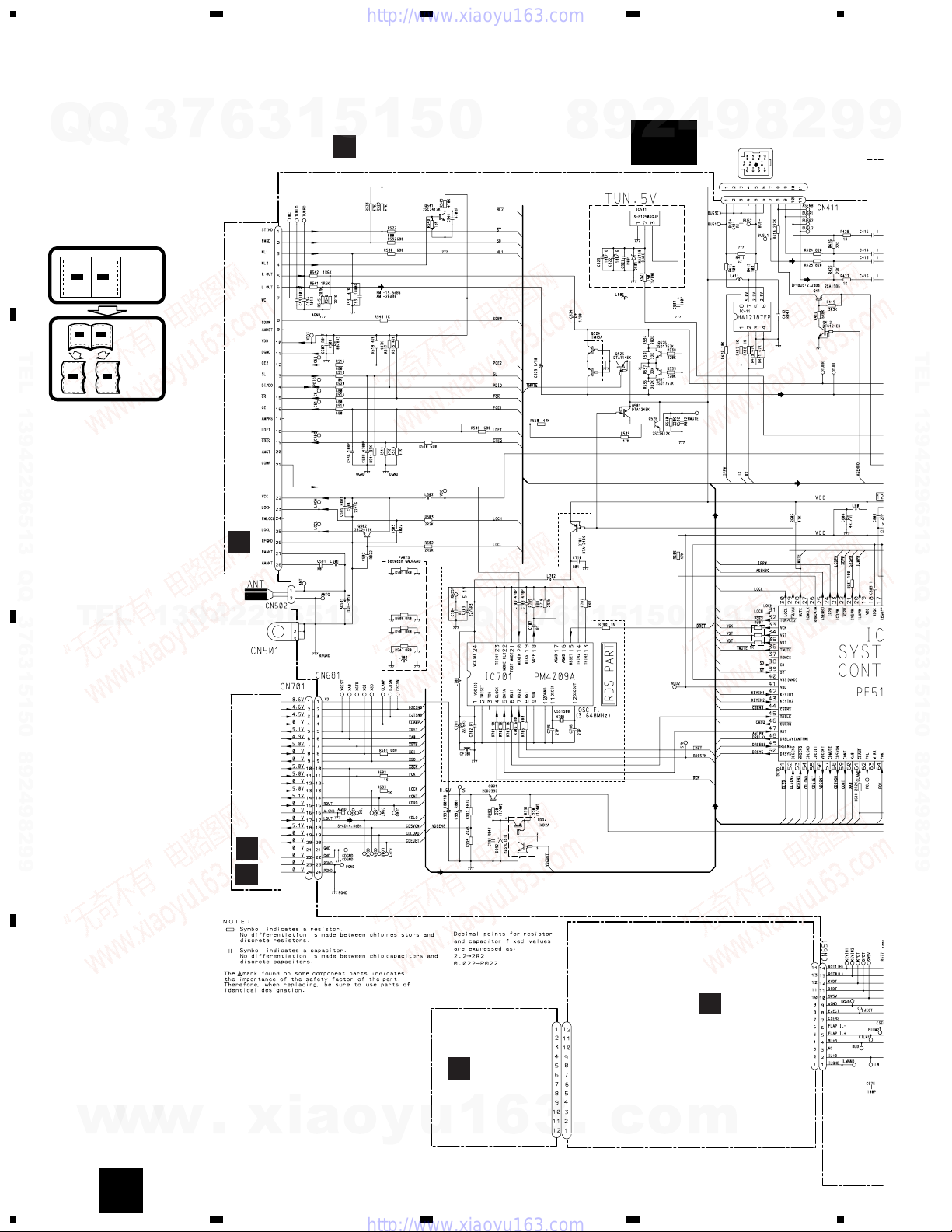

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
A
B
E
D
TUNER AMP UNIT
FM/AM TUNER UNIT
CD MECHANISM
MODULE
F
PANEL PCB UNIT
C
KEYBOARD
UNIT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
RR+RR-
FR+
FL+
RL+
FR-
FL-
RL-
BACK UP
GND ACC
B.REM
ILL
S-CD:36.5dBs
CEK1136
13
DEH-P5100R,P5100R-W,P5100R-B
5678
5678
D
C
B
A
A-b
A
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
15
DEH-P5100R,P5100R-W,P5100R-B
5678
5678
D
C
B
A
CN902
IL GND
BL+
IL +B
CSENS
SW5V
uGND
DPDT
KYDT
ROT0(L)
ROT1(H)
NC
NC
CN901 CN903
A-a
A-a A-b
E
D
CD MECHANISM
MODULE
6
PANEL PCB UNIT
F
KEYBOARD
UNIT
C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
17

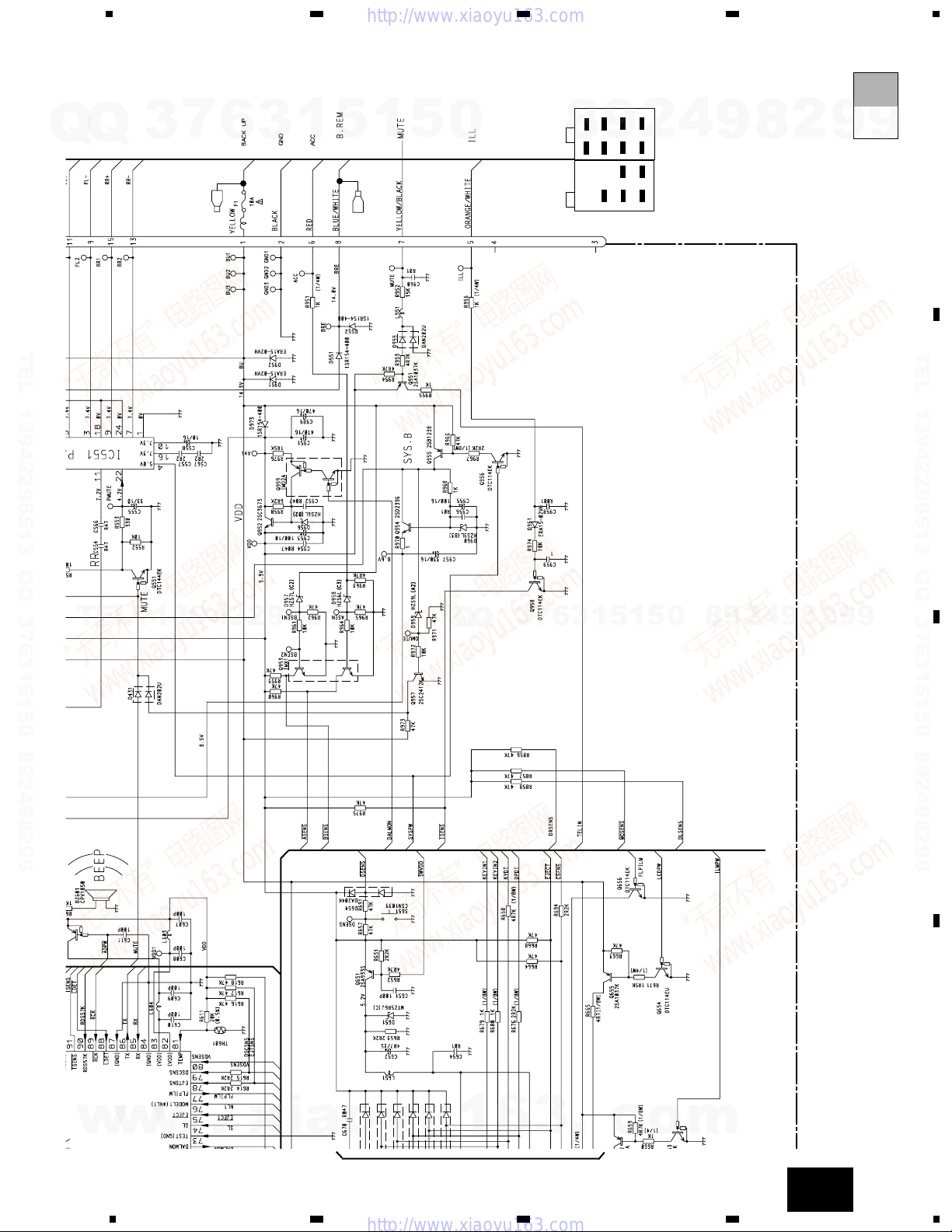

DEH-P5100R,P5100R-W,P5100R-B
5678
5678
D
C
B
A
RR+RR-
FR+
FL+
RL+
FR-
FL-
RL-
BACK UP
GND ACC
B.REM
ILL
CEK1136
A-b
A-a A-b
6
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
18
DEH-P5100R,P5100R-W,P5100R-B
1234
1234
D
C
B
A
B
3.3 FM/AM TUNER UNIT
B
A
KV1410(23)
KV1410(23)
Mark
None
F0
F65
F125
A0
A74
A125
Band
–
FM
FM
FM
AM
AM
AM
Input Level
–
0dBf
65dBf
125dBf
0dBµ
74dBµ
125dBµ
DAN217U
DAN217U
FM/AM TUNER UNIT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
20
DEH-P5100R,P5100R-W,P5100R-B
1234
1234
D
C
B
A
CAW1566(P5100R)
CAW1600(P5100R-B)
CAW1573(P5100R-W)
P5100R,P5100R-W
C

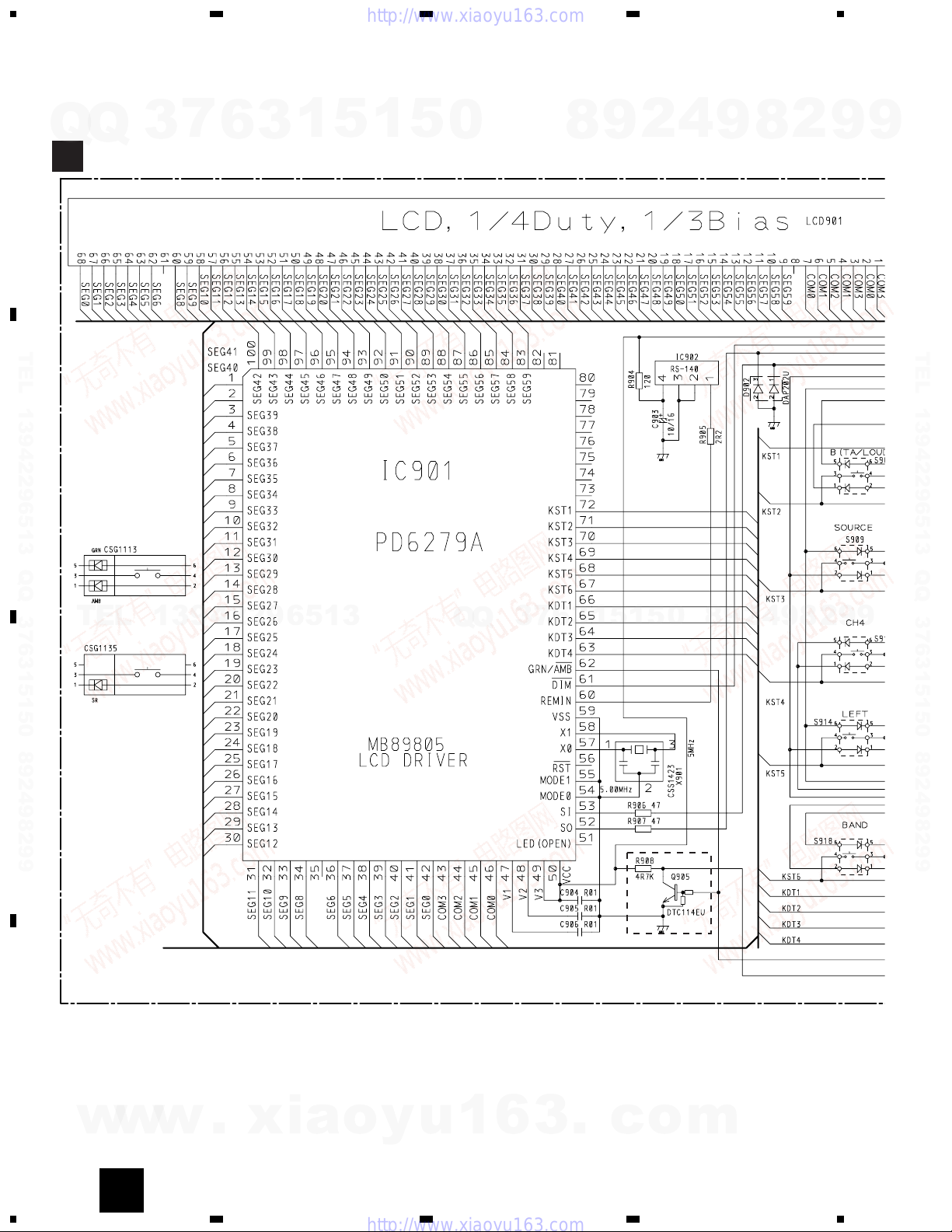

3.4 KEYBOARD UNIT
C
KEYBOARD UNIT
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for DEH-P5100R
3
This manual suits for next models
2
Table of contents
Other Pioneer Car Receiver manuals
Pioneer
Pioneer XC-L7 User manual
Pioneer
Pioneer KEH-P4010 User manual
Pioneer
Pioneer DEH-P3370XM UC User manual
Pioneer
Pioneer DEH-X8500BH User manual
Pioneer
Pioneer AVIC-80DVD User manual
Pioneer
Pioneer DEH-P4500R User manual
Pioneer
Pioneer DEH-P3110R User manual
Pioneer
Pioneer DEH-P8100R User manual
Pioneer
Pioneer KEH-3200QRUC User manual
Pioneer
Pioneer DEH-P88RS User manual
Pioneer
Pioneer RX-Z36 User manual
Pioneer
Pioneer DEH-M8047ZT/UC User manual
Pioneer
Pioneer Super Tuner IIID AVH-P3100DVD User manual
Pioneer
Pioneer Premier DEH-P8MP User manual
Pioneer
Pioneer DEH-X3910BT/XNUC Technical manual
Pioneer
Pioneer MEH-P5000R User manual
Pioneer
Pioneer Super Tuner III D DEH-P4550 User manual
Pioneer
Pioneer DEH-P9600MP User manual
Pioneer
Pioneer CDX-MG6346ZH/ES User manual
Pioneer
Pioneer Super Tuner III D DEH-3770MP User manual
Popular Car Receiver manuals by other brands
Kenwood
Kenwood DDX4028BT instruction manual
Volkswagen
Volkswagen Radio Beta operating instructions
Clarion
Clarion CZ205 Owner's manual & installation manual
Antique Automobile Radio
Antique Automobile Radio 232001B operating instructions
Sony
Sony MEX-BT38UW - Bt Slot Usb 1wire Specification sheet
Boss Audio Systems
Boss Audio Systems 630U user manual
