ORDER NO.
CRT2475
MULTI-CD/DAB CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P7100R X1N/EW
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10
4. PCB CONNECTION DIAGRAM ................................30
5. ELECTRICAL PARTS LIST ........................................42
6. ADJUSTMENT..........................................................50
7. GENERAL INFORMATION .......................................55
7.1 DIAGNOSIS ........................................................55
7.1.1 TEST MODE..............................................55
7.1.2 DISASSEMBLY .........................................59
7.2 IC ........................................................................64
7.3 OPERATIONAL FLOW CHART...........................72
8. OPERATIONS AND SPECIFICATIONS.....................73
DEH-P6100R X1N/EW
DEH-P7100R/X1N/EW
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

2
DEH-P7100R,P6100R
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 59).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 52).
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.

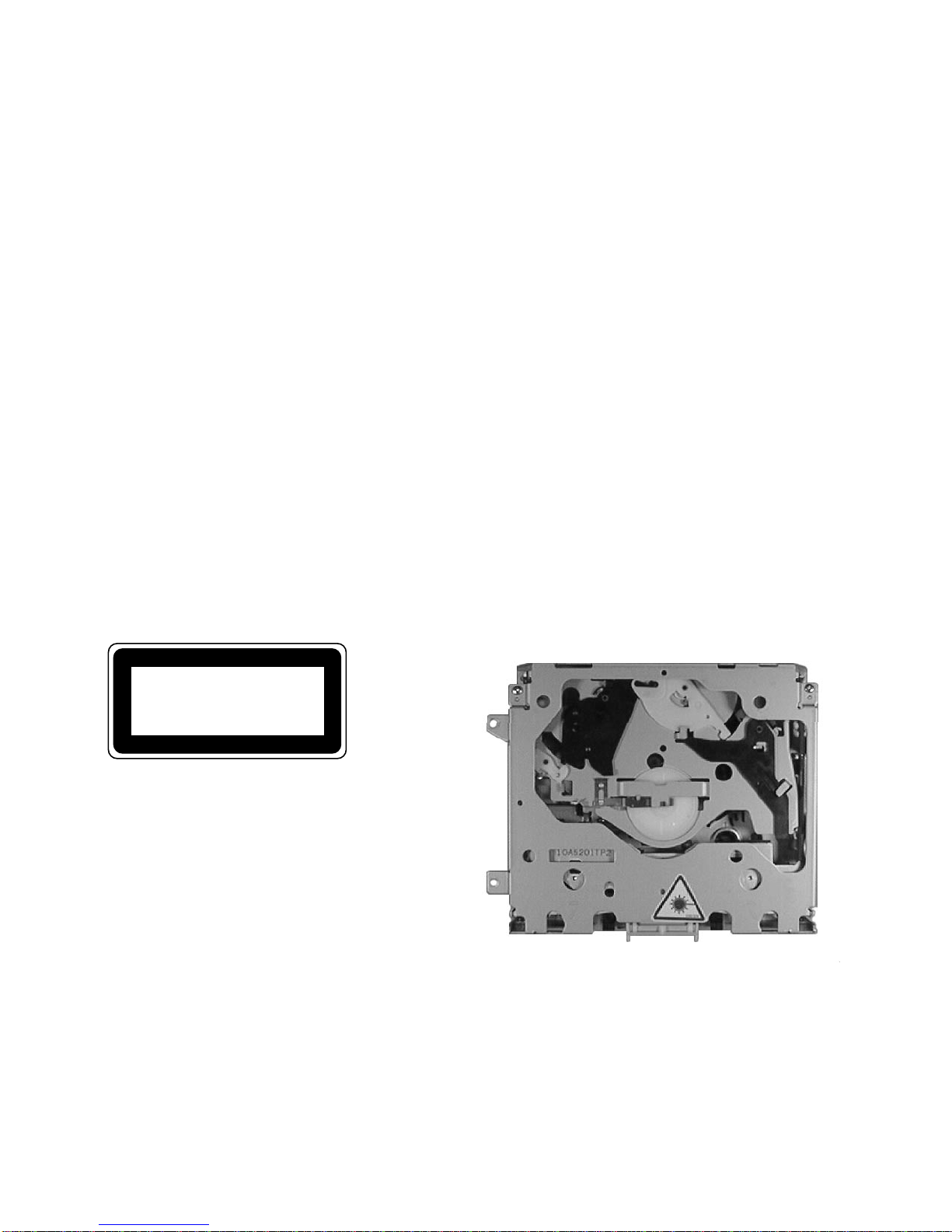

2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
CLASS 1
LASER PRODUCT

3
DEH-P7100R,P6100R
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
9
14
11
8
13
12
6
5
7
4
3
1
25
10
16
17 23 23
20
21
22
24
18 19
2
15
26

4
DEH-P7100R,P6100R
1 Carton(P7100R) CHG4005
Carton(P6100R) CHG4007
2 Cord Assy CDE6240
* 3 Accessory Assy CEA2397
4 Screw CBA1002
5 Handle CNC5395
6 Bush CNV3930
* 7 Polyethylene Bag E36-615
8 Polyethylene Bag CEG-162
9-1 Polyethylene Bag CEG1116
9-2 Owner’s Manual CRD3158
9-3 Owner’s Manual CRD3159
9-4 Owner’s Manual CRD3160
9-5 Installation Manual(P7100R) CRD3161
Installation Manual(P6100R) CRD3171
* 9-6 Passport CRY1013
* 9-7 Warranty Card CRY1157
* 9-8 Warranty Card CRP1207
10 Battery(P7100R) CEX1030
11 Contain Box(P7100R) CHL4005
12 Protector CHP2251
13 Protector CHP2252
14 Case Assy CXB3520
15 Air Cushioned Bag(P7100R) CEG1192
16 Remote Control Assy(P7100R) CXB3488
17 Belt(P7100R) CZN6416
18 Holder Assy(P7100R) CZX3172
19 Holder Assy(P7100R) CZX3173
20 Screw Assy(P7100R) CZE3169
*21
Polyethylene Bag(P7100R) CEG-127
*22
Hexagonal Wrench(P7100R) CZE3176
* 23 Screw(P7100R) RMZ30H060FBK
24 Remote Control Assy(P7100R) CZX3231
25 Inner Box CHW1754
26 Contain Box(P6100R) CHL4007
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P7100R/X1N/EW CRD3158 English, Spanish
CRD3159 German, French
CRD3160 Italian, Dutch
CRD3161 English, Spanish, German, French, Italian, Dutch
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P6100R/X1N/EW CRD3158 English, Spanish
CRD3159 German, French
CRD3160 Italian, Dutch
CRD3171 English, Spanish, German, French, Italian, Dutch

2.2 EXTERIOR
5
DEH-P7100R,P6100R

6
DEH-P7100R,P6100R
1CD Mechanism Module(S8.1) CXK5202
2 Screw BMZ30P040FZK
3 Screw BSZ26P060FMC
4 Screw BSZ30P060FMC
5 Screw BSZ30P100FMC
6 Cable CDE6164
7 Cord Assy See Contrast table(2)
8 IC(IC301) PAL005A
9 Cord Assy CDE6240
10 Fuse(10A) CEK1136
11 Antenna Cable CDH1266
12 Holder CNC6798
13 Holder CNC8357
14 Spacer CNM6482
15 Insulator CNM6606
16 Panel CNS5992
17 Cap See Contrast table(2)
18 Tuner Amp Unit See Contrast table(2)
19 Screw BPZ26P060FMC
20 Screw BSZ26P060FMC
21 Screw BSZ26P160FMC
22 Clamper See Contrast table(2)
23 Clamper See Contrast table(2)
24 Pin Jack(CN351) CKB1028
25 Terminal(CN402) CKF1059
26 Plug(CN901) CKM1294
* 27 Plug(CN451) See Contrast table(2)
28 Connector(CN101) CKS3408
29 Plug(CN801) CKS3537
30 Connector(CN361) See Contrast table(2)
31 Connector(CN651) CKS3842
32 Pin Jack(CN401) CKX1046
33 Panel See Contrast table(2)
34 Holder CNC7533
35 Holder CNC8298
36 Holder CNC8615
37 Insulator CNM5967
38 Heat Sink CNR1550
39 FM/AM Tuner Unit CWE1500
40 Holder CNC7532
41 Remote Control Assy See Contrast table(2)
42 Battery Cover See Contrast table(2)
43 Chassis Unit See Contrast table(2)
44 Button(EJECT) CAC6428
45 Screw(M2x2) CBA1176
46 Washer CBF1038
47 Spring CBH2310
48 Spring CBH2312
49 Spring CBH2313
50 Spring CBH2393
51 Spring CBL1492
52 Holder CNC8616
53 Cushion CNM5486
54 Cover CNM6854
55 Panel CNS5791
56 Arm CNV5991
57 Arm CNV5992
58 Arm CNV5993
59 Lever CNV5994
60 Gear CNV5995
61 Gear CNV5996
62 Gear CNV5997
63 Pin CNV6027
64 Lighting Conductor CNV6069
65 Panel PCB Unit CWM7157
66 Socket(CN902) CKS3550
67 Connector(CN903) CKS4206
68 Damper Unit CXB5070
69 Holder Unit CXB5736
70 Holder Unit CXB5737
71 Screw IMS20P045FZK
72 Detach Grille Assy See Contrast table(2)
73 Screw BPZ20P100FZK
74 Knob CAA1525
75 Button(SOURCE) CAC6331
76 Button(OPEN) CAC6333
77 Button(F,A) CAC6337
78 Button(BAND) CAC6442
79 Button(E) CAC6464
80 Button(DISP) CAC6339
81 Spring CBH2316
82 Spring CBH2320
83 Cushion CNM6542
84 Spacer CNM6871
85 Cover CNS5737
86 Holder CNV6177
87 Keyboard Unit CWM7269
88 Connector(CN1901) CKS4205
89 Holder CNC8698
90 Cushion CNM6633
91 Spacer CNM6710
92 Spacer CNM6711
93 Sheet CNM6746
94 Holder CNV6105
95 OEL Unit MXR8004
96 Knob Unit CXB5350
97 Grille Unit See Contrast table(2)
98 Case Unit CXB5788
99 Transistor(Q831,Q921,Q998) 2SD2396
100 Screw ISS26P055FUC
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.

7
DEH-P7100R,P6100R
Part No.
Mark No. Symbol and Description DEH-P7100R/X1N/EW DEH-P6100R/X1N/EW
7 Cord Assy CDE6333 Not used
17 Cap CNV2680 Not used
18 Tuner Amp Unit CWM6932 CWM6937
22 Clamper CEF1007 Not used
23 Clamper CEF1009 Not used
* 27 Plug(CN451) CKS1052 Not used
30 Connector(CN361) CKS3598 Not used
33 Panel CNB2376 CNB2477
41 Remote Control Assy CZX3231 Not used
42 Cover CZN6410 Not used
43 Chassis Unit CXB5505 CXB5506
72 Detach Grille Assy CXB5230 CXB5235
97 Grille Unit CXB5439 CXB5444
101 ASL Unit CWX2424 Not used
102 Screw BSZ30P055FMC Not used
103 Plug(CN4501) CKS-784 Not used
104 Case CNB2299 Not used
105 Case CNB2300 Not used
106 Plug(CN141) CKS-766 Not used
(2) CONTRAST TABLE
DEH-P7100R/X1N/EW and DEH-P6100R/X1N/EW are constructed the same except for the following:
Mark No. Description Part No.
101 ASL Unit See Contrast table(2)
102 Screw See Contrast table(2)
103 Plug(CN4501) See Contrast table(2)
104 Case See Contrast table(2)
105 Case See Contrast table(2)
106 Plug(CN141) See Contrast table(2)
107 Cap CKX-003
108 Double Sided Tape CNM6811

8
DEH-P7100R,P6100R

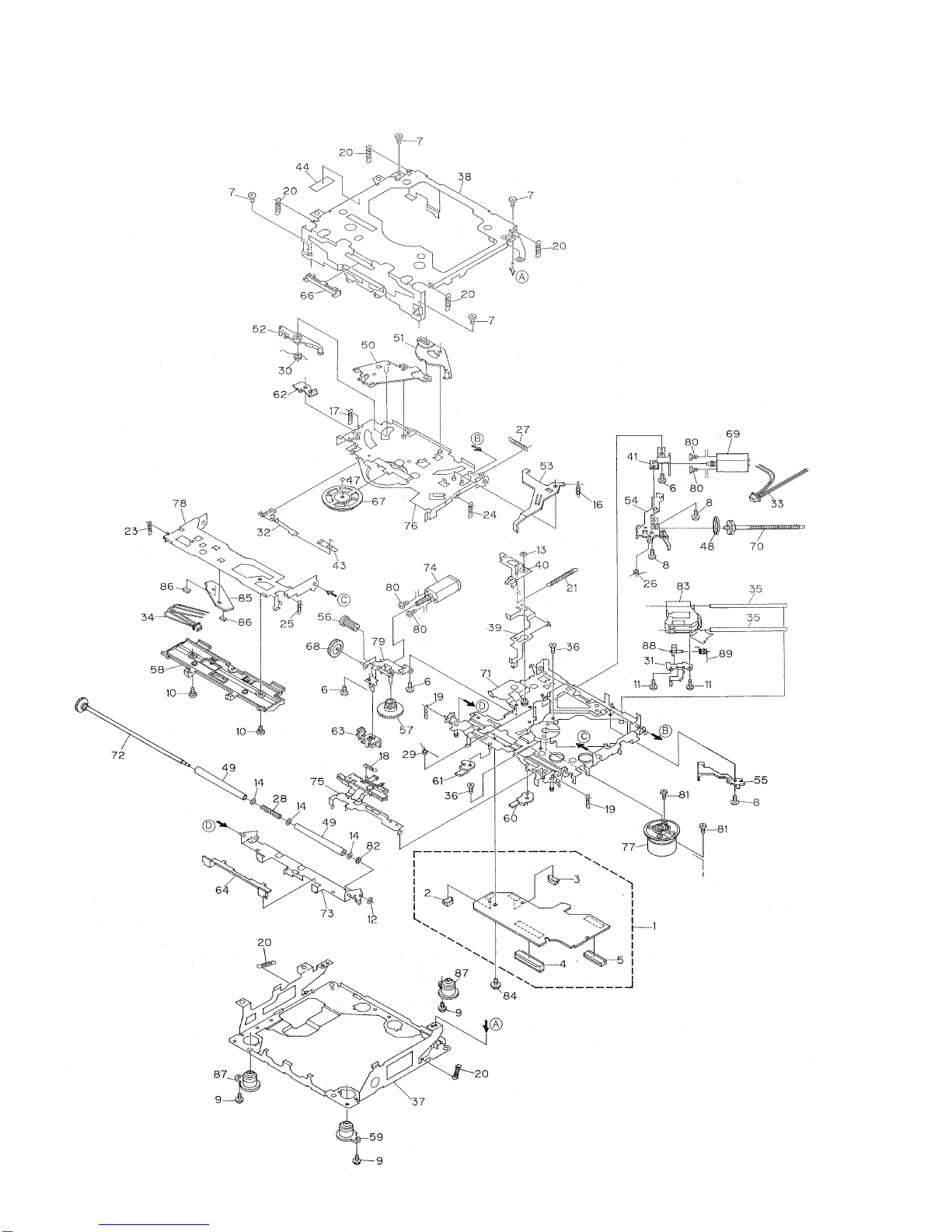

2.3 CD MECHANISM MODULE

9
DEH-P7100R,P6100R
Mark No. Description Part No. Mark No. Description Part No.
1 Control Unit CWX2419
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2777
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FMC
7 Screw BSZ20P040FMC
8 Screw(M2x3) CBA1077
9 Screw(M2x5) EBA1028
10 Screw CBA1243
11 Screw(M2x4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
15 •••••
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2314
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2318
22 •••••
23 Spring CBH2324
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2377
29 Spring CBH2260
30 Spring CBH2262
31 Bracket CNC8568
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6x6) CBA1458
37 Frame CNC8565
38 Frame CNC8749
39 Lever CNC7546
40 Arm CNC8663
41 Bracket CNC8567
42 •••••
43 Spacer CNM3315
44 Sheet CNM6659
45 •••••
46 •••••
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV6037
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV6272
59 Damper CNV6010
60 Arm CNV6096
61 Arm CNV6031
62 Arm CNV6211
63 Guide CNV6012
64 Guide CNV5510
65 •••••
66 Guide CNV5751
67 Clamper CNV6013
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB5892
71 Chassis Unit CXB4797
72 Gear Unit CXB4728
73 Arm Unit CXB5753
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB4730
76 Arm Unit CXB4731
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB4732
79 Bracket Unit CXB4795
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE20FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
87 Damper CNV6011
88 Rack CNV6014
89 Spring CBH2315
-CD MECHANISM MODULE SECTION PARTS LIST

10
DEH-P7100R,P6100R
1234
1234
D
C
B
A

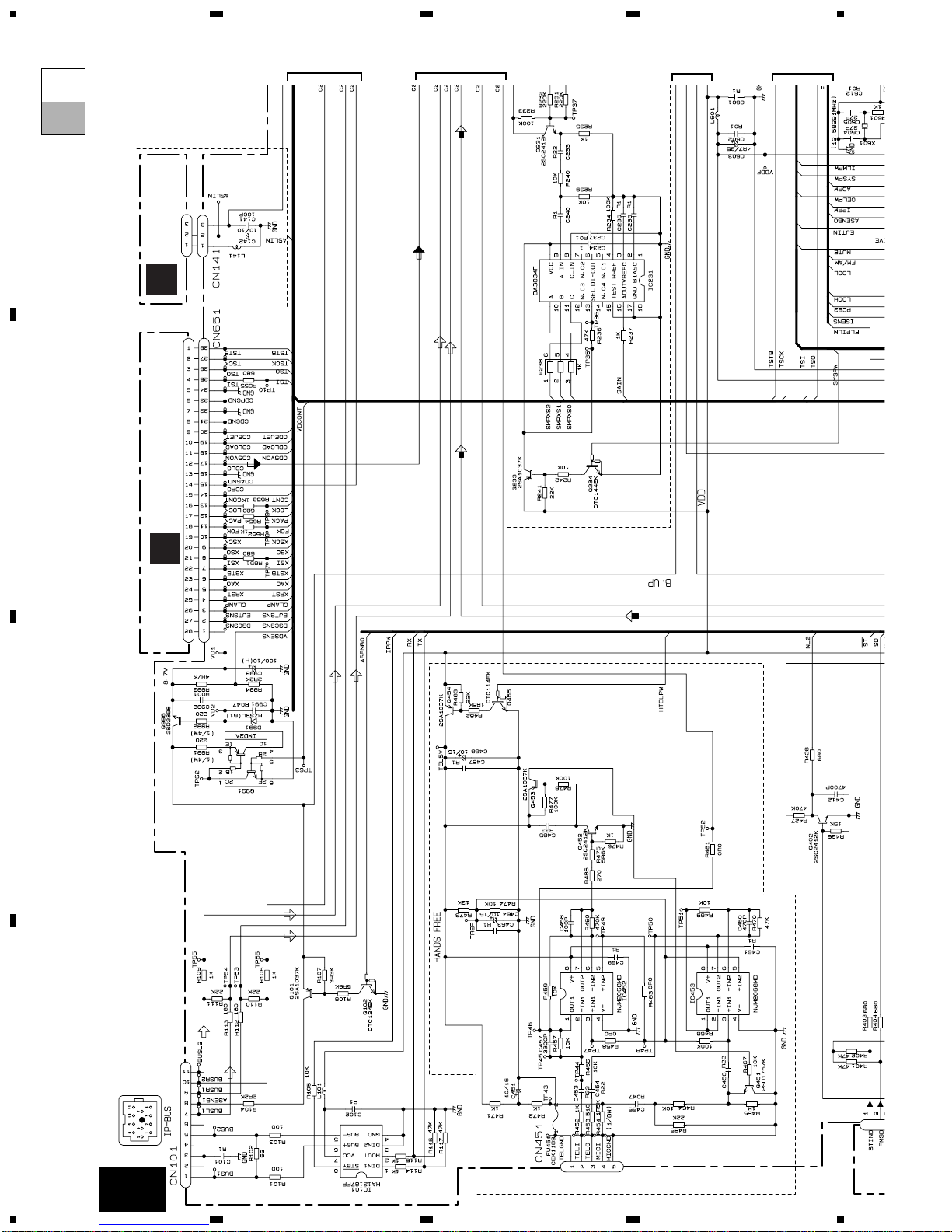

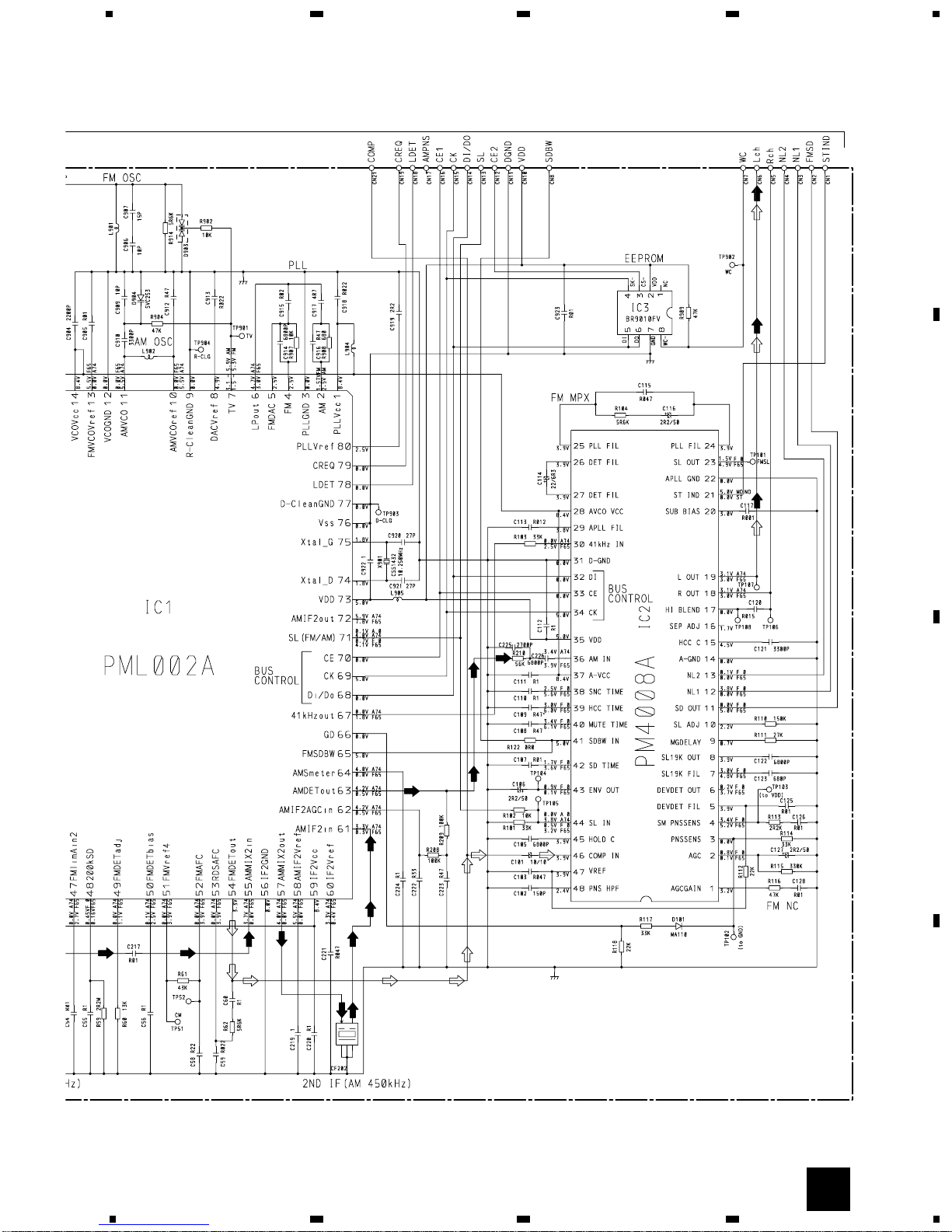

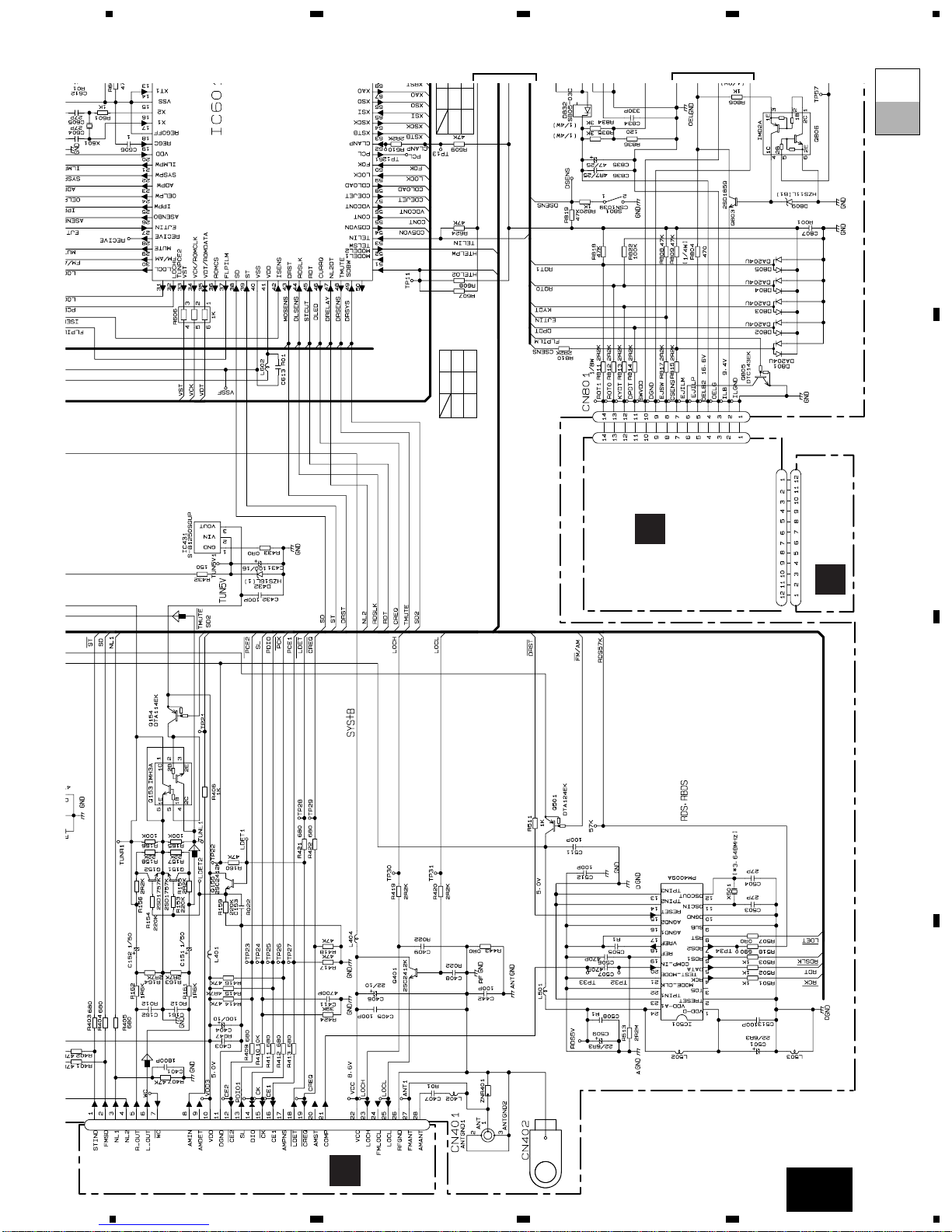

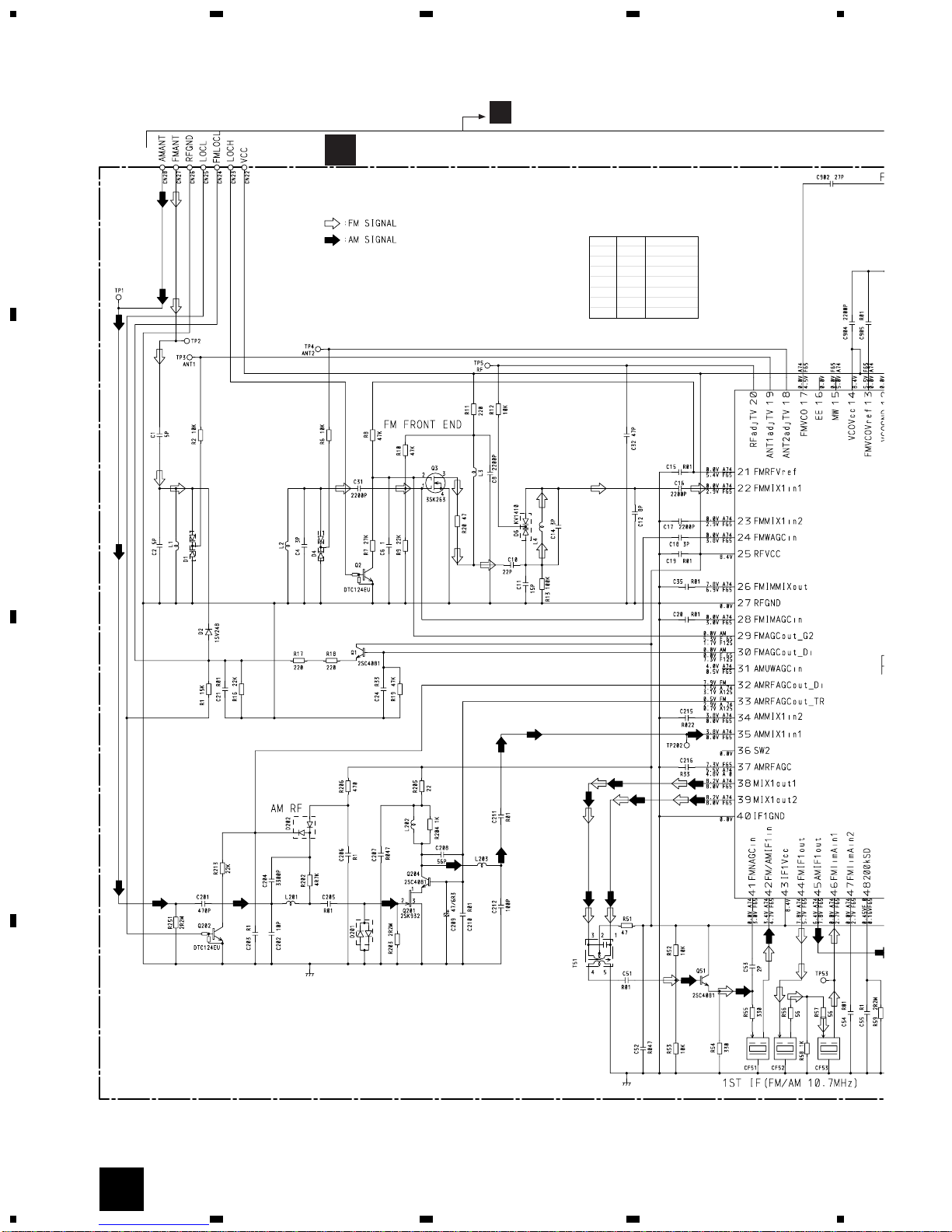

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM (DEH-P7100R/X1N/EW)
BFM/AM TUNER UNIT
ATUNER AMP UNIT
CN401
IC 101
HA12187FP
IC 453
NJM2068MD
CN651
CN451
CN701
IP-BUS DRIVER
RDS
DECODER
Q101
Q102
Q451
Q451
S802
CLAMP
Q402
X501
Q155
Q501
Q154
Q151 Q153
85
1
7
11
ASNB
BUS2
TELI
BUS1
BUSL1
BLSL2
B.U
5
8
11 12
20 24
6
3
1
2
7
8IPPW
RX
TX
TEL5V
4
18
21
6
NL2
ldet
COMP
L-OUT
IC 501
PM4009A
Q3
CF202
X901
VDD
VCC
LOCL
VDD
B.UVDD
VCC
ANTENNA
27
28
1
2
Q201 Q204
Q202
T51 Q51 CF51 CF52 CF53
ANT1 TV ANT2 TV
RF TV
AM RF
EEPROM
IC 3
BR9010FV
MIXER, IF AMP DET
IC 1
PML002A
FM/AM 1ST IF 10.7MHz
AM 2ND IF 450kHz
FM FRONT END
5
64
3
35
33
38 42 46
32
4439
45 55 57 61 74 75
71
65
78
54
70
69
63
25 24
19
46131211444134 33
22
IC 2 PM4008A
22 10 14 12 15 16 8 13 2 3
DI/DO CE2 CK CE1 AMIN SL FMSD NL1
CN101
GASL UNIT
Q401
25
Q
Q
SP64
ALAR
BUZZE
Q
Q
2TELO
3
MICI
4TELGND
1MICGND
5
IC 4502
NJM2068MD
IC 4501
NJM2068MD
MIC
Q4501 VR4501 ASLAMP ASLAMP
1
3
1
322
CN141
CN4501
MIC4501
17
DCONTROL UNIT
EPHOTO UNIT (S8)
M
LASER
DIODE
MONITOR
DIODE
SELECT
SENSE
DISC SENSE
FOCUS ACT.
SPINDLE
MOTOR
M
CARRIAGE
MOTOR
M
LOADING
MOTOR
TRACKING ACT.
LD+
MD
FO+
TO+
14
5
3
4
PICKUP UNIT (SERVICE) (P8)
HOLOGRAM
UNIT
IC 301
BA5985FM
IC 201
UPD63711GC
IC 701
BA05SFP
+5V REGULATOR
RF-AMP, DSP
SERVO, DAC
CD
DRIVER
Q991
Q998
26
EJTSNS
27
DSCSNS
25
CLANP
28
VD
VD
VDD
VD
D801D802
15
CONT 9
CDEJET 10
CDLOAD
12
L-OUT CDLO
19 CDLOAD
20 CDEJET
14 CONT
3EJTSNS
2DSCSNS
4CLANP
1VD1
11
CD5VON 18 CD5VON
NOISE ASLIN
16 IC 431
S-81250SGUP
POWER ON MUTE
CN801
CN802
CN101
1
2
3
4
3
1
2
CDLO
CDLO
12 SOP
11 SOM
14 COP
13 COM
10 LOP
9LOM
1
1
2
FWD
24
16
L_OUT
23
28
REV 21
MUTE
16 FOP TD/FD
A+CF
B+DE
SD/MD
98 LD
97 PD
39
4
HOME
18 TOP
S801
HOME
HANDS FREE KIT

11
DEH-P7100R,P6100R
5678
5678
D
C
B
A
IPPW
RX
TX
86
85
24
PEE
100
TELSW
53
L5V VDD
IN3_L Frontout_L
42 10
ADPW 22
AVREF
VDD
83
RESET 11
BSENS 93
ASENS 92
ISENS 42
TELIN 54
Rearout_L FLIN
RLIN
SYSPW
11 12
11
7
14
22 4 25
Preout_L 9
X2 15
X1 16
DSENS 2
RL– 23
RL+ 21
FL– 3
FL+
RL–
TEL
ILL
ACC
GND
BUP
B.U
RL+
FL–
BREM
FL+
RL
FL
5
IN4+L
43
IN4–_L
44
IN2_L
41
IN1_L
40
ASENBO
25
SL
74
NL1
76
SDBW
49
TUNPCE
99
TUNPCK
97
TUNPDO
98
TUNPDI
94
LOCL
30
TUNPCE2
32
SD
38
NL2DT
47
LDET
88
FM/AM
29 TMUTE
48
IC 203
PML004AF IC 301
PAL005A
IC 271
PA2028A
ELECTRONIC VOLUME/
SOURCE SELECTOR POWER AMP
HIGHTOUT
SYSTEM
CONTROLLER
IC 601 (1/2)
PE5098A
SYSTEM
CONTROLLER
IC 601 (2/2)
PE5098A
MUTE STBY B.REMOTE
14
18
Q301
Q982 Q351
Q371
Q981
Q921 Q923
Q922
IC 1904
PD5536A
IC 1902
PD8063A
5
6
4
8
10
11
3
IC 1901
PD5554A KEY MATRIX
IC 1903
RS-140
REMOTE
CONTROL
SENSOR
OPT IN
Q1903
Q1904
Q1907
Q1908
Q1905
Q1902
Q1901
D1912
CKEYBOARD UNIT
FPANEL PCB UNIT
ILB
SWDVDD
DPDT
KYDT
ENCH
ENCL
7
9
8
7
9
5
3
2
10
6
4
12
11
13
10
2
4
14
9
7
12
11
13
10
2
4
14
9
7CSENS
DGND
OELB CVCC
X1901
S1930
34
5
4
1
14 97 32
33
11
13
Q911
Q931
Q932
Q951
Q601
SYS+B B.U
X601
S801
SYSPW
4
3
5
6
1
2
5
6
8
9
11
10
12
7
CN901
CN361 1
2
CN351
TXD 96
SWVDD 1
FLPILM 37
EJTIN 26
ILMPW 20
OELPW 23
RXD 95
ROT1 3
ROT0 4
CSENS 6
MUTE 28
SAIN 75
REM
VDD1
AVCC
ILMD
DPDT
KYDT
XOUT
XIN
Q453
Q452
SP641
ALARM
BUZZER
IC 452
NJM2068MD
Q454
Q455
2
71Q233
Q234
VDD
B.U
SYSPW
IC 231
BA3834F
Q231 814
17
SYS+B
CN1901CN902 CN903CN801
Q802
Q805
Q801
Q832
Q831
B.U
VDD
Q806
Q803
IC 831
NJM2360M
16
ILB
SWVDD
55
66
88
EJILP
EJILM
EJSW
OELB
DPDT
KYDT
ROT1
ROT0
CSENS
DGND
ASLIN
77
55
57
63
79
78
Q991
8
59 CDLOAD
58 CDEJET
56 CONT
B.U
EJTSNS
DSCSNS
CLANP
VDCONT
CD5VON
5
4
1IC 911
S-875037BUPABE
VDD and RESET
EJECT
B.U
FUSE
10A
RR
+
RR
-
FR
+
FR
-
FL
+
FL
-
RL
+
RL
-
ACC
GND
BACK
UP
BACK UP
FL–
FL+
RL–
RL+
B.REM
ACC
GND
B.
REM
ILL
MUTE
ILL

12
DEH-P7100R,P6100R
1234
1234
D
C
B
A
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
>
CN701
CONTROL UNIT
DASL UNIT
GCN4501
KEYBOARD
UNIT
CCN1901
PANEL PCB UNIT
F
CN902
CN903
FM/AM TUNER UNIT
B
DEH
DEH-P7100R/X1N/EW ONL
DEH-P7100R/X1N/EW ONLY
HANDS FREE KIT
DSP-201M-A21F
CSS1500
200mA
SYS
P7100R
P6100R
R607 R608
NC 47K
47K NC
*** ***
FM : -15.5dBs
AM : -26dBs
IP-BUS : 2.2dBs
CD : 0dBs

13
DEH-P7100R,P6100R
5678
5678
D
C
B
A
A-b
A
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
1
TUNER AMP UNIT
A
CD SIGNAL
TUNER SIGNAL
IP-BUS SIGNAL
CD/TUNER/IP-BUS SIGNAL
DEH-P7100R/X1N/EW ONLY
DEH-P6100R/X1N/EW ONLY
DEH-P7100R/X1N/EW ONLY
EH-P7100R/X1N/EW ONLY
NLY
RR+RR-
FR+
FL+
RL+
FR-
FL-
RL-
BACK UP
GND ACC
B.REM
ILL
SUB.W
RCA OUT
FRONT
RCA OUT
CEK1136
>
MUTE
GNDGND
BACK UP
ACC
ILM
B.REM
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
HIGH-OUT
CSS1495
YSTEM CONTROLLER
P7100R
P6100R
R351 R352 R355 R356 R357 R358 C353 C354 Q351
82 82 470 470 10K 10K 2200P 2200P HN1C03F
820 820 NC NC 0R0 0R0 NC NC IMH3A
***
***
***
***
***
*** ***
***
***
PE5098A
P7100R
P6100R
R611 R616
47K 47K
NC NC
*** ***
FM : 6.6dBs
AM : -1.9dBs
CD : 10.1dBs
IP-BUS : 10.3dBs
FM : 32.6dBs
AM : 24.1dBs
CD : 36.1dBs
IP-BUS : 36.3dBs

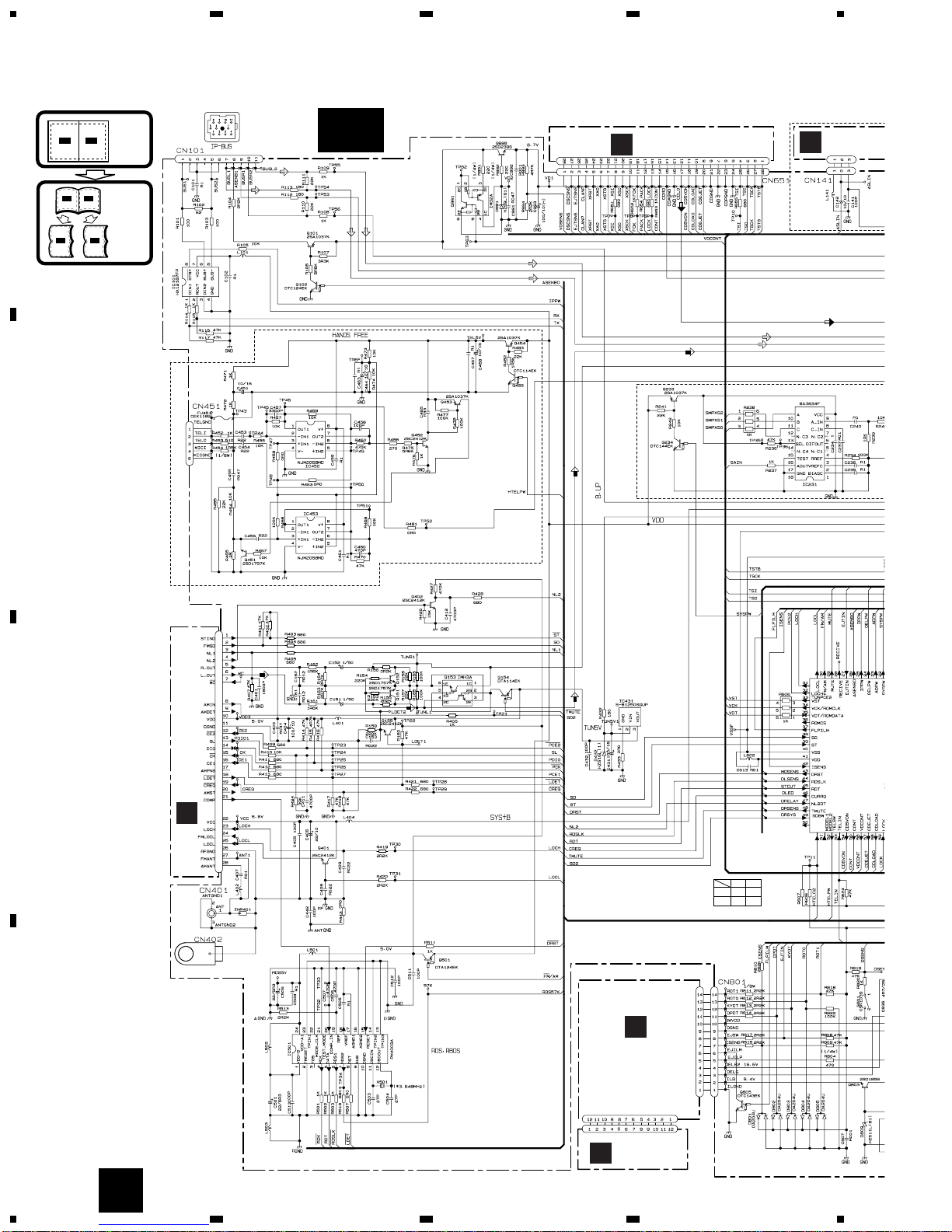

14
DEH-P7100R,P6100R
1234
1234
D
C
B
A
A-a
A-a A-b
>
CN701
CONTROL UNIT
DASL UNIT
GCN4501
DEH-P7100R/X1N/EW O
DEH-P7100R/X1N/EW ONLY
DEH-P7100R/X1N/EW ONLY
HANDS FREE KIT
CSS1495
200mA
FM : -15.5dBs AM : -26dBs
IP-BUS : 2.2dBs
CD : 0dBs
1
2
3
4

15
DEH-P7100R,P6100R
5678
5678
D
C
B
A
A-a
A-a A-b
KEYBOARD UNIT
CCN1901
PANEL PCB UNIT
F
CN902
CN903
FM/AM TUNER UNIT
B
DSP-201M-A21F
CSS1495
CSS1500
SYSTEM CONT
PE5098A
P7100R P6100R
R607 R608
NC 47K
47K NC
***
***
P7100R P6100R
R611 R
47K
NC
FM : -15.5dBs AM : -26dBs
5
6

16
DEH-P7100R,P6100R
1234
1234
D
C
B
A
A-a A-b
A-b
The >mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. TUNER AMP UNIT
A
CD SIGNAL
TUNER SIGNAL
IP-BUS SIGNAL
CD/TUNER/IP-BUS SIGNAL
DEH-P7100R/X1N/EW ONLY
DEH-P6100R/X1N/EW ONLY
DEH-P7100R/X1N/EW ONLY
X1N/EW ONLY
SUB.W RCA OUT
FRONT RCA OUT
HIGH-OUT
P7100R P6100R
R351 R352 R355 R356 R357 R358 C353 C354 Q351
82 82 470 470 10K 10K 2200P 2200P HN1C03F
820 820 NC NC 0R0 0R0 NC NC IMH3A
***
***
***
***
***
*** *** ***
***
FM : 6.6dBs AM : -1.9dBs
CD : 10.1dBs
IP-BUS : 10.3dBs
1
2
3
4

17
DEH-P7100R,P6100R
5678
5678
D
C
B
A
A-b
A-a A-b
Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022
←
←
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
RR+RR- FR+ FL+ RL+
FR- FL- RL-
BACK UP
GND ACC
B.REM
ILL
CEK1136
>
MUTE
GNDGND
BACK UP
ACC
ILM
B.REM RL+ RL- RR+ RR- FL+ FL- FR+ FR-
CONTROLLER
E5098A
P7100R P6100R
R611 R616
47K 47K
NC NC
***
***
FM : 32.6dBs AM : 24.1dBs
CD : 36.1dBs
IP-BUS : 36.3dBs
5
6

KV1410(23)
KV1410(23)
Mark
None
F0
F65
F125
A0
A74
A125
Band
–
FM
FM
FM
AM
AM
AM
Input Level
–
0dBf
65dBf
125dBf
0dBµ
74dBµ
125dBµ
DAN217U
DAN217U
18
DEH-P7100R,P6100R
1234
1234
D
C
B
A
B
3.3 FM/AM TUNER UNIT
B
A
FM/AM TUNER UNIT

19
DEH-P7100R,P6100R
5678
5678
D
C
B
A
B
KV1410(23)

OEL
TEXT
20
DEH-P7100R,P6100R
1234
1234
D
C
B
A
3.4 KEYBOARD UNIT
C
F
CN903
