Pioneer DEH-P8200R User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZY. FEB. 2000 Printed in Japan
ORDER NO.
CRT2476
MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER
DEH-P8200R X1N/UC
Service
Manual
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................2
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...10
4. PCB CONNECTION DIAGRAM ................................28
5. ELECTRICAL PARTS LIST ........................................39
6. ADJUSTMENT..........................................................47
7. GENERAL INFORMATION .......................................52
7.1 DIAGNOSIS ........................................................52
7.1.1 TEST MODE..............................................52
7.1.2 DISASSEMBLY .........................................56
7.2 IC ........................................................................61
7.3 OPERATIONAL FLOW CHART...........................71
8. OPERATIONS AND SPECIFICATIONS.....................72
DEH-P8250 X1N/ES
DEH-P8200R/X1N/UC
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

2
DEH-P8200R,P8250
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 56).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 49).
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. SAFETY INFORMATION
24
22
19
17
21
20
5
8
12
4
11
10
9
7
6
3
1
2
14
16
15
13
18
25
23

3
DEH-P8200R,P8250
1 Carton(UC) CHG4006
Carton(ES) CHG4004
2 Cord Assy CDE6242
* 3 Accessory Assy CEA2395
4 Spring CBH1650
* 5 Screw Assy CEA2396
6 Screw CBA1002
* 7 Polyethylene Bag CEG-127
8 Screw CRZ50P090FMC
9 Screw TRZ50P080FMC
* 10 Polyethylene Bag CEG-158
11 Handle CNC5395
12 Bush CNV3930
13 Base Assy CEA2426
* 14 Base CNS5031
* 15 Sheet CZA3371
16 Polyethylene Bag CZE3188
17 Polyethylene Bag(UC) CEG1173
Polyethylene Bag(ES) CEG-162
18 Battery CEX1006
19 Contain Box(UC) CHL4006
Contain Box(ES) CHL4004
20 Protector CHP2251
21 Protector CHP2252
22 Case Assy CXB3520
23 Inner Box CHW1759
24-1 Polyethylene Bag CEG1116
24-2 Owner’s Manual(UC) CRD3162
Owner’s Manual(ES) CRD3164
24-3 Owner’s Manual(ES) CRD3165
24-4 Owner’s Manual(ES) CRD3166
24-5 Owner’s Manual(ES) CRD3249
24-6 Installation Manual(UC) CRD3163
Installation Manual(ES) CRD3167
* 24-7 Card ARY1048
* 24-8 Warranty Card CRP1207
* 24-9 Warranty Card(ES) CRP1216
25 Remote Control Assy CXB3875
Mark No. Description Part No. Mark No. Description Part No.
-PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P8200R/X1N/UC CRD3162 English, French
CRD3163 English, French
DEH-P8250/X1N/ES CRD3164 English, Spanish
CRD3165 Portuguese(B), French
CRD3166 Arabic, Chinese
CRD3167 English, Spanish, Portuguese(B), French, Arabic, Chinese
CRD3249 English, French

4
DEH-P8200R,P8250
2.2 EXTERIOR

5
DEH-P8200R,P8250
1CD Mechanism Module(S8.1) CXK5202
2 Screw BMZ30P040FZK
3 Screw BSZ26P060FMC
4 Screw BSZ30P060FMC
5 Screw BSZ30P100FMC
6 Cable CDE6164
7 Cord Assy CDE6195
8 IC(IC301) PAL005A
9 Cord Assy CDE6242
10 Fuse(10A) CEK1136
11 Antenna Cable CDH1266
12 Holder CNC6798
13 Holder CNC8357
14 Spacer CNM6482
15 Insulator CNM6606
16 Panel See Contrast table(2)
17 Cap CNV2680
18 Tuner Amp Unit See Contrast table(2)
19 Screw BPZ26P060FMC
20 Screw BSZ26P060FMC
21 Screw BSZ26P160FMC
22 Clamper CEF1007
23 Clamper CEF1009
24 Pin Jack(CN351) CKB1028
25 Terminal(CN402) CKF1059
26 Plug(CN901) CKM1294
* 27 Plug(CN451) CKS1052
28 Connector(CN101) CKS3408
29 Plug(CN801) CKS3537
30 Connector(CN361) CKS3602
31 Connector(CN651) CKS3842
32 Pin Jack(CN401) CKX1046
33 Panel CNB2376
34 Holder CNC7533
35 Holder CNC8298
36 Holder CNC8615
37 Insulator CNM5967
38 Heat Sink CNR1550
39 FM/AM Tuner Unit CWE1501
40 Holder CNC7532
41 Remote Control Assy CXB3875
42 Battery Cover CNS5032
43 Chassis Unit CXB5063
44 Button(EJECT) CAC6428
45 Screw(M2x2) CBA1176
46 Washer CBF1038
47 Spring CBH2310
48 Spring CBH2312
49 Spring CBH2313
50 Spring CBH2393
51 Spring CBL1492
52 Holder CNC8616
53 Cushion CNM5486
54 Cover CNM6854
55 Panel CNS5791
56 Arm CNV5991
57 Arm CNV5992
58 Arm CNV5993
59 Lever CNV5994
60 Gear CNV5995
61 Gear CNV5996
62 Gear CNV5997
63 Pin CNV6027
64 Lighting Conductor CNV6069
65 Panel PCB Unit CWM7157
66 Socket(CN902) CKS3550
67 Connector(CN903) CKS4206
68 Damper Unit CXB5070
69 Holder Unit CXB5736
70 Holder Unit CXB5737
71 Screw IMS20P045FZK
72 Detach Grille Assy See Contrast table(2)
73 Screw BPZ20P100FZK
74 Knob CAA1525
75 Button(SOURCE) CAC6331
76 Button(OPEN) CAC6333
77 Button(F,A) See Contrast table(2)
78 Button(BAND) See Contrast table(2)
79 Button(E) CAC6464
80 Button(DISP) See Contrast table(2)
81 Spring CBH2316
82 Spring CBH2320
83 Cushion CNM6542
84 Spacer CNM6871
85 Cover See Contrast table(2)
86 Holder CNV6177
87 Keyboard Unit CWM7268
88 Connector(CN1901) CKS4205
89 Holder CNC8698
90 Cushion CNM6633
91 Spacer CNM6710
92 Spacer CNM6711
93 Sheet CNM6746
94 Holder CNV6105
95 OEL Unit MXR8004
96 Knob Unit See Contrast table(2)
97 Grille Unit See Contrast table(2)
98 Case Unit CXB5788
99 Transistor(Q831,Q921,Q998) 2SD2396
100 Screw ISS26P055FUC
101 Holder See Contrast table(2)
102 Spacer See Contrast table(2)
103 Double Sided Tape CNM6811
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.

6
DEH-P8200R,P8250
Part No.
Mark No. Symbol and Description DEH-P8200R/X1N/UC DEH-P8250/X1N/ES
16 Panel CNS5992 CNS5993
18 Tuner Amp Unit CWM6931 CWM6933
72 Detach Grille Assy CXB5229 CXB5231
77 Button(F,A) CAC6337 CAC6338
78 Button(BAND) CAC6442 CAC6443
80 Button(DISP) CAC6640 CAC6639
85 Cover CNS5737 CNS5738
96 Knob Unit CXB5350 CXB5351
97 Grille Unit CXB5438 CXB5440
101 Holder CNC8357 Not used
102 Spacer CNM6482 Not used
(2) CONTRAST TABLE
DEH-P8200R/X1N/UC and DEH-P8250/X1N/ES are constructed the same except for the following:

7
DEH-P8200R,P8250

8
DEH-P8200R,P8250

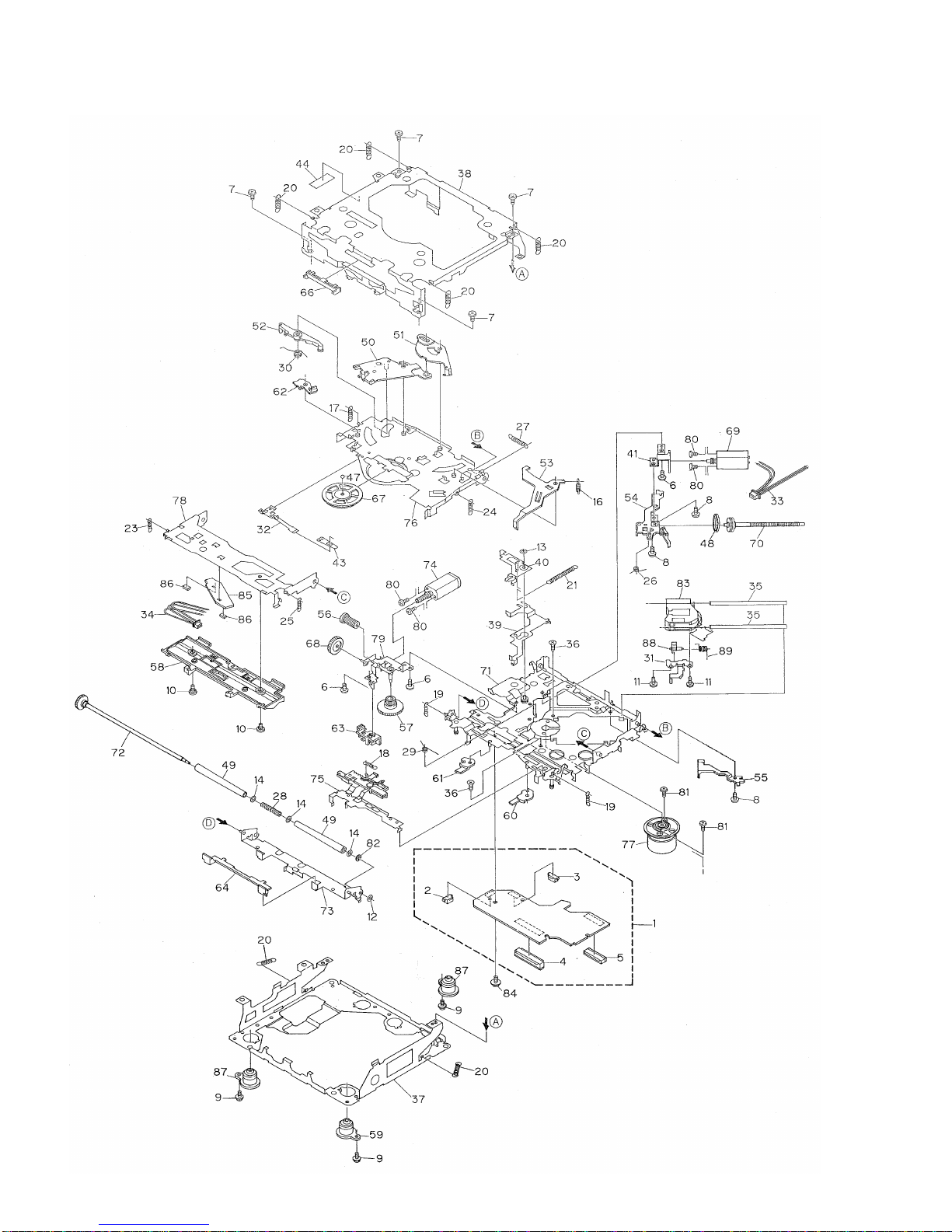

2.3 CD MECHANISM MODULE

9
DEH-P8200R,P8250
Mark No. Description Part No. Mark No. Description Part No.
1 Control Unit CWX2419
2 Connector(CN802) CKS2192
3 Connector(CN801) CKS2193
4 Connector(CN701) CKS2777
5 Connector(CN101) CKS3486
6 Screw BMZ20P030FMC
7 Screw BSZ20P040FMC
8 Screw(M2x3) CBA1077
9 Screw(M2x5) EBA1028
10 Screw CBA1243
11 Screw(M2x4) CBA1362
12 Washer CBF1037
13 Washer CBF1038
14 Washer CBF1060
15 •••••
16 Spring CBH2079
17 Spring CBH2117
18 Spring CBH2314
19 Spring CBH2110
20 Spring CBH2282
21 Spring CBH2318
22 •••••
23 Spring CBH2324
24 Spring CBH2118
25 Spring CBH2161
26 Spring CBH2163
27 Spring CBH2189
28 Spring CBH2377
29 Spring CBH2260
30 Spring CBH2262
31 Bracket CNC8568
32 Spring CBL1369
33 Connector CDE5531
34 Connector CDE5532
35 Shaft CLA3304
36 Screw(M2.6x6) CBA1458
37 Frame CNC8565
38 Frame CNC8749
39 Lever CNC7546
40 Arm CNC8663
41 Bracket CNC8567
42 •••••
43 Spacer CNM3315
44 Sheet CNM6659
45 •••••
46 •••••
47 Ball CNR1189
48 Belt CNT1086
49 Roller CNV4509
50 Arm CNV6037
51 Arm CNV5247
52 Arm CNV5248
53 Arm CNV5249
54 Guide CNV5254
55 Guide CNV5255
56 Gear CNV5257
57 Gear CNV5256
58 Guide CNV6272
59 Damper CNV6010
60 Arm CNV6096
61 Arm CNV6031
62 Arm CNV6211
63 Guide CNV6012
64 Guide CNV5510
65 •••••
66 Guide CNV5751
67 Clamper CNV6013
68 Gear CNV5813
69 Motor Unit(M1) CXB2190
70 Screw Unit CXB5892
71 Chassis Unit CXB4797
72 Gear Unit CXB4728
73 Arm Unit CXB5753
74 Motor Unit(M2) CXB2195
75 Lever Unit CXB4730
76 Arm Unit CXB4731
77 Motor Unit(M3) CXB2562
78 Arm Unit CXB4732
79 Bracket Unit CXB4795
80 Screw JFZ20P025FMC
81 Screw JGZ17P025FZK
82 Washer YE20FUC
83 Pickup Unit(Service)(P8) CXX1285
84 Screw IMS26P030FMC
* 85 PCB CNX2982
86 Photo-transistor(Q1, 2) CPT230SX-TU
87 Damper CNV6011
88 Rack CNV6014
89 Spring CBH2315
-CD MECHANISM MODULE SECTION PARTS LIST

10
DEH-P8200R,P8250
1234
1234
D
C
B
A

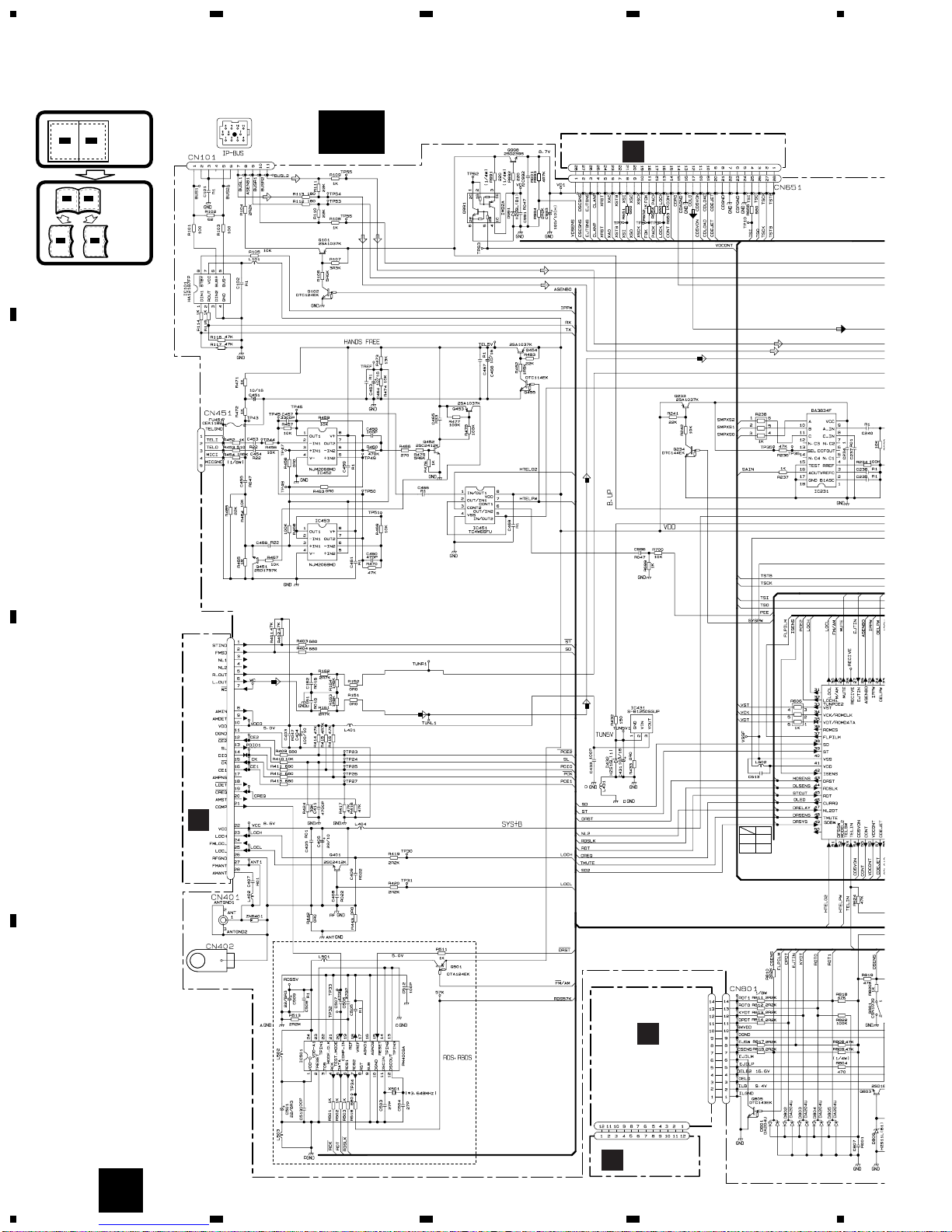

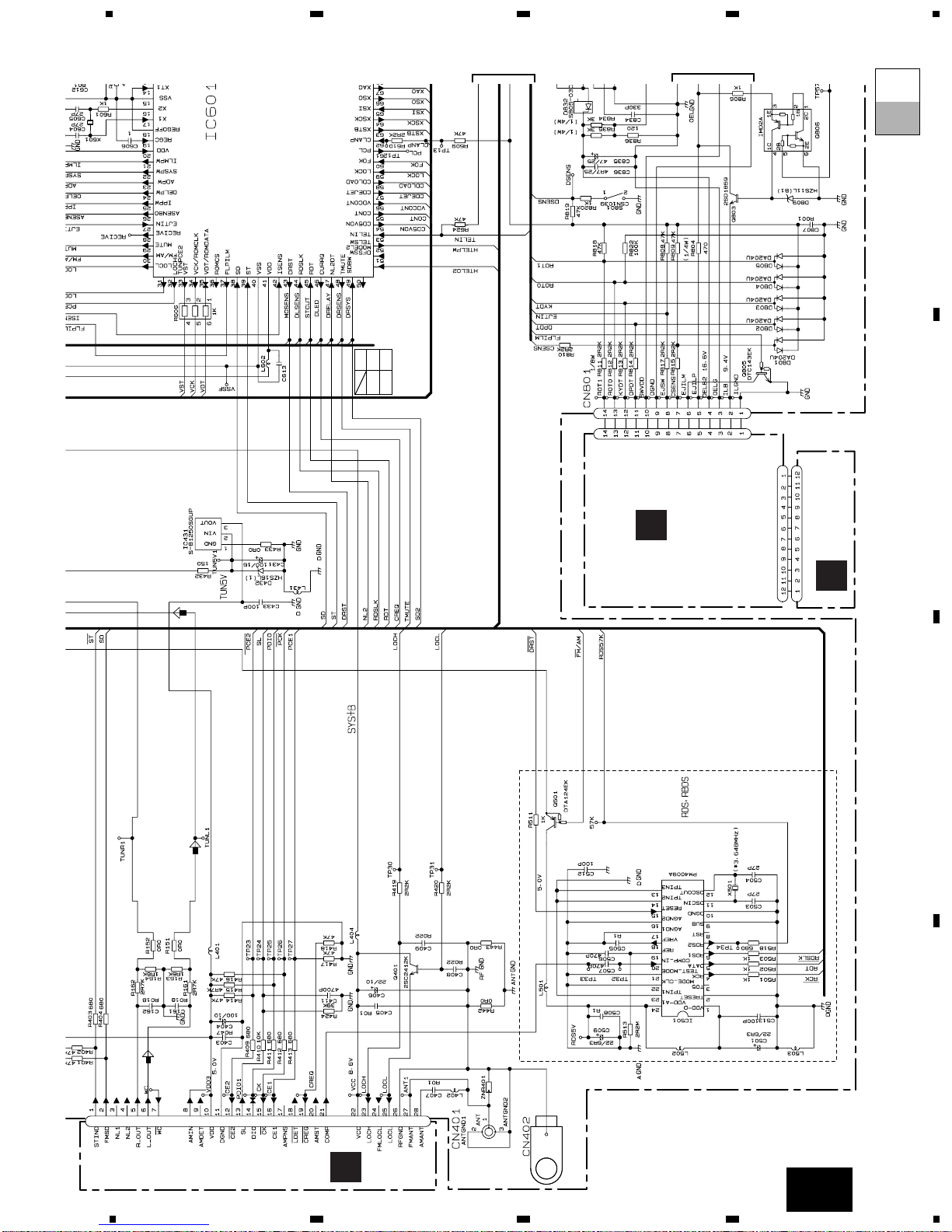

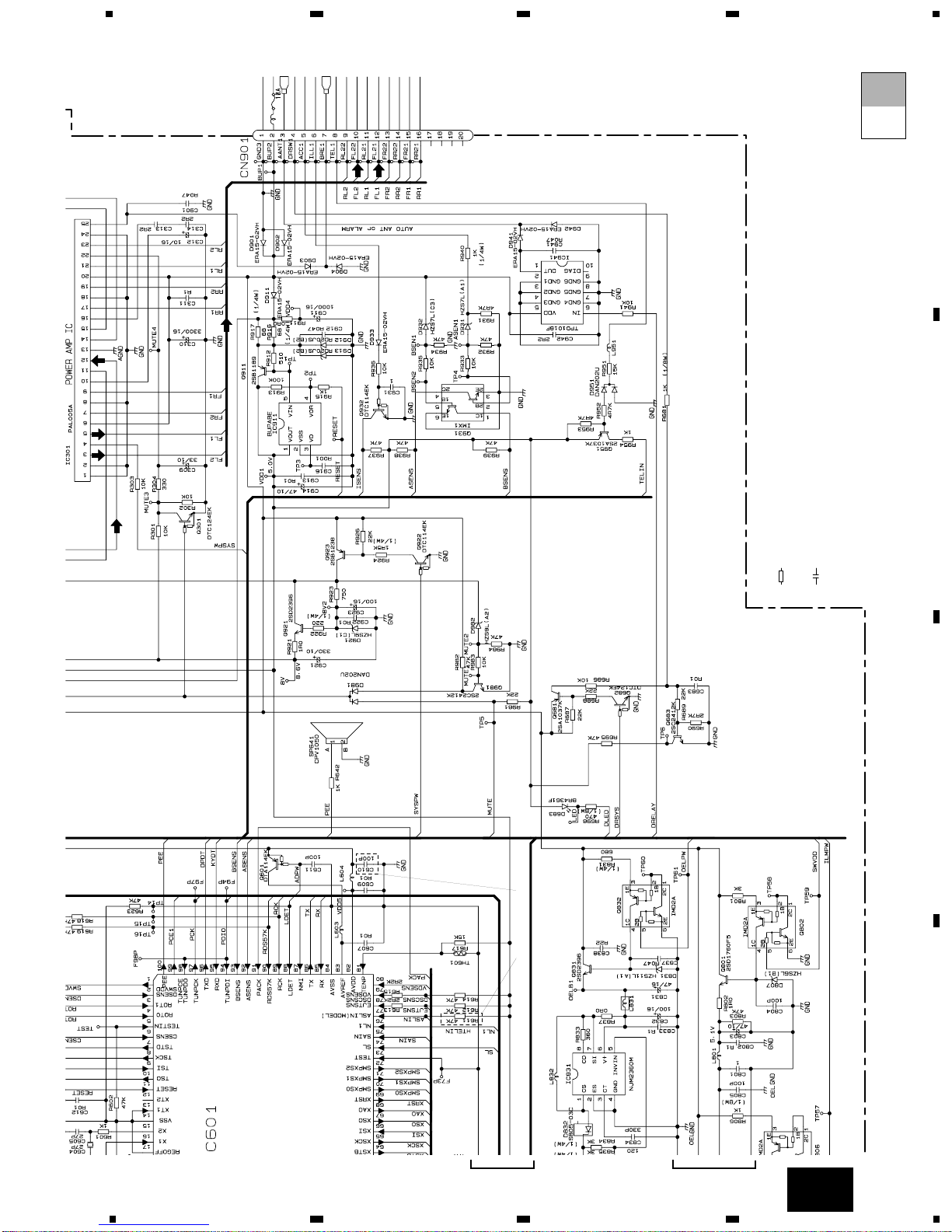

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM (DEH-P8200R/X1N/UC)
BFM/AM TUNER UNIT
ATUNER AMP UNIT
CN401
IC 101
HA12187FP
IC 453
NJM2068MD
CN651
CN451
CN701
IP-BUS DRIVER
RDS
DECODER
Q101
Q102
Q451
Q451
S802
CLAMP
X501
Q501
85
1
7
11
ASNB
BUS2
TELI
BUS1
BUSL1
BLSL2
B.U
5
11 12
20 24
6
3
1
2
7
8IPPW
RX
TX
TEL5V
21
6
COMP
L-OUT
IC 501
PM4009A
Q3
CF202
X901
VDD
VCC
LOCL
VDD
B.UVDD
VCC
ANTENNA
27
28
1
2
Q201 Q204
Q202
T51 Q51 CF51 CF52 CF53
ANT1 TV ANT2 TV
RF TV
AM RF
EEPROM
IC 3
BR9010FV
MIXER, IF AMP DET
IC 1
PML002A
FM/AM 1ST IF 10.7MHz
AM 2ND IF 450kHz

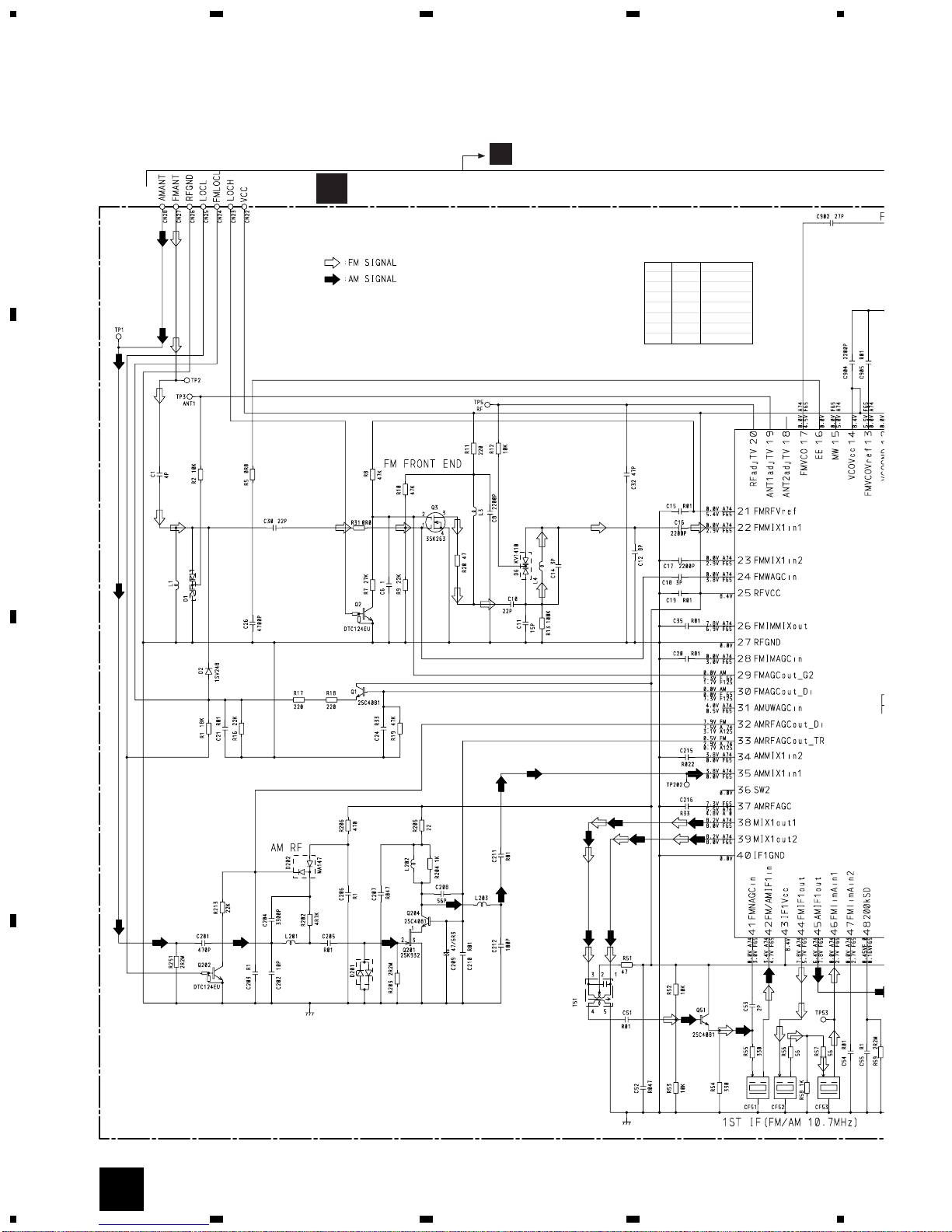

FM FRONT END
5
64
3
35
33
38 42 46
32
4439
45 55 57 61 74 75
71
65
54
70
69
63
25 24
19
461211444134 33
22

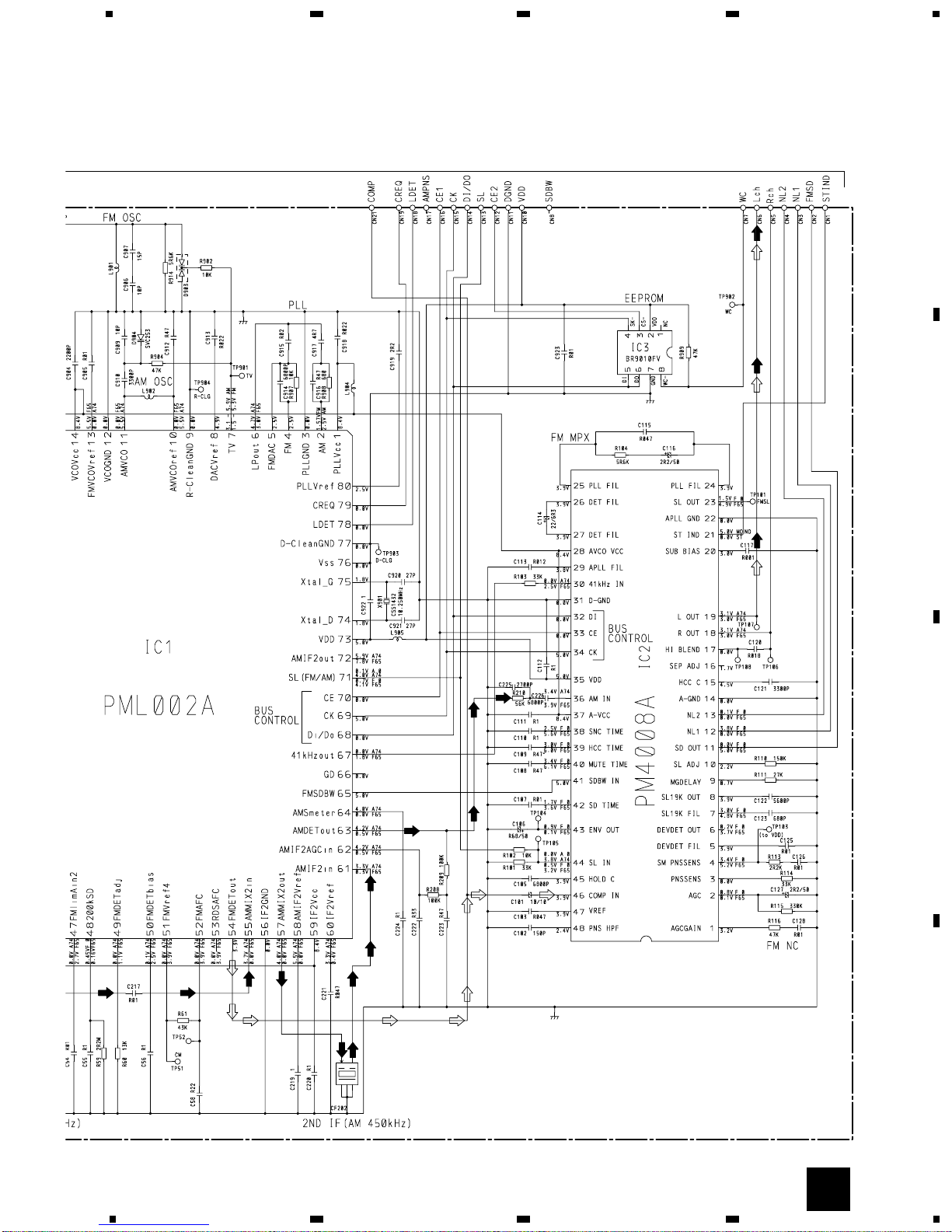

IC 2 PM4008A
22 10 14 12 15 16 8 13 2 3
DI/DO CE2 CK CE1 AMIN SL FMSD NL1
CN101
Q401
25
Q
Q
SP64
ALAR
BUZZ
Q
Q
2TELO
3
MICI
4TELGND
1MICGND
5
17
DCONTROL UNIT
EPHOTO UNIT (S8)
M
LASER
DIODE
MONITOR
DIODE
SELECT
SENSE
DISC SENSE
FOCUS ACT.
SPINDLE
MOTOR
M
CARRIAGE
MOTOR
M
LOADING
MOTOR
TRACKING ACT.
LD+
MD
FO+
TO+
14
5
3
4
PICKUP UNIT (SERVICE) (P8)
HOLOGRAM
UNIT
IC 301
BA5985FM
IC 201
UPD63711GC
IC 701
BA05SFP
+5V REGULATOR
RF-AMP, DSP
SERVO, DAC
CD
DRIVER
Q991
Q998
26
EJTSNS
27
DSCSNS
25
CLANP
28
VD
VD
VDD
VD
D801D802
15
CONT 9
CDEJET 10
CDLOAD
12
L-OUT CDLO
19 CDLOAD
20 CDEJET
14 CONT
3EJTSNS
2DSCSNS
4CLANP
1VD1
11
CD5VON 18 CD5VON
16 IC 431
S-81250SGUP
POWER ON MUTE
CN801
CN802
CN101
1
2
3
4
3
1
2
CDLO
CDLO
12 SOP
11 SOM
14 COP
13 COM
10 LOP
9LOM
1
1
2
FWD
24
16
L_OUT
23
28
REV 21
MUTE
16 FOP TD/FD
A+CF
B+DE
SD/MD
98 LD
97 PD
39
4
HOME
18 TOP
S801
HOME
HANDS FREE KIT

11
DEH-P8200R,P8250
5678
5678
D
C
B
A
IPPW
RX
TX
86
85
24
PEE
100
TELSW
53
EL5V VDD
IN3_L Frontout_L
42 10
ADPW 22
AVREF
VDD
B.UVDD
83
RESET 11
NL2DT 47 16
BSENS 93
ASENS 92
ISENS 42
CURRQ 46
SDBW 49
TMUTE 48
TELIN 54
Rearout_L FLIN
RLIN
SYSPW
11 12
11
7
14
22 4 25
Preout_L 9
X2 15
X1 16
DSENS 2
RL– 23
RL+ 21
FL– 3
FL+
RL–
TEL
DRSW
ILL
ACC
AANT
GND
BUP
B.U
RL+
FL–
BREM
FL+
RL
FL
5
IN4+L
43
IN4–_L
44
IN2_L
41
IN1_L
40
ASENBO
25
SL
74
NL1
76
SDBW
49
TUNPCE
99
TUNPCK
97
TUNPDO
98
TUNPDI
94
LOCL
30
TUNPCE2
32
SD
38
FM/AM
29
IC 203
PML004AF IC 301
PAL005A
IC 271
PA2028A
ELECTRONIC VOLUME/
SOURCE SELECTOR POWER AMP
HIGHTOUT
SYSTEM
CONTROLLER
IC 601 (1/2)
PE5097A
SYSTEM
CONTROLLER
IC 601 (2/2)
PE5097A
MUTE STBY B.REMOTE
14
18
Q301
Q982 Q351
Q371
Q981
Q921 Q923
Q922
IC 1904
PD5536A
IC 1902
PD8063A
5
6
4
8
10
11
3
IC 1901
PD5554A KEY MATRIX
IC 1903
RS-140
REMOTE
CONTROL
SENSOR
OPT IN
Q1907
Q1908
D1911
CKEYBOARD UNIT
FPANEL PCB UNIT
ILB
SWDVDD
DPDT
KYDT
ENCH
ENCL
7
9
8
7
9
5
3
2
10
6
4
12
11
13
10
2
4
14
9
7
12
11
13
10
2
4
14
9
7CSENS
DGND
OELB CVCC
X1901
S1930
34
5
4
1
14 97
33
11
13
Q911
Q931
Q932
Q681
Q683
Q951
Q682
Q601
IC 941
TPD1018F
A.ANT OR ALARM
SYS+B B.U
X601
S801
SYSPW
4
3
5
6
1
2
3
5
6
4
8
9
11
10
12
7
CN901
CN361
CN351
TXD 96
SWVDD 1
FLPILM 37
EJTIN 26
ILMPW 20
OELPW 23
RXD 95
ROT1 3
ROT0 4
CSENS 6
MUTE 28
SAIN 75
REM
VDD1
AVCC
DPDT
KYDT
XOUT
XIN
R669,700,C685
Q453
Q452
SP641
ALARM
BUZZER DFS
ALARM
IC 452
NJM2068MD
Q454
Q455
IC 451
TC4W66FU
2
71
6
1
5
2
Q233
Q234
VDD
B.U
SYSPW
IC 231
BA3834F
Q231 814
17
SYS+B
CN1901CN902 CN903CN801
Q802
Q805
Q801
Q832
Q831
B.U
VDD
Q806
Q803
IC 831
NJM2360M
16
ILB
SWVDD
55
66
88
EJILP
EJILM
EJSW
OELB
DPDT
KYDT
ROT1
ROT0
CSENS
DGND
55
57
63
79
78
Q991
998
59 CDLOAD
58 CDEJET
56 CONT
B.U
EJTSNS
DSCSNS
CLANP
VDCONT
CD5VON
5
4
1IC 911
S-875037BUPABE
VDD and RESET
EJECT
B.U
FUSE
10A
RL–
RL+
FL–
FL+
MUTE
ILL
ACC
BACK UP
GND
ALARM
DRSW
B.REM

12
DEH-P8200R,P8250
1234
1234
D
C
B
A
3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page
A
A-a
>
CN701
CONTROL UNIT
D
FM/AM TUNER UNIT
B
DEH-P8200R/X1N/UC ONLY
KEYBOARD
UNIT
CCN1901
PANEL PCB UNIT
F
CN902
CN903
DSP-201M-A21F
CSS1500
200mA
S
P8200R
P8250
C613
R01
100P
***
PE509
PE509
HANDS FREE KIT
FM : -19.5dBs
AM : -30dBs
IP-BUS : 2.2dBs
CD : 0dBs

13
DEH-P8200R,P8250
5678
5678
D
C
B
A
A-b
A
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of

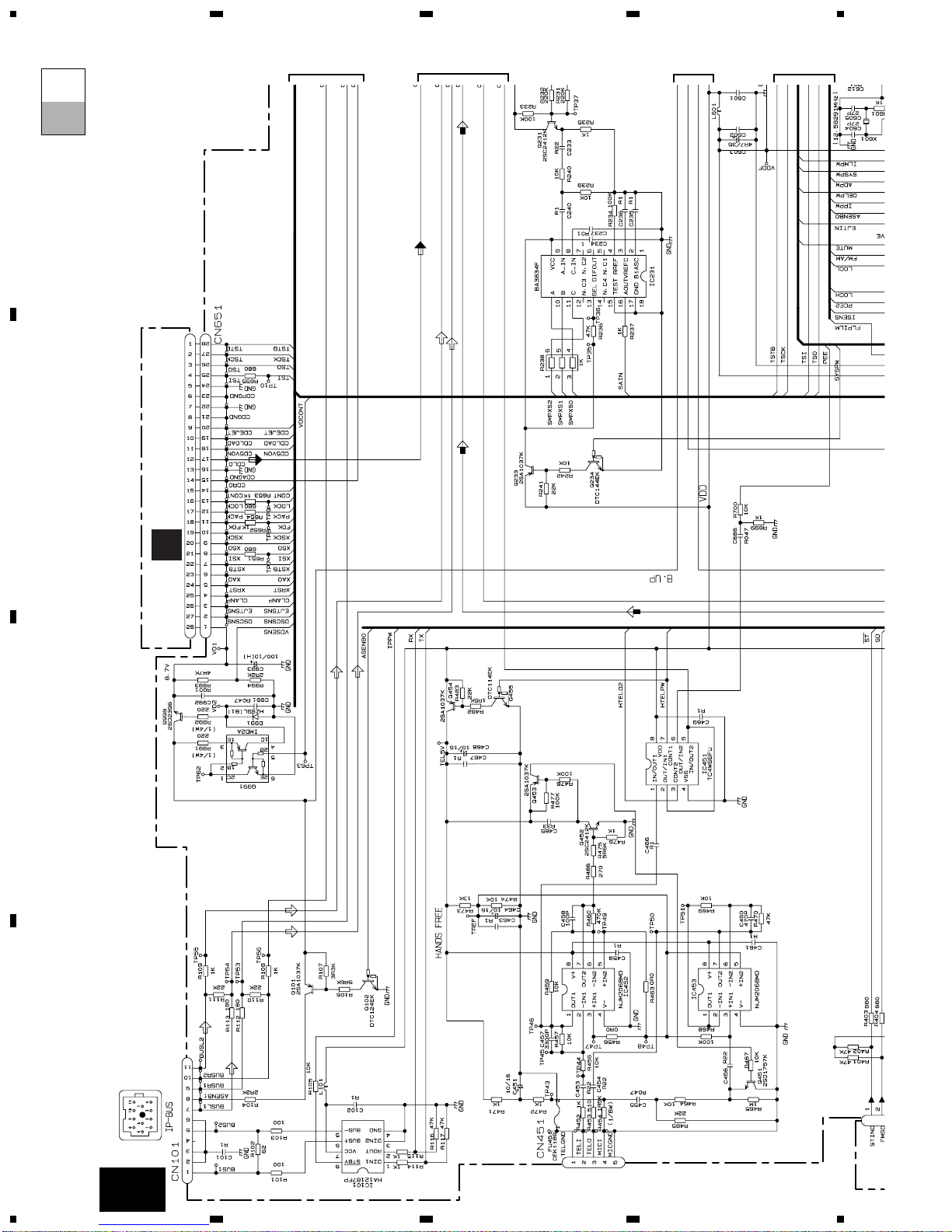

identical designation. TUNER AMP UNIT
A
CD SIGNAL
TUNER SIGNAL
IP-BUS SIGNAL
CD/TUNER/IP-BUS SIGNAL
DEH-P8200R/X1N/UC ONLY
SUB.W
RCA OUT
FRONT
RCA OUT
REAR
RCA OUT
CEK1136
>
MUTE
GND
BACK UP
ACC
ILM
B.REM
RL+
RL-
RR+
RR-
FL+
FL-
FR+
FR-
DRSW
ALARM
HIGH-OUT
CSS1495
SYSTEM CONTROLLER
P8200R
P8250
C601 C602
R1 R01
100P 100P
*** ***
97A (DEH-P8200R/X1N/UC)
99A (DEH-P8250/X1N/ES)
FM : 4.6dBs
AM : -5.9dBs
CD : 10.1dBs
IP-BUS : 10.3dBs
FM : 30.6dBs
AM : 20.1dBs
CD : 36.1dBs
IP-BUS : 36.3dBs

14
DEH-P8200R,P8250
1234
1234
D
C
B
A
A-a
A-a A-b
>
CN701
CONTROL UNIT
D
CSS1495
200mA
***
***
HANDS FREE KIT
FM : -19.5dBs AM : -30dBs
IP-BUS : 2.2dBs
CD : 0dBs
1
2
3
4

15
DEH-P8200R,P8250
5678
5678
D
C
B
A
A-a
A-a A-b
FM/AM TUNER UNIT
B
DEH-P8200R/X1N/UC ONLY
KEYBOARD UNIT
CCN1901
PANEL PCB UNIT
F
CN902
CN903
DSP-201M-A21F
CSS1495
CSS1500
SYSTEM CONT
P8200R
P8250
C613
R01
100P
***
PE5097A (DEH-P820
PE5099A (DEH-P825
FM : -19.5dBs AM : -30dBs
5
6

16
DEH-P8200R,P8250
1234
1234
D
C
B
A
A-a A-b
A-b

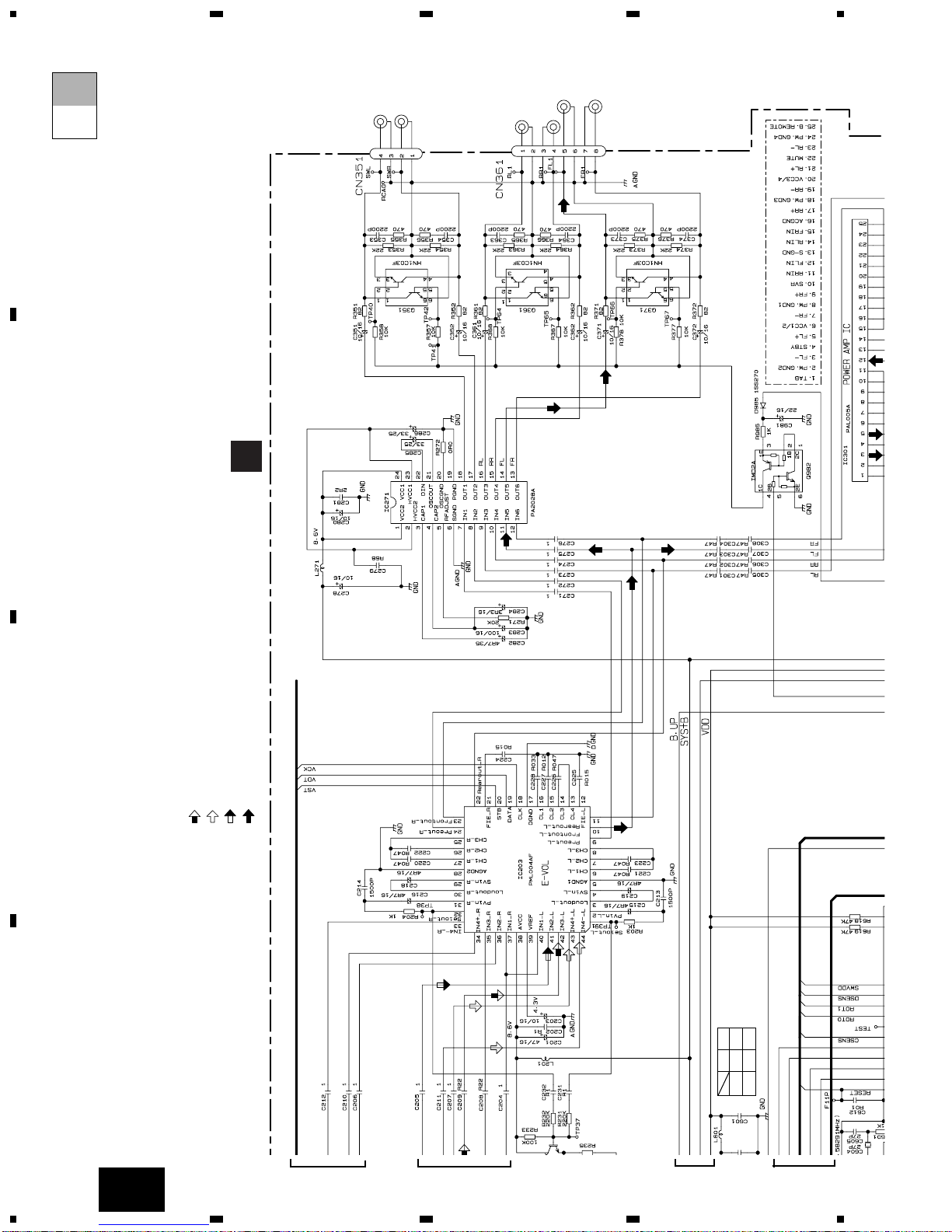

The >mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. TUNER AMP UNIT
A
CD SIGNAL
TUNER SIGNAL
IP-BUS SIGNAL
CD/TUNER/IP-BUS SIGNAL
SUB.W RCA OUT
FRONT RCA OUT
REAR RCA OUT
HIGH-OUT
P8200R
P8250
C601 C602
R1 R01
100P 100P
***
***
FM : 4.6dBs AM : -5.9dBs
CD : 10.1dBs
IP-BUS : 10.3dBs
1
2
3
4

17
DEH-P8200R,P8250
5678
5678
D
C
B
A
A-b
A-a A-b
Decimal points for resistor and capacitor fixed values are expressed as : 2.2 2R2 0.022 R022
←
←
Symbol indicates a resistor. No differentiation is made between chip resistors and discrete resistors.
NOTE :
Symbol indicates a capacitor. No differentiation is made between chip capacitors and discrete capacitors.
DEH-P8200R/X1N/UC ONLY
CEK1136
>
MUTE
GND
BACK UP
ACC
ILM
B.REM
RL+ RL- RR+ RR- FL+ FL- FR+ FR-
DRSW ALARM
M CONTROLLER
EH-P8200R/X1N/UC)
H-P8250/X1N/ES)
FM : 30.6dBs AM : 20.1dBs
CD : 36.1dBs
IP-BUS : 36.3dBs
5
6

18
DEH-P8200R,P8250
1234
1234
D
C
B
A
B
3.3 FM/AM TUNER UNIT
KV1410(23)
Mark
None
F0
F65
F125
A0
A74
A125
Band
–
FM
FM
FM
AM
AM
AM
Input Level
–
0dBf
65dBf
125dBf
0dBµ
74dBµ
125dBµ
DAN217U
B
A
FM/AM TUNER UNIT

19
DEH-P8200R,P8250
5678
5678
D
C
B
A
B
KV1410(23)

OEL
TEXT
20
DEH-P8200R,P8250
1234
1234
D
C
B
A

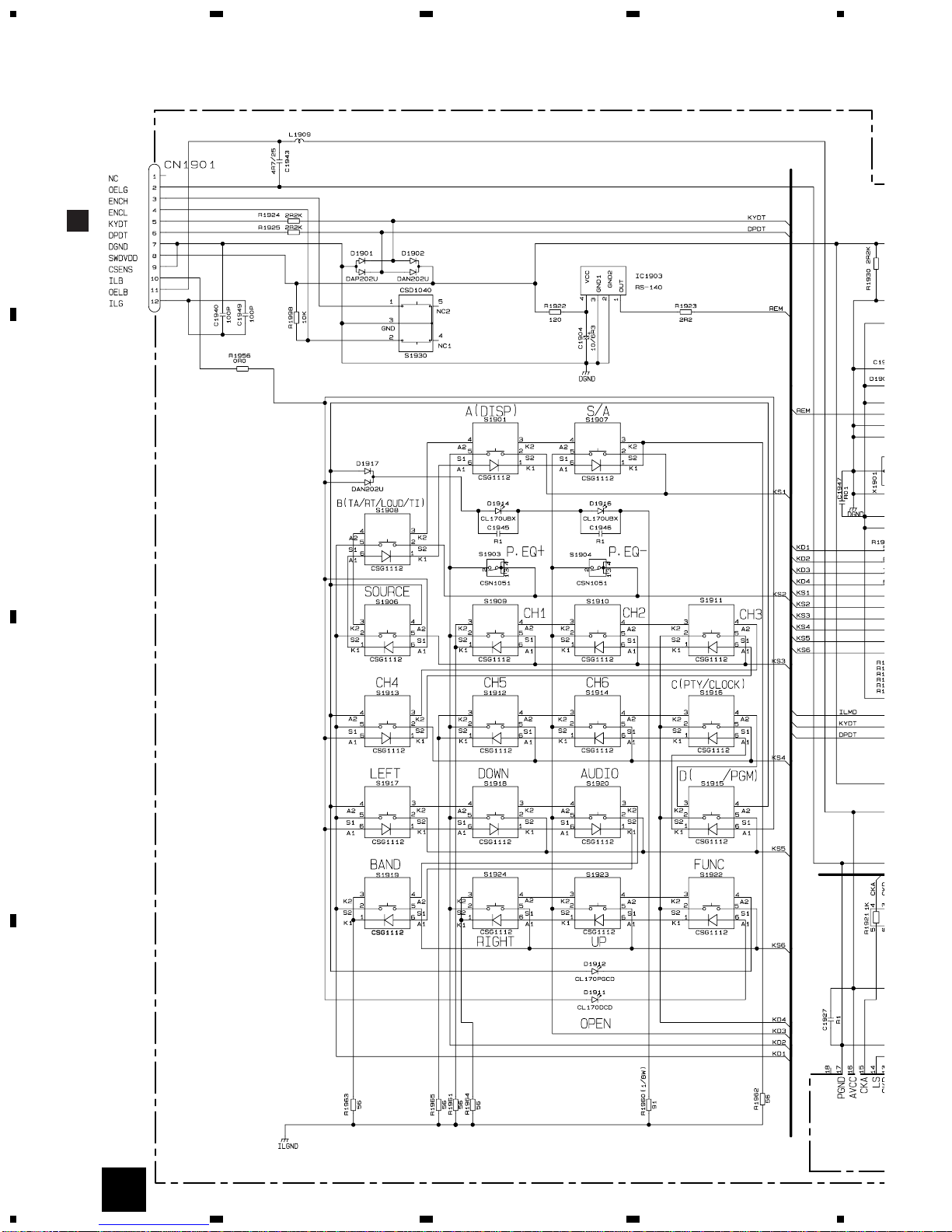

3.4 KEYBOARD UNIT
C
F
CN903
