Pioneer DVH-3220UB User manual

Operation Manual
DVD RDS RECEIVER
DVH-3200UB
DVH-3220UB
English

Thank you for purchasing this PIONEER product.
To ensure proper use, please read through this manual before using this product.
Please keep the manual in a safe and accessible place for future reference.
Be sure to read this
!DVD video disc region numbers 5
!Handling guideline 34
Before You Start
To ensure safe driving 4
Information for users on collection and
disposal of old equipment and used
batteries 4
In case of trouble 4
About this unit 5
–DVD video disc region numbers 5
Operating this unit
Head unit 6
Remote control 7
–Using the remote control operation
mode switch 9
–DVH mode operation 9
–DVD mode operation 9
–S-DVD mode operation 9
Display indication 9
Basic Operations of this unit 10
Use and care of the remote control 11
Menu operations identical for function
settings/audio adjustments/initial settings/
lists 12
Tuner 12
–Basic Operations 12
–Storing and recalling stations 12
–Switching the RDS display 12
–Advanced operations using special
buttons 13
–Function settings 13
Built-in DVD player 14
–Basic Operations 14
–Basic playback controls 14
–Switching the media file type 15
–Operating the DVD menu 15
–PBC playback 15
–Playing DivXâVOD content 15
–CM skip/CM back 16
–Resume playback (Bookmark) 16
–Specifying title 16
–Specifying track 16
–Searching for the part you want to
play 16
–Changing audio language during
playback (Multi-audio) 17
–Changing the subtitle language during
playback (Multi-subtitle) 17
–Changing the viewing angle during
playback (Multi-angle) 17
–Frame-by-frame playback 18
–Slow motion playback 18
–Return to the specified scene 18
–Automatic playback of DVDs 18
–Displaying text information 18
–Selecting and playing titles/files/tracks
from the title/file name/track title
list 19
–Advanced operations using special
buttons 19
–Function settings 19
–Switching the information display 20
USB portable audio player/USB memory 22
–Basic Operations 22
–Switching the media file type 22
–Selecting a file directly in the current
folder 22
–Displaying text information 22
–Selecting files from the file name
list 22
–Advanced operations using special
buttons 22
–Function settings 23
Contents
En
2

–Switching the information display 23
Audio Adjustments 23
Setting up the DVD player 24
–Introduction of DVD setup
adjustments 24
–Menu operations identical for DVD
setup adjustments 24
–Setting the subtitle language 25
–Setting the audio language 25
–Setting the menu language 25
–Setting the on screen display
language 25
–Setting the character set 26
–Setting the angle icon display 26
–Setting the aspect ratio 26
–Setting the slide show interval 27
–Setting parental lock 27
–Setting the DivX subtitle file 28
–Setting for digital output 28
–Displaying the DivXâVOD registration
code 29
–Setting the down sampling output 29
Initial Settings 29
Using an AUX source 30
Using the PGM button 30
Additional Information
Troubleshooting 31
Error messages 33
Handling guideline 34
Compressed audio compatibility (disc,
USB) 36
Sequence of audio files 37
Russian character chart 38
Language code chart for DVD 39
Copyright and trademark 40
Specifications 42
En 3
Contents

To ensure safe driving
WARNING
!To avoid the risk of accident and the potential
violation of applicable laws, the front DVD or
TV (sold separately) feature should never be
used while the vehicle is being driven. Also,
rear displays should not be in a location
where they are visibly distracting to the driver.
!In some countries or states the viewing of
images on a display inside a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply, they must be
obeyed and this unit’s DVD features should
not be used.
!NEVER install the display in a location that
enables the driver to watch the DVD or Video
CD while driving.
When you park your car in a safe place and
apply the parking brake, the picture appears
on the screen.
Information for users on
collection and disposal of old
equipment and used batteries
(Symbol for equipment)
(Symbol examples for batteries)
These symbols on the products, packa-
ging, and/or accompanying documents
mean that used electrical and electronic
products and batteries should not be
mixed with general household waste.
For proper treatment, recovery and recy-
cling of old products and used batteries,
please take them to applicable collection
points in accordance with your national
legislation.
By disposing of these products and batteries
correctly, you will help to save valuable re-
sources and prevent any potential negative ef-
fects on human health and the environment
which could otherwise arise from inappropri-
ate waste handling.
For more information about collection and re-
cycling of old products and batteries, please
contact your local municipality, your waste
disposal service or the point of sale where you
purchased the items.
These symbols are only valid in the Eur-
opean Union.
For countries outside the European
Union:
If you wish to discard these items, please con-
tact your local authorities or dealer and ask for
the correct method of disposal.
In case of trouble
Should this unit fail to operate properly, please
contact your dealer or nearest authorized
PIONEER Service Station.
En
4
Section
01 Before You Start

About this unit
The tuner frequencies on this unit are allo-
cated for use in Europe, Asia, the Middle East,
Africa and Oceania. Use in other areas may re-
sult in poor reception. The RDS (radio data
system) function operates only in areas with
FM stations broadcasting RDS signals.
CAUTION
!Do not allow this unit to come into contact
with liquids. Electrical shock could result.
Also, damage to this unit, smoke, and over-
heating could result from contact with liquids.
!“CLASS 1 LASER PRODUCT”
This product is a class 1 laser product classi-
fied under the Safety of laser products, IEC
60825-1:2007, but this product contains a
laser diode higher than Class 1. To ensure
continued safety, do not remove any covers or
attempt to gain access to the inside of the pro-
duct. Refer all servicing to qualified person-
nel.
!Always keep the volume low enough to hear
outside sounds.
!Avoid exposure to moisture.
!If the battery is disconnected or discharged,
any preset memory will be erased.
DVD video disc region numbers
Only DVD video discs with compatible region
numbers can be played on this player. You can
find the region number of the player on the
bottom of this unit and in this manual (refer to
Specifications on page 42).
En 5
Section
01
Before You Start
Before You Start

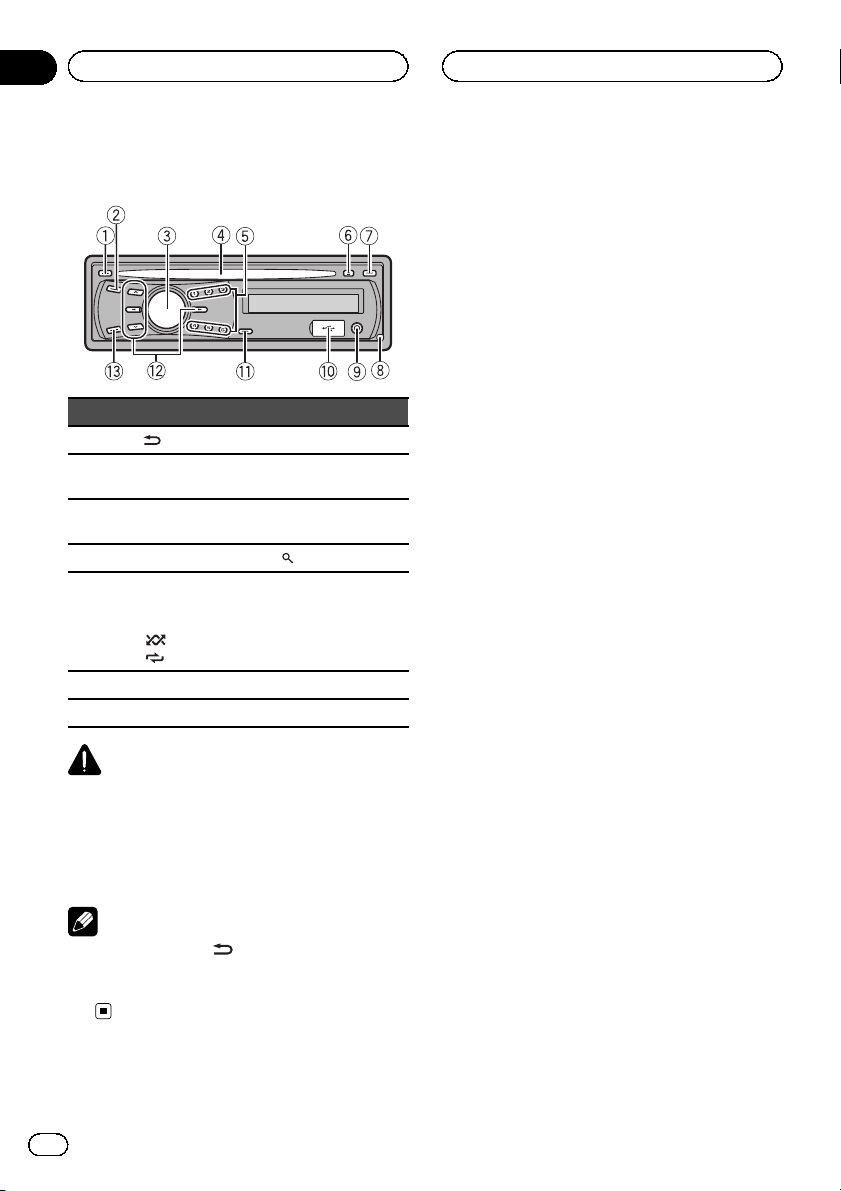

Head unit
Part Part
1DISP//SCRL 8Detach button
2SRC/OFF 9AUX input jack (3.5
mm stereo jack)
3MULTI-CONTROL
(M.C.)aUSB port
4Disc loading slot b(list)
5
1to 6
!1/S.Rtrv
!2/PAUSE
!5/
!6/
ca/b/c/d
6h(eject) dBAND/ESC
7TA/AF
CAUTION
Use an optional Pioneer USB cable (CD-U50E) to
connect the USB audio player/USB memory as
any device connected directly to the unit will pro-
trude out from the unit and may be dangerous.
Do not use unauthorized products.
Note
The function of DISP//SCRL is different de-
pending on the setting of the display connection
(refer to V.OUT (display connection) on page
30).
En
6
Section
02 Operating this unit

Remote control














































Button names DVH mode DVD and S-DVD mode
1 SOURCE Press to cycle through all the available sources. Press and hold to turn the source
off.
2ATT Press to quickly lower the volume level by about 90%. Press once more to return
to the original volume level.
3 VOLUME Press to increase or decrease volume.
4
AUDIO Press to change the audio language/audio system during DVD playback.
SUBTITLE Press to change the subtitle language during DVD playback.
ANGLE Press to change the viewing angle during DVD playback.
5 AUTO PLAY Press to turn the DVD auto-playback function on or off.
6 RETURN Press to display the PBC (playback control) menu during PBC playback.
7 BOOKMARK
Press to operate the preprogrammed func-
tions for each source. (Refer to Using the
PGM button on page 30.)
Press to turn the bookmark function
on or off. For details, refer to Resume
playback (Bookmark) on page 16.
En 7
Section
02
Operating this unit
Operating this unit

Button names DVH mode DVD and S-DVD mode
8Remote control operation
mode switch
Switch the operation mode between DVD,S-DVD and DVH modes. Normally, set
to DVH. For details, refer to Using the remote control operation mode switch on
the next page.
9 CM BACK/CM SKIP Press to skip progressively backward/forward through the video playing.
10 DIRECT Press to select channels directly. Not used.
11 A.MENU Press to select various sound quality controls.
12 FUNC Press to select functions.
13 0 to 10,CLEAR
Press 0to 9to input numbers. Buttons 1
to 6can operate the preset tuning for the
tuner. Press CLEAR to clear the input
numbers.
Press to select a menu item on a
video CD featuring PBC (playback
control).
14 BAND
Press to select among two FM bands and
MW/LW bands and to cancel control
modes of functions.
Press to switch between media file
types. (Refer to Switching the media
file type on page 15.)
15 DISP
Press to turn the information display on or off when the video is displayed.
Depending on the selected source, pressing this button can switch the display in-
dication.
16
PLAY/PAUSE (f) Press to switch sequentially between playback and pause.
REVERSE (m) Press to perform fast reverse.
FORWARD (n) Press to perform fast forward.
PREVIOUS (o) Press to return to the previous track (chapter).
NEXT (p) Press to go to the next track (chapter).
STEP (r/q)
Press to move ahead one frame at a time during DVD/VideoCD playback. Press
and hold for one second to activate slow playback.
If a DVD-VR disc contains a still image, press rwhile displaying a still image to
switch to the next image or video.
STOP (g) Not used. Press to stop playback.
17
Move the thumb pad
Functions are the same as M.C. on the
head unit.
Move to operate fast forward, reverse and
track search controls. Also used for con-
trolling functions.
Use to select a menu on the DVD
menu.
Click the thumb pad Click to display the track title list, folder
list or file list depending on the source.
Click to select a menu on the DVD
menu.
18
MENU Press to display the DVD menu during DVD playback.
TOP MENU Press to return to the top menu during DVD playback.
En
8
Section
02 Operating this unit

Using the remote control
operation mode switch
There are three remote control operation
modes on the remote control. If you want to
operate this unit by remote control, turn the
mode switch to DVH mode. In this case, both
the head unit’s buttons and the remote control
can control this unit.
DVH mode operation
When operating this unit by remote control,
the mode is normally switched to DVH.
!The thumb pad on the remote control can
perform the same operations as M.C. on
the head unit.
DVD mode operation
If you switch the mode to DVD, the thumb pad
and 0to 10 operations are changed for the
DVD player.
%When you want to operate the follow-
ing functions, switch the mode to DVD:
!When operating the DVD menu by using
the thumb pad. (Refer to Operating the DVD
menu on page 15.)
!When operating the PBC menu by using 0
to 10. (Refer to PBC playback on page 15.)
!When specifying title or track by using 0to
10. (Refer to Specifying title on page 16 and
Specifying track on page 16.)
!When operating the DVD setup menu by
using the thumb pad. (Refer to Setting up
the DVD player on page 24.)
S-DVD mode operation
When using the remote control with this unit,
there is no need to switch to S-DVD mode.
Display indication
Indicator Operation
1
Main dis-
play sec-
tion
!Tuner: band and frequency
!RDS: program service name,
PTY information and other lit-
eral information
!Built-in DVD player and USB:
elapsed playback time and lit-
eral information
2(artist) The disc (track) artist name is dis-
played.
3(disc) The disc (album) name is dis-
played.
4(song)
The track (song) name is dis-
played.
A playable file is displayed during
viewing the file name list of disc
and a USB storage device.
5cAn upper tier of folder or menu
exists.
6(list) The list function is operated.
7dA lower tier of folder or menu ex-
ists.
8LOC The local seek tuning is on.
9LOUD
(loudness) The loudness is on.
a(TA)
indicator TA function is on.
b(TP)
indicator A TP station is tuned in.
c(AF)
indicator
AF (alternative frequencies
search) function is on.
d5(stereo) The selected frequency is being
broadcasted in stereo.
En 9
Section
02
Operating this unit
Operating this unit

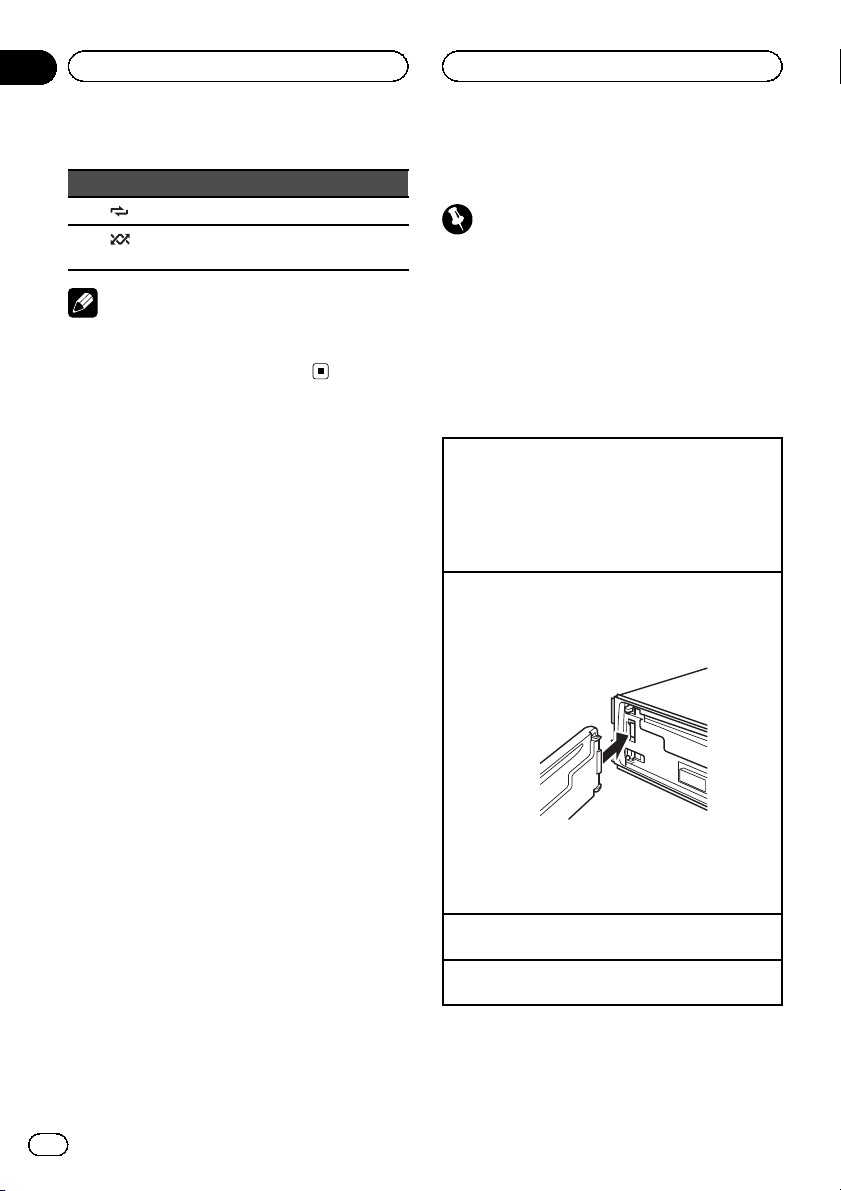

Indicator Operation
e(repeat) Track or folder repeat is on.
f(ran-
dom) Random play is on.
Note
When you set the display connection (refer to
V.OUT (display connection) on page 30) to on, the
indicators of 2to 7do not appear.
Basic Operations of this unit
Important
!Handle gently when removing or attaching
the front panel.
!Avoid subjecting the front panel to excessive
shock.
!Keep the front panel out of direct sunlight and
high temperatures.
!To avoid damage to the device or vehicle inter-
ior, remove any cables and devices attached
to the front panel before detaching it.
Removing the front panel to protect your unit from
theft
1Press the detach button to release the front
panel.
2Grab the front panel and remove.
3Put the front panel into the provided protective
case for safe keeping.
Re-attaching the front panel
1Slide the front panel to the left until it clicks.
Front panel and the head unit are connected on
the left side. Make sure that the front panel has
been properly connected to the head unit.
2Press the right side of the front panel until it is
firmly seated.
If you can’t attach the front panel to the head unit
successfully, try again. However, forcing the front
panel into place may result in damage.
Turning the unit on
1Press SRC/OFF to turn the unit on.
Turning the unit off
1Press SRC/OFF and hold until the unit turns off.
En
10
Section
02 Operating this unit

Selecting a source
1Press SRC/OFF repeatedly to switch between the
following sources:
TUNER (tuner)—DVD (built-in DVD player)—USB
(USB storage device)—AUX (AUX)
Adjusting the volume
1Turn M.C. to adjust volume.
Notes
!Listening to the radio while connecting a USB
storage device to this unit may generate
noise. In this case disconnect the USB sto-
rage device.
!When this unit’s blue/white lead is connected
to the vehicle’s auto-antenna relay control
terminal, the vehicle’s antenna extends when
this unit’s source is turned on. To retract the
antenna, turn the source off.
Use and care of the remote
control
Using the remote control
1Point the remote control in the direction of the
front panel to operate.
When using for the first time, pull out the film
protruding from the tray.
Replacing the battery
1Slide the tray out on the back of the remote con-
trol.
2Insert the battery with the plus (+) and minus (–)
poles aligned properly.
Important
!Do not store the remote control in high tem-
peratures or direct sunlight.
!The remote control may not function properly
in direct sunlight.
!Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
WARNING
!Keep the battery out of the reach of children.
Should the battery be swallowed, consult a
doctor immediately.
!Batteries (battery pack or batteries installed)
must not be exposed to excessive heat such
as sunshine, fire or the like.
CAUTION
!Use one CR2025 (3 V) lithium battery.
!Remove the battery if the remote control is not
used for a month or longer.
!There is a danger of explosion if the battery is
incorrectly replaced. Replace only with the
same or equivalent type.
!Do not handle the battery with metallic tools.
!Do not store the battery with metallic objects.
!If the battery leaks, wipe the remote control
completely clean and install a new battery.
!When disposing of used batteries, comply
with governmental regulations or environmen-
tal public institutions’rules that apply in your
country/area.
En 11
Section
02
Operating this unit
Operating this unit

Menu operations identical
for function settings/audio
adjustments/initial
settings/lists
Returning to the previous display
Returning to the previous list (the folder one level
higher)
1Press DISP//SCRL.
Returning to the main menu
1Press and hold DISP//SCRL.
Returning to the ordinary display
1Press BAND/ESC.
Tuner
Basic Operations
Selecting a band
1Press BAND/ESC until the desired band (FM1,
FM2 for FM or MW/LW) is displayed.
The FM bands cover different frequency ranges
as below:
FM1: 65 MHz to 74 MHz
FM2: 87.5 MHz to 108 MHz
Manual tuning (step by step)
1Press cor d.
Seeking
1Press and hold cor d, and then release.
You can cancel seek tuning by briefly pressing c
or d.
While pressing and holding cor d, you can skip
stations. Seek tuning starts as soon as you re-
lease cor d.
Note
This unit’s AF (alternative frequencies search)
function can be turned on and off. AF should be
off for normal tuning operation (refer to the next
page).
Storing and recalling stations
You can easily store up to six stations for each
band as presets.
%When you find a station that you want
to store in memory, press one of the preset
tuning buttons (1/S.Rtrv to 6/ ) and hold
until the preset number stops flashing.
Stored radio station frequency can be recalled
by pressing the preset tuning button.
#You can also recall stored radio stations by
pressing aor bduring the frequency display.
Switching the RDS display
RDS (radio data system) contains digital infor-
mation that helps search for the radio sta-
tions.
%Press DISP/ /SCRL.
Program service name—PTY information—
Frequency
#PTY information and the frequency appear on
the display for eight seconds.
PTY list
NEWS (News), AFFAIRS (Current affairs), INFO (Infor-
mation), SPORT (Sports), WEATHER (Weather), FI-
NANCE (Finance), POP MUS (Popular music), ROCK
MUS (Rock music), EASY MUS (Easy listening), OTH
MUS (Other music), JAZZ (Jazz), COUNTRY (Country
music), NAT MUS (National music), OLDIES (Oldies
music), FOLK MUS (Folk music), L. CLASS (Light clas-
sical), CLASSIC (Classical), EDUCATE (Education),
DRAMA (Drama), CULTURE (Culture), SCIENCE
(Science), VARIED (Varied), CHILDREN (Children’s),
SOCIAL (Social affairs), RELIGION (Religion), PHONE
IN (Phone in), TOURING (Travel), LEISURE (Leisure),
DOCUMENT (Documentaries)
En
12
Section
02 Operating this unit

Advanced operations using
special buttons
Selecting alternative frequencies
When the tuner cannot get a good reception, the unit
automatically searches for a different station in the
same network.
1Press and hold TA/AF to turn AF on or off.
Receiving traffic announcements
Regardless of the source you are listening to, you can
receive traffic announcements automatically with TA
(traffic announcement standby).
1Tune in to a TP or enhanced other network’sTP
station.
2Press TA/AF to turn traffic announcement stand-
by on or off.
3Use M.C. to adjust the TA volume when a traffic
announcement begins.
The newly set volume is stored in the memory
and will be recalled for subsequent traffic an-
nouncements.
4Press TA/AF while a traffic announcement is
being received to cancel the announcement.
The tuner returns to the original source but re-
mains in the standby mode until TA/AF is pressed
again.
Using PI Seek
If the tuner cannot find a suitable station, or
the reception status deteriorates, the unit
automatically searches for a different station
with the same programming. During the
search, PI SEEK is displayed and sound is
muted.
Using Auto PI Seek for preset stations
When preset stations cannot be recalled, the
unit can be set to perform PI Seek during pre-
set recall.
!The default setting for Auto PI Seek is off.
Refer to AUTO-PI (auto PI seek) on page 29.
Function settings
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option
and press to select FUNCTION.
3 Turn M.C. to select the function.
After selecting, perform the following proce-
dures to set the function.
BSM (best stations memory)
BSM (best stations memory) automatically stores the
six strongest stations in the order of their signal
strength.
1Press M.C. to turn BSM on.
To cancel, press M.C. again.
REGION (regional)
When AF is used, the regional function limits the se-
lection of stations to those broadcasting regional pro-
grams.
1Press M.C. to turn the regional function on or off.
LOCAL (local seek tuning)
Local seek tuning lets you tune in to only those radio
stations with sufficiently strong signals for good re-
ception.
1Press M.C. to display the setting mode.
2Turn M.C. to select the desired setting.
FM: OFF—LEVEL 1—LEVEL 2—LEVEL 3—LEVEL
4
MW/LW: OFF—LEVEL 1—LEVEL 2
The larger the setting number, the higher the sig-
nal level. The highest level setting allows recep-
tion of only the strongest stations; while lower
settings let you receive progressively weaker sta-
tions.
3Press M.C. to confirm the selection.
TA (traffic announcement standby)
1Press M.C. to turn traffic announcement standby
on or off.
AF (alternative frequencies search)
1Press M.C. to turn AF on or off.
Notes
!If MW/LW band is selected, you can only se-
lect BSM or LOCAL.
!Operation is complete even if the menu is can-
celled before being confirmed.
En 13
Section
02
Operating this unit
Operating this unit

Built-in DVD player
Basic Operations
Playing a disc
1Insert the disc into the disc loading slot with the
label side up.
If a disc has already been inserted, press SRC/
OFF to select DVD (built-in DVD player).
Ejecting a disc
1Press h.
Selecting a folder
1Press aor b.
You cannot select a folder that does not have a
compressed audio file recorded in it.
Selecting a chapter/track/file
1Press cor d.
You can also skip back or forward to another
chapter/track/file by pressing oor p.
During PBC playback, a menu may be displayed
if you perform these operations.
Fast forwarding or reversing
1Press and hold cor d.
When DVD, DivX disc or Video CD is playing, if
you press and hold cor dfor five seconds, the
icon mor nis highlighted. When this hap-
pens, fast reverse/fast forward continues even if
you release cor d. To resume playback at a de-
sired point, press f.
Returning to root folder
1Press and hold BAND/ESC.
Notes
!When the automatic playback function is on,
this unit will cancel the DVD menu and auto-
matically start playback from the first chapter
of the first title. Refer to Automatic playback of
DVDs on page 18.
!If you are playing a DVD or Video CD, a menu
may appear. Refer to Operating the DVD menu
on the next page and PBC playback on the
next page.
!When loading a CD/CD-R/RW containing
JPEG picture files, this unit automatically
starts a slideshow from the first folder/picture
on the disc. The player displays the pictures in
each folder in alphabetical order.
!If the bookmark function is on, DVD playback
resumes from the selected point. For more de-
tails, refer to Resume playback (Bookmark) on
page 16.
!When you are watching a DVD and attempt to
perform an operation, it may not be performed
due to the programming on the disc. When
this happens, the unit indicates the button
on the screen.
Basic playback controls
The table below shows the basic controls for
playing discs. The following chapters cover
other playback features in more details.
Button What it does
f
Starts playback, pauses a disc that’s play-
ing or restarts a paused disc.
Starts the slideshow, pauses the slideshow
or restarts a paused disc.
gStops playback.
mPress and hold to perform fast reverse.
nPress and hold to perform fast forward.
o
Skips to the start of the current track, chap-
ter or file, then to previous tracks/chapters/
files.
Displays the previous picture.
pSkips to the next track, chapter or file.
Displays the next picture.
Notes
!You may find with some DVD or Video CD
discs that some playback controls do not work
in certain parts of the disc. This is not a mal-
function.
!If the remote control is set to DVH,gdoes
not operate.
En
14
Section
02 Operating this unit

Switching the media file type
When playing a disc containing a mixture of various
media file types, such as DivX and MP3, you can
switch between media file types to play.
!In case of DVD-R/RW/ROM, this unit does not
allow playback of audio data (CD-DA) and JPEG
file.
1Press BAND/ESC to switch between media file
types.
Operating the DVD menu
Some DVDs allow you to make a selection from the
disc contents using a menu.
!This function is available for DVD video.
!You can display the menu by pressing the MENU
or TOP MENU while a disc is playing. Pressing
MENU again lets you start playback from the lo-
cation selected from the menu. For details, refer
to the instructions provided with the disc.
!Ways to display the menu will differ depending on
the disc.
1Press a/b/c/dto select the desired menu op-
tion.
2Press M.C.
Playback starts from the selected menu item.
PBC playback
With Video CDs featuring PBC (playback control)
function, you can operate a menu.
!This function is available for Video CD.
1When PBC menu is displayed, press 0to 9corre-
sponding to a menu number to start playback.
When the menu is two or more pages long, press
oor pto switch between displays.
Notes
!You can display the menu by pressing
RETURN during PBC playback. For details,
refer to the instructions provided with the
disc.
!PBC playback of a Video CD cannot be can-
celed.
!During playback of Video CDs featuring PBC
(Playback Control), PBC, search and time
search functions cannot be used nor can you
select the range for repeat play.
Playing DivXâVOD content
Some DivX VOD (video on demand) content may only
be playable a fixed number of times. When you load a
disc containing this type of DivX VOD content, the re-
maining number of plays is shown on-screen and you
then have the option of playing the disc (thereby
using up one of the remaining plays), or stopping. If
you load a disc that contains expired DivX VOD con-
tent (for example, content that has zero remaining
plays), EXPIRED (Rental Expired) is displayed.
!If there is no limit to the number of times the DivX
VOD content can be viewed, then you may load
the disc into your player and play the content as
often as you like, and no message will be dis-
played.
1If the message is displayed after loading a disc
containing DivX VOD content, press f.
Playback of the DivX VOD content will start.
To skip to the next file, press p.
If you do not want to play the DivX VOD content,
press g.
Important
!In order to play DivX VOD content on this unit,
you first need to register the unit with your
DivX VOD content provider. About your regis-
tration code, refer to page 29.
!DivX VOD content is protected by a DRM (Di-
gital Rights Management) system. This re-
stricts playback of content to specific,
registered devices.
En 15
Section
02
Operating this unit
Operating this unit

CM skip/CM back
This function skips a reproduced image for a speci-
fied time. If the currently playing disc contains com-
mercials, it is possible to skip them.
!This function is available for DVD.
1To skip progressively backward or forward, press
CM BACK or CM SKIP.
Each time you press CM BACK or CM SKIP it
changes steps in the following order:
!CM back
5sec.—15 sec.—30 sec.—1.0 min.—2.0 min.—
3.0 min.—0 sec.
!CM skip
30 sec.—1.0 min.—1.5 min.—2.0 min.—3.0 min.
—5.0 min.—10.0 min.—0 sec.
After displaying the selected option for two sec-
onds, reproduced image skips.
Resume playback (Bookmark)
By using the Bookmark function, you can resume
playback from a selected scene the next time the disc
is loaded.
To perform this function, set the remote control to
DVD mode.
!This function is available for DVD video.
1During playback, press BOOKMARK at the point
you want to resume playback next time.
The selected scene will be bookmarked so that
playback resumes from that point next time. You
can bookmark up to five discs. After that, the old-
est bookmark is replaced by the new one.
!To clear the bookmark on a disc, press and hold
BOOKMARK during playback.
!You can also bookmark a disc by pressing and
holding EJECT at the point you want to bookmark.
Next time you load the disc, playback will resume
from the bookmarked point. Note that you can
only bookmark one disc using this method. To
clear the bookmark on a disc, press EJECT.
Specifying title
!This function is available for DVD.
!To perform this function, set the remote control to
DVD mode.
1Press 0to 10 corresponding to a desired title
number when the disc is stopped.
Title number is displayed for eight seconds and play-
back starts from the selected title.
!To select 3, press 3.
!To select 10, press 10 and 0in that order.
!To select 23, press 10,10 and 3in that order.
Specifying track
You can use the search function to specify a track to
search for a desired track.
!This function is available for Video CD.
!This function cannot be operated during Video
CD playback featuring PBC (playback control).
!To perform this function, set the remote control to
DVD mode.
For the numbers to press, please refer to Specifying
title on this page.
Searching for the part you
want to play
You can use the search function to find the part you
want to play.
!Chapter search and track search are not possible
when disc playback has been stopped.
!This function cannot be operated during Video
CD playback featuring PBC (playback control).
!To perform this function, set the remote control to
DVH mode.
1Press DIRECT.
2Press 0to 9to input the desired number.
To cancel the inputted numbers, press CLEAR.
3Press DIRECT.
This starts playback from the selected part.
En
16
Section
02 Operating this unit

Note
With discs featuring a menu, you can also press
MENU or TOP MENU and then make selections
from the displayed menu.
Changing audio language
during playback (Multi-audio)
With DVDs that provides audio playback in different
languages and different audio systems (Dolby Digital,
DTS, etc.), you can switch between languages/audio
systems during playback.
!This function is available for DVD and DivX disc.
1Press AUDIO during playback.
2Press AUDIO while the audio selection icon is
displayed.
The audio changes each time you press AUDIO.
Notes
!With some DVDs, switching between lan-
guages/audio systems may only be possible
using a menu display.
!You can also switch between languages/audio
systems using DVD setup menu. For details,
refer to Setting the audio language on page 25.
!Only digital output of DTS audio is possible. If
the unit’s optical digital outputs are not con-
nected, select an audio setting other than
DTS.
!Display indications such as Dolby D and Mch
indicate the audio system recorded on the
DVD. Depending on the setting, playback may
not be with the same audio system as that in-
dicated.
Changing the subtitle language
during playback (Multi-subtitle)
With DVDs featuring multi-subtitle recordings, you
can switch between subtitle languages during play-
back.
!This function is available for DVD and DivX disc.
1Press SUBTITLE during playback.
2Press SUBTITLE while the subtitle selection icon
is displayed.
The subtitle language changes each time you
press SUBTITLE.
Notes
!With some DVDs, switching between subtitle
languages may only be possible using a menu
display.
!You can also switch between subtitle lan-
guages using DVD setup menu. For details,
refer to Setting the subtitle language on page
25.
!Pressing SUBTITLE during fast forward/fast
reverse, pause or slow motion playback re-
turns you to normal playback.
Changing the viewing angle
during playback (Multi-angle)
With DVDs featuring multi-angle (scenes shot from
multiple angles) recordings, you can switch among
viewing angles during playback.
!This function is available for DVD video.
!During playback of a scene shot from multiple an-
gles, the angle icon is displayed. Turn angle
icon display on or off using the DVD setup menu.
For details, refer to Setting the angle icon display
on page 26.
1Press ANGLE during playback of a scene shot
from multiple angles.
2Press ANGLE while the angle icon and angle
number are displayed.
The angle changes each time you press ANGLE.
En 17
Section
02
Operating this unit
Operating this unit

Note
Pressing ANGLE during fast forward/fast reverse,
pause or slow motion playback returns you to
normal playback, but the viewing angle does not
change.
Frame-by-frame playback
This lets you move ahead one frame at a time during
playback.
!This function is available for DVD, DivX disc and
Video CD.
1Press rduring playback.
Each time you press r, you move ahead one
frame.
To return to normal playback, press f.
Images during frame-by-frame playback may be
unclear for some discs.
Slow motion playback
This lets you slow down playback speed.
!This function is available for DVD, DivX disc and
Video CD.
1Press rand hold during playback.
The icon is displayed, forward slow motion
playback begins.
2Press qor rto adjust playback speed during
slow motion playback.
Each time you press qor rit changes the
speed in four steps in the following order:
1/16—1/8—1/4—1/2
To return to normal playback, press f.
You cannot operate this step during DivX disc
playback.
Notes
!There is no sound during slow motion play-
back.
!Images during slow motion playback may be
unclear for some discs.
!Reverse slow motion playback is not available.
Return to the specified scene
You can return to the specified scene where the DVD
you are currently playing has been preprogrammed
to return.
!This function is available for DVD video.
1Press RETURN to return to the specified scene.
This function cannot be used if a specified scene
has not been preprogrammed on the DVD disc.
Automatic playback of DVDs
When a DVD disc with a DVD menu is inserted, this
unit will cancel the menu automatically and start
playback from the first chapter of the first title.
!This function is available for DVD video.
!Some DVDs may not operate properly. If this func-
tion is not fully operated, turn this function off
and start playback.
1Press AUTO PLAY to turn automatic playback on.
APLAY:ONis displayed.
To turn automatic playback off, press AUTO PLAY
again.
Displaying text information
Selecting the desired text information
1Press DISP//SCRL.
CD TEXT discs: Play time—disc title—disc ar-
tist name—track title—track artist name
Compressed audio files: Play time—folder
name—file name—track title—artist name—
album title—comment—bit rate—folder and
track numbers
Scrolling the text information to the left
1Press and hold DISP//SCRL.
Notes
!Incompatible text stored with the audio file
may not be displayed or may be displayed in-
correctly.
!Depending on the version of iTunes used to
write MP3 files onto a disc, comment informa-
tion may be incorrectly displayed.
En
18
Section
02 Operating this unit

!When playing back VBR (variable bit rate)-re-
corded WMA files, the average bit rate value is
displayed.
!When playing back VBR (variable bit rate)-re-
corded MP3 files, VBR is displayed instead of
bit rate value.
!When Ever Scroll is set to ON at the initial set-
ting, text information scrolls continuously in
the display. Refer to SCROLL (ever scroll) on
page 29.
Selecting and playing titles/
files/tracks from the title/file
name/track title list
1Press to switch to the title/file name/track title
list mode.
2Use M.C. to select the desired file name (or folder
name).
Changing title, file or folder name
1Turn M.C.
Playing
1When a file or track is selected, press M.C.
Viewing a list of the files (or folders) in the selected
folder
1When a folder is selected, press M.C.
Playing a song in the selected folder
1When a folder is selected, press and hold M.C.
Notes
!When the separately sold display is connected
to this unit, the listed information will appear
on it.
!Title list is available for DVD-VR.
!File name list is available for compressed
audio, JPEG and DivX disc.
!Track title list is available for CD TEXT.
Advanced operations using
special buttons
Selecting a repeat play range
1Press 6/to select the repeat range.
!TITLE –Repeat the current title
!CHAPTER –Repeat the current chapter
!TRACK –Repeat the current track
!FOLDER –Repeat the current folder
!DISC –Repeat all tracks
!During playback of Video CDs featuring PBC
(Playback Control), this function cannot be oper-
ated.
Playing tracks in random order
Tracks in a selected repeat range are played in ran-
dom order.
1Press 5/to turn random play on or off.
Pausing playback
1Press 2/PAUSE to pause or resume.
Enhancing compressed audio and restoring rich
sound (sound retriever)
1Press 1/S.Rtrv to cycle between:
OFF (off)—1—2
1is effective for low compression rates, and 2is
effective for high compression rates.
Function settings
1 Press M.C. to display the main menu.
2 Turn M.C. to change the menu option
and press to select FUNCTION.
3 Turn M.C. to select the function.
After selecting, perform the following proce-
dures to set the function.
REPEAT (repeat play)
1Press M.C. to display the setting mode.
2Turn M.C. to select a repeat play range.
For details, refer to Selecting a repeat play range on
this page.
3Press M.C. to confirm the selection.
RANDOM (random play)
En 19
Section
02
Operating this unit
Operating this unit

!This function is available for JPEG files, CD-DA
disc and compressed audio files.
1Press M.C. to turn random play on or off.
SCAN (scan play)
Scan play lets you hear the first 10 seconds of each
track on the CD.
!This function is available for CDs and compressed
audio disc.
1Press M.C. to turn scan play on or off.
LR SELECT (audio output)
When playing DVD video discs recorded with LPCM
audio, you can switch the audio output.
When playing Video CD discs, you can switch be-
tween stereo and monaural audio output.
!This function is available for DVD and Video CD.
!This function is not available when disc playback
is stopped.
!If you select Linear PCM, you can operate this
function when playing a disc recorded on a dual
mono mode. (Refer to Setting for digital output on
page 28.)
!You may not be able to select or use this function
depending on the disc and the playback location.
1Press M.C. to display the setting mode.
2Turn M.C. to select the desired setting.
!L+R –left and right
!L–left
!R–right
!MIX –mixing left and right
3Press M.C. to confirm the selection.
ROTATION (picture rotation)
!This function is available for JPEG files.
1Press M.C. to display the setting mode.
2Turn M.C. to select the desired setting.
!0–Cancel the rotation
!90 –Rotate 90 degrees
!180 –Rotate 180 degrees
!–90 –Rotate –90 degrees
3Press M.C. to confirm the selection.
PAUSE (pause)
1Press M.C. to pause or resume.
PLAYLIST (playlist)
You have two methods for playing DVD-VR disc; ORI-
GINAL (original) and PLAYLIST (playlist).
!Titles created with DVD recorders are called origi-
nal. Based on original, rearranged titles are called
playlist. Playlists are created on DVD-R/RW discs.
!This function is available for DVD-VR.
1Press M.C. to display the setting mode.
2Turn M.C. to select the desired play mode.
If the play mode is changed, playback starts from
the beginning of the selected play mode.
3Press M.C. to confirm the selection.
S.RTRV (sound retriever)
Automatically enhances compressed audio and re-
stores rich sound.
!This function is available for CD-DA, CD TEXT and
compressed audio files.
1Press M.C. to display the setting mode.
2Turn M.C. to select the desired setting.
Refer to Enhancing compressed audio and restor-
ing rich sound (sound retriever) on the previous
page
3Press M.C. to confirm the selection.
Notes
!Operation is complete even if the menu is can-
celled before being confirmed.
!During PBC (Playback Control) playback, you
cannot select REPEAT.
Switching the information display
When the video output is set to on in the initial
setting menu (refer to V.OUT (display connec-
tion) on page 30) and a separately sold display
is connected to this unit, the text information
appears on the display.
En
20
Section
02 Operating this unit
