Service
Manual
DEH-P90HDD/UC
HIGH POWER HDD/CD PLAYER WITH "MEMORY STICK" AND FM/AM TUNER
DEH-P90HDD UC
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-961 CRT2503 H2 CD Mech. Module:Circuit Description, Mech.Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................4
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...18
4. PCB CONNECTION DIAGRAM ................................54
5. ELECTRICAL PARTS LIST ........................................66
6. ADJUSTMENT..........................................................90
7. GENERAL INFORMATION .....................................109
7.1 DIAGNOSIS ......................................................109
7.1.1 DISASSEMBLY .......................................109
7.1.2 CONNECTOR FUNCTION DESCRIPTION .....115
7.2 IC ......................................................................116
7.3 OPERATIONAL FLOW CHART.........................141
7.4 CLEANING ........................................................142
8. OPERATIONS AND SPECIFICATIONS...................143
DEH-P900HDD EW,ES
For details, refer to "Important symbols for good services".

2
DEH-P90HDD,P900HDD
[ Important symbols for good services ]
In this manual, the symbols shown-below indicate that adjustments, settings or cleaning should be made securely.
When you find the procedures bearing any of the symbols, be sure to fulfill them:
2. Adjustments
To keep the original performances of the product, optimum adjustments or specification confirmation is indispensable.
In accordance with the procedures or instructions described in this manual, adjustments should be performed.
3. Cleaning
For optical pickups, tape-deck heads, lenses and mirrors used in projection monitors, and other parts requiring cleaning,
proper cleaning should be performed to restore their performances.
5. Lubricants, glues, and replacement parts
Appropriately applying grease or glue can maintain the product performances. But improper lubrication or applying
glue may lead to failures or troubles in the product. By following the instructions in this manual, be sure to apply the
prescribed grease or glue to proper portions by the appropriate amount.For replacement parts or tools, the prescribed
ones should be used.
4. Shipping mode and shipping screws
To protect the product from damages or failures that may be caused during transit, the shipping mode should be set or
the shipping screws should be installed before shipping out in accordance with this manual, if necessary.
1. Product safety
You should conform to the regulations governing the product (safety, radio and noise, and other regulations), and
should keep the safety during servicing by following the safety instructions described in this manual.
1. SAFETY INFORMATION
UC
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so
and refer the repair to a qualified service technician.
-Service Precautions
1. For pickup unit(CXX1305) handling, please refer
to"Disassembly"(see page 109).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 93).
4. You can't recover the data if the HDD should break
for some reason.
5. Be careful to handle HDDs (as HDD navigation sys-
tems).
6. An external power supply box is used along with the
unit. Customers may consult their dealers without
bringing the box.
7. You can't play your data with any HDD or product
other than the original one, because each product
has its ID (CXK2000EN) for protecting copyrights.
Please use both of the ID and the data in the HDD as
paired with each other. (For example, if you
exchange the digital units because your unit has
defects, remove IC3305: CXK2000EN from the defec-
tive unit and install it in the new unit for use.)

3
DEH-P90HDD,P900HDD
EW
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. A “CLASS 1 LASER PRODUCT” label is affixed to the
bottom of the player.
3. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers
CLASS 1
LASER PRODUCT
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replaced only with the same or equivalent type recommended by the manufacture.
Discord used batteries according to the manufacture's instructions.

4
DEH-P90HDD,P900HDD
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING(DEH-P90HDD/UC)
19
29
34
33 33
30
31
32
37
35 36
38
10
16 5
12 8
4
9
11
7
14
3
6
27
18
22
23
26
25
26
25
20
24
13
28
1
21
2
15
17

5
DEH-P90HDD,P900HDD
1 Cord Assy CDE6563
2 Cord Assy CDE6584
3 Accessory Assy CEA3014
4 Screw CBA1002
5 Spring CBH-865
6 Screw Assy CEA3012
7 Screw BMZ50P080FMC
8 Screw CBA-102
9 Screw(M2x6) CBA1120
* 10 Polyethylene Bag CEG-127
11 Screw CMZ50P080FMC
12 Nut NF50FMC
* 13 Polyethylene Bag CEG-158
14 Handle CNC5395
15 Strap CNC5402
16 Bush CNV3930
* 17 Polyethylene Bag CEG1163
18 Polyethylene Bag CEG1185
* 19 Battery CEX1030
20 Sub Carton CHA3213
21 Carton CHG4504
22 Contain Box CHL4504
23 Protector CHP2385
24 Protector CHP2386
25 Protector CHP2445
26 Protector CHP2446
27 Microphone Assy CPM1054
28 Case Assy CXB3520
29 Remote Control Assy CXB6860
30 Screw Assy CZE3169
* 31 Polyethylene Bag CEG-127
* 32 Hexagon Wrench CZE3176
* 33 Screw RMZ30H060FBK
34 Belt CZN7661
35 Holder Assy CZX3172
36 Holder Assy CZX3173
37 Remote Control Assy CZX3246
38-1 Polyethylene Bag CEG1116
38-2 Owner’s Manual CRD3472
38-3 Installation Manual CRD3473
* 38-4 Caution Card CRP1244
* 38-5 Card ARY1048
* 38-6 Caution Card CRP1274
Mark No. Description Part No. Mark No. Description Part No.
-PACKING(DEH-P90HDD/UC) SECTION PARTS LIST
NOTE:
-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.
-For the applying amount of lubricants or glue, follow the instructions in this manual.
( In the case of no amount instructions, apply as you think it appropriate.)
-Owner's Manual, Installation Manual
Model Part No. Language
DEH-P90HDD/UC CRD3472 English, French
DEH-P90HDD/UC CRD3473 English, French

6
DEH-P90HDD,P900HDD
2.2 PACKING(DEH-P900HDD/EW)
11
21
26
25 25
22
23
24
29
27 28
30 19
9
14
15
18
17
18
17
12
16
20
13
7
3
4
5
8
6
1
2
10
33
31
32
32
32
32
31
31 31
31 31
31 31
34

7
DEH-P90HDD,P900HDD
1 Cord Assy CDE6562
2 Cord Assy CDE6584
3 Accessory Assy CEA3015
4 Screw CBA1002
5 Screw(M2x6) CBA1120
6 Handle CNC5395
7 Bush CNV3930
* 8 Polyethylene Bag E36-615
* 9 Cover CEG1088
* 10 Polyethylene Bag CEG1163
* 11 Battery CEX1030
12 Sub Carton CHA3213
13 Carton CHG4503
14 Contain Box CHL4503
15 Protector CHP2385
16 Protector CHP2386
17 Protector CHP2445
18 Protector CHP2446
19 Microphone Assy CPM1054
20 Case Assy CXB3520
21 Remote Control Assy CXB6860
22 Screw Assy CZE3169
* 23 Polyethylene Bag CEG-127
* 24 Hexagon Wrench CZE3176
* 25 Screw RMZ30H060FBK
26 Belt CZN7661
27 Holder Assy CZX3172
28 Holder Assy CZX3173
29 Remote Control Assy CZX3246
30-1 Polyethylene Bag CEG1116
30-2 Owner's Manual CRD3468
30-3 Owner's Manual CRD3469
30-4 Owner's Manual CRD3470
30-5 Installation Manual CRD3471
* 30-6 Caution Card CRP1244
30-7 Passport CRY1013
* 30-8 Warranty Card CRY1157
* 30-9 Caution Card CRP1275
* 31 Lock Tie CNV-754
32 Filter CTX1060
33 Polyethylene Bag CEG1161
* 34 Caution Card CRP1271
Mark No. Description Part No. Mark No. Description Part No.
-PACKING(DEH-P900HDD/EW) SECTION PARTS LIST
-Owner's Manual, Installation Manual
Part No. Language
CRD3468 English, Spanish
CRD3469 German, French
CRD3470 Italian, Dutch
CRD3471 English, Spanish, German, French, Italian, Dutch

8
DEH-P90HDD,P900HDD
2.3 PACKING(DEH-P900HDD/ES)
30
12
16 9
8
13
11
15
7
10
27
17
22
23
26
25
26
25
20
24
14
28
1
21
2
18
3
6
4
5
19
29
33
31
32
32
32
32
31
31 31
31 31
31 31
34

9
DEH-P90HDD,P900HDD
1 Cord Assy CDE6563
2 Cord Assy CDE6584
3 Base Assy CEA2426
* 4 Base CNS5031
* 5 Sheet CZA3371
6 Polyethylene Bag CZE3188
7 Accessory Assy CEA3013
8 Screw CBA1002
9 Spring CBH-865
10 Screw Assy CEA3105
11 Screw BMZ50P080FMC
* 12 Polyethylene Bag CEG-127
13 Screw CMZ50P080FMC
* 14 Polyethylene Bag CEG-158
15 Handle CNC5395
16 Bush CNV3930
* 17 Cover CEG1088
* 18 Polyethylene Bag CEG1163
* 19 Battery CEX1006
20 Sub Carton CHA3213
21 Carton CHG4505
22 Contain Box CHL4505
23 Protector CHP2385
24 Protector CHP2386
25 Protector CHP2445
26 Protector CHP2446
27 Microphone Assy CPM1054
28 Case Assy CXB3520
29 Remote Control Assy CXB3875
30-1 Polyethylene Bag CEG1116
30-2 Owner’s Manual CRB1731
30-3 Owner’s Manual CRD3474
30-4 Owner’s Manual CRD3475
30-5 Installation Manual CRD3476
* 30-6 Caution Card CRP1244
* 30-7 Caution Card CRP1274
* 31 Lock Tie CNV-754
32 Filter CTX1060
33 Polyethylene Bag CEG1161
* 34 Caution Card CRP1271
Mark No. Description Part No. Mark No. Description Part No.
-PACKING(DEH-P900HDD/ES) SECTION PARTS LIST
-Owner's Manual, Installation Manual
Part No. Language
CRB1731 English
CRD3474 English, Spanish
CRD3475 Portuguese(B), Arabic
CRD3476 English, Spanish, Portuguese(B), Arabic

10
DEH-P90HDD,P900HDD

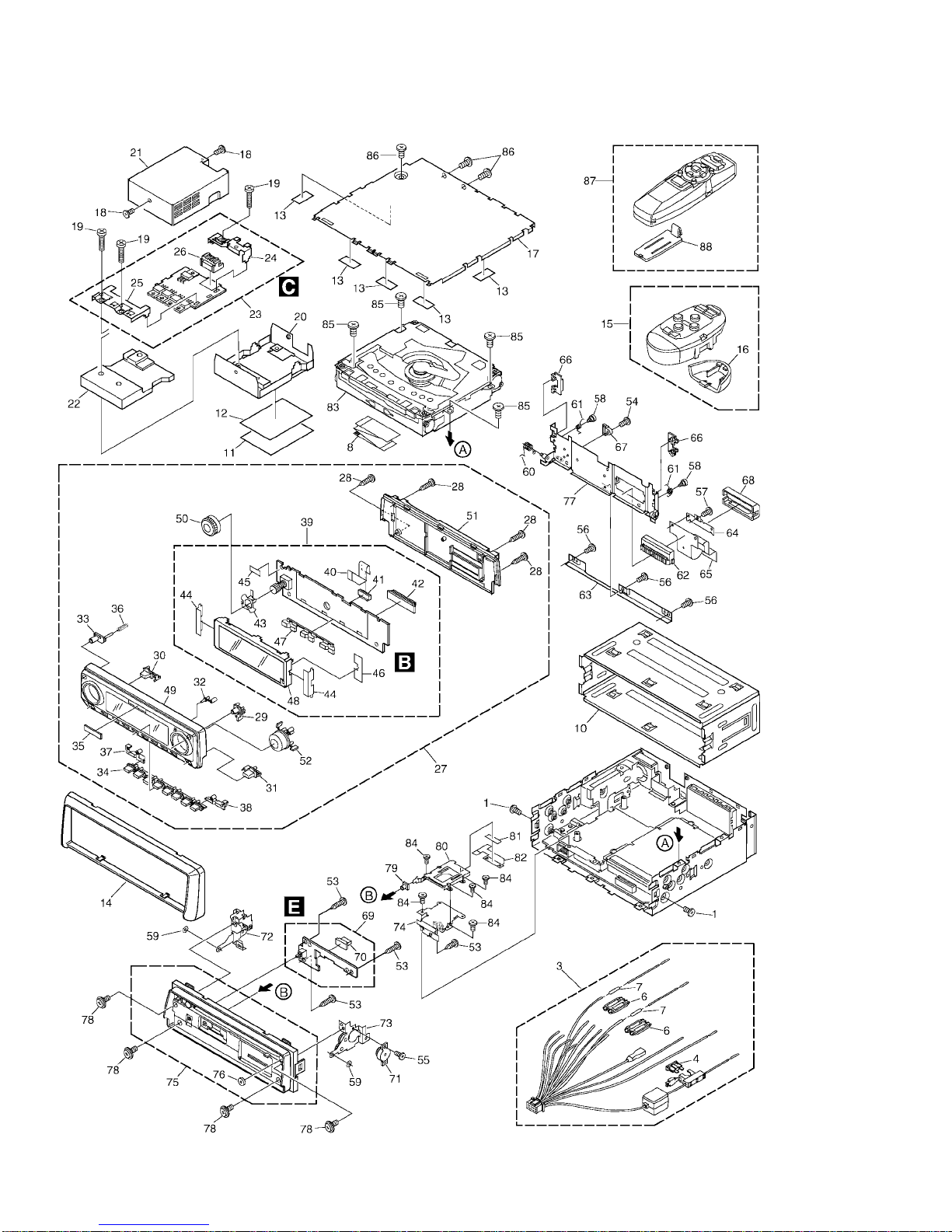

2.4 EXTERIOR(1)(DEH-P90HDD/UC, DEH-P900HDD/ES)

11
DEH-P90HDD,P900HDD
1 Screw BMZ30P040FMC
2•••••
3 Cord Assy CDE6563
4 Fuse(10A) CEK1136
5•••••
6 Cap CNS1472
7 Resistor RS1/2PMF102J
8 Flat Cable CDE6581
9•••••
10 Holder CNC8659
11 Fastener CNM7652
12 Fastener CNM7651
13 Cushion CNM7732
14 Panel See Contrast table(2)
15 Remote Control Assy See Contrast table(2)
16 Cover See Contrast table(2)
17 Case Unit CXB7094
18 Screw BSZ26P060FMC
19 Screw BSZ26P160FMC
20 Chassis CNA2393
21 Case CNB2731
22 Heat Sink CNR1611
23 Power Supply Unit CWM7665
* 24 Holder CNC9353
* 25 Holder CNC9354
26 Connector(CN2801) CKM1343
27 Detach Grille Assy See Contrast table(2)
28 Screw BPZ20P080FZK
29 Button CAC6863
30 Button CAC6867
31 Button CAC6870
32 Button CAC6872
33 Button CAC6951
34 Button CAC7307
* 35 Badge CAH1754
36 Spring CBH1844
37 Lighting Conductor CNV6557
38 Lighting Conductor CNV6674
39 Keyboard Unit CWM7664
40 Connector CDE6741
41 Connector(CN1902) CKS3995
42 Connector(CN1901) CKS4435
43 Spacer CNM7409
44 Spacer CNM7529
45 Spacer CNM7711
46 Cushion CNM7719
47 Lighting Conductor CNV6554
48 OEL Module MXK8014
49 Grille Unit See Contrast table(2)
50 Knob Unit CXB7084
51 Cover Unit CXB7086
52 Button Unit CXB7440
53 Screw BPZ20P060FMC
54 Screw(M2x3) CBA1082
55 Screw(M2x2) CBA1176
56 Screw(M2x2.2) CBA1419
57 Screw(M2x2) CBA1505
58 Screw(M2x1.5) CBA1528
59 Washer CBF1001
60 Spring CBH2319
61 Spring CBH2445
62 Connector CKS4436
63 Holder CND1001
64 Holder CND1002
65 Flexible PCB CNP6278
66 Holder CNV6575
67 Guide CNV6676
68 Cover CNV7238
69 Panel Unit CWM7826
70 Connector(CN1801) CKS4251
71 Damper Unit CXB4659
72 Holder Unit CXB7097
73 Holder Unit CXB7098
74 Holder Assy CXB7495
75 Panel Unit CXB7572
76 Cushion CNM5486
77 Holder Unit CXB8903
78 Screw IMS20P040FZK
79 Button CAC7112
80 Connector CKS4494
81 Double Faced Tape CNM7785
82 Flexible PCB CNP6279
83 CD Mechanism Module(H2) CXK5354
84 Screw IMS20P030FMC
85 Screw BSZ26P060FMC
86 Screw BSZ30P050FMC
87 Remote Control Assy See Contrast table(2)
88 Battery Cover See Contrast table(2)
Mark No. Description Part No. Mark No. Description Part No.
(1) EXTERIOR(1)(DEH-P90HDD/UC, DEH-P900HDD/ES) SECTION PARTS LIST
(2) CONTRAST TABLE
DEH-P90HDD/UC and DEH-P900HDD/ES are constructed the same except for the following:
Part No.
Mark No. Symbol and Description DEH-P90HDD/UC DEH-P900HDD/ES
14 Panel CNS6665 CNS6669
15 Remote Control Assy CZX3246 Not used
16 Cover CZN7655 Not used
27 Detach Grille Assy CXB7474 CXB7475
49 Grille Unit CXB7081 CXB7082
87 Remote Control Assy Not used CXB3875
88 Battery Cover Not used CNS5032

12
DEH-P90HDD,P900HDD
2.5 EXTERIOR(1)(DEH-P900HDD/EW)

13
DEH-P90HDD,P900HDD
1 Screw BMZ30P040FMC
2•••••
3 Cord Assy CDE6562
4 Fuse(10A) CEK1136
5 Cap CKX-003
6 Cap CNS1472
7 Resistor RS1/2PMF102J
8 Flat Cable CDE6581
9•••••
10 Holder CNC8659
11 Fastener CNM7652
12 Fastener CNM7651
13 Cushion CNM7732
14 Panel CNS6665
15 Remote Control Assy CZX3246
16 Cover CZN7655
17 Case Unit CXB7094
18 Screw BSZ26P060FMC
19 Screw BSZ26P160FMC
20 Chassis CNA2393
21 Case CNB2731
22 Heat Sink CNR1611
23 Power Supply Unit CWM7665
* 24 Holder CNC9353
* 25 Holder CNC9354
26 Connector(CN2801) CKM1343
27 Detach Grille Assy CXB7472
28 Screw BPZ20P080FZK
29 Button CAC6863
30 Button CAC6867
31 Button CAC6870
32 Button CAC6872
33 Button CAC6951
34 Button CAC7307
* 35 Badge CAH1754
36 Spring CBH1844
37 Lighting Conductor CNV6557
38 Lighting Conductor CNV6674
39 Keyboard Unit CWM7664
40 Connector CDE6741
41 Connector(CN1902) CKS3995
42 Connector(CN1901) CKS4435
43 Spacer CNM7409
44 Spacer CNM7529
45 Spacer CNM7711
46 Cushion CNM7719
47 Lighting Conductor CNV6554
48 OEL Module MXK8014
49 Grille Unit CXB7080
50 Knob Unit CXB7084
51 Cover Unit CXB7086
52 Button Unit CXB7440
53 Screw BPZ20P060FMC
54 Screw(M2x3) CBA1082
55 Screw(M2x2) CBA1176
56 Screw(M2x2.2) CBA1419
57 Screw(M2x2) CBA1505
58 Screw(M2x1.5) CBA1528
59 Washer CBF1001
60 Spring CBH2319
61 Spring CBH2445
62 Connector CKS4436
63 Holder CND1001
64 Holder CND1002
65 Flexible PCB CNP6278
66 Holder CNV6575
67 Guide CNV6676
68 Cover CNV7238
69 Panel Unit CWM7826
70 Connector(CN1801) CKS4251
71 Damper Unit CXB4659
72 Holder Unit CXB7097
73 Holder Unit CXB7098
74 Holder Assy CXB7495
75 Panel Unit CXB7572
76 Cushion CNM5486
77 Holder Unit CXB8903
78 Screw IMS20P040FZK
79 Button CAC7112
80 Connector CKS4494
81 Double Faced Tape CNM7785
82 Flexible PCB CNP6279
83 CD Mechanism Module(H2) CXK5354
84 Screw IMS20P030FMC
85 Screw BSZ26P060FMC
86 Screw BSZ30P050FMC
Mark No. Description Part No. Mark No. Description Part No.
-EXTERIOR(1)(DEH-P900HDD/EW) SECTION PARTS LIST

14
DEH-P90HDD,P900HDD

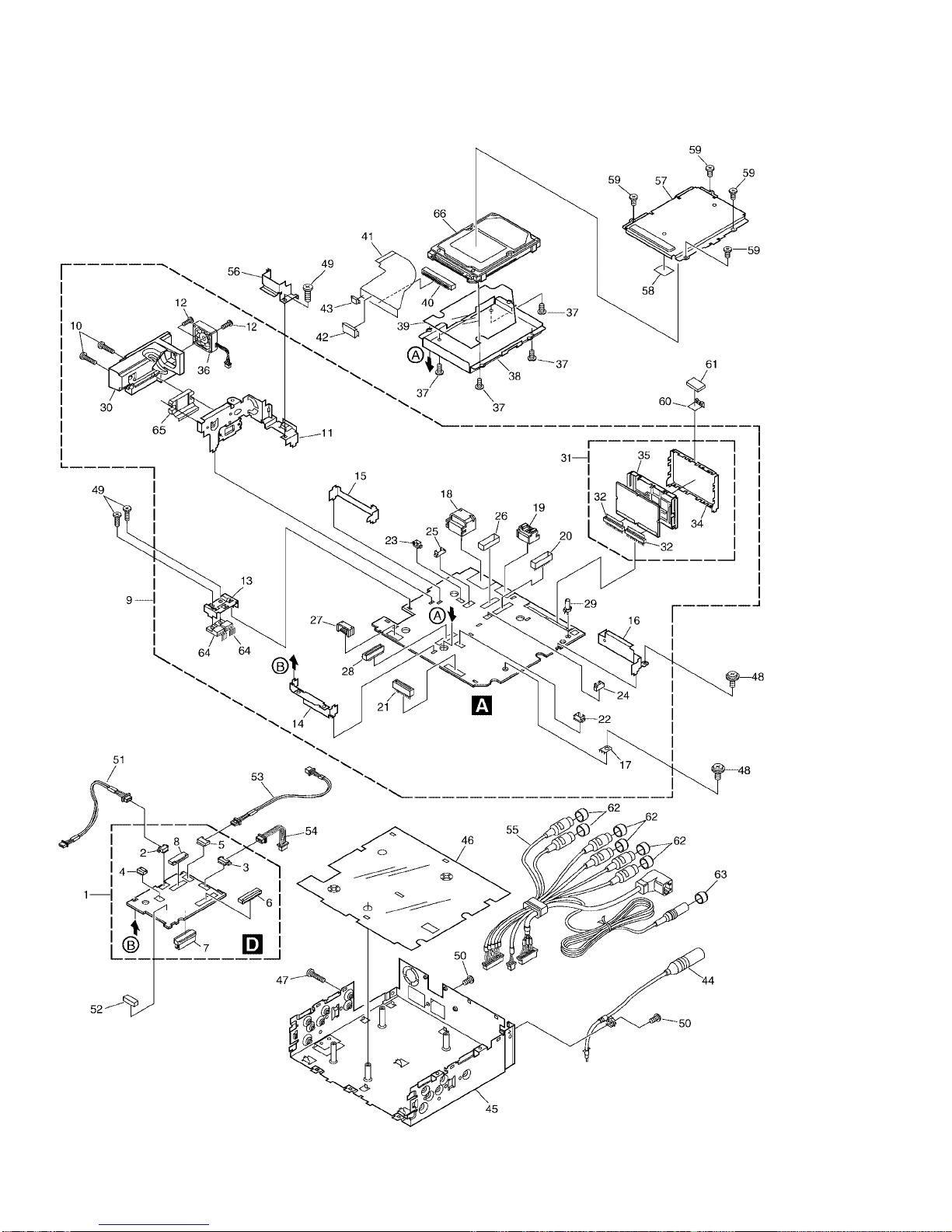

2.6 EXTERIOR(2)

15
DEH-P90HDD,P900HDD
1 Digital Unit CWM7667
2 Connector(CN3002) CKS2193
3 Connector(CN3003) CKS2195
4 Connector(CN3301) CKS3752
5 Connector(CN3101) CKS4439
6 Connector(CN3201) CKS4512
7 Connector(CN3001) CKS4513
8 Connector(CN3102) CKS4522
9 Tuner Amp Unit See Contrast table(2)
10 Screw BMZ26P160FMC
* 11 Holder CNC9349
12 Screw(M2.6x14) CBA1384
* 13 Holder CNC9350
* 14 Holder CNC9351
* 15 Holder CNC9352
* 16 Shield CNC9365
17 Terminal(CN202) CKF1059
18 Plug(CN901) CKM1278
19 Connector(CN702) CKM1343
20 Plug(CN101) CKS1044
21 Connector(CN801) CKS1568
22 Connector(CN371) CKS2193
23 Connector(CN591) CKS3124
24 Connector(CN131) CKS3125
25 Connector(CN701) CKS3128
26 Connector(CN351) CKS3592
27 Connector(CN802) CKS4262
28 Connector(CN703) CKS4514
29 Mini Pin Jack(CN451) CKX1046
30 Heat Sink CNR1610
31 FM/AM Tuner Unit See Contrast table(2)
32 Connector(CN1, 2) CKS4276
33 •••••
34 Case CNC8713
35 Holder(SH1) CNC8708
36 Fan Motor CXM1186
37 Screw BMZ30P040FMC
* 38 Case CNC9348
* 39 Insulator CNM7201
40 Connector CKS4493
41 Flexible PCB CNP6277
42 Capacitor(C3206) CCH1300
43 Capacitor(C3207) CSZSR100M16
44 Antenna Cable CDH1310
45 Chassis Unit See Contrast table(2)
46 Insulator CNM7200
47 Screw BSZ30P200FMC
48 Screw ISS26P055FUC
49 Screw BSZ26P080FMC
50 Screw BSZ30P050FMC
51 Cord CDE6582
52 Cushion CNM7228
53 Cord CDE6583
54 Cord CDE6580
55 Cord Assy CDE6856
* 56 Holder CNC9509
* 57 Cover CNC9347
* 58 Insulator CNM7202
59 Screw BSZ26P060FMC
60 Earth Plate CNC9459
61 Spacer CNM7366
62 Cap CNV6727
63 Cap CNW-829
64 Transistor(Q913, 921) 2SD2396
65 IC(IC301) PAL006A
66 HDD Assy(Service) CXX1565
Mark No. Description Part No. Mark No. Description Part No.
(1) EXTERIOR(2) SECTION PARTS LIST
Part No.
Mark No. Symbol and Description DEH-P90HDD/UC DEH-P900HDD/EW DEH-P900HDD/ES
9 Tuner Amp Unit CWM7824 CWM7823 CWM7825
31 FM/AM Tuner Unit CWE1605 CWE1604 CWE1605
45 Chassis Unit CXB7095 CXB7545 CXB7095
(2) CONTRAST TABLE
DEH-P90HDD/UC, DEH-P900HDD/EW and DEH-P900HDD/ES are constructed the same except for the fol-
lowing:

16
DEH-P90HDD,P900HDD
F
GEM1030
GEM1029
GEM1030
2.7 CD MECHANISM MODULE

17
DEH-P90HDD,P900HDD
Mark No. Description Part No. Mark No. Description Part No.
1 CD Core Unit CWX2532
2 Connector(CN101) CKS3785
3 Connector(CN901) CKS4291
4 Connector(CN701) CKS4522
5 Screw BSZ20P035FMC
6 Screw(M2x4) CBA1362
7 Screw(M2x2.5) CBA1510
8 Screw(M2x3) CBA1511
9 Screw(M2x6.2) CBA1536
10 Washer CBF1037
11 Washer CBF1064
12 Spring CBH2291
13 Spring CBH2292
14 Spring CBH2293
15 Spring CBH2295
16 Spring CBH2297
17 Spring CBH2298
18 Spring CBH2299
19 Spring CBH2303
20 Spring CBH2304
21 Spring CBH2305
22 Spring CBH2308
23 Spring CBH2309
24 Spring CBH2332
25 Spring CBH2416
26 Spring CBH2434
27 Spring CBL1448
28 Spring CBL1466
29 Connector CDE6099
30 Shaft CLA3683
31 Shaft CLA3684
32 Lever CNC8501
33 Bracket CNC8507
34 Bracket CNC8509
35 Cushion CNM6301
36 Sheet CNM6773
37 Sheet CNM6774
38 Gear CNR1559
39 Arm CNV5928
40 Arm CNV5929
41 Gear CNV5930
42 Gear CNV5932
43 Gear CNV5931
44 Gear CNV5933
45 Holder CNV5943
46 Holder CNV5944
47 Arm CNV5948
48 Cover CNV5950
49 Holder CNV5951
50 Holder CNV6222
51 Holder CNV6223
52 Damper CNV6426
53 Holder CNV6446
54 Holder CNV6512
55 Chassis Unit CXB4501
56 Arm Unit CXB4503
57 Motor Unit(M3) CXB6620
58 Screw(M2x1.2) CBA1495
59 Guide CNV5925
60 Arm Unit CXB5311
61 Loading Arm Assy(-G) CXB5715
62 Washer CBF1060
63 Spring CBH2170
* 64 Shaft CLA3678
* 65 Gear CNV5934
66 Roller CNV6068
67 Holder CNV6210
68 Collar CNV6439
69 Arm Unit CXB5686
70 Washer YE20FUC
71 Washer CBF1038
72 Arm CNC8498
73 Lever Unit CXB4502
74 Screw(M2x1.5) CBA1509
75 Frame CNC8497
76 Sheet CNM6951
77 Guide CNV5924
78 Washer CBF1037
79 Spring CBH2300
80 Spring CBL1446
81 •••••
82 Spacer CNM6467
83 Ball CNR1189
84 Guide CNV5945
85 Clamper CNV5946
86 Arm CNV5947
87 Lever CNV5949
88 Arm Unit CXB4505
89 Screw JFZ20P020FMC
90 Frame CNC8496
91 Damper CNV6426
92 Screw ISS20P060FMC
93 Screw(M2x3) CBA1511
94 Holder CNV6341
95 Roller CNV6389
96 Arm Unit CXB5970
97 Roller CNV6389
98 Arm Unit CXB5971
99 Load Motor Assy(-D)(M2) CXB6340
100 Carriage Motor Assy(-D)(M1) CXB6361
101 Screw Unit(-B) CXB6363
102 Screw ISS20P060FMC
103 Screw JFZ20P025FNI
104 Washer YE15FUC
105 Pickup Unit(Service)(P8) CXX1305
106 Screw IMS20P030FMC
* 107 Cover CNC9151
108-111 •••••
112 Connector(CN301) CKS4439
113 Spacer CNM7805
-CD MECHANISM MODULE SECTION PARTS LIST

18
DEH-P90HDD,P900HDD
1234
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
5VRST
13
BSRQ1
18
BRXEN1
15
BSCK
16
BDATA
14
VD
25
BRST
17
SUBOK
12
EMPHIN1
32
VDCNT
28
MUTERQ1
19
CN3102
CD5VON
20
IC 3103
TC74VHC126FT
3
8
110 13
11
39
87
44
143
31
75
42
1
80
79 DATACK
DATAIN
7CKIN
LRSY
BRXEN1
74 ATASENS
50 BSENS
BRST1
SUBOK
59 reset
DSPREAD
LVL_CH
BSRQ1
CDPW
IC 3011
TC7WH34FU
62
3
20
19
5
17
Q3101
VDD
iowr
IC 30
TC55V161
IC 3
TC74LCXR
S
24
1
107
105
DASP
34
100
CS0
MSLOCKIN
85 ATARST
102 iord
41 MSINT
35 IORDY
13
4
1TX
MCK
CN3101
4MCK
1PLCLK
CN3002
IC 3101
TC7SH08FU
41CD5VON
1MSLKIN
53.3V
CN3301
23 IORDY
14 DASP
48 HDRST
29 HDDMARQ
CN3201
MEMORY
STICK
HDD
4BS
6DIO
7XINS
8SCLK
3.3V
IC 3202
TC7SH04FU
2
4
IC 3203
TC74VHC541FT
IC 3204
TC7W00FU
72
36
5
9
8
2
3
7
IC 3004
S-80818ANUP-EDF
RESET
2
VDD
IC 3005
TC7SH08FU
2
14
IC 3102
TC74LVXC3245FS
CN701
CD CORE UNIT
M
LASER
DIODE
MONITOR
DIODE
FOCUS ACT.
CARRIAGE
MOTOR
M
LOADING
MOTOR
SPINDLE
MOTOR
TRACKING ACT.
LD(–)
MD
+5V
FO+
TO+
17
5
3
4
PU UNIT(SERVICE)(P8)
HOLOGRAM
UNIT
IC 401
BA5811FM
+5V
REGULATOR
SPDLFG
15
8
VD
VD
5
CONT
CDEJET
CDLOAD
13
CD5VON
CN901
CN101
AC/F/E/BD
EC
VM
VCC
CONTST/SP
FG
CLAMPSW
15
16
10
22
9
1
31
1
9
X601
32.00MHz
10
2
21
MUTE
13
8
9
66
11
HOME
SW
Q102
IC 201
TA2153FN
RF AMP
MDI
LDO
VD
V+5
M
9
7
12
10
1
2
3
4
11
6
Q101
F
41
CN301
IC 601
PE5273A
CD5VON
2
TX
MCK
DSCSNS
3
73
59
X2 X1
978
MCK
TX
VDCONT
BSRQ
48
52
16
BRST
77 19
BSCK1 18
BRXEN
29
17
BDATA2
20
RESET
7
IC 801
BA05SFP
V+5 4
4
5
DIGITAL UNIT
D
IC 301
TC9495F2
IO2
DOUT XI
VD
CN371
A
HDDSENS

19
DEH-P90HDD,P900HDD
5678
5678
D
C
B
A
IC 3009
TC7SET32FU
IC 3108
TC7SH08FU
IC 3007
TC7SET32FU
IC 3008
TC7SET32FU
4
1
2
2
1
4
4
1
2
EMPHIN2 17
4DACCK 12
DSPMUTE 27
XPW 40
DSPEBL 59
FS1 34
FS0 32
DMUTE 25
BSRQO 35
IC 3010
TC74VHCT125AFT
12 11
23
5
1413
6
94
92
91
83
49
DSP_ENBL
90
BMUTE
2
111
XPW
21
DEMPH
53
ANA_DIGI 22
ATACON 106
DALMON
63
X1
62
X2
FS1
FS0
CDDATA 15
VDCONT 7
CD5VON 1
5VRST
LVLCH
BSENS
DSPRDY
57
22
53
39
BCK1 11
LRCK1 13
CDPW 8
IC 3104
TC74VHC125FT
56
12 11
9
410 13
8
2
3
4
DMUTE
BSRQO
39
87
44
43
31
75
42
1
80
79 DATACK
DATAIN
7CKIN
LRSY
BRXEN1
74 ATASENS
50 BSENS
BRST1
SUBOK
59 reset
DSPREADY
LVL_CH
BSRQ1
CDPW
ADDATA
ADBCK
ADLRCK
9
CKOUT
ANADIG 23
DALMON2 51
XVDD
X5V 50
MSARI 55
XLED 49
ARECL 41
ATDATA 19
16
IC 3106
MSM51V16165DSL-50
DRAM
X3001
4.97MHz
IC 3006
TC74LVXC3245FS
SELECTOR
IC 3303
TC74VHC157FT
13
6
3
12
11
2
10
7
33
SDO
116
ADCRST
117
XLED
26
msari
20
RECON
103 CS4
19 atadmak
40
XIRQ
118 XRST
95
rd 104
CS3 96
uwr 97
109
lwr
iowr
LBE
SDI
32
LRCK 31
3
8
11
BCLK 16
FS2560
118
CLKOUT
2
9
12
IC 3307
TC74VHC126FT
CLKOUT
11013
CN3001
CN3003
9
13
12
4
1
ADC
IC 3301
AK5353VT
35
IRQ
85
RST
13
DAIN
37
IC 3304
CXD1859AR
ATRAC3
ENCODE/ DECODE
MAGIC GATE
MEMORY STICK
I/F
IC 3306
TC7SH04FU
2
4
IC 3107
TC7SH08FU
1
24
RD
78
WRU
80 CS
82
WRL
81
EXTALO
3
BS
20
DIO
22
INS
26
SCLK
21
A25
114
A24
115
atadmak
29
IC 3002
TC55V16100FTI-15
IC 3206
TC74LCXR163245FT
SRAM
IC 3308
TC7SH32FU
IC 3003
TC7S08FU
4
4
2
1
2
42
15
39
1
108
ube
12
107
05
DASP
34
00
CS0
MSLOCKIN
85 ATARST
02 iord
41 MSINT
35 IORDY
13
IC 3305
CXK2000EN
IC 3204
C7W00FU
1
2
6
5
IC 3205
TC7WH04FU
IC 3201
TC7S08FU
1
5
2
1
74
3
9
XTAL1
10
EXTAL1
X3301
12MHz
IC 3001
PE5218C
V850
CORE µCOM
IC 3105
LC78683ES
CD-ROM DECODE
MP3 DECODE Q3001
VCC
AVDD
HDDSENS
XVDD
X5V 3
4
1CN701
A
CN703
A
Q3301
Q3302
3.3VX3V
1
115 114
A24
A25

20
DEH-P90HDD,P900HDD
1234
1234
D
C
B
A
ATA5 V
XPW
DSPEBL
FS1
FS0
DMUTE
BSRQO
MSSENS
XLED
ARECL
DOUT2
CLKOUT
58 MCKRQ2
38 FS0
37 FS1
34 DSPEBL
24
IC 601(1/2)
PD5646A (UC/ES)
PD5647A (EW)
SYSTEM
CONTROLLER
PEE
ISENS
ASENS
BSENS
TELIN
SYSPW SYSPW
38 LOCL
40 LOCH
26 ASENBO
30 TX
29 RX
22 IPPW
44
74
DALMON
71 BSRQ
10
MICSEN
23
74
20
12
OELPW 91
37
BZ
ALA
BUZ
CN451
MAIN
ANT
Q401
Q101
Q102
BUP
IC 101
HA12187FP
55
6
1
2
TX
RX
8IPPW
8
1
7
11
BUS2
BUS1
BUSL+
BUSL-
CN101
AUTO-EQ
MIC
CN131
MIC141
3
2
Q133
Q131
Q132
VDD
NOISE
35 DSPRDY
62 LEVCH
1
BUFFER
IC 141
NJM2068MD
BUFFER
IC 142
NJM2068MD
377
3
CSENS
CN1801
S1802
S1801
OEL+B
OEL18V
18
17
16
CN1902
OEL
15
13
12
11
10
8
16
S1918
7
6
5
4
2
2
4
5
6
7
9
1
10
11
12
13
15
32
36
12
34
31
IC 1902(2/2)
PD5658A
DISPLAY/KEY µCOM
DISPDT
KEYDT
IC 1906(2/2)
PD6364A
KEY
MATRIX
VCC
Q1901
Q1902
FLASH
IC 1906(1/2)
PD6364A
IC 1907
PD3428A
OEL
CONTROL
IC 1903
S-80734ANDYI
ROM
IC 1905
PD8081A
IC 1902(1/2)
PD5658A
Q1904
VCC3V VCC5
15
13
91
92
12
12
X1901
20MHz
Q1903
FL12ON
STBY
VDD
CSENSE
DSENS DSENSE1
OELB OELB
KYDT KYDT
DPDT DPDT1
ENCH ROT1
ENCL ROT0
SPSTB SPSTB1
SPDIN SPDIN1
SWDVDD SWVDD
VDD VDD
ILM+B ILB
RST RESET
X3VOUT
MSSENS
FLILMIN
OEL+B
2
5
6
7,8
9,10
2
5
6
7,8
9,10
Q853
Q852
CN802
CN1901 CN801
45 CURRQ
100 TUNPDI
1TUNPDO
4TUNPCE2
2TUNPCK
3TUNPCE
19 ldet
97 SL
43 SD
42 ST
DOUT1
VDCONT
CD5VON
RESET
BSENS
DSPRDY
LVLCH
ATA5 V
VD
BCK1
LRCK1
DACCK
ANADIG
EMPHIN
17
12
DALMON2
CDPW
51
CDPW
XVDD
50
27
40
59
34
32
25
35
55
49
41
19
16
15
7
1
57
53
22
39
11
13
8
23
RESET
IC 552
TC7SET08FU
4
1,2
IC 291
PD5704A
DSP µCOM
36 ANADIG
66 ENPHIN
DSPMUTE 15 BMUTEIN
DEM1 54
DEM0 55
IC 37
TC74VHC
2
12
5
6
3
1
9
14101
IC 20
TC7WH3
56
PLCKOUT
61
MCKOUT
63
DSPMS
24
DSPOUT 25
DSPIN 65
DSPRDY 64
DSPLAT 26
DSPCK
BUFF
IC 20
NJM206
3
CN703
SWVDD
VDD
Q806
I
S-80
R
VDD
IC 831
NJM2068MD
75
Q831
Q771
VDD
CN701
1
FM/AM TUNER UNIT
FM/AM 1ST IF 10.7MHz
T51 Q51 CF51 CF52 CF53
CF202
AM 2ND IF
450kHz
X901
10.25MHz
IC1
MIXER, IF AMP, DET.
AMANT
FMANT
AMRF
FMRF
IMG ADJ
RF ADJ
ANT ADJ
LOCL
LOCH
AMDET
MPXREF 41kHz
RFGND
AMPS
2
1
3
12
ATT
ATT
64
CE2
17
CK
14
CE1
13
SL
16
FMSD
27
STIND
28
DGND
18
DI/DO
15
CREQ
10197
L ch 23
IC 3
EEPROM
VDD
VCC
IC 2 FM MPX
VDD
VCC
LDET
11
COMP
8
TUNER AMP UNIT
A
CN3001
D
CN3003
D3
4
VDD
KEYBOARD UNIT
B
PANEL UNIT
E
RDS DECODER
IC 501
PM4009A
20
Q501
24
41 FM_AM
VDD
X501
3.648MHz
rck / RDT / rdslk /
RDS57K / ldet / drst
Q173 Q174
TMUTE
28
Q171
Q175
NL1
26
NL2
25
Q402
94 NL2DT
95 NL1
REMOTE CONTROL
SENSOR
IC 1901
RS-140 1
7REMin
X3VOUT
MSSENS
FLILMIN
FLPILMOUTFLPILMOUT
3
3VDD
X3VIN
S1917
42 MICSEN
7MCKRQ
XPW
CD3V CD3V
657
FSSEL
2
EW
EW
