Pioneer KEH-3930R X1M/EW User manual

ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
High power cassette player with RDS tuner
Operation Manual
KEH-3930R
KEH-3900R

1
Contents
Key Finder .................................................... 3
-Head Unit
Before Using This Product ...................... 4
About This Product .......................................... 4
About This Manual ............................................ 4
Precaution .......................................................... 4
In Case of Trouble ............................................ 4
Basic Operation ........................................ 5
To Listen to Music ............................................ 5
Basic Operation of Tuner .................................. 6
-Manual and Seek Tuning
-Preset Tuning
-Band
Basic Operation of Cassette Player .................. 7
-Fast Forward/Rewind and Music Search
-Cassette Loading Slot
-Direction Change
-Eject
Tuner Operation ........................................ 8
-Local Seek Tuning
-Best Stations Memory (BSM)
Using RDS Functions ................................ 9
What is RDS? .................................................... 9
Program Service Name Display ........................ 9
AF Function .................................................... 10
-Activating/Deactivating the AF Function
PI Seek Function ............................................ 11
-PI Seek
-Auto PI Seek (for preset station)
Regional Function .......................................... 11
-Activating/Deactivating the REG Function

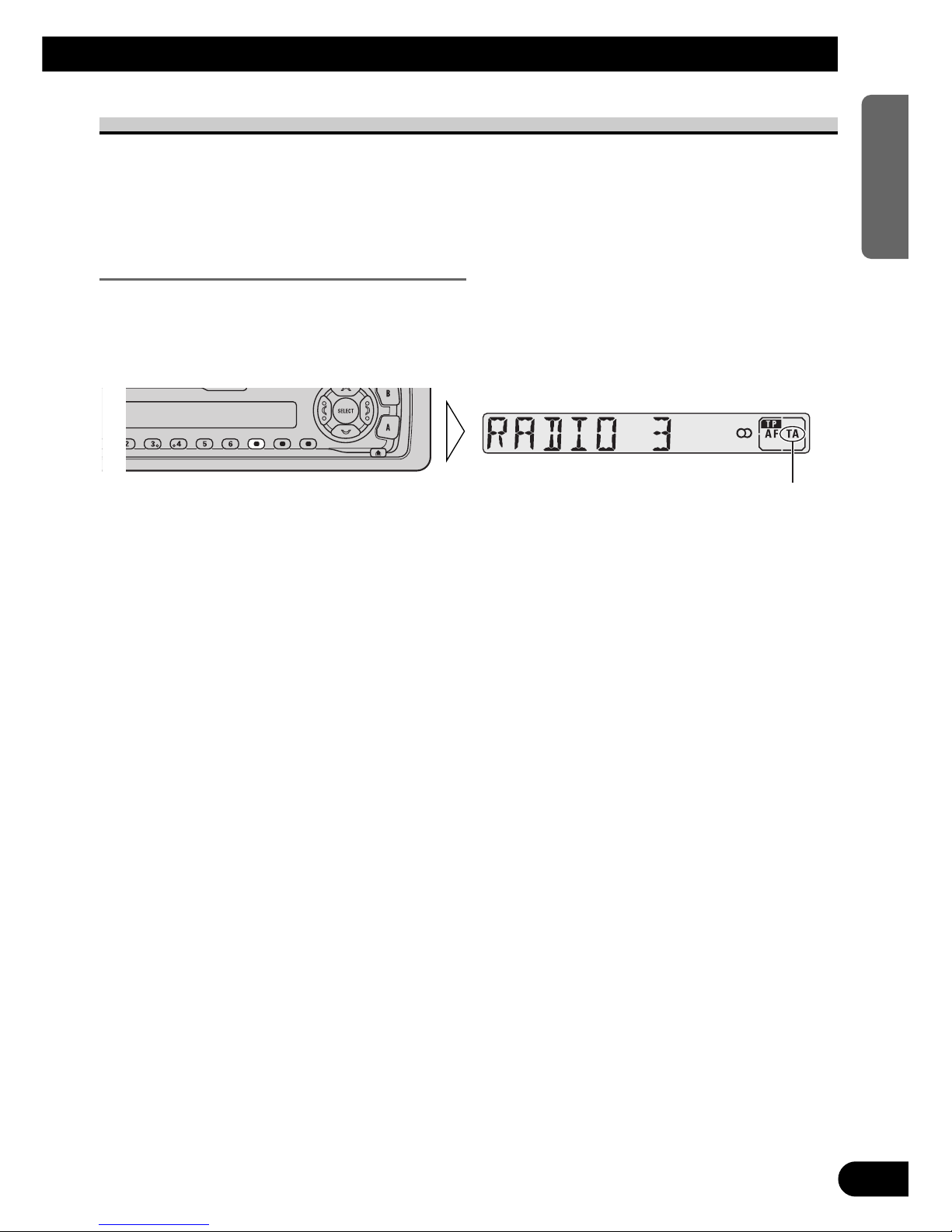

TA Function .................................................... 12
-Activating/Deactivating the TA Function
-Canceling Traffic Announcements
-Adjusting the TA Volume
-TP Alarm Function

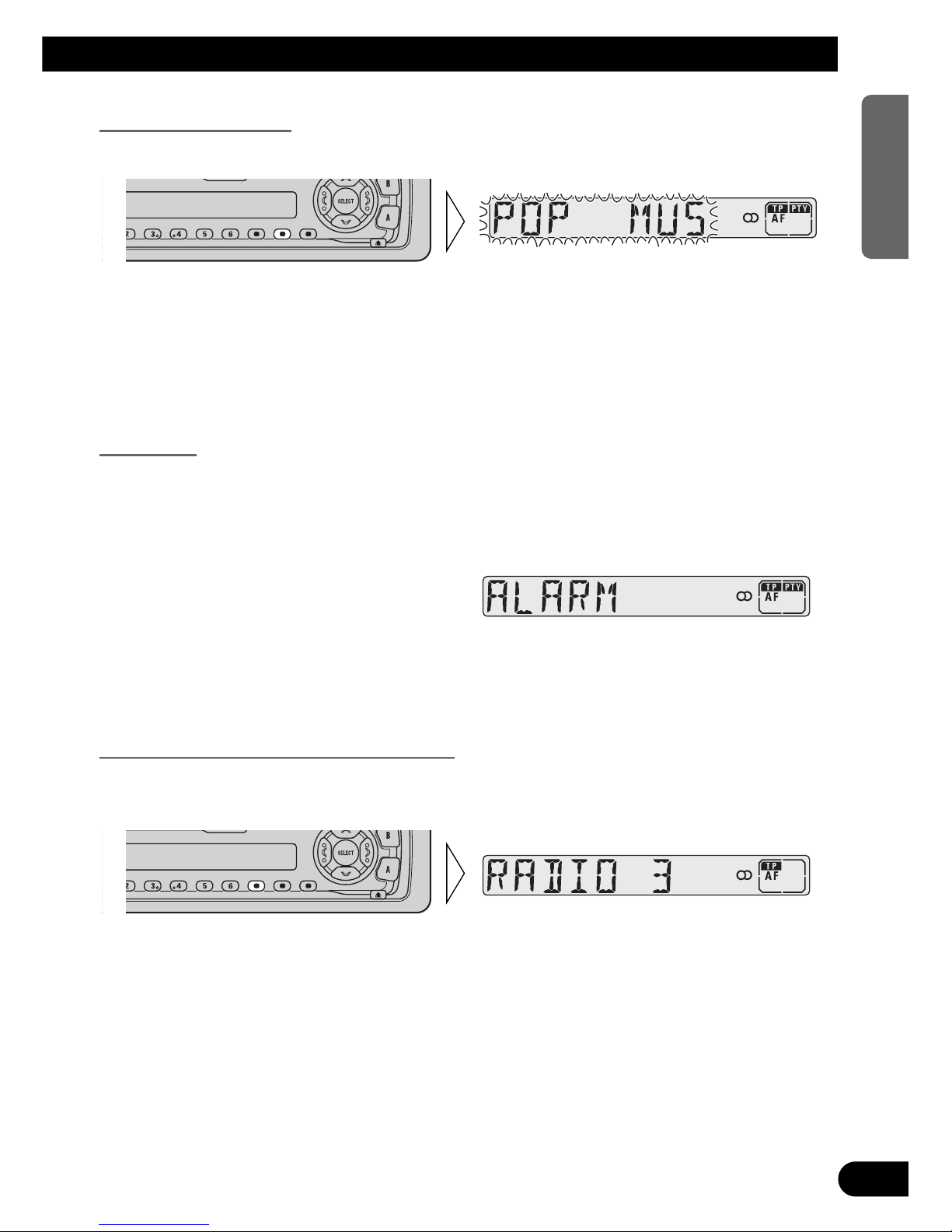

PTY Function .................................................. 14
-PTY Search Setting Function
-PTY Search Function
-PTY Alarm
-Canceling Emergency Announcements

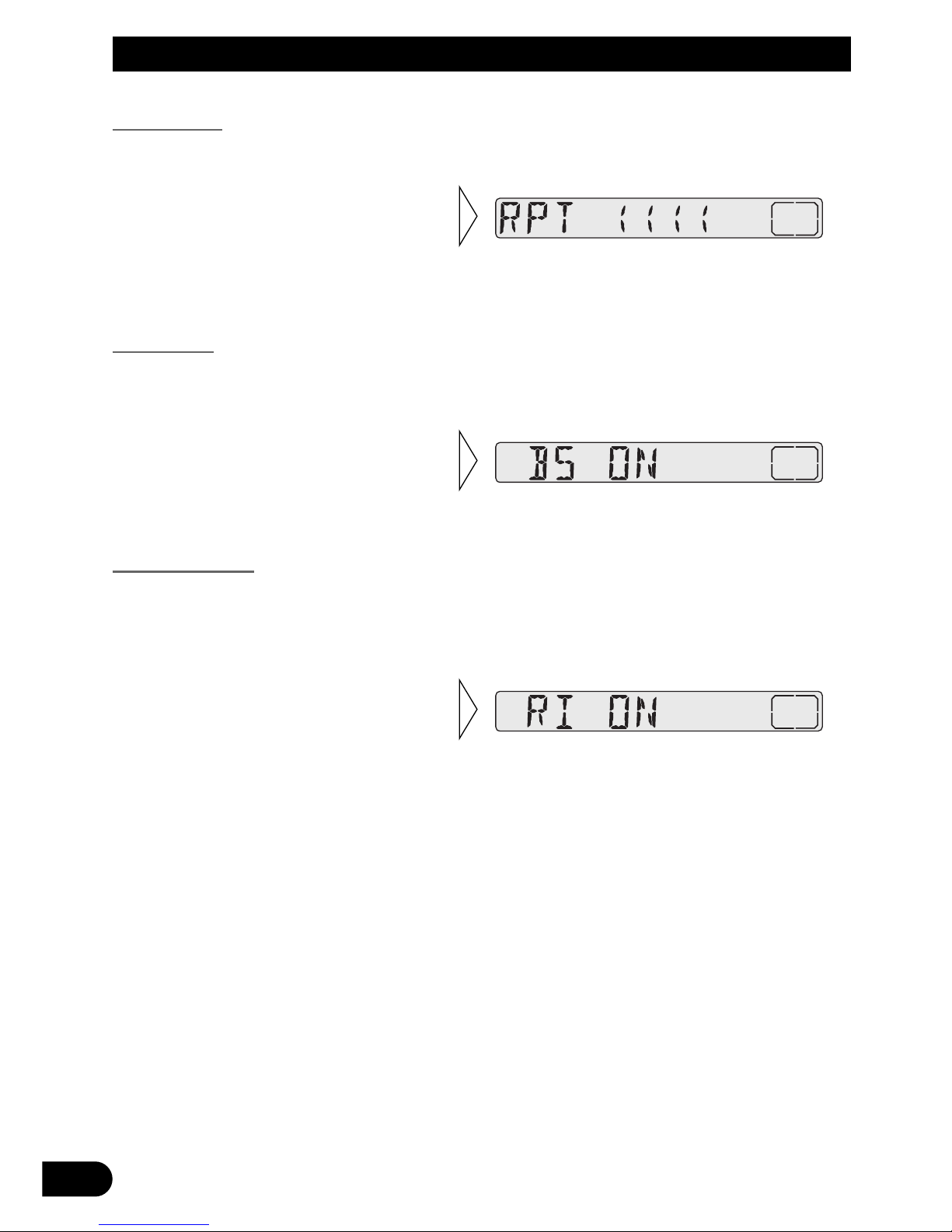

Using the Cassette Player ...................... 17
-Repeat Play
-Blank Skip
-Radio Intercept

Audio Adjustment .................................... 18
Entering the Audio Menu ................................ 18
Audio Menu Functions .................................... 19
-Balance Adjustment (FAD)
-Bass Adjustment (BAS)
-Treble Adjustment (TRE)
-Loudness Adjustment (LOUD)
Detaching and Replacing
the Front Panel .................................. 21
Theft Protection .............................................. 21
-Detaching the Front Panel
-Replacing the Front Panel
Initial Setting ............................................ 22
Entering the Initial Setting Menu .................... 22
Initial Setting Menu Functions ........................ 23
-Changing the FM Tuning Step (STEP)
-Switching the Auto PI Seek (A-PI)
Other Functions ........................................ 24
Cellular Telephone Muting ............................ 24
Cassette Player and Care ...................... 25
Precaution ........................................................ 25
-About the Cassette Player
-About Cassette Tapes
Cleaning the Head .......................................... 25
Specifications .......................................... 26
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

3

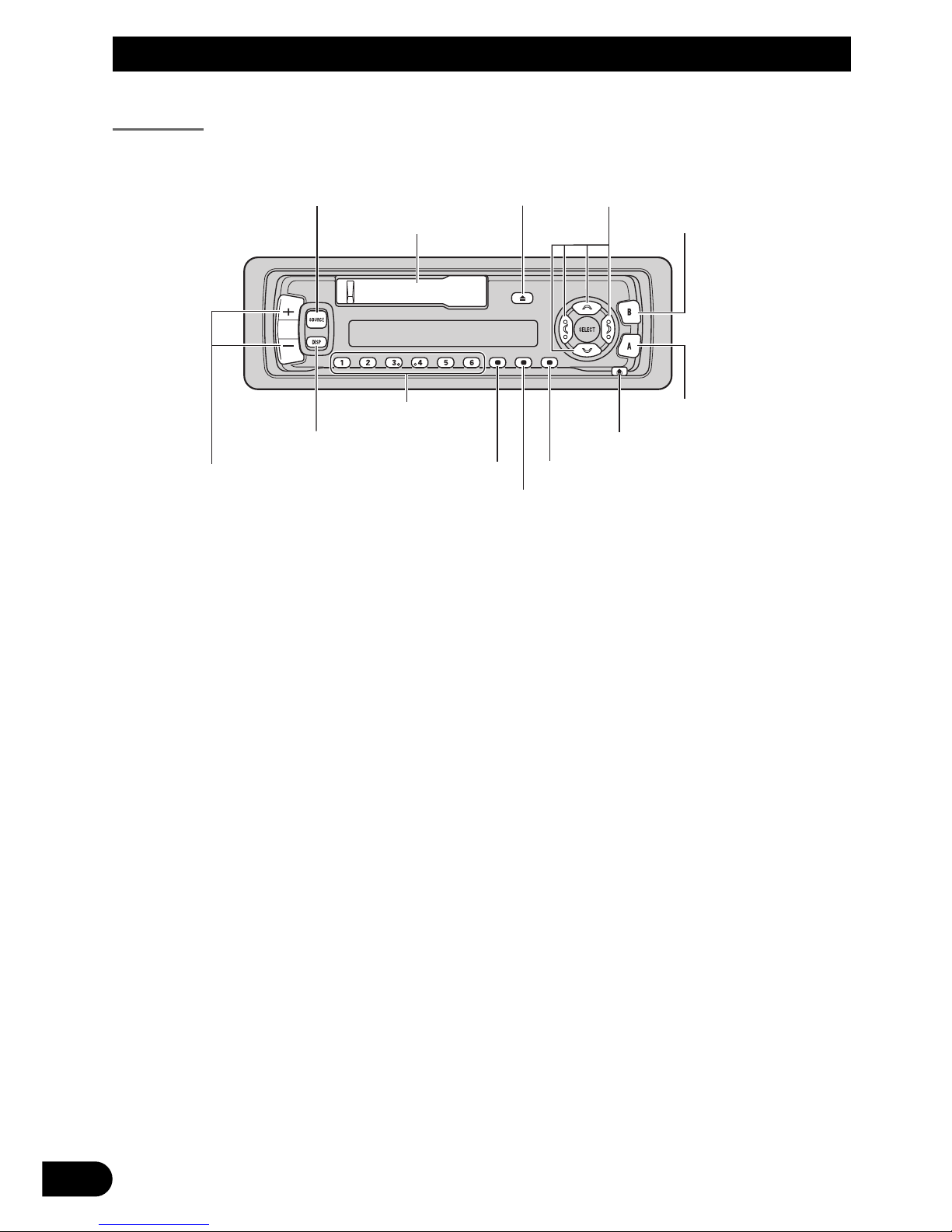

Key Finder
Head Unit
5/∞/2/3
buttons
SOURCE/OFF button
+/– button
AUDIO button
Detach button
Buttons 1–6
Cassette door
EJECT button
LOCAL/BSM button
PTY button
TA/AF button
BAND button
DISP button

Before Using This Product
4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
About This Product
The tuner frequencies on this product are allocated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in other areas may result in improper reception. The
RDS function operates only in areas with FM stations broadcasting RDS signals.
About This Manual
This product features a number of sophisticated functions ensuring superior reception and
operation. All are designed for the easiest possible use, but many are not self-explanatory.
This operation manual is intended to help you benefit fully from their potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself with the functions and their operation by
reading through the manual before you use this product. It is especially important that you
read and observe the “Precaution” on this page and in other sections.
Precaution
• The Pioneer CarStereo-Pass is for use only in Germany.
• Keep this manual handy as a reference for operating procedures and precautions.
• Always keep the volume low enough for outside sounds to be audible.
• Protect this product from moisture.
• If the battery is disconnected, the preset memory will be erased and must be
reprogrammed.
In Case of Trouble
Should this product fail to operate properly, contact your dealer or nearest authorized
Pioneer Service Station.
• This product complies with the EMC Directives (89/336/EEC, 92/31/EEC) and CE
Marking Directive (93/68/EEC).

5
Basic Operation
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a cassette in this product. (Refer to page 7.)
1. Select the desired source (e.g. Tuner).
Each press of the SOURCE/OFF button selects the desired source in the following order:
Tape =Tuner
Note:
• The cassette player will not change when no tape is set in this product.
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Raise or lower the volume.
3. Turn the source OFF.
Hold for 1 second
Each press changes the Source ...

6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

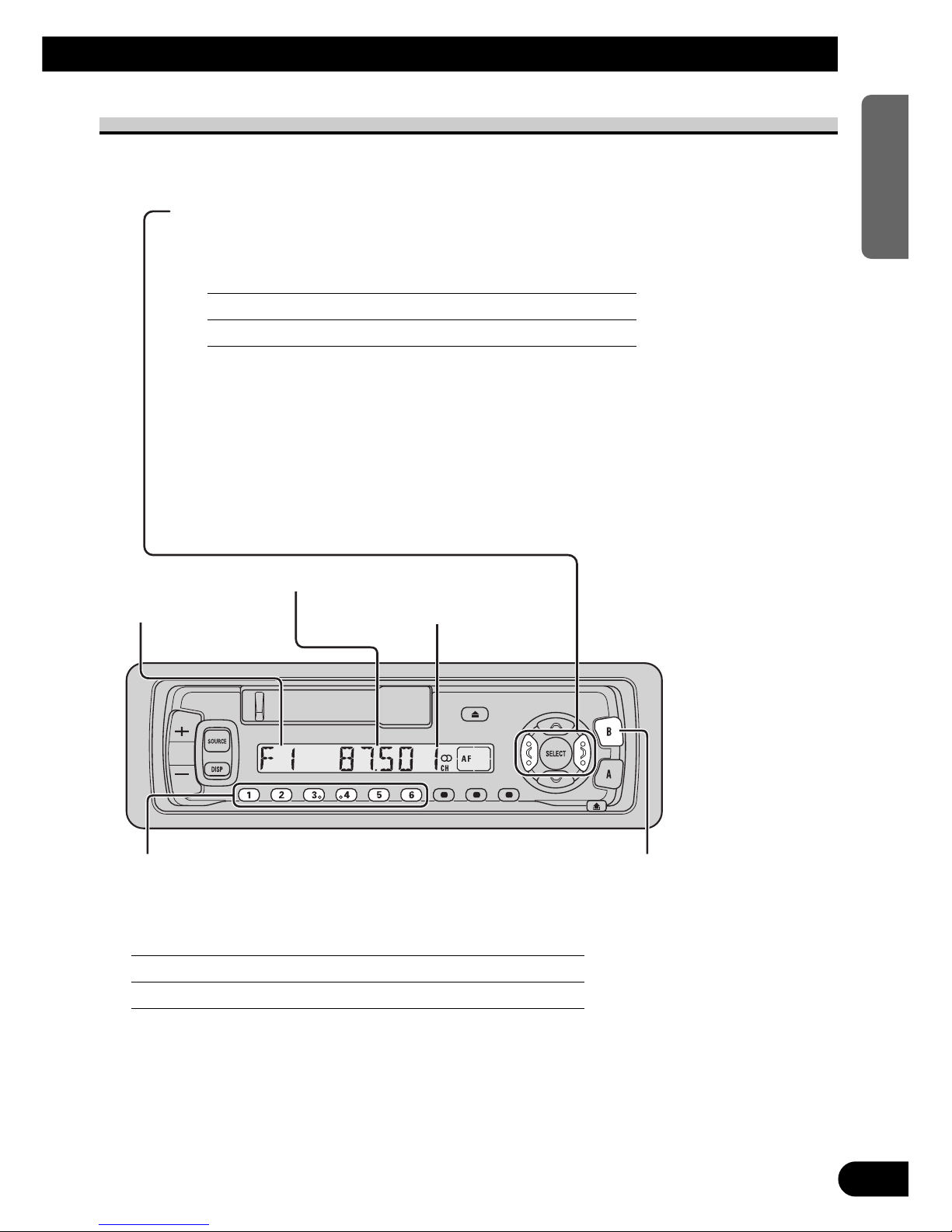

Basic Operation of Tuner
Manual and Seek Tuning
• You can select the tuning method by changing the length
of time you press the 2/3button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip
broadcast stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 12 FM stations (6 in F1 (FM1) and F2 (FM2)) and 6
MW/LW stations can be stored in memory.
• You can also use the 5or ∞buttons to recall broadcast
stations memorized in buttons 1 through 6.
Preset Number Indicator
Band
F1 (FM1) =F2 (FM2)
=MW/LW
Band Indicator
Frequency Indicator
This product’s AF function can be switched ON and OFF. AF should be switched OFF
for normal tuning operations. (Refer to page 10.)

7
Basic Operation
Basic Operation of Cassette Player
Direction ChangeDirection Indicator
Eject
Note:
• The Tape function can be turned ON/OFF with
the cassette tape remaining in this product.
(Refer to page 5.)
Fast Forward/Rewind and Music Search
• Each press of the 3button selects Fast Forward or Forward-Music
Search.
FF (Fast Forward) =F-MS (Forward-Music Search) =Normal Playback
• Each press of the 2button selects Rewind or Rewind-Music Search.
REW (Rewind) =R-MS (Rewind-Music Search) =Normal Playback
Note:
• Fast Forward/Rewind and Music Search can be canceled by pressing the BAND button.
Cassette Loading Slot

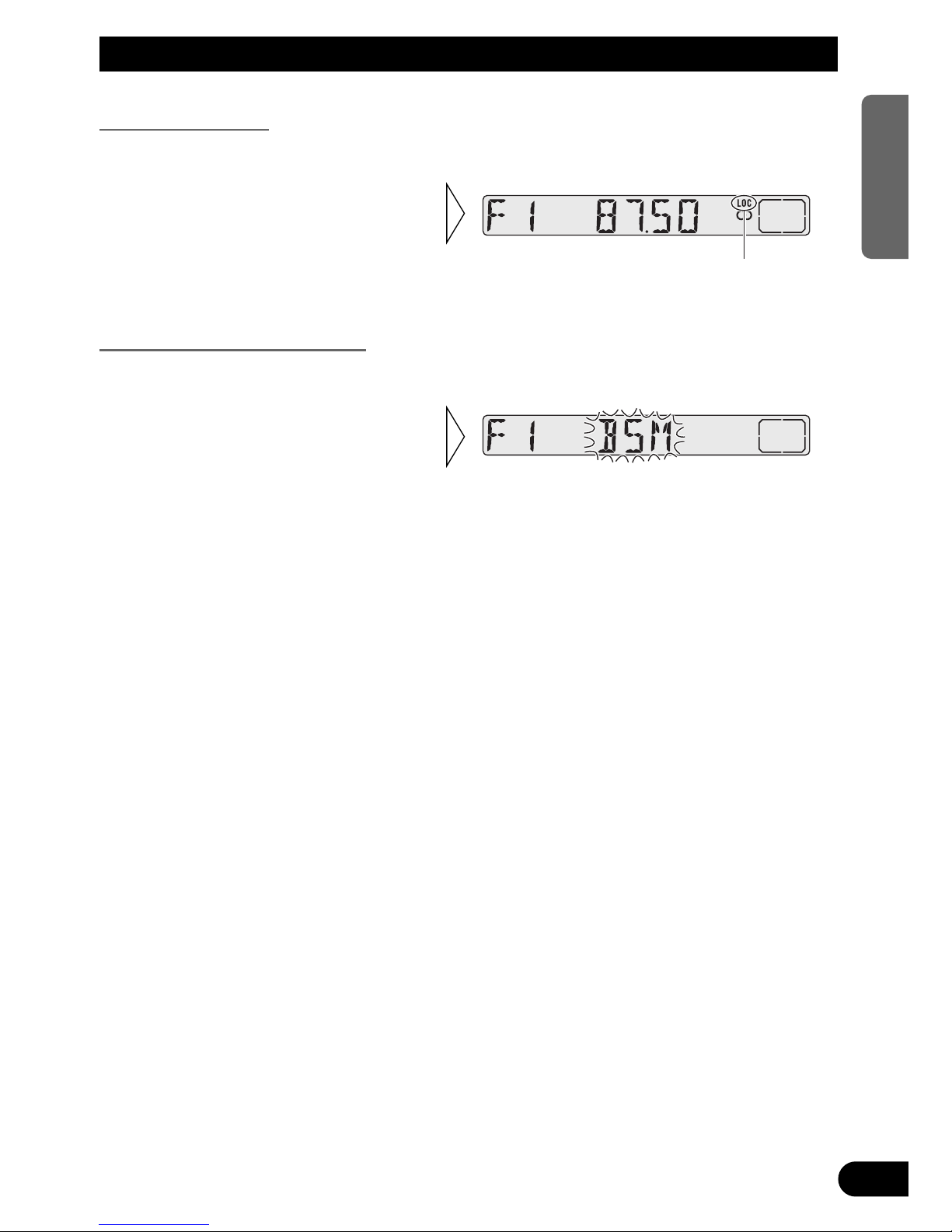

Tuner Operation
Local Seek Tuning
This function selects only stations with especially strong signals.
Best Stations Memory (BSM)
The BSM function stores stations in memory automatically.
• To cancel the process, press the LOCAL/BSM button before memorization is
complete.
• Press the LOCAL/BSM but-
ton for 2 seconds to switch
BSM ON.
The stations with the strongest
signals will be stored under buttons
1–6 and in order of their signal
strength.
“LOC”
• Switch the Local ON/OFF
with the LOCAL/BSM
button.
8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

Using RDS Functions
What is RDS?
RDS (Radio Data System) is a system for transmitting data along with FM programs. This
data, which is inaudible, provides a variety of features such as: program service name,
program type display, traffic announcement standby, automatic tuning and program type
tuning, intended to aid radio listeners in tuning to a desired station.
Note:
• RDS service may not be provided by all stations.
• RDS functions, like AF (Alternative frequencies search) and TA (Traffic Announcement standby),
are only active when your radio is tuned to RDS stations.
Program Service Name Display
With this function, the names of networks/stations providing RDS services replace the
frequency on the display a few seconds after they are tuned in.
• When you want to know PTY Information or the frequency of the current
station, change the display.

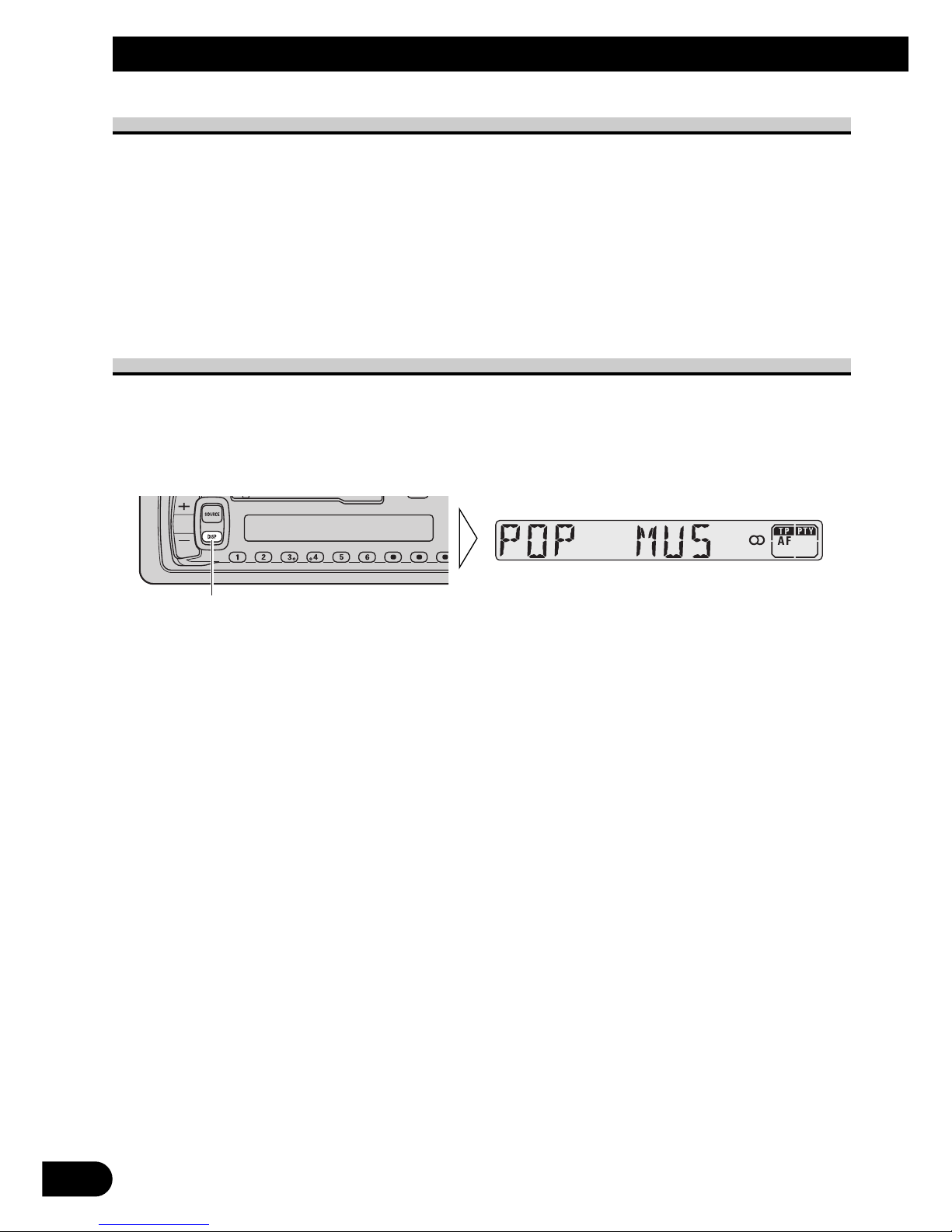

Each press of the DISP button selects the display in the following order:
Program Service Name =PTY Information =Frequency
Note:
• After switching displays, if you do not perform an operation within 8 seconds, the Program Service
Name is automatically displayed.
7PTY Information
PTY (Program Type ID code) information for the currently tuned station appears on the
display for 8 seconds. The information is correlated with the list in the section “PTY
Function” on page 14.
Note:
• If a PTY code of zero is received from a station, “NONE” will be displayed. This indicates that the
station has not defined its program contents.
• If the signal is too weak for this product to pick up the PTY code, “NO PTY” will be displayed.
7Frequency
The frequency of the current station appears on the display.
Each press changes the Display ...
9

10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
AF Function
The AF (Alternative Frequencies search) function is used to search for other frequencies in
the same network as the currently tuned station. It automatically retunes the receiver to
another frequency in the network which is broadcasting a stronger signal when there are
problems with reception of the currently tuned station or better reception is possible on
a different frequency.
Note:
• AF tunes the receiver only to RDS stations when you use Seek tuning or BSM Auto Memory with
the “AF ” indicator ON.
• When you recall a preset station, the tuner may update the preset station with a new frequency from
the station’s AF list. (This is only available when using presets on the FM1 band.) No preset
number appears on the display if the RDS data for the station received differs from that for the
originally stored station.
• Sound may be temporarily interrupted by another program during an AF frequency search.
• When the tuner is tuned to a non-RDS station, the “AF ” indicator flashes.
• AF can be switched ON or OFF independently for each FM band.
Activating/Deactivating the AF Function
AF is set to ON by default.
• Turn AF to OFF.
To turn AF back ON, repeat the preceding operation.
“AF” disappearsHold for 2 seconds

11
Using RDS Functions

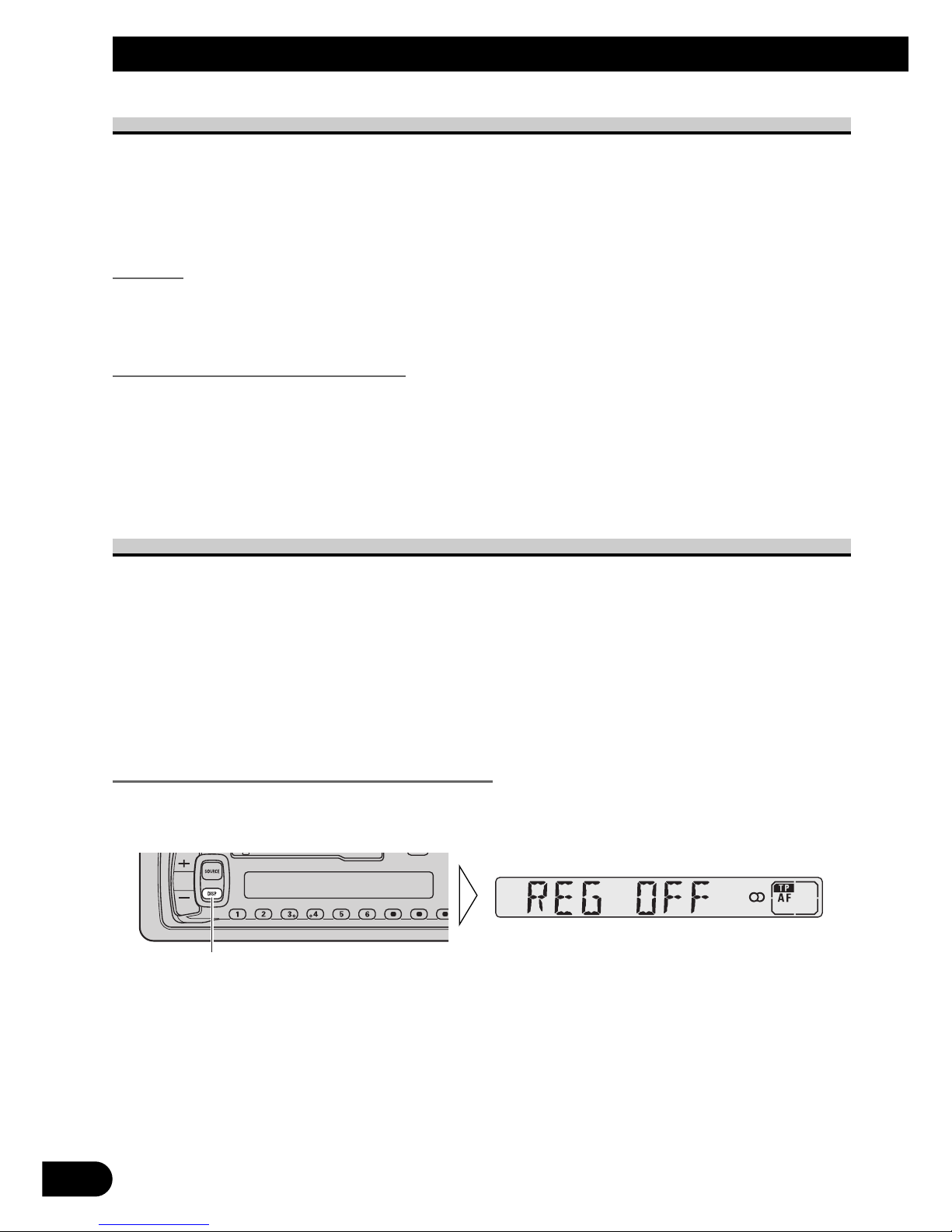

PI Seek Function
The tuner searches for another frequency broadcasting the same programming. “PI SEEK”
appears on the display and the radio volume is muted during a PI Seek. The muting is
discontinued after completion of the PI Seek, whether or not the PI seek has succeeded. If
the PI Seek is unsuccessful, the tuner returns to the previous frequency.
PI Seek
If the tuner fails to locate a suitable alternative frequency or if the broadcasting signal is
too weak for proper reception, the PI Seek will automatically start.
Auto PI Seek (for preset station)
When preset stations cannot be recalled, as when traveling long distances, this product can
be set to perform PI Seek also during preset recall.
The default setting for Auto PI Seek is OFF.
Note:
• Refer to “Initial Setting” for details on how to switch Auto PI Seek ON/OFF.
Regional Function
When AF is used to retune the tuner automatically, REG (regional) limits the selection to
stations broadcasting regional programs.
Note:
• Regional programming and regional networks are organized differently depending on the country
(i.e., they may change according to the hour, state or broadcast area).
• The preset number may disappear on the display if the tuner tunes in a regional station which
differs from the originally set station.
• REG can be switched ON or OFF independently for each FM band.
Activating/Deactivating the REG Function
The REG function is set to ON by default.
• Turn REG to OFF.
To turn REG back ON, repeat the preceding operation.
Hold for 2 seconds

12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
TA Function
The TA (Traffic Announcement standby) function lets you receive traffic announcements
automatically, no matter what source you are listening to. The TA function can be
activated for either a TP station (a station that broadcasts traffic information) or an EON
TP station (a station carrying information which cross-references TP stations).
Activating/Deactivating the TA Function
1. Tune in a TP or EON TP station.
The “TP” indicator lights when the tuner is tuned to a TP station or an EON TP station.
2. Activate the TA function.
The “TA” indicator lights, indicating that the tuner is waiting for traffic announcements.
Repeat the preceding operation when no traffic announcement is being received to
deactivate the TA function.
Note:
• The system switches back to the original source following traffic announcement reception.
• The TA function can be activated from sources other than tuner if the tuner was last set to the FM
band but not if it was last set to the MW/LW band.
• If the tuner was last set to FM, turning on the TA function lets you operate other tuning functions
while listening to the sources other than tuner.
• Only TP or EON TP stations are tuned in during the Seek Tuning mode when the “TA” indicator is
ON.
• Only TP or EON TP stations are stored by BSM when the “TA” indicator is ON.
“TA”

Using RDS Functions
Canceling Traffic Announcements
• Press the TA/AF button while a traffic announcement is being received to
cancel the announcement and return to the original source.
The announcement is canceled but the tuner remains in the TA mode until the TA/AF
button is pressed again.

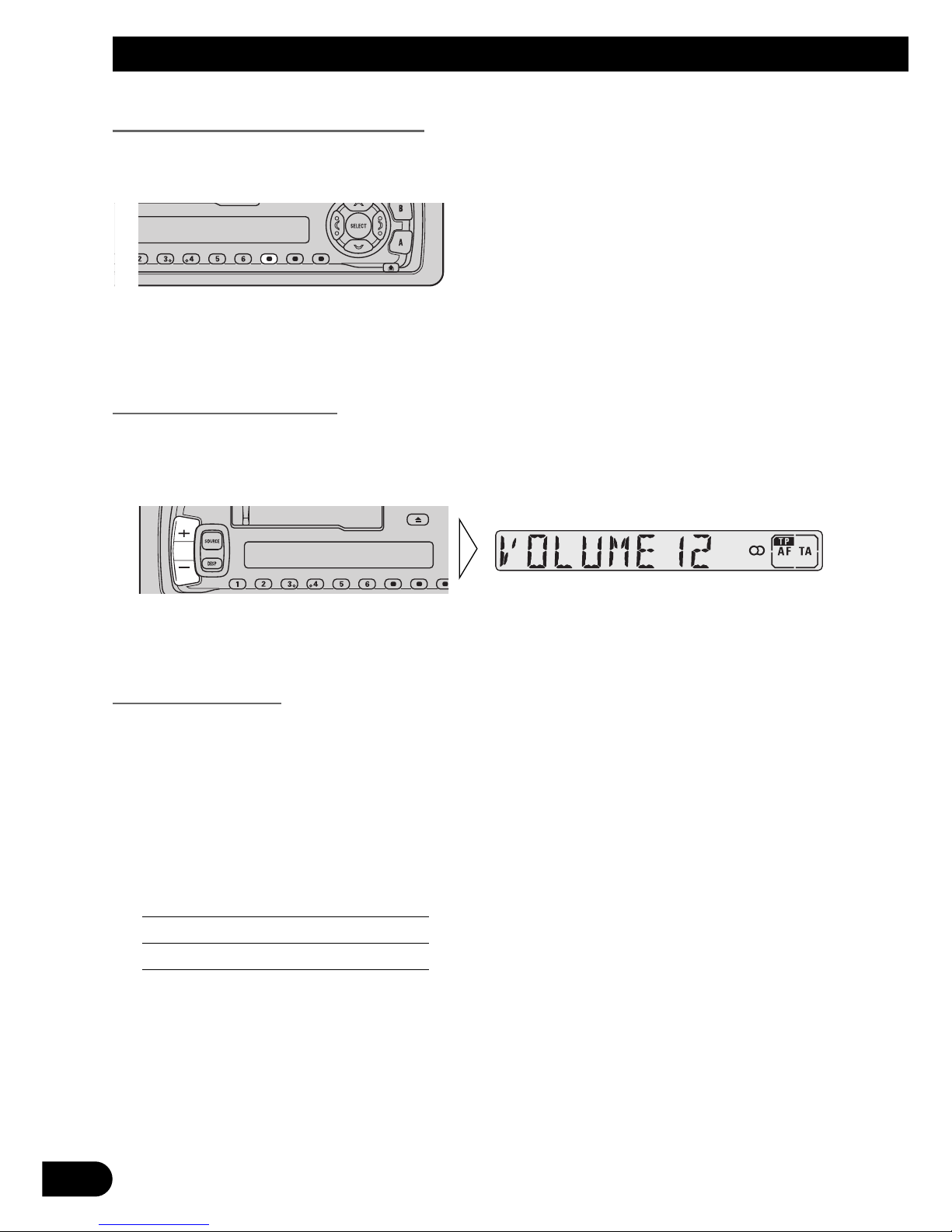

Adjusting the TA Volume
When a traffic announcement begins, the volume adjusts automatically to a preset level to
enable you to hear the announcement clearly.
• Set the volume by adjusting it during reception of a traffic announcement.
The newly set volume is stored in memory and recalled for subsequent traffic announce-
ments.
TP Alarm Function
About 30 seconds after the “TP” indicator is extinguished due to a weak signal, a 5 second
beep sounds to remind you to select another TP or EON TP station.
• If you are listening to the tuner, tune in another TP station or EON TP
station.
In sources other than tuner, the tuner automatically seeks out the TP station with the
strongest signal in the current area 10 (or 30)* seconds after “TP” disappears from the
display.
* Time taken before Seek begins.
TA function ON 10 seconds
TA, AF functions ON 30 seconds
13

14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
PTY Function
The PTY function enables you to select stations by the type of programming they
broadcast (PTY Search). It also provides automatic tuning to emergency broadcasts
(PTY Alarm).
Note:
• PTY code program types are as follows:
1. NEWS: News.
2. AFFAIRS: Current affairs.
3. INFO: General information and advice.
4. SPORT: Sports programs.
5. EDUCATE: Educational programs.
6. DRAMA: All radio plays and serials.
7. CULTURE: Programs concerned with any aspect of national or regional culture.
8. SCIENCE: Programs about nature, science and technology.
9. VARIED: Light entertainment programs.
10. POP MUS: Popular music.
11. ROCK MUS: Contemporary modern music.
12. EASY MUS: Easy listening music.
13. L. CLASS: Light classical music.
14. CLASSIC: Serious classical music.
15. OTH MUS: Other types of music, which can’t be categorized.
16. WEATHER: Weather reports/Meteorological information.
17. FINANCE: Stock market reports, commerce, trading etc.
18. CHILDREN: Children’s programs.
19. SOCIAL: Social affairs programs.
20. RELIGION: Religion affairs programs or services.
21. PHONE IN: Phone in based programs.
22. TOURING: Travel programs, not for announcements about traffic problem.
23. LEISURE: Programs about hobbies and recreational activities.
24. JAZZ: Jazz music based programs.
25. COUNTRY: Country music based programs.
26. NAT MUS: National music based programs.
27. OLDIES: Oldies music, ‘Golden age’ based programs.
28. FOLK MUS: Folk music based programs.
29. DOCUMENT: Documentary programs.

15
Using RDS Functions
PTY Search Setting Function
1. Enter the PTY Search setting mode.
The name of a program type appears on the display for 5 seconds.
Note:
• CURRENT sets desired PTY to the program type of the current station (only for RDS stations
broadcasting PTY information).
2. Select one of the PTYs.
3. When the desired programming type appears on the display, return to the
normal display.
“PTY”Hold for 2 seconds

16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
PTY Search Function
• Initiate a PTY search.
The tuner searches for a station broadcasting the desired PTY.
Note:
• The program of some stations may differ from that indicated by the transmitted PTY.
•If no station broadcasting the selected programming type is found, “NOTFOUND” is displayed for
about 2 seconds, and the tuner returns to the original station.
PTY Alarm
PTY Alarm is a special PTY code for announcements regarding emergencies such as
natural disasters. When the tuner receives the radio alarm code, “ALARM” appears on the
display and the volume adjusts to the TA volume. When the station stops broadcasting the
emergency announcement, the system returns to the previous source.
Note:
• The system switches back to the original source following emergency announcement reception.
Canceling Emergency Announcements
• Press the TA/AF button during emergency announcement reception to
cancel the announcement and return to the previous source.

17
Using the Cassette Player
Repeat Play
The repeat mode lets you hear the same song over again.
Blank Skip
This function fast-forwards to the next song automatically if there is a long period of
silence (12 seconds or longer) between songs.
Radio Intercept
This function allows you to listen to the radio during tape fast-forwarding/rewinding.
Note:
• The radio intercept function does not work during a Music Search operation.
• Switch the Radio Intercept
ON/OFF with the button 6.
• Switch the Blank Skip
ON/OFF with the
button 5.
• Switch the Repeat Play
ON/OFF with the button 4.

18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Audio Adjustment
Entering the Audio Menu
With this Menu, you can adjust the sound quality.
Note:
• After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the
Audio Menu is automatically canceled.
1. Select the desired mode in the Audio Menu.
2. Operate a mode.
3. Cancel the Audio Menu.
Each press changes the Mode ...

19
Audio Adjustment
Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (FAD)
This function allows you to select a Fader/Balance setting that provides ideal listening
conditions in all occupied seats.
1. Press the AUDIO button and select the Fader/Balance mode (FAD) in the
Audio Menu.
Note:
• “FAD 0” is the proper setting when 2 speakers are in use.
Bass Adjustment (BAS)
You can adjust a Bass level as desired.
1. Press the AUDIO button and select the Bass mode (BAS) in the Audio Menu.
2. Boost or attenuate the bass
level with the 5/∞buttons.
The display shows “+6” – “–6”
3. Adjust left/right speaker bal-
ance with the 2/3buttons.
“BAL L9” – “BAL R9” is displayed
as it moves from left to right.
2. Adjust front/rear speaker bal-
ance with the 5/∞buttons.
“FAD F15” – “FAD R15” is dis-
played as it moves from front to
rear.
