Pioneer KEH-P4025 User manual

Multi-CD control High power cassette player with
FM/AM tuner
Operation Manual
KEH-P4025
English Español
Português (B)
dF
«W
OÐ

Before You Start
About this manual 2
Precautions 2
What’s what 3
Optional remote control 4
Protecting your unit from theft 5
• Removing the front panel 5
• Attaching the front panel 5
Power ON/OFF
Turning the unit on 6
Selecting a source 6
Turning the unit off 6
Tuner
Listening to the radio 7
Storing and recalling broadcast
frequencies 8
Tuning in strong signals 8
Storing the strongest broadcast
frequencies 8
Cassette Player
Playing a tape 9
Repeating play 10
Skipping blank tape sections 10
Radio intercept 10
Multi-CD Player
Playing a CD 10
50-disc multi-CD player 11
Repeating play 11
Playing tracks in a random order 12
Scanning CDs and tracks 12
Pausing CD playback 12
Audio Adjustments
Introduction of audio adjustments 13
Using balance adjustment 13
Using the equalizer 14
• Recalling equalizer curves 14
• Adjusting equalizer curves 14
Adjusting loudness 14
Front image enhancer (FIE) 15
Adjusting source levels 15
Initial Settings
Adjusting initial settings 16
Setting the time 16
Setting the FM tuning step 16
Setting the AM tuning step 17
Switching the auxiliary setting 17
Additional Information
Setting the time display on or off 17
Using the AUX source 17
• Selecting AUX as the source 17
Cassette tapes 18
Cleaning the playback head 18
Music search and repeat functions 18
Specifications 19
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to oper-
ate your model properly. After you have finished reading the instructions, put them
away in a safe place for future reference.
Contents
En
1

About this manual
This unit features a number of sophisticated
functions ensuring superior reception and oper-
ation. All the functions have been designed for
the easiest possible use, but many are not self-
explanatory. This operation manual will help you
benefit fully from this product’s potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin using
this unit. It is especially important that you read
and observe precautions on this page and in
other sections.
This manual explains head unit operation. You
can perform the same operations with the
remote control (CD-R30).
Precautions
• Keep this manual handy as a reference for
operating procedures and precautions.
• Always keep the volume low enough so you
can hear sounds outside of the car.
• Protect this product from moisture.
• If the battery is disconnected or discharged,
the preset memory will be erased and must be
reprogrammed.
• Should this product fail to operate properly,
contact your dealer or nearest authorized
Pioneer Service Station.
Before You Start
En 2
English Español Deutsch Français Italiano Nederlands

Before You Start
What’s what
1VOLUME button
Press to increase or decrease the volume.
2LOCAL button (tuner)
Press to switch local function on or off.
PAUSE/SCAN button
Press to switch pause function on or off.
Press and hold for two seconds to switch
scan function on or off.
3BSM button (tuner)
Press and hold for two seconds to switch
BSM function on or off.
REPEAT/RANDOM button
Press to switch repeat function on or off.
Press and hold for two seconds to switch
random function on or off.
4OPEN button
Press to open the front panel.
5AUDIO button
Press to select various sound quality con-
trols.
65/∞/2/3buttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls. Also
used for controlling functions.
7LOUDNESS button
Press to switch loudness function on or off.
8BAND button
Press to select among three FM and one AM
band and cancel the control mode of func-
tions.
91–6 (PRESET TUNING) buttons
Press for preset tuning and disc number
search when using a multi-CD player.
0SOURCE button
This unit is switched on by selecting a
source. Press to cycle through all of the
available sources.
-EQ button
Press to select various equalizer curves.
=CLOCK button
Press to switch clock display on or off.
En
3
35
=
-
98
7
6
0
124

Before You Start
En 4
Optional remote control
The remote control CD-R30 is sold separately.
Operation is the same as when using the button
on the head unit. See the explanation of the
head unit about the operation of each button
with the exception of ATT, which is explained
below.
~+/– button
Press to increase or decrease the volume.
!FUNCTION button
Not used.
@CD button
Press once to select a CD.
#Cassette button
Press once to select a cassette.
$TUNER button
Press once to select a tuner.
%ATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
English Español Deutsch Français Italiano Nederlands
5
!
$
@
#
8%
6
~

En
5
Before You Start
Protecting your unit from theft
The front panel can be detached from the head
unit and stored in the protective case provided
to discourage theft.
• Keep the front panel closed while driving.
Important
• Never use force or grip the display and the
buttons tightly when removing or attaching.
• Avoid subjecting the front panel to excessive
shocks.
• Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and pull
it gently outward.
Take care not to grip it tightly or drop it.
3 Put the front panel into the protective case
provided for safe keeping.
Attaching the front panel
Replace the front panel by holding it upright
to this unit and clipping it securely into the
mounting hooks.

Power ON/OFF
En 6
English Español Deutsch Français Italiano Nederlands
Turning the unit on
Press SOURCE to turn the unit on.
When you select a source the unit is turned on.
Selecting a source
You can select a source you want to listen to. To
switch to the cassette player, load a cassette
tape in this unit (refer to page 9).
Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Tuner—Cassette player—Multi-CD player
—External unit—AUX
Notes
• In the following cases, the sound source will
not change:
— When a product corresponding to each
source is not connected to this unit.
— When no cassette is set in this unit.
— When no magazine is set in the multi-CD
player.
— When the AUX (external input) is set to off
(refer to page 17).
• External Unit refers to a Pioneer product
(such as one available in the future) that,
although incompatible as a source, enables
control of basic functions by this product.
Only one External Unit can be controlled by
this product.
• When this unit’s blue/white lead is connected
to the car’s auto-antenna relay control termi-
nal, the car’s antenna extends when this
unit’s source is switched on. To retract the
antenna, switch the source off.
Turning the unit off
Press SOURCE and hold for at least one sec-
ond to turn the unit off.

Tuner
Listening to the radio
If you are using this unit in North, Central or
South America, reset the AM tuning step (see
Setting the AM tuning step on page 17).
1BAND indicator
Shows which band the radio is tuned to, AM
or FM.
2FREQUENCY indicator
Shows to which frequency the tuner is
tuned.
3PRESET NUMBER indicator
Shows what preset has been selected.
4STEREO () indicator
Shows that the frequency selected is being
broadcast in stereo.
1 Press SOURCE to select the tuner.
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 Press BAND to select a band.
Press BAND until the desired band is displayed,
F1, F2, F3 for FM or AM.
4 To perform manual tuning, press 2or 3
with quick presses.
The frequencies move up or down step by step.
5 To perform seek tuning, press and hold 2
or 3for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
• You can cancel seek tuning by pressing either
2or 3with a quick press.
• If you press and hold 2or 3you can skip
broadcasting stations. Seek tuning starts as
soon as you release the buttons.
Note
• When the frequency selected is being broad-
cast in stereo the STEREO ()indicator will
light.
21 3 4
En
7

Tuner
En 8
Storing and recalling broadcast
frequencies
If you press any of the PRESET TUNING buttons
you can easily store up to six broadcast frequen-
cies for later recall with the touch of a button.
When you find a frequency that you want to
store in memory press a PRESET TUNING but-
ton and hold until the preset number stops
flashing.
The number you have pressed will flash in the
PRESET NUMBER indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same PRESET TUN-
ING button the radio station frequency is
recalled from memory.
Notes
• Up to 18 FM stations, 6 for each of the three
FM bands, and 6 AM stations can be stored in
memory.
• You can also use 5and ∞to recall radio sta-
tion frequencies assigned to PRESET TUNING
buttons.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals for
good reception.
1 Press LOCAL to turn local seek tuning on.
Local seek sensitivity (LOC) appears in the dis-
play.
2 When you want to return to normal seek
tuning, press LOCAL to turn local seek tuning
off.
Storing the strongest broadcast
frequencies
BSM (best stations memory) lets you automati-
cally store the six strongest broadcast frequen-
cies under PRESET TUNING buttons 1–6 and
once stored there you can tune in to those fre-
quencies with the touch of a button.
Press and hold BSM for about two seconds to
turn BSM on.
BSM begins to flash. While BSM is flashing the
six strongest broadcast frequencies will be
stored under PRESET TUNING buttons in order
of their signal strength. When finished, BSM
stops flashing.
• To cancel the storage process, press BSM.
Note
• Storing broadcast frequencies with BSM may
replace broadcast frequencies you have saved
using PRESET TUNING.
English Español Deutsch Français Italiano Nederlands

En
9
Cassette Player

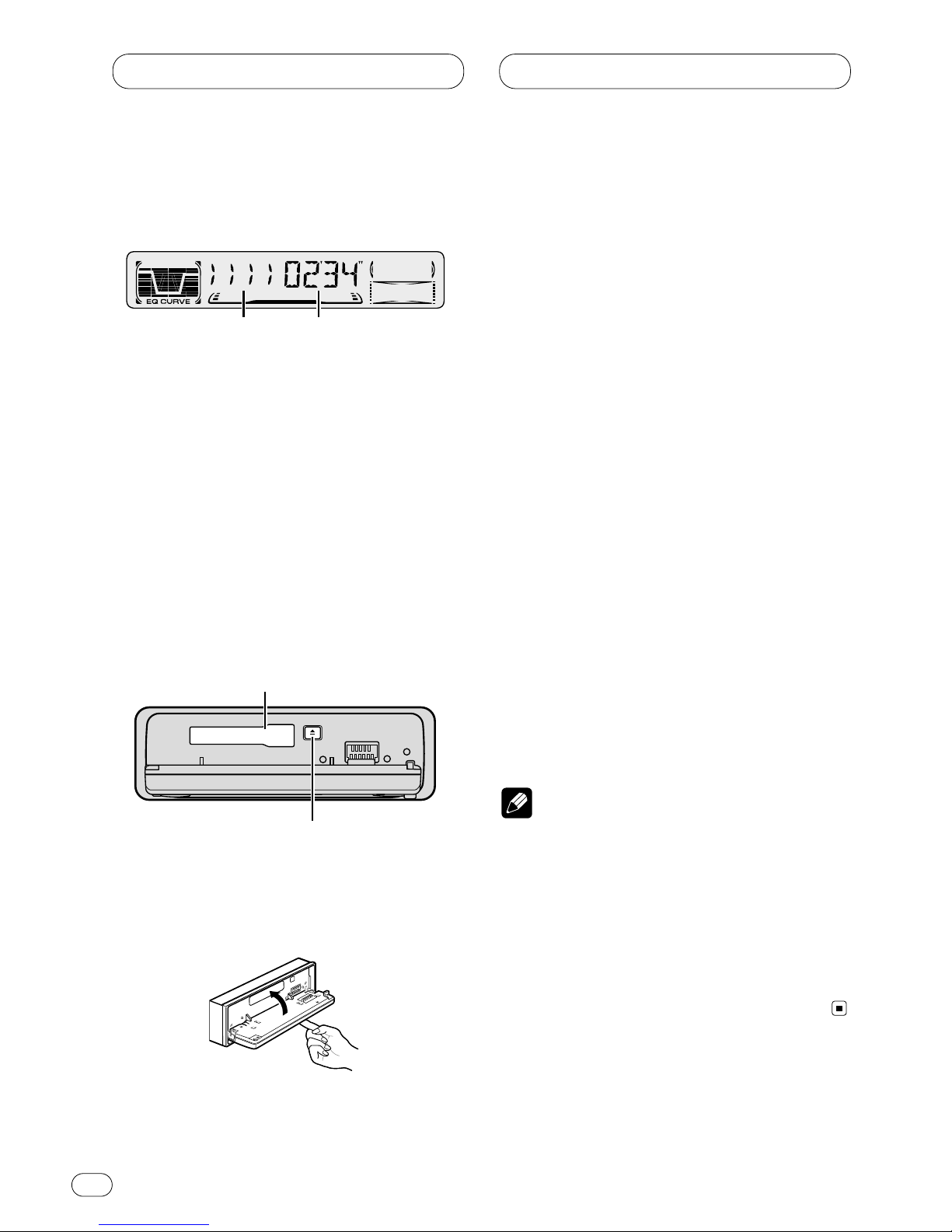

Playing a tape
1TAPE DIRECTION indicator
Shows the direction of the tape transport.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent side of the tape.
1 Press OPEN to open the front panel.
Cassette loading slot appears.
2 Insert a cassette tape into the cassette
loading slot.
Playback will automatically start.
Cassette loading slot
TAPE EJECT button
• You can eject a cassette tape by pressing
TAPE EJECT.
3 Close the front panel.
• After a cassette tape has been inserted, press
SOURCE to select the Cassette player.
4Use
VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
5 To perform fast forward or rewind, press 2
or 3.
FF or REW appears in the display.
• To cancel fast forward or rewind and return to
playback, press BAND.
• You can cancel fast forward or rewind by
pressing 2or 3in the same direction twice.
6 To perform forward or rewind music
search, press 2or 3twice.
F-MS (forward music search) or R-MS (rewind
music search) appears in the display. The cas-
sette player will fast forward or rewind to the
next or previous blank spot on the tape and
begin to play.
• To cancel music search and return to play-
back, press BAND.
• You can cancel music search by pressing 2
or 3in the same direction again.
7 To change the direction of the tape trans-
port, press BAND.
Notes
• Do not insert anything other than a cassette
tape into the cassette loading slot.
•PLAY TIME indicator starts from 00’00” in the
following cases:
— When a tape is inserted
— When the tape direction is changed
— When you rewind the tape to the beginning
•PLAY TIME indicator is halted when fast for-
ward, rewind or music search is operating.
12

Cassette Player Multi-CD Player
En 10
English Español Deutsch Français Italiano Nederlands
Repeating play
Repeat play lets you hear the same track over
again.
1 Press REPEAT/RANDOM to turn repeat play
on.
RPT appears in the display. The track presently
playing will play and then repeat.
2 Press REPEAT/RANDOM to turn repeat play
off.
The track presently playing will continue to play
and then play the next track.
Skipping blank tape sections
Blank skip automatically fast forwards to the
next song if there is a long period of silence (12
seconds or longer) between songs.
1 Press 5to turn blank skip on.
BS ON appears in the display. Long periods of
silence between songs will be skipped.
2 Press 5to turn blank skip off.
BS OFF appears in the display. The complete
cassette tape will play.
Radio intercept
This function allows you to listen to the radio
during tape fast-forwarding/rewinding.
1 Press 6to turn radio intercept on.
RI ON appears in the display.
2 Press 6to turn radio intercept off.
RI OFF appears in the display.
Playing a CD
You can use this unit to control a multi-CD player,
which is sold separately.
1TRACK NUMBER indicator
Shows the track currently playing.
2PLAY TIME indicator
Shows the elapsed playing time of the cur-
rent track.
3DISC NUMBER indicator
Shows the disc currently playing.
321

En
11
Multi-CD Player
1 Press SOURCE to select the multi-CD
player.
2UseVOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/–, the volume is
lowered.
3 Select a disc you want to listen to with the
1to 6buttons.
For discs located at 1 to 6, press the correspond-
ing number button.
If you want to select a disc located at 7 to 12,
press and hold the corresponding numbers
such as 1for disc 7, until the disc number
appears in the display.
• You can also sequentially select a disc by
pressing 5/∞.
4 To perform fast forward or reverse, press
and hold 2or 3.
5 To skip back or forward to another track,
press 2or 3.
Pressing 3skips to the start of the next track.
Pressing 2once skips to the start of the current
track. Pressing again will skip to the previous
track.
Notes
• When the multi-CD player performs the
preparatory operations, READY is displayed.
• If the multi-CD player does not operate prop-
erly, an error message such as ERROR-14 may
be displayed. Refer to the multi-CD player
owner’s manual.
• If there are no discs in the multi-CD player
magazine, NO DISC is displayed.
50-disc multi-CD player
Only those functions described in this manual
are supported for 50-disc multi-CD players.
Repeating play
There are three repeat play ranges for the multi-
CD player: Multi-CD player repeat, one-track
repeat, and disc repeat.
Press REPEAT/RANDOM to select the repeat
range.
Press REPEAT/RANDOM until the desired
repeat range appears in the display.
•Nothing’s displayed — Repeat all discs in
the multi-CD player
•RPT — Repeat just the current track
•DISC — Repeat the current disc
Notes
• If you select other discs during repeat play,
the repeat play range changes to multi-CD
player repeat.
• If you perform track search or fast
forward/reverse during RPT (one-track
repeat), the repeat play range changes to
DISC (disc repeat).

Multi-CD Player
En 12
English Español Deutsch Français Italiano Nederlands
Playing tracks in a random order
Random play lets you play back tracks in a ran-
dom order within the repeat range, multi-CD
player repeat and disc repeat.
1 Select the repeat range.
Refer to Repeating play on page 11.
2 Press and hold REPEAT/RANDOM for about
two seconds to turn random play on.
DRDM (random playing in a disc) or RDM (ran-
dom playing in a magazine) appears in the dis-
play. Tracks will play in a random order within
the previously selected multi-CD player repeat
or disc repeat ranges.
3 Press and hold REPEAT/RANDOM for about
two seconds to turn random play off.
Tracks will continue to play in order.
Scanning CDs and tracks
While you are using DISC (disc repeat), the
beginning of each track on the selected disc
plays for about 10 seconds. When you are using
multi-CD player repeat, the beginning of the first
track of each disc is played for about 10 sec-
onds.
1 Select the repeat range.
Refer to Repeating play on page 11.
2 Press and hold PAUSE/SCAN for about two
seconds to turn scan play on.
DSCN (scanning tracks) or SCAN (scanning
discs) appears in the display. The first 10 sec-
onds of each track of the present disc (or the
first track of each disc) is played.
3 When you find the desired track (or disc)
press and hold PAUSE/SCAN for about two
seconds to turn scan play off.
The track (or disc) will continue to play.
Note
• After track or disc scanning is finished, nor-
mal playback of the tracks will begin again.
Pausing CD playback
Pause lets you temporarily stop playback of the
CD.
1 Press PAUSE/SCAN to turn pause on.
PAUSE appears in the display. Play of the cur-
rent track pauses.
2 Press PAUSE/SCAN to turn pause off.
Play will resume at the same point that you
turned pause on.

Audio Adjustments
Introduction of audio
adjustments
1AUDIO display
Shows the audio adjustments status.
2LOUD indicator
Appears in the display when loudness is
turned on.
Press AUDIO to display the audio function
names.
Press AUDIO repeatedly to switch between the
following audio functions:
FAD (balance adjustment)—EQ-L (equalizer)—
LOUD (loudness)—FIE (front image
enhancer)—SLA (source level adjustment)
• When selecting the FM tuner as the source,
you cannot switch to SLA.
• To return to the display of each source, press
BAND.
Note
• If you do not operate the audio function within
about 30 seconds, the display is automatically
returned to the source display.
Using balance adjustment
You can select a fader/balance setting that pro-
vides an ideal listening environment in all occu-
pied seats.
1 Press AUDIO to select FAD.
Press AUDIO until FAD appears in the display.
• If the balance setting has been previously
adjusted, BAL will be displayed.
2 Press 5or ∞to adjust front/rear speaker
balance.
Each press of 5or ∞moves the front/rear
speaker balance towards the front or the rear.
•FAD F15 – FAD R15 is displayed as the
front/rear speaker balance moves from front to
rear.
•FAD 0 is the proper setting when only two
speakers are used.
3 Press 2or 3to adjust left/right speaker
balance.
When you press 2or 3, BAL 0 is displayed.
Each press of 2or 3moves the left/right
speaker balance towards the left or the right.
•BAL L9 – BAL R9 is displayed as the left/right
speaker balance moves from left to right.
12
En
13

Audio Adjustments
En 14
Using the equalizer
The equalizer lets you adjust the equalization to
match car interior acoustic characteristics as
desired.
Recalling equalizer curves
There are six stored equalizer curves which you
can easily recall at any time. Here is a list of the
equalizer curves:
Display Equalizer curve
SPR-BASS Super bass
POWERFUL Powerful
NATURAL Natural
VOCAL Vocal
CUSTOM Custom
EQ FLAT Flat
•CUSTOM is an adjusted equalizer curve that
you create.
• When EQ FLAT is selected no supplement or
correction is made to the sound. This is useful
to check the effect of the equalizer curves by
switching alternatively between EQ FLAT and a
set equalizer curve.
Press EQ to select the equalizer.
• If the equalizer has been previously set to an
equalizer curve other than POWERFUL then the
title of that previously selected equalizer curve
will be displayed, such as SPR-BASS,
NATURAL, VOCAL, CUSTOM, or EQ FLAT.
Adjusting equalizer curves
You can adjust the currently selected equalizer
curve setting as desired. Adjusted equalizer
curve settings are memorized in CUSTOM.
1 Press AUDIO to select the equalizer mode.
Press AUDIO until EQ-L/EQ-M/EQ-H appears in
the display.
2 Select the band you want to adjust with
the 2/3.
EQ-L (low) —EQ-M (mid) —EQ-H (high)
3 Press 5or ∞to adjust the equalizer curve.
Each press of 5or ∞increases or decreases
the equalizer curve respectively.
•+6 ––6 is displayed as the equalizer curve is
increased or decreased.
• The actual range of the adjustments are differ-
ent depending on which equalizer curve is
selected.
Note
• If you make adjustments when a curve other
than CUSTOM is selected, the newly adjusted
curve will replace the previous curve. Then a
new curve with CUSTOM appears on the dis-
play while selecting the equalizer curve.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
Press AUDIO until LOUD appears in the display.
English Español Deutsch Français Italiano Nederlands

Audio Adjustments
2 Select LOUD on or off with 5/∞.
3 Select the desired level with 2/3.
LOW (low) —MID (mid) —HI (high)
Note
• You can also switch LOUD on or off by press-
ing the LOUDNESS.
Front image enhancer (FIE)
The F.I.E. (Front Image Enhancer) function is a
simple method of enhancing front imaging by
cutting mid- and high-range frequency output
from the rear speakers, limiting their output to
low-range frequencies. You can select the fre-
quency you want to cut.
Precaution
• When the F.I.E. function is deactivated, the
rear speakers output sound of all frequencies,
not just bass sounds. Reduce the volume
before disengaging F.I.E. to prevent a sudden
increase in volume.
1 Press AUDIO to select FIE.
Press AUDIO until FIE appears in the display.
2 Select FIE on or off with 5/∞.
3 Select the desired frequency with 2/3.
100—160—250 (Hz)
Notes
• After switching the F.I.E. function ON, select
the Fader/Balance mode in the Audio Menu,
and adjust front and rear speaker volume
levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-
speaker system.
Adjusting source levels
SLA (Source level adjustment) lets you adjust
the volume level of each source to prevent radi-
cal changes in volume when switching between
sources.
• Settings are based on the volume level of the
FM tuner, which remains unchanged.
1 Compare the FM tuner volume level with
the level of the source you wish to adjust.
2 Press AUDIO to select SLA.
Press AUDIO until SLA appears in the display.
3 Press 5or ∞to adjust the source volume.
Each press of 5or ∞increases or decreases
the source volume.
•SLA +4 – SLA –4 is displayed as the source
volume is increased or decreased.
Notes
• Since the FM tuner volume is the control, it is
not possible to apply source level adjustments
to the FM tuner.
• The AM tuner volume level can also be
adjusted with source level adjustments.
En
15

Initial Settings
En 16
Adjusting initial settings
Initial settings lets you perform initial set up of
different settings for this unit.
1 Press SOURCE and hold until the unit turns
off.
2 Press AUDIO and hold until TIME appears
in the display.
Press AUDIO repeatedly to switch between the
following settings:
TIME—FM STEP—AM STEP—AUX
Use the following instructions to operate each
particular setting.
• To cancel initial settings, press BAND.
• You can also cancel initial settings by holding
down AUDIO until the unit turns off.
Setting the time
This is used to set the time on the unit’s clock
display.
1 Press AUDIO to select the time.
Press AUDIO until the time appears in the dis-
play.
2 Select the portion of the time display you
wish to set with 2/3.
Pressing 2/3will select a portion of the clock
display:
HOUR—MINUTE
As you select portions of the clock display the
portion selected will blink.
3 Select the correct time with 5/∞.
Pressing 5will increase the selected hour or
minute. Pressing ∞will decrease the selected
hour or minute.
Setting the FM tuning step
The tuning step employed by Seek Tuning in the
FM mode can be switched between 100 kHz
(preset at the factory) and 50 kHz.
1 Press AUDIO to select FM STEP.
Press AUDIO repeatedly until FM 100 appears in
the display.
2 Select the FM tuning step with 2/3.
English Español Deutsch Français Italiano Nederlands

Note
• If seek tuning is performed in 50 kHz steps,
stations may be tuned in imprecisely. Tune in
the stations with manual tuning or use seek
tuning again.
Setting the AM tuning step
The AM tuning step can be switched between 9
kHz, the preset step, and 10 kHz. When using
the tuner in North, Central or South America,
reset the tuning step from 9 kHz (531 – 1,602
kHz allowable) to 10 kHz (530 – 1,640 kHz allow-
able).
1 Press AUDIO to select AM STEP.
Press AUDIO repeatedly until AM 9 appears in
the display.
2 Select the AM tuning step with 2/3.
Pressing 2/3will switch the AM tuning step
between 9 kHz and 10 kHz. The selected AM
tuning step will appear in the display.
Switching the auxiliary setting
It is possible to use auxiliary equipment with
this unit. Activate the auxiliary setting when
using external equipment connected to this
unit.
1 Press AUDIO to select AUX.
Press AUDIO repeatedly until AUX appears in
the display.
2 Select AUX on or off with 5/∞.
Pressing 5/∞will switch AUX between on and
off and that status will be displayed.
Setting the time display on or off
You can turn the time display on even when the
sources and the demonstration are off.
Press CLOCK to select the time display.
Each press of CLOCK turns time display on or
off.
• The time display disappears temporarily when
you perform other operations, but the time indi-
cation is displayed again after 25 seconds.
Using the AUX source
An IP-BUS-RCA Interconnector such as the
CD-RB20 or CD-RB10 (sold separately) lets you
connect this unit to auxiliary equipment featur-
ing RCA output. For more details, refer to the
IP-BUS-RCA Interconnector owner‘s manual.
Selecting AUX as the source
Press SOURCE to select AUX as the source.
Press SOURCE until AUX appears in the display.
• If the auxiliary setting is not switched on, AUX
cannot be selected. For more details, see
Switching the auxiliary setting on this page.
Initial Settings Additional Information
En
17

Additional Information
En 18
English Español Deutsch Français Italiano Nederlands
Cassette tapes
• A loose, torn or warped label on a cassette
tape can jam the cassette player. Do not use
cassette tapes with loose, torn or warped
labels.
• Cassette tapes longer than C-90 (90-minute
tapes) can cause the tape to jam in the cas-
sette player. Do not use tapes longer than
C-90.
• Cassette tapes exposed to high temperatures
may warp and jam the cassette player. Keep
cassettes out of direct sunlight or places
where there are high temperatures.
• Store unused tapes in a tape case where there
is no danger of them becoming loose, dirty or
dusty.
Cleaning the playback head
If the head becomes dirty, the sound quality will
get bad and there will be sound dropouts and
other problems. If you have any of these prob-
lems the head may need cleaning.
Music search and repeat
functions
Music search and repeat functions may not
work with these tapes:
• A tape with a gap of 4 seconds or less
between songs
• A tape containing dialog or other non-musical
content, with pauses lasting 4 seconds or
longer
• A tape with an extremely quiet passage in the
music lasting for 4 seconds or longer

En
19
Specifications
General
Power source ...................... 14.4 V DC (10.8 – 15.1 V
allowable)
Grounding system .............. Negative type
Max. current consumption
............................................. 10.0 A
Dimensions (W ×H ×D):
(DIN)
Chassis ................ 178 ×50 ×157 mm
Nose ..................... 188 ×58 ×20 mm
(D)
Chassis ................ 178 ×50 ×162 mm
Nose ..................... 170 ×46 ×15 mm
Weight ................................. 1.4 kg
Audio
Continuous power output is 22 W per channel min. into
4 ohms, both channels driven 50 to 15,000 Hz with no
more than 5% THD.
Maximum power output ..... 50 W ×4
Load impedance ................. 4 Ω(4 – 8 Ωallowable)
Preout max output level/output impedance
............................................. 2.2 V/1 kΩ
Equalizer (3-Band Equalizer):
(LOW) .......................... Level : ±12 dB
(MID) ........................... Level : ±12 dB
(HIGH) ......................... Level : ±12 dB
Loudness contour
(LOW) ..........................+3.5 dB (100 Hz),
+3 dB (10 kHz)
(MID) ...........................+10 dB (100 Hz),
+6.5 dB (10 kHz)
(HIGH) .........................+11 dB (100 Hz),
+11 dB (10 kHz)
(volume : –30 dB)
Cassette player
Tape ..................................... Compact cassette tape
(C-30 – C-90)
Tape speed .......................... 4.8 cm/sec
Fast forward/rewinding time
............................................. Approx. 100 sec (C-60)
Wow & flutter ...................... 0.09% (WRMS)
Frequency response ........... 30 – 16,000 Hz (±3 dB)
Stereo separation ............... 45 dB
Signal-to-noise ratio ........... 61 dB (IEC-A network)
FM tuner
Frequency range ................. 87.5 – 108.0 MHz
Usable sensitivity ............... 11 dBf (1.1 µV/75 Ω, mono,
S/N: 30 dB)
50 dB quieting sensitivity ... 17 dBf (2.2 µV/75 Ω, mono)
Signal-to-noise ratio ........... 58 dB (IEC-A network)
Distortion ............................ 0.5% (at 65 dBf, 1 kHz,
stereo)
Frequency response ........... 30 – 15,000 Hz (±3 dB)
Stereo separation ............... 24 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ................. 531 – 1,602 kHz (9 kHz)
530 – 1,640 kHz (10 kHz)
Usable sensitivity ............... 20 µV (S/N: 20 dB)
Selectivity ............................ 50 dB (±9 kHz)
50 dB (±10 kHz)
Note
• Specifications and the design are subject to
possible modifications without notice due to
improvements.
Additional Information
