Pioneer CDX-FM677-X1N/ES User manual

PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2000 K-ZZY. NOV. 2000 Printed in Japan
ORDER NO.
CRT2588
UNIVERSAL MULTI-CD SYSTEM
CDX-FM677 X1N/UC,ES
Service
Manual
CDX-FM673 X1N/UC
CDX-FM677/X1N/UC
-This service manual should be used together with the following manual(s):
Model No. Order No. Mech. Module Remarks
CX-892 CRT2356 C7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3

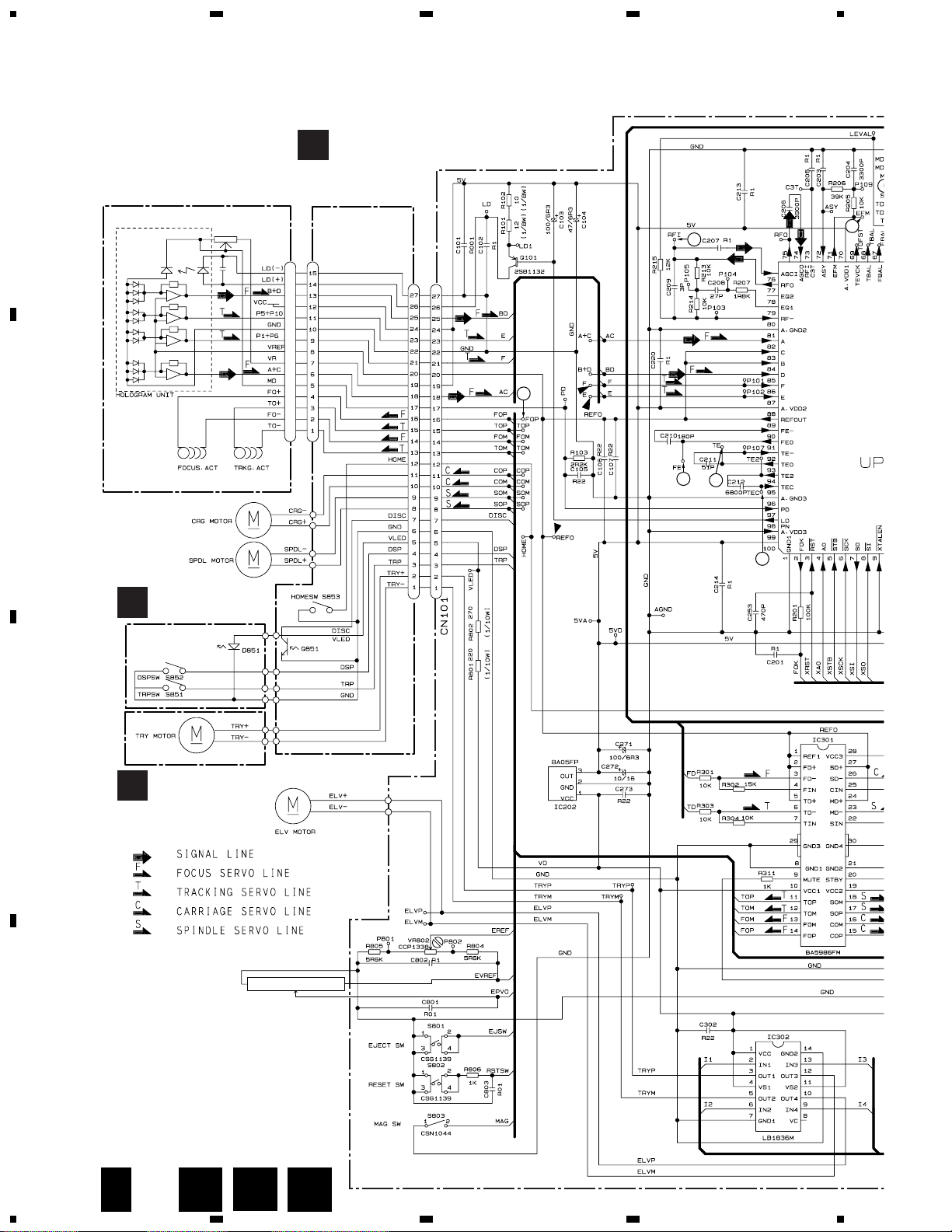

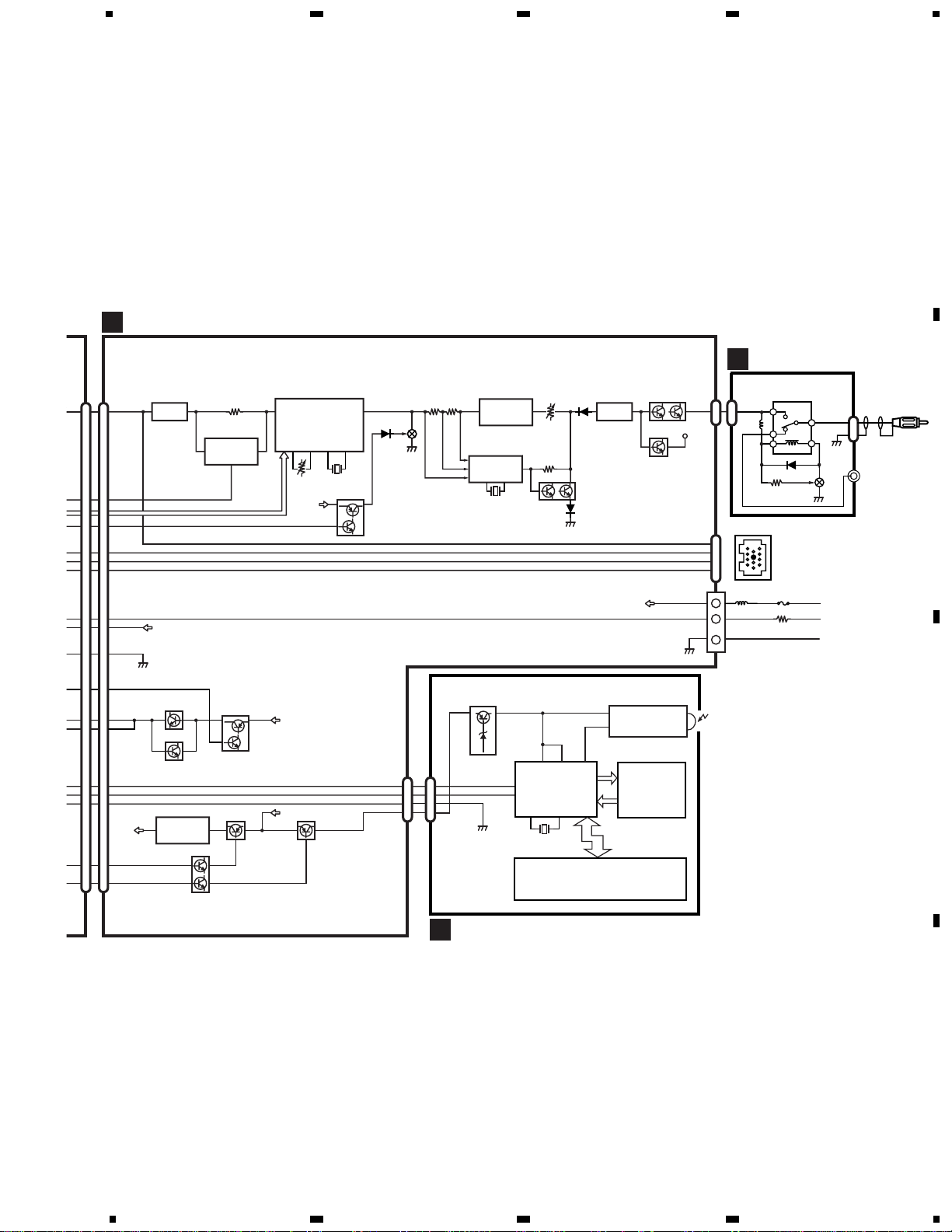

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...12
4. PCB CONNECTION DIAGRAM ................................26
5. ELECTRICAL PARTS LIST ........................................34
6. ADJUSTMENT..........................................................38
7. GENERAL INFORMATION .......................................46
7.1 DIAGNOSIS ........................................................46
7.1.1 TEST MODE..............................................46
7.1.2 DISASSEMBLY .........................................52
7.1.3 CONNECTOR FUNCTION DESCRIPTION54
7.2 PARTS .................................................................55
7.2.1 IC................................................................55
7.2.2 DISPLAY....................................................59
7.3 OPERATIONAL FLOW CHART...........................60
8. OPERATIONS AND SPECIFICATIONS.....................61

2
CDX-FM677,FM673
1. SAFETY INFORMATION
-CDX-FM677/X1N/UC and CDX-FM673/X1N/UC
CAUTION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of
California to cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 - Proposition 65
A transport screw has been attached to the
set in order to protect it during transporta-
tion. After removing the transport screw,
cover the hole with the supplied seal.
Be sure to remove the transport screw
before mounting the set. The removed
transport screw should be retained in the
accessory bag for use the next time the set
is transported.
Seal
After removing the trans-
port screw, cover the hole
with the supplied seal.
Transport screw
Attach to the original position before
transporting the set.
-CD Player Service Precautions
1. For pickup unit(CXX1285) handling, please refer
to"Disassembly"(see page 52).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
3. Please checking the grating after changing the ser-
vice pickup unit(see page 39).
4. Since these screws protects the mechanism during
transport, be sure to affix it when it is transported for
repair, etc.

3
CDX-FM677,FM673
26
33
27
28
17
24
35
4
8
6
11
10
7
9
32
31
25
18
16 15
21
22
20
13
16
2
14
19
23
12
3
5
1
29
30
29
36
30
38
39
41
40
37
34
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING

4
CDX-FM677,FM673
Part No.
Mark No. Description CDX-FM677/X1N/UC CDX-FM673/X1N/UC CDX-FM677/X1N/ES
1 Accessory Assy CEA2767 CEA2770 CEA2768
2 Spring CBH-865 CBH-865 CBH-865
3 Cord CDE4289 CDE4289 CDE4289
4 Cord CDE5812 CDE5812 CDE5812
5 Cord CDE5814 CDE5814 CDE5814
6 Screw Assy CEA1962 CEA1962 CEA1962
7 Screw CBA1295 CBA1295 CBA1295
* 8 Polyethylene Sheet CNM5158 CNM5158 CNM5158
9 Screw HMB60P500FMC HMB60P500FMC HMB60P500FMC
10 Screw HMF40P080FZK HMF40P080FZK HMF40P080FZK
11 Nut NF60FMC NF60FMC NF60FMC
12 Screw Assy CEA1965 CEA1965 CEA1965
* 13 Polyethylene Bag CEG-127 CEG-127 CEG-127
14 Screw IMS30P050FZK IMS30P050FZK IMS30P050FZK
15 Clamper CEF1010 CEF1010 CEF1010
* 16 Polyethylene Bag CEG-158 CEG-158 CEG-158
17 Polyethylene Bag CEG1185 CEG1185 *CEG1263
18 Battery CEX1065 Not used CEX1065
19 Bracket CNC8061 CNC8061 CNC8061
20 Cushion CNM3182 CNM3182 CNM3182
21 Fastener(Soft) CNM3872 CNM3872 CNM3872
22 Fastener(Rough) CNM4041 CNM4041 CNM4041
23 Panel CNS5428 CNS5428 CNS5428
* 24 Polyethylene Bag CEG1099 CEG1099 CEG1099
25 Polyethylene Bag CEG1185 CEG1185 CEG1042
26 Carton CHG4283 CHG4281 CHG4282
27 Sub Carton CHG4295 CHG4295 CHG4295
28 Contain Box CHL4283 CHL4281 CHL4282
29 Protector CHP2133 CHP2133 CHP2133
30 Protector CHP2135 CHP2135 CHP2135
31 Seal CNM5599 CNM5599 CNM5599
32-1 Installation Manual CRD3324 CRD3322 CRD3326
32-2 Owner’s Manual CRD3323 CRD3321 CRD3325
* 32-3 Card ARY1048 ARY1048 Not used
33 Antenna Select Assy CWM7445 CWM7445 CWM7445
34 Display Assy CXB6804 CXB6803 CXB6804
35 Remote Control Assy CXB6798 Not used CXB6798
36 Magazine Assy CXB4027 CXB4027 CXB4027
37 Angle Assy CXB3591 CXB3591 CXB3591
* 38 Caution Card CRP1090 CRP1090 CRP1090
* 39 Caution Card CRP1232 CRP1232 CRP1232
40 Air Cushioned Bag CEG1055 CEG1055 CEG1055
41 Cover CEG1062 CEG1062 CEG1062
-PACKING SECTION PARTS LIST
NOTE:
-Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.

5
CDX-FM677,FM673
- Owner’s Manual
Model Part No. Language
CDX-FM677/X1N/UC CRD3323 English, French
CDX-FM673/X1N/UC CRD3321 English, French
CDX-FM677/X1N/ES CRD3325 English, Spanish, Portuguese(B), Arabic
- Installation Manual
Model Part No. Language
CDX-FM677/X1N/UC CRD3324 English, French
CDX-FM673/X1N/UC CRD3322 English, French
CDX-FM677/X1N/ES CRD3326 English, Spanish, Portuguese(B), Arabic

6
CDX-FM677,FM673
2.2 EXTERIOR

7
CDX-FM677,FM673
1 Screw BMZ26P040FMC
2 Screw BMZ30P040FZK
3 Button CAC6363
4 Screw CBA1460
5 Spring CBH1859
6 Connector CDE5525
7 Connector CDE6480
8 Cord CDE5812
9 Resistor RS1/2PMF102J
10 Cap CNS1472
11 Upper Case See Contrast table(2)
12 Arm CNC8058
13 Insulator CNM6074
14 Panel CNS5216
15 Damper CNV5591
16 Antenna Select Assy CWM7445
17 Cord CDE4087
18 Antenna Cable CDH1207
19 Chassis CNA1555
20 Case CNB1764
21 Antenna Select Unit CWX2580
22 Plug(CN502) CKS1222
23 Plug(CN501) CKS2812
24 Antenna Jack(CN503) CKX1006
25 Extension Unit See Contrast table(2)
26 Screw BMZ26P060FMC
27 Jack(CN401) CKN1022
28 Plug(CN801) CKS-460
29 Connector(CN802) CKS3195
30 Connector(CN803) See Contrast table(2)
31 Connector(CN201) CKS3920
32 Holder CNC8056
33 Holder CNC8070
34 Remote Control Unit See Contrast table(2)
35 Cover See Contrast table(2)
36 Display Assy See Contrast table(2)
37 Screw BPZ20P100FZK
38 Button CAC5887
39 Cord CDE5834
40 Cover CNS5223
41 LCD(LCD901) CAW1514
42 Holder CNC8062
43 Lighting Conductor CNV5594
44 Rubber CNV5599
45 Grille Unit See Contrast table(2)
46 Grille Assy See Contrast table(2)
47 Door CAT2198
48 Door CAT2199
49 Lower Case Unit CXB7005
50 CD Mechanism Module(C7R2) See Contrast table(2)
51 Screw IMS20P030FZK
52 Screw IMS26P040FMC
53 Transistor(Q801) 2SD2396
54 IC(IC902) See Contrast table(2)
* 55 Caution Card CRP1232
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
Part No.
Mark No. Symbol and Description CDX-FM677/X1N/UC CDX-FM673/X1N/UC CDX-FM677/X1N/ES
11 Upper Case CNB2389 CNB2394 CNB2389
25 Extension Unit CWX2559 CWX2558 CWX2559
30 Connector(CN803) CKS3407 Not used CKS3407
34 Remote Control Unit CXB6798 Not used CXB6798
35 Cover CNS6439 Not used CNS6439
36 Display Assy CXB6804 CXB6803 CXB6804
45 Grille Unit CXB6810 CXB6809 CXB6810
46 Grille Assy CXB6828 CXB6827 CXB6828
50 CD Mechanism Module(C7R2) CXK4865 CXK4861 CXK4865
54 IC(IC902) TSOP1840SB1 Not used TSOP1840SB1
(2) CONTRAST TABLE
CDX-FM677/X1N/UC,CDX-FM673/X1N/UC and CDX-FM677/X1N/ES are constructed the same except for
the following:

8
CDX-FM677,FM673
2.3 CD MECHANISM MODULE

9
CDX-FM677,FM673
1 Connector CDE6069
2 CD Core Unit See Contrast table(2)
3 Connector(CN701) CKS1963
4 Connector(CN101) CKS2272
5 Screw BMZ20P025FMC
6 Screw(M2x2.5) CBA1037
7 Screw(M2x2.5) CBA1041
8 Screw(M2x2) CBA1176
9 Screw(M2x4) CBA1362
10 Screw(M2x1.4) CBA1387
11 Screw(M2x2.5) CBA1493
12 Screw(M2x1.6) CBA1476
13 Screw(M2x3) CBA1486
14 Washer CBF1038
15 Spring CBH2172
16 Spring CBH2173
17 Spring CBH2174
18 Spring CBH2175
19 Spring CBH2285
20 Spring CBH2177
21 Spring CBH2178
22 Spring CBL1390
23 Spring CBL1393
24 Short Pin CBL1239
25 Volume(VR801) CCW1023
26 Screw(M2x1.5) CBA1491
27 Shaft CLA3894
28 Arm CNC8482
29 Lever CNC7902
30 Lever CNC7904
31 Lever CNC7905
32 Lever CNC7906
33 Arm CNC7908
34 Arm CNC7909
35 Holder CNC7911
36 Holder CNC7912
37 Frame CNC7917
38 Frame CNC7918
39 Lever CNC7919
40 Stopper CNC7920
41 Frame CNC7921
42 Bracket CNC8354
43 Plate CNC8375
44 Cover CNC8434
45 Sheet CNM6009
46 Spacer CNM6428
47 Sheet CNM6296
48 PCB CNP5227
49 PCB CNP5228
50 Ball CNR1189
51 Gear CNR1531
52 Belt CNT1086
53 Gear CNV5472
54 Gear CNV5473
55 Rail CNV5920
56 Lever CNV6091
57 Gear CNV5477
58 Arm CNV5478
59 Holder CNV5480
60 Guide CNV5921
61 Guide CNV5922
62 Holder CNV5483
63 Holder CNV5484
64 Clamper CNV5485
65 Gear CNV5486
66 Gear CNV5562
67 Holder CNV5563
68 Lighting Conductor CNV5785
69 Mechanism PCB CWX2303
70 Connector(CN801) CKS1965
71 Connector(CN802) CKS3486
72 Damper Unit CXA7714
73 Chassis Unit CXB4463
74 •••••
75 Chassis Unit CXB4461
76 Magazine Holder Unit CXB4459
77 Frame Unit CXB4426
78 Arm Unit CXB2855
79 Screw Unit CXB4464
80 •••••
81 Motor Unit(M851)(SPINDLE) CXB3003
82 Motor Unit(M854)(CARRIAGE) CXB3004
83 Screw JFZ20P025FMC
84 Motor Unit(M853)(TRAY) CXB4421
85 Screw JFZ20P025FMC
86 Motor Unit(M852)(ELV) CXB3006
87 Screw JFZ20P025FMC
88 Lever Unit CXB3938
89 •••••
90 Gear Unit CXB5061
Mark No. Description Part No. Mark No. Description Part No.
(1) CD MECHANISM MODULE SECTION PARTS LIST

10
CDX-FM677,FM673
91 Screw JGZ17P025FZK
92 Pickup Unit(Service) CXX1285
93 •••••
94 •••••
95 Screw IMS26P040FMC
96 Screw JFZ20P025FNI
97 Photo-transistor(Q851) PT4800
98 Spring Switch(S851,S853) CSN1051
99 LED(D851) CN504-2
100 Spring Switch(S852) CSN1052
Mark No. Description Part No.
(2) CONTRAST TABLE
CDX-FM677/X1N/UC, CDX-FM673/X1N/UC and CDX-FM677/X1N/ES are constructed the same except for
the following:
Part No.
Mark No. Symbol and Description CDX-FM677/X1N/UC CDX-FM673/X1N/UC CDX-FM677/X1N/ES
2 CD Core Unit CWX2493 CWX2492 CWX2493

11
CDX-FM677,FM673
2.4 MAGAZINE ASSY
1 Magazine Assy CXB4027
2 Label CRW1418
3 Tray CNV5341
-MAGAZINE ASSY SECTION PARTS LIST
Mark No. Description Part No.

PICKUP UNIT (SERVICE) (P8)
MECHANISM
PCB
HOLOGRAM
UNIT
FOCUS ACT.
TRACKING ACT.
FO+
LD(–)
LASER
DIODE
CARRIAGE
MOTOR
MONITOR
DIODE MD
TO+
+5V
M
SPINDLE
MOTOR M
TRY
MOTOR
HOME SW
TRPSW
DSPSW
M
Q851
D851
DSWITCH PCB
EMOTOR PCB
C
S853
4
3
7
5
11
8
9
2
1
10
17
12
27
16
15
5
15
4
3
CN801
CN802
S852
S851
14
9
98
39
AC/F/E/BD
FD/TD/SD/MD
I13/I04/I02
97
11
16
15
17
18
3
5
10
12
DISC
TRP
DSP
DISC
TRP
DSP
92
95
91
EJECT SW
MAG SW
ELV
MOTOR M
17
8
22
12
13
16
17
18
12
27
16
15
11
8
9
2
1
4
3
7
5
10
Q101
VD
PD
LIMIT xtal
XTAL
L+
LD
cs
23
21
1
75
3
24
IPIN
IPOUT
IPPW
KYDT
DPDT
FMIPSW
XIN
XOUT
13
15
48 4
2
1
2
130
22
32
31
33
SYSPW 33
DISPPW 33
KYDT
BUSP
15
CDMUTE
PREN
LOUT
BUSM
DPDT
FMIPSW
29
CDMUTE 76
PREN 88
8
5
6
20
CONT
ejsw
mag
disk
TRP
DSP
11
74
75
X202
16.93MHz
X701
10.00MHz
IC 301
BA5986FM
IC 302
LB1836M
IC 604
BA4560F
IC 603
BA4560F
VD
Q771
VDD IC 705
TC7SH32F
IC 702
LC35256FT-70U
SRAM
IC 703
HA12187FP
IP-BUS DRIVER
IC 701
PD5638A
CN701 C
19asensfm
asens
bsens
reset
ASENIN
BSENIN
ASENB
13 12
5
18 10
11
14
18
14
11
4
13
10
9
8
21
SYSPW 5
20
DISPPW 6
7
21
15
12
19 9
SVC2
11
5
6
12 7
4RESET SW
Q770
IC 704
PAJ002A
CK/DT/CS
VD
5V
POWER 10
31
5V REGULATOR
IC 202
BA05FP
1
VD
POWER
VD
10 16
225 24
ACD CORE UNIT B
VR802
Q701
VREF
adena
98
ELVREF
ELVPVO
94 93
3
VDD
EVREF
GND
EPVO
LINEAR POSITION SENSOR
VR801
4CH SERVO DRIVER
MOTOR DRIVER
SYSTEM
CONTROLLER
CN101
S801
S803 S802
RF AMP, SERVO, DSP, DAC
IC 201
UPD63711GC
12
CDX-FM677,FM673
1234
1234
D
C
B
A
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM(CDX-FM677/X1N/UC)

8
22
12
13
16
17
18
KYDT
BUSP
15
MUTE
BUSP
BUSM
ASENB
KYDT
DPDT
FMIPSW
REN
LOUT
USM
DPDT
PSW
PRE-ENPHASIS
STEREO MODULATOR
01 CN201
19
ENIN
ENIN BSENIN
ASENIN
SVC
SENB
5
11
14
18
14
CDMUTE
11
PREN
LCH
4
13
10
9
8
21 SYSPW
SPW 5
20 DISPPW
PPW 6
7
21
15
12
SVC
Q201
BUP
Q301
VR302
2
14
1
13
IC 201
BU4066BCF
X301
38kHz
VR301
LIN
BAL2 BAL1 38KOSC2 38KOSC3
18
17 16 5 6
MPXOUT
IC 301
BA1404F
PLL
148
9
6
12
IC 401
BU2611FS
AMP
12 IC 302
BA4560F
X401
7.2MHz
Q401
L402
CTC1079
Q402 TP30
Q403 Q404
2
LOUT
CN401
1
BUSP1 7
LOUT
5
BUSM1
8
ASENBUS
CN803
L201
CTF1333
Q802
Q803Q805
BUP
Q801
1
VD
WER
VD
VD
VD
POWER
10 16
225 24
Q806
BUP BUP
ACC
GND
3
2
1
CN801
BUP
IP-BUS OUT
2
KYDT
3
DPDT
4
1PADD1/LCH
1
SWDACC
CN802
13
IC 801
NJM78L06A
Q804
BUP
VDD
BEXTENSION UNIT
BATT.
GND
FUSE 2A
ACC
DPDT
KYDT 9
8
SI
SO
23
KEY
MATRIX
LCD 901
CAW1514
IC 902
TSOP1840SB1
REMOTE CONTROL
SENSOR
5V REGULATOR
78 23 10
V3 VCC
IC 901
PD6294A
SWDACC
CN901
1
2
2
3
4
1
X901
4.9152MHz
X1 X0
GND
Q901
1
3
INT1
GDISPLAY ASSY
RF OUT
Q501
RY501
RELAY
1
RF IN
FANTENNA SELECT UNIT
CN501
CDRFIN
13
CDX-FM677,FM673
5678
5678
D
C
B
A

14
CDX-FM677,FM673
1234
1234
D
C
B
A
1kΩ(B)
10kΩ(B)
112
6
13
10
4
8
VR801 CCW1023
LINEAR POSITION SENSOR
M852
CXB3006
RF AMP,
MO
4CH S
CN801
CN802
M853
CXB4421
M851
CXB3003
M854
CXB3004
CSN1052
CSN1051
CSN1051
CN504-2 PT4800
PICKUP UNIT(SERVICE)
C
MECHANISM
PCB
SWITCH PCB
D
MOTOR PCB
E
CXX1285
3.2 CD MECHANISM MODULE
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
A1/2
CDE

15
CDX-FM677,FM673
5678
5678
D
C
B
A
18
7
2
5
19 20
15
17
16
12
21
3
9
11
10
AMP, SERVO, DSP, DAC
MOTOR DRIVER
4CH SERVO DRIVER
CD CORE UNIT
A
A2/2
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
The >mark found on some component parts indicates
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of
identical designation.
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
A1/2

16
CDX-FM677,FM673
1234
1234
D
C
B
A
SYSTEM CONTROLLER
A1/2
FM677 : PD5638A
FM673 : PD5639A
*1 *1
*1
*1
*2
A2/2

17
CDX-FM677,FM673
5678
5678
D
C
B
A
SRAM
IP-BUS DRIVER
BCN201
*1
*1
*1
*1 : FM677 model only
*2 : FM673 model only
A2/2

18
CDX-FM677,FM673
1RFI 0.5V/div. 0.5µs/div.
Normal mode: play
1CH1: RFI 1V/div.
2CH2: MIRR 5V/div.
Test mode: Tracking open
0.5ms/div. 1CH1: RFI 1V/div.
2CH2: MIRR 5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3CH1: FD 0.5V/div.
4CH2: FOR 2V/div.
Test mode: No disc, Focus close
0.2s/div. 3CH1: FD 0.5V/div.
5CH2: FOK 2V/div.
Normal mode: Focus close
0.2s/div. 6CH1: FE 0.5V/div.
7CH2: XSI 2V/div.
Normal mode: Focus close
1ms/div.
REFO →
8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: 32 tracks jump (REV)
0.5ms/div. 8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: Single jump (REV)
0.5ms/div. 8CH1: TE 0.5V/div.
9CH2: TD 0.5V/div.
Test mode: 100 tracks jump (REV)
5ms/div.
6CH1: FE 0.1V/div.
3CH2: FD 0.2V/div.
Normal mode: Play
20ms/div. 3CH1: FD 0.5V/div.
0CH2: MD 1V/div.
Normal mode: Focus close (12cm)
0.5s/div. 3CH1: FD 0.5V/div.
0CH2: MD 1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
-Waveforms
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
REFO →
REFO →
REFO →
REFO →

19
CDX-FM677,FM673
8CH1: TE 0.2V/div.
9CH2: TD 0.2V/div.
Normal mode: play
8CH1: TE 0.5V/div.
!CH2: SD 0.5V/div.
TEST mode:100Tracks jump(FWD)
5ms/div. 0MD 0.5V/div. 0.1s/div.
Normal mode: Play (12cm)
0MD 1V/div. 10ms/div.
Long Search (12cm)
@EFM 1V/div. 5µs/div.
Normal mode: Play
8CH1: TE 1V/div.
#CH2: TEC 1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8CH1: TE 0.5V/div.
6CH2: FE 0.5V/div.
Normal mode:
AGC after focus close
0.2s/div.
20ms/div.
%SCKO 2V/div. 1µs/div.
Normal mode: Play
^DOUT 2V/div. 10µs/div.
Normal mode: Play
&LRCK 2V/div. 20µs/div.
Normal mode: Play
*VD 5V/div. 50ms/div.
Normal mode: No disc
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →REFO →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →

20
CDX-FM677,FM673
(CH1: R OUT 2V/div.
)CH2: L OUT 2V/div.
Normal mode: Play (1kHz 0dB)
6CH1: FE 0.2V/div.
3CH2: FD 0.5V/div.
Normal mode: During AGC
1ms/div. 8CH1: TE 0.2V/div.
9CH2: TD 0.5V/div.
Normal mode: During AGC
1CH1: RFI 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
500µs/div. 1ms/div.
0.5ms/div. 3CH1: FD 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div. 9CH1: TD 0.1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm(B.D)
0.5ms/div.
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →REFO →
REFO →
REFO →
REFO →
