Pioneer KEH-P5011 User manual

Operation Manual
KEH-P5011
¸ÝсâàукæØï ßо íксßлуÐâÐæØØ
ENGLISH ÀУССК¸¹ DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Multi-CD control high power Cassette player with
FM/MW/LW tuner
КÐссÕâÝëÙ ßàоØгàëÒÐâÕлì с FM/AM ßàØÕÜÝØкоÜ,
ÒëсокоÙ ÒëåодÝоÙ ÜоéÝосâìî Ø уßàÐÒлÕÝØÕÜ
ÜÝогодØскоÒëÜ ßàоØгàëÒÐâÕлÕÜ КД

1
Contents
Key Finder .................................................... 3
-Head Unit
Before Using This Product ...................... 4
About This Product .......................................... 4
About This Manual ............................................ 4
Precaution .......................................................... 4
In Case of Trouble ............................................ 5
When using the 50-Disc Type
Multi-CD Player ..........................................5
Basic Operation ........................................ 6
To Listen to Music ............................................ 6
Basic Operation of Tuner .................................. 7
-Manual and Seek Tuning
-Preset Tuning
-Band
Basic Operation of Cassette Player .................. 8
-Fast Forward/Rewind and Music Serch
-Eject
-Cassette Loading Slot
-Direction Change
Basic Operation of Multi-CD Player ................ 9
-Track Search and Fast Forward/Reverse
-Disc Search
-Disc Number Search
(for 6-Disc, 12-Disc types)
Tuner Operation ...................................... 10
-Local Seek Tuning
-Best Stations Memory (BSM)
Using the Cassette Player ...................... 11
-Repeat Play
-Blank Skip
-Radio Intercept
Using Multi-CD Players .......................... 12
-Repeat Play
-Random Play
-Scan Play
-Pause

Audio Adjustment .................................... 14
Selecting the Equalizer Curve ........................ 14
Entering the Audio Menu ................................ 14
Audio Menu Functions .................................... 15
-Balance Adjustment (FAD)
-Equalizer Curve Adjustment
(EQ-L/EQ-M/EQ-H)
-Loudness Adjustment (LOUD)
-Front Image Enhancer Function (FIE)
-Source Level Adjustment (SLA)
Detaching and Replacing
the Front Panel .................................. 19
Theft Protection .............................................. 19
-Detaching the Front Panel
-Replacing the Front Panel
Initial Setting ............................................ 20
Entering the Initial Setting Menu .................... 20
Initial Setting Menu Functions ........................ 21
-Setting the Time
-Switching the AUX Mode (AUX)
Other Functions ........................................ 22
Displaying the Time ........................................ 22
Using the AUX Source .................................... 22
-Selecting the AUX Source
Cellular Telephone Muting ............................ 22
Cassette Player and Care ...................... 23
Precaution ........................................................ 23
-About the Cassette Player
-About Cassette Tapes
Cleaning the Head .......................................... 23
Specifications .......................................... 24
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

3
A Title (English)Key Finder
Head Unit
AUDIO button
BAND button
Detach button
PAUSE/SCAN button
Buttons 1–6
SOURCE button
LOUD button
EQ button EJECT button
LOCAL/BSM button
+/– buttons
Cassette door
5/∞/2/3buttons

Before Using This Product
About This Product
The tuner frequencies on this product are allocated for use in Europe, Asia, the Middle
East, Africa and Oceania. Use in other areas may result in improper reception.
About This Manual
This product features a number of sophisticated functions ensuring superior reception and
operation. All are designed for the easiest possible use, but many are not self-explanatory.
This operation manual is intended to help you benefit fully from their potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself with the functions and their operation by
reading through the manual before you use this product. It is especially important that you
read and observe the “Precaution” on this page and in other sections.
Precaution
• Keep this manual handy as a reference for operating procedures and precautions.
• Always keep the volume low enough for outside sounds to be audible.
• Protect this product from moisture.
• If the battery is disconnected, the preset memory will be erased and must be repro-
grammed.
4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

5
Before Using This Product
In Case of Trouble
Should this product fail to operate properly, contact your dealer or nearest authorized
Pioneer Service Station.
When using the 50-Disc Type Multi-CD Player
The available functions of the 50-Disc Type Multi-CD Player are described in this
Operation Manual. Note that other 50-Disc Type Multi-CD Player functions cannot be
used with this product.

A Title (English)
6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Basic Operation
To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a cassette in this product. (Refer to page 8.)
1. Select the desired source (e.g. Tuner).
Each press of the SOURCE button selects the desired source in the following order:
CD player (one disc only) =Tuner =Tape =Multi-CD player =External Unit
=AUX
Note:
• External Unit refers to a Pioneer product (such as one available in the future) that, although incom-
patible as a source, enables control of basic functions by this product. Only one External Unit can
be controlled by this product.
• In the following cases, the sound source will not change:
* When a product corresponding to each source is not connected to this product.
* When no tape is set in this product.
* When no magazine is set in the Multi-CD player.
* When no disc is set in the CD player.
* When the AUX (external input) is set to OFF. (Refer to page 21.)
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Raise or lower the volume.
3. Turn the source OFF.
Hold for 1 second
Each press changes the Source ...

7
Basic Operation
Basic Operation of Tuner
Preset Number Indicator
Band Indicator
Band
F1 (FM1) =F2 (FM2)
=F3 (FM3)
=MW/LW
Note:
• The FM bands cover
different frequency
ranges as below;
F1 (FM1):
65 —74 MHz
F2 (FM2), F3 (FM3):
87.5 — 108 MHz
Manual and Seek Tuning
• You can select the tuning method by changing the length of
time you press the 2/3button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip
broadcast stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 18 FM stations (6 in F1 (FM1), F2 (FM2) and F3
(FM3)) and 6 MW/LW stations can be stored in memory.
• You can also use the 5or ∞buttons to recall broadcast
stations memorized in buttons 1 through 6.
Frequency Indicator

8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Basic Operation of Cassette Player
Eject
Note:
• The Tape function can be turned
ON/OFF with the cassette tape
remaining in this product. (Refer to
page 6.)
Direction ChangeDirection Indicator
Cassette Loading Slot
Note:
• Don’t insert any materials except for cassette
into Cassette Loading Slot.
Fast Forward/Rewind and Music Search
• Each press of the 3button selects Fast Forward or Forward-Music
Search.
FF (Fast Forward) =F-MS (Forward-Music Search) =Normal Playback
• Each press of the 2button selects Rewind or Rewind-Music Search.
REW (Rewind) =R-MS (Rewind-Music Search) =Normal Playback
Note:
• Fast Forward/Rewind and Music Search can be canceled by pressing the BAND button.

9
Basic Operation
Basic Operation of Multi-CD Player
This product can control a Multi-CD player (sold separately).
Play Time Indicator Disc Search
Disc Number Indicator
Track Number Indicator
Disc Number Search (for 6-Disc, 12-Disc types)
• You can select discs directly with the 1 to 6 buttons. Just press the number
corresponding to the disc you want to listen to.
Note:
• When a 12-Disc Multi-CD Player is connected and you want to select disc 7 to 12, press the 1 to
6 buttons for 2 seconds.
Note:
• The Multi-CD player may perform a preparatory operation, such as verifying the presence of a
disc or reading disc information, when the power is turned ON or a new disc is selected for play-
back. “READY” is displayed.
• If the Multi-CD player cannot operate properly, an error message such as “ERROR-14” is dis-
played. Refer to the Multi-CD player owner’s manual.
• If there are no discs in the Multi-CD player magazine, “NO DISC” is displayed.
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast
Forward/Reverse by pressing the 2/3button for
a different length of time.
Track Search 0.5 seconds or less
Fast Forward/Reverse Continue pressing
Note:
• Multi-CD indicator “ ” lights when a Multi-CD source is
selected.

Tuner Operation
Local Seek Tuning
This function selects only stations with especially strong signals.
Best Stations Memory (BSM)
The BSM function stores stations in memory automatically.
• To cancel the process, press the LOCAL/BSM button before memorization is
complete.
• Press the LOCAL/BSM but-
ton for 2 seconds to switch
BSM ON.
The stations with the strongest sig-
nals will be stored under buttons
1–6 and in order of their signal
strength.
“LOC”
• Switch the Local ON/OFF
with the LOCAL/BSM button.
10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

Repeat Play
The repeat mode lets you hear the same song over again.
Blank Skip
This function fast-forwards to the next song automatically if there is a long period of
silence (12 seconds or longer) between songs.
Radio Intercept
This function allows you to listen to the radio during tape fast-forwarding/rewinding.
Note:
• The radio intercept function does not work during a Music Search operation.
• Switch the Radio Intercept
ON/OFF with the button 6.
• Switch the Blank Skip
ON/OFF with the button 5.
• Switch the Repeat Play
ON/OFF with the
LOCAL/BSM button.
11
Using the Cassette Player
”
“

Using Multi-CD Players
Repeat Play
There are three repeat play ranges: One-track Repeat, Disc Repeat and Multi-CD player
Repeat. Default repeat play range is Multi-CD player Repeat.
Indicator Display Play range
––– ––– Multi-CD player Repeat
RPT One-track Repeat
––– DISC Disc Repeat
Note:
• If you select other discs during the repeat play, the repeat play range changes to Multi-CD player
Repeat.
• If you perform Track Search or Fast Forward/Reverse during One-track Repeat, the repeat play
range changes to Disc Repeat.
Random Play
Tracks are played at random within the selected repeat play range as explained in “Repeat
Play” above.
Display Play range
DRDM Disc Repeat
RDM Multi-CD player Repeat
Note:
• One-track Repeat changes to the Disc Repeat when you switch the Random Play ON.
• Press the LOCAL/BSM but-
ton for 2 seconds to switch the
Random Play ON/OFF.
After selecting the desired repeat
play range from those referred to in
“Repeat Play” above, switch Multi-
CD Player Random Play ON.
”“
• Select the desired repeat play
range with the LOCAL/BSM
button.
Multi-CD player Repeat =One-
track Repeat =Disc Repeat
12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

13
Using Multi-CD Players

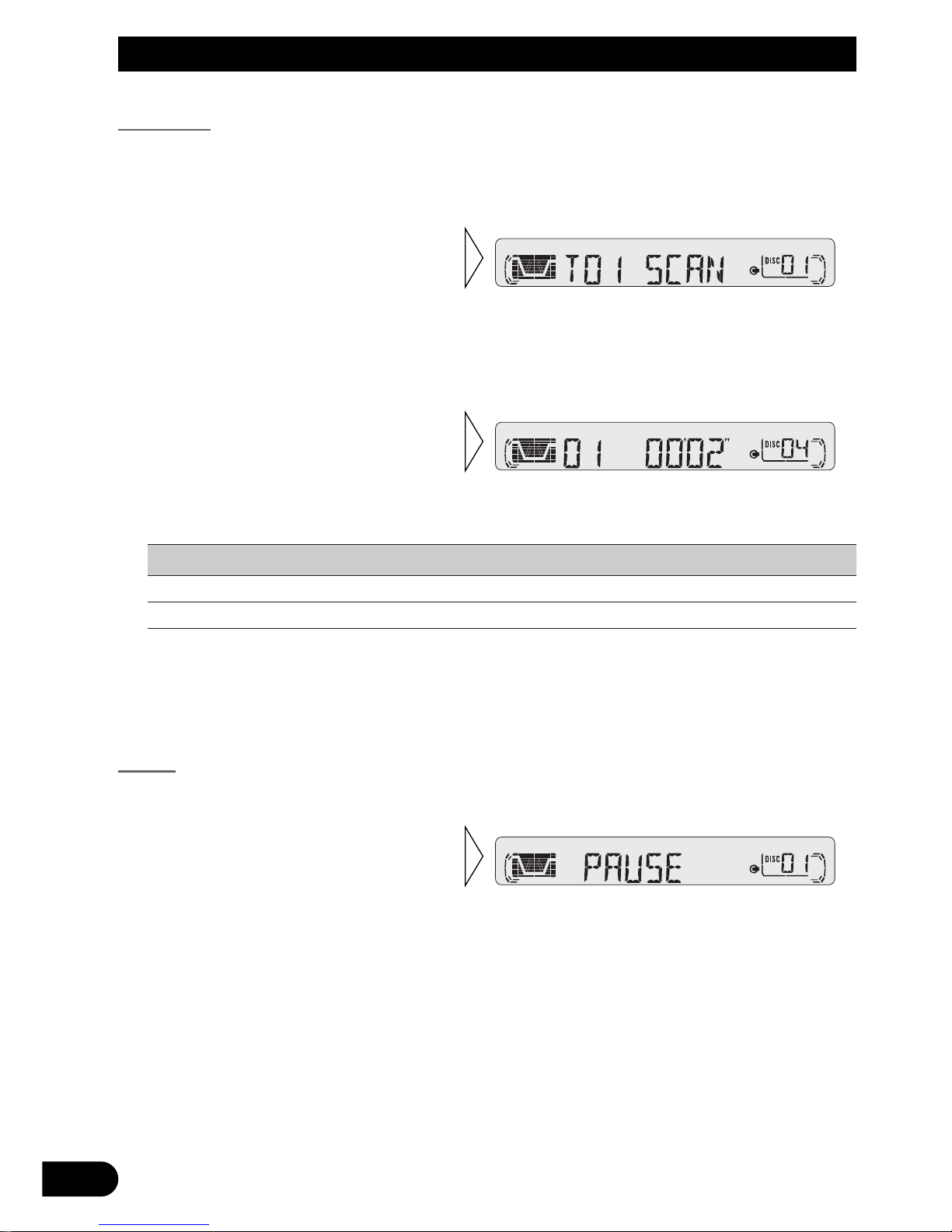

Scan Play
In the Disc Repeat, the beginning of each track on the selected disc is scanned for about 10
seconds. In the Multi-CD player Repeat, the beginning of the first track on each disc is
scanned for about 10 seconds.
Display Play range
DSCN Disc Repeat
SCAN Multi-CD player Repeat
Note:
• Scan Play is canceled automatically after all the tracks or discs have been scanned.
• One-track Repeat changes to the Disc Repeat when you switch the Scan Play ON.
Pause
Pause pauses the currently playing track.
• Switch the Pause play
ON/OFF with the
PAUSE/SCAN button.
2. When you find the desired
track (or disc), cancel the Scan
Play by pressing the
PAUSE/SCAN button for 2
seconds.
1. Press the PAUSE/SCAN but-
ton for 2 seconds to switch the
Scan Play ON.
After selecting the desired repeat
play range from those referred to in
“Repeat Play” on page 12, switch
Multi-CD Player Scan Play ON.

Audio Adjustment
Selecting the Equalizer Curve
You can switch between Equalizer curves.
• Press the EQ button to select the desired Equalizer curve.
POWERFUL (powerful) =NATURAL (natural) =VOCAL (vocal)
=CUSTOM (custom) =EQ FLAT (flat) =SPR-BASS (super bass)
Note:
• “CUSTOM” stores an equalizer curve you have made adjustments to. (Refer to “Equalizer Curve
Adjustment” on page 16.)
Entering the Audio Menu
With this Menu, you can adjust the sound quality.
Note:
• After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the
Audio Menu is automatically canceled.
1. Select the desired mode in the Audio Menu.
2. Operate a mode.
3. Cancel the Audio Menu.
Each press changes the Mode ...
“Equalizer curve”
14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

15
Audio Adjustment
Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (FAD)
This function allows you to select a Fader/Balance setting that provides ideal listening con-
ditions in all occupied seats.
1. Press the AUDIO button and select the Fader/Balance mode (FAD) in the
Audio Menu.
Note:
• “FAD 0” is the proper setting when 2 speakers are in use.
3. Adjust left/right speaker bal-
ance with the 22/33buttons.
“BAL L9” – “BAL R9” is displayed
as it moves from left to right.
2. Adjust front/rear speaker bal-
ance with the 55/∞∞buttons.
“FAD F15” – “FAD R15” is dis-
played as it moves from front to
rear.

Equalizer Curve Adjustment (EQ-L/EQ-M/EQ-H)
You can adjust the currently selected equalizer curve settings as desired. Adjusted
equalizer curve settings are memorized in “CUSTOM”.
1. Press the AUDIO button and select the Equalizer mode (EQ-L/EQ-M/EQ-H)
in the Audio Menu.
Note:
• If you make adjustments when a curve other than “CUSTOM” is selected, the newly adjusted curve
will replace the previous adjusted curve. Then a new curve with “CUSTOM” appears on the display
while selecting the equalizer curve. (Refer to page 14.)
Loudness Adjustment (LOUD)
The Loudness function compensates for deficiencies in the low and high sound ranges at
low volume. You can select a desired Loudness level.
1. Press the AUDIO button and select the Loudness mode (LOUD) in the Audio
Menu.
Note:
• You can also switch the Loudness function ON/OFF by pressing the LOUD button. However,
you cannot change the level.
3. Select the desired level with
the 2/3buttons.
LOW (low) += MID (mid)
+= HI (high)
”“LOUD
2. Switch the Loudness function
ON/OFF with the 5/∞but-
tons.
“CUSTOM”
3. Boost or attenuate the selected
band with the 5/∞buttons.
The display shows “+6” – “–6”.
2. Select the band you want to
adjust with the 2/3buttons.
EQ-L (low) += EQ-M (mid)
+= EQ-H (high)
16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

17
Audio Adjustment
Front Image Enhancer Function (FIE)
The F.I.E. (Front Image Enhancer) function is a simple method of enhancing front imaging
by cutting mid- and high-range frequency output from the rear speakers, limiting their out-
put to low-range frequencies. You can select the frequency you want to cut.
1. Press the AUDIO button and select the F.I.E. mode (FIE) in the Audio Menu.
Note:
• After switching the F.I.E. function ON, select the Fader/Balance mode in the Audio Menu, and
adjust front and rear speaker volume levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-speaker system.
3. Select the desired frequency
with the 2/3buttons.
100 += 160 += 250 (Hz)
2. Switch the F.I.E. function
ON/OFF with the 5/∞but-
tons.
Precaution:
• When the F.I.E. function is deactivated, the rear speakers output sound of all frequencies, not just
bass sounds. Reduce the volume before disengaging F.I.E. to prevent a sudden increase in volume.

Source Level Adjustment (SLA)
The SLA (Source Level Adjustment) function prevents radical leaps in volume level when
switching between sources. Settings are based on the FM volume, which remains unchanged.
1. Compare the FM volume with the volume of the other source.
(e.g. Cassette player)
2. Press the AUDIO button and select the SLA mode (SLA) in the Audio Menu.
Note:
• Since the FM volume is the control, SLA is not possible in the FM modes.
• The MW/LW volume level, which is different from the FM base setting volume level, can also be
adjusted similar to sources other than tuner.
• The CD player (one disc only) and Multi-CD player are set to the same volume adjustment setting
auto matically.
3. Increase or decrease the level
with the 5/∞buttons.
The display shows “+4” – “–4”.
18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

19
Detaching and Replacing the Front Panel
Theft Protection
The front panel of the head unit is detachable to discourage theft.
Detaching the Front Panel
Replacing the Front Panel
Precaution:
• Never use force or grip the display tightly when removing or replacing the front panel.
• Avoid subjecting the front panel to excessive shocks.
• Keep the front panel out of direct sunlight and high temperatures.
• Replace the front panel by
clipping it into place.
3. Use the protective case pro-
vided to store/carry the
detached front panel.
2. To remove the front panel,
pull its right-hand side
toward you.
Take care not to grip it tightly or
drop it.
1. Eject the front panel.
