Pioneer CLD-2850 User manual

Service
@ PIONEER’
The Art of Entertainment
PAZEVUED

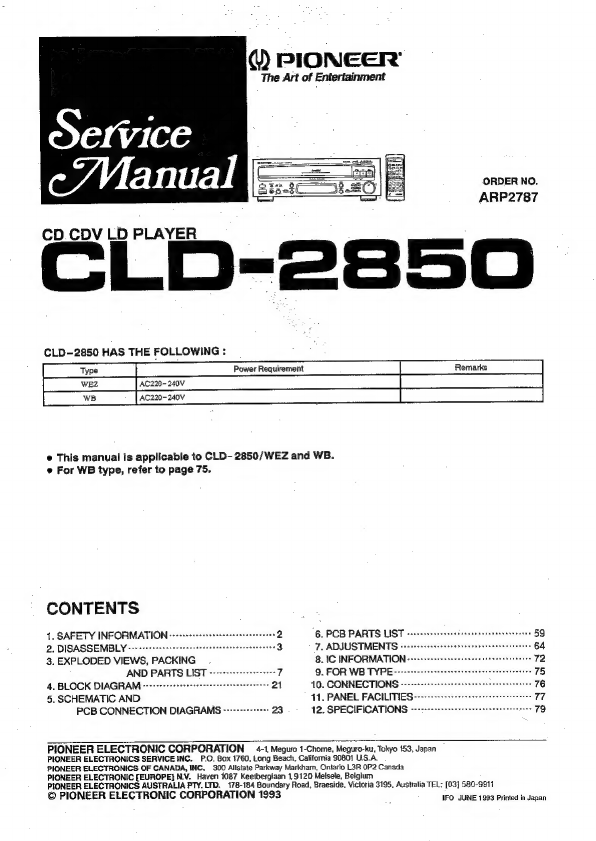

ORDER NO.
CD._CDV LD PLAYER
CLD-
CLD-2850 HAS THE FOLLOWING :
ARP2787
Power Requirement
@ This manual is applicable to CLD- 2850/WEZ and WB.
For WB type, refer to page 75.
CONTENTS
1. SAFETY INFORMATION -
2. DISASSEMBLY
3. EXPLODED VIEWS, PACKING
AND PARTS LIST -
4, BLOCK DIAGRAM
5. SCHEMATIC AND
PCB CONNECTION DIAGRAMS ---
6. PCB PARTS LIST --
7. ADJUSTMENTS -
8.1C INFORMATION --
9. FOR WB TYPE---
10. CONNECTIONS -
11. PANEL FACILITIES
12. SPECIFICATIONS ----
PIONEER ELECTRONIC CORPORATION = 4-1, Meguro 1-Chome, Meguro-ku, Tokyo #53, Japan
PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760, Long Beach, California 90801 U.S.A.
PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario L3R OP2 Canada
PIONEER ELECTRONIC [EUROPE] N.V._Haven 1087 Keetberglaan 1,9120 Melsele, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: [03] $80-9911
© PIONEER ELECTRONIC CORPORATION 1993
IFO JUNE 1993 Printed in Japan

CLD ~ 2850

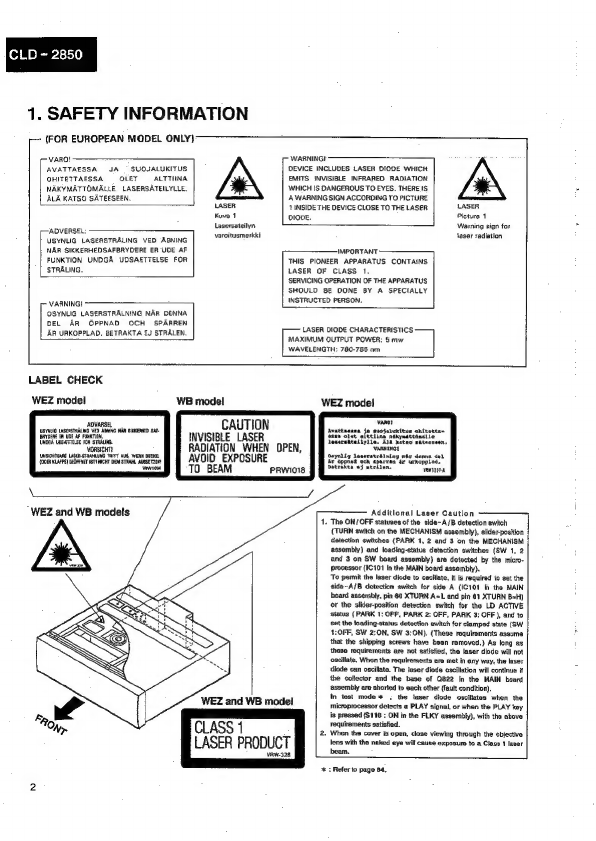

1. SAFETY INFORMATION
- VARO!
AVATTAESSA JA — SUOJALUKITUS
OHITETTAESSA = OLET —ALTTIINA
NAKYMATTOMALLE LASERSATEILYLLE.
ALA KATSO SATEESEEN.
r-~ (FOR EUROPEAN MODEL ONLY)
LASER
Kuve 1
Lasersateilyn
ADVERSEL:
USYNLIG LASERSTRALING VED ABNING
NAR SIKKERHEDSAFBRYDERE ER UDE AF
FUNKTION UNDGA UDSAETTELSE FOR
varoitusmerkki
WARNINGI
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS TO EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
7 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.
IMPORTANT.
THIS PIONEER APPARATUS CONTAINS
LASER
Picture 1
Warning sign for
laser radiation
STRALING. LASER OF CLASS 1.
‘SERVICING OPERATION OF THE APPARATUS,
SHOULD 8E DONE BY A SPECIALLY
SS ANING! INSTRUCTED PERSON.
OSYNLIG LASERSTRALNING NAR DENNA
DEL AR GPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN
LASER DIODE CHARACTERISTICS —]
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780-785 am
LABEL CHECK
WEZ model
WB model
CAUTION
INVISIBLE LASER
RADIATION WHEN OPEN,
AVOID EXPOSURE
TO BEAM
ADVARSEL
LUSYHRIG LASenSTRALING VED ABKING AAR SiKERIED SAF.
DIVDRE ODE AF FLNRTION.
‘UNOGA UOGATTELSE FOR STRAUMG.
Avattaeasa Je suosaluxitus ohitert
ease olet alttiine nakyaattondl)
Aaversdtellylie. Ald hatao sAt
‘VAROING!
Osynlig laseratrdining mdr denna del
‘Ar Oppnad och sparren ar urkopplad.
Detrakta ej atrdlen.
‘VORSICHT?
LUWSICHTARE LASER STRAIRUNG THITT AUS, WENN DECHEL
{BOER ELF GEPIET aT HT DO STN. ler
oT
wens
PRW1018
\
WEZ and WS models
Additional Laser Caution
1. The ON/OFF statuses of the side~A/B detection switch
(TURN switch on the MECHANISM assembly), slider-position
detection switches (PARK 1, 2 and 3 on the MECHANISM
assembly) and loading-status detection switches (SW 1, 2
and 3 on SW board assembly} are detected by the micro-
processor (IC 101 in the MAIN board assembly).
‘To permit the laser diode to oscillate, it is required to set the
side-A/B detection switch for side A (IC101 In the MAIN
board assembly, pin 60 XTURN A=L and pin 61 XTURN B=H)
‘or the slider-position detection switch for the LD ACTIVE
status (PARK 1: OFF, PARK 2: OFF, PARK 3: OFF), and to
‘set the foading-status detection switch for clamped state (SW
4:OFF, SW 2:0N, SW 3:0N). (These requirements assume
that the shipping screws have been removed.) As long as
these requirements are not satisfied, the laser diode will not
oscillate, When the requirements are met in any way, the laser
lode can oscillate. The laser diode oscillation will continue if
the collector and the base of Q822 in the MAIN board
assembly are shorted to each other {fault condition),
In test mode * ; the taser diode oscillates when the
microprocessor detects a PLAY signal, or when the PLAY key
is pressed ($116 : ON in the FLKY assembly), with the above
WEZ and WB model
CLASS 1
LASER PRODUCT
. When the cover is open, close viewing through the objective
lens with the naked eye will cause exposure to a Class 1 laser
beam.
+ : Referto page 64,

CLD - 2850

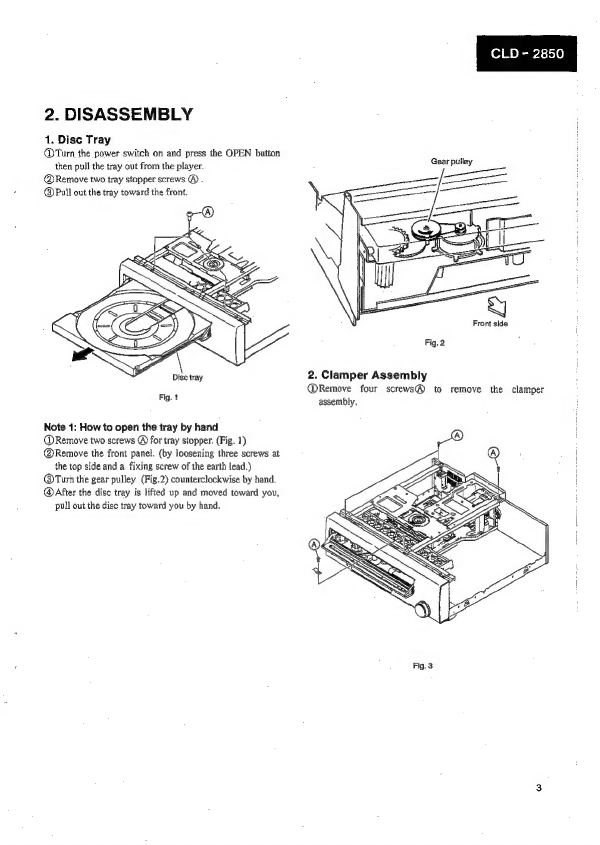

2. DISASSEMBLY
1. Disc Tray
@Tum the power switch on and press the OPEN button
then pull the tray out from the player.
@®Remove two tray stopper screws ® .
@pPull out the tray toward the front.
Gear pulley
Front side
Fig. 2
Dise tray 2. Clamper Assembly
@Remove four screws@ to remove the clamper
assembly,
Fig. t
Note 1: How to open the tray by hand
@Remove two screws @ for tray stopper. (Fig. 1)
@Remove the front panel. (by loosening three screws at
the top side and a fixing screw of the earth lead.)
@Turh the gear pulley (Fig.2) counterclockwise by hand.
@aAfter the disc tray is lifted up and moved toward you,
pull out the disc tray toward you by hand.
Fig. 3

CLD - 2850

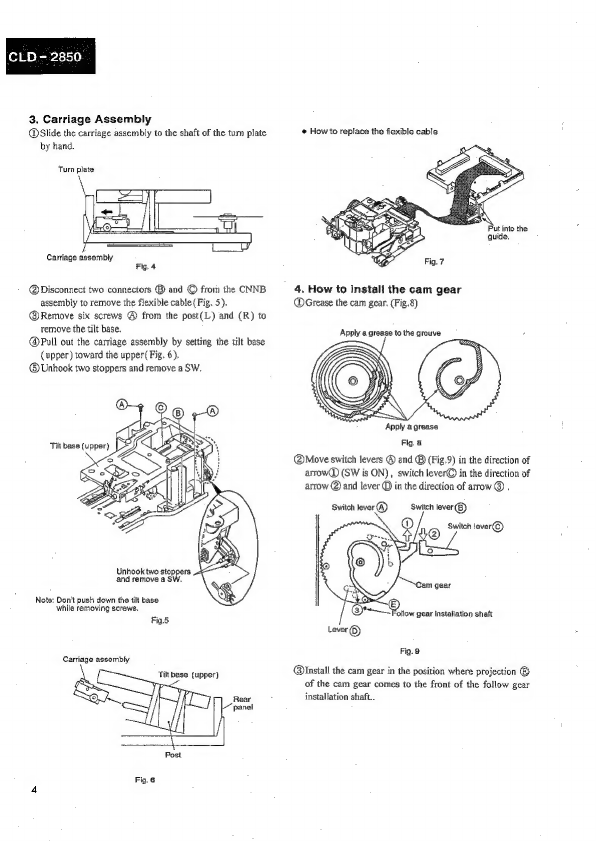

3. Carriage Assembly
@Slide the carriage assembly to the shaft of the turn plate
by hand.
Turn plate
Carriage assembly
Fig. 4
@Disconnect two connectors ®) and © from the CNNB
assembly to remove the flexible cable (Fig. 5).
@Remove six screws ® from the post(L) and (R) to
remove the tilt base.
@Pull out the carriage assembly by setting the tilt base
(upper) toward the upper( Fig. 6).
®Unhook two stoppers and remove a SW.
Unhook two stoppers 4
and remove a SW.
Note: Don't push down the tilt base
while removing screws.
Fig.5
Carriage assembly
‘Tilt base (upper)
Rear
panel
Post
Fig.6
@ How to repiace the flexible cable
tg
ut into the:
guide.
Fig. 7
4. How to install the cam gear
@Grease the cam gear. (Fig.8)
Apply a grease to the grouve
Apply a grease.
Fig. 8
@Move switch levers ® and ® (Fig.9) in the direction of
arrow® (SW is ON), switch lever© in the direction of
arrow @) and lever © in the direction of arrow © .
Switch lever 6)
@ h@ sien tever©)
ron
Switch lever @)
@*-—Fottow gear installation shaft
Lever ®)
Fig. 8
@nsiall the cam gear in the position where projection ®
of the cam gear comes to the front of the follow gear
installation shaft..

5. How to install the spring slanting cam
@ Grease the spring slanting cam. (Fig. 10)
@nstall the cam gear when the cam gear comes to the
position as shown in Fig. 9.
Apply a grease
Apply a grease to APPIY 2 atease tothe grouve,
the side.
NG
Apply a grease
Fig. 10
@nstall a nylon washer and an E ring, and hang the cam
spring on the hook. (Fig.11)
Note: The cam gear and spring slanting cam as shown in
Fig.11 are positioned when installing the slide cam.
Stop ring —@
ey
Follow gear
Nylon
washer
6. How to install the follow gear
@Grease the follow gear. (Fig.12)
‘Apply a grease to round
the gear.
Apply a grease to the
position without gear.
Fig. 12
@nstal! the follow gear where the portion of chipped
tooth of the follow gear come to the position as shown
in Fig. 13.
@nstall the stop ring. (Fig.11)
Triangle mark
Follow gear
Fig. 13
7. How to install the roller plate assembly
@Mount the roller plate assembly in the position where
the tooth with a triangle mark of the follow gear meshes
with the gap of the gear of the roller plate assembly.
(Fig.14)
Fig. 14

CLD- 2850
8. Caution for installing the tray guide
assembly
@Install the tray guide assembly in the position where
projection® of the tray guide assembly fits into.the long
hole ® of the chassis assembly and the long hole © of
the roller plate assembly. (Fig.15)
Projection (A)
Tray guide assembly
Long hole (G)
Roller plate assembly
Chassis assembly
9. How to install the slide cam
@Set the position of projection @ and ®) of the cam gear
by turning the gear pulley clockwise by hand as shown
in Fig. L1.
@Tighten four screws © to install the slide cam. (Fig. 16)
SS
Stide cam
assembly
Fig. 16
10. How to install the disc tray
@Adjust the gear positions in the loading mechanism for
the disc tray open status, as @ and ® mentioned below.
@:The position where the cam gear. turns counter-
clockwise and stops when the OPEN/CLOSE button
is pressed.
©: The position where the cam gear stops when the
pulley is continuously turned by hand.
@The top of one of the gear teeth of the rolfer plate
assembly has been chipped off. Finely adjust the
position of this chipped tooth by turning the gear
counterclockwise so that the tooth comes halfway on the
roller plate line.(Fig.17)
Line of the roller plate assembly
Rotler plate
assembly
first tooth of the straight +
gear of the disc tray
chipped
gear teeth
Fig. 17
@ Insert so that the first tooth of the straight gear on the
rear of the disc tray meshes with the chipped gear teeth
of the roller plate assembly.
@Tighten two screws @ for disc tray stopper. (Fig.1)

CLD - 2850
3. EXPLODED VIEWS, PACKING AND PARTS LIST
NOTES:
@ Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
@ The A\ mark found on some component parts indicates the importance of the safety factor of the part. Therefore, -when.. replacing,
be sure to use parts of identical designation.
© Parts marked by “@®" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.
3.1 EXTERIOR SECTION
Parts List
Mark No. Description Part No. Mark No. Description Part No.
1 Bonnet-S VXX1535 NSP 101 Tray VNK2185
2 Tray assembly-S VXX1808 NSP 102 Carry label VRW1289
3 Tray rubber VEB1089 NSP 103 Cushion VECLO92
4 Disc pad(Large) VECI191 NSP 104 Cushion VECLOO4
5 Disc pad(B) VEC1379 NSP 105 Cushion VEC1609
NSP 106 Tray reinforced plate VNE1679
6 Disc pad(C) VEC1380
7 Screw VCZ30P120FMC B
8 Screw BBT30P060FCC
9 Serew BCZ40PO60FZK_
10 Transportation sheet QD VRY 1036
11 Screw BPZ30P080FCU
12 CD pad VECI252
13. Tray assembly VXA1922
14 Screw BPZ26PO60FZK
1S teens
Tray bridge VNEL855
NOTE: Screws adjacent to ¥ mark on the product
are used for disassembly.

3
CLD ~ 2850
3.2 FRONT PANEL SECTION
Parts List
Mark No.- Description Part No. Mark No. Description - Part No. _-
1 FL filter VEC1591 21 Screw BPZ26P060FCU
2. Door assembly-S VXX1835 22 Screw IPZ26PO60FMC
3. FLiens VECI590 23° Screw BBZ20POSOFZK
4 Name plate VAM1032 2A Screw PMZ20P040FCU
5 Door rubber ‘VEB1106 25 Front door assembly VXA1930
6 Door panel VNK2137 26 ~~ Front panel assembly- S VXX1857
— 7 ~~ Shuttle knob VNK2039
8 Function key VNK2147
9 Door base assembly VXA1790
10 PW button VNK2140
11 Lkey assembly VXA1896 NSP 101 Damp cushion VECIL12
12 Dise side key VNK2144 NSP 102 Front panel VNK2263
13. Main key VNK2138 NSP 103 Front panel assembly VXA1964
14 Door shaft holder VNE1842 NSP 104 HEPB assembly VWV1295,
B 15 Door spring VBH1194 NSP 105 _ IRPS assembly VWG1448
16 Snap plate VNE1102 NSP 106 FLKY assembly VWG1412
17 Volume knob VNK2003
18 Jack holder VNE1863
19 Damper assembly VXAL053
20 Damper plate VNE1843,
wen

il
3
CLD - 2850

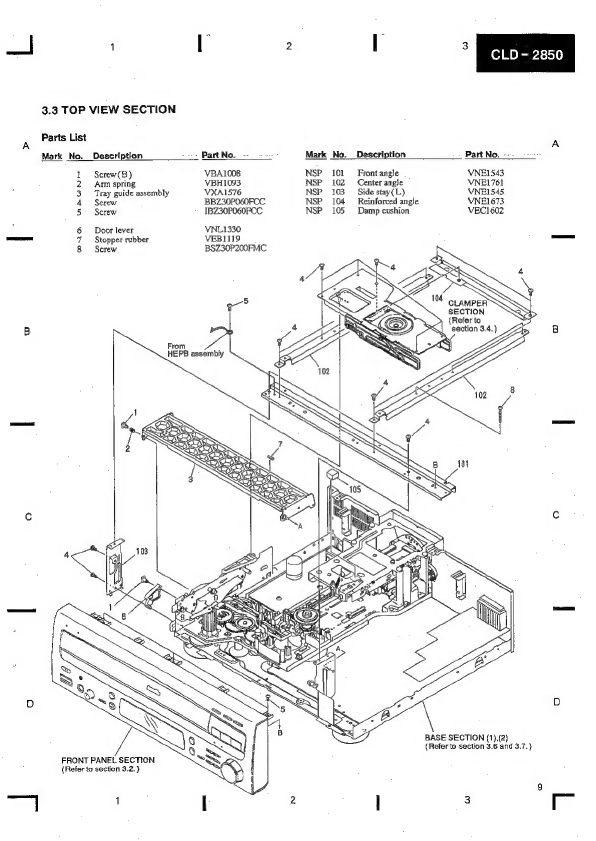

3.3 TOP VIEW SECTION
Parts List ‘n
Mark No. Description Part No. Mark No. Description Part No. --
1 Serew(B) VBA1008 NSP 101 Front angie VNE1543,
2 Am spring VBH1093 NSP 102 Center angie VNE1761
3 Tray guide assembly VXAI576 NSP 103 Side stay(L) VNEI545
4° Screw BBZ30PO060FCC NSP 104 Reinforced angle VNEI673
5 Screw IBZ30PO060FCC, NSP 105 Damp cushion VEC1602
6 Door lever VNL1330
—- 7 Stopper rubber VEBII19 —
8 Screw BSZ30P200FMC
B B
— —
c c
— —
D D
FRONT PANEL SECTION
{Refer to section 3.2.)
BASE SECTION (1),(2)
(Refer to section 3.6 and 3.7.)

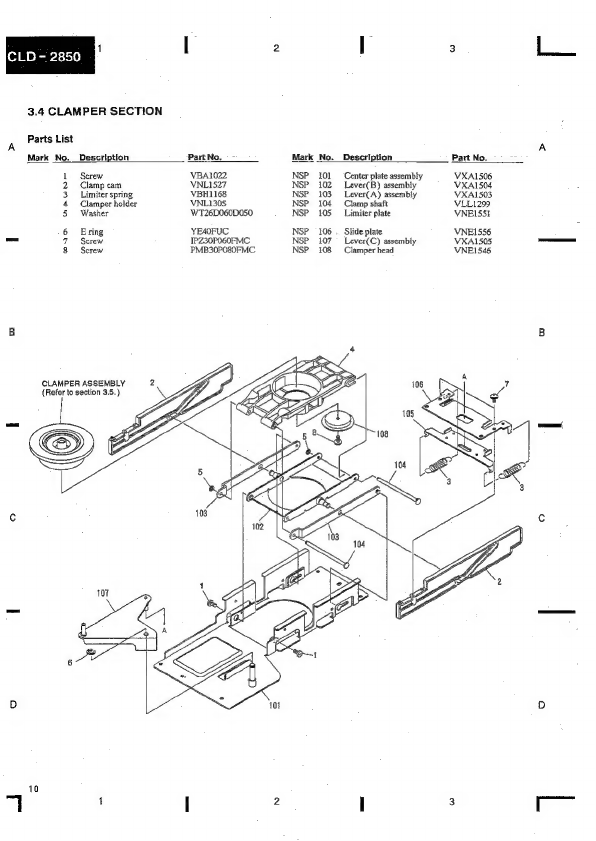

3.4 CLAMPER SECTION
Parts List
Mark No. Description Part No. Mark No. Description Part No.
1 Screw VBAI022 NSP 101 Center plate assembly VXAI1506
2 = Clamp cam VNL1527 NSP 102 Lever(B) assembly VXAI1504
3 Limiter spring VBH1168 NSP 103 Lever(A) assembly VXAI1503
4 Clamper holder VNL1305 NSP 104 Clamp shaft VLL1299
5 Washer WT26D060D050 NSP 105 Limiter plate VNEISS}
6 Ering YE4OFUC NSP 106 — Slide plate VNE1556
Lael 7 Screw IPZ30PO60FMC NSP 107 Lever(C) assembly VXAI1505
8 Screw PMB30P080FMC_ NSP 108 Clamper head VNE1546
B
4
CLAMPER ASSEMBLY 2
(Refer to section 3.5.)
—_
c
—
D

aot 1 1 2 1 3
CLD - 2850

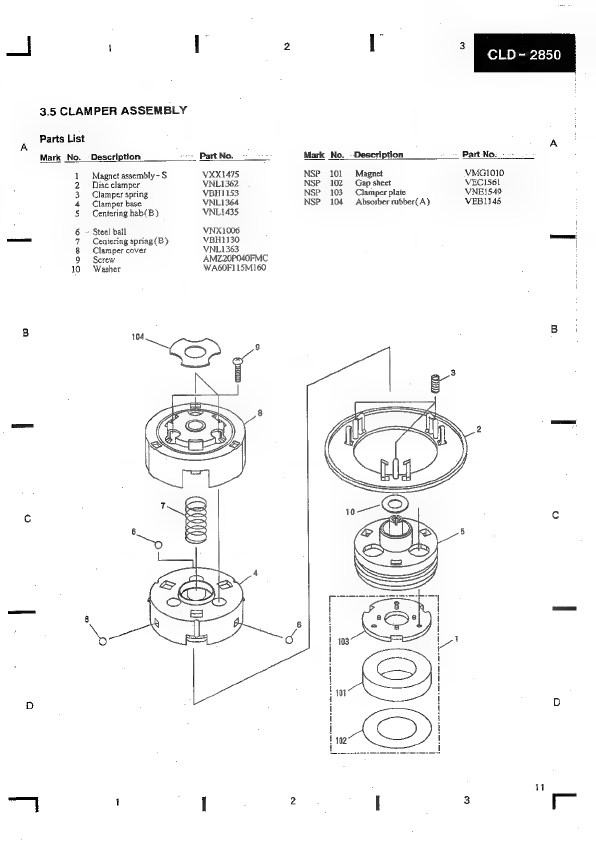

3.5 CLAMPER ASSEMBLY
Parts List
A
Mark No. Description ~-> Part No. Mark No. Description Part No. ---
1 Magnet assembly- S$ VXXI1475 NSP 101 Magnet VMG1010
2 Disc clamper VNL1362 NSP 102 Gap sheet VECIS6L
3 Clamper spring VBHIL53 NSP 103 Clamper plate VNE1549
4 Clamper base YNL1364 NSP 104 Absorber rubber(A) VEB1I46
5 Centering hab(B) VNL1435
6 = Steel ball VNX1006
—
7
Centering
spring(B)
VBH1130
—
8
Clamper
cover
VNL1363
|
9 Screw AMZ20P040FMC_
10 Washer WAGOFI115M160
B B
—
Cc Cc
—
1
D D
Vi

+ ll

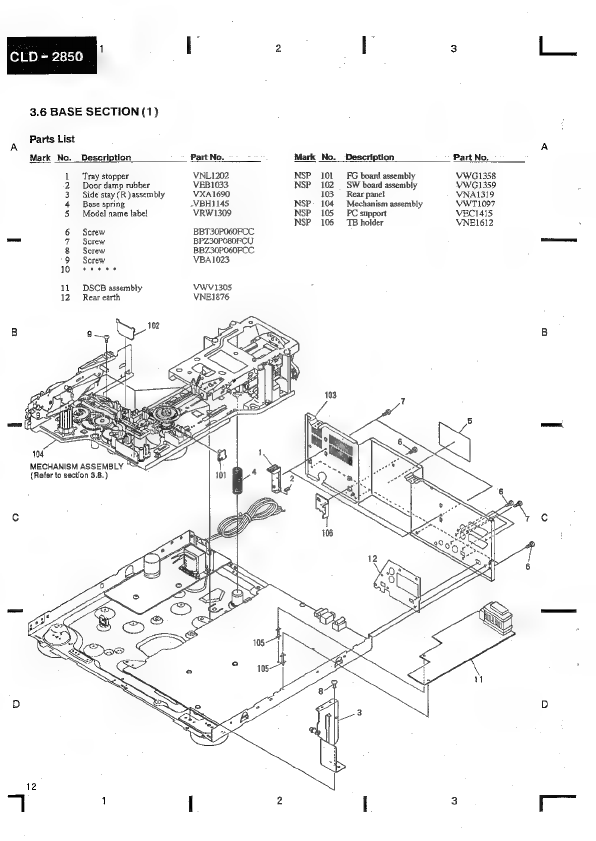

3.6 BASE SECTION (1)
Parts List
Mark No. Description. Part No. Mark No. Description Part No. ~
1 Tray stopper VNL1202 NSP 101 FG board assembly VWG1358
2 Door damp rubber VEB1033 NSP 102 SW board assembly VWG1359
3 Side’ stay (R assembly VXA1690 103 Rear pane! VNA1319
4 Base spring -VBH1145 NSP- 104 Mechanism assembly VWT1097
5 Model name label VRW1309 NSP 105 PC support VECI4IS
NSP 106 TB holder VNEI612
6 Screw BBT30P060FCC
— 7 Screw BPZ30PO80FCU_ ———.
8 Screw BBZ30P060FCC.
9 Screw VBA1023
JO teres
11 DSCB assembly VWV1305
12 Rear earth VNE1876
MECHANISM ASSEMBLY
(Refer to section 3.8.)

CLD - 2850

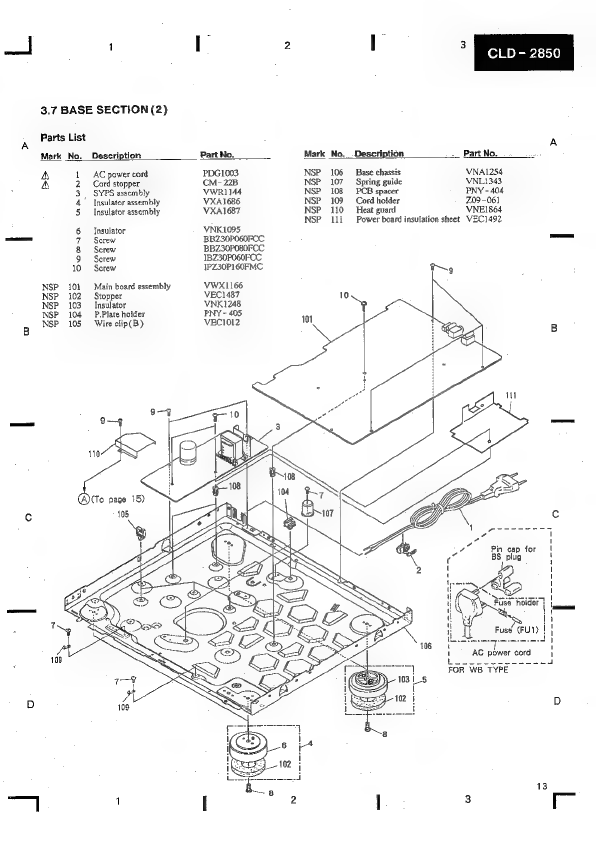

3.7 BASE SECTION (2)
Parts List *
Mark No. Description Part No. Mark No. Description _. Part No.
A 1 AC power cord PDG1003 NSP 106 Base chassis VINA1254
A 2 Cord stopper M-22B NSP 107 Spring guide VNL1343
3 SYPS assembly VWR1144 NSP 108 PCB spacer PNY - 404
4 — Insulator assembly VXA1686 NSP 109 Cord holder 209-061
5 Insulator assembly VXA1687 NSP 110 Heat guard VNEI864
NSP 11i Power board insulation sheet. VEC1492
6 Insulator VNK1095
7
Screw
BBZ30PO60FCC
—
8 Screw BBZ30PO80FCC
9 Screw 1BZ30PO60FCC
10 Screw 1PZ30P160FMC By
NSP 101 Main board assembly VWXL166
NSP 102 Stopper VEC1487 10
NSP 103 Insulator VNK1248
NSP 104 P.Plate holder PNY- 405
NSP 105 Wire clip(B) VECIOI2 101,
"Sense came.
Fuse holder |
ee areas re

Mechanism chassis section
(Refer to section 3.9.)
1 2
CLD - 2850
3.8 MECHANISM ASSEMBLY
Parts list
Mark No. Description Part No.
1 Tilt shaft VLL1326
2 Plate spring VBKI013 13
3 Tilt spring VBH1146 ~
4 Thrust spring VBHI163
5 Post(L) VNL1489
6 Post(R) VNL1488 Tilt base (upper} section
= © 7 Carriage assembly VWT1098 {Refer to section 3.11.)
8 Flexible cable(22P) VDA1329
9 Belt PEB}013
10 Lever switch(TURN SW) DSKLO003
11 Screw ABZ26POSOFMC
12 Serew ¥BZ30P100FMC_
13. Screw IPZ30P100FCU
14 Radial spring VBH1164
B
NSP 101 — Housing assembly (3P) VKP1937
—
Harness guide assembly
(Refer to section 3,11.)
Carriage szeembiy
(Reter to section 3.12.)
7
c
—
D
Till base (lower) section
(Refer to section 3.10.)

al
1 3
CLD - 2850

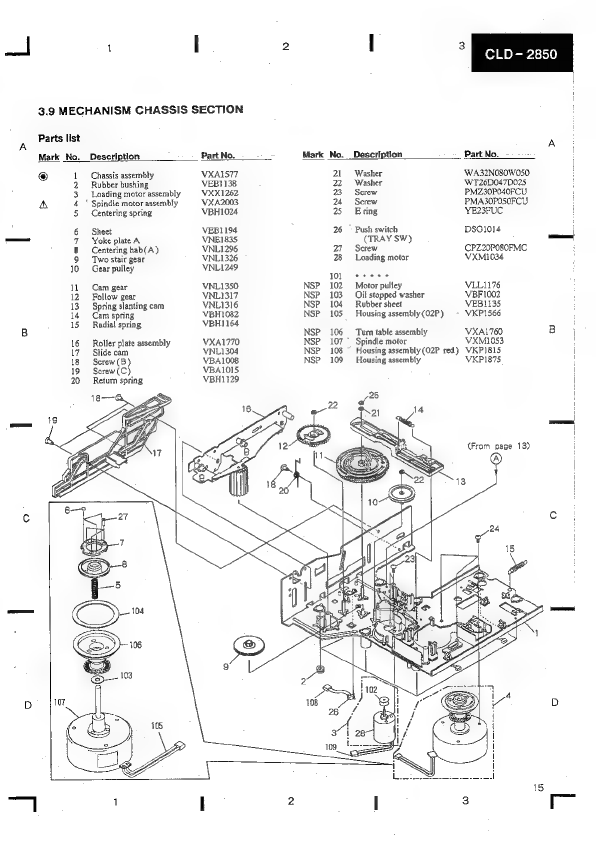

3.9 MECHANISM CHASSIS SECTION
Parts list nN
Mark No. Description Part No. Mark No. Description Part No.
@ 1 Chassis assembly VXAIS77 21 Washer WA32NO80W050
2 Rubber bushing VEB1138 22 Washer WT26D047D025
3. Loading motor assembly VXX1262 23 Screw PMZ30P040FCU
A 4 — Spindie motor assembly VXA2003 24 Screw PMA30POSOFCU.
5 Centering spring VBH1024 25 Bring YE23FUC
6 Sheet VEB1I194 26 = Push switch DSG1014 i
7 Yoke plate A VNE1835 (TRAY SW) —
8 Centering hab(A) VNL1296 27 Serew CPZ20P080FMC
9 Two stair gear VNL1326 28 Loading motor VXM1034
10 Gear pulley VNL1249
101 seeee
11 Cam gear VNL1350 NSP 102 Motor pulley VLL1176
12 Follow gear VNLI317 NSP 103 Oil stopped washer VBF1002
13. Spring slanting cam VNLI316 NSP 104 Rubber sheet VEB1135
14 Cam spring VBH1082 NSP 105 Housing assembly(02P) | VKP1566
15 Radia! spring VBH1164
NSP 106 Turn table assembly VXA1760 B ]
16 Roller plate assembly VXA1770 NSP 107 — Spindle motor VXMI1053
17 Slide cam VNL1304 NSP 108 Housing assembly(02P red) WKPJ815 i
18
Screw(B)
VBA1008
NSP
109
Housing
assembly
VKPI1875
19
Screw(C)
VBAIOIS
i
20
Return
spring
VBH1129
i
'
i
—
i
(From page 13)

3
CLD ='2850
3.10 TILT BASE (LOWER) SECTION
A Parts list
Mark No. Description Part No. Mark No. Description Part No.
© 1 Tilt base(Lower)assembly VXA1798 ll Screw IPZ20PO80FMC
2 Slide switch OSHLO01 12 Serew BMZ26P100FMC
(LD,CDV INSIDE) 13. Screw PMZ20P060FMC.
3 Rack spring VBHL1133 14 Screw PMZ20P030FMC
4 Rack gear(Lower) VNLI346
5 Carriage shaft(Lower) VLL1325
— 6 Shaft plate(Lower)assembly VXA1626 NSP J01 SW holder VNEI620
7 S$ plate spring VBH1149 NSP 102 Hovsing assembly VKP1851
Bovteee (04P white)
9 Screw BBZ30PO060FCC NSP 103 Roller shaft holder plate VNE1666
10 Screw PPZ20P120FMC NSP 104 S plate holder VNEL621
8
—_
c
—
D
16

CLD = 2850

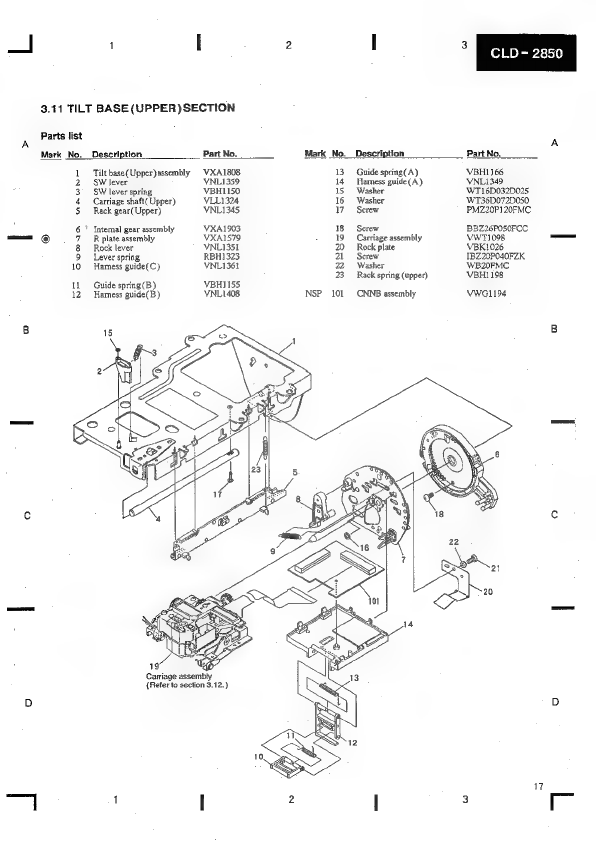

3.11 TILT BASE(UPPER) SECTION
Parts list -
Mark No. Description Part No. Mark No. Description Part No.
1 Tiltbase(Upper)assembly VXA1808 13 Guide spring(A) VBH1166
2 SWilever YNLI359 14 Hamess guide(A) VNL1349
3° SW lever spring VBH1150 15 Washer WT16D032D025
4 — Carriage shaft(Upper) VLL1324 16 Washer WT36D072D050
5 Rack gear(Upper) VNL1345 17 Screw PMZ20P120FMC
6 — Internal gear assembly VXA1903 18 Screw BBZ26POSOFCC
® 7 Rplate assembly VXAI1579 - 19 Carriage assembly VWT1098 —
8 Rock lever VNLI351 20 Rock plate VBK1026
9 Lever spring RBH1323 21 Screw IBZ20P040FZK
10 Hamess guide(C) VNL1361 22 Washer WB20FMC
23 Rack spring (upper) VBH1198
11 Guide spring(B) VBHIISS
12 Harness guide(B) VNL1408 NSP 101 CNNB assembly VWG1194
B
c
Carriage assembly
(Refer to section 3.12.)
D

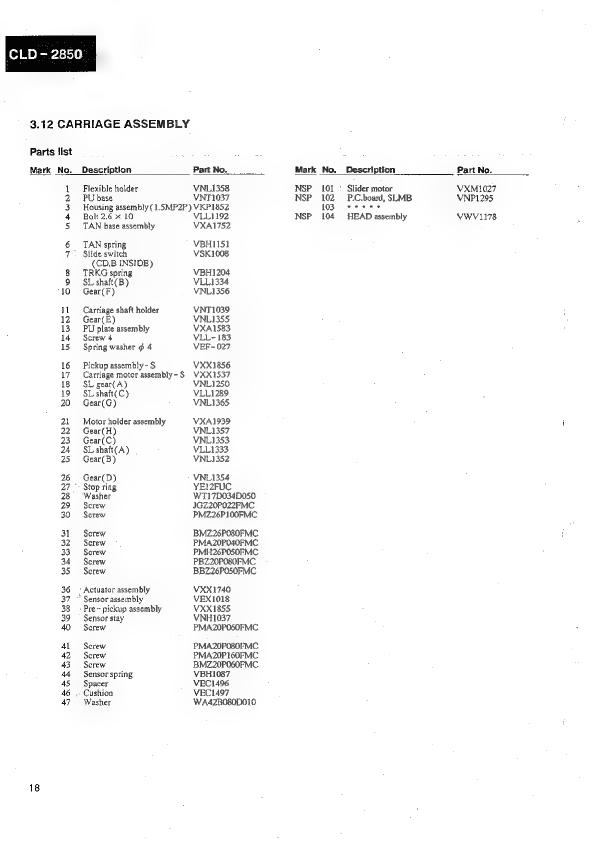

3.12 CARRIAGE ASSEMBLY
Parts list
Mark No. Description Part No. Mark No. Description. Part No.
1 Flexible holder VNL1353 NSP 101 — Slider motor VXM1027
2 PU base VNT1037 NSP 102 P.C.board, SLMB VNP1295
3 Housing assembly (1.5MP2P) VKP1852 103 srere
4 Bokt2.6 x 10 VLLI192 NSP 104 HEAD assembly VWV1178
5 TAN base assembly VXAI17S2
6 TAN spring VBHIIS1
7 ~~ Slide switch VSK1008
(CD,B INSIDE)
8 TRKG spring VBHI1204
9 SLshaft(B) VLLI334
10 Gear(F) VNL1356
Jl Carriage shaft holder VNT1039
12 Gear(B) VNL1355
13. PU plate assembly VXA1583
14 Screw 4 VLL- 183
15 Spring washer ¢ 4 VEF~027
16 Pickup assembly-S VXX1856
17 Carriage motor assembly-$ VXX1537
18 SL gear(A) YNL1250
19 SL shaft(C) VLL1289
20 Gear(G) VNL1365
21 Motor holder assembly VXA1939
22 Gear(H) VNL1357
23° Gear(C) VNL1353
24 SL shaft(A) VLL1333
25 Gear(B) YNL1352
26 Gear(D) VNL1354
27 ~— Stop ring YE12FUC
28 Washer WT17D034D050
29° Screw JGZ20P022FMC_
30 Screw PMZ26P100FMC
31 Screw BMZ26P080FMC.
32 Screw PMA20P040FMC_
33° Screw PMH26P0SOFMC.
34 Screw PBZ20PO080FMC
35 Screw BBZ26PO0SOFMC
36 ~— Actuator assembly VXX1740
37 ~— Sensor assembly VEX1018
38 — Pre- pickup assembly VXX1855
39 Sensor stay VNH1037
40 Screw PMA20P060FMC
41 Screw PMA20P080FMC_
42 Screw PMA20P160FMC
43° Screw BMZ20P060FMC
44 Sensor spring VBHI1087
45 Spacer VEC1496
46 = Cushion VEC1497
47 Washer WA42B080D010

CLD - 2850
3
19

cLb-2850 ff | . I : L_
3.13 PACKING
Parts List in
Mark No. Description Part No. Mark No. Description Part No.
1 Connection cord VDE- 055 NSP 101 Dry cell battery(RO3, AAA) VEM-022
2 Buro seart cable (21P) VDEI031 102 sees
3 Operating instructions VREI016 NSP 103. Warranty card ARW - 088
(English/French/German/Italian) NSP 104 Polyethylene bag VHL-014
4 — Remote contro! unit VXX1833 NSP 105 Caution card(EW) VRMI1027
(CU- CLD081)
NSP 106 Caution card(UC) VRMI1039
= 5 Pad(R) VHA1099 107 seers —a
6 Pad(F) VHAL100 NSP 108 Polyethylene bag Z21-029
7 Packing case VHG1266 NSP 109 Tac card VRW1240
8 Mirror mat VHLI012 NSP 110 Caution card(UC) VRRI1009
9 Cable case VHG1200
10 Battery cover DNK2286
11 Shipping screw VLLI358
12 Washer WT36D072D025,
13. Operating instructions VRFI023
B (Dutch/Swedish/Spanish/Portuguese) B
20
