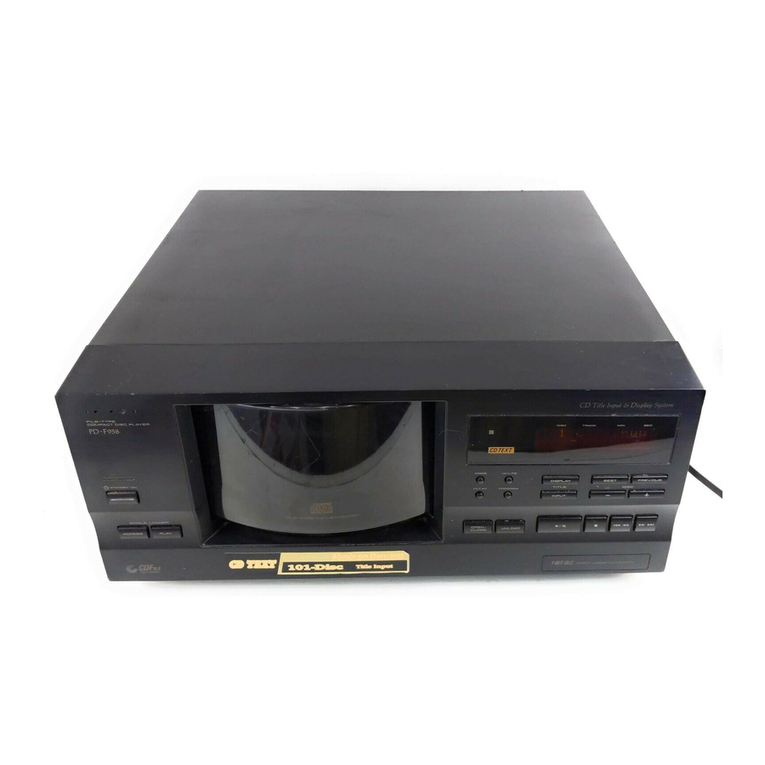

Pioneer PD-F958 User manual

ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
MYXQ O AC220-230V
MVXQ O AC220-230V
FILE-TYPE COMPACT DISC PLAYER
RRV2106
T–ZZR FEB. 1999 Printed in Japan
PD-F958
¶Refer to the service manual RRV2085 for PD-F958/KUXQ/CA.
Remarks
Type Model
PD-F958 Power Requirement
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
1. SAFETY INFORMATION....................................2
2. CONTRAST OF MISCELLANEOUS PARTS .....3
3. SCHEMATIC DIAGRAM....................................8
4. PCB CONNECTION DIAGRAM .......................11
CONTENTS

PD-F958
2
REAR
PD-F958/MVXQ only
PD-F958/MYXQ only
LABEL CHECK for (PD-F958/MYXQ and PD-F958/MVXQ types)
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
1. SAFETY INFORMATION
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 7 mw
WAVELENGTH: 780 – 785 nm
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
Additional Laser Caution
1.Laser Interlock Mechanism
The position of the switch (S651) for detecting loading
state is detected by the system microprocessor, and
the design prevents laser diode oscillation when the
switch (S651) is not on CLMP terminal side (CLMP
signal is OFF or high level).
Thus,theinterlock will nolongerfunction if theswitch(S651)
is deliberatery set to CLMP terminal side. (low level)
The interlock also does not function in the test mode *.
Laser diode oscillation will continue, if pin 33 of
CXA1782CQ (IC151) on the MOTHER BOARDASSY
is connected to GND, or pin 22 of IC301 (LDON) is
connected to low level (ON), or else the terminals of
Q151 are shorted to each other (fault condition).
2.When the cover is opened, close viewing of the
objective lens with the naked eye will cause exposure
to a Class 1 laser beam.
* : Refer to page 29. on the service manual RRV2085.

PD-F958
3
P6-1 MAIN BOARD ASSY PWZ3895 PWZ3896 PWZ3897
P6-2 POWER BOARD ASSY PWZ3900 PWZ3901 PWZ3901
P6-3 DISPLAY BOARD ASSY PWZ3904 PWZ3905 PWZ3905
P6-4 NSP SWITCH BOARD ASSY PWZ3907 PWZ3908 PWZ3908
NSP HEADPHONE BOARD ASSY Not used PWZ3910 PWZ3910 No.1
P6-10 Cord Stopper CM-22C CM-22B CM-22B
P6-12 AC Power Cord PDG1064 PDG1003 PDG1055
Fuse(T5A) (For AC power cord) Not used Not used PEK1003 No.2
P6-14 Foot Assy REC1263 Not used Not used
P6-18 Rear Base PNA2452 PNA2453 PNA2454
P6-47 Display Window PAM1772 PAM1773 PAM1773
P6-50 Operation Panel PNW2869 PNW2870 PNW2870
Headphone Knob Not used PAC1707 PAC1707 No.3
LED Lens Not used PNW2019 PNW2019 No.4
P6-55 65 Label ORW1069 Not used Not used
Caution Label (HE) Not used PRW1233 Not used No.5
Caution Label Not used VRW1094 Not used No.6
Caution Label Not used Not used PRW1018 No.7
NSP Sheet Not used PEC1038 PEC1038 No.8
PACKING
P3-5 NSP Warranty Card ARY7023 ARY7022 ARY7022
P3-7 Operating Instructions Not used PRD1036 Not used
(French/German/Italian/
Dutch/Swedish/Spanish/Portuguese)
P3-11 Packing Case PHG2337 PHG2338 PHG2339
Rear Spacer Not used Not used PHC1090 No.9
Index Label 100 Not used PRW1406 PRW1406 No.10
Jacket File Not used PHN1049 PHN1049 No.11
Polyethlene Bag (115X270X0.03) Not used Not used Z21-013 No.12
2. CONTRAST OF MISCELLANEOUS PARTS
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.
÷When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω=56 ×101 =561................................................... RD1/4PU 561J
47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J
0.5 Ω=R50 ...................................................................... RN2H Â50K
1 Ω=1R0 ......................................................................... RS1P 1Â0K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F
7CONTRAST OF PD-F958/KUXQ/CA, MYXQ and MVXQ
PD-F958/ MYXQ, MVXQ and KUXQ/CA are constructed the same except for the following:
Note : ÷The numbers in the remarks column correspond to the numbers on the exploded diagram, Refer to "EXPLODED VIEWS".
EXTERIOR
Part No. Remarks
KUXQ/CA type MYXQ type MVXQ type
Ref.
No. Mark Symbol and Description

PD-F958
4
EXTERIOR and FRONT PANEL SECTION
No.12
No.10
No.11
Packing Case
Front
Operating lnstructions
No.9
Protecter (FR)
Protecter (FL)
Protecter (RL)
Protecter (RR)
Control Cable
PD-F958/MVXQ only
Rear Base
Under Base
Screw (IBZ30P080FZK)
Screw (IBZ30P080FZK)
PD-F958/MYXQ only PD-F958/MVXQ only
PD-F958/MVXQ only
AC Power Cord
No.4
Operation Panel
No.7
No.6
No.5
No.3
No.1
No.8
Cord Stopper
No.2
Fuse Holder
lnsulator
EXPLODED VIEWS
PACKING SECTION

PD-F958
5
C81, C367, C461, C475, C477 Not used CKCYF103Z50 CKCYF103Z50
C4276, C4287 Not used CKCYF103Z50 CKCYF103Z50
C175 CEAT101M10 CEAT471M6R3 CEAT471M6R3
C185, C323 CKCYF103Z50 Not used Not used
C341, C342 CCCCH120J50 Not used Not used
C365, C395, C413– C416, C4277 Not used CFTLA104J50 CFTLA104J50
C388, C389 Not used CCCSL101J50 CCCSL101J50
C397 CCCSL101J50 CCCSL101J50 Not used
C401 Not used CEAT471M6R3 CEAT471M6R3
C403 Not used CCCCH120J50 CCCCH120J50
C404 Not used CCCCH220J50 CCCCH220J50
C429, C430, C435– C438 Not used CCCSL390J50 CCCSL390J50
C431, C432 Not used CEAT330M16 CEAT330M16
C481, C482 CCCSL390J50 Not used Not used
CN401 Not used 52147-0310 52147-0310
D391– D394 1SS254 1SS254 Not used
D1301– D1309, D1312– D1314 1SS254 1SS254 Not used
IC401 Not used PD2026B PD2026B
IC406 Not used BA15218 BA15218
JA391 RKN1004 RKN1004 Not used
JA392 RKN1004 Not used Not used
JA394 DKN1035 DKN1035 Not used
L151, L152, L307, L351 Not used RTF1167 RTF1167
L309 Not used RTF1167 Not used
L391 LAU1R0J LAUR22J Not used
L395, L396 LAU1R0J LAUR22J LAUR22J
R310– R312, R411– R413 Not used RD1/4PU241J RD1/4PU241J
R341 RD1/4PU271J Not used Not used
R342 RD1/4PU105J Not used Not used
R375 RD1/4PU471J RD1/4PU241J RD1/4PU241J
R391 RD1/4PU244J RD1/4PU244J Not used
R392 RD1/4PU102J RD1/4PU102J Not used
R401, R472, R473 Not used RD1/4PU102J RD1/4PU102J
R405– R410 Not used RD1/4PU471J RD1/4PU471J
R427– R430 Not used RD1/4PU223J RD1/4PU223J
R435, R436 Not used RD1/4PU163J RD1/4PU163J
R437, R438 RD1/4PU473J RD1/4PU163J RD1/4PU163J
R439– R442 RD1/4PU823J RD1/4PU433J RD1/4PU433J
R470, R471 Not used RD1/4PU470J RD1/4PU470J
R481, R482, R485, R486 RD1/4PU223J Not used Not used
R487– R490 RD1/4PU104J Not used Not used
R1301– R1305, R1307 RD1/4PU471J RD1/4PU471J Not used
X341 PSS1008 Not used Not used
X401 Not used PSS1008 PSS1008
MAIN BOARD ASSY
PWZ3896, PWZ3897 and PWZ3895 are constructed the same except for the following:
CONTRAST OF PCB ASSEMBLIES
H
Mark Symbol and Description Part No.
PWZ3895 PWZ3896 PWZ3897 Remarks
Note : Refer to "3.SCHEMATIC DIAGRAM".

PD-F958
6
C714 Not used CKCYF103Z50
NSP J703 Not used DE010WE0
Mark Symbol and Description Part No.
PWZ3904 PWZ3905 Remarks
DISPLAY BOARD ASSY
PWZ3905 and PWZ3904 are constructed the same except for the following:
Note : Refer to "3.SCHEMATIC DIAGRAM".
D751 Not used PCX1019
R751 Not used RD1/4PU471J
Mark Symbol and Description Part No.
PWZ3907 PWZ3908 Remarks
SWITCH BOARD ASSY
PWZ3908 and PWZ3907 are constructed the same except for the following:
Note : Refer to "3.SCHEMATIC DIAGRAM".
M
L
C17 Not used CKCYF103Z50
Power Transformer(AC120V) PTT1342 Not used
Power Transformer(AC220-230V) Not used PTT1343
Mark Symbol and Description Part No.
PWZ3900 PWZ3901 Remarks
I
POWER BOARD ASSY
PWZ3901 and PWZ3900 are constructed the same except for the following:
Note : Refer to "3.SCHEMATIC DIAGRAM".

PD-F958
7
¶PCB PARTS LIST
HADPHONE BOARD ASSY (PWZ3910)
COILS AND FILTERS
L501, L504, L505 (AXIAL INDUCTOR) LAUR22J
CAPACITORS
C503, C504 CKCYF473Z50
RESISTORS
VR501 (0.5kΩΒ) PCS1003
OTHERS
JA501 HADPHONE JACK RKN1002
3P Cable Holder 51048-0300
J501 2mm JUMPER WIRE D20PDY0315E
Mark No. Description Part No.
P

PD-F958
8
A
B
C
D
1234
1234
3. SCHEMATIC DIAGRAM
3.1 MAIN BOARD ASSY and HEADPHONE ASSY
HF
DISPLAY BOARD ASSY
SWITCH BOARD ASSY
D
E
F
C
B
A
SIGNAL ROUTE
: AUDIO SIGNAL
: EFM SIGNAL
: FOCUS SERVO LOOP
: TRACKING SERVO LOOP
: CARRIAGE SERVO LOOP
: SPINDLE DRIVE
: LOADING DRIVE
: DOOR DRIVE
(SEL)
(SEL)
(SEL)
(D)
(D)
(D)
(S)
(D)
223
19
18
53
43
7
6
8
5
16
33
23
3.4V
5.0V
0V
0V
0V
0V
0V
0V
0V
0V
0V
1.7V
1.7V
0.2V
1.6V
1.6V
1.6V
1.8V
1.8V
1.6V
OV
OV
-O.7V
(F)
(T)
(T)
(F) (F) (F)
L
F
M
F

PD-F958
9
A
B
C
D
5678
5678
HF
LINE OUT
JACK
MAIN BOARD ASSY
P
10
(PWZ3896:PD-F958/MYXQ)
(PWZ3897:PD-F958/MVXQ)
PD-F958/MYXQ Only
Note:
The numbers marked with a circle show the number of each
measuring point, which correspond to the number in the service
manual PD-F958 (ORDER NO. RRV2085) on page12 .
TO POWER BOARD ASSY
0V
0V
0V
0V
0V
-9.2
-9.2
1.6V
1.6V
PD-F958/MVXQ Only
PD-F958/MYXQ Only
J11
I
F
H F

PD-F958
10
A
B
C
D
1234
1234
3.2 DISPLAY BOARD ASSY, POWER BOARD ASSY and SWITCH BOARD ASSY
SWITCH BOARD ASSY
DISPLAY BOARD ASSY
CN351
PD-F958/MYXQ,MVXQ
:(PWZ3908)
POWER BOARD ASSY
(PWZ3901:PD-F958/MYXQ
PD-F958/MVXQ)
(TO MAIN BOARD ASSY) CN11
PD-F958/MYXQ,MVXQ Types
AC220-230V
TO MAIN BOARD ASSY
50Hz
HF
H
F
LF
IF
MF
AC POWER CORD
MYXQ: PDG1003
MVXQ: PDG1055
P0WER TRANSFORMER
PD-F958/MYXQ, MVXQ
:(PWZ3905)
PE5032A
J703
DE010WE0
MN
LFMFIF

PD-F958
11
A
B
C
D
1234
1234
4. PCB CONNECTION DIAGRAM
PDEABC
HEAD PHONE BOARD ASSY
CN401
SIDE A
NOTE FOR PCB DIAGRAMS:
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
Symbol in PCB
Diagrams Symbol in Schematic Diagrams Part Name
Transistor
Transistor
with resistor
Field effect
transistor
BCE
BCE
BCE
DGS
BCE
BCEBCE
DGSDGS
3. The parts mounted on this PCB include all necessary parts
for several destination.
For further information for respective destinations, be sure
to check with the schematic diagram.
4. Viewpoint of PCB diagrams
Resistor array
3-terminal
regulator
CapacitorConnector
P. C. Board Chip Part
SIDE B
SIDE A
PNP1455-B
H F
P
