Pioneer PD-M502 User manual

Operating
Instructions
DIGITAL AUDIO
PD-M502
MULTI-PLAY COMPACT DISC PLAYER
PD-M502/PD-M552
PD-M602/PD-M702
PD-M552
_PD-M602
Hg tg
ded <teg
DEMO MODE
Demo mode allows you to see variations of
the display. To enter the demo mode, press the
POWER switch and then <_< button with-
Thank you for buying this PIONEER product.
Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe place
for future reference.
In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the
explanatory drawings. However, the method of connecting and
operating the unit is the same.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your
security.
[For Canadian model with the polarized plug]
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD.
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
{Pour le modéle canadien avec la fiche polarisée]
ATTENTION: our prevenir Les cHocs
ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE
AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU
UNE AUTRE SORTIE DE COURANT, SAUF Si LES LAMES
PEUVENT ETRE INSERESS.A FOND SANS EN LAISSER
AUCUNE PARTIE A DECOUVERT.
in 1 second without inserting the magazine. To
exit demo mode, insert the magazine or press
any button.
LINE VOLTAGE SELECTOR SWITCH
Only multi-voitage models are provided with this switch. U.S.,
Canadian, European, U.K., and Australian models are not
provided with this switch.
Mains voltages in Saudi Arabia are 127V and 220V only.
The line voltage selector switch is located on the rear panel of
this player. Before your player is shipped from the factory, the
switch is set to the power requirements of the player's
destination. Check that it is set properly before plugging the
power cord into the outlet. If the voltage is not properly set or
if you move.to an area where the voltage requirements differ,
adjust the selector switch as follows:
® Be sure to disconnect the power cord from its outlet before
making this adjustment.
e Use a medium-sized (flat blade) screwdriver. Insert the tip of
the screwdriver into the groove of the selector switch and
turn it so that the power voltage marking of your area points
to the arrow.
- 6©®*F
220-240V 110-127V
CAUTION: Be sure to use the shielded cables when
connecting this equipment to other devices.
“This product complies with the Radio Interference require-
ments of the EC (European Community) Directive 87/308/EEC.”
@) PIONEER’
The Art of Entertainment

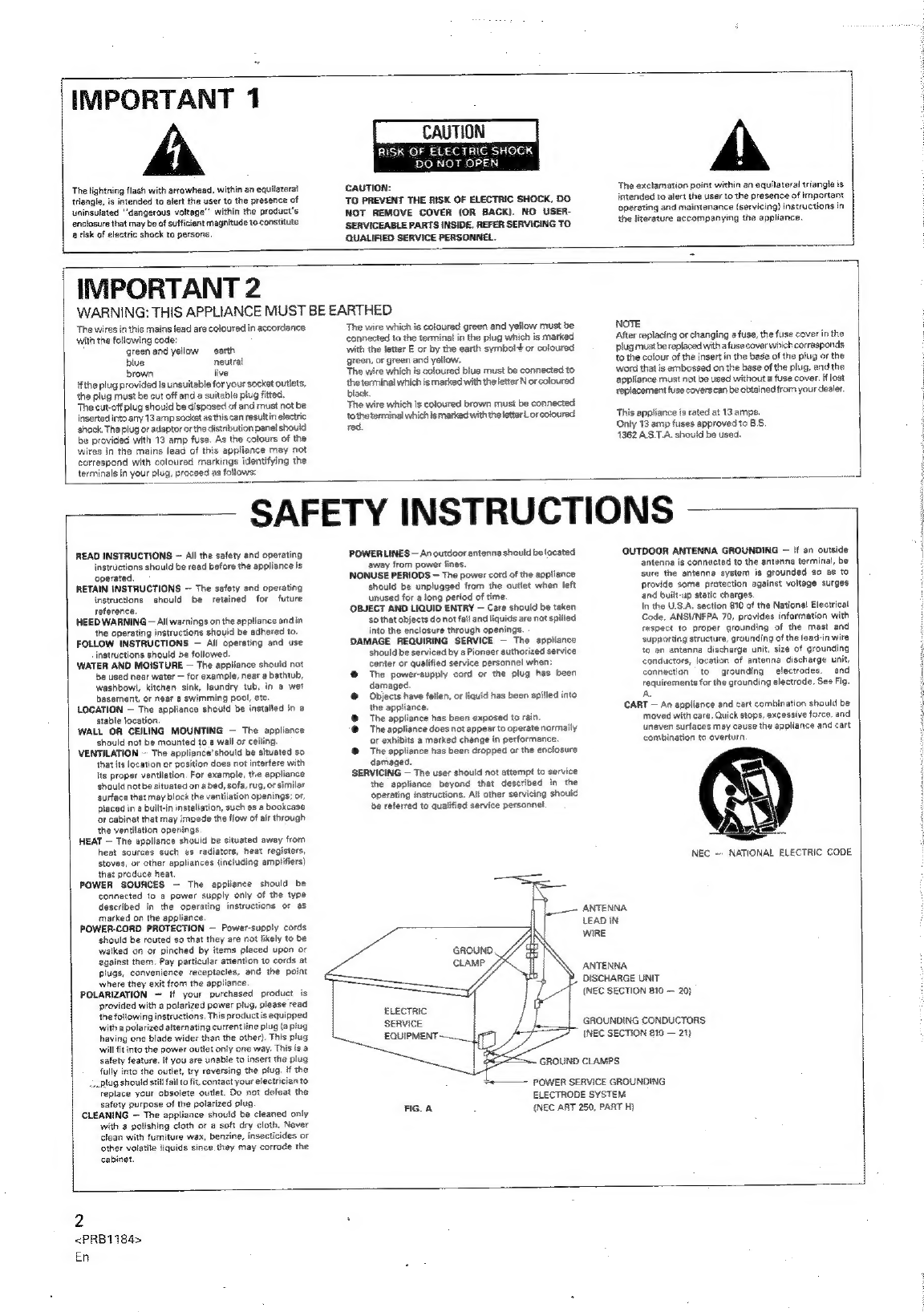

IMPORTANT 1
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation point within an equilateral triangle is.
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
sand
IMPORTANT 2
‘The wires in this mains fead are coloured in accordance
with the following code:
green and yellow earth
blue neutral
| brown five
ifthe plug provided is unsuitable for your socket outlets,
the plug must be cut off and a suitable plug fitted.
The cut-off plug should be disposed of and must not be
inserted into any 13 amp socket asthis can resultin electric
shock. The plug or adaptor or the distribution panel should
be provided with 13 amp fuse. As the colours of the
wires in the mains lead of this appliance may not
correspond with coloured markings identifying the
terminals in your plug, proceed as follows:
|
WARNING:
THIS
APPLIANCE
MUST
BE
EARTHED
The wire which is coloured green and yellow must be
connected to the terminal in the plug which is marked
with the letter E or by the earth symbolt or coloured
green, or green and yellow,
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected
tothe terminal which is marked with the letter Lor coloured
red.
NOTE
After replacing or changing a fuse, the fuse cover in the
plug must be replaced with a fuse cover which corresponds
to the colour of the insert in the base of the plug or the
word that is embossed on the base of the plug, and the
appliance must not be used without a fuse cover. Iflost
replacement fuse coverscan be obtained fram your dealer.
This appliance is rated at 13 amps.
Only 13 amp fuses approves to B.S.
1362 A.S.T.A. should be used.
READ INSTRUCTIONS = All the safety and operating
instructions should be read before the appliance is
operated.
RETAIN INSTRUCTIONS — The safety and operating
instructions should be retained for future
reference.
HEED WARNING — All warnings on the appliance andin
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS — Aji operating and use
instructions should be followed.
WATER AND MOISTURE — The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.
LOCATION — The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING — The appliance
should not be mounted to a wall or ceiling.
VENTILATION ~ The appliance’should be situated so
that its location ar position does not interfere with
its proper ventitation. Fer example, the appliance
should notbe situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings: or,
placed in a built-in installation, such as a bookcase
‘or cabinet that may impede the flow of air through
the ventilation openings.
HEAT — The appliance should be situated awey from
heat sources such as radiators, heat registers,
stoves, or other appliances (including ampfifiers)
that produce heat.
POWER SOURCES — The appliance should be
connected to a power supply only of the type
described in the operating instructions or as
marked on the appliance.
POWER-CORD PROTECTION — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION — {f your purchased product is
provided with a polarized power plug, please read
the following instructions. This productis equipped
with a polarized alternating current line plug fa piug
having one blade wider than the other}. This plug
will fit into the power outlet only one way. This is 2
safety feature. if you are unable to insert the plug
fully into the outlet, try reversing the plug. If the
_.plug should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
CLEANING — The appliance should be cleaned only
with @ polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzine, insecticides or
other volatile liquids since they may corrode the
cabinet.
;————
SAFETY
INSTRUCTIONS
POWER LINES — An outdoor antenna should be located
away from power fines.
NONUSE PERIODS — The power cord of the appliance
should be unplugged from the outlet when left
unused for a long period of time.
OBJECT AND LIQUID ENTRY — Care should be taken
so that objects do not fall and liquids are net spilled
into the enclosure through openings.
DAMAGE REQUIRING SERVICE — The appliance
should be serviced by a Pioneer authorized service
center or qualified service personnel when:
The power-supply cord or the plug has been
damaged.
Objects have fallen, or liquid has been s
the appliance.
‘The appliance has been exposed to rain.
The appliance does not appear to operate normaily
or exhibits a marked change in performance.
The appliance has been dropped or the enclosure
damaged.
SERVICING — The user should not attempt to service
the appliance beyond that described in the
operating instructions. Al! other servicing shoulé
be referred to qualified service personnel.
led into
GROUND g
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMPS
++—— POWER SERVICE GROUNDING
ELECTRODE SYSTEM
FIG. A fn {NEC ART 25
OUTDOOR ANTENNA GROUNDING — If an outside
antenna is connected to the antenna terminal, be
sure the antenne system is grounded so as to
provide some protection against voltage surges
and built-up static charges.
In the U.S.A. section 810 of the National Electrical
Code. ANSV/NFPA 70, provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit,
connection to grounding electrodes. and
requirements for the grounding electrode. See Fig.
A
CART — An appliance and cart combination should be
moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn
a
NEC -» NATIONAL ELECTRIC GODE
ANTENNA.
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810 — 20}
GROUNDING CONDUCTORS
INEC SECTION 810 — 2%)
50, PART Hj
2
<PRB1184>
En

[FOR EUROPEAN AND U.K. MODELS] The following caution label appears on your player.
CAUTION : i a Location: rear of the player
This product contains a laser diode of higher class
than 1. To ensure continued safety, do not remove
any covers or attempt to gain access to the inside CLASS 3
of the product. LASER PRODUCT
Refer all servicing to qualified personnel. vRw328
[FOR U.S. MODEL]
CAUTION
@ Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation
exposure,
e The use of optical instruments with this product will increase eye hazard.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses,
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in
a
particular
installation.
If
this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, |
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consuilt the dealer or an experienced radio/TV technician for help.
Information to User
Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a
os lifetime of fun and enjoyment. Since hearing damage from loud
noise is often undetectable until it is too late, this manufacturer
Qear
Customer:
and
the
Electronic
Industries
Association’s
Consumer
Electronics
Group recommend you avoid prolonged exposure to excessive
noise. This list of sound levels is included for your protection.
Decibel
Level Example
Selecting fine audio equipment such as the unit you've just
purchased is only the start of your musical enjoyment. Now it’s
time to consider how you can maximize the fun and excitement
your equipment offers. This manufacturer and the Electronic 30 Quiet library, soft whispers
Industries Association's Consumer Electronics Group want you 40 Living room, refrigerator, bedroom away from traffic
to get the most out of your equipment by playing it at a safe 50 Light traffic, normal conversation, quiet office
level. One that Jets the sound come through loud and clear 60 Air conditioner at 20 feet, sewing machine
without annoying blaring or distortion—and, most importantly, 70 Vacuum cleaner, hair dryer, noisy restaurant
without affecting your sensitive hearing, 80 Average Cy Sees garbage disposals, alarm clock
al .
Sound can be deceiving. Over time your hearing “comfort THE FOLLOWING NOISES CAN BE DANGEROUS
level” adapts to higher volumes of sound. So what sounds XPOS 7
“normal” can actually be loud and harmful to your hearing. UNDER CONSTANT, E2 SURE.
Guard against this by setting your equipment at a safe level 90 Subway, motorcycle, truck traffic, lawn mower
BEFORE
your
hearing
adapts.
100
Garbage
truck,
chain
saw,
pneumatic
drill
120 Rock band concert in front of speakers, thunderclap
‘To establish a safe level: 140 Gunshot blast, jet plane
® Start your volume control at a low setting. 180 Rocket launching pad
® Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
® Set the dial and leave it there.
Information courtesy of the Deafness Research Foundation,
‘Taking a minute to do this now will help to prevent hearing
damage or loss in the. future. After all, we want you listening for
a lifetime.
3
<PRB1184>
En

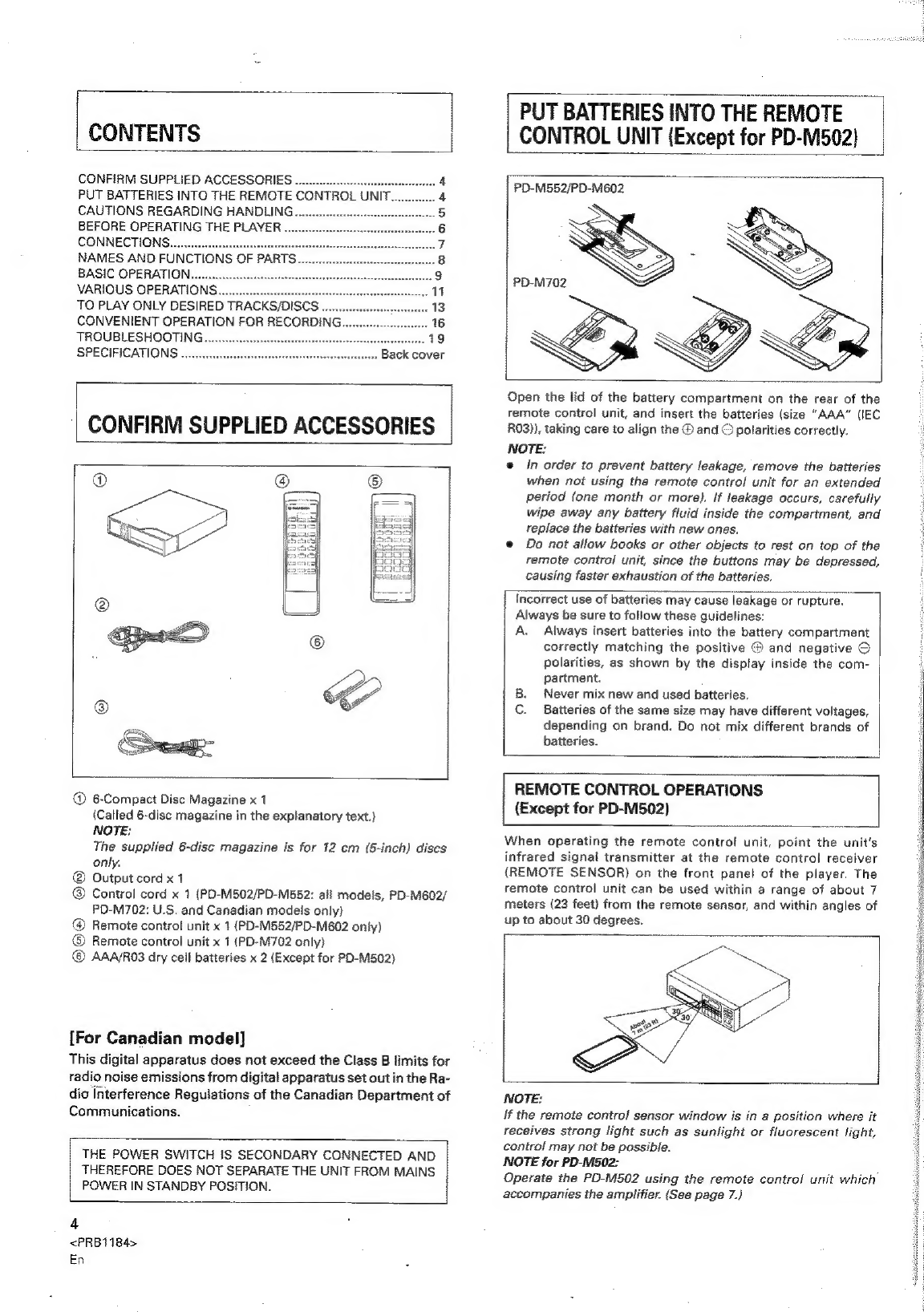

CONTENTS
CONFIRM SUPPLIED ACCESSORIES
PUT BATTERIES INTO THE REMOTE CONTROL UNIT.
CAUTIONS REGARDING HANDLING
BEFORE OPERATING THE PLAYER

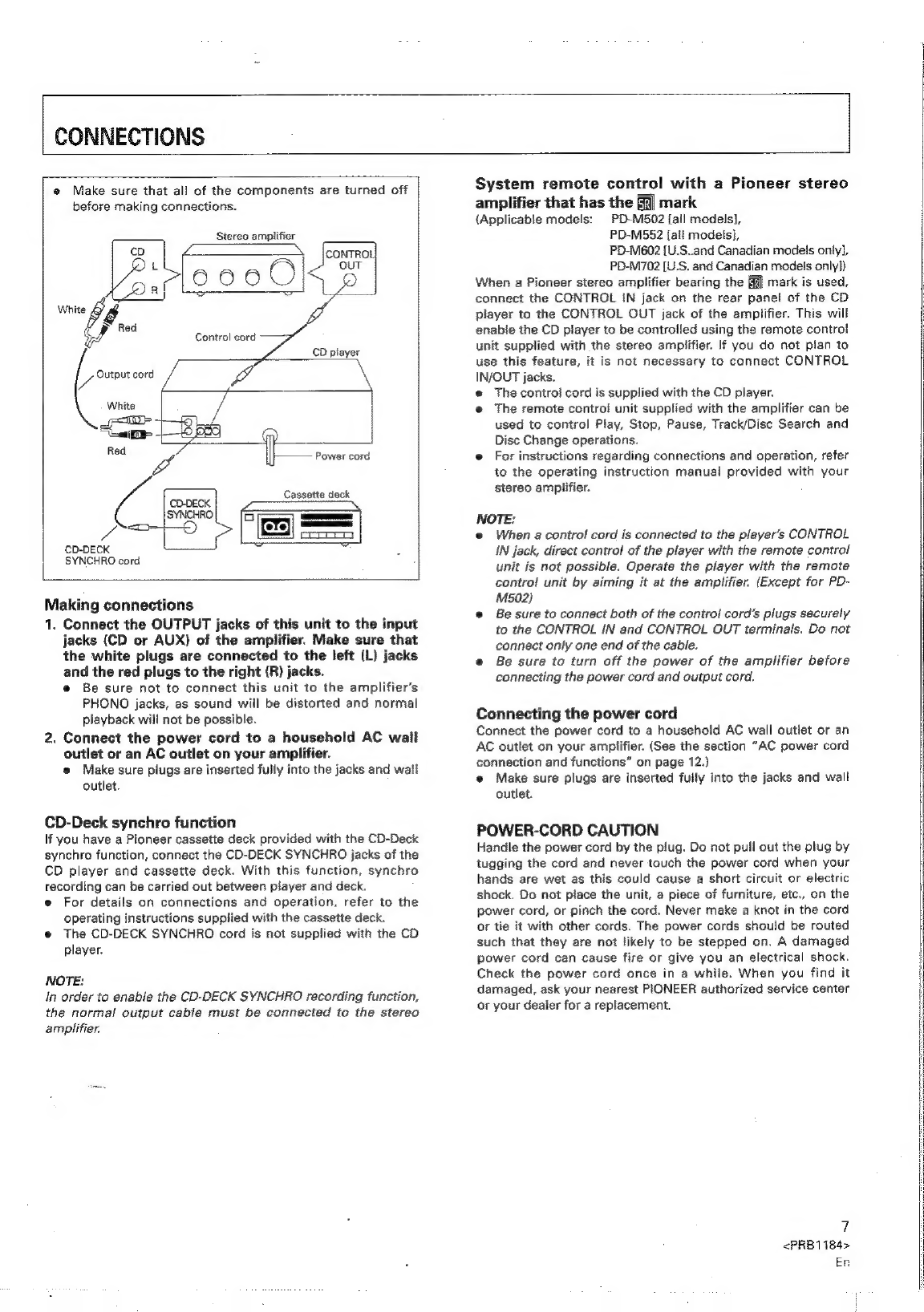

CONNECTIONS.

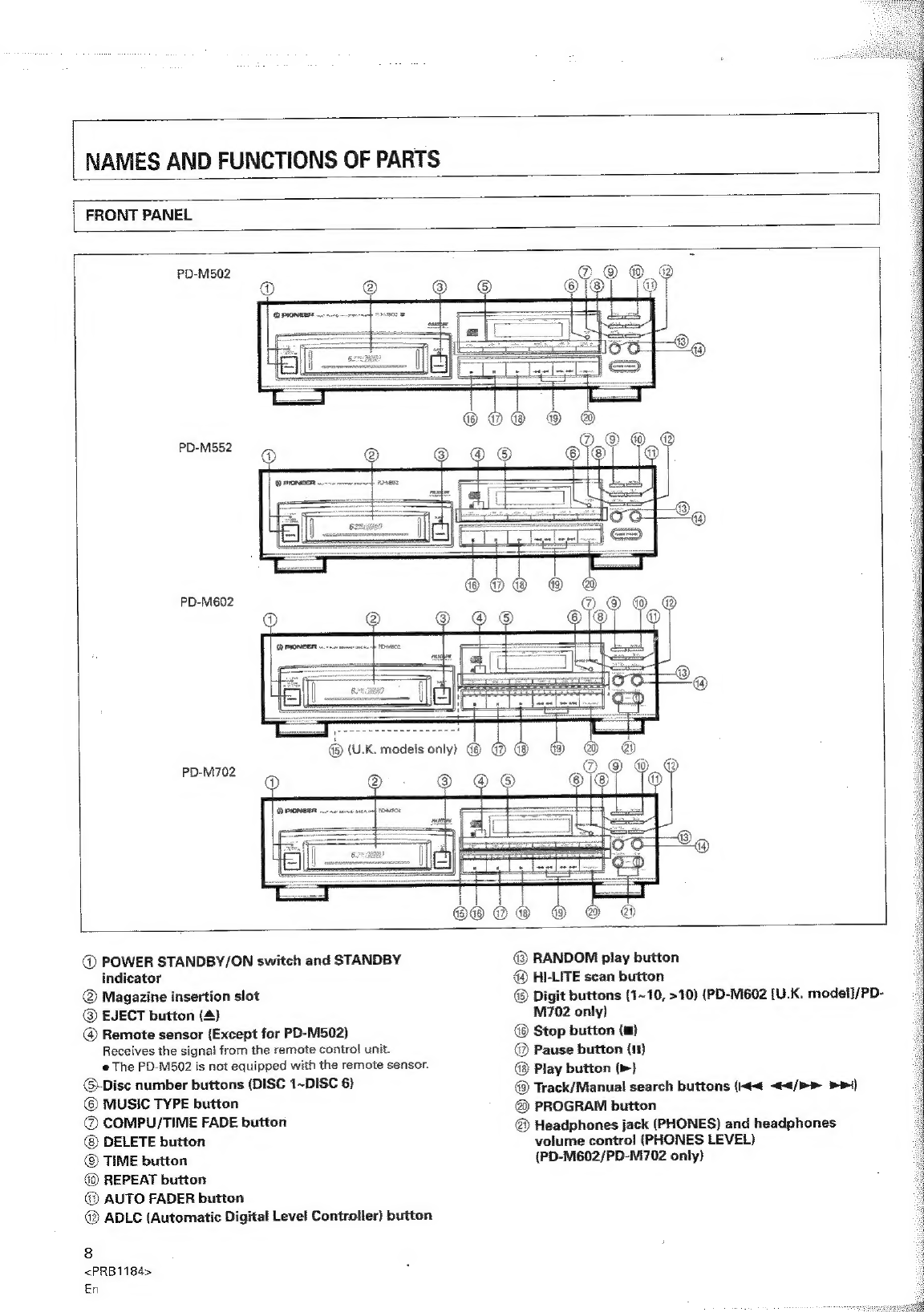

NAMES AND FUNCTIONS OF PARTS.
BASIC OPERATION...

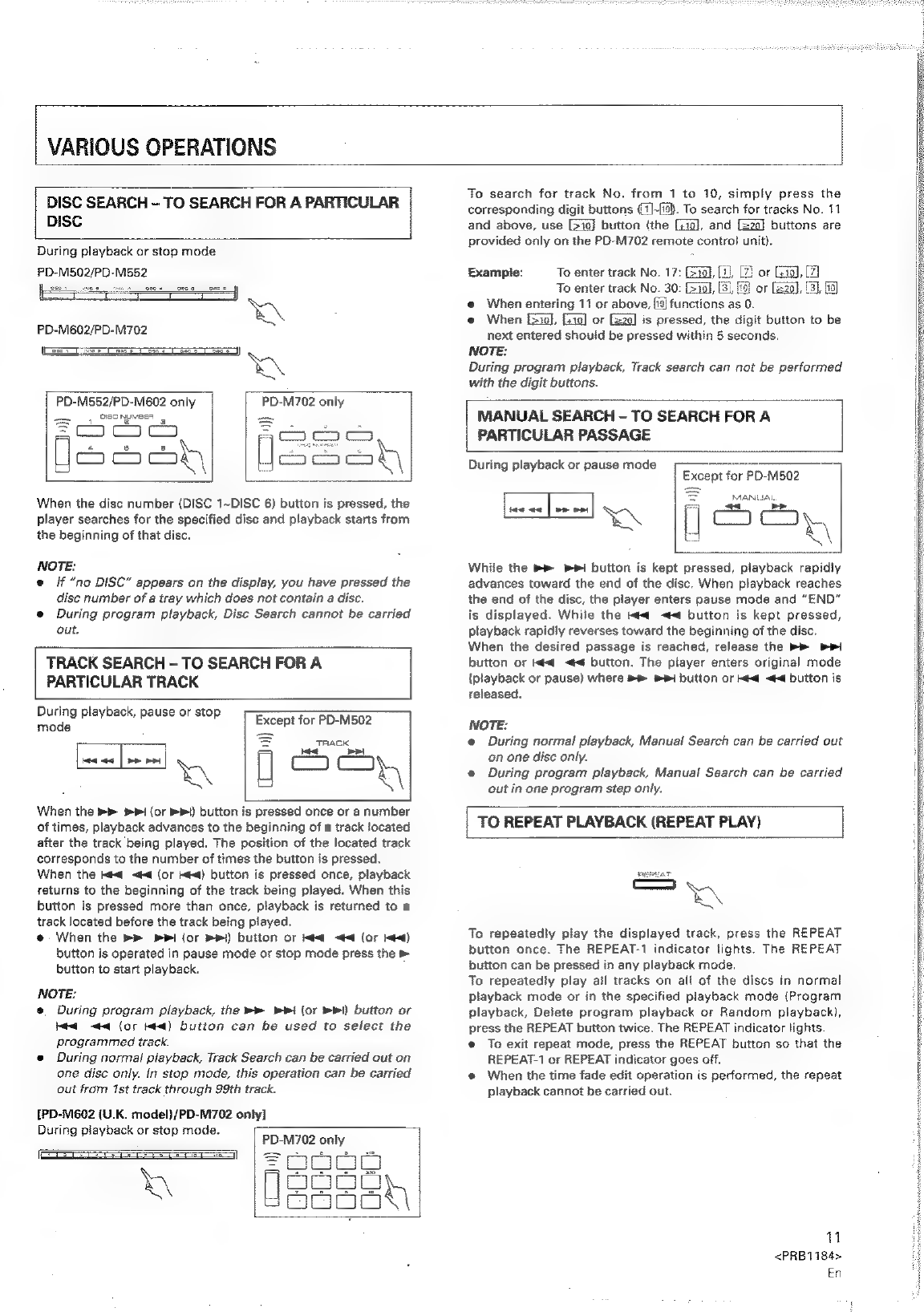

VARIOUS OPERATIONS.

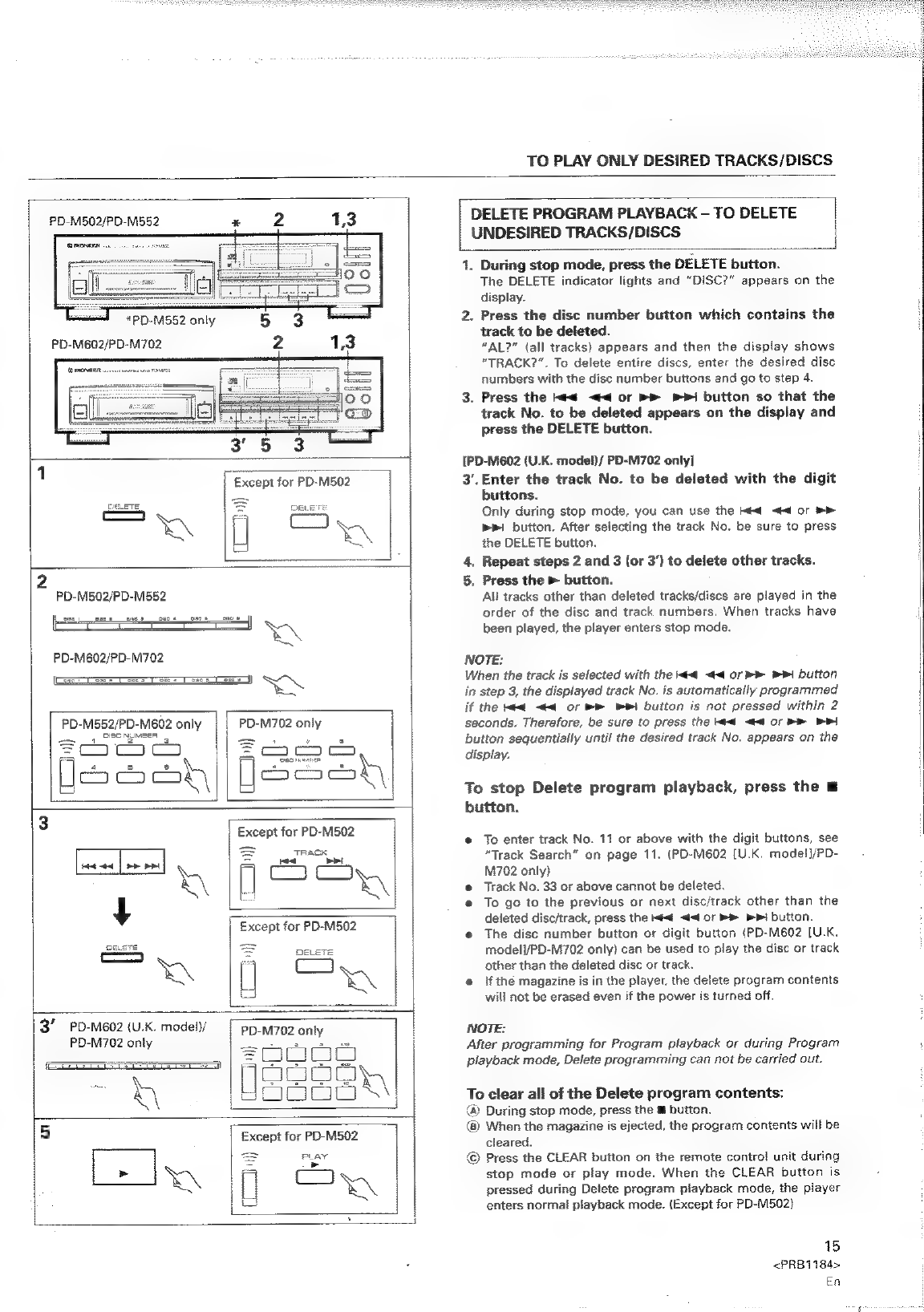

TO PLAY ONLY DESIRED TRACKS/DISCS ....

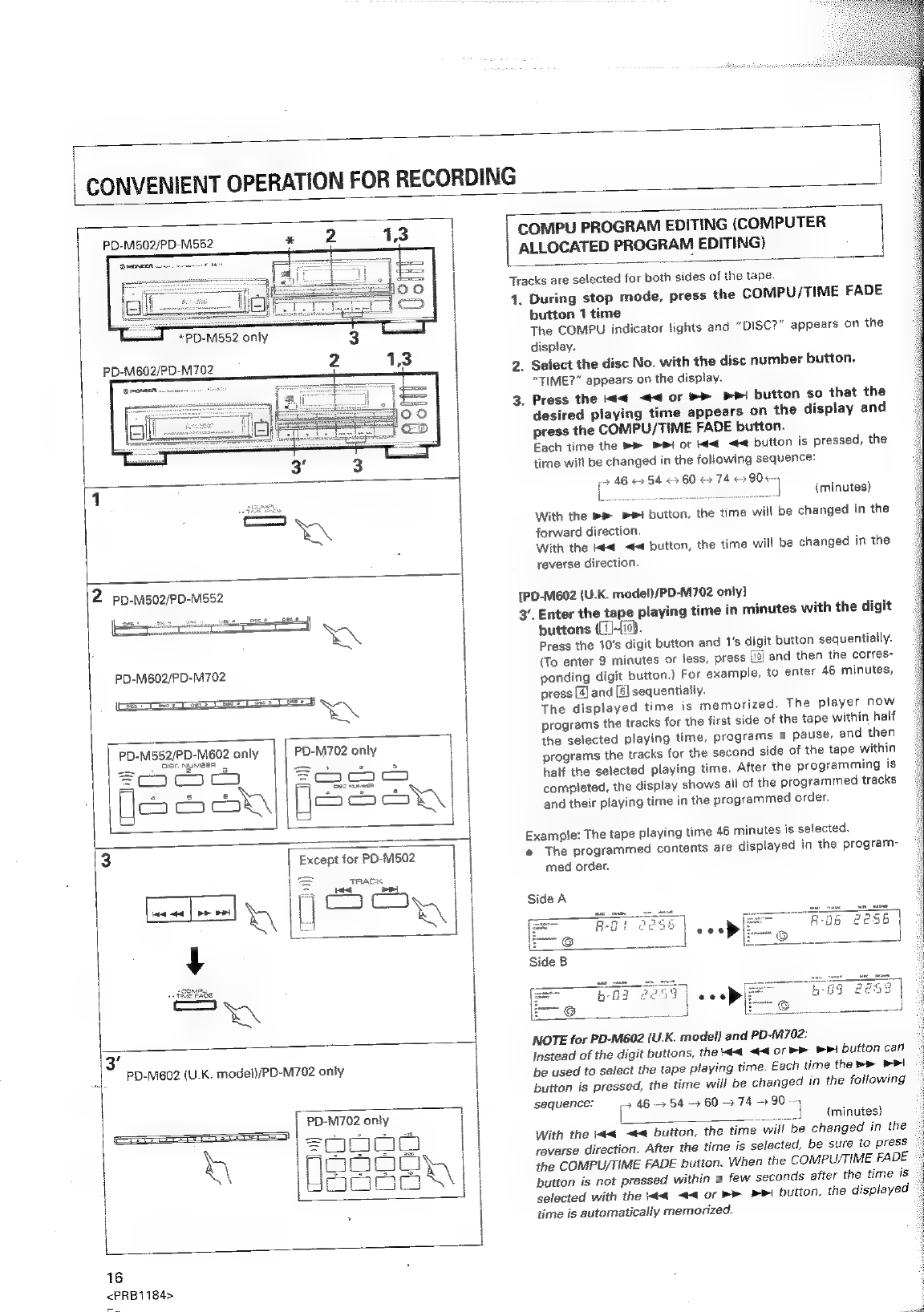

CONVENIENT OPERATION FOR RECORDIN

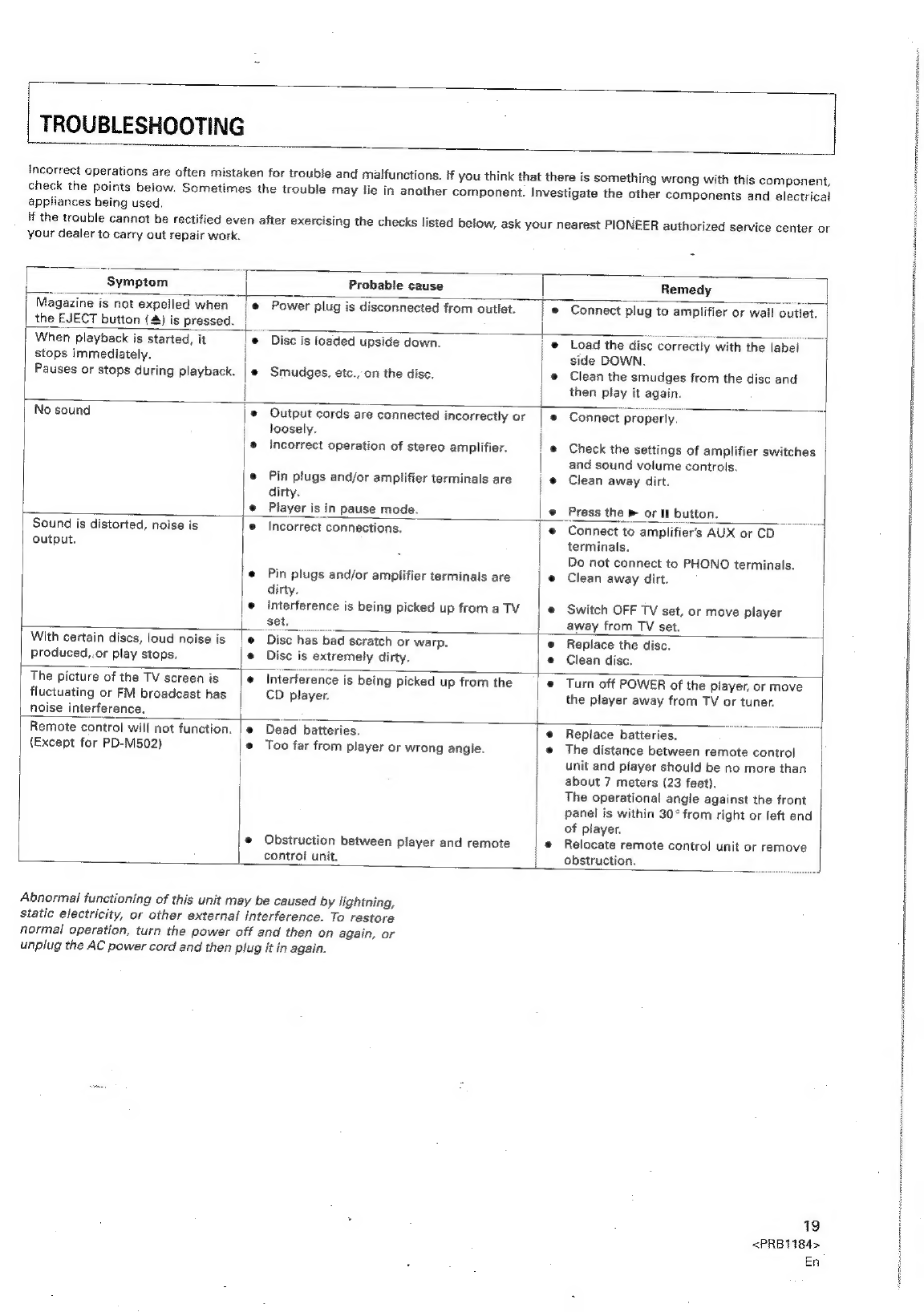

TROUBLESHOOTING...
SPECIFICATIONS
@ 6-Compact Disc Magazine x 1
(Called 6-disc magazine in the explanatory text.)
NOTE:
The supplied 6-disc magazine is for 12 cm (5-inch) discs
only.
@® Output cord x 1
@ Control cord x 1 (PD-M502/PD-M552: all models, PD-M602/
PD-M702: U.S. and Canadian models only}
@® Remote control unit x 1 (PD-M552/PD-M602 only)
© Remote control unit x 1 (PD-M702 only)
@ AAA/RO3 dry cell batteries x 2 (Except for PD-M502)
[For Canadian model]
This digital apparatus does not exceed the Class B limits for
radio noise emissions from digital apparatus set out in the Ra-
dio Interference Regulations of the Canadian Department of
Communications.
THE POWER SWITCH iS SECONDARY CONNECTED AND
THEREFORE DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION.
4
<PRB1184>
En %
PD-M702
| batteries.
Open the lid of the battery compartment on the rear of the
remote control unit, and insert the batteries (size “AAA” (IEC
RO3)), taking care to align the © and © polarities correctly.
NOTE:
® In order to prevent battery leakage, remove the batteries
when not using the remote contro! unit for an extended
period (one month or more). If leakage occurs, carefully
wipe away any battery fluid inside the compartment, and
replace the batteries with new ones.
e@ Do not allow books or other objects to rest on top of the
remote control unit, since the buttons may be depressed,
causing faster exhaustion of the batteries.
Incorrect use of batteries may cause leakage or rupture.
Always be sure to follow these guidelines:
A. Always insert batteries into the battery compartment
correctly matching the positive @ and negative ©
polarities, as shown by the display inside the com-
partment.
B. Never mix new and used batteries.
C. Batteries of the same size may have different voltages,
depending on brand. Do not mix different brands of
REMOTE CONTROL OPERATIONS
{Except for PD-M502)
When operating the remote control unit, point the unit's
infrared signal transmitter at the remote control receiver
(REMOTE SENSOR) on the front panel of the player. The
remote control unit can be used within a range of about 7
meters (23 feet) from the remote sensor, and within angles of
up to about 30 degrees.
NOTE:
if the remote contro! sensor window is in a position where it
receives strong light such as sunlight or fluorescent light,
control may not be possible.
NOTE for PD-M502:
Operate the PD-M502 using the remote contro! unit which’
accompanies the amplifier. (See page 7.)

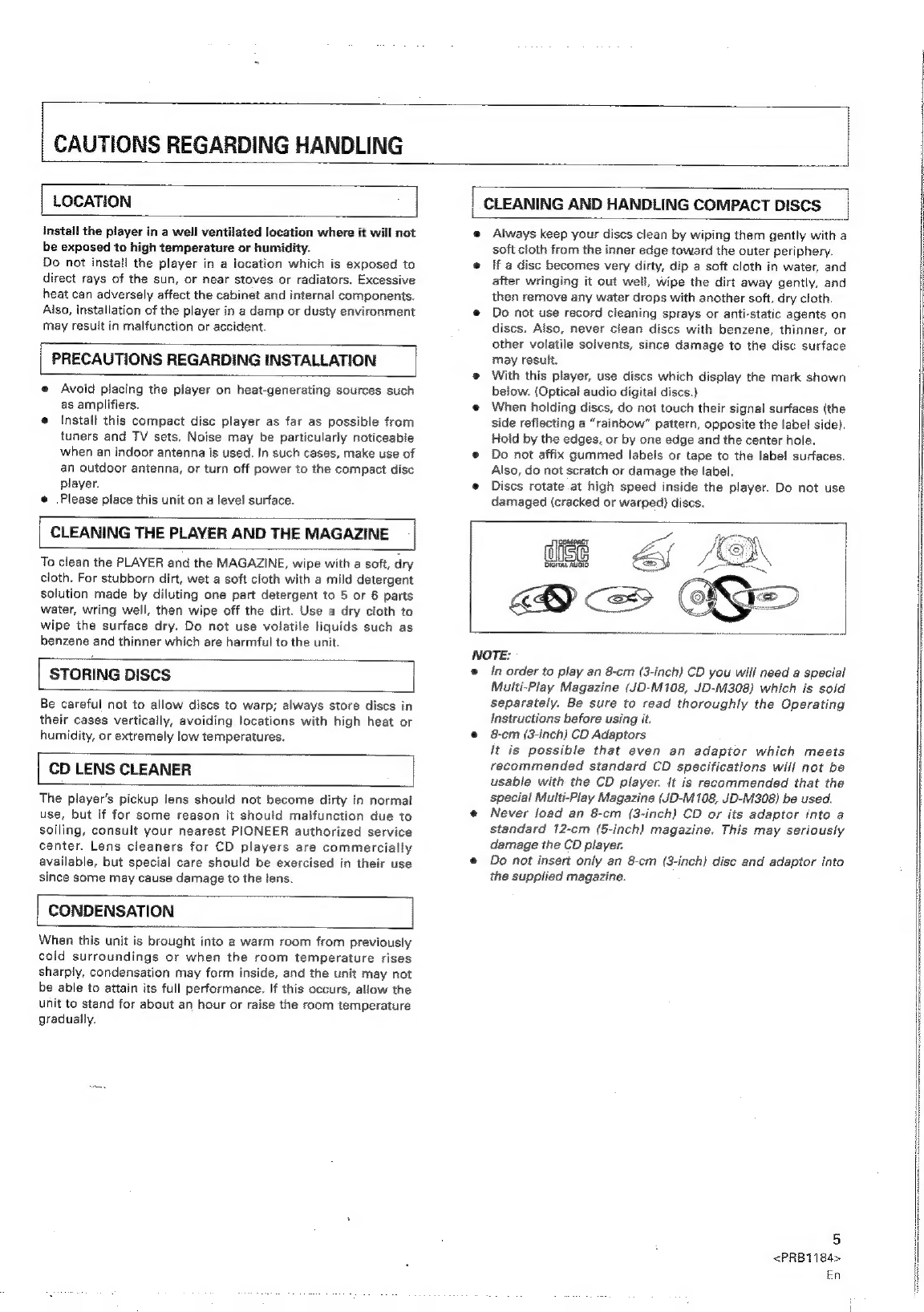

CAUTIONS REGARDING HANDLING
LOCATION
| CLEANING AND HANDLING COMPACT DISCS |
install the player in a well ventilated location where it will not
be exposed to high temperature or humidity.
Do not install the player in a location which is exposed to
direct rays of the sun, or near stoves or radiators. Excessive
heat can adversely affect the cabinet and internal components.
Also, installation of the player in a damp or dusty environment
may result in malfunction or accident.
PRECAUTIONS REGARDING INSTALLATION
e@ Avoid placing the player on heat-generating sources such
as amplifiers.
@ Install this compact disc player as far as possible from
tuners and TV sets. Noise may be particularly noticeable
when an indoor antenna is used. In such cases, make use of
an outdoor antenna, or turn off power to the compact disc
player.
e Please place this unit on a level surface.
CLEANING THE PLAYER AND THE MAGAZINE
To clean the PLAYER and the MAGAZINE, wipe with a soft, dry
cloth. For stubborn dirt, wet a soft cloth with a mild detergent
solution made by diluting one part detergent to 5 or 6 parts
water, wring well, then wipe off the dirt. Use a dry cloth to
wipe the surface dry. Do not use volatile tiquids such as
benzene and thinner which are harmful to the unit.
STORING DISCS
Be careful not to allow discs to warp; always store discs in
their cases vertically, avoiding locations with high heat or
humidity, or extremely low temperatures.
CD LENS CLEANER
The player's pickup lens should not become dirty in normal
use, but if for some reason it should malfunction due to
soiling, consult your nearest PIONEER authorized service
center. Lens cleaners for CD players are commercially
available, but special care should be exercised in their use
since some may cause damage to the lens.
CONDENSATION
When this unit is brought into a warm room from previously
cold surroundings or when the room temperature rises
sharply, condensation may form inside, and the unit may not
be able to attain its full performance. If this occurs, allow the
unit to stand for about an hour or raise the room temperature
gradually.
e Always keep your discs clean by wiping them gently with a
soft cloth from the inner edge toward the outer periphery.
@ if a disc becomes very dirty, dip a soft cloth in water, and
after wringing it out well, wipe the dirt away gently, and
then remove any water drops with another soft, dry cloth.
e@ Do not use record cleaning sprays or anti-static agents on
discs. Also, never clean discs with benzene, thinner, or
other volatile solvents, since damage to the disc surface
may result.
® With this player, use discs which display the mark shown
below. (Optical audio digital discs.)
e When holding discs, do not touch their signal surfaces (the
side reflecting a “rainbow” pattern, opposite the label side).
Hold by the edges, or by one edge and the center hole.
e Do not affix gummed labels or tape to the label surfaces.
Also, do not scratch or damage the label.
e Discs rotate at high speed inside the player. Do not use
damaged (cracked or warped) discs.
a
gy
72
ie
Ge
NOTE:
® In order to play an 8-cm (3-inch) CD you will need a special
Multi-Play Magazine (JD-M108, JD-M308) which is sold
separately. Be sure to read thoroughly the Operating
Instructions before using it.
e@ 8-cm (3-inch) CD Adaptors
lt is possible that even an adaptor which meets
recommended standard CD specifications will not be
usable with the CD player. It is recommended that the
special Multi-Play Magazine (JD-M108, JD-M308) be used.
e Never load an 8-cm {3-inch) CD or its adaptor into a
standard 12-cm (5-inch) magazine. This may seriously
damage the CD player.
® Do not insert only an 8-cm (3-inch) disc and adaptor into
the supplied magazine.
5
<PRB1184>
En

BEFORE OPERATING THE PLAYER
INSERT DISCS INTO THE 6-DISC MAGAZINE |
AFFIXING LABELS TO THE MAGAZINE
Insert any discs which you may have into the supplied
magazine. Up to six discs may be inserted. The numbering of
the discs begins with 1 at the topmost tray, and then increases
in order downwards to 6 for the lowest tray. The magazine has
a window through which the pulled-out disc tray can be
checked. Even during playback, the number of the disc being
played back can be checked through this window.
1. Pull out only one disc tray.
4, Insert other discs by repeating steps 1 to 3.
CAUTION:
@ Please make sure to only pull out one disc tray at a time.
(When a disc tray has been pulled out, do not pull out other
disc trays.)
e If discs are inserted label side upward, it will not be
possible for them to be played. Please make sure to insert
them with the label side downward.
@ Objects other than discs (song cards, explanations of disc
contents, etc.), must never be inserted into the disc trays.
e@ Do not touch the playing surface of discs {iridescent side)
with hands or fingers.
6
<PRB1184>
En
@ Always attach the labels provided in the designated
locations. Correct operation may not be possible if labels or
tape are attached in other locations.
@ The following are convenient ways of using labeis:
A: For titles
B: For disc names
C: For classification
e Do not attach labels on top of other labels.
Additional magazines identical to the one supplied are
available as options (*JD-M100, JD-M200, JD-M300, JD-
M108, JD-M308).
Please use them to make your own disc library, with
separate magazines for each artist or genre.
* JD-M100/JD-M200/JD-M300
12-cm (5-inch) discs
JD-M108/JD-M308 ......seec0ee Magazine for 8-cm (3-inch) dises
NOTE:
Do not load 8-cm (3-inch) discs into the magazine for 12-crn (5-
inch) discs.
For U. S. customers only
You may purchase additional Pioneer six-compact-disc
magazines from your dealer. If however, they are not available
at your dealer in the United States, you may order from:
PIONEER ELECTRONICS SERVICE, INC.
2265 East 220th Street
P.O. Box 1760, Long Beach
CA. 90801-1760
U.S.A.
Phone #[phone]

CONNECTIONS
e Make sure that all of the components are turned off
before making connections.
Stereo amplifier
cD i CONTROL
E 7 OUT
‘s190 000]
White
Red
Control cord
7 CD player
Output cord 24
ees |
BI |
i eS i
vA Power cord
Cassette deck
CD-DECK
SYNCHRO
D2 ©)
CD-DECK
SYNCHRO cord
Making connections
1. Connect the OUTPUT jacks of this unit to the input
jacks (CD or AUX) of the amplifier. Make sure that
the white plugs are connected to the left (L) jacks
and the red plugs to the right (R) jacks.
® Be sure not to connect this unit to the amplifier’s
PHONO jacks, as sound will be distorted and normal
playback will not be possible.
2, Connect the power cord to a household AC wall
outlet or an AC outlet on your amplifier.
»® Make sure plugs are inserted fully into the jacks and wall
outlet.
CD-Deck synchro function
If you have a Pioneer cassette deck provided with the CD-Deck
synchro function, connect the CD-DECK SYNCHRO jacks of the
CD player and cassette deck. With this function, synchro
recording can be carried out between player and deck.
@ For details on connections and operation, refer to the
operating instructions supplied with the cassette deck.
@ The CD-DECK SYNCHRO cord is not supplied with the CD
player.
NOTE:
In order to enable the CD-DECK SYNCHRO recording function,
the normal output cable must be connected to the stereo
amplifier.
System remote control with a Pioneer stereo
amplifier that has the | mark
{Applicable models: PD-M502 [all models],
PD-M552 [all models],
PD-M602 [U.S..and Canadian models only],
PD-M702 [U.S. and Canadian models only])
When a Pioneer stereo amplifier bearing the mark is used,
connect the CONTROL IN jack on the rear panel of the CD
player to the CONTROL OUT jack of the amplifier. This will
enable the CD player to be controlled using the remote contro!
unit supplied with the stereo amplifier. If you do not plan to
use this feature, it is not necessary to connect CONTROL
IN/OUT jacks.
e The control cord is supplied with the CD player.
e The remote control unit supplied with the amplifier can be
used to control Play, Stop, Pause, Track/Disc Search and
Disc Change operations.
e For instructions regarding connections and operation, refer
to the operating instruction manual provided with your
stereo amplifier.
NOTE:
e When a control cord is connected to the player's CONTROL
IN jack, direct control of the player with the remote control
unit is not possible. Operate the player with the remote
control unit by aiming it at the amplifier. (Except for PD-
M502)
@ Be sure to connect both of the control cord’s plugs securely
to the CONTROL IN and CONTROL OUT terminals. Do not
connect only one end of the cable.
e Be sure to turn off the power of the amplifier before
connecting the power cord and output cord.
Connecting the power cord
Connect the power cord to a household AC wall outlet or an
AC outlet on your amplifier. (See the section “AC power cord
connection and functions” on page 12.)
@ Make sure plugs are inserted fully into the jacks and wall
outlet.
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the plug by
tugging the cord and never touch the power cord when your
hands are wet as this could cause a short circuit or electric
shock. Do not place the unit, a piece of furniture, etc., on the
power cord, or pinch the cord. Never make a knot in the cord
or tie it with other cords. The power cords should be routed
such that they are not likely to be stepped on. A damaged
power cord can cause fire or give you an electrical shock.
Check the power cord once in a while. When you find it
damaged, ask your nearest PIONEER authorized service center
or your dealer for a replacement.
7
<PRB1184>
En

NAMES
AND
FUNCTIONS
OF
PARTS
FRONT PANEL
PD-M502
®®8 © @
Dy @ O
PD-MS52 ® > @ 6 of a a
PD-M602
PD-M702
i il
@O@® OBO © @ @
@
POWER
STANDBY/ON
switch
and
STANDBY
@
RANDOM
play
button
indicator @ HI-LITE scan button
@
Magazine
insertion
slot
®
Digit
buttons
(1~10,
>10)
(PD-M602
[U.K.
model]/PD-
@
EJECT
button
(4)
M702
only)
@
Remote
sensor
(Except
for
PD-M502)
@
Stop
button
(m)
Receives
the
signal
from
the
remote
control
unit.
@
Pause
button
(11)
@
The
PD-M502
is
not
equipped
with
the
remote
sensor.
@
Play
button
(>)
@-Disc
number
buttons
(DISC
1~DISC
6)
®
Track/Manual
search
buttons
(td
<-¢/>p
»p-)
© MUSIC TYPE button @ PROGRAM button
@
COMPU/TIME
FADE
button
@
Headphones
jack
(PHONES)
and
headphones
@® DELETE button volume control (PHONES LEVEL)
TIME
button
(PD-M602/PD-M702
only)
@ REPEAT button
@ AUTO FADER button
@®
ADLC
(Automatic
Digital
Level
Controller)
button
8
<PRB1184>
En

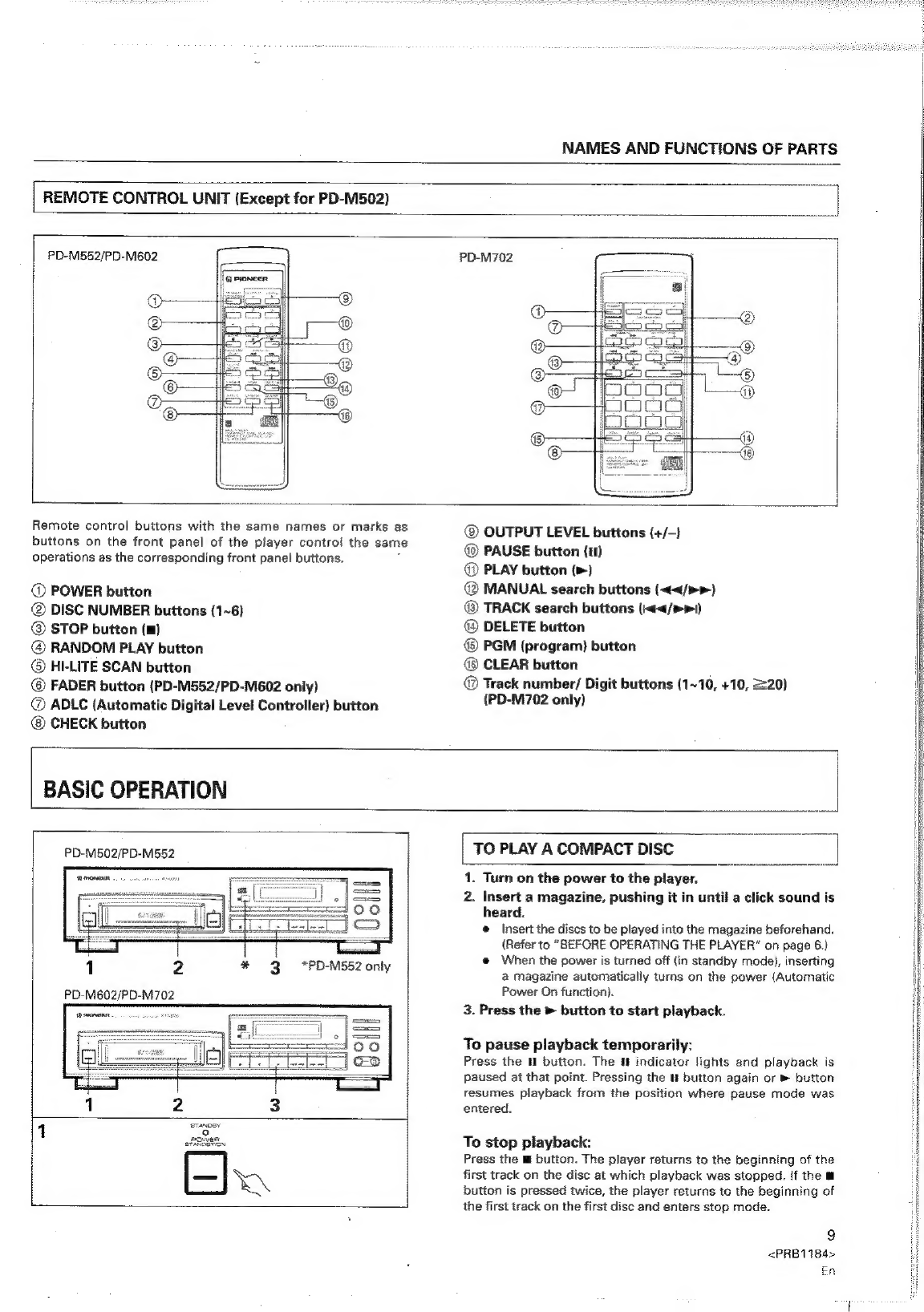

NAMES AND FUNCTIONS OF PARTS
REMOTE CONTROL UNIT (Except for PD-M502)
PD-M552/PD-M602
PD-M702
Remote control buttons with the same names or marks as
buttons on the front panel of the player control the same
operations as the corresponding front panel buttons. .
@ POWER button
@ DISC NUMBER buttons (1~6)
® STOP button (m)
@ RANDOM PLAY button
@® H-LITE SCAN button
@ FADER button (PD-IM552/PD-M602 only)
@ ADLC (Automatic Digital Level Controller) button
@® CHECK button
BASIC OPERATION
© OUTPUT LEVEL buttons (+/-)
PAUSE button (1)
@ PLAY button (m)
@ MANUAL search buttons (<<¢/~>)
@® TRACK search buttons (<t-4/pi)
DELETE button
® PGM (program) button
CLEAR button
@® Track number/ Digit buttons (1~10, +10, 220)
{PD-M702 only)
PD-M502/PD-M552
TO PLAY A COMPACT DISC
1. Turn on the power to the player.
2. Insert a magazine, pushing it in until a click sound is
heard.
e Insert the discs to be played into the magazine beforehand.
(Refer to “BEFORE OPERATING THE PLAYER” on page 6.)
® When the power is turned off (in standby mode), inserting
a magazine automatically turns on the power (Automatic
Power On function).
3. Press the > button to start playback.
To pause playback temporarily:
Press the H button. The # indicator lights and playback is
paused at that point. Pressing the 1 button again or » button
resumes playback from the position where pause mode was
entered.
To stop playback:
Press the m button. The player returns to the beginning of the
first track on the disc at which playback was stopped. If the m
button is pressed twice, the player returns to the beginning of
the first track on the first disc and enters stop mode.
9
<PRB1184>
En

BASIC OPERATION
2
(epg ogre
mit ug
RAACRCIG
Hf PAUSE:
Lely |f Sx
Except for PD-M502
rey
i €xcept for PD-M502
] mark are performed with the
frame DD)
Operations indicated by the [
remote control unit.
NOTE:
When the power is turned off while a magazine is in the player,
the player memorizes which disc was played just before the
power was turned off. Thus, When the power is next turned on,
pressing the play button starts playback from the first track on
the memorized disc.
To stop playback and take out the magazine:
Press the EJECT button (4), remove the magazine, and then
press the POWER switch to turn off the power.
Even when the power is turned off {in standby mode), the
magazine will be ejected by pressing the EJECT button. (Power
Down Eject)
Cautions regarding handling of magazines:
e@ When inserting a magazine into the player, make sure that
the direction of insertion is correct.
e After use, store in the case provided, Do not place in
locations subject to high temperatures or exposed to direct
sunlight.
e Do not take magazines apart.
e Be careful not to drop, or hit magazines against things. Also
do not apply strong force to trays which have been with-
drawn.
e Application of benzene, thinner, insecticide or other volatile
liquids to a magazine may damage the surface, so keep
magazines away from such substances.
Timer playback:
By using a commercially available audio timer, it is possible to
initiate playback at any time automatically.
1. Insert a magazine into the magazine slot.
2. Set the time at which you wish playback to begin. The timer
will supply power to both the amplifier and the player at the
preset time, turning ail the components on and initiating
the playback mode. Playback starts from the first track on
the first disc.
Caution:
e Do not unplug the power cord or do not turn off the power
with an audio timer during playback, as this could result in
damage to the disc.
@ Sf a power failure occurs while the power is turned off
(standby mode), the power is automatically turned on with
timer playback function when the power is supplied.
THEREFORE, DISCONNECT THE AC POWER CORD WHEN
THE PLAYER IS NOT USED FOR A LONG PERIOD OF TIME.
TIME DISPLAY
10 ‘
<PRB1184>
En
During playback, pressing the TIME button changes the time
display in the following sequence: (A) Time (elapsed playback
time of the track being played) - > Remain (remaining
playback time of the track being played) ~» © AL Remain
{remaining playback time from the playing point to the end of
the disc) - (©) Total (total playback time of the disc).
@ With track No. 24 or more, the Remain time © cannot be
displayed.
e During program playback, delete program playback,
random playback or delete random playback, AL Remain
time © cannot be displayed.
e@ During Program playback, the number of program steps
can be displayed with the Total setting ©.
e During time fade playback, the remaining playback time
until the playback stops with a fade-out can be displayed
with the AL Remain setting ©.

VARIOUS OPERATIONS
DISC SEARCH - TO SEARCH FOR A PARTICULAR
DISC
During playback or stop mode
PD-M502/PD-M552
seo +
i
PD-M602/PD-M702
a eo a |
Res
ra
PD-M702 only
PD-M552/PD-M602 only
| DISS NUMBER,
aoc
iO 55 ah
i
When the disc number (DISC 1~DISC 6) button is pressed, the
player searches for the specified disc and playback starts from
the beginning of that disc.
NOTE:
@ if “no DISC” appears on the display, you have pressed the
disc number of a tray which does not contain a disc.
® During program playback, Disc Search cannot be carried
out.
TRACK SEARCH - TO SEARCH FOR A
PARTICULAR TRACK
During playback, pause or stop
mode
SEN
When the » pi (or mi) button is pressed once or a number
of times, playback advances to the beginning of a track located
after the track being played. The position of the located track
corresponds to the number of times the button is pressed.
When the ke <q (or <a) button is pressed once, playback
returns to the beginning of the track being played. When this
button is pressed more than once, playback is returned to a
track located before the track being played.
@- When the >» ppi (or mri) button or ked <td (or Mea)
button is operated in pause mode or stop mode press the »
button to start playback.
Except for PD-M502
TRACK
MOY
NOTE:
@ During program playback, the > bi (or Pi) button or
Kid <td (or Ht) button can be used to select the
programmed track.
e During normal playback, Track Search can be carried out on
one disc only. In stop mode, this operation can be carried
out from Ist track through 99th track.
[PD-M602 (U.K. model) /PD-M702 only]
During playback t de.
ing playback or stop mode. PD-M702 only
ESS See
yQ Ue
tJ Lod tod
To search for track No. from 1 to 10, simply press the
corresponding digit buttons (4)~{0). To search for tracks No. 11
and above, use [510] button (the [io], and [2207 buttons are
provided only on the PD-M702 remote contro} unit).
Example: To enter track No. 17: 701, (1), (7 or Gi)
To enter track No. 30: [Sia], [3), £4! or Leaol, {3
@ When entering 11 or above, {13| functions as 0.
e@ When [Si0], [219] or [220] is pressed, the digit button to be
next entered shouid be pressed within 5 seconds.
NOTE:
During program playback, Track search can not be performed
with the digit buttons.
| MANUAL SEARCH - TO SEARCH FOR A
| PARTICULAR PASSAGE
——
Except for PD-M502
During playback or pause mode
fcaleel
While the »» >i button is kept pressed, playback rapidly
advances toward the end of the disc. When playback reaches
the end of the disc, the player enters pause mode and “END”
is displayed. While the 4 ~«<<« button is kept pressed,
playback rapidly reverses toward the beginning of the disc.
When the desired passage is reached, release the >> pri
button or Ke <4 button. The player enters original mode
(playback or pause) where > »Pi button or Me <4 button is
released.
NOTE:
e@ During normal playback, Manual Search can be carried out
on one disc only.
e During program playback, Manual Search can be carried
out in one program step only.
oN
To repeatedly play the displayed track, press the REPEAT
button once. The REPEAT-1 indicator lights. The REPEAT
button can be pressed in any playback mode.
To repeatedly play all tracks on ali of the discs in normal
playback mode or in the specified playback mode (Pragram
playback, Delete program playback or Random playback),
press the REPEAT button twice. The REPEAT indicator lights.
e To exit repeat mode, press the REPEAT button so that the
REPEAT-1 or REPEAT indicator goes off.
@ When the time fade edit operation is performed, the repeat
playback cannot be carried out.
11
<PRB1184>
En

VARIOUS OPERATIONS
RANDOM
PLAYBACK
-
TO
PLAY
ALL
TRACKS
IN
RANDOM
ORDER
RANDOM Except for PD-M502
On
Ff
Sy
Press
the
RANDOM
play
button.
The
RANDOM
indicator
lights
and
all
tracks
on
all
discs
are
played
in
a
random
order.
To
play
tracks
other
than
the
deleted
tracks
in
a
random
order,
press
the
RANDOM
play
button
after
carrying
out
the
Delete
Program
procedure.
See
“Delete
Program
Playback”
on
page
15.
MAGAZINE HI-LITE SCAN
During
step,made
|”
Except
for
PD-M502
On
When
playback
time
of
a
track
is
less
than
10
seconds,
the
track
is
played
from
the
beginning
to
the
end.
ADJUSTING THE SOUND VOLUME
(Except for PD-IVi502)
Press
the
OUTPUT
LEVEL
"~”
or
“+”
button
to
adjust
the
output
evel.
The
output
level
can
be
adjusted
between
0
dB
and —25 dB in steps of 1d8.
e
The
output
level
at
the
OUTPUT
jacks
and
PHONES
jack
will
be
adjusted
simultaneously
(PD-M602/PD-M702
only).
ADLC
(AUTOMATIC
DIGITAL
LEVEL
CONTROLLER)
|
When
the
HI-LITE
scan
button
is
pressed
once
during
stop
mode,
playback
starts
from
a
point
1
minute
after
the
beginning
of
the
first
track,
and
the
first
track
of
each
disc
is
played
for
about
10
seconds.
The
DISC
SCAN:
indicator
blinks
during
Disc
Scan
mode.
After
the
first
tracks
of
all
discs
are
scanned,
the
player
enters
stop
mode.
When
the
HI-LITE
scan
button
is
pressed
twice
during
stop
mode,
playback
starts
from
a
point
1
minute
after
the
beginn-
ing
of
the
track,
and
each
track
is
played
for
about
10
seconds.
The
SCAN
indicator
blinks
during
Track
Scan
mode.
After
all
tracks
of
all
discs
are
scanned,
the
player
enters
stop
mode.
To
exit
Magazine
Hi-Lite
Scan
mode:
Press
the
@,
»
or
disc
number
(DISC
1~DISC
6)
button.
(the
Hi-
lite
scan
mode
can
also
be
canceled
by
pressing
the
digit
buttons
[)-fit]
[S70]
on the
PD-M602
[U.K.
models]
and
PD-
M702
model,
or
by
pressing
the
[]-1d,
Gaol
or
Fe20]
buttons
on
the PD-M702 remote control unit).
When
the
»
button
is
pressed,
normal
playback
starts
from
the
current
point.
When
the
disc
number
button
or
digit
button
{PD-M602
[U.K,
modell/PD-M702
only)
is
pressed,
the
selected
disc or track is played from the beginning.
NOTE:
e
Hi-Lite
Scan
can
be
carried
out
from
the
desired
elapsed
time
of
the
track.
During
playback,
press
the
HI-LITE
scan
button
at
the
point
you
want
to
start
Hi-Lite
Scan
playback.
The
player
memorizes
the
minute
and
second
of
the
point
and
Track
Scan
playback
is
carried
out
from
the
memorized
minutes
and
second
on
each
track.
\.
Each
time
the
HI-LITE
scan
button
is
pressed,
the
mode
switches
between
Disc
Scan
and
Track
Scan.
‘gramming
of
only
desired
tracks
is
possible
during
“©
Scan
playback.
See
“Direct
program”
on
page
14.
Track
Scan
playback,
you
can
skip
to
the
desired
* the td <4 button or > PPI button.
‘EPEAT button is pressed, Hi-Lite Scan playback
vd.
‘ime of a track is less than one minute or is
rorized time, Hi-Lite Scan playback is
beginning of the track for about 10
So
a
10 es
<PRBITS
En
When
the
difference
of
recording
level
between
discs
is
noticeable,
the
volume
level
should
be
adjusted
for
each
disc,
especially
during
program
playback
or
random
playback
whose
tracks
are
selected
between
2
discs
or
more.
In
such
cases,
pressing
the
ADLC
button
automatically
sets
the
output
level
to
the
proper
level.
When
ADLC
is
turned
on,
the
ADLC
indicator lights.
@
To
turn
off
ADLC,
press
the
ADLC
button
so
that
the
ADLC
indicator
goes
off.
e
With
some
selections,
sound
becomes
unnatural.
In
such
cases,
turn
off
ADLC.
AOLE
ACILG
SA
NOTE (Except for PD-M502):
e@
The
setting
of
the
OUTPUT
LEVEL
buttons
are
canceled
when
ADLC
is
turned
on.
@
When
ADLC
is
turned
on,
the
OUTPUT
LEVEL
buttons
cannot
be
operated.
Some
functions
cannot
be
carried
out
depending
on the
connection
of
AC
power
cord.
= — eee eee
Function
When
the
AC
power]
When
the
AC
power
cord
is
connected
to|
cord
is
connected
to
the
unswitched|
the
switched
outlet
of
outlet
of
an
amplifier]!
an
amplifier
or
audio
or
wall
outlet.
timer.
.
|
Timer
playback
___No
Yes
Program
Yes
No
memory
.
eee
ae
Delete
program
Yes
No
memory
;
7
aor
——
Output
fevel
Yes
No
memory
For
details,
refer
to
the
description
of
each
function
of
this
Operating
Instructions.

|
PD-M602/PD-M702
*PD-M552 only
W—______
2
PD-M502/PD-M552
PD-M602/PD-M702
PD-M552/PD-M602 only
28e NUMBER
—
fl
m
xcept for PD-M502
= RACK
cS
Except for PD-M502
Gheeieech a
3” PD-M602 (U.K. model)/
PD-IM702 only
PROGRAM PLAYBACK - TO PROGRAM
TRACKS/DISCS IN DESIRED ORDER
1. During stop mode, press the PROGRAM button:
The PROGRAM indicator lights and “DISC?” appears on the
display.
2. Press the disc number button which contains the
tracks to be programmed.
“AL” (all tracks} appears and then the display shows
“TRACK?”. To program entire discs, enter the desired disc
numbers with the disc number buttons and go to step 4,
3. Press the 4 << or h> PP! button so that the
desired track No. appears on the display and press
the PROGRAM button.
[PD-M602 (U.K. model)/PD-M702 only]
3‘. Enter the track No. to be programmed with the digit
buttons.
Only during stop mode, you can use the 4 << oF pe
Pri button. After selecting the track No., be sure to press
the PROGRAM button.
Repeat steps 2 and 3 (or 3’) to program other tracks.
5. Press the » button.
The tracks are played in the programmed order. When ail
programmed tracks have been played, the player enters
stop mode.
al
NOTE:
When the tracks is selected with the -t<@ << or >> >>!
button in step 3, the displayed track No, is automatically
programmed if the 4 << or »> mw; button is not pressed
within 2 seconds. Therefore, be sure to press the #t<@ <4 or
be Pi button sequentially until the desired track No. appears
on the display.
To stop Program playback, Press the @ button,
To exit program mode:
During program playback, select a disc No. with the disc
number button and then press the » button. The player enters
normal playback mode and playback starts from the beginning
of the selected disc.
e Programs containing up to 32 steps can be created.
® To go to the previous or next step in a program, press the
kd << Of BE PPI button.
e To enter track No. 11 or above with the digit buttons, see
“Track Search” on page 11. (PD-M602 [U.K. model]/PD-
M702 only)
e if the magazine is in the player, the program contents will
not be erased even if the power is turned off.
NOTE:
During Delete programming or Time fade editing the PRO-
GRAM button cannot be operated.
13
<PRB1184>
En

TO
PLAY
ONLY
DESIRED
TRACKS/DISCS
Direct Program:
During
normal
playback
or
Magazine
Hi-Lite
Scan
playback,
the
track
being
played
can
be
programmed.
1.
Press
the
PROGRAM
button
to
enter
the
program
mode.
2.
To
search
for
a
desired
track
during
normal
play-
back,
it
is
possible
to
skip
to
succeeding
tracks
by
pressing
the
<4
<4
or
Pe
PP!
button.
Also,
Magazine
Hi-Lite
Scan
function
can
be
used
to
move
from
track
to
track
through
the
disc.
3.
If
you
wish
to
program
the
track
currently
playing,
press
the
PROGRAM
button
while
the
track
is
playing.
@
Direct
programming
is
not
possible
during
program
playback.
To
check
the
program
contents
(Except
for
PD-M502):
During
program
mode,
set
the
player
to
stop
mode
and
press
the
CHECK
button
on
the
remote
control
unit.
The
program
contents
will
be
displayed
in
the
programmed
order.
@
After
confirming
the
last
program
step,
the
display
will
show
“0-00”.
PROGRAMMING
A
PAUSE
“|
Inserting
a
pause
in
your
program
can
be
very
useful
when
carrying
out
recording.
Press
the
tt
button
instead
of
entering
a
track
number.
“PA”
appears
on
the
display
panel.
e
For
example,
when
recording
on
both
sides
of
a
cassette
tape,
if
you
program
a
pause
after
the
last
track
to
be
recorded
on
the
first
side,
program
playback
will
pause
at
that
point
to
allow
you
to
switch
tape
sides.
To
resume
program
playback
after
the
player
enters
pause
mode,
press
the
f
button.
NOTE:
e
A
pause
can
be
programmed
only
when
the
program
procedure
is
performed
under
stop
made.
e
A
pause
cannot
be
programmed
at
the
beginning
of
a
program
(P-01),
nor
can
two
pauses
be
programmed
one
after
the
other.
@
Apause
inserted
in
a
program
is
counted
as
one
step.
@
fa
pause
is
programmed
as
the
Jast
step
of
a
program,
the
player
will
not
enter
the
pause
mode.
14
<PRB1184>
tr
To
erase
a
program
(Except
for
PD-M502):
During
program
mode,
press
the
CLEAR
button
on
the
remote
control
unit.
-
The
last
program
step
is
erased
and
the
contents
of
the
pre-
vious
program
step
are
displayed.
NOTE:
Contents
of
a
program
can
be
erased
during
playback
as
well.
However,
tracks
preceding
the
currently
playing
track
cannot
be
erased
in
this
way.
To
clear
all
of
the
program
contents:
@®
During
stop
mode,
press
the
™
button.
@®
When
the
magazine
is
ejected,
the
program
contents
will
be
cleared.
To
modify
the
program
contents
(Except
for
PD-M502):
1.
During
program
mode,
set
the
player
to
stop
mode
and
press
the
CHECK
button
on
the
remote
contro!
unit
so
that
the
program
step
to
be
corrected
appears
on
the
display.
2.
Enter
the
new
disc
No.
with
the
disc
number
buttons
and
then
press
the
<4
<4
or
DR
PP!
button
(on
the
PD-M602
[U.K.
model]
and
PD-M702,
one
of
the
digit
buttons
can
also
be
pressed
if
desired)
so
that
the
new
track
No.
appears
on
the
display.
3.
Press
the
PROGRAM
button
(not
necessary
when
the
digit
buttons
are
to
select
tracks
on
the
PD-M602
[U.K.
model]
and
PD-IM702).
e
Repeat
steps
1
through
3
to
change
other
tracks
as
desired.
e
Ifthe
ad
<<
or
>>
pr!
button
is
not
pressed
within
2
seconds
when
correcting
the
track
No.,
the
displayed
track
No.
is
automatically
memorized.

TO PLAY ONLY DESIRED TRACKS/DISCS
P
PD-M502/PD-M552
« 2 1,3
*PD-M552 only
'D-M602/PD-M702
Pp
PD-M502/PD-M552
D-M602/PD-M702
XA
As a a OT A
‘SS
Deda |
PD-M552/PD-M602 only PD-M702 only
22205
||} cocac
3
Except for PD-M502
= Rack
esleel | Oy
4 | Except for PD-M502
DELETE
3” PD-M602 (U.K. model)/ PD-M702 only
PD-M702 only ae eT
ees | IOI
= (] JOG yO
y | Ct Nt
5
Except for PD-M502
PLAY
Oy
UNDESIRED TRACKS/DISCS
1. During stop mode, press the DELETE button.
The DELETE indicator lights and “DISC?” appears on the
display.
2. Press the disc number button which contains the
track to be deleted.
“AL?” (all tracks) appears and then the display shows
“TRACK?”. To delete entire discs, enter the desired disc
numbers with the disc number buttons and go to step 4.
3. Press the << << or >» >> button so that the
track No. to be deleted appears on the display and
press the DELETE button.
[PD-M602 (U.K. model)/ PD-M702 only]
3’. Enter the track No. to be deleted with the digit
buttons.
Only during stop mode, you can use the Ke <4 or me
ri button. After selecting the track No. be sure to press
the DELETE button.
. Repeat steps 2 and 3 (or 3’) to delete other tracks.
5. Press the > button.
All tracks other than deleted tracks/discs are played in the
order of the disc and track numbers. When tracks have
been played, the player enters stop mode.
>
NOTE:
When the track is selected with the kt4@ <4 of > PP! button
in step 3, the displayed track No. is automatically programmed
if the <4 << of mR Pi button is not pressed within 2
seconds. Therefore, be sure to press the <4 <4 oF > DP
button sequentially until the desired track No. appears on the
display.
To stop Delete program playback, press the ™
button.
e@ To enter track No. 11 or above with the digit buttons, see
“Track Search” on page 11. (PD-M602 [U.K. model]/PD-
M702 only)
e Track No. 33 or above cannot be deleted.
e® To go to the previous or next disc/track other than the
deleted disc/track, press the He <<€ or B® PP button.
¢@ The disc number button or digit button (PD-M602 [U.K.
modell/PD-M702 only) can be used to play the disc or track
other than the deleted disc or track.
e |fthe magazine is in the player, the delete program contents
will not be erased even if the power is turned off.
NOTE:
After programming for Program playback or during Program
playback mode, Delete programming can not be carried out.
To clear all of the Delete program contents:
() During stop mode, press the ™ button.
@) When the magazine is ejected, the program contents will be
cleared.
© Press the CLEAR button on the remote controi unit during
stop mode or play mode. When the CLEAR button is
pressed during Delete program playback mode, the player
enters normal playback mode. (Except for PD-M502)
15
<PRB1184>
Ea

CONVENIENT
OPERATION
FOR
RECORDING
PD-M502/PD-M552
x
2
1,3
*PD-M552
only
3
PD-M602/PD-M702
@monser
2
PD-M502/PD-M552
PD-M602/PD-M702
Ae al
PD-M552/PD-M602
only
| 52/PD-M PD-M702 only
\U= oe ees
3 | Except for PO-M502
i ida aay
r
PD-M602
(U.K.
model)/PD-M702
only
PD-M702 only
a
Ase
|
[
Hh
|
Peasoy,
OOD
16
<PRB1184>
COMPU
PROGRAM
EDITING
{COMPUTER
ALLOCATED
PROGRAM
EDITING)
Tracks
are
selected
for
both
sides
of
the
tape.
1.
During
stop
mode,
press
the
COMPU/TIME
FADE
button
1
time
The
COMPU
indicator
lights
and
“DISC?”
appears
on the
display.
2.
Select
the
disc
No.
with
the
disc
number
button.
“TIME?”
appears
on
the
display.
3.
Press
the
<<
<<
or
>>
PP!
button
so
that
the
desired
playing
time
appears
on
the
display
and
press
the
COMPU/TIME
FADE
button.
Each
time
the
>>
PhP
or
Kt
<4
button
is
pressed,
the
time
will
be
changed
in
the
following
sequence:
57
46
49
BA
<9
60
9
74
6
BD
64
r
.
|
(minutes)
With
the
B®
mb
button,
the
time
will
be
changed
in
the
forward
direction.
With
the
4
<4
button,
the
time
will
be
changed
in
the
reverse
direction.
[PD-M602
(U.K.
model)
/PD-M702
only]
3’.
Enter
the
tape
playing
time
in
minutes
with
the
digit
buttons
((1}~[10).
Press
the
10's
digit
button
and
1’s
digit
button
sequentially.
{To
enter
9
minutes
or
less,
press
{3}
and
then
the
corres-
ponding
digit
button.)
For
example,
to
enter
46
minutes,
press
[4]
and
[6]
sequentially.
The
displayed
time
is
memorized.
The
player
now
programs
the
tracks
for
the
first
side
of
the
tape
within
half
the
selected
playing
time,
programs
a
pause,
and
then
programs
the
tracks
for
the
second
side
of
the
tape
within
half
the
selected
playing
time. After
the
programming
is
compieted,
the
display
shows
all
of
the
programmed
tracks
and
their
playing
time
in
the
programmed
order.
Example:
The
tape
playing
time
46
minutes
is
selected.
@
The
programmed
contents
are
displayed
in
the
program
med
order.
Side A
NOTE
for
PD-M602
{U.K.
model)
and
PD-M702:
Instead
of
the
digit
buttons,
the
<<
<<¢
or
ee
eri
button
can
be
used
to
select
the
tape
playing
time.
Each
time
the
>>
Pi
button
is
pressed,
the
time
will
be
changed
in
the
following
sequence:
5
46
-+
84.
-»
80
3
74
9
90
4
|
__..}
(minutes)
With
the
4
«#4
button,
the
time
wi
be
changed
in
the
reverse
direction.
After
the
time
is
selected,
be
sure
to
press
the
COMPU/TIME
FADE
button.
When
the
COMPU/TIME
FADE
button
is
not
pressed
within
a
few
seconds
after
the
time
is
selected
with
the
<4
of
BR
PP
button,
the
displayed
time
is
automatically
memorized.

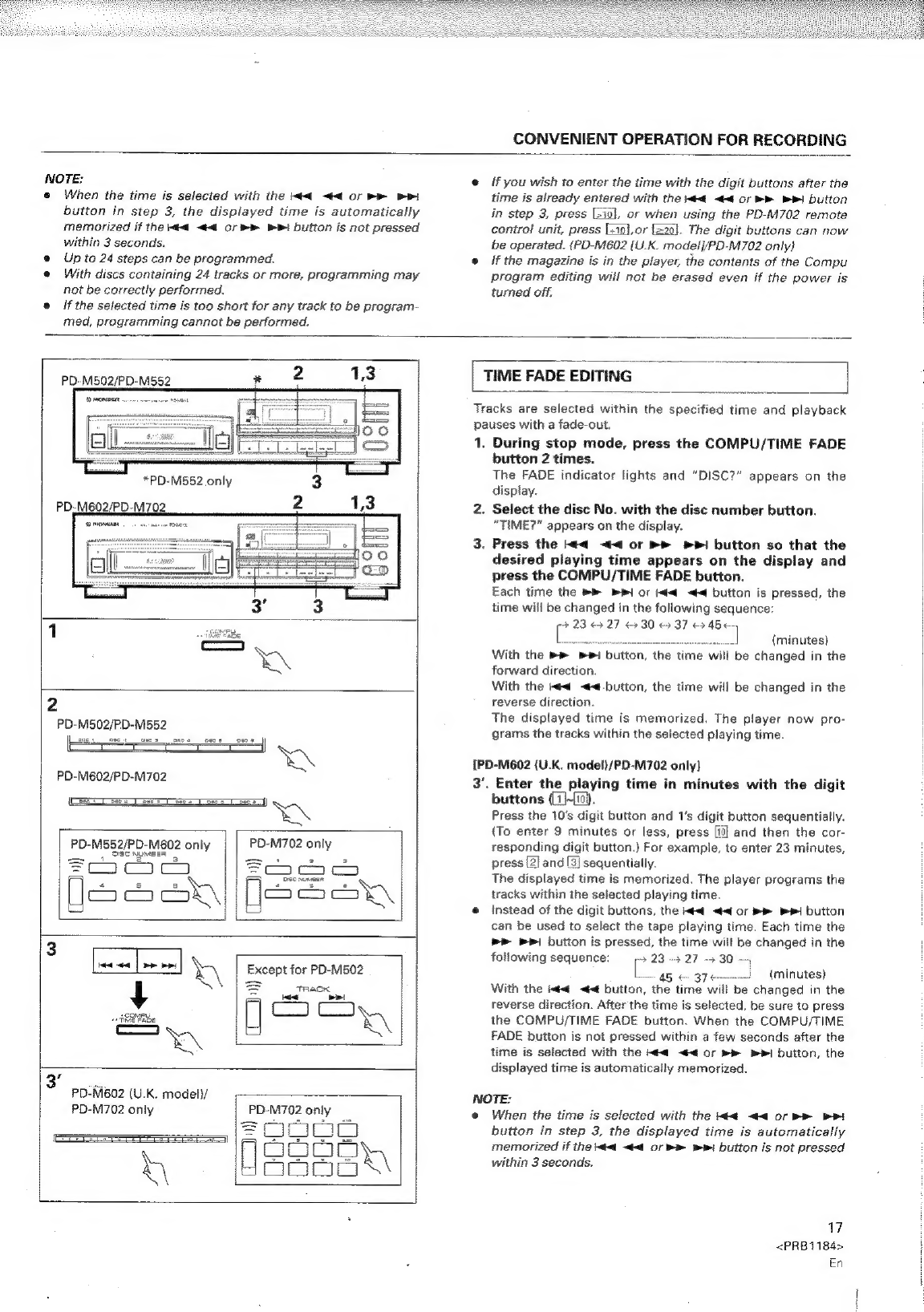

CONVENIENT OPERATION FOR RECORDING
NOTE:
When the time is selected with the 44 << or PR PP
button in step 3, the displayed time is automatically
memorized if the << << or» PP button is not pressed
within 3 seconds.
Up to 24 steps can be programmed.
With discs containing 24 tracks or more, programming may
not be correctly performed.
If the selected time is too short for any track to be program-
med, programming cannot be performed.
e if you wish to enter the time with the digit buttons after the
time is already entered with the #4. << of > PP) button
in step 3, press [230], or when using the PD-M702 remote
control unit, press [-10],or [g20]. The digit buttons can now
be operated. {(PD-M602 [U.K. model]/PD-M702 only}
© if the magazine is in the piayer, the contents of the Compu
program editing will not be erased even if the power is
turned off.
2 «13
PD-M502/PD-M552
2
PD-M502/PD-M552
PD-M602/PD-M702 Q
fe SS A a A A AEX
PD-M552/PD-M602 only PD-M702 only
ae ) FOooo
fosek (less
[roscoe [o> on] yy Except for PD-M502
TRACK
POY
\
(J}
a
PD-Mi602 (U.K. model)/
PD-M702 only PD-M702 only
SS == == = =
= ou
Essa
Tracks are selected within the specified time and playback
pauses with a fade-out.
1. During stop mode, press the COMPU/TIME FADE
button 2 times.
The FADE indicator lights and “DISC?” appears on the
display.
Select the disc No. with the disc number button.
“TIME?” appears on the display.
3. Press the <4 << or >> pp! button so that the
desired playing time appears on the display and
press the COMPU/TIME FADE button.
Each time the >> Pi or <4 << button is pressed, the
time will be changed in the following sequence:
~+ 23 €9 27 ++ 30 <9 37 © 45
[ ~ z seen _] (minutes)
With the »® mi button, the time will be changed in the
forward direction.
With the 4 <-button, the time will be changed in the
reverse direction.
The displayed time is memorized. The player now pro-
grams the tracks within the selected playing time.
N
[PD-M602 (U.K. model}/PD-M702 only]
3’. Enter the playing time in minutes with the digit
buttons ((1}~[i0).
Press the 10's digit button and 1's digit button sequentially.
(To enter 9 minutes or less, press [10] and then the cor-
responding digit button.) For example, to enter 23 minutes,
press [2] and [3] sequentially.
The displayed time is memorized. The player programs the
tracks within the selected playing time.
© instead of the digit buttons, the ket <4 or ee PP! button
can be used to select the tape playing time. Each time the
Pr PPI button is pressed, the time will be changed in the
following sequence: > 23 + 27 -> 30
a Ae BT e— (minutes)
With the <4 << button, the time will be changed in the
reverse direction. After the time is selected, be sure to press
the COMPU/TIME FADE button. When the COMPU/TIME
FADE button is not pressed within a few seconds after the
time is selected with the <4 <4 or me PP button, the
displayed time is automatically memorized.
NOTE:
@ When the time is selected with the <4 << or PR PP
button in step 3, the displayed time is automatically
memorized if the 4 << or > wp) button is not pressed
within 2 seconds.
7
<PRB1184>
En

- dia!
if
PD-M502/PD-M5524 2
*PD-M55.
PD-M602/PD-M702
PD-M602 (U.K. model}/PD-M
702 only
—_——— irr
PD-M702 only *
16
<PRB1184>
En
MUSIC
TYPE
MEMORY
e
A
music
type
can
be
memorized
for
each
6-disc
magazine.
After
recording
the
music
type,
whenever
the
specific
magazine
is
loaded,
the
recorded
music
type
name
is
displayed.
Six
different
music
types
can
be
selected.
MUSIC
TYPEs
can
be
recorded
for
up
to
ten
CD
magazines.
Perform
this
operation
after
loading
the
magazine
into
the
player.
.
From
the
stop
mode,
press
the
MUSIC
TYPE
button.
Each
time
the
button
is
pressed
the
display
changes
to
indicate
the
music
type
in
the
following
order:
POP
->
ROCK
—
JAZZ
>
DANCE»
CLASS»
OTHER
en
nnenemnns
DISPLAY
OFF
|
Select
the
music
type
you
wish
to
memorize
by
vressing
the
button
as
noted
above;
when
the
lisplay
is
left
on
a
given
music
type
for
one
second
-
more,
the
M.TYPE
indicator
will
light
(on
the
PD-
102,
the
MUSIC
TYPE
indicator),
and
the
displayed
sic
type
will
be
memorized.
‘hen
DISPLAY
OFF
is
selected,
the
music
type
for
that
\gazine
is
cancelled.
ye
MUSIC
TYPE
button
is
pressed
during
the
play
‘e,
the
music
type
memorized
for
the
current
zine
will
be
displayed
for
3
seconds.
The
music
also
displayed
when
the
MUSIC
TYPE
button
is
\during
the
stop
mode.
‘tempt
to
record
music
types
for
more
than
ten
‘s,
the
oldest
recorded
music
type
will
be
erased
ed
with
the
newly
recorded
music
type.
fad
{
L

TROUBLESHOOTING
Incorrect
operations
are
often
mistaken
for
trouble
and
malfunctions.
If
check
the
points
below.
Sometimes
the
trouble
ma’
appliances being used.
if
the
trouble
cannot
be
rectified
even
after
exercising
the
checks
listed
below,
your
dealer
to
carry
out
repair
work.
you
think
that
there
is
something
wrong
with
this
component,
y
lie
in
another
component.
Investigate
the
other
components
and
electrical
ask
your
nearest
PIONEER
authorized
service
center
or
Symptom
Probable cause
Remedy
Magazine is not expelled when
the
EJECT
button
(4)
is
pressed.
|
Power
plug
is
disconnected
from
outlet.
Connect
plug
to
amplifier
or
wail
outiet.
|
When playback is started, it
stops immediately.
Pauses
or
stops
during
playback.
Disc is loaded upside down.
Smudges, etc., on the disc.
Load the disc correctly with the label
side DOWN.
Clean
the
smudges
from
the
disc
and
then
play
it
again.
No sound
Output
cords
are
connected
incorrectly
or
loosely.
Incorrect
operation
of
stereo
amplifier.
Pin
plugs
and/or
amplifier
terminals
are
dirty.
Player
is
in
pause
mode.
Press the > or Mi button.
Connect properly. >
Check
the
settings
of
amplifier
switches
and
sound
volume
controls.
Clean
away
dirt.
Sound is distorted, noise is
output.
Incorrect connections.
Pin
plugs
and/or
amplifier
terminals
are
dirty.
Interference
is
being
picked
up
from
a
TV
set.
Connect
to
amplifier’s
AUX
or
CD
_
terminals.
Do
not
connect
to
PHONO
terminals.
Ciean away dirt.
Switch
OFF
TV
set,
or
move
player
away
from
TV
set.
With certain discs, loud noise is
produced,.or play stops.
Disc has bad scratch or warp.
Disc is extremely dirty.
Replace the disc.
Clean disc.
The picture of the TV screen is
fluctuating
or
FM
broadcast
has
noise interference.
Interference
is
being
picked
up
from
the
CD
player.
Turn
off
POWER
of
the
player,
or
move
the
player
away
from
TV
or
tuner.
Remote
control
will
not
function,
(Except
for
PD-M502)
Dead batteries.
Too
far
from
player
or
wrong
angle.
Obstruction
between
player
and
remote
control
unit,
Replace batteries.
The
distance
between
remote
control
unit
and
player
should
be
no
more
than
about 7 meters (23 feet).
The
operational
angle
against
the
front
panel
is
within
30°
from
right
or
left
end
of
player.
Relocate
remote
control
unit
or
remove
obstruction.
Abnormal
functioning
of
this
unit
may
be
caused
by
lightning,
Static
electricity,
or
other
external
interference.
To
restore
normal
operation,
turn
the
power
off
and
then
on
again,
or
unplug
the
AC
power
cord
and
then
plug
it
in
again.
19
<PRB1184>
En
i
:

SPECIFICATIONS
General
Type
Power requirements
U.K. and Australian models
Compact disc digital audio system
AC 220-240 V, 50/60 Hz
U.S. and Canadian models AC 120 V, 60 Hz
Other models .............. AC 110-127 V/220-240 V (switchable),
50/60 Hz
Power consumption
U.K., Australian and other models.
U.S. and Canadian models.
Operating temperature ....ccceceereenes
(441°F+95°F)
Siabhvasodchease Soceoescteecsosntstatunnteseey 3.8 kg (8 Ib, 6 oz)
Weigh’
External dimensions
420 (W) x 299 (D) x 105 (H) mm
16-9/16 (W) x 11-12/16 (D) x 4-1/8 (H) in
Audio section
Frequency response
S/N ratio
PD-M602(U.K. model)/PD-M702
Other models
Dynamic range..
Harmonic distortion
Output voltage .
Wow and flutter
2 Hz-20 kHz
.102 dB or more (EIAJ)
98 dB or more (EIAJ)
96 dB or more (EIAJ)
0.003% or less (EIAJ)
OV
Limit of mesurement
(0.001% W. PEAK) or less (EIAJ)
CRAMMEIS. vccreereerersenersesssesssenennsenteaeensenses ...2-channel (stereo)
4
‘Output terminal
Audio line output
Headphone jack with volume control (PD-M602/PD-M702 only)
Control
input/output
jacks
(PD-M502/PD-M552:
all
models,
PD-
M602/PD-M702: U.S. and Canadian models only}
CD-DECK SYNCHRO jack ‘
Accessories
e Remote control unit (Except for PD-M502)....... screen 1
@ Size AAA/RO3/dry batteries
(Except for PD-M502)......
e Six-compact-disc magazine.
@ Control cord (PD-M502/PD-M552: all models, PD-M602/PD-
M702: U.S. and Canadian models only)
® Output cord
® Operating instructions
NOTE:
Specifications and design subject to possible modification
without notice, due to improvements.
The Magazine Type Multi-Play CD Players with
Citi mark and the Magazines with the same
mark are compatible for 5-inch (12 cm) discs.
Published by Pioneer Electronic Corporation.
Copyright © 1993 Pioneer Electronic Corporation.
Afi rights reserved.
PIONEER
ELECTRONIC
CORPORATION
4-1,
Meguro
1-Chome,
Meguro-ku,
Tokyo
153,
Japan
PIONEER
ELECTRONICS
[USA]
INC.
2265
East
220th
Street,
Long
Beach,
California
90810,
U.S.A.
P.O.
BOX
1720,
Long
Beach,
California
90801,
U.S.A.
PIONEER
ELECTRONICS
OF
CANADA,INC.
300
Allstate
Parkway
Markham,
Ontario
L3R
OP2,
Canada
PIONEER
ELECTRONIC
[EUROPE]
N.V.
Haven
1087
Keetberglaan
1,
9120
Melsele,
Beigium,
TEL:
03/750.05.11
PIONEER
ELECTRONICS
AUSTRALIA
PTY.
LTD.
©
178-184
Boundary
Road,
Braeside,
Victoria
3195,
Australia,
TEL:
[03]
580-9911
<93D16RF2WO04>
Printed in Japan <PRB1184-A>
