CD PLAYER
YPM-2136ZF WL
Se r v i c e
M a nu a l
-See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit
description.
-The CD mechanism employed in this model is one of S7 series.
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................4
3. SCHEMATIC DIAGRAM .............................................6
4. PCB CONNECTION DIAGRAM ................................16
5. ELECTRICAL PARTS LIST ........................................18
-CD Player Service Precautions
1. For pickup unit(CXX1232) handling, please refer
to"Disassembly"(CX-597 Service Manual CRT1829).
During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).
2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.
-This additional service manual is designed to be used together with Model YPM-1016ZF/UC Service
Manual CRT2111. Refer to it for finding parts numbers and adjustment, etc. which are not shown in
this manual.

2
YPM-2136ZF
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
1. Safety Precautions for those who Service this Unit.
• When checking or adjusting the emitting power of the laser diode exercise caution in order to get safe, reliable
results.
Caution:
1. During repair or tests, minimum distance of 13cm from the focus lens must be kept.
2. During repair or tests, do not view laser beam for 10 seconds or longer.
2. The triangular label is attached to the mechanism
unit frame.
4. Specifications of Laser Diode
Specifications of laser radiation fields to which human access is possible during service.
Wavelength = 800 nanometers

3
YPM-2136ZF

4
YPM-2136ZF
2. EXPLODED VIEWS AND PARTS LIST
2.1 CD MECHANISM MODULE
Fig. 1

5
YPM-2136ZF
1 Control Unit CWX2158
2 Pickup Unit (Service) CXX1232
3 Screw IMS26P050FMC
4 Screw BMZ20P025FMC
5 Screw BMZ20P040FMC
6 Screw BSZ20P040FMC
7 Screw (M2X3) CBA1077
8 Screw (M2X2) CBA1250
9 Screw (M2X5) CBA1296
10 Screw (M2X3.85) CBA1362
11 Spring CBH1724
12 Spring CBH1729
13 Spring CBH1730
14 Spring CBH1731
15 Spring CBH1732
16 Spring CBH1745
17 Spring CBH1848
18 Spring CBH1849
19 Spring CBH1939
20 Spring CBL1214
21 Roller CLA2627
22 Frame CNC6670
23 Bracket CNC5871
* 24 Bracket CNC6376
25 Cushion CNM3917
26 Sheet CNM4873
* 27 •••••
28 PCB CNP4230
29 Bearing CNR1415
30 Belt CNT1071
31 Damper CNV3974
32 Gear CNV4128
33 Gear CNV4129
34 Gear CNV4857
35 Gear CNV4131
36 Holder CNV4663
37 Holder CNV4664
38 Guide CNV4484
39 Screw Unit CXA8699
40 CRG Motor Unit (M2) CXA8986
41 Motor Unit (M1) CXB1562
42 Lever Unit CXB1263
43 Chassis Unit CXB1264
44 Screw JGZ17P025FZK
45 Connector (CN101) CKS1953
46 Connector (CN901) CKS3422
47 Connector (CN801) CKS2196
48 Spring CBH1832
49 Spring CBH1833
50 Roller CLA2627
51 Arm CNV4136
52 Arm Unit CXA8565
53 Bracket CNC6056
54 Load Motor Unit (M3) CXB1631
55 Screw JFZ20P025FMC
56 Arm CNV4120
57 Roller CNV4509
58 Gear Unit CXA8701
59 Screw (M2X5) CBA1296
60 Frame CNC6844
61 Damper CNV3974
62 Spring CBH1736
63 Spring CBH1863
64 Spring CBH1945
65 Spring CBL1269
66 Arm CNC5799
67 Lever CNC6054
68 Spacer CNM3315
69 Sheet CNM4849
70 Arm CNV4122
71 Arm CNV4123
72 Arm CNV4124
73 Arm CNV4125
74 Arm CNV4138
75 Arm CNV4139
76 Clamper CNV4140
77 Screw (M2X2) CBA1250
78 Connector CDE4576
79 Arm CNC5801
* 80 Gathering PCB CNX2533
81 Photo-transistor (Q1,2,3) CPT-230S-X
82 Elbo Arm Assy CXA8889
83 Load Motor Assy CXB1632
84 LO Arm Assy CXA8892
85 Shaft CLA3133
86 Guide Arm Assy CXA9416
87 F Frame Assy CXB1068
88 Bracket CNC6913
89 Screw BSZ26P050FMC
90 Bracket CNC7482
Mark No. Description Part No. Mark No. Description Part No.
-CD MECHANISM MODULE SECTION PARTS LIST
NOTE:
-Parts marked by “*”are generally unavailable because they are not in our Master Spare Parts List.
-Screws adjacent to ∇mark on the product are used for disassembly.

6
YPM-2136ZF
A
1234
B
C
D
1234
3. SCHEMATIC DIAGRAM
3.1 OVERALL CONNECTION DIAGRAM (GUIDE PAGE)
Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS
LIST”.
AB
A-a
A-a A-b
A-a A-b
A-b
A-a
Large size
SCH diagram
Guide page
Detailed page

7
YPM-2136ZF
5678
A
B
C
D
5678
A
A-b
Fig. 2

8
YPM-2136ZF
A
1234
B
C
D
1234
A-a
A-a A-b

9
YPM-2136ZF
5678
A
B
C
D
5678
A-a
A-a A-b
B
Fig. 3

10
YPM-2136ZF
A
1234
B
C
D
1234
A-a A-b
A-b

11
YPM-2136ZF
5678
A
B
C
D
5678
A-b
A-a A-b
Fig. 4

12
YPM-2136ZF

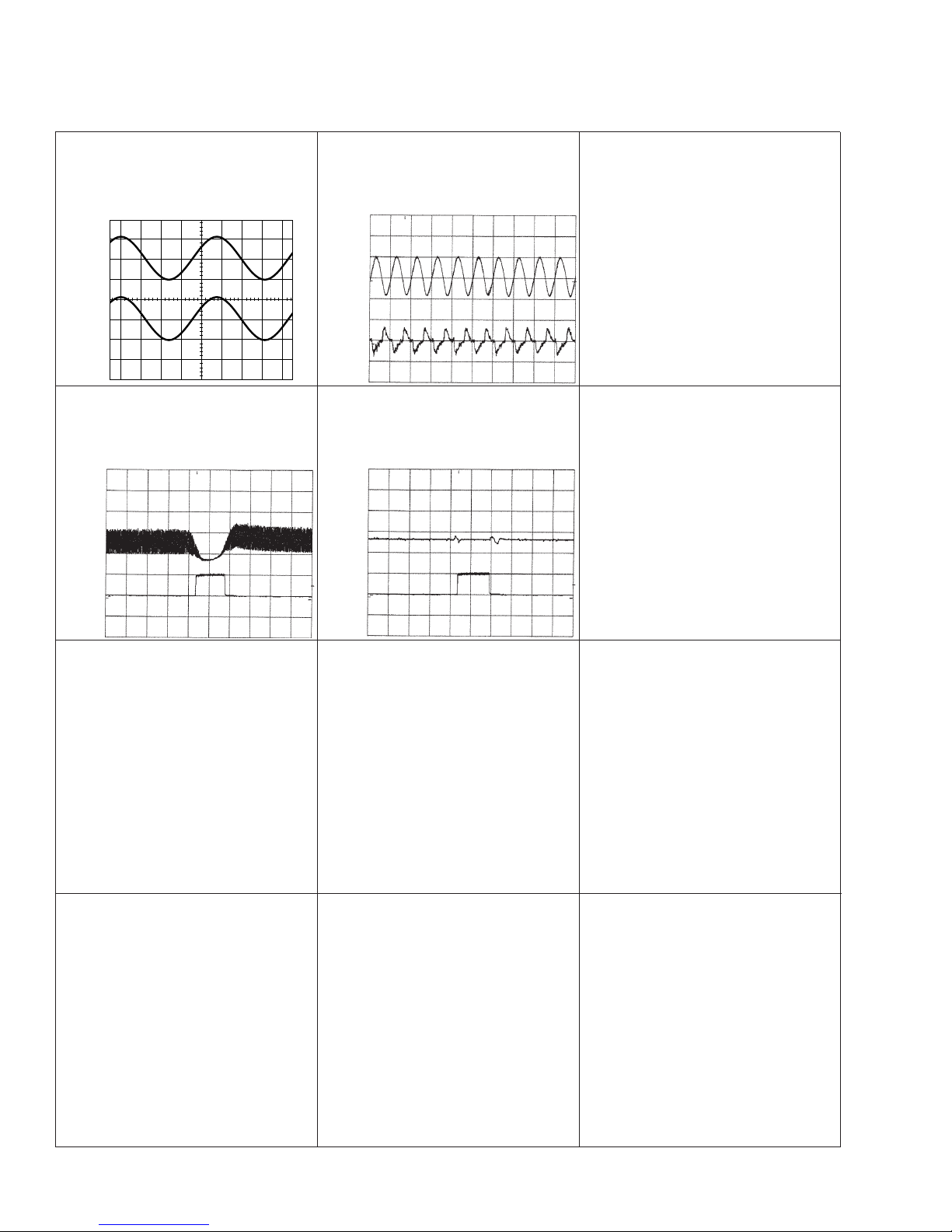

-Waveforms
Note:1. The encircled numbers denote measuring pointes in the circuit diagram.
2. Reference voltage
REFO:2.5V
1RFO 0.5V/div. 0.5µs/div.
Normal mode: play
1CH1: RFO 1V/div.
2CH2: MIRR 5V/div.
Test mode: Tracking open
0.5ms/div. 1CH1: RFO 1V/div.
2CH2: MIRR 5V/div.
Normal mode: The defect part
passes 800µm
0.5ms/div.
3CH1: FIN 0.5V/div.
4CH2: FO+ 2V/div.
Test mode: No disc, Focus close
0.2s/div. 3CH1: FIN 0.5V/div.
5CH2: FOK 2V/div.
Normal mode: Focus close
0.2s/div.
REFO →
8CH1: TEY 0.5V/div.
9CH2: TIN 0.5V/div.
Test mode: 32 tracks jump (FWD)
0.5ms/div. 8CH1: TEY 0.5V/div.
9CH2: TIN 0.5V/div.
Test mode: Single jump (FWD)
0.5ms/div. 8CH1: TEY 0.5V/div.
9CH2: TIN 0.5V/div.
Test mode: 100 tracks jump (FWD)
5ms/div.
6CH1: FEY 0.1V/div.
3CH2: FIN 0.2V/div.
Normal mode: Play
20ms/div. 3CH1: FIN 0.5V/div.
0CH2: SIN 1V/div.
Normal mode: Focus close (12cm)
0.5s/div. 3CH1: FIN 0.5V/div.
0CH2: SIN 1V/div.
Normal mode: Focus close (8cm)
0.5s/div.
GND →GND →
REFO →
REFO →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
REFO →
8CH1: TEY 0.2V/div.
9CH2: TIN 0.5V/div.
Normal mode: During AGC
1ms/div.
REFO →
REFO →

13
YPM-2136ZF
8CH1: TEY 0.2V/div.
9CH2: TIN 0.2V/div.
Normal mode: play
8CH1: TEY 0.5V/div.
!CH2: SD 0.5V/div. 5ms/div. 0SIN 0.5V/div. 0.1s/div.
Normal mode: Play (12cm)
0SIN 0.5V/div. 10ms/div.
Long Search (12cm)
@EFM 1V/div. 5µs/div.
Play
8CH1: TEY 1V/div.
#CH2: TEC 1V/div.
Test mode: Focus close
Tracking open
2ms/div.
8CH1: TEY 0.5V/div.
6CH2: FEY 0.5V/div.
Normal mode: AGC after focus
0.2s/div. $PLCK 2V/div. 0.5µs/div.
Play
20ms/div.
%SCKO 2V/div. 1µs/div.
Play
^Dout 2V/div. 10µs/div.
Play
&LRCK 2V/div. 20µs/div. *VD 5V/div. 50ms/div.
Normal mode: No disc
GND →
REFO →
REFO →
GND →
REFO →
REFO →
REFO →
REFO →REFO →
REFO →
REFO →
REFO →
REFO →GND →
REFO →
GND →
REFO →
GND →
REFO →
GND →
REFO →

14
YPM-2136ZF
(CH1: R OUT 1V/div.
)CH2: L OUT 1V/div.
Normal mode: Play (1kHz 0dB)
6CH1: FEY 0.2V/div.
3CH2: FIN 0.5V/div.
Normal mode: During AGC
1ms/div.
1CH1: RFO 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm
0.2ms/div.
0.5ms/div. 3CH1: FIN 1V/div.
⁄CH2: HOLD 5V/div.
Normal mode: The defect part passes
800µm
0.5ms/div.
GND →GND →
REFO →
REFO →
REFO →
REFO →

15
YPM-2136ZF

16
YPM-2136ZF
A
1234
B
C
D
1234
SIDE A
A
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia-
gram.
2. Viewpoint of PCB diagrams
4. PCB CONNECTION DIAGRAM
4.1 CONTROL UNIT,PHOTO UNIT
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
A
CONTROL UNIT
M3 LOADING MOTOR
Fig. 5

17
YPM-2136ZF
5678
A
B
C
D
5678
Fig. 6
A
SIDE B
B
B
PHOTO UNIT
A
CONTROL UNIT
B
A

18
YPM-2136ZF
Unit Number : CWX2158
Unit Name : Control Unit
MISCELLANEOUS
IC 101 IC UPC2572GS
IC 201 IC UPD63702AGF
IC 301 IC BA6997FM
IC 302 IC XRA6285FP
IC 601 IC TA2063F
IC 701 IC BA05SFP
IC 901 IC PD4858A
Q 101 Transistor 2SD1664
Q 102 Transistor UMD2N
Q 601 Transistor 2SD1781K
Q 602 Transistor 2SD1781K
Q 603 Transistor 2SB709A
Q 901 Transistor UN2111
Q 902 Transistor UN2212
D 601 Diode MA151WA
D 701 Diode 1SR154-400
D 702 Diode 1SR154-400
D 704 Diode 1SR154-400
D 801 CL200IRX
D 802 CL200IRX
D 803 CL200IRX
L 901 Inductor LCTB4R7K1608
TH 901 Thermistor CCX1015
X 201 Ceramic Resonator 16.93MHz CSS1363
X 901 Resonator 8.380MHz CSS1354
S 801 Switch(Home) CSN1028
S 802 Switch(Clamp) CSN1028
EF 701 CCG1051
RESISTORS
R 101 RS1/8S100J
R 102 RS1/8S120J
R 103 RS1/16S102J
R 104 RS1/16S822J
R 105 RS1/16S682J
R 106 RS1/16S183J
R 107 RS1/16S822J
R 108 RS1/16S333J
R 109 RS1/16S683J
R 110 RS1/16S134J
R 111 RS1/16S273J
R 112 RS1/16S222J
R 113 RS1/16S103J
R 114 RS1/16S103J
R 115 RS1/16S102J
R 116 RS1/16S163J
R 117 RS1/16S163J
R 201 RS1/16S104J
R 206 RS1/16S0R0J
R 306 RS1/16S102J
R 307 RS1/16S102J
R 501 RS1/16S0R0J
R 601 RS1/16S102J
R 602 RS1/16S102J
R 603 RS1/16S223J
R 604 RS1/16S223J
R 605 RS1/16S162J
R 606 RS1/16S162J
R 607 RS1/16S103J
R 801 RS1/8S821J
R 802 RS1/8S821J
R 803 RS1/8S821J
R 901 RS1/16S473J
R 902 RS1/16S303J
R 903 RS1/16S472J
R 904 RS1/16S122J
R 905 RS1/16S222J
R 906 RS1/16S473J
R 907 RS1/16S222J
R 908 RS1/16S473J
R 909 RS1/16S103J
R 910 RS1/16S473J
R 912 RS1/16S222J
R 913 RS1/16S104J
R 914 RS1/16S222J
R 915 RS1/16S104J
R 916 RS1/16S102J
R 917 RS1/16S221J
R 918 RA4C221J
R 919 RS1/16S221J
R 920 RS1/16S103J
R 921 RS1/16S103J
R 922 RS1/10S223J
CAPACITORS
C 101 CEV101M6R3
C 102 CKSQYB104K16
C 103 CEV470M6R3
C 104 CKSYB334K16
C 105 CCSRCH330J50
C 106 CKSRYB103K25
C 107 CEV4R7M35
C 108 CKSQYB273K50
C 109 CCSRCH101J50
C 110 CKSQYB104K16
C 111 CKSRYB332K50
C 112 CKSQYB473K16
C 113 CKSRYB103K25
C 114 CKSRYB391K50
C 115 CCSRCH121J50
C 116 CKSRYB682K25
C 117 CKSRYB333K16
C 118 CKSYB334K16
C 119 CKSYB334K16
5. ELECTRICAL PARTS LIST
NOTE:
-Parts whose parts numbers are omitted are subject to being not supplied.
-The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
A

19
YPM-2136ZF
C 120 CKSYB334K16
C 121 CKSYB334K16
C 122 CKSQYB104K16
C 123 CKSRYB472K50
C 124 CKSQYB104K16
C 125 CCSRCH6R0D50
C 126 CKSRYB153K25
C 127 CCSRCH102J25
C 201 CKSYB334K16
C 202 CKSQYB104K16
C 203 CKSQYB104K16
C 204 CKSQYB104K16
C 303 CEV101M10
C 304 CKSRYB103K25
C 305 CKSRYB103K25
C 306 CKSRYB103K25
C 307 CEV100M25
C 308 CEV101M10
C 502 CKSRYB471K50
C 601 CEV101M6R3
C 602 CKSQYB104K16
C 603 CEV4R7M35
C 604 CEV4R7M35
C 605 CKSRYB152K50
C 606 CKSRYB152K50
C 607 CEV220M6R3
C 701 22µF/6.3V CCH1233
C 702 CKSYB334K16
C 703 CEV101M6R3
C 901 CKSQYB104K16
C 902 CKSRYB472K50
Unit Number :
Unit Name : Photo Unit
Q 1 Photo-transistor CPT-230S-X
Q 2 Photo-transistor CPT-230S-X
Q 3 Photo-transistor CPT-230S-X
Miscellaneous Parts List
Pickup Unit(Service) CXX1232
M 1 Motor Unit(Spindle) CXB1562
M 2 CRG Motor Unit(Carriage) CXA8986
M 3 Load Motor Unit(Loading) CXB1632
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
B
