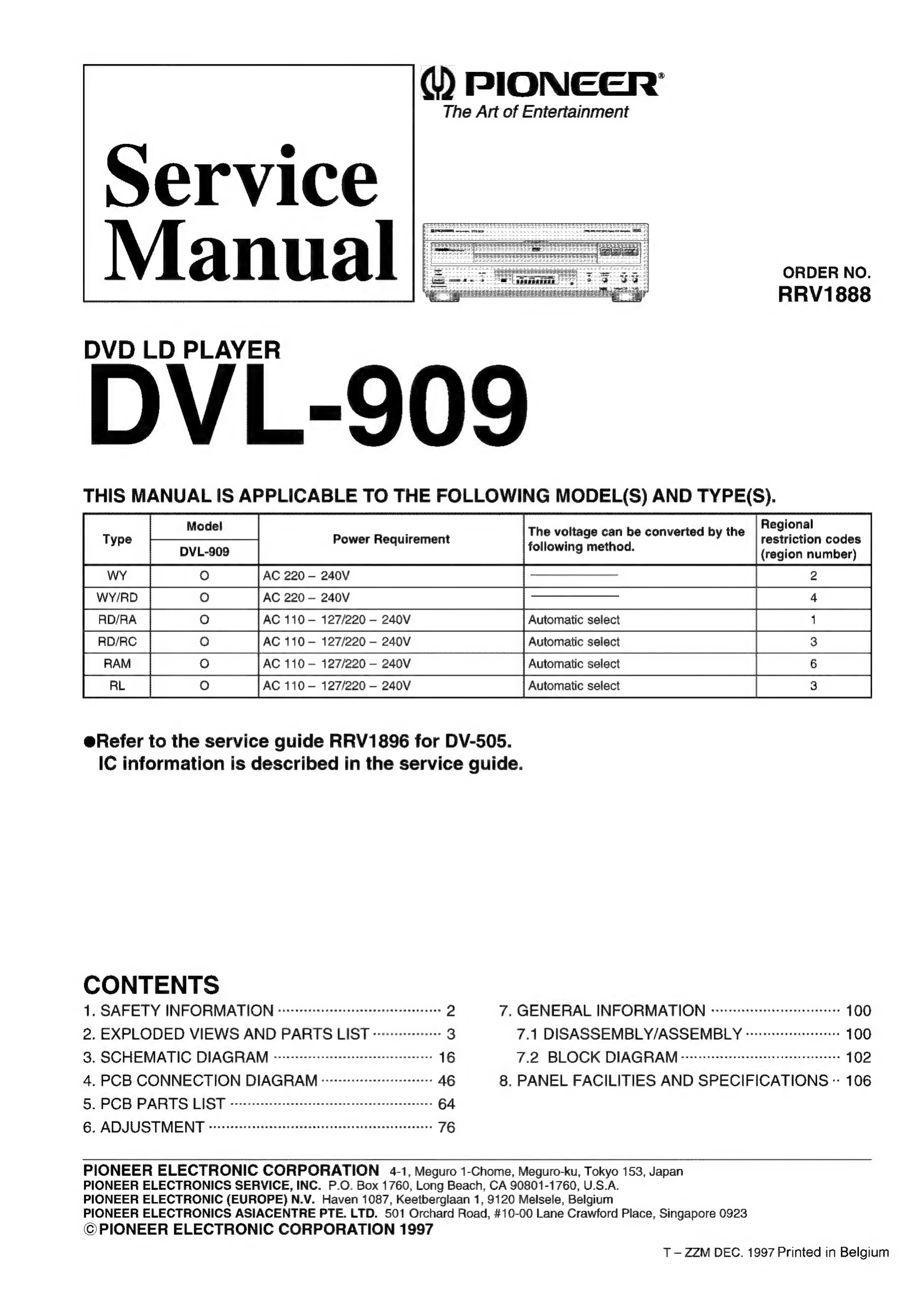

Pioneer DVL-909 User manual

@) PIONEER’
The Art of Entertainment
Service ||
anual
|=
—
DVD LD PLAYER
DVL-909
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
ia Power Requirement A converted by the revtrition codes
DVL-909
(region
number)
ro) AC 220 — 240V a 2
oO AC 220 — 240V ——————. 4
O AC 110 — 127/220 - 240V Automatic select 1
RD/RC AC 110 — 127/220 — 240V Automatic select 3
RAM AC 110 — 127/220 — 240V Automatic select 6
ORDER NO.
RRV1888
fe)
oO
@Refer to the service guide RRV1896 for DV-505.
IC information is described in the service guide.
CONTENTS
1. SAFETY INFORMATION oo----sssss-ssesesssseeesseseeseenee 2 7. GENERAL INFORMATION «--r--sss-seeseeeeeeeeseooe 100
2. EXPLODED VIEWS AND PARTS LIST ------= 3 7.1 DISASSEMBLY/ASSEMBLY <---++--- sees 100
3. SCHEMATIC DIAGRAM -----------sssessseeseeeseeseeeeens 16 7.2 BLOCK DIAGRAM -sssssseessssssssesssesesessennnes 102
4. PCB CONNECTION DIAGRAM o-----ssse-seee00000e 46 8. PANEL FACILITIES AND SPECIFICATIONS -- 106
5. PCB PARTS LIST ----
6. ADJUSTMENT crtssessrserssessssesessersessesesssseessssseeaees
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Piace, Singapore 0923
©PIONEER ELECTRONIC CORPORATION 1997
T —- ZZM DEC. 1997 Printed in Belgium

DVL-909
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
IMPORTANT
THIS PIONNER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.
LABEL CHECK
. VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
CAUTION : avoio exeosure TO BEAM.
» SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN
VORSICHT : ABDECKUNG GEOFFNET NICHT DEM STRAHL AUSSETZEN!
ADVARSEL: SYNLIG OG USYNLIG LASERSTRALING VED ABNING
UNDGA UDSAETTELSE FOR STRALING.
. SYNLIG OCH OSYNLIG LASERSTRALNING NAR DENNA
VARNING : DEL AR OPPNAD BETRAKTA EJ STRALEN.
VARO! » AVATTAESSA ALTISTUT NAKYVA JA NAK YMATTOMALLE
. * LASERSATEILYLLE. ALA KATSO SATEESEN.
VRW1699°
CLASS 1
LASER PRODUCT
(Printed on the Rear Cover)
r>—— LASER DIODE CHARACTERISTICS
*FOR DVD
MAXIMUM OUTPUT POWER : 7 mw
WAVELENGTH : 650 nm
*FOR CD/LD
MAXIMUM OUTPUT POWER : 5 mw
WAVELENGTH : 780-785 nm
Additional Laser Caution
1. The ON/OFF statuses of the side-A/B detection switch
(Lever switch connecting to the TNMB assy), slider-position
detection switches (INNER and OUTER on the PKSB assy),
loading-status detection switches (SW1, 2 and 3 on the LMSB
assy), side B inside detection switch (S901 on the BISB assy)
and CLD pickup active detection switch (S903 on the LCSB
assy) are detected by the microprocessor (IC 101 in the CLD
MAIN assy). Also the DVD pickup active detection switch (S902
on the DCSB assy) is detected by the microprocessor (IC501
in the DVD MAIN assy).
* To permit the laser diode of CLD pickup to oscillate, it is
tequired to set the CLD pickup active detection switch (S903 :
OFF) and the slider-position detection switches for the LD
ACTIVE status (INNER : OFF, OUTER: OFF), and to set the
loading-status detection switches for tilt neutral state (SW1 :
ON, SW2 : OFF, SW3 : ON). As long as these requirements
are not satisfied, the laser diode will not oscillate. When the
requirements are met in any way, the laser diode can oscillate.
The laser diode oscillation will continue if pin 13 of 1C801 is
shorted to GND or the emitter and collector of Q834 are shorted
each other (fault condition) in the CLD MAIN assy.
* To permit the laser diode of DVD pickup to oscillate, it is
required to set the DVD pickup active detection switch (S902
:OFF) and each switch and a state of laser diode are contents
same as state of CLD pickup mentioned above. The laser
diode oscillation will continue if pin 13 of 1C101 is shorted to
+5V (fault condition) in the DVD MAIN assy.
in the test mode *, the laser diode oscillates when the micro-
processor detects a PLAY signal, or when the PLAY key is
pressed (S107 ON in the FLKB assy), with the above require-
ments satisfied.
2. When the cover is open, close viewing through the objective
lens with the naked eye will cause exposure to a Class 1
laser beam.
x : Refer to page 79.

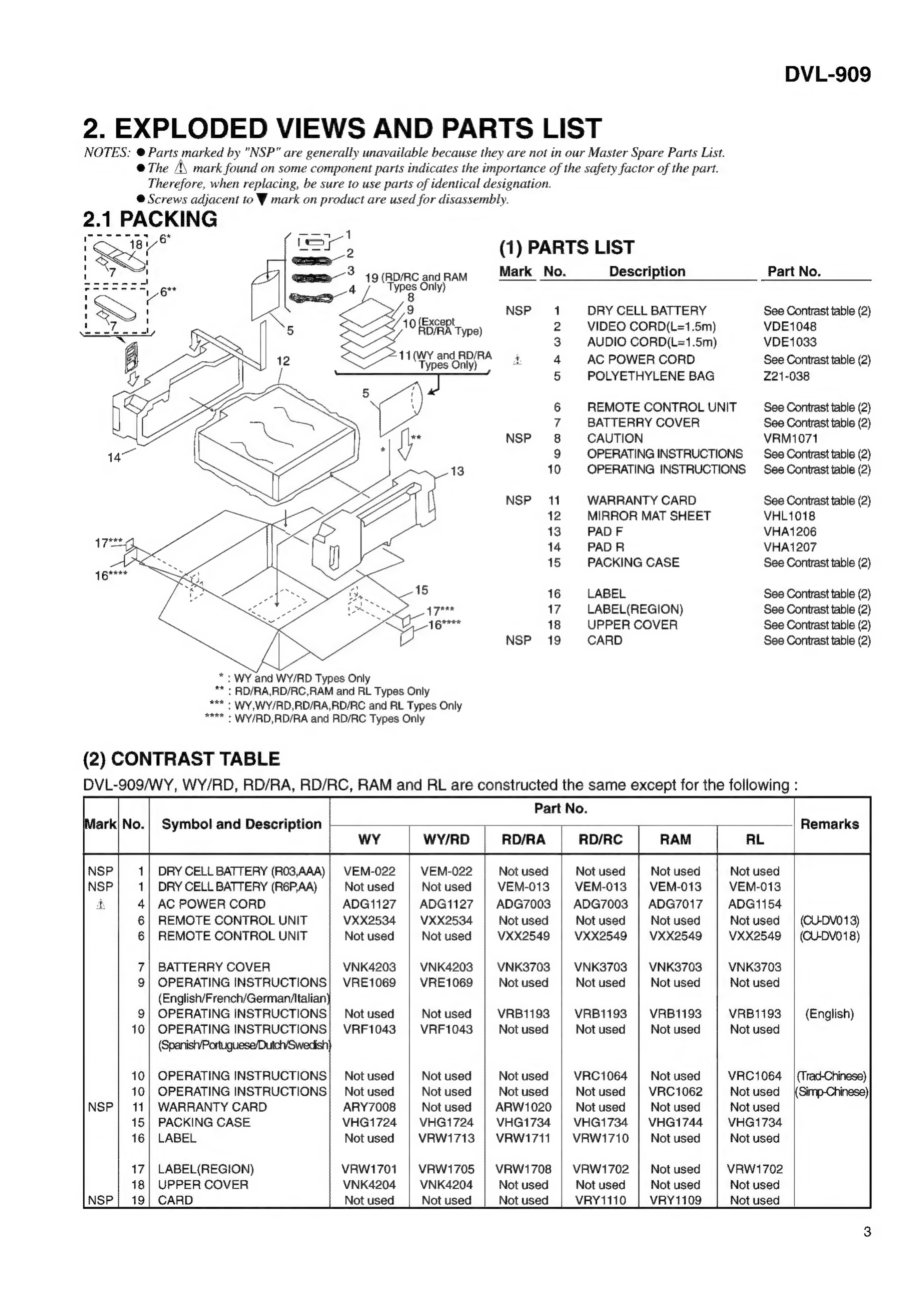

2. EXPLODED VIEWS AND PARTS LIST
NOTES: @ Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
@
The
|\
mark
found
on
some
component
parts
indicates
the
importance
of
the
safety
factor
of
the
part.
Therefore, when replacing, be sure to use parts of identical designation.
@ Screws adjacent to W mark on product are used for disassembly.
2.1 PACKING
1
DVL-909
iapeaaaer
ey
=
6"
ene
18
cle
(1)
PARTS
LIST
!
. .
i
ess?
19
(ROIRC
ane,
R AM
Mark
No.
Description
Part
No.
eu
4
ne
9
NSP
1
DRY
CELL
BATTERY
See
Contrast
table
(2)
5
10
Fee
ype)
2
VIDEO
CORD(L=1.5m)
VDE1048
3
AUDIO
CORD(L=1.5m)
VDE1033
TT
CMY
and
ROVRA
4
AC
POWER
CORD
See
Contrast
table
(2)
5
POLYETHYLENE
BAG
221-038
REMOTE CONTROL UNIT
BATTERRY COVER
CAUTION
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
NSP
CoC OOND
NSP 11 WARRANTY CARD
12 MIRROR MAT SHEET
13 PAD F
14 PAD R
15 PACKING CASE
16 LABEL
17 LABEL(REGION)
18 UPPER COVER
NSP 19 CARD
* : WY and WY/RD Types Only
** | RD/RA,RD/RC,RAM and RL Types Only
** * WY,WY/RD,RD/RA,RD/RC and RL Types Only
*** “ WY/RD,RD/RA and RD/RC Types Only
(2) CONTRAST TABLE
See Contrast table (2
See Contrast table (2
VRM1071
See Contrast table (2)
See Contrast table (2)
See Contrast table (2)
VHL1018
VHA1206
VHA1207
See Contrast table (2
See Contrast table (2
See Contrast table (2)
See Contrast table (2)
See Contrast table (2)
DVL-909/WY, WY/RD, RD/RA, RD/RC, RAM and RL are constructed the same except for the following :
Remarks
Symbol and Description
(English/French/German/italian
(Spanish/Portuguese/Dutch/Swedish)
DRY CELL BATTERY (R03,AAA)} VEM-022 VEM-022 Not used Not used Not used Not used
DRY CELL BATTERY (R6P,AA) Not used Not used VEM-013 VEM-013 | VEM-013 VEM-013
AC POWER CORD ADG1127 | ADG1127 | ADG7003 | ADG7003 | ADG7017 | ADG1154
REMOTE CONTROL UNIT VXX2534 VXX2534 Not used Not used Not used Notused | (CU-DV013)
REMOTE CONTROL UNIT Not used Not used VXX2549 | VXX2549 | VXX2549 VXX2549 | (CU-DV018)
BATTERRY COVER VNK4203 | VNK4203 | VNK3703 | VNK3703 | VNK3703 VNK3703
OPERATING INSTRUCTIONS; VRE1069 VRE1069 Not used Not used Not used Not used
OPERATING INSTRUCTIONS, Not used Not used Not used VRC1064 | Not used VRC1064
OPERATING INSTRUCTIONS; Not used Not used Not used Not used VRC1062 Not used
WARRANTY CARD ARY7008 Not used ARW1020 Not used Not used Not used
PACKING CASE VHG1724 | VHG1724 | VHG1734 | VHG1734 | VHG1744 VHG1734
LABEL Notused | VRW1713 |) VRW1711 | VRW1710 | Notused Not used
LABEL(REGION) VRW1701 | VRW1705 | VRW1708 | VRW1702 | Not used VRW1702
UPPER COVER VNK4204 VNK4204 Not used Not used Not used Not used
CARD Not used Not used Not used VRY1110 VRY1109 Not used
OPERATING INSTRUCTIONS; Not used Not used VRB1193 VRB1193 | VRB1193 VRB1193 | (English)
OPERATING INSTRUCTIONS; VRF1043 VRF1043 Not used Not used Not used Not used

DVL-909
2.2 EXTERIOR SECTION
®PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 LD TRAY ASSY VXA2302 11. TRAY PANEL VNK4065
2 CUSHION VEC1881 12 DVD DOOR ASSY VXA2338
NSP 3 LABEL VRW1289 13 DOOR SPRING VBH1248
4 DAMP CUSHION VEC1683 14 DOOR HOLDER VNL1697
5 CD TRAY VNK3664 15 DAMPER VXA1999
6 LABEL VRW1628 16 DVD PLATE VAM1077
cs GUIDE PLATE (R) VNE1939 17 BONNET CASE S VXX2560
8 GUIDE PLATE (L) VNE1938 18 oe siee
9 LOCK PLATE VNL1703 19 SCREW BBZ30P080FMC
10 LOCK PLATE SPRING VBH1188 20 SCREW BCZ40P060FZK

DVL-909
2.3 FRONT PANEL SECTION
(1) PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 FRONTALMI See Contrast table (2) 1 ILLUMINATION FILTER VEC1950
2 LEDLENS 4 RNK2066 12 ILLUMI HOLDER VNK4289
3 PANEL BASE VNK4064 13 FLKBASSY See Contrast table (2)
4 FLFILTER VEC1643 NSP 14 PWSBASSY See Contrast table (2)
5 FLLENS VEC1943 15 FLEXIBLE CABLE(14P) VDA1638
6 INDICATOR LENS VNK1538 16 CONNECTOR ASSY PGO2KK-E12
7 LENS HOLDER VNK41514 NSP 17 DILBASSY VWG1894
8 soeee 18 NAME PLATE VAM1051
9 PLAY BUTTON VNK4067 19 SCREW BBZ30P080FMC.
10 ILLUMINATION LENS VNK4168 NSP 20 GETTER See Contrast table (2)
(2) CONTRAST TABLE
DVL-909/WY, WY/RD, RD/RA, RD/RC, RAM and RL are constructed the same except for the following :
Symbol and Description
FRONTALMI VAH1280 VAH1280 VAH1279 VAH1279 VAH1279 VAH1279
GETTER Not used Notused | VRW1694 | VRW1694 | VRW1694 | VRW1694
FLKB ASSY VWG1890 | VWG1890 | VWG1936 | VWG1936 | VWG1935 | VWG1889
PWSB ASSY VWG1938 | VWG19388 | VWG1893 | VWG1893 | VWG1893 | VWG1893

DVL-909

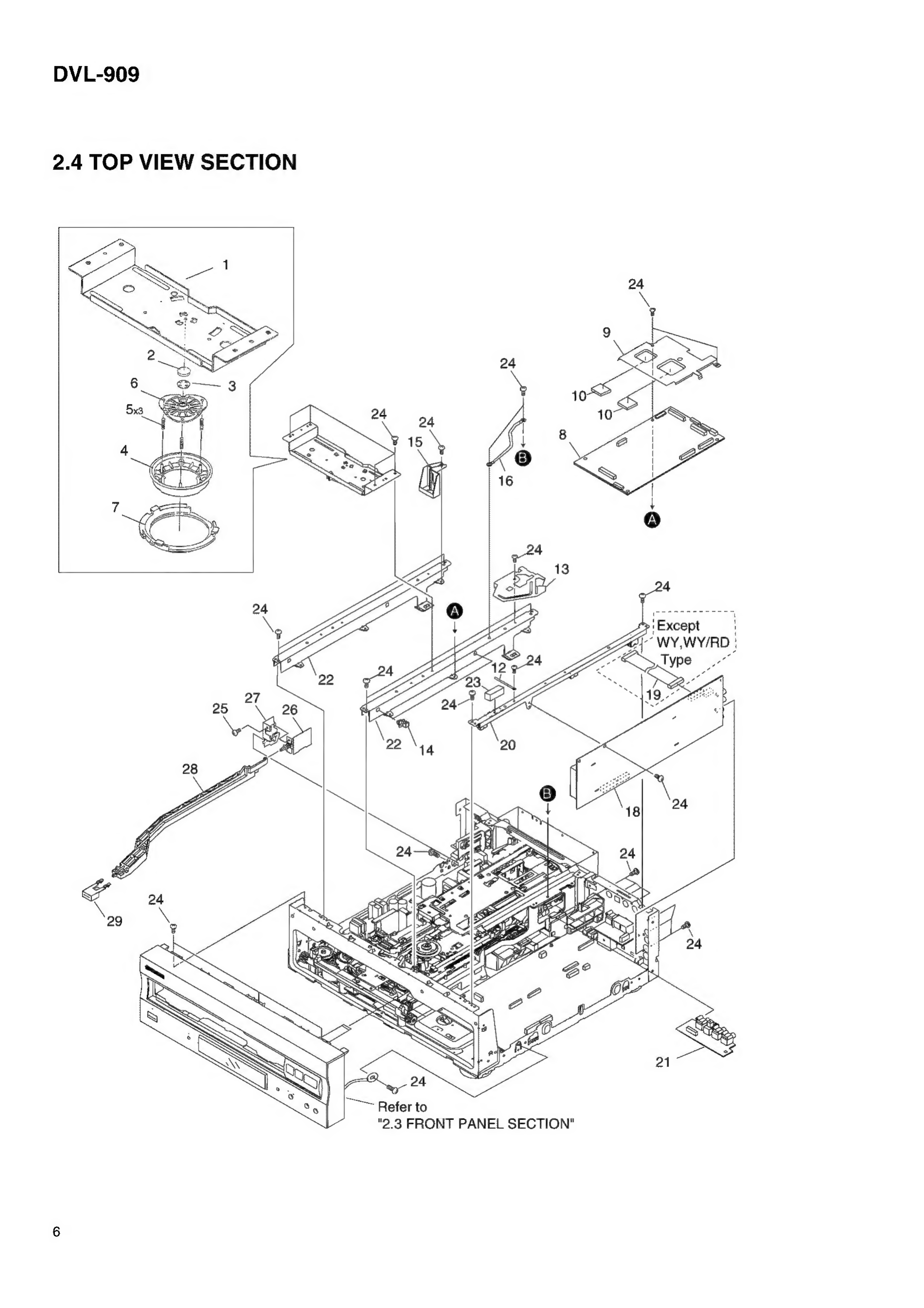

2.4 TOP VIEW SECTION
Z2
fe)
kK
oO
my
na
od Ww Zz << oa kK pa
6
oc Le
°
nN

(1) TOP VIEW SECTION PARTS LIST
DVL-909
Mark No. Description Part No. Mark No. Description Part No.
1 CENTER PLATE VNE2127 NSP 16 CORD WITH PLUG DEO07VFO
2
RUBBER
MAT
VEB1114
17
evcce
3
THRUST HOLDER
VNL1663
18
DMYC
or
MYCB
ASSY
See
Contrast
table
(2)
4
CLAMPER
VNL1648
19
HOUSING
ASSY(13P)
See
Contrast
table
(2)
5 CLAMPER SPRING VBH1192 NSP 20 PCB-HOLDER VNE2121
6
CLAMPER
HEAD
VNL1649
21
JCKB
ASSY
See
Contrast
table
(2)
7
CLAMPER
HOLDER
VNL1788
NSP
22
CENTER
ANGLE
VNE2126
8 DVDM ASSY VWS1328 23 CUSHION VEC1982
9 HEAT SINK VNE2134 24 SCREW BBZ30P080FMC
10 RADIATION SEAT VEB1282 25 SCREW PMB30PO80FZK
af oeoee 26 MSWB ASSY VWG1895
12 CORD CLAMPER RNH-184 NSP 27 POWER HOLDER VNE2123
13 CABLE HOLDER VEC1958 28 POWER JOINT VNK4148
NSP 14 CORNER POST DEC1212 29 POWER BUTTON VNK4159
15 SHIPPING CAM VNL1729
(2) CONTRAST TABLE
DVL-909/WY, WY/RD, RD/RA, RD/RC, RAM and RL are constructed the same except for the following :
Remarks Symbol and Description
DMYC ASSY
MYCB ASSY
HOUSING ASSY(13P)
JCKB ASSY
VWV 1584
Not used
Not used
VWV1578
Not used
VWV1596
VKP2154
VWV1579
Not used
VWV1596
VKP2154
Vwv 1579
Not used
VWV1596
VKP2154
Vwv1579
Not used
VWV1596
VKP2154
VWV1579

DVL-909
2.5 BOTTOM VIEW SECTION
Refer to

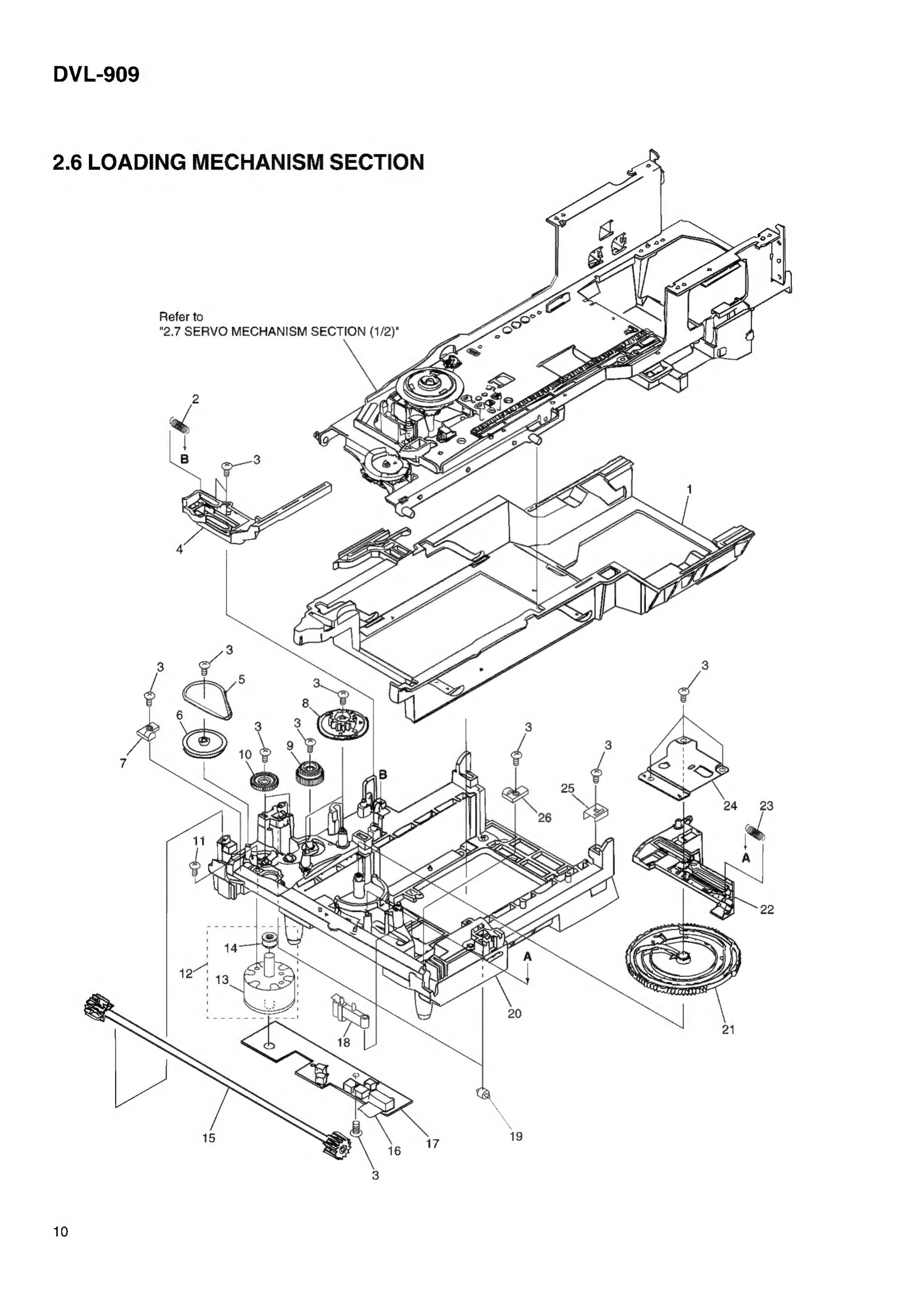

"2.6 LOADING MECHANISM SECTION"
RAM and RL
‘Except.
Types
* :WY and WY/RD Types Only

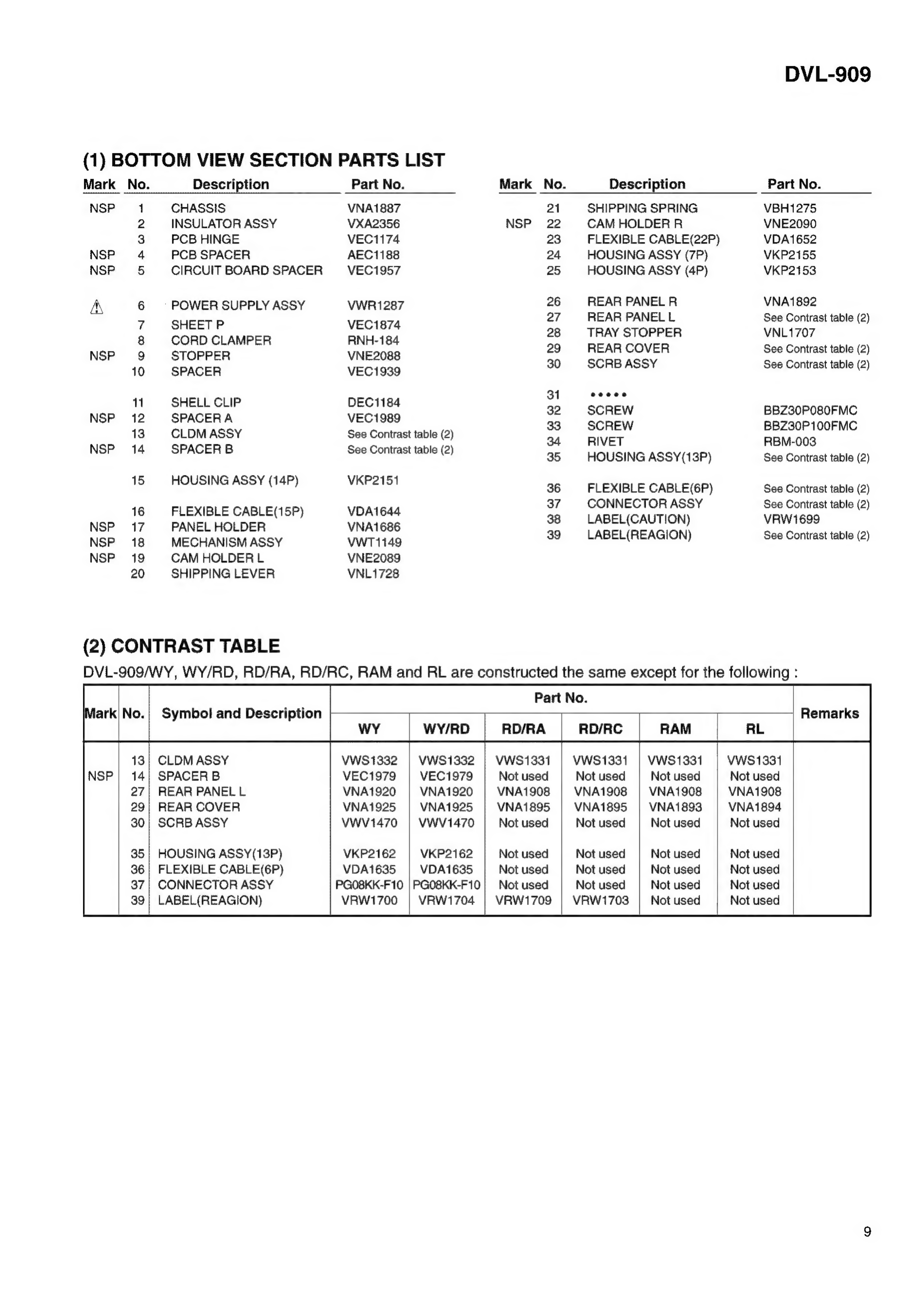

(1) BOTTOM VIEW SECTION PARTS LIST
DVL-909
Mark No. Description Part No. Mark No. Description Part No.
NSP 1 CHASSIS VNA1887 21 SHIPPING SPRING VBH1275
2 INSULATOR ASSY VXA2356 NSP 22 CAMHOLDERR VNE2090
3. PCBHINGE VEC1174 23 FLEXIBLE CABLE(22P) VDA1652
NSP 4 PCBSPACER AEC1188 24 HOUSING ASSY (7P) VKP2155
NSP 5 CIRCUITBOARDSPACER VEC1957 25 HOUSING ASSY (4P) VKP2153
A 6 | POWER SUPPLY ASSY VWR1287 26 REAR PANEL R VNA1892
7 SHEET P VEC1874 27 REAR PANEL L See Contrast table (2)
28 TRAY STOPPER VNL1707
8 CORD CLAMPER RNH-184
29 REAR COVER See Contrast table (2)
NSP yo) :STORPER WNE Sse 30 SCRBASSY See Contrast table (2
10 SPACER VEC1939 ee, vontast table (2)
31 eocce
Ler SHELL CEE: DECiIE4 32. SCREW BBZ30P080FMC
NSP 12 SPACERA VEC1989
33. SCREW BBZ30P100FMC
13 CLDM ASSY See Contrast table (2)
NSP 14 SPACERB See Contrast table (2) ets «RIVET FEM "003
35 HOUSING ASSY(13P) See Contrast table (2)
1. ~ BOUSING:ASO Nah) MiKFe151 36 FLEXIBLE CABLE(6P) See Contrast table (2)
16 FLEXIBLE CABLE(15P) VDA1644 37 CONNECTOR ASSY See Contrast table (2)
38 LABEL(CAUTION) VRW1699
Nor ie, 2 eae HOLDER WNAIGEG 39 LABEL(REAGION) See Contrast table (2)
NSP 18 MECHANISMASSY vwT1149 S8. Contrast tab le,(
NSP 19 CAMHOLDERL VNE2089
20 SHIPPINGLEVER VNL1728
(2) CONTRAST TABLE
DVL-909/WY, WY/RD, RD/RA, RD/RC, RAM and RL are constructed the same except for the following :
Remarks Symbol and Description
CLDM ASSY
SPACER B
REAR PANEL L
REAR COVER
SCRB ASSY
VWS1332
VEC1979
VNA1920
VNA1925
VWV 1470
VWS1332
VEC1979
VNA1920
VNA1925
VWV1470
VWS1331
Not used
VNA1908
VNA1895
Not used
VWS1331
Not used
VNA1908
VNA1895
Not used
VWS1331
Not used
VNA1908
VNA1893
Not used
VWS1331
Not used
VNA1908
VNA1894
Not used
HOUSING ASSY(13P)
FLEXIBLE CABLE(6P)
CONNECTOR ASSY
LABEL(REAGION)
VKP2162
VDA1635
PGO8KK-F10
VRW1700
VKP2162
VDA1635
PGO8KK-F10
VRW1704
Not used
Not used
Not used
VRW1709
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
Not used
VRW1703

DVL-909
2.6 LOADING MECHANISM SECTION
"2.7 SERVO MECHANISM SECTION (1/2)"
Refer to
10

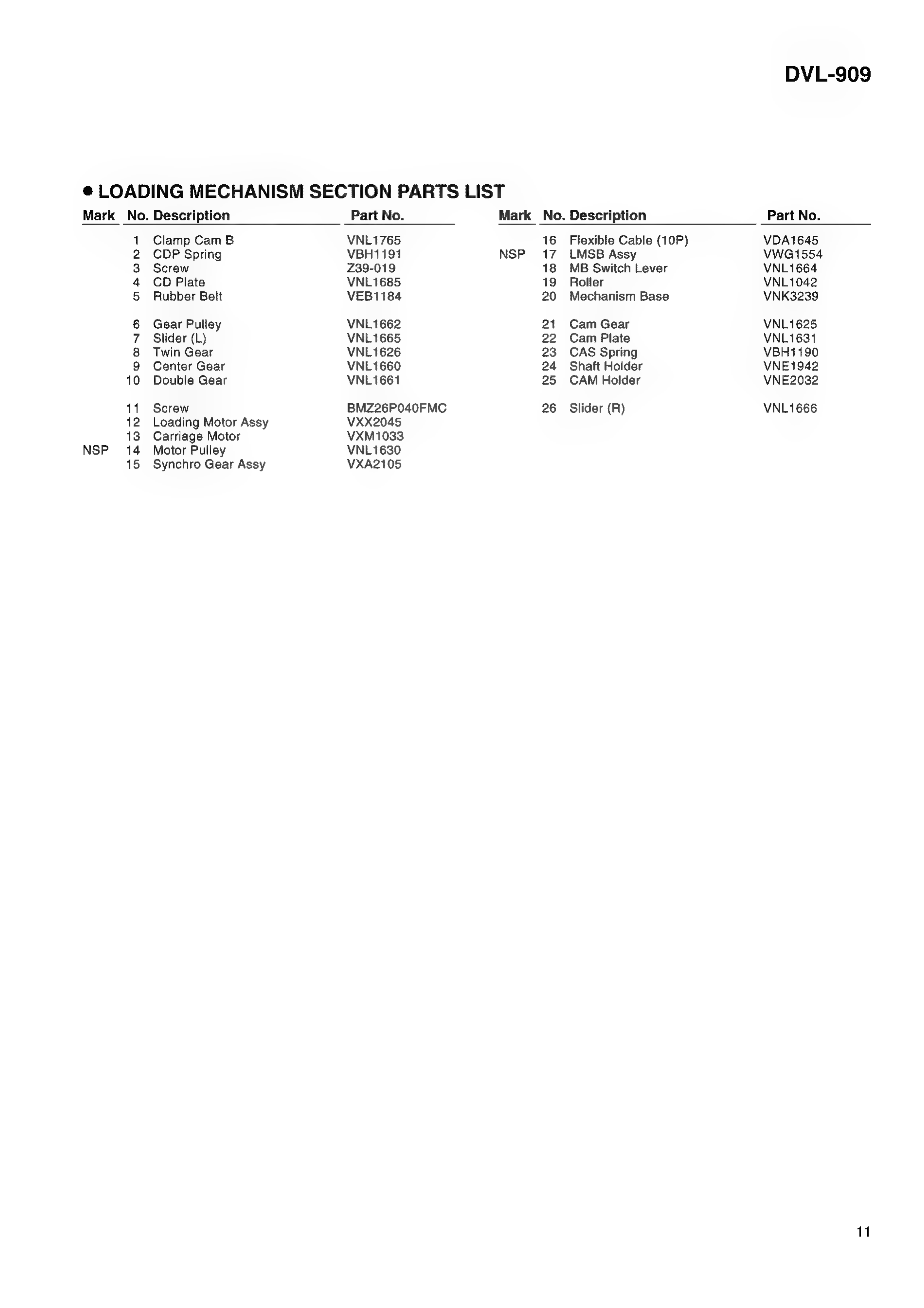

@ LOADING MECHANISM SECTION PARTS LIST
DVL-909
Mark No. Description Part No. Mark No. Description Part No.
1 Clamp Cam B VNL1765 16 Flexible Cable (10P) VDA1645
2 CDP Spring VBH1194 NSP 17 LMSB Assy VWG1554
3 Screw Z39-019 18 MB Switch Lever VNL1664
4 CD Plate VNL1685 19 Roller VNL1042
5 Rubber Belt VEB1184 20 Mechanism Base VNK3239
6 Gear Pulley VNL1662 21 Cam Gear VNL1625
7 Slider (L) VNL1665 22 Cam Plate VNL1631
8 Twin Gear VNL1626 23 CAS Spring VBH1190
9 Center Gear VNL1660 24 Shaft Holder VNE1942
10 Double Gear VNL1661 25 CAM Holder VNE2032
11 Screw BMZ26P040FMC 26 Slider (R) VNL1666
12 Loading Motor Assy VXX2045
13 Carriage Motor VXM1033
NSP 14 Motor Pulley VNL1630
15 Synchro Gear Assy VXA2105
11

DVL-909
2.7 SERVO MECHANISM SECTION (1/2)
Refer to
"2.9 DVD CARRIAGE Assy" 20
Refer to
"2.8 SERVO MECHANISM
SECTION (2/2)"
Refer to
"2.10 CLD CARRIAGE ASSY"
Refer to
"2.6 LOADING MECHANISM SECTION"

@ SERVO MECHANISM SECTION (1/2) PARTS LIST
DVL-909
Mark No. Description Part No. Mark No. Description Part No.
1 Mini Clamp VEC1905 26 Screw PMZ20P060FZK
2 Screw BBZ26P060FMC 27 Tilt Base (Under) VNL1711
3 secce 28 Tilt Rear Spring VBH1274
4 Tilt Base (Upper) VNE2062 29 CA Rack (Lower) VNL1712
5 Housing Assy (2P) VKP2136 30 Flexible Cable (6P) VDA1642
NSP 6 BISB Assy VWG1796 31 Flexible Cable Cover VNL1727
7 Screw BPZ20P040FZK 32 Motor Base VNE1941
8 BCam VNL1725 33 Screw IBZ26PO60FMC
9 Support Spring VBH1273 34 Tilt Spring VBH1263
10 SW Lever B VNL1723 35 Thrust Spring VBH1245
11 Shaft Holder VNL1724 36 CA Switch Lever VNL1644
12 CA Shaft (Upper) VLL1486 NSP 37 PKSB Assy VWG1555
13 CA Rack (Upper) VNL1722 38 Housing Assy (3P) VKP2045
14 Shaft Stay VNL1726 39 Screw IBZ26P120FMC
15 Screw BBZ30P080FMC 40 Screw PMA30P050FMC
16 Screw PPZ20P060FMC 41 Tilt Spring B VBH1287
17 CA Shaft (Lower) VLL1496 42 Housing Assy (3P) VKP2046
18 TAN Guide VNE2061 NSP 43 FG Assy VWG1556
19 FPC Holder A VNL1751 44 FG Base VNL1781
% 20 DVD Carriage Assy VWT1146 45 Tilt Cam VNL1643
21 FPC Holder B VNL1801 46 Tilt Cam Spring VBH1243
! 22 CLD Carriage Assy VWT1144 47 PRC Hub VNL1684
23 CA Guide VNL1668 48 Centering Spring VBH1269
24 TAN Spring (B) VBH1264 49 R Turn Table Assy VXA2354
25 TAN Lever (B) VNL1669 NSP 50 Oil Stopper VBF 1002
51 Screw ZMD30HO30FBT
NSP 52 Spindle Motor VXM1057
53 CoverS VNL1780
54 eecce
55 Screw BBZ30P050FZK
56 Spindle Motor Assy VXX2579
57 FPC Holder VNL1789
13

DVL-909
2.8 SERVO MECHANISM SECTION (2/2)
14

@ SERVO MECHANISM SECTION (2/2) PARTS LIST
DVL-909
Mark No. Description Part No. Mark No. Description Part No.
NSP 1 TNMB Assy VWG1793 NSP 21 CNNB Assy VWG1792
2 Carriage Motor VXM1033 22 Flexible Cable (27P) VDA1643
NSP 3. «Motor Pulley VNL1630 23 PU FPC-A VNP1582
4 Motor Holder VNL1717 24 PCB Holder VNL1716
5 Screw BBZ30P080FMC 25 FC Guide VNE2059
6 Screw BMZ26P040FMC 26 PU Holder VNL1715
7 Gear Pulley VNL1662 27 SW Lever C VNL1714
8 Rubber Belt VEB1184 NSP 28 LCSB Assy VWG1795
9 Housing Assy (3P) VKP2137 NSP 29 DCSB Assy VWG1794
10 Lever Switch DSK1003 30 FC Arm Spring VBH1272
11 Middle Gear VNL1720 31 FC Arm VNL1713
12 Turn Panel Assy VXA2337 32. Tilt Shaft VLL1175
13 Gears VNL1719 33 ~E Ring YES0FUC
14 Turn Cam Gear VNL1718 34 Washer WA42D080D050
15 Swing Plate Assy VXA2289 35 Washer WT26D070D050
16 Turn Lever Assy VXA2292 36 Screw PMA26P060FMC
17 Turn Plate Assy VXA2290 37 Cushion VEC1917
18 PUFPC-B VNP1583 38 Tube VEB1273
19 Flexible Cable (26P) VDA1653 39 Binder Z09-056
20 Connector Assy PGO2KK-E10
2.9 DVD CARRIAGE ASSY 2.10 CLD CARRIAGE ASSY
This part is no service part.
@
DVD
CARRIAGE
ASSY
PARTS
LIST
This part is no service part.
® CLD CARRIAGE ASSY PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 CA Gear (A) VNL1782 1 CA Gear (A) VNL1782
2 CA Gear B Assy VXX2471 2 CA Gear (B} VNL1639
3 Slider Motor Assy VXX2472 3 Slider Motor Assy VXX2472
4 Motor Holder VNL1779 4 Motor Holder VNL1779
5 Thrust Holder VBK1058 5 Thrust Holder VBK1058
6 CA Guide B VNL1721 6 Screw PBZ20P0S0FMC
7 Screw BBZ20P050FZK 7 Screw PMA20P033FUC
8 Screw PMA20P033FUC
15

1
DVL-909
3. SCHEMATIC DIAGRAM
3.1 OVERALL WIRING DIAGRAM, LMSB, PKSB, FG, CNNB, TNMB, DCSB, LCSB
AND BISB ASSEMBLIES
JCKB ASSY
VWV1578 : WY, WY/RD vrs Ror +My
lear oar |
VWV1579 : RL, RAM, owen Oe ee 5
ISELDSP. CLD A
@
ix
RD/RA,
RD/RC
ogete
——+—
Beale
®
Dolby
aar
ge!
ta!
oe
ns)
eilhy
pieissl
os
<a
®
Bee
one
=
oe
RRL 1/3 - A 3/3 @ Sseoxe 5 —orrere 18 |
eet
88
(Re el ee a) CLDM ASSY Meiers NABSW. on
te ot aha poet
: VWS1332 : WY, WY/RD — ®
)
WY,
WY/RD
1
‘WY,
—
os
;
ONLY
1
VWS1331
:
RL,
RAM,
:
aay —!
ee ee an “RDIRA,RDIRC ogy ef
M
RLRAMRD/RA
and
RDRC
ONLY
|
21Msb0
<a
ws
|)
[e) ont? EE 19 gcae----- ===!
DMYC
ASSY
——
ore?
@
lan
8)
@—
pvort
>i
ovo_IN}
@
®
Opeor
———+—s0r_
0
VWV1584 : WY, WY/RD oog=— "0°
O—eesv
enn
¢
@|
oe
@
(Ao aa Fa.
@—eroovmeo
++
e)
®jes—t
15°
1/2
=
Tek
2/2
||P
6,
aca
+
ae
I
a@—
ee
«
3)
1596 : ‘ ‘ et’se____ T
e epee < @
RD/RA,
RD/RC
|e:
‘
a®
mov
eh
te’
[Dos
<
a
GND.
3)
@=:——_+——@ oVOLE
O=
Ber
®
so
ie
oo — 85 a9
SEPARATE
jo
pecH
>
®5
ae
@)
ose
+
19g
key.
1a)
CO ess" o oes 5 oe
oP
ene
x
@>5
VMUTE
TTE
oe
Some
hiee
Bee
o=--4
ee
I
Cows
11
[s2—lo
I
coast
la
gree]
y
|
eo
out
T
I
-
|
foo]
1
=
a ® 0}
1 Sa
i
Tovey
I
[oor
19
I
Canes
jRL,RAM,
[gfe
14
y
[22
1
oor
jRD/RA,RDIRC jor —— 1 | | —fo i tee,
ONLY
(er
|
Sweev
I ray. | ae ! Oe
o—
|
9
I
@—
exo
Gl cerren 204 te oe
een ee oe I Oar
ee
1
1
[com
1g
I
Cass
———
ee
|
[aves
cue
i a a aaah aw ats opp ages Palela oralareler
1 WY, WY/RD ONLY | 524
at I read adyd
: I
l
, agi
l
it [ej eos
e
1
>
I +1ev_STUS &
1 i
1
SCRB
ASSY
2
:
acceetice
I SEBS SisZiele
;
VWV1470
=
Is
:
i
a ee dy 5h SS So fall I
16
1 a 2 - 3 = 4
Peel ae
® |@
®@O®O@Oeee
SR IN
SR OUT
AuTo
PAL VIDEO CD MODE
cnvez
cNga3

8
DVL-909
Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".
=: RF SIGNAL ROUTE
ey (2,: FOCUS SERVO LOOP LINE
Me ass q | oer (4: TRACKING SERVO LOOP LINE
DCSBASSY} $4: SLIDER SERVO LOOP LINE
vwei79s GS er ywa1794
2 3 3 SeerHc sy gree KS. SLIDER MOTOR x
OSHS (exc) I 'S$2B-PH-K-S rat (8
CN904 ec CN903. ore
SLR278-107 52030-2310 aurat + Babe
a) Ho Otter] > O £3 tye
Saeeey— [= Ol — Oa ache |® re
calla TRKRTN Oo a FRK_RIN, a We C
reser to Sens -
@I nc FCSDRV ‘4 © Fes ORV | ¢) weet
(@—]
ano0
INNER
IT
@|_
OUTER
@
el
ill
FOR
®
V+sD
OUTER,
®'
©
TNNER.
(Os
a oss Tee tS TE eIOS
As-2020
|S)
ore
wwe
1
eX
wae
|e
a re HD Bo °F 15 eo cre Sal
aa
ee
3
|e
al
a
[
few
OEIC
24 oss et = es
13-
[s/s
es
ect
toot
an
=
Seat
= 7 ee Oa ee
= @ Zar ate ie. als Fatt
DVDM
ASSY
fe
aia
alte
eS"
/A\
LD
CARRIAGE
ASSY
Se
S
ere"
VWT1144
lee
VWS1328
a
prea CNNB ASSY
ontes|
rises
SLR26R-1C7
VwG1792
$2080-2610,
rs
ea — De Relea
es 8 a
me - 5° ose — Pe
@ Ey ® jo le
ie & Me of £ oa
eo. a OHeas 8
@
ae
+c)
@—
G)
Oe
—$§$
vee
a)
«
Orvee
G|
Ke wee ae a
pee
xD
ae
@wo—12,
®
FECEBRT
°c)
@—-
=o
!
)
oF tA ——1 0 Bus Hes
© Poh FOCSRTN. @ GIN @ ro) GEN (Fy
fo)
Mes
Seer.
a)
us
le
ae
®
EN
is
l
on
fo
a5
eens
®
~
®
(SUDER
fe
TEST
®
OER
18
@
cores
@
MOTOR
wee
® (S} SLORF @ Sh Ss SLORF ® 'S), au
i Ors) SLORR ‘e oS @t-stome | Of sas aN j
Ko
®
@ @
@
r
HT]
oes
|
ee
A\
DVD
CARRIAGE
ASSY
VWT1146
©
O
MSWB
ASSY
LOADING
MOTOR
ASSY
“eg VWG1895 TITAS afer
TE
rs
8
Sw3
3)
SW3
ee
a
en
Ste)
ne
Sw
@|
Swi
700
i
re
=
>
ONTO3
AN
°
jaa
4
ee
6)
ne
coezea
E
uot
[g]__=2¥
|
QB
emerge
LMSBASSY
=}
og}
3}
Vraten
|
Ofrauen
el
@)
<
ral
fz.
VWG1554
rar
[©
aires
ba
POWER_ON
ba
ca
NEUTRAL
|
a
S204
4.1045
| _ sv a) & ~ Ss 5) 2
O
sxe
®|
2D
pave
Py
if
Ho
Op | OF |e pmo 2/006} _O068
@— 2 | fa ea [Se ooren Guat
© ao i) as eSpe INNER o Faure ak
jo}
o|
&s
|o—e™
ao
{5
@tee
sell
|
FG
ASSY
as
5
Bes
pee
VWG1556
a= fa fg [eke Biba
o-#©
0)
eae
PKSB ASSY
VWG1555
<<] ons =
TNMB ASSY| | BISB ASSY
1 [
seg
ee
DILB
ASSY
wets,
|
auiat7e6
———)
VWG1894
4s
saris
1H}
Ore
Te
L
Fae]
O-Kc
sl
Orvis
@
as|
2
Se0t
eel se——15®| FLKB ASSY My
@
Srsst_——1g
|
VWG1800:
WY,
WY/RD
:
=
ort
see,
VWG1889
:
RL
PWSB
ASSY
elle
+—@
7
Q Orit —1©.5, VWG1935 : RAM cae oe waves 8 © 2
ey
VWG1936
:
RD/RA,
RD/AG
[Cotes
—
SS
momoMs
Cnet
oc
=
Pe
@-
{see
arfS|
VWG1E93:
Zilolots
StS
Sd
j
TRL,
RAM,
RD/RA,
RD/RC
hele

1
DVL-909

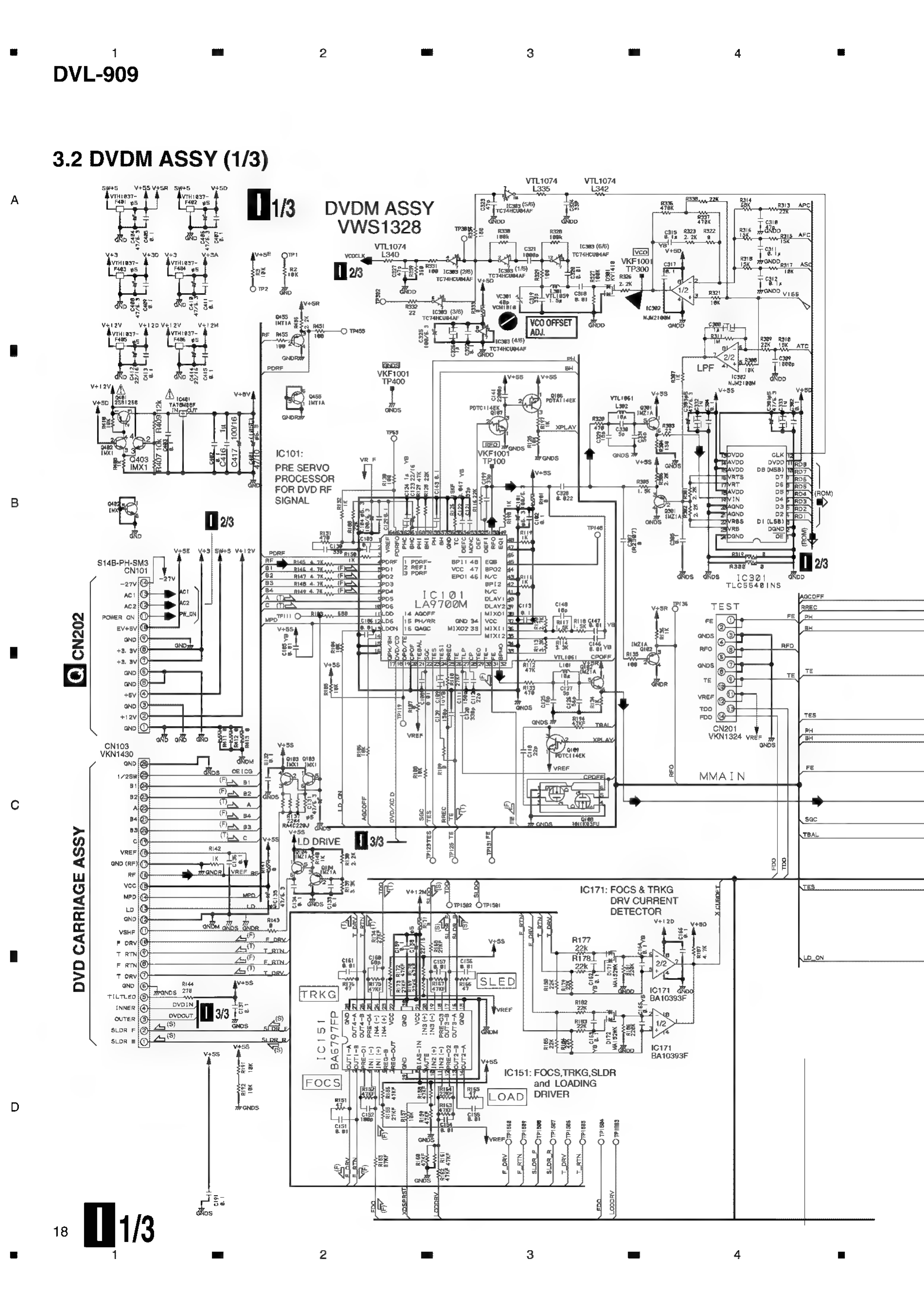

3.2 DVDM ASSY (1/3)
v+lay
61
vesp [2881256
2s
veey
Raon 2k
ve. 3.
7 1
C417 100/16
-27v
act
acz
POWER ON
Le] cn202
CN103
VKN1430
‘GND
172801
a1
82]
A
Ba
83)
cl
vrer|
GND (RF)
RE
vee
eo
Lo
‘GNo
VsHE
orv
RTM
RTM
ORV
ano
TILTLEO
INNER
4047
DVD CARRIAGE ASSY
OUTER
SLOR F
SLOR R
PDSOSOPOSDSOSOSSSSOISSSO®
®
= Ses
| aranos 278
|| Rie
GNOS
ovpouT,
a)
Ss)
Vass
18
Vass
RT
19K
Rise
10K
GNDS
VWS1328
VTL1074
veoe.s
L340
DVDM ASSY
VTL1074 VTL1074
L335 is42
tc383
(6/6)
TOT4HCUREAr
Des
ress
455
) Rati
oxo
IC101:
ver
PRE SERVO
PROCESSOR
FOR
DVD
RF
ROM)
SIGNAL Bile
aE pr
a
Bhea)
Rist = =
4 [c183_
I
PORE a
ar bp eee
62 ner 2 (ror ceo asl nce
B3
RAG
4.
r
3
BPI2
Bt
rar
we
AO
I¢1@l
et
3
LAST@ZOM
—oeavel
fers]
cae
TEST
ca
wool!
imide
|is
muon
ano
34
|
vec”
RETEGRED
[alls
]ane
gay
«|
Oy
Fe ee
V+5S,
je.
Of
DON
|16
QAGC
M1XO2
33|
MIXIT
?
+,
5k
6
81}
¥!
eo
4
@ see. Maxi onos
gs
&
ue oe
eet
Malle
arn
stl| BRoget Put, ebeg too i, tee wee
vss
tiie
Biss
Sati
iol
anos
|
_
@
it ft dek fll &, Te Meie, ao LE
835 * aa “les
aE aE i "Re Bx veer Ort
ie]
3
GNos
&
cd
Ma
00
|
*
fo 4] [4 ews Bit mo =
cN201¥ oF
veer
VKN1324
veer
i
it
By
Leg
om
ones
85
fous
oes
am
3
Frc
N4EK
“
ee
el
tr
Ss)
VREF
2
Fe
ae |= & = MMAIN
al be xy > >
gel
Feb
2
zi
soe
ef
Fy
BAL
aL q
3
4s ge
ver? IC171: FOCS & TRKG 8
seine Onisai DRV CURRENT
- DETECTOR
i
As
Ve120
v4a0
gah) a a5
Bile lon R177, =
Buk
228
vied
22k
£
BE
Rize.
os
ed
Loon,
se Sat [ea oak] [ee sox 22
ES fi 5k SR
mys}
|
fevrst
2]
2
eT)
Paige
SLED
8%
bsg
io
ci - Ot
ERKG - a BAtose3
a feds
‘)
ee
589
ip
WRT
US
ee
1
pe 8x: gs £8
NB)
OD
ERG
eos
i171
of
ess
BA10393F
a
5 IC 151: FOCS, TRKG,SLDR
Focs didn See sm and LOADING
a #8 OAD] DRIVER
ae ica
Soa| F28 Bs Se ee L. Rate ce
33 N =e Be RE 8B 8 8
or
iS
rer’
BEB
ER
-
se
|
suze
zed
adE
Sq are F* = a as
ak BE
z
& 8
2 §
2 = 3 = 4

I]
5
=
6
=
7
=
8
,
882
2%
Rici:
@
:
RF
SIGNAL
ROUTE
ret
FOCUS
SERVO
LOOP
LINE
1c506 hes
g EEE 5 & MECHANISM
oN: TRACKING
SERVO LOOP LINE
TO74VHCT245FT
Jf
CONTROL
Or
.
P
LINE
=
NICRGCOMPUTE
ves
:
SLIDER
SERVO
LOO!
FOR
DVD
vi80
;
See
1C503
be
wr
imozzeu
eee
[_soranceraar
1csa2
=e
2 fd
244s
i aa
fe
ve
sAM2B256SLMx70
TY das
tS
ine
ks
wt
SE
ey
ue
ter
eral
pes,
ee
ERHE
2
8:
wa0s_[
405
25
|2
MGS)
yf
24
008
soi
wate
13
De.
D4
a
Mas
O56.
ADS
ADI
MAL
Bhp
aif
2
C502
Lad
WADI.
D3
93]
Mas
Nias
ADS:
‘aD12
MAIZ
a
it
ot
MAD
D2
|
wae
Wad
AD4
ADIS
MALS.
MADE
DI
a
CE
|
MRD
:
4
BaRaReb
esas
NG
y
BE
supers,
woe
[doe cola
88
Nres
Ae
sa
fae
jo
RAsozz8s
Fad
°R
eS
Szu
sre
See
No
cx
wat
ADt
xMcse
Soko.
ai
ae
8
ie
gts
[woe
sal
aoe
o7
fe}
saan
of
aie
Som
wom
te
|
[atthe
a.
me
ree
ie
xeLAY
|20VD/xCDLODPOS
47]
YP
}
/~
TCO74VHC20FT
D2
pe
wan
AGCOFF
R505
Xceusy
'3AGCOFF
=
AVSS45]
sot
V+50
GND
ieee
vss
C501
yoo
%
pe
RAAG
2204
Nee
<i
fn
Mees
2
te
BS
wot
PD4B89A
pneiaS
fei]
assy
ee
Te
ARS
swese
MAO?
lis
vaps
__ASTA34|
SHAKE
ae
=i
oo
256K
SRAM
MAD
|
16
MADG
xDS:
sBsY
iF
a
MAIO
a
XLICS
4
XRESET
aSTbI
le
vie
i
1
gveso
a
F
H
ree
a
ves
yeaa
i
.
Bs
ane
sa
rep
ha |
R504
1C505(1/2)
ya
‘jasctasy
3 3
TC74VHC139ET
yah?
588
aid
Jesos(2/2)
ee
REE
o
33'S
Tora
ASOT
RAACIO3U
o
3/3
om
"en
FSX,EFLG,SLDPOS,
sy
ore
gue
gue
.
i
7k
DVDPRK,SHAKE,
oF
E
SCKI,SSI1,SS01,CLD
(c2a2
>
C287.
=,
a
|
NV /XRR
at
A
cal
(cass
ag,
Ves
ves
XRESET,SBSY,PW,
-
T
i
pr
oyssd
8
:
xavier
BY
SFSY,SBCK,MON,
ne
C2F,FG
72839
GNos’
8
R207
nal
vss
pt
g.
5
‘ee
°
Toa
Xi
iF
"|
B89]
47K
xeLAY
T
ge
8 &
TE
1
22KF
H
7
‘came
id
iJ
(DD.
fa
mac
HN
“ee
5
eee
o”
Rel.abos
%
ee
-
Gost
|
S58
j
cas
feo
4
noe
,
1221
apoE SLOG >Tgkze
—
Paeliee
cee
pec
Rega
gagse*
d
ae
nF
:
&
Ecawear
FE
4
R226
Be
PCK
¢)
12095
ee
$
wee
|
|&s
Pip
septcisr
32
AE
Pn
8
an
i]
oy
Lt
33
rer
q
e.
i
be
Bi
i
Leot
=a
Eye
kz
cbereses
(C201
be
Ss"
Ue
open
LC78650E-P
poxisre
eae
wa
aBie
Nos
4K
Ei
coer
ne
Soe
=
UXO | 49 FDO.
veoc a2 | Pp0a
es
BAL
aS
@i8
ittoo
||sa
00
warrr
as
|
Po02
sipo
25/8)
Za)
[hiseolane
roo
8
5
Rog
8
5
woo
ch
roo
afl
rae
Ones
Pe
eeeee
RNS
F
Sege
Vo
rato
goeke,
g
UL
TRS.
Reese
eR
TERR
BR
eo
women
ur
BASRA
ES
frei
“ih
No
i
a
je
oa
B
ele
a ae
5
os”
vred
flee
&
=
g
Te
2
A
LD-ON}
yess
yvess!
SPQO
1
|
33
§
avo
sper
C271,2200p
R271 470k
oR
TiLte
bia
a
aes
T"
ve.
vap
Be
voRe
CLDFG
00
De
es
*: 10885 e
wet
a

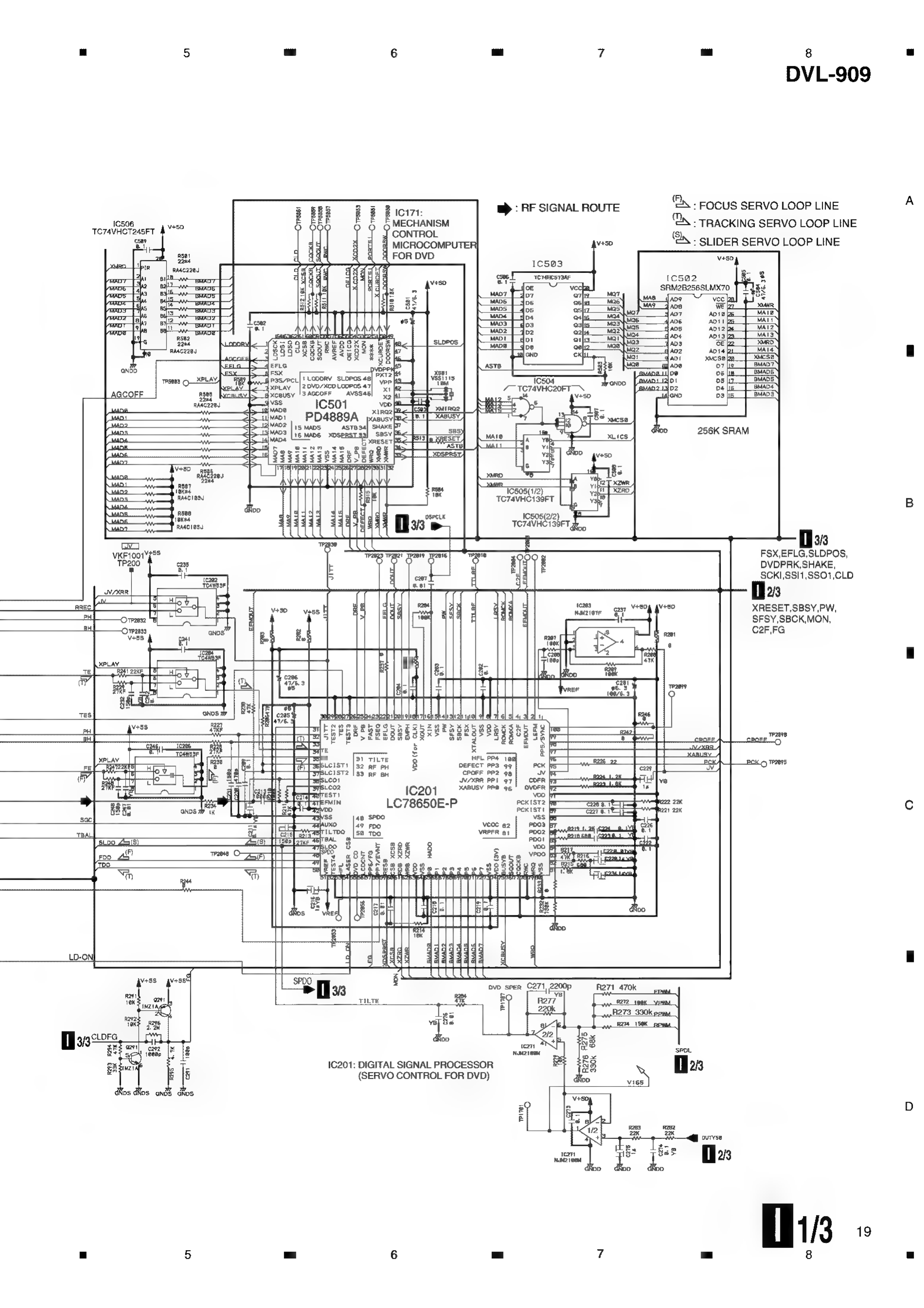

1201:
DIGITAL
SIGNAL
PROCESSOR
28
5 [s
(SERVO CONTROL FOR DVD)
ips
Bos
ondS
Ros
19
rT]
5
=
6
=

1 oa 2 =
DVL-909
3.3 DVDM ASSY (2/3)
a|8 q veso
may 2 dlelale| 2
RO
SRE,
Bey AAPGRNQAeANaA 4s 35
peer adeg cole
IC6Q4 WORK SRAM”
Tes
g2its
TT
sey
—s
PGM 8
VYWIS36—
MBM29F 8QOT-
IMFLASH
1C682 GUIROM
PDK@26A
—~9OPF-P
MBM29F 8@8T—9@PF—P
TC74VHC139FT
20
O 3s
Iceosqiay FF
XRD.
R606
XQ19£P813/1ROS] 112
SSck [PB12/SCKe] 111
FXO EPBII] 110
RXD [B10] 109
IC6@}
PD3381A
SH7034
BI XCS3(XCSLI
82 VSS
53 [PAG] xCS DOLVY
54 EPAIJDOLY CD
BS EPAZ] XCSE (XCSAVI)
5S (PAB) XWAIT
R607
XDVRST {P87}
c2r tres}
DIBLK TPES! as]
ras]
|| Be
DVDM ASSY
VWS1328
Dhis
C2F,XRESET
Diss
XCSDOLV,DOLV-CD,XWRL,XWRH,
XRD,XLT3,XAMUTE,XDREQ1,CDGM,
HCPUCK,IR,SEL-IR,XDVRST1,
XAVIRQO,48/X44,HIBSEL,XCS6,
XDACK1,NAP SW,C2F
R182
lakes
RASCIO3U
vesD
R79!
i pade20y i
po TT] a
fom 1@| x0
[sore
1@) crs
“EB onD
Ne
re CN106
VENI
MAIN
Oss
ADDRESS
‘A2-A10
ss
DATA
Dis
vpso ves0 vee
‘Alig em
= 2 ‘OTF G67
E
eo
\C601: SYSTEM
CONTROL
MICROCOMPUTER
Q771,Q772:
PDTC114TK
eNDD GNDoaNGo
atop
