MJ-L5

1. SAFETY INFORMATION ...................................... 2

2. EXPLODED VIEWS AND PARTS LIST................ 3

3. SCHEMATIC DIAGRAM ..................................... 14

4. PCB CONNECTION DIAGRAM.......................... 32

5. PCB PARTS LIST ............................................... 44

6. ADJUSTMENT .................................................... 49

CONTENTS 7. GENERAL INFORMATION ................................ 59

7.1 IC ................................................................. 59

7.2 DIAGNOSIS................................................. 75

7.3 DISASSEMBLY ........................................... 77

7.4 BLOCK DIAGRAM....................................... 82

8. PANEL FACILITIES AND SPECIFICATIONS .... 84

T – ZZY DEC. 1998 Printed in Japan

SP-L5

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

SURROUND PROCESSOR

•This products is a system component. It combined the following components.

MINIDISC RECORDER.................... MJ-L5

SURROUND PROCESSOR............. SP-L5

•This products is a system component.

For the system composition, refer to the service manual RRV2080 for XC-L5.

•This product does not operate normally by itself. Please connect it to the STEREO CD RECEIVER XC-L5,

for adjustment and operation inspection. Otherwise damage may result.

DELAY

TIME SFC

MODE

MODE SFC

ON/OFF

Ÿ

DOLBYSURROUND

P R O • L O G I C

MINIDISC

ASES

7

0¶ 6

¢4

¡

•

+

–

•

1

MINIDISC RECORDER

Model

MJ-L5 SP-L5

Type Power Requirement Remarks

KUXK/CA O O AC120V

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

2

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual

do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been

trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may

void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause

cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 – Proposition 65

1. SAFETY PRECAUTIONS

The following check should be performed for the

continued protection of the customer and service

technician.

ANY MEASUREMENTS NOT WITHIN THE LIMITS

OUTLINED ABOVE ARE INDICATIVE OF A PO-

TENTIAL SHOCK HAZARD AND MUST BE COR-

RECTED BEFORE RETURNING THE APPLIANCE

TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-

ance have special safety related characteristics. These

are often not evident from visual inspection nor the

protection afforded by them necessarily can be ob-

tained by using replacement components rated for

voltage, wattage , etc. Replacement parts which have

these special safety characteristics are identified in

this Service Manual.

Electrical components having such features are

identified by marking with a on the schematics and

on the parts list in this Service Manual.

The use of a substitute replacement component which

does not have the same safety characteristics as the

PIONEER recommended replacement one, shown in

the parts list in this Service Manual, may create shock,

fire, or other hazards.

Product Safety is continuously under review and

new instructions are issued from time to time. For

the latest information, always consult the current

PIONEER Service Manual. A subscription to, or ad-

ditional copies of, PIONEER Service Manual may be

obtained at a nominal charge from PIONEER.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground

(water pipe, conduit, etc.) by connecting a leakage

current tester such as Simpson Model 229-2 or

equivalent between the earth ground and all exposed

metal parts of the appliance (input/output terminals,

screwheads, metal overlays, control shaft, etc.). Plug

the AC line cord of the appliance directly into a 120V

AC 60 Hz outlet and turn the AC power switch on. Any

current measured must not exceed 3.5 mA.

(FOR USA MODEL ONLY)

Also test with plug

reversed

(Using AC adapter

plug as required)

Device

under

test

Test all exposed

metal surfaces

Earth ground

Leakage

current

tester

Reading should

not be above

3.5 mA

AC Leakage Test

REMARQUE

(POUR MODÈLE CANADIEN SEULEMENT)

Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les

pièces de remplacement doivent avoir la même désignation.

NOTICE

(FOR CANADIAN MODEL ONLY)

Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

IMPORTANT

THIS PIONEER APPARATUS CONTAINS

LASER OF CLASS 1.

SERVICING OPERATION OF THE APPARATUS

SHOULD BE DONE BY A SPECIALLY

INSTRUTED PERSON.

LASER DIODE CHARACTERISTICS

MAXIMUM OUTPUT POWER: 32 mw

WAVELENGTH: 785 nm

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

3

MJ-L5, SP-L5

1

2(1/2)

3(1/2)

3(2/2)

4

7

98

6

5

2(2/2)

2.1 MINIDISC RECORDER (MJ-L5)

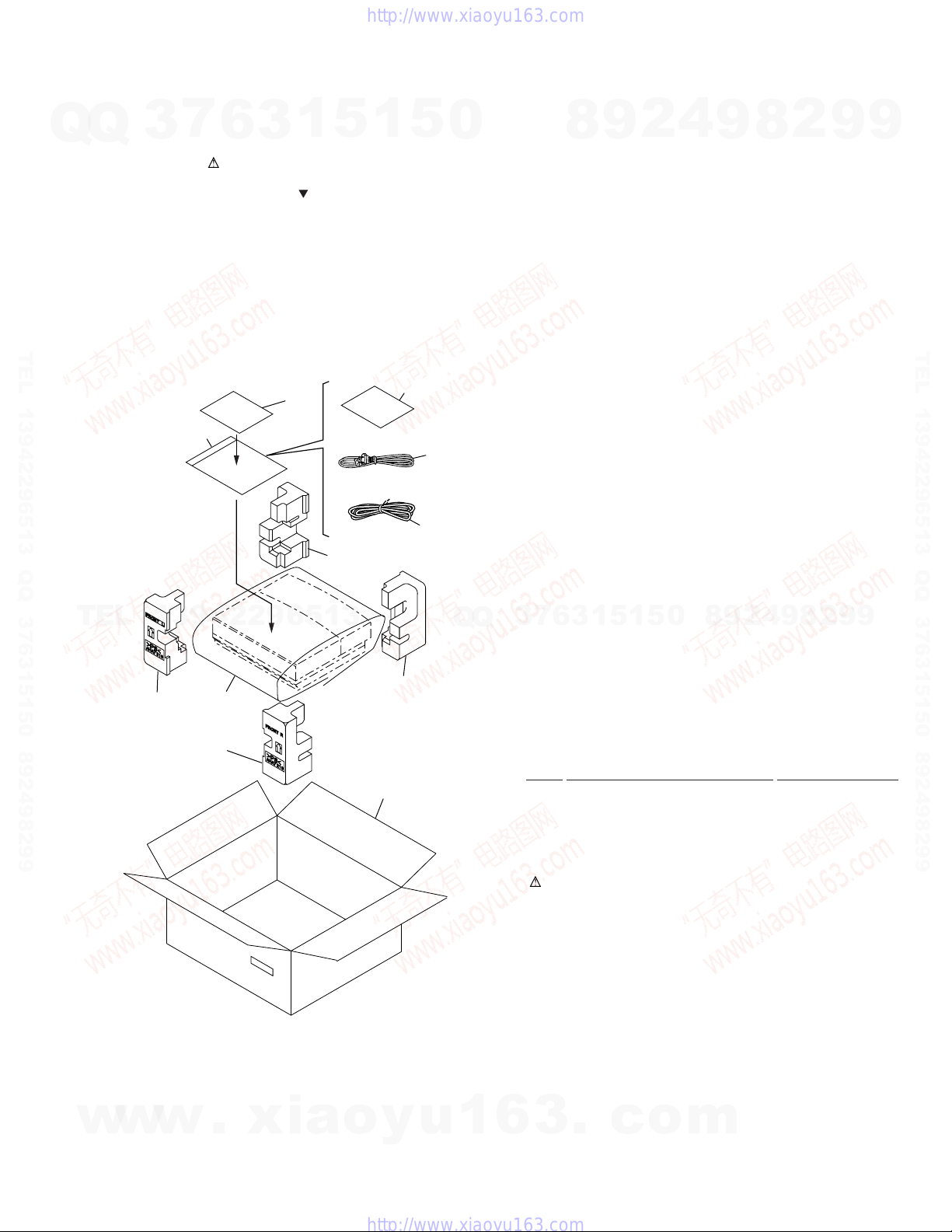

2.1.1 PACKING

PACKING PARTS LIST

Mark No. Description Part No.

2. EXPLODED VIEWS AND PARTS LIST

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•Screws adjacent to mark on the product are used for disassembly.

1 Packing Case AHD7735

2 Pad F AHA7219

3 Pad R AHA7220

4 Sheet (750×600×0.5) Z23-007

5 Optical Fiber Cable RKX1031

6 Power Cord ADG7022

7 Polyethylene Bag Z21-038

(0.03×230×340)

8 Operating Instructions ARE7207

(English/French)

NSP 9 Warranty Card ARY7023

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

4

MJ-L5, SP-L5

Refer to

"2.1.3 TOP PANEL ASSY".

25

15

14

13

11

10

8

9

25 16

13

12

25

21

25

24

27

6

25

5

226

26

17

18

34

1

25

16

19

25

20

16

7

Refer to

"2.1.4 MD MECHANISM ASSY".

23

22

26

31 30

28

29

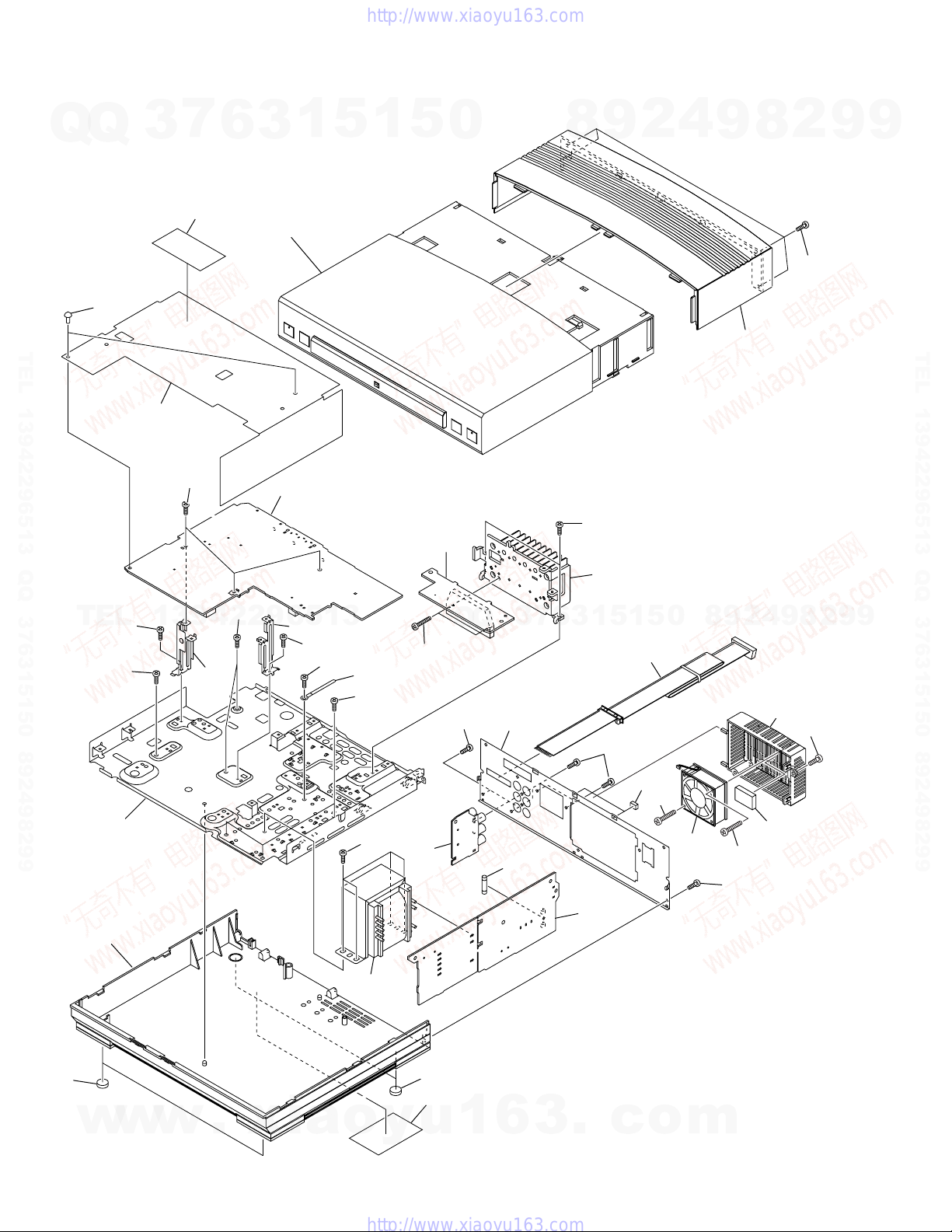

2.1.2 EXTERIOR

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

5

MJ-L5, SP-L5

EXTERIOR PARTS LIST

Mark No. Description Part No.

1 MD MAIN Unit AWU7125

2 MD TRANS Unit AWU7126

3 MD REG1 Unit AWU7154

4 MD REG2 Unit AWU7155

5 Fuse (FU1 : 400mA/125V) VEK1008

6 Power Transformer (T1) ATT7036

NSP 7 MD MECHANISM Assy AXA7069

8 Bottom Base AMA7006

9 Leg AEB7090

NSP 10 Bottom Plate ANF7010

11 MD Base ANG7191

12 30P F•F•C/30V ADD7097

13 Float Rubber REB1328

14 Float Screw RBA1133

15 MD Shield ANG7192

Mark No. Description Part No.

16 Angle ANG7189

17 Rear Panel ANC7802

18 Cord With Plug (J1) ADE7026

19 Shield Barrier AEC7164

20 Rivet VEC1178

21 Earth Plate ANG7168

22 Bonnet AMA7007

23 ••••••••

24 Screw BPZ30P060FZK

25 Screw BBZ30P060FMC

26 Screw VPZ30P080FZK

27 Screw BBZ40P060FMC

28 65 Label ARW7050

29 Barrier MD AEC7184

NSP 30 Fuse Card AAX7691

NSP 31 Fuse Caution B AAX7699

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

6

MJ-L5, SP-L5

9

12

8(1/2)

8(2/2)

2

7

5

6

4

3

10

1

11

12

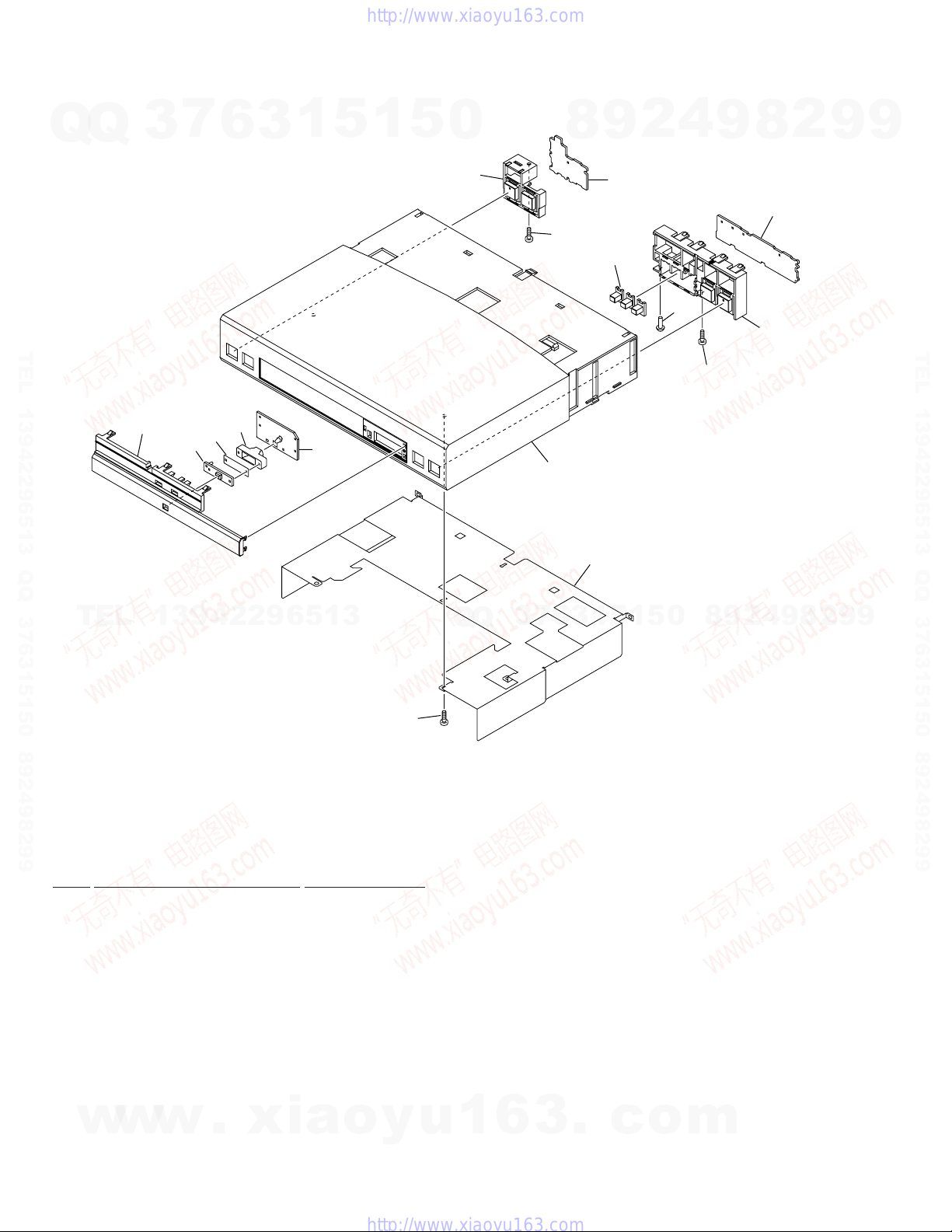

2.1.3 TOP PANEL ASSY

•TOP PANEL ASSY PARTS LIST

Mark No. Description Part No.

1 MD KEYR Unit AWU7108

2 MD KEYL Unit AWU7109

3 Top Panel AMB7515

4 Sub Panel MD AAP7049

5 MD Flap AAN7186

6 MD Spring ABH7154

7 Flap Plate AAT7003

8 Button X Assy AWL7034

9 Sub Panel AAP7058

NSP 10 Top Plate ANK7042

11 Rivet VEC1178

12 Screw VPZ30P080FZK

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

7

MJ-L5, SP-L5

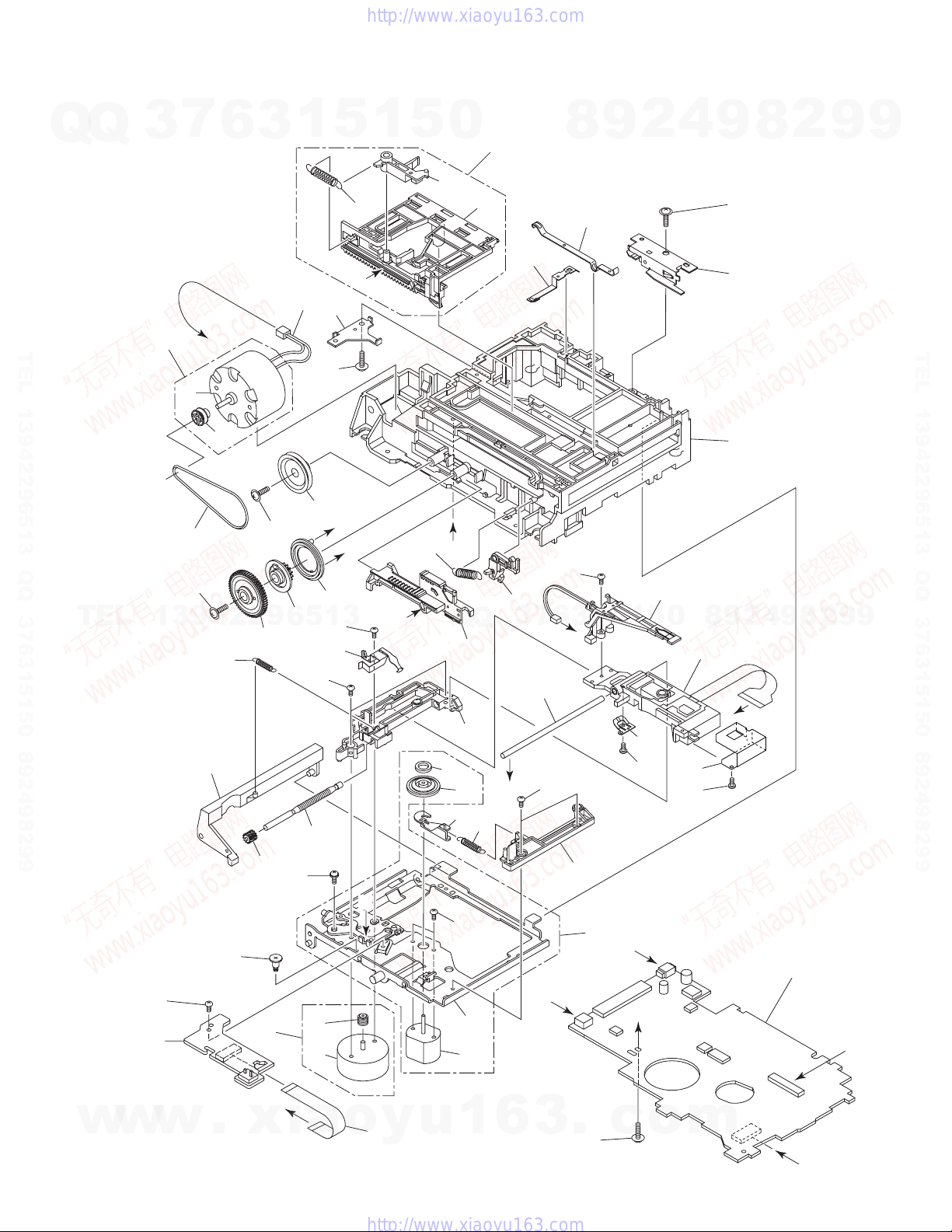

2.1.4 MD MECHANISM ASSY

49

48

40

22

42

38 43

40

33

44

31

28

32

34

40

11

5

10

17

7

6

49

37

19

21 20

18

37

16

26

15

13

14

37

12

53

52

51

A

E

F

G

H

A

B

C

D

37

8

40

24

25

39

27

41 35

36

29

3946

23

30

45

2

3

50 47

37

CN103

CN101

CN102

CN105

1

H

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

8

MJ-L5, SP-L5

•MD MECHANISM ASSY PARTS LIST

Mark No. Description Part No.

1 MD CORE MAIN Unit RWZ4326

2 MD CORE SW Unit RWZ4272

3 Lead Card 7P RDD1399

4 Lead Wire RKP1814

5 Lever Spring RBH1463

6 Clamp Spring 1 RBK1074

7 Clamp Spring 2 RBK1075

8 Loading Belt REB1329

9 Lock Plate RNE1949

10 Loading Base RNK2312

11 Under Slider RNK2314

12 Gear Pulley RNK2316

13 Drive Gear RNK2317

14 Clutch Gear RNK2318

15 Flip Disk RNK2319

16 SW Lever RNK2320

17 Shutter Assy RXA1774

NSP 18 Upper Slider Assy RXA1775

19 Eject Spring RBH1461

20 Upper Slider RNK2313

21 Carrier RNK2315

22 Screw RBA1129

23 Spindle Spring RBH1460

24 Lifter SP RBH1462

25 Screw Guide RBK1072

26 S. H. Spring RBK1073

27 Guide Shaft RLA1312

28 Lead Screw RLA1311

29 Shield Case RNE1950

30 Reference Plate RNK2306

31 S. Holder RNK2307

32 Worm Wheel RNK2309

33 Hook RNK2310

34 Head Lifter RNK2311

35 MD Head RPB1062

36 MD Pickup RWY1018

37 Screw IPZ20P080FMC

38 Screw JFZ17P020FZK

39 Screw JGZ14P020FMC

40 Screw JGZ17P030FMC

41 Screw JGZ17P040FZK

42 Screw PMB20P040FMC

43 Servo Base Assy REA1283

NSP 44 Clamp Magnet RMF1002

NSP 45 Servo Base RNE1946

NSP 46 Disc Table RNK2305

NSP 47 Spindle Motor RXM1091

48 Carriage Motor Assy REA1284

49 Worm RNK2308

NSP 50 Carriage Motor RXM1090

51 Loading Motor Assy REA1285

52 DC Motor /0.75W PXM1010

53 CA Pulley (1) VNL1197

Mark No. Description Part No.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

9

MJ-L5, SP-L5

8

6

1

2(1/2)

3(1/2)

3(2/2)

4

7

10 911

5

2(2/2)

2.2 SURROUND PROCESSOR (SP-L5)

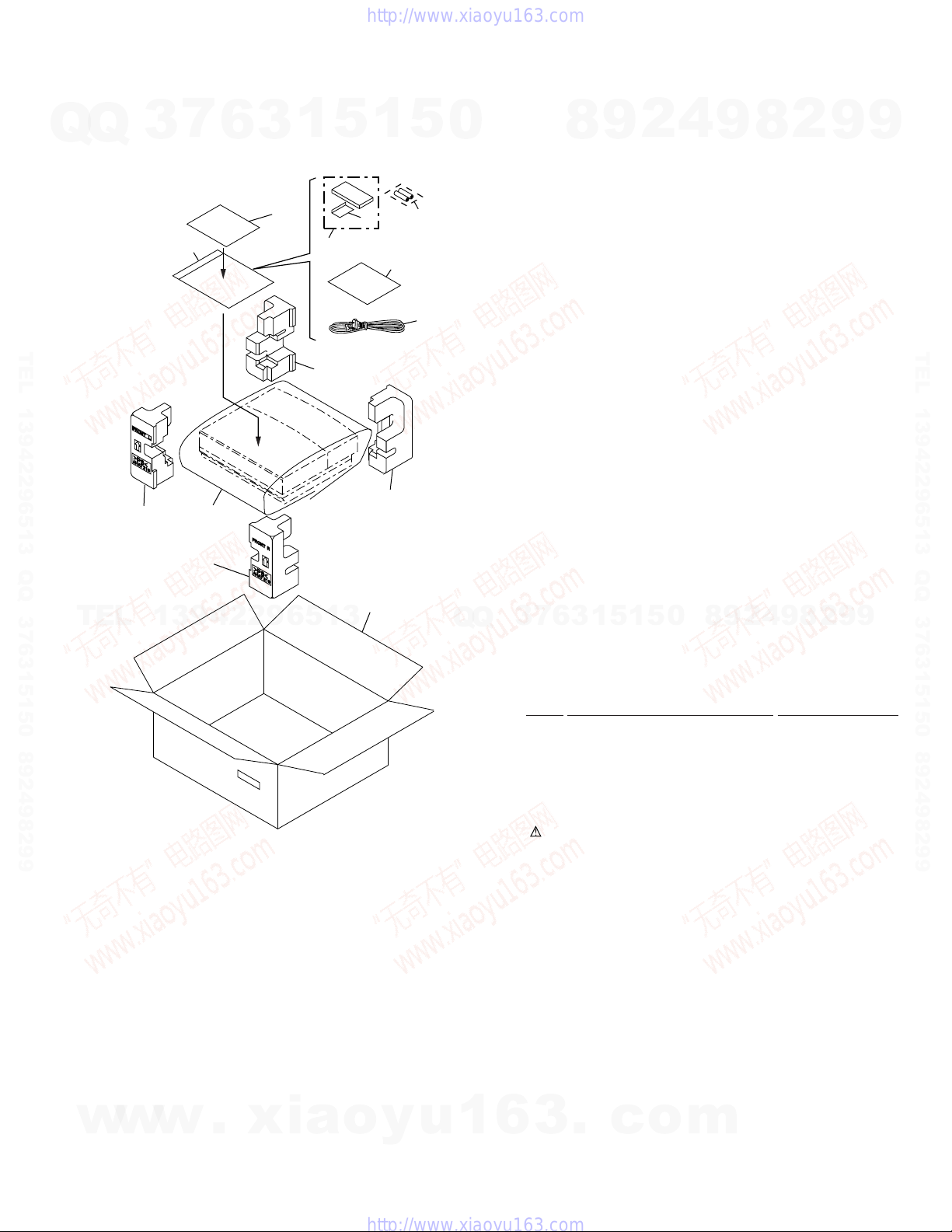

2.2.1 PACKING

PACKING PARTS LIST

Mark No. Description Part No.

1 Packing Case AHD7736

2 Pad F AHA7219

3 Pad R AHA7220

4 Sheet (750×600×0.5) Z23-007

5 Remote Control Unit AXD7171

(CU-SP005)

6 Power Cord ADG7022

7 Polyethylene Bag Z21-038

(0.03×230×340)

8 Operating Instructions ARE7206

(English/French)

9 Battery Cover AZA7050

NSP 10 Warranty Card ARY7023

NSP 11 Dry Cell Battery (R03,AAA) VEM1018

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

10

MJ-L5, SP-L5

Refer to

"2.2.3 TOP PANEL ASSY".

17

16

21

20

10

8

27 19

22

20

23

7

15

24 13

24

45

3

2

21

12

6

21

11

1

25

9

18

24

30

26 28

24

14

29

2.2.2 EXTERIOR

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

11

MJ-L5, SP-L5

(1) EXTERIOR PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 PRO MAIN Unit AWU7122

2 PRO AMP Unit AWU7102

3 PRO TRANS Unit AWU7124

4 PRO AUX Unit AWU7146

5 Fuse (FU1 : 1.6A/125V) REK1077

6 Power Transformer (T) ATS7239

NSP 7 Heat Sink ANH7107

8 Bottom Base AMA7009

9 Leg AEB7090

NSP 10 Bottom Plate ANF7010

11 Angle ANG7189

12 Cord Clamper RNH-184

13 Rear Panel ANC7803

14 Rear Case AMR7207

15 Cord With Plug ADE7026

16 Top Barrier AEC7151

17 Rivet VEC1178

18 Bonnet AMA7007

19 Name Label ARW7047

20 Screw BPZ30P060FZK

21 Screw BBZ30P060FMC

22 Screw BBZ40P060FMC

23 Screw BBZ30P140FMC

24 Screw VPZ30P080FZK

25 65 Label ARW7050

26 DC Fan Motor AXM7003

27 Front Leg AEB7102

28 F Cushion AEB7127

29 Cussion Rubber AEB7068

30 Screw BPZ30P300FMC

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

12

MJ-L5, SP-L5

5678

3

11

10

4

1

2

9(3/3)

9(2/3)

9(1/3)

11

12

2.2.3 TOP PANEL ASSY

•TOP PANEL ASSY PARTS LIST

Mark No. Description Part No.

1 PRO KEYR Unit AWU7104

2 PRO KEYL Unit AWU7105

3 PRO IND Unit AWU7145

4 Top Panel AMB7516

5 Sub Panel PR AAP7050

6 Lens D AAX7640

7 Illumination Filter VEC1950

8 Illumination Holder VNK4098

9 Button X Assy AWL7035

NSP 10 Top Plate ANK7048

11 Screw VPZ30P080FZK

12 Rivet VEC1178

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

13

MJ-L5, SP-L5

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

14

A

B

C

D

1234

3. SCHEMATIC DIAGRAM

3.1 MINIDISC RECORDER (MJ-L5)

3.1.1 OVERALL CONNECTION DIAGRAM

MD MAIN UNIT

(AWU7125)

MD TRANS UNIT

(AWU7126)

D

MD REG2

UNIT

(AWU7155)

MD REG1

UNIT

(AWU7154)

E

F

MD KEYR UNIT

(AWU7108)

G

MD KEYL UNIT

(AWU7109)

H

C

1/2 -

C

2/2

(

)

AC POWER CORD

ADG7022

AC120V

VEK1008

(400mA/125V)

Power Transformer

ATT7036 (1A /125V)

AKP7032

(2.5A/250V 7A/125V)

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

15

A

B

C

D

5678

MD MECHANISM ASSY

(AXA7069)

MD CORE MAIN

UNIT

(RWZ4326)

A

MD CORE SW

UNIT

(RWZ4272)

B

CN104

RKN1039

NON-CONNECTION

STEREO CD RECEIVER (XC-L5)

or

SURROUND PROCESSOR (SP-L5)

INTERFACE

IC4240

(BU4066BCF)

JA4601

GP1F32R

IC4171

(TC74HCT08AF)

REC AMP

IC4202

(NJM4558MD)

BUFFERALC

IC4201

(NJM4558MD)

BUFFER

IC4250

(NJM4558MD)

AD/DA

CONVERTER

OUTPUT

SEL.

IC4301

(AK4520A) Q4203

(630mA/125V)

(500mA/125V)

Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

16

A

B

C

D

1234

MD CORE MAIN

UNIT

(RWZ4326)

A

MD CORE SW

UNIT

(RWZ4272)

B

LOADING MOTOR

SLED MOTOR

SPINDLE MOTOR

YELLOW

BLACK

ORANGE

BLUE

BLACK

RED

INSIDE SW

A : DISC PROTECT

B : DISC MEDIA DETECT

PICKUP

1

23

1011

8

9

AB

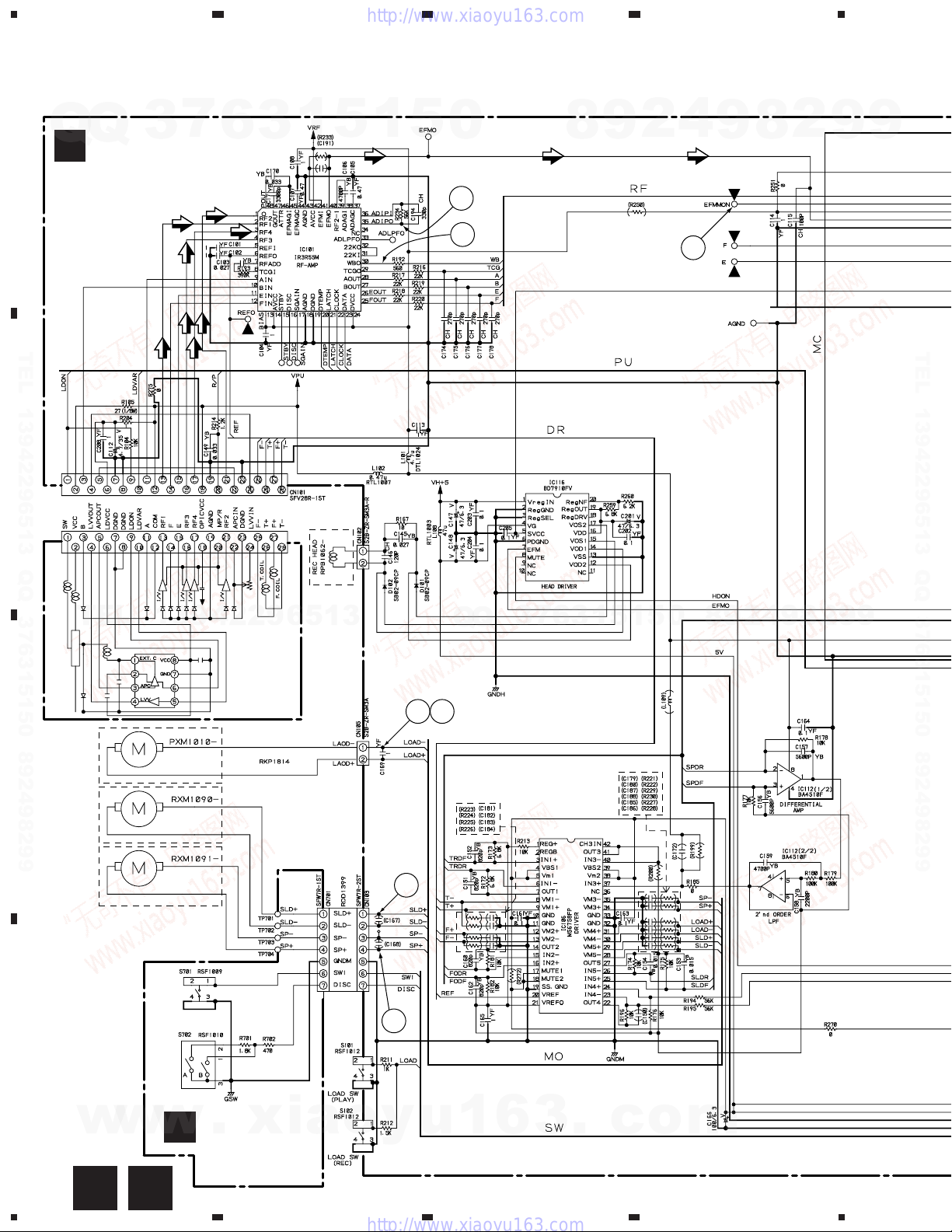

3.1.2 MD CORE MAIN and MD CORE SW UNITS

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

17

A

B

C

D

5678

(INSIDE)

C

CN4101

1/2

YB

0.01

R291–R293 : 47k

: PLAYBACK SIGNAL

: REC SIGNAL

: OUTPUT DIGITAL AUDIO SIGNAL

: INPUT DIGITAL AUDIO SIGNAL

: RF SIGNAL

SIGNAL ROUTE

6

5

7

4

AA

¶1– -are waveform numbers on pages 24 and 25.

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

18

A

B

C

D

1234

C 1/2

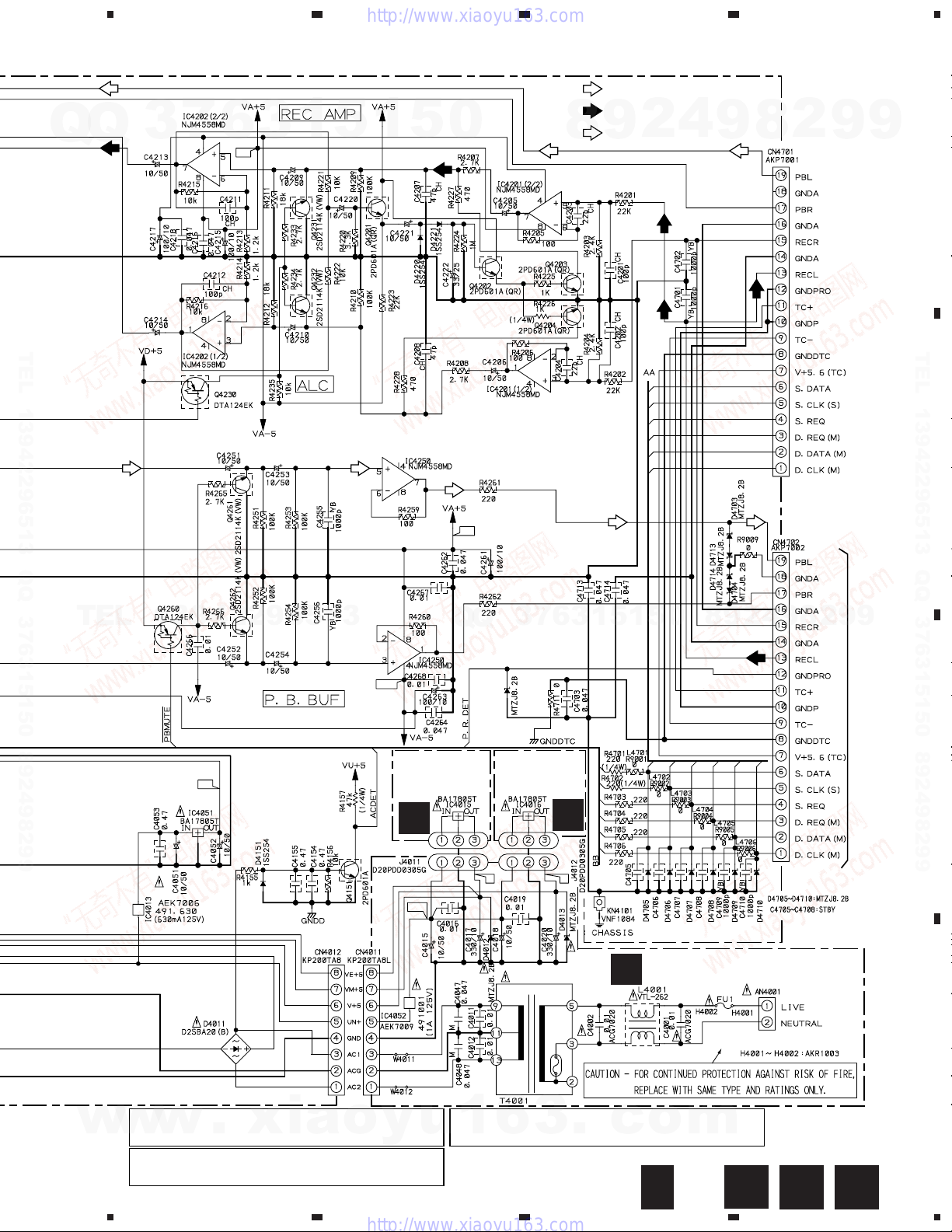

3.1.3 MD MAIN (1/2), MD TRANS, MD REG1 and MD REG2 UNITS

:

C

1/2

MD MAIN UNIT(1/2)

(AWU7125)

C

2/2

A

CN104

4.9

3.2

5

(D)

5

–4.4

4.1

3

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

19

A

B

C

D

5678

C 1/2

DEF

POWER TRANSFORMER

FU1:

VEK1008

MD REG1

UNIT

(AWU7154)

MD REG2

UNIT

(AWU7155)

E

MD TRANS UNIT

(AWU7126)

D

F

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE NO. 491.630 MFD. BY

LITTELFUSE INC. FOR IC4013(AEK7006).

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE NO. 491.500 MFD. BY

LITTELFUSE INC. FOR IC4014(AEK7005).

CAUTION : FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE NO. 491001 MFD. BY

LITTELFUSE INC. FOR IC4052(AEK7009).

NON-CONNECTION

STEREO CD RECEIVER (XC-L5)

or

SURROUND PROCESSOR (SP-L5)

4.9

–4.4

4.9

5 5

13.3

: PLAYBACK SIGNAL ROUTE

: RECORDING SIGNAL ROUTE

: DIGITAL AUDIO SIGNAL ROUTE

(D)

AKP7032

(400mA/125V)

ATT7036

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

MJ-L5, SP-L5

20

A

B

C

D

1234

C 2/2

GH

3.1.4 MD MAIN (2/2) , MD KEYR and MD KEYL UNITS

C

2/2

MD MAIN UNIT (2/2)

(AWU7125)

MD KEYL

UNIT

(AWU7109)

H

MD KEYR

UNIT

(AWU7108)

G

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Pioneer MJ-L5 User manual

Popular Mini Disc Recorder manuals by other brands
