Pioneer SD-T50W1 User manual

ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 1999
SD-T50W1
PROJECTION COLOUR TELEVISION
ARP3036
O–ZZR JULY 1999 Printed in Japan
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model
SD-T50W1 Power Requirement Remarks
WYZI7/2 AC220–240V
This service manual should be used together with the following manual(s):
RemarksOrder No.
SD-T50W1 ARP2932
Model No.

SD-T50W1
2
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES : ÷Parts marked by “ NSP ” are generally unavailable because they are not in our Master Spare Parts List.
÷The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
÷When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex. 1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by
J = 5%, and K = 10%).
560 Ω=56 ×101 =561................................................... RD1/4PU 561J
47k Ω=47 ×10 3=473 .................................................. RD1/4PU 473J
0.5 Ω=R50 ...................................................................... RN2H Â50K
1 Ω=1R0 ......................................................................... RS1P 1Â0K
Ex. 2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k Ω=562 ×10 1=5621 ........................................... RN1/4PC 5621F
÷Parts marked by are important parts which relate in X-rays radiation.
If any of these parts need to be replaced, always replace with specified parts.
÷Parts marked by ×are important parts which relate in X-rays radiation. If a failure occurs in any of these parts, replace the
printed circuit board assembly where the relevant part has already been adjusted as a working component. Do not replace the
actual part itself. If any part marked by ×is replaced, there is danger of being exposed to X-rays.
÷Reference Nos. indicate the pages and Nos. in the service manual for the base model.
CONTRAST TABLE
SD-T50W1/WYZI7/2 and SD-T50W1/SL are constructed the same except for the following:
P14–1 CONVERGENCE ASSY AWV1520 AWV1547 ∗2
P16–2 VIDEO • UCOM ASSY AWV1542 AWV1566 ∗2
NSP TUNER ASSY AWV1543 AWV1589
P14–3 TUNER ASSY AWZ6075 AWZ6155 ∗2
P14–4 R CONV DAC ASSY AWZ6076 AWZ6076
P14–5 G CONV DAC ASSY AWZ6077 AWZ6077
P14–6 B CONV DAC ASSY AWZ6078 AWZ6078
P16–7 A CONNECTOR ASSY AWZ6079 AWZ6079
P16–8 B CONNECTOR ASSY AWZ6080 AWZ6080
P14–9 C CONNECTOR ASSY AWZ6081 AWZ6081
NSP AV I/O ASSY AWV1544 AWV1567
P16–10 AV I/O ASSY AWZ6082 AWZ6121 ∗2
P15–11 FRONT CONTROL ASSY AWZ6083 AWZ6122
P16–12 AV2 ASSY AWZ6084 AWZ6084
P14–13 S TERMINAL ASSY AWZ6085 AWZ6085
NSP CRT DRIVE ASSY AWV1545 AWV1781
P16–14 AUDIO ASSY AWZ6086 AWZ6123 ∗2
P17–15 R CRT DRIVE ASSY AWZ6087 AWZ6087
P17–16 G CRT DRIVE ASSY AWZ6088 AWZ6088
P17–17 B CRT DRIVE ASSY AWZ6089 AWZ6089
P14–18 AC IN ASSY AWZ6090 AWZ6420
P16–19 Y/C ASSY AWZ6091 AWZ6091
P16–20 D CONNECTOR ASSY AWZ6092 AWZ6092
P14–21 POWER DOWN ASSY AWZ6093 AWZ6093
P14–22 RELAY DRIVE ASSY AWZ6094 AWZ6094
P16–23 POWER SUPPLY ASSY AWV1546 AWV1767 ∗2
P16–24 DIGITAL ASSY AWV1659 AWV1659
TV FRONT END AXF1085 AXF1085
RELAY ASSY Not used AWV1768 ∗1 No. 1, ∗2
Ref.
No. Remarks
SD-T50W1 SD-T50W1
SL WYZI7/2
Part No.
Mark Symbol and Description
*1: The numbers in the remarks column correspond to the numbers on the " EXPLODED VIEWS ".
*2: Refer to " 2. SCHEMATIC DIAGRAM ".

SD-T50W1
3
PACKING
P8-152 Operating Instructions (English) ARB1500 Not used
Operating Instructions Not used ARC1500
(Dutch/Swedish/Spanish/Portuguese)
Operating Instructions Not used ARE1342
(English/French/German/Italian)
P8-155 NSP Caution Label 220V ARR1002 Not used
P8-156 NSP Warranty Card ARW1020 ARY7022
P8-158 Remote Control Unit AXD1424 AXD1440
(CU-SD097) (CU-SD106)
P8-160 NSP Battery (R03, AAA) AEX–021 DCX1023
P8-165 Upper Carton AHD2846 AHD3010
NSP Caution Card Not used AAX1756
NSP Conver Caution Not used ARM1113
NSP X-Rays Approval S Not used ARY1082
NSP Schematic Diagram 1 Not used ARH1164
NSP Schematic Diagram 2 Not used ARH1165
NSP Schematic Diagram 3 Not used ARH1166
NSP Adjustment Not used ARH1157
NSP Caution Card Not used ARM1065
FRONT VIEW
P9-145 Badge AAM1068 AAM1083
REAR VIEW
P13-45 AC Power Cord ADG1109 Not used
P13-97 Spacer AEC1594 Not used
P14-57 3P Lead Wire with Housing (J10) ADX2244 ADX2273
GRILLE AND CONTROL PANEL
P15-26 Control Panel AMB2524 AMB2646
P15-58 Wire Harness C (J11) ADX2245 ADX2538
P15-143 Control Sheet AAK2668 AAK2734
CHASSIS SECTION
P16-34 Voltage Selector (S1) AKX7001 Not used
P16-56 Wire Harness B (J19) ADX2243 ADX2269
P16-70 Rear Panel ANC2276 ANC2325
OTHERS
Cabinet 50 (WOOD) AMM2604 AMM2712
Plug Cord (J20) ADE–082 ADE1157
2P Lead Wire with Housing (J12) ADX2246 Not used
3P Lead Wire with Housing (J12) Not used ADX2537 ∗2
Cut Wire (J14) ADX2248 Not used
Cut Wire (J15) ADX2249 Not used
Cut Wire (J16) ADX2250 Not used
Cut Wire (J17) ADX2251 Not used
Choke Coil (L4) Not used ATL1128 ∗1 No. 2, ∗2
Ferrite Core (L5, L6) Not used ATX1019 ∗1 No. 3, ∗2
Block Core (L7) Not used ATX1030 ∗1 No. 4, ∗2
Holder Not used ANG2130 ∗1 No. 5
Fixed Mold Not used AEC1600 ∗1 No. 6
CU Packing Case (for AC power cord) Not used AHC1029 ∗1 No. 7
NSP Release Tie Not used AEC1723 ∗1 No. 8
NSP CR Holder Not used ANG1867 ∗1 No. 9
PVC Sheet Not used AEC1792 for Mirror Case
Screw (for Bottom Rail) Not used BYC40P200FZK
Ref.
No. Remarks
SD-T50W1 SD-T50W1
SL WYZI7/2
Part No.
Mark Symbol and Description
*1: The numbers in the remarks column correspond to the numbers on the " EXPLODED VIEWS ".
*2: Refer to " 2. SCHEMATIC DIAGRAM ".

SD-T50W1
4
Rear Panel
Rear Panel
4
6
5
5
2
Screw
(BYC40P160FMC)
3
8
7
Screw (ABA1020)
Screw
(ABA1198)
Screw
(BYC40P120FZK)
Screw
(BBZ30P080FZK)
1
9
Screw
(BBZ30P080FZK)
Binder
(AEP-215)
Rear Cover
Rear Panel
EXPLODED VIEWS

SD-T50W1
5

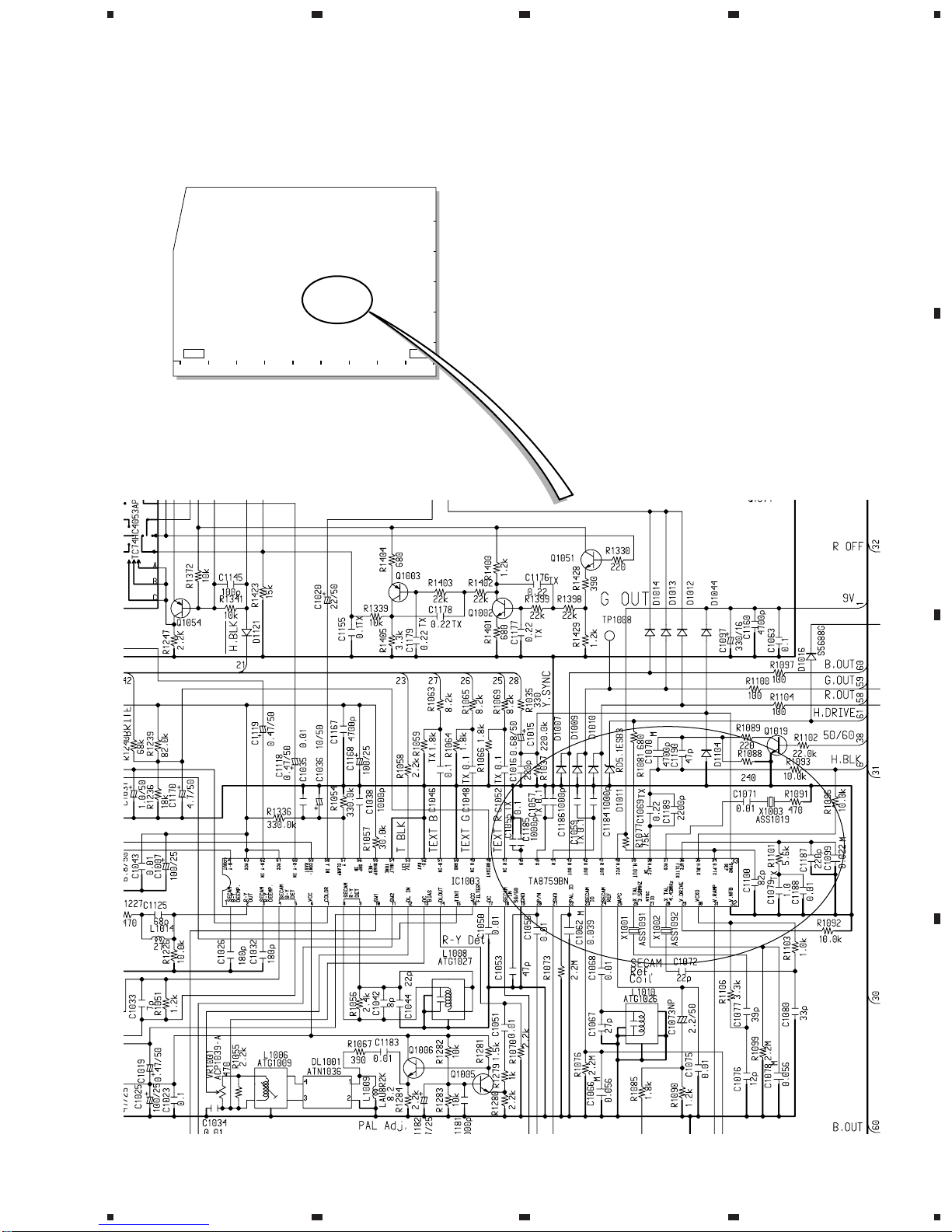

VIDEO BLOCK
C1184–C1186 Not used CKDYB102K50 ∗
C1187 Not used CCDSL221J50 ∗
C1188 Not used CKDYF103Z50 ∗
C1189 Not used CKDYB222K50 ∗
C1190 Not used CCDSL470J50 ∗
UCOM BLOCK
C3348, C3349 Not used CKDYF103Z50 ∗
R3482 Not used RD1/4PU103J ∗
R3483 RD1/4PU103J Not used
AV I/O BLOCK
D1825, D1826, D1828, D1829, D1831, HSS104-02 Not used
D1832
D1827, D1830 MTZJ12 Not used
C1867, C1868 CEAS4R7M50 Not used
C1869, C1870 CEAS220M50 Not used
C1871 CKCYF103Z50 Not used
C1884, C1885 Not used CCDSL560J50 ∗
CN1811 Plug 10-P KM250MA10 Not used
TELETEXT BLOCK
R2052 Not used RD1/4PU101J ∗
AWV1566 and AWV1542 are constructed the same except for the following:
Mark Remarks
Symbol and Description Part No.
AWV1542 AWV1566

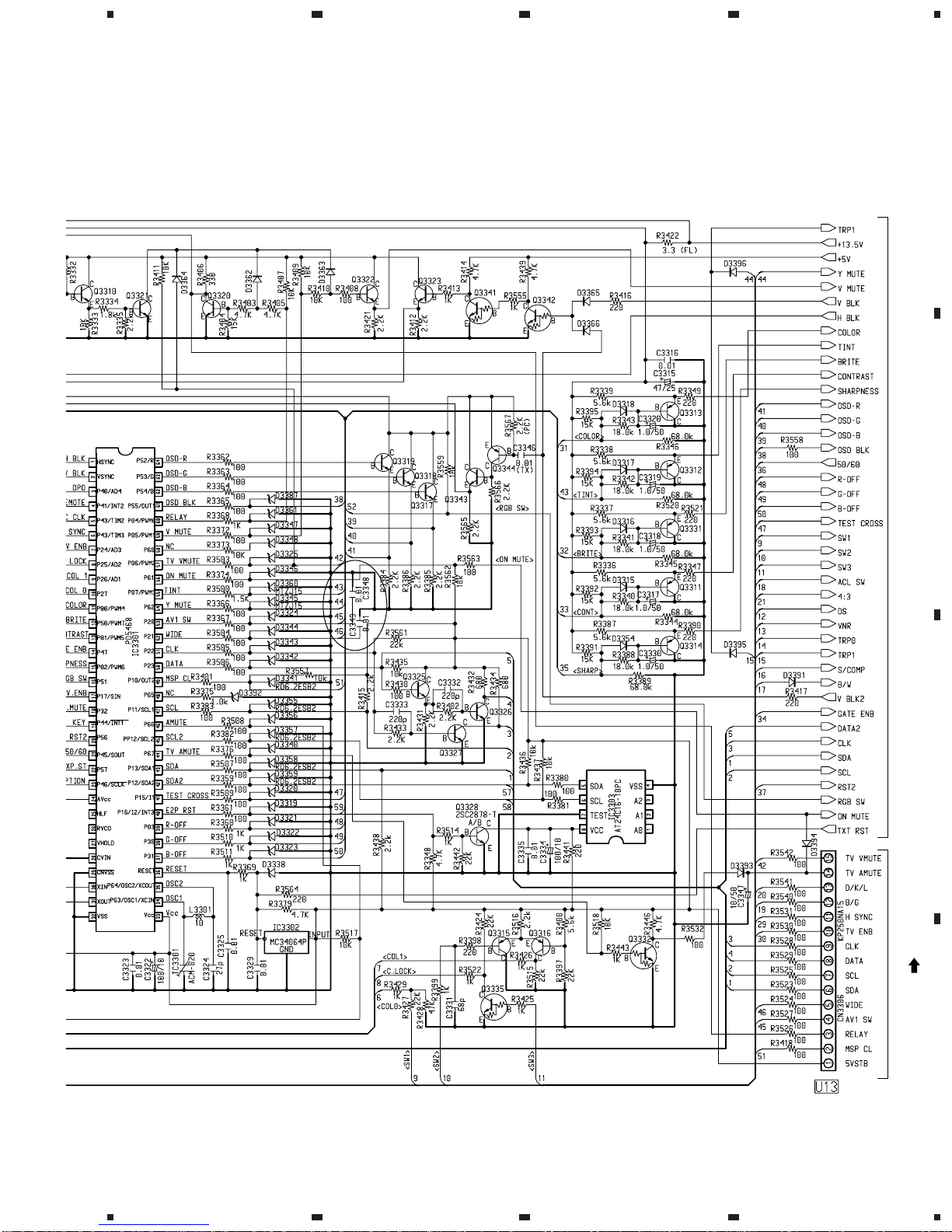

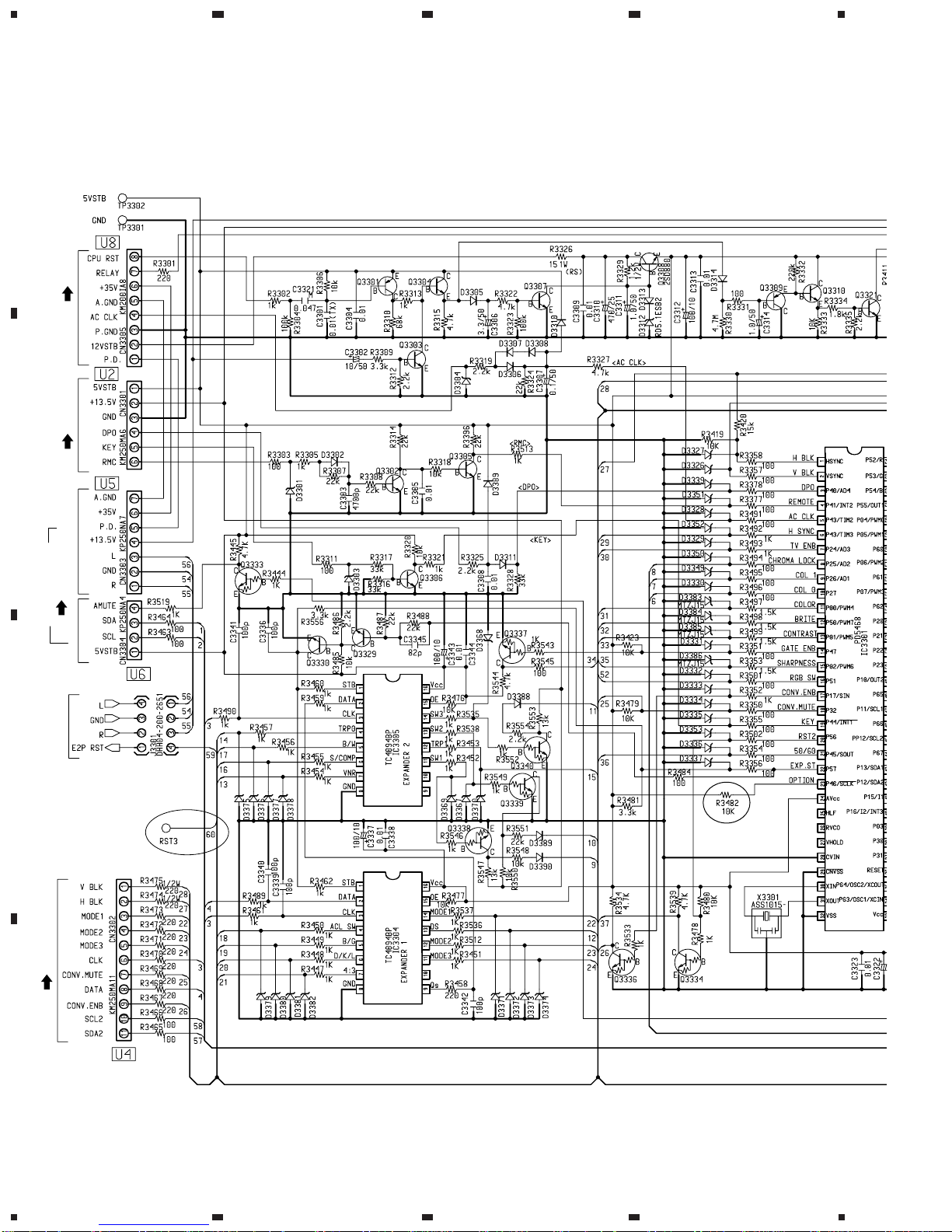

VIDEO • UCOM ASSY
CONTRAST OF PCB ASSEMBLIES
AWZ6121 and AWZ6082 are constructed the same except for the following:
Mark Remarks
Symbol and Description Part No.
AWZ6082 AWZ6121
AV I/O ASSY
Q3901, Q3902 2SC2458 Not used
D3901, D3902 MTZJ15 Not used
C3902, C3903 CEAS4R7M50 Not used
C3905 CKCYF473Z50 Not used
C3906 CEAS470M25 Not used
R3901, R3902 RD1/4PU474J Not used
R3903–R3905 RD1/4PU750J Not used
R3906–R3909 RD1/4PU473J Not used
R3910, R3911 RD1/4PU102J Not used
R3913, R3914 RD1/4PU472J Not used
CN3902 Pin Jack (1P) AKB1063 Not used
CN3903 Pin Jack (1P) AKB1062 Not used
CN3904 Pin Jack (1P) AKB1064 Not used
CN3901 Socket AKP1081 Not used
CN3905 Plug 10-P KM250MA10 Not used
AWZ6122 and AWZ6083 are constructed the same except for the following:
Mark Remarks
Symbol and Description Part No.
AWZ6083 AWZ6122
FRONT CONTROL ASSY
∗: Refer to " 2. SCHEMATIC DIAGRAM ".
∗: Refer to " 2. SCHEMATIC DIAGRAM ".

SD-T50W1
6
L3703, L3704 Line Filter Not used ATF1090 ∗
L3707–L3710 Not used ATX1008 ∗
C3748, C3749 Not used CKCYB332K50 ∗
C3750, C3751 Not used CKCYF473Z50 ∗
C3762, C3764, C3765 Not used CCDSL221J50 ∗
C3763 Not used CCCSL221J50 ∗
R3734, R3735 RD1/4LMF100J RD1/4LMF101J
R3757–R3760 Not used RD1/4LMF100J ∗
R3771 Not used RD1/2PM101J ∗
AWZ6123 and AWZ6086 are constructed the same except for the following:
Mark RemarksSymbol and Description Part No.
AWZ6086 AWZ6123
AUDIO ASSY
CN902, CN903 Plug 2-P AKM1127 Not used
AWZ6420 and AWZ6090 are constructed the same except for the following:
Mark Remarks
Symbol and Description Part No.
AWZ6090 AWZ6420
AC IN ASSY
POWER SUPPLY BLOCK
D131 S5688G HSS104-02
D140 HSS104-02 Not used
C117 CCDSL101J50 CCCSL101J50
T101 ATT1273 ATT1283
RY101 ASR1036 Not used
CN106 Not used AKM1127 ∗
H. DEFLECTION BLOCK
VR201 (470Ω) ACP1039 VCP1149
HIGH VOLTAGE BLOCK
C330 CCDSL101K2H CCCSL101K2H
AWV1767 and AWV1546 are constructed the same except for the following:
Mark RemarksSymbol and Description Part No.
AWV1546 AWV1767
POWER SUPPLY ASSY
C721–C727 Not used CCDSL101J50 ∗
KN601, KN9998 Not used ANK-142 ∗
AWV1547 and AWV1520 are constructed the same except for the following:
Mark Remarks
Symbol and Description Part No.
AWV1520 AWV1547
CONVERGENCE ASSY
*: Refer to " 2. SCHEMATIC DIAGRAM ".
*: Refer to " 2. SCHEMATIC DIAGRAM ".
*: Refer to " 2. SCHEMATIC DIAGRAM ".

SD-T50W1
7

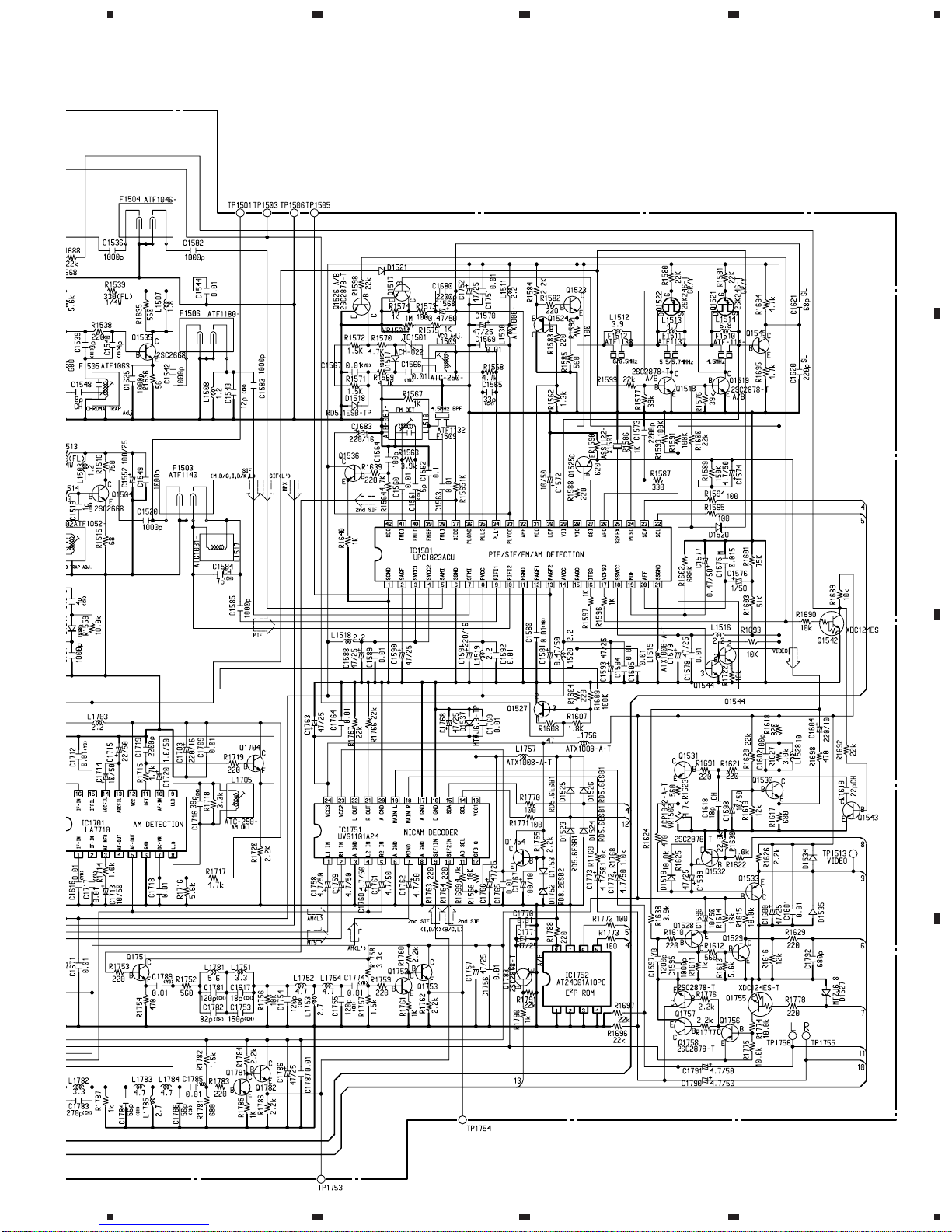

TUNER ASSY
SEMICONDUCTORS
IC1752 AT24C01A10PC
IC1651 CXA1734S
IC1701 LA7710
IC1501 UPC1823ACU
IC1751 UVS1101A24
Q1524, Q1527, Q1528, Q1533, Q1756 2SA1048
Q1501, Q1510, Q1512, Q1516, Q1517 2SC2458
Q1523, Q1525, Q1529–Q1531, Q1536 2SC2458
Q1543–Q1545, Q1651, Q1653, Q1704 2SC2458
Q1751–Q1754, Q1781, Q1782 2SC2458
Q1502–Q1508, Q1535, Q1540, Q1541 2SC2668
Q1701–Q1703, Q1759 2SC2668
Q1518, Q1519, Q1526, Q1532 2SC2878
Q1757, Q1758, Q1783 2SC2878
Q1521, Q1522 2SK246
Q1511, Q1513–Q1515, Q1542, Q1755 XDC124ES
D1508–D1514, D1517, D1533 1SS85
D1501–D1506, D1519–D1521 HSS104-02
D1530–D1532, D1534, D1535, D1753 HSS104-02
D1536, D1651, D1652 MTZJ15
D1515, D1516, D1527, D1537 MTZJ6.8
D1507 RD33ESB3
D1518 RD5.1ESB
D1523–D1526 RD5.6ESB1
D1538 RD6.8ESB
D1752 RD8.2ESB2
COILS AND FILTERS
L1509, L1705 ATC-250
L1510 ATE-067
F1510 ATF-114
F1504 ATF1046
F1508, F1513, F1514 ATF1051
F1502 ATF1052
F1501 ATF1053
F1505, F1507 ATF1063
F1509 ATF1132
F1511 ATF1137
F1512 ATF1138
F1503 ATF1140
F1506 ATF1180
F1701 ATF1181
L1517 ATG1031
L1515, L1530, L1756, L1757 ATX1008
L1528 LAU100K
L1503, L1508 LAU1R2J
L1507, L1702, L1704 LAU1R8J
L1501, L1511, L1516, L1518–L1520 LAU2R2K
L1529, L1651, L1703 LAU2R2K
L1785 LAU2R7J
L1753 LAU2R7K
L1782 LAU3R3J
L1751 LAU3R3K
L1512 LAU3R9J
L1513, L1783, L1784 LAU4R7J
L1752, L1754 LAU4R7K
L1781 LAU5R6J
L1514 LAU6R8J
L1504, L1701, L1721, L1722, L1724 LAUR22J
CAPACITORS
C1660 (3.3 µF/50V) ACH1128
C1653 (10 µF/50V) ACH1129
TC1501 ACM-022
C1725 CCCCH100D50
C1701, C1722 CCCCH101J50
C1543, C1727 CCCCH120J50
C1723, C1781 CCCCH121J50
C1753 CCCCH151J50
C1617, C1618 CCCCH180J50
C1619 CCCCH220J50
C1783 CCCCH271J50
C1565 CCCCH330J50
C1716 CCCCH390J50
C1515–C1517, C1540, C1613, C1614 CCCCH4R0C50
C1634 CCCCH4R0C50
C1784, C1788 CCCCH560J50
C1557, C1561, C1633 CCCCH5R0C50
C1531, C1728 CCCCH680J50
C1508, C1611 CCCCH6R0D50
C1584, C1612 CCCCH7R0D50
C1782 CCCCH820J50
C1548 CCCCH8R0D50
C1556 CCCCH9R0D50
C1506, C1507, C1510, C1539, C1551 CCCCJ3R0C50
C1519 CCCCK1R0C50
C1518, C1550 CCCCK2R0C50
C1527–C1530, C1564, C1602, C1793 CCCSL101J50
C1754, C1755 CCCSL121J50
C1620 CCCSL221J50
C1512 CCCSL560J50
C1621 CCCSL680J50
C1503, C1572, C1596, C1598, C1652 CEAS100M50
C1713, C1714 CEAS100M50
C1526, C1767 CEAS101M10
C1552, C1554, C1667, C1682, C1687 CEAS101M25
C1705, C1707 CEAS101M25
C1523 CEAS102M16
C1576, C1654, C1659, C1720 CEAS1R0M50
C1715 CEAS220M50
C1604 CEAS221M10
Mark No. Description Part No. Mark No. Description Part No.
PCB PARTS LIST

SD-T50W1
8
C1591, C1683, C1703 CEAS221M16
C1570, C1579, C1588, C1590, C1593 CEAS470M25
C1599, C1600, C1670, C1752, C1757 CEAS470M25
C1763, C1766, C1768, C1771, C1786 CEAS470M25
C1586 CEAS471M16
C1574, C1655, C1656, C1664–C1666 CEAS4R7M50
C1668, C1669, C1758–C1762 CEAS4R7M50
C1772, C1773, C1790, C1791 CEAS4R7M50
C1501 CEAS6R8M50
C1568, C1577, C1581, C1661 CEASR47M50
C1657 CFTXA224J50
C1622 CFTXA334J50
C1562 CFTYA104J50
C1504, C1505, C1509, C1511 CKCYB102K50
C1513, C1514, C1520, C1536, C1542 CKCYB102K50
C1545–C1547, C1549, C1553, C1555 CKCYB102K50
C1558, C1559, C1582, C1583, C1585 CKCYB102K50
C1595, C1610, C1625, C1708, C1710 CKCYB102K50
C1721, C1726 CKCYB102K50
C1560, C1563, C1566, C1567, C1580 CKCYB103K50
C1605, C1616, C1711, C1712, C1717 CKCYB103K50
C1774 CKCYB103K50
C1597 CKCYB122K50
C1573, C1651, C1658, C1719 CKCYB222K50
C1792 CKCYB681K50
C1502, C1521, C1522, C1524, C1525 CKCYF103Z50
C1534, C1544, C1578, C1587, C1589 CKCYF103Z50
C1592, C1594, C1601, C1671, C1672 CKCYF103Z50
C1684–C1686, C1704, C1706, C1709 CKCYF103Z50
C1718, C1751, C1756, C1764, C1765 CKCYF103Z50
C1769, C1770, C1785, C1787, C1789 CKCYF103Z50
C1680 CKDYB222K50
C1569, C1688 CKDYF103Z50
C1575 CQMA153J50
C1663 CQMA272J50
C1662 CQMA473J50
RESISTORS
R1504 RD1/2PM562J
R1517, R1518 RD1/2PM681J
R1506, R1550, R1795 RD1/4LMF101J
R1539 RD1/4LMF331J
R1513, R1533, R1710 RD1/4LMF471J
R1703 RD1/4LMF681J
R1655 RN1/4PC4302F
R1656 RN1/4PC6202F
R1606 RS2LMF4R7J
VR1502 (4.7 kΩ) ACP1042
VR1501 VRTS6VS105
Other Resistors RD1/4PU J
OTHERS
X1501 (15.675 kHz) ASS1122
7100 SCREW BBZ30P060FMC
J1501, J1502 JUMPER WIRE D15A12-125-2468
RELAY ASSY
SEMICONDUCTORS
D921 HSS104-02
SWITCHES AND RELAYS
RY921 ASR1036
OTHERS
CN921, CN922 PLUG 2-P AKM1127
CN924 PLUG 3-P AKM1128
CN923 PLUG 3-P KM250MA3
Mark No. Description Part No. Mark No. Description Part No.

SD-T50W1
9
A
B
C
D
1234
1234

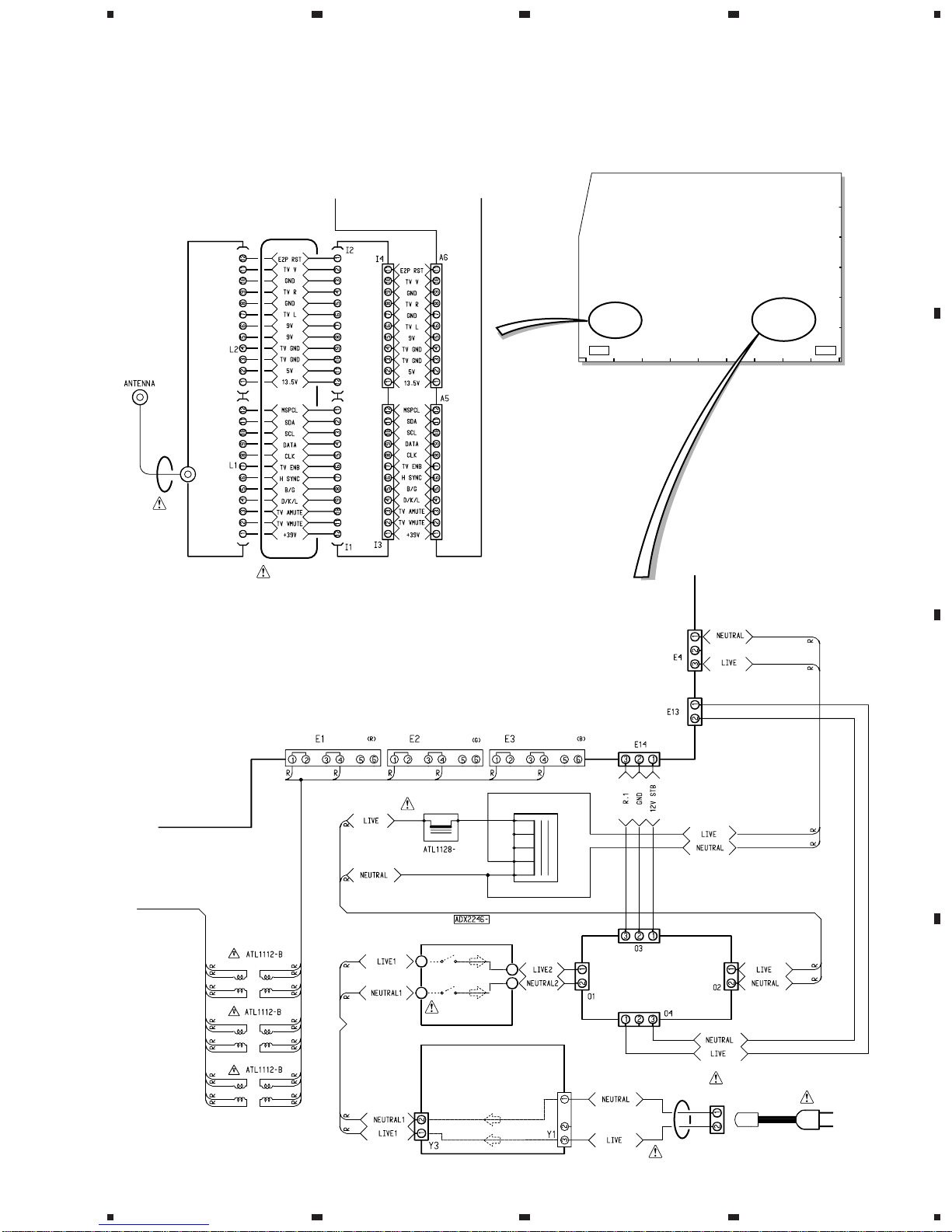

5.1 OVERALL WIRING DIAGRAM
SCH-1 SCH-1
RELAY ASSY
(AWV1768)
TUNER ASSY (AWZ6155)
C CONNECTOR ASSY ASSY (AWZ6081) AV I/O ASSY ASSY (AWZ6121)
AC IN ASSY
(AWZ6420)
POWER SUPPLY ASSY
(AWV1767)
AC POWER CORD
ADG1107
AC220–240V
50/60Hz
AC INLET
AKP1021
L4
CHOKE COIL
J13 ADX2247
J101
ADX2536
CN106
CN101
J12
ADX2537
CN924
CN903
CN901
CN921 CN923 CN922
J11
ADX2538
T1 POWER
TRANSFORMER
L5 FERRITE CORE
ATX1019
L6
FERRITE CORE
ATX1019
S2
POWER SWITCH
ASG1082
L7
BLOCK CORE
ATX1030
ATS1555
2. SCHEMATIC DIAGRAM
Note: When ordering service parts, be sure to refer to "EXPLODED VIEWS AND PARTS LIST" or "PCB PARTS LIST".
Only the differences in the overall wiring diagram between WYZI7/2 type
and SL type are shown.
2.1 OVERALL WIRING DIAGRAM

SD-T50W1
10
A
B
C
D
1234
1234
To POWER TRANSFORMER
J13
ADX2247
POWER SUPPLY ASSY (1/3)
(AWV1767)
Power Supply Block
RELAY DRIVE ASSY E13
( SCH–17)
ADX2536
J12 ADX2537

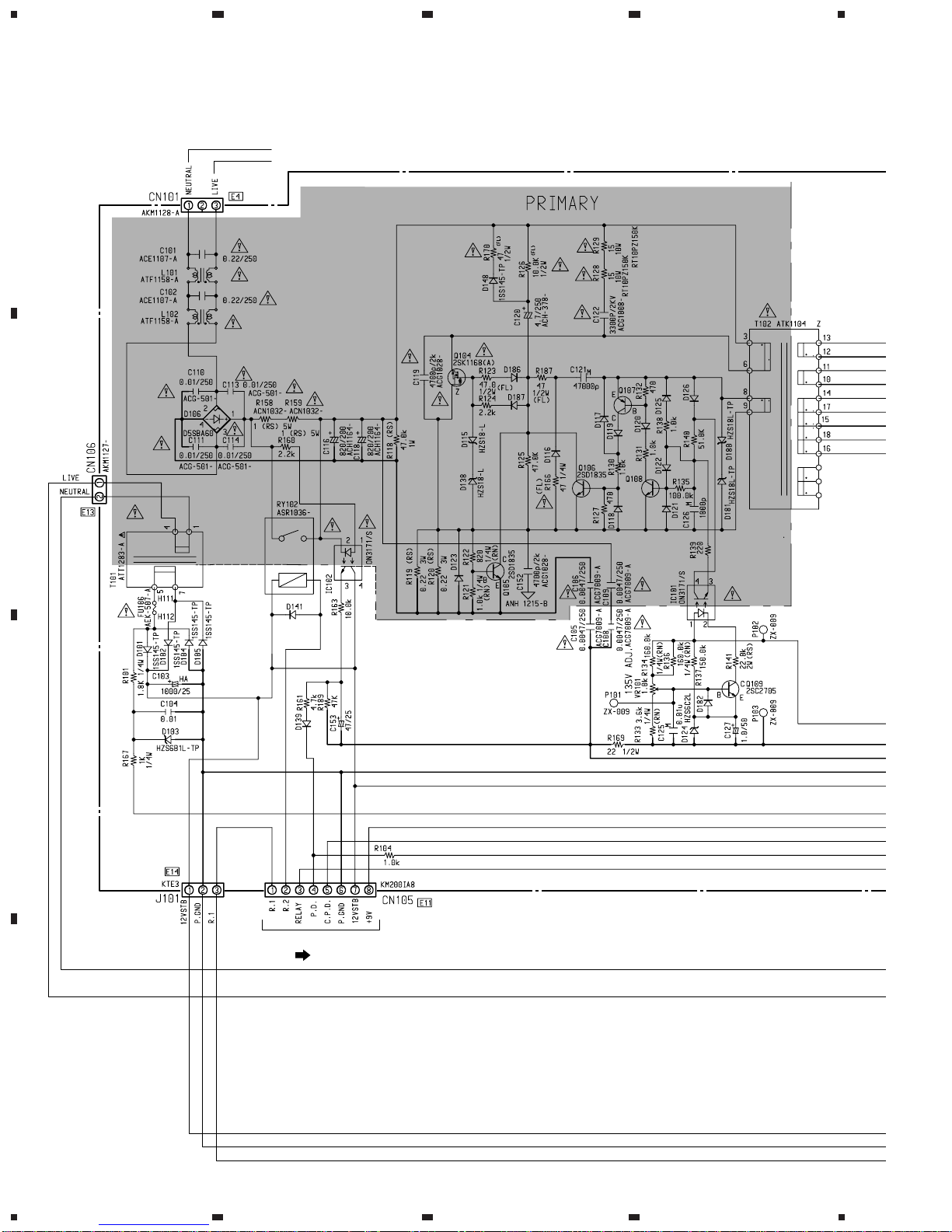

2.2 POWER SUPPLY and RELAY ASSEMBLIES
Only the differences in the power supply assy between WYZI7/2 type and SL type are shown.
